2BHDZTL-BM501CBaby Monitor Camera

Dongguan Tianluo Electronic Technology Co.,Ltd 2024-07-30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BHDZTL-BM501C ) [Dongguan Tianluo Electronic Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Deng Long general manager Dongguan Tianluo Electronic Technology Co.,Ltd 201room,Block 4,Longchang Science Park,No.26,Hantang Street,Dongcheng District,Dongguan,Guangdong,China Dongguan Tianluo Electronic Technology Co.,Ltd 2024-07-30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2BHDZTL-BM501C ) [Dongguan Tianluo Electronic Technology Co.,Ltd ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Deng Long general manager Dongguan Tianluo Electronic Technology Co.,Ltd 201room,Block 4,Longchang Science Park,No.26,Hantang Street,Dongcheng District,Dongguan,Guangdong,China

Attestation Statements (2024/8/19) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC：2BHDZ) (Dongguan Tianluo Electronic Technology Co.,Ltd), the undersigned, hereby authorize Wilson Tech Service LLC to act as our designated U.S. agent for service of process, (Dongguan Tianluo Electronic Technology Co.,Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Wilson Tech Service LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Dongguan Tianluo Electronic Technology Co.,Ltd Contact Name: Deng Long Address: 201room,Block 4,Longchang Science Park,No.26,Hantang Street,Dongcheng District,Dongguan,Guangdong,China FRN: 0035635168 Telephone No: 13662973545 Email: [email protected] Signature [Deng Long] U.S. Agent Information: Company Name: Wilson Tech Service LLC Address: 1312 17th Street Suite 692, Denver, CO, 80202, US FRN: 0033402033 Contact Name: Wilson Cheung Telephone No: +1-716-965-5112 Email: [email protected] Signature [Wilson Cheung]

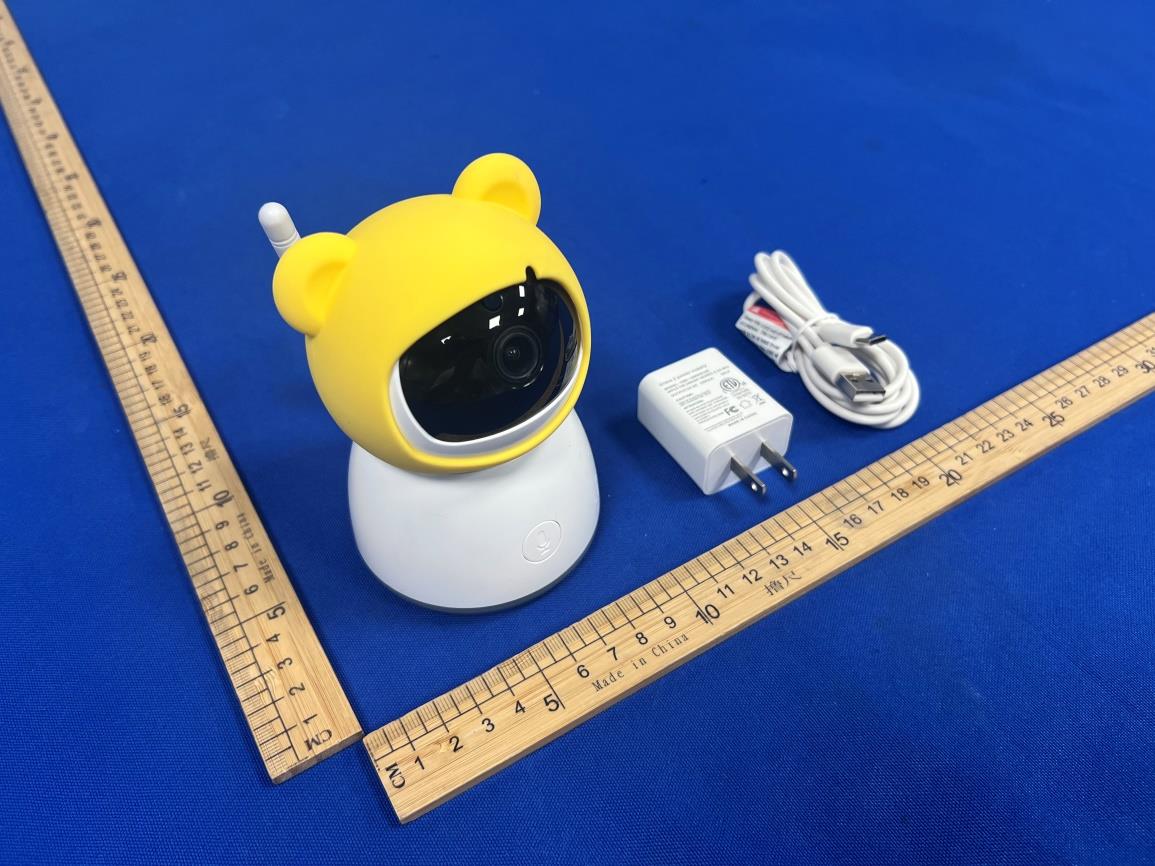

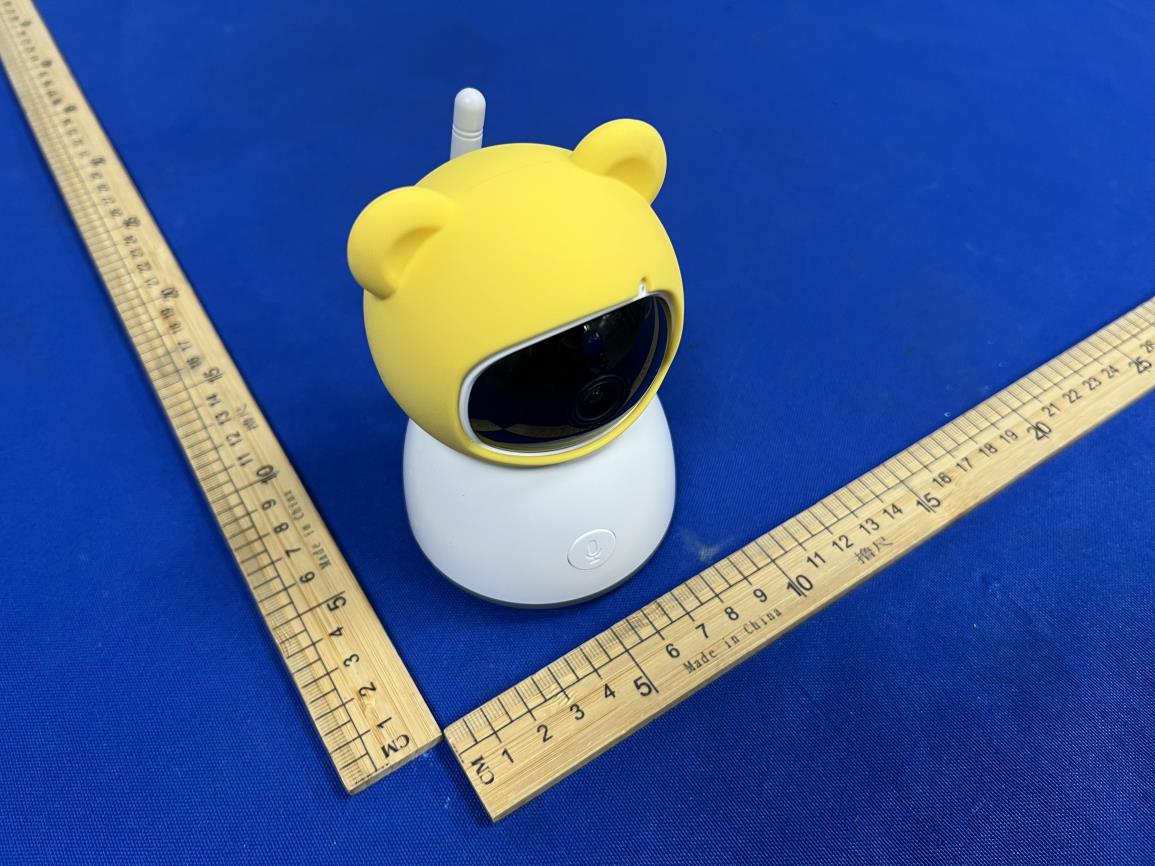

Baby Monitor Camera Model: TL-BM501C Voltage: DC5V FCC ID: 2BHDZTL-BM501C Made in China

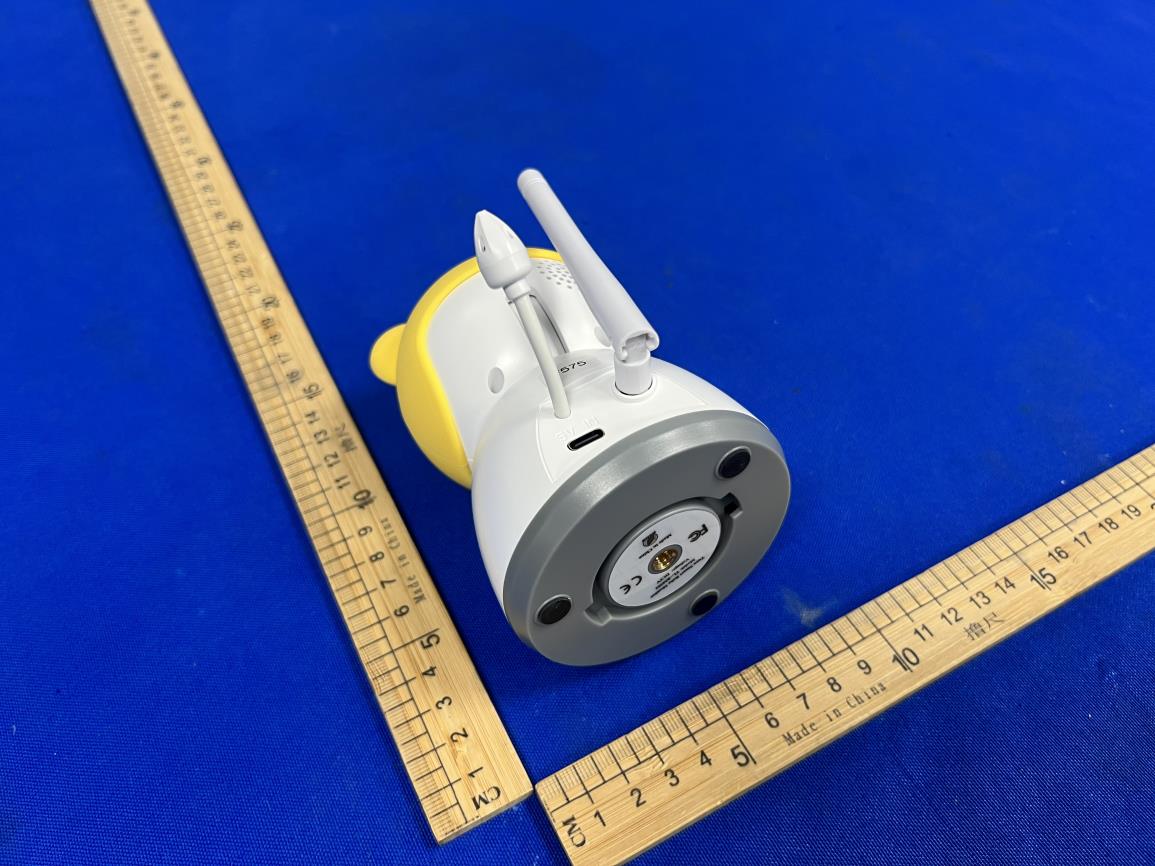

Antenna Antenna

RF EXPOSURE EVALUATION EUT Specification EUT Baby Monitor Camera Model Number TL-BM501C FCC ID 2BHDZTL-BM501C Antenna Gain 4.4dBi Operation Frequency BLE: 2402 MHz to 2480 MHz WIFI: 2412 MHz to 2462 MHz Modulation BLE: GFSK 802.11b: DSSS(DBPSK/DQPSK/CCK) 802.11g/n: OFDM(BPSK/QPSK/16QAM/64QAM) Power Supply AC120V/60Hz Max. output power BLE: -1.03dBm Chip type: AB6031X IEEE 802.11b: 16.48 dBm IEEE 802.11g: 13.26 dBm IEEE 802.11n-HT20: 13.27 dBm Chip type: AB6032 IEEE 802.11b: 16.51 dBm IEEE 802.11g: 14.92 dBm IEEE 802.11n-HT20: 14.93 dBm Test Requirement: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Measurement Result Antenna gain: 4.4dBi BLE: Chip type: AB6031X Mode Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain (Numeric) Evaluation result (mW/cm 2 ) Power density Limits (mW/cm 2 ) GFSK (1M) 2402 -1.27 -1±1 0 2.75 0.000547 1 GFSK (1M) 2440 -1.78 -2±1 -1 2.75 0.000435 1 GFSK (1M) 2480 -2.61 -3±1 -2 2.75 0.000345 1 GFSK (2M) 2402 -1.03 -1±1 0 2.75 0.000547 1 GFSK (2M) 2440 -1.61 -2±1 -1 2.75 0.000435 1 GFSK (2M) 2480 -2.43 -2±1 -1 2.75 0.000435 1 WIFI: Chip type: AB6031X Mode Channe l Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain (Numeric) Evaluation result (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 2412 16.46 16±1 17 2.75 0.027420 1 2437 16.46 16±1 17 2.75 0.027420 1 2462 16.48 16±1 17 2.75 0.027420 1 802.11g 2412 13.26 13±1 14 2.75 0.008271 1 2437 13.03 13±1 14 2.75 0.008271 1 2462 13.01 13±1 14 2.75 0.008271 1 802.11n HT20 2412 13.27 13±1 14 2.75 0.008271 1 2437 13.06 13±1 14 2.75 0.008271 1 2462 12.96 14±1 15 2.75 0.017301 1 WIFI: Chip type: AB6032 Mode Channe l Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain (Numeric) Evaluation result (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 2412 16.47 16±1 17 2.75 0.027420 1 2437 16.19 16±1 17 2.75 0.027420 1 2462 16.51 17±1 18 2.75 0.034519 1 802.11g 2412 14.85 15±1 16 2.75 0.021780 1 2437 14.59 15±1 16 2.75 0.021780 1 2462 14.92 15±1 16 2.75 0.021780 1 802.11n HT20 2412 14.81 15±1 16 2.75 0.021780 1 2437 14.58 15±1 16 2.75 0.021780 1 2462 14.93 15±1 16 2.75 0.021780 1 Maximum Simultaneous transmission MPE Ratio for Bluetooth & 2.4G WIFI & 2.4G WIFI Maximum MPE ratio (Bluetooth) Maximum MPE ratio (2.4G WIFI) (Chip type: AB6031X) Maximum MPE ratio (2.4G WIFI) (Chip type: AB6032) ∑ MPE ratios Limit Results 0.000547 0.027420 0.034519 0.062486 1.000 Pass Signature: Shawn Wen Date: 2024-07-22

东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2024/04/15 编号 File No 24041503 版本 Revision 1.0 客户 CUSTOMER: 嘉松电子 客户料号 CUSTOMER NO: 摇头机Shaking head machine 品名 2 4GHz Antenna L 58MM MHF 品名 PART NAME: 2.4GHz Antenna L=58MM MHF 供方料号 SUPPLIER NO: YJL01.205.002.101A 送样日期 Date: 送样数量Q‘TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 承认书封面（p） 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 18 8 天线装配图（Antenna Profile） 39 ~ 11 9 材质证明（Mt ilC tifi t） 1912309 材质证明（Material Certificate ） 1912 ~ 30 10 RoHS报告（RoHS Test Report ） **** 11N/AN/AN/A add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12--- 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 55dBi Gain 5.5 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length58mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% AntennaPerformance Test Agilent Antenna Performance Te s t Agilent E5071B SS Parameter Test // WiFi Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y X X Z Y X add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For WiFi Antenna(2.4G) FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 81.1 -0.9 5.5 2410 82.4 -0.8 5.5 2420 81.1 -0.9 5.4 2430 80.0 -1.0 5.4 2440 78.7 -1.0 5.2 2450 81.1 -0.9 5.3 2460 76.7 -1.2 5.2 2470 79.4 -1.0 5.3 2480 77.5 -1.1 5.2 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 78.9 -1.0 5.2 2500 75.2 -1.2 4.8 Radiation Pattern For WiFi Antenna(2450MHz) add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 DeviceDevice add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 WiFi Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 WIFIA tWIFI Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 江阴凯博通信科技有限公司 JIANGYINKAIBOCOMMUNICATIONTECHNOLOGYCO.,LTD. MaterialSafetyDataSheet（物質安全資料表） 一、物品与厂商资料 物品名称：同轴高频线 物品编号：KB113/50系列 制造商或供货商名称、地址：江阴市凯博通信科技有限公司/江苏省江阴市澄江镇梅园大街391号 紧急联络电话/传真电话：0510-86070001/86070020 二、成分辨识资料 纯物质： 中英文名称：聚全氟乙丙烯FLUORINATEDPROPYLENEETHYLENE/镀锡线TINNEDCOPPER/镀银铜线 /SilverplatedCopper 同义名称：FEP/TX/SC 危害物质成分(成分百分比)：无 危害物质： 危害物质浓度或浓度范围（单位：ppm） 铅及其化合物Pb≤90 镉及其化合物Cd≤75 汞及其化合物Hg≤1000 六价铬及化合物≤1000 卤素 氯Cl≤900 氯Cl+溴Br≤1500 溴Br≤900 SVHC15种物质禁止使用 三、危害辨识数据 最 重 要 危 害 效 应 健康危害效应：在260°C以上,可能会有吸入分解气体的危险.一定要安装排气装置. 环境影响：要按废弃物处理及清扫法律法规处理,绝对不可燃烧. 物理性及化学性危害：物理化学性能及其稳定,不易降解,不得擅自填埋. 特殊危害：无 主要症状：对人的神经系统产生损害 物品危害分类：大气和水源 四、急救措施 不同暴露途径之急救方法： ̇吸入：到空气流通处换气. ̇皮肤接触：无 ̇眼睛接触：无 ̇食入：不消化,排出. 最重要症状及危害效应：无 对急救人员之防护：对流换气 对医师之提示：吸氧 五、灭火措施 适用灭火剂：通用 灭火时可能遭遇之特殊危害：避免分解气体吸入 特殊灭火程序：无 消防人员之特殊防护设备：防毒面罩 六、泄漏处理方法 个人应注意事项：粉状树脂 环境注意事项：不可填埋 清理方法：要按废弃物处理及清扫法律法规处理,绝对不可燃烧. 七、安全处置与储存方法 处置：避免与高温和火源接触. 储存：通风干燥处. 八、暴露预防措施 工程控制：无 控制参数： ̇八小时日时量平均容许浓度/短时间时量平均容许浓度/最高容许浓度： ̇生物指标： 个人防护设备： ̇呼吸防护：安装排气装置 ̇手部防护：无 ̇眼睛防护：无 ̇皮肤及身体防护：无 卫生措施：应将衣服上附着的灰尘抖落,手脸洗净,不要让其附着于香烟上. 九、物理及化学性质 物质状态：固体形状：透明颗粒 颜色：透明气味：无 pH值：7沸点/沸点范围：/ 分解温度：360°C闪火点：/ 自燃温度：/爆炸界限：/ 蒸气压：/蒸气密度：/ 密度：2.2溶解度：/ 十、安定性及反应性 安定性：很稳定 特殊状况下可能之危害反应：高温或燃烧分解气体对人体神经系统的损害. 应避免之状况：绝对不可燃烧. 2023/11/12制表日期 人表姓名(签章)：制 地址/电话：江阴市83/0510-86070012 名称：江阴凯博通信科技有限公司 制窗体位 限用物资标准/SONY杜邦产品说明参考文献 十六、其它数据 法规相关要求。REACH适用法规：遵循欧盟 十五、法规资料 特殊运送方法及注意事项：无 无国内运送规定： /联合国编号： /国际运送规定： 十四、运送资料 .废弃处置方法：按废弃物处理及清扫法律法规要求送专业资质处理公司处置 十三、废弃处置方法 禁填埋,环境流布：不降解/可能之环境影响 十二、生态资料 /特殊效应： /慢毒性或长期毒性： /致敏感性： /局部效应： /急毒性： 十一、毒性资料 .气体及粉尘危害分解物： .应避免之物质：金属钠及其强酸的混合物 File No.2302 CHEMICAL PRODUCT NAME : DURANEXXFR4840 NAME OF COMPANY :WinTech Pol ymer Ltd. Issued:Dec 20 , 2007 Revised:Dec 20 , 2007 1. CHEMICAL PRODUCT COMPANY IDENTIFICATION MATERIAL SAFETY DATA SHEET (MSDS) SECTION IN CHARGE :Quality Assurance Dept. ADDRESS :2-18-1 Konan, Minato-ku, Tokyo,108-8280 Japan TELEPHONE NUMBER :03-6711-8605 FACSIMILE NUMBER :03-6711-8616 2. COMPOSITION/INFORMATION ON INGREDIENTS SUBSTANCE/PREPA RATION Preparation : COMMON CHEMICAL NAME Polybutyleneterephthalate : SYNONYMSPolybutyleneterephthalate(PBT) : INGREDIENTS AND COMPOSITION PBT 80%, Phosphorus Flame retardant and others 20% : CHEMICAL FORMURA   : SERIAL No IN OFFICIAL GAZETTE 7-1039 base resin (Law Concerning Examination and Regulation of Manufacture,etc.,of Chemical Substances) : CAS No base resin : 3. HAZARDS IDENTIFICATION PHYSICAL AND CHEMICAL HAZARDS Not applicable : HUMAN HEALTH EFFECTS Not applicable : ENVIRONMENTAL EFFECTS Not applicable : PHYSICAL AND CHEMICAL HAZARDS It is inflammable substance and combustible if an igniting source is existent. Neither dangerous reaction,fire nor explosion can be caused under normal conditions. : THE CLASSIFICATION Not applicable : 4. FIRST-AID MEASURES INGESTIONHelp to vomit as much as possible. If sick feeling continues,and ask a physician for advice. : INHALATIONWhen a gas generated from the molten polymer,especially fume generated during combustion or heat, has been inhaled,remove fresh air without delay and wait until the victim is recovered. If sick feeling continues,ask a physician for advice. : SKIN CONTACTCool the contacted skin with clean water without delay,if a contact with the polymer In a molten form. Do not force to remove the solid resin on the skin. If any burns are observed on the skin,ask a physician for advice. : 1/5 PageWinTech Polymer Ltd. DURANEX XFR4840 Dec 20 , 2007 EYE CONTACTCool and rinse the eye with clean water for at least 15 minutes when the eyes had contact with molten polymer. In case of wearing contact lenses,remove the lenses as soon as possible,and as…

Text truncated - open the document above for the full version.

东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2024/04/15 编号 File No 24041502 版本 Revision 1.0 客户 CUSTOMER: 嘉松电子 客户料号 CUSTOMER NO: 摇头机Shaking head machine 品名品名 PART NAME: WiFi Antenna L=145mm MHF 供方料号 SUPPLIER NO: YJL01.205.002.301A 送样日期 Date: 送样数量Q‘TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 承认书封面（p） 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 18 8 天线装配图（Antenna Profile） 39 ~ 11 9 材质证明（Mt ilC tifi t） 4312 549 材质证明（Material Certificate ） 4312 ~ 54 10 RoHS报告（RoHS Test Report ） **** 11N/AN/AN/A add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12--- 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 44dBi Gain 4.4 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length145mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Antenna Performance Test Agilent Antenna Performance Te s t Agilent E5071B SS Parameter Test // BT Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y X X Z Y X add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 P assive Test For WIFI Antenna(2.4G) FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 70.3 -1.5 4.4 2410 70.0 -1.6 4.1 2420 67.9 -1.7 3.7 2430 67.3 -1.7 3.3 2440 66.7 -1.8 3.2 2450 69.8 -1.6 3.7 2460 68.4 -1.7 3.4 2470 71.6 -1.5 3.7 2480 69.3 -1.6 3.6 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 70.8 -1.5 3.6 2500 67.5 -1.7 3.3 Radiation Pattern For BT Antenna(2450MHz) add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 DeviceDevice add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 WIFI Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 1 版權 2021-01-10 First, chemical products and materials for business Chemical name: PSM-800FSDM-A/SMH-800 liquid solid plate ink Other names: Use and restricted use of construction: flexible printed circuit board (PI/Cu), hand machine roof board Name, address and address of the creator, entrant or supplier: Creator: Yueli Reachability Co., Ltd. Address: No.22 Jingjian Fourth Road, Guanyin District, Taoyuan City: 886-3- 4836651 Urgent/true: 886-3-4836651, true: 886-3-4837487 Second, the hazard identification of resources and materials Hazard classification of chemical products: Health and environmental hazards: Acute toxicity (swallowing) 4, rot/skin irritation 2, heavy weight/eye irritation 2, skin Pass sensitive substance first, carcinogenic substance second, and hazardous substance second (acute toxicity). Indication of content: S y m b o l n u m b e r : Warning language: Warning hazard warning interest: Harmful to swallow Cause skin irritation Causing severe eye irritation may cause skin hypersensitivity and suspected carcinogenesis Toxic to aquatic organisms Hazard prevention measures: Put the container in a place with good ventilation far away from the high temperature Do not eat or drink when using Remove the blindfold/face mask immediately when your clothes are contaminated If you touch your eyes, wash them with plenty of water immediately, and then ask the mud to wear suitable gloves Do not inhale gas/gas/steam gas/gas before use Place it in the upper lock Do not place until you know all safety precautions Avoid releasing release in the environment Other hazards:- III. Composition identification of PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 2 版權 2021-01-10 capital mixture: Liquid solid plate ink PSM-800FSDM-A/SMH-800 Chemical geology: Chinese and English names of hazardous components Register number of Chemical Digest Service (CAS No.) Degree or degree (percentage of components) Oxygen acrylate oligmer Epoxy acrylate oligmer 28064-14-4 50% Silicon dioxide Fused silica 7631-86-9 13% Aromatic solution 64742-94-5 4% PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 3 版權 2021-01-10 Methyl dipropylene glycol 34590-94-8 4% Carbon black 1333-86-4 3.5% BaSO4 sulfate 13462-86-7 24% Photoinitiator and the others 5495-84-1 1.5% Fourth, first aid measures First aid methods for the same road: Inhalation: 1. Take self-protection measures before rescue. 2. Remove pollution sources or move patients to new places. 3. If a patient stops breathing, artificial respiration should be given immediately by the person who has been adalmed. If the heart stops, cardiopulmonary resuscitation should be given. When the patient inhales and swallows toxic substances, mouth-to-mouth artificial respiration should be used directly, and pocket masks and other medical equipment should be used for artificial respiration. 4. Maintain the patient's safety and normal temperature. 6. Treat the cure quickly. Pi Mo: Wash the contaminated area with harmonious water for at least 20 minutes, and remove contaminated clothes, shoes and leather products before water. Eye touching: Immediately open the eyelids and wash the contaminated eyes with water for at least 20 minutes, and immediately take care of them. Intake: 1. If the patient will be frustrated, or has been frustrated, he can feed anything. 2. It can induce vomiting and give 240-300ml of water. 3. If you vomit spontaneously, rinse your mouth and supply water repeatedly. The most important diseases and harmful effects:- Protection against first aid workers:- Tips for doctors:- V. Fire measures Suitable for fire: chemical dry powder, wine foam, c…

Text truncated - open the document above for the full version.

1 / 47 Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Final settingFor VBW (kHz) NVNT b 2412 Ant1 8.34 8.48 98.35 0 0.12 1 NVNT b 2437 Ant1 8.34 8.49 98.23 0 0.12 1 NVNT b 2462 Ant1 8.34 8.48 98.35 0 0.12 1 NVNT g 2412 Ant1 1.38 1.42 97.18 0.12 0.73 1 NVNT g 2437 Ant1 1.38 1.42 97.18 0.12 0.73 1 NVNT g 2462 Ant1 1.38 1.42 97.18 0.12 0.72 1 NVNT n20 2412 Ant1 1.29 1.33 96.99 0.13 0.78 1 NVNT n20 2437 Ant1 1.29 1.33 96.99 0.13 0.78 1 NVNT n20 2462 Ant1 1.29 1.33 96.99 0.13 0.78 1 2 / 47 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 3 / 47 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 4 / 47 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 5 / 47 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 6 / 47 Duty Cycle NVNT n20 2462MHz Ant1 7 / 47 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 16.46 0 16.46 30 Pass NVNT b 2437 Ant1 16.46 0 16.46 30 Pass NVNT b 2462 Ant1 16.48 0 16.48 30 Pass NVNT g 2412 Ant1 13.26 0 13.26 30 Pass NVNT g 2437 Ant1 13.03 0 13.03 30 Pass NVNT g 2462 Ant1 13.01 0 13.01 30 Pass NVNT n20 2412 Ant1 13.27 0 13.27 30 Pass NVNT n20 2437 Ant1 13.06 0 13.06 30 Pass NVNT n20 2462 Ant1 12.96 0 12.96 30 Pass 8 / 47 Test Graphs Power NVNT b 2412MHz Ant1 Power NVNT b 2437MHz Ant1 9 / 47 Power NVNT b 2462MHz Ant1 Power NVNT g 2412MHz Ant1 10 / 47 Power NVNT g 2437MHz Ant1 Power NVNT g 2462MHz Ant1 11 / 47 Power NVNT n20 2412MHz Ant1 Power NVNT n20 2437MHz Ant1 12 / 47 Power NVNT n20 2462MHz Ant1 13 / 47 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 10.03 0.5 Pass NVNT b 2437 Ant1 10.01 0.5 Pass NVNT b 2462 Ant1 9.99 0.5 Pass NVNT g 2412 Ant1 16.32 0.5 Pass NVNT g 2437 Ant1 16.33 0.5 Pass NVNT g 2462 Ant1 16.33 0.5 Pass NVNT n20 2412 Ant1 17.05 0.5 Pass NVNT n20 2437 Ant1 17.08 0.5 Pass NVNT n20 2462 Ant1 17.06 0.5 Pass 14 / 47 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 15 / 47 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 16 / 47 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 17 / 47 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 18 / 47 -6dB Bandwidth NVNT n20 2462MHz Ant1 19 / 47 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 14.939 NVNT b 2437 Ant1 14.927 NVNT b 2462 Ant1 14.945 NVNT g 2412 Ant1 16.51 NVNT g 2437 Ant1 16.516 NVNT g 2462 Ant1 16.546 NVNT n20 2412 Ant1 17.518 NVNT n20 2437 Ant1 17.512 NVNT n20 2462 Ant1 17.53 20 / 47 Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 21 / 47 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 22 / 47 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 23 / 47 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 24 / 47 OBW NVNT n20 2462MHz Ant1 25 / 47 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -10.69 0 -10.69 8 Pass NVNT b 2437 Ant1 -10.39 0 -10.39 8 Pass NVNT b 2462 Ant1 -11.09 0 -11.09 8 Pass NVNT g 2412 Ant1 -19.71 0 -19.71 8 Pass NVNT g 2437 Ant1 -20.34 0 -20.34 8 Pass NVNT g 2462 Ant1 -20.5 0 -20.5 8 Pass NVNT n20 2412 Ant1 -20.23 0 -20.23 8 Pass NVNT n20 2437 Ant1 -20.73 0 -20.73 8 Pass NVNT n20 2462 Ant1 -19.83 0 -19.83 8 Pass 26 / 47 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 27 / 47 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 28 / 47 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 29 / 47 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 30 / 47 PSD NVNT n20 2462MHz Ant1 31 / 47 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -47.44 -20 Pass NVNT b 2462 Ant1 -53.28 -20 Pass NVNT g 2412 Ant1 -40.4 -20 Pass NVNT g 2462 Ant1 -47.27 -20 Pass NVNT n20 2412 Ant1 -41.95 -20 Pass NVNT n20 2462 Ant1 -46.29 -20 Pass 32 / 47 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission 33 / 47 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission 34 / 47 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission 35 / 47 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission 36 / 47 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission 37 / 47 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission 38 / 47 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -53.46 -20 Pass NVNT b 2437 Ant1 -52.04 -20 Pass NVNT b 2462 Ant1 -51.08 -20 Pass NVNT g 2412 Ant1 -43.92 -20 Pass NVNT g 2437 Ant1 -43.36 -20 Pass NVNT g 2462 Ant1 -43.75 -20 Pass NVNT n20 2412 Ant1 -45.15 -20 Pass NVNT n20 2437 Ant1 -43.63 -20 Pass NVNT n20 2462 Ant1 -44.38 -20 Pass 39 / 47 Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission 40 / 47 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission 41 / 47 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission 42 / 47 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission 43 / 47 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission 44 / 47 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission 45 / 47 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission 46 / 47 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission 47 / 47 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission

1 / 47 Appendix B Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Final settingFor VBW (kHz) NVNT b 2412 Ant1 8.34 8.48 98.35 0 0.12 1 NVNT b 2437 Ant1 8.34 8.48 98.35 0 0.12 1 NVNT b 2462 Ant1 8.34 8.48 98.35 0 0.12 1 NVNT g 2412 Ant1 1.38 1.42 97.18 0.12 0.73 1 NVNT g 2437 Ant1 1.38 1.42 97.18 0.12 0.73 1 NVNT g 2462 Ant1 1.38 1.42 97.18 0.12 0.72 1 NVNT n20 2412 Ant1 1.29 1.33 96.99 0.13 0.78 1 NVNT n20 2437 Ant1 1.29 1.33 96.99 0.13 0.78 1 NVNT n20 2462 Ant1 1.29 1.33 96.99 0.13 0.78 1 2 / 47 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 3 / 47 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 4 / 47 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 5 / 47 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 6 / 47 Duty Cycle NVNT n20 2462MHz Ant1 7 / 47 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 16.47 0 16.47 30 Pass NVNT b 2437 Ant1 16.19 0 16.19 30 Pass NVNT b 2462 Ant1 16.51 0 16.51 30 Pass NVNT g 2412 Ant1 14.85 0 14.85 30 Pass NVNT g 2437 Ant1 14.59 0 14.59 30 Pass NVNT g 2462 Ant1 14.92 0 14.92 30 Pass NVNT n20 2412 Ant1 14.81 0 14.81 30 Pass NVNT n20 2437 Ant1 14.58 0 14.58 30 Pass NVNT n20 2462 Ant1 14.93 0 14.93 30 Pass 8 / 47 Test Graphs Power NVNT b 2412MHz Ant1 Power NVNT b 2437MHz Ant1 9 / 47 Power NVNT b 2462MHz Ant1 Power NVNT g 2412MHz Ant1 10 / 47 Power NVNT g 2437MHz Ant1 Power NVNT g 2462MHz Ant1 11 / 47 Power NVNT n20 2412MHz Ant1 Power NVNT n20 2437MHz Ant1 12 / 47 Power NVNT n20 2462MHz Ant1 13 / 47 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 10.04 0.5 Pass NVNT b 2437 Ant1 10.04 0.5 Pass NVNT b 2462 Ant1 10.07 0.5 Pass NVNT g 2412 Ant1 16.32 0.5 Pass NVNT g 2437 Ant1 16.32 0.5 Pass NVNT g 2462 Ant1 16.32 0.5 Pass NVNT n20 2412 Ant1 17.03 0.5 Pass NVNT n20 2437 Ant1 17.06 0.5 Pass NVNT n20 2462 Ant1 17.06 0.5 Pass 14 / 47 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 15 / 47 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 16 / 47 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 17 / 47 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 18 / 47 -6dB Bandwidth NVNT n20 2462MHz Ant1 19 / 47 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 13.049 NVNT b 2437 Ant1 13.061 NVNT b 2462 Ant1 13.085 NVNT g 2412 Ant1 16.504 NVNT g 2437 Ant1 16.522 NVNT g 2462 Ant1 16.528 NVNT n20 2412 Ant1 17.506 NVNT n20 2437 Ant1 17.506 NVNT n20 2462 Ant1 17.512 20 / 47 Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 21 / 47 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 22 / 47 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 23 / 47 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 24 / 47 OBW NVNT n20 2462MHz Ant1 25 / 47 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -9.96 0 -9.96 8 Pass NVNT b 2437 Ant1 -10.61 0 -10.61 8 Pass NVNT b 2462 Ant1 -10.55 0 -10.55 8 Pass NVNT g 2412 Ant1 -17.48 0 -17.48 8 Pass NVNT g 2437 Ant1 -18.96 0 -18.96 8 Pass NVNT g 2462 Ant1 -17.74 0 -17.74 8 Pass NVNT n20 2412 Ant1 -18.56 0 -18.56 8 Pass NVNT n20 2437 Ant1 -17.87 0 -17.87 8 Pass NVNT n20 2462 Ant1 -17.88 0 -17.88 8 Pass 26 / 47 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 27 / 47 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 28 / 47 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 29 / 47 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 30 / 47 PSD NVNT n20 2462MHz Ant1 31 / 47 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -47.45 -20 Pass NVNT b 2462 Ant1 -56.44 -20 Pass NVNT g 2412 Ant1 -42.77 -20 Pass NVNT g 2462 Ant1 -47.54 -20 Pass NVNT n20 2412 Ant1 -41.85 -20 Pass NVNT n20 2462 Ant1 -48.8 -20 Pass 32 / 47 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission 33 / 47 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission 34 / 47 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission 35 / 47 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission 36 / 47 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission 37 / 47 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission 38 / 47 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -50.14 -20 Pass NVNT b 2437 Ant1 -49.99 -20 Pass NVNT b 2462 Ant1 -46.9 -20 Pass NVNT g 2412 Ant1 -45.72 -20 Pass NVNT g 2437 Ant1 -45.04 -20 Pass NVNT g 2462 Ant1 -45.62 -20 Pass NVNT n20 2412 Ant1 -43.89 -20 Pass NVNT n20 2437 Ant1 -45.22 -20 Pass NVNT n20 2462 Ant1 -45.05 -20 Pass…

Text truncated - open the document above for the full version.
