2BKL8-HB2myWaves Bluetooth Headband

1. How to Charge: 1. Turn the headband inside out and find the charging port #5 in diagram at the opening. 2. Connect USB charging cable provided to the charging port and the other side of the cable to a power source ( Computer or Power Socket ). 3. LED light on the front of the headband will turn red while charging and change to blue when fully charged. 2. Battery Note: • It will take approximately 2 hours to be fully charged. • Charging cannot be done at the same time as listening to sounds. • Reset for operation can be done while charging if required. • Battery when fully charged will last approximately up to 9 hours. • Red light will flash 5 times if the battery is low. 3. LED Indicator Chart: 4. Pair with Bluetooth Device: 1. Hold Down the || button for 3 Seconds until Status light #4 starts flashing red and blue. 2. Turn the Bluetooth function on the device to be paired. 3. Select, on a paired device, the device name “Musical Eye Mask” from the list of found devices. 4. The passcode is 0000 if asked. 5. Blue light will flash slowly if successfully paired with the headband. 5. Play Music with Bluetooth Pairing: 1. Hold down the Play button quickly to start music or pause. 2. Adjust Volume by pressing + Up or – Down with a short press of a button. Note: After successfully pairing your mobile phone, you will need to open a music player on your phone to play music. 6. Troubleshooting: 1. Ensure the product is fully charged, switched on , paired, or connected to the memory card. 2. If using Bluetooth, make sure your device is 10 meters/33 feed in range and no obstructions between devices. 3. Turn off all past Bluetooth devices that were previously connected to the device. 7. Washing Guidelines: Please use the inside pouch/opening on the back of the headband to access and remove the electronic parts before hand washing the product. 8. Specifications: • Bluetooth Version: V5.2 • Frequency: 2.402 GHZ – 2.480GhZ • Transmission Range: 20M/66FT • Rated Power: RMS 10mWx 2 • Speaker Unit: 32Ω x 20mm • Battery: 3.7V 300mAh Rechargeable Li-Polymer Battery • Charge Time: 2 Hours • Battery Length: Approx 35 Hours ⚠ Dangers of Injury: • Keep the product and the package away from children and animals, as they can swallow small parts. • Supervise children using the product . It is not a toy. • Always maintain a gap of at least 10 cm between the headphones and a pacemaker or an implantable cardioverter defibrillator (ICD) as the product generates magnetic fields. ⚠ Danger of Fire: • Caution! Don't expose the headphones to any high temperatures over 70 degrees Celsius ( Like hair dryers, heating, prolonged sunlight etc..). The battery inside the headphones may overheat. • Only charge the headphones in an ambient temperature area from 10 degrees Celsius to 40 degrees Celsius. • Do not crush or pierce the battery! Do not expose the battery to high pressure, as this may cause an internal short-circuit and overheating. Customer Support: Please contact [email protected] if you have further questions. Bluetooth Connected Red and blue light flash alternately Blue light flashes slowly Solid red light Charging Bluetooth Pairing Mode Solid blue light Charging Complete INDICATOR STATUS Hand wash ONLY DO NOT dry clean DO NOT bleach DO NOT iron DO NOT tumble dry Wash with cold water Button Functions: • Power on: Hold Down the || button for 3 Seconds • Power off: Hold Down the || button for 3 Seconds • Increase Volume: short press + Button • Decrease volume: short press - Button • Previous Music: Hold press the - Button • Next Music: Hold press the + button • Play Music: Short press || button • Pause Music: Short press || button Sleep Headphones with Bluetooth Speakers are found inside the headband and can be adjusted over your ears by moving the materials around the speaker. Volume Down/Previous Song Play/Pause LED Status Light Volume Up USB Charging Port 5 Bluetooth Controller Box 6 Right Speaker Left Speaker 5 Controller Box 6 RECHARGEABLE BATTERY EYE MASK WASHABLE WIRELESS MUSIC Patch English_Front ⚠ Risques de blessure: • Gardez le produit et l'emballage hors de portée des enfants et des animaux, car ils peuvent avaler de petites pièces. • Surveillez les enfants utilisant le produit. Ce n'est pas un jouet. • Maintenez toujours une distance d'au moins 10 cm entre les écouteurs et un stimulateur cardiaque ou un défibrillateur cardioverteur implantable (DCI) car le produit génère des champs magnétiques. ⚠ Risques d'incendie: • Attention! N'exposez pas les écouteurs à des températures élevées supérieures à 70 degrés Celsius (comme les sèche-cheveux, le chauffage, l'exposition prolongée au soleil, etc.). La batterie à l'intérieur des écouteurs peut surchauffer. • Chargez uniquement les écouteurs dans une zone à température ambiante de 10 à 40 degrés Celsius. • Ne pas écraser ou percer la batterie ! Ne pas exposer la batterie à une pression élevée, car cela pourrait provoquer un court-circuit interne et une surchauffe. Support client: Veuillez contacter [email protected] si vous avez d'autres questions. 1. Comment charger: 1. Retournez le bandeau et trouvez le port de chargement (#5 dans le diagramme à l'ouverture). 2. Connectez le câble de chargement USB fourni au port de chargement et l'autre côté du câble à une source d'alimentation (ordinateur ou prise électrique). 3. Le voyant LED à l'avant du bandeau devient rouge pendant le chargement et passe au bleu une fois complètement chargé. 2. Remarque sur la batterie: • Il faut environ 2 heures pour une charge complète. • Le chargement ne peut pas être effectué en même temps que l'écoute des sons. • La réinitialisation de l'opération peut être effectuée pendant le chargement si nécessaire • La batterie, une fois complètement chargée, dure environ 9 heures. • Le voyant rouge clignote 5 fois si la batterie est faible. 3. Tableau des indicateurs LED: 4. Appairage avec un appareil Bluetooth: 1. Maintenez le bouton || enfoncé pendant 3 secondes jusqu'à ce que le voyant…

Text truncated - open the document above for the full version.

myWavesTechnologiesLimited 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:myWavesTechnologiesLimited Address:UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong ProductName:myWavesBluetoothHeadband FCCID:2BKL8-HB2 Model(s):HB2 2.911(d)(5)(i)EquipmentType We,[myWavesTechnologiesLimited](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:KimberlyWhileyDate:2024.9.2 TitleandCompanyname:Manager/myWavesTechnologiesLimited NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

myWavesTechnologiesLimited 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:myWavesTechnologiesLimited Address:UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong ProductName:myWavesBluetoothHeadband FCCID:2BKL8-HB2 Model(s):HB2 2.911(d)(5)(ii)Applicantfiling We,[myWavesTechnologiesLimited](“theapplicant”)certifythat,asofthedateofthefilingofthe application,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:KimberlyWhileyDate:2024.9.2 TitleandCompanyname:Manager/myWavesTechnologiesLimited NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

myWavesTechnologiesLimited 2.911(d)(7)USAAgentv1.5 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:myWavesTechnologiesLimited Address:UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong ProductName:myWavesBluetoothHeadband FCCID:2BKL8-HB2 Model(s):HB2 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[myWavesTechnologiesLimited](“theapplicant”)designate[StoneTrading Limited] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfofthe applicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:StoneTradingLimited USAAddress:6547NAcademyBlvd #2266,ColoradoSprings,CO80918,United States FRNNumber：0033401936 ContactName:DongmeiFang TelephoneNo:+12134573118 Email:[email protected] Applicant Companyname:myWavesTechnologies Limited Address:UnitJ,15/F.,TALBuilding,49 AustinRoad,Kowloon,HongKong GranteeFRNNumber:0035872506 FCCGranteeCode:2BKL8 ContactName:KimberlyWhiley TelephoneNo:852-27306633 Email:[email protected] Signature: Title:Manager Signature: Title:Manager Date:2024-09-02Date:2024-09-02 myWavesTechnologiesLimited 2.911(d)(7)USAAgentv1.5 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

myWavesTechnologiesLimited AgentAuthorization Company:myWavesTechnologiesLimited Address:UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong ProductName:myWavesBluetoothHeadband ModelNumber(s):HB2 ProductDescription:myWavesBluetoothHeadband WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.9.2 Name:KimberlyWhiley Title:Manager Company:myWavesTechnologiesLimited

myWavesTechnologiesLimited OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.9.2 Subject;RequestforConfidentiality FCCID:2BKL8-HB2 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:KimberlyWhiley Title:Manager

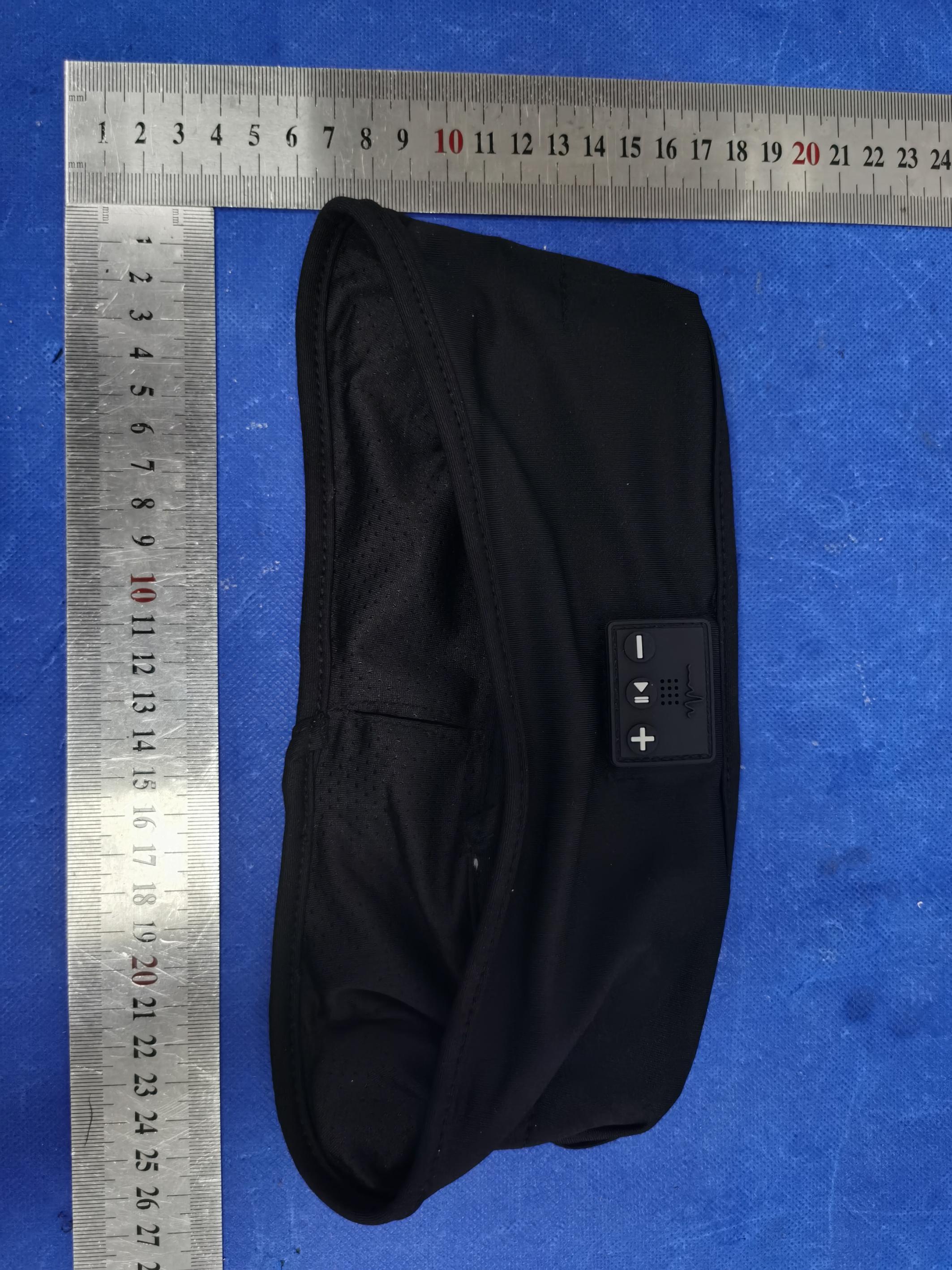

EUTPHOTO(ExternalPhotos) ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation 1cm BluetoothHeadband FCCID:2BKL8-HB2 0.5cm

EUTPHOTO(InternalPhotos) ANT ※※※※※ENDOFREPORT※※※※※

FCCID:2BKL8-HB2 RFExposureEvaluation AccordingtoWS-1GeneralRFExposureGuidancev06andpart2.1093 ， Unless specificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-ghead orbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTest ExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBT TestMode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit GFSK-0.2370.95248050.293513.0 π/4-DQPSK0.4071.10248050.340423.0 8-DPSK0.811.21248050.373523.0 SoaSARtestisnotrequired

InvertedFAntennaSpecification Summary ITEMANTSPEC ModelName 2.4GANT Center Frequency HorizontalVertical 2400MHz2400MHz2500MHz2400MHz2400MHz2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX.Gain-0.58dB Polarization HorizontalandVertical AzimuthBeam Pattern Omni-directional AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dB) Max MinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.584582-22.0315-6.59127 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) Max MinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432

ProjectNo.:ZKT-24081510002E Page 1 of 71 FCCTESTREPORT FCCID:2BKL8-HB2 ReportNumber...................................: ZKT-24081510002E DateofTest......................................................:Aug.15,2024toAug.22,2024 Dateofissue ......................................... :Aug.22,2024 Totalnumberofpages.........................71 TestResult .......................................... : PASS TestingLaboratory. .......................... : ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname ............................. : myWavesTechnologiesLimited Address...............................................: UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong Manufacturer'sname......................: myWavesTechnologiesLimited Address ............................................... : UnitJ,15/F.,TALBuilding,49AustinRoad,Kowloon,HongKong Testspecification: Standard ................................................ : FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod ................ :N/A TestReportFormNo. ....................... : TRF-EL-112_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2021-04-22 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... :myWavesBluetoothHeadband Trademark...........................................:myWaves Model/Typereference ......................... :HB2 Ratings..................................................: Input:5V1A Battery:3.7V,300mAh,1.11Wh , ProjectNo.:ZKT-24081510002E Page 2 of 71 Testingprocedureandtestinglocation: TestingLaboratory .......................................... :ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature) ....................... : JacksonFang Reviewer(name+signature) ....................... : LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-24081510002E Page 3 of 71 TableofContents Page 1.VERSION..................................................................................................................................5 2.TESTSUMMARY...................................................................................................................6 2.1TESTFACILITY.........................................................................................................................7 2.2MEASUREMENTUNCERTAINTY......................................................................................7 3.1GENERALDESCRIPTIONOFEUT...................................................................................8 3.2TestSetupConfiguration......................................................................................................10 3.3SupportEquipment.................................................................................................................10 4.EMCEMISSIONTEST........................................................................................................13 4.1Conductedemissions............................................................................................................13 4.1.1POWERLINECONDUCTEDEMISSIONLimits.......................................................13 4.1.2TESTPROCEDURE..........................................................................................................13 4.1.3DEVIATIONFROMTESTSTANDARD.......................................................................13 4.1.4TESTSETUP.......................................................................................................................13 4.1.5EUTOPERATINGCONDITIONS..................................................................................14 4.1.6TestResult............................................................................................................................15 4.2Radiatedemissions................................................................................................................17 4.2.1RadiatedEmissionLimits.................................................................................................17 4.2.2TESTPROCEDURE..........................................................................................................17 4.2.3DEVIATIONFROMTESTSTANDARD.......................................................................18 4.2.4TESTSETUP.......................................................................................................................18 4.2.5EUTOPERATINGCONDITIONS..................................................................................19 4.2.6TESTRESULTS..................................................................................................................19 5.RADIATEDBANDEMISSIONMEASUREMENT........................................................28 5.1TestRequirement:..................................................................................................................28 5.2TESTPROCEDURE..............................................................................................................28 5.3DEVIATIONFROMTESTSTANDARD...........................................................................29 5.4TESTSETUP...........................................................................................................................29 5.5EUTOPERA…

Text truncated - open the document above for the full version.

EUTTESTPHOTO ※※※※※ENDOFREPORT※※※※※
