COREXOM I9074L M.2 MODULE USER MANUAL Rev. V0.1 (CIRC) 2026/02/28 P/N : SP.F1J06G003 I9074L M.2 MODULE USER MANUAL I9074L i COREXOM Revision History Rev. Date Description 0.1 2026/02/28 1st time draft release I9074L M.2 MODULE USER MANUAL I9074L ii COREXOM About This Document  Illustrations in this documentation might look different from your product.  Depending on the model, some optional accessories, features, and software programs might not be available on your device.  Depending on the version of operating systems and programs, some user interface instructions might not be applicable to your device.  Documentation content is subject to change without notice. Coretronic Reality Inc. (CRI) makes constant improvements on the documentation of your computer, including this guidebook. I9074L M.2 MODULE USER MANUAL I9074L iii COREXOM Index of Contents 1. Introduction ..................................................................................................................... 1 2. Features and Specification .............................................................................................. 1 3. Interface .......................................................................................................................... 2 3.1 Major interface Connector location ..................................................................... 2 3.2 MIMO RF Channels’ configuration ..................................................................... 2 3.3 M.2 Pin Assignment ........................................................................................... 3 3.4 Power Rated ...................................................................................................... 4 4. Mechanical Specification ................................................................................................. 5 4.1 I9074L M.2 module Mechanical dimensions ...................................................... 5 4.2 Weight ............................................................................................................... 5 5. Product Marking, Ordering and Shipping Info. ................................................................ 5 5.1 Product Marking (Label) .................................................................................... 5 6. Compliance Statements .................................................................................................. 6 7. RF Certification Notice .................................................................................................... 7 I9074L M.2 MODULE USER MANUAL I9074L 1 COREXOM 1. Introduction CRI I9074L is a high perform M.2 module to leverage QCN9074 chip with Qualcomm® 802.11ax technology which is a highly integrated wireless local area network (WLAN) system-on chip (SoC) for 2.4/5/6 GHz IEEE802.11ax/ac/n/g/b/a applications. QCN9074 performs AP and STA functionality with 4x4 MIMO and 4 spatial streams. The QCN9074 is a dual-synthesizer WLAN radio with native 160 MHz support, and through PCIe to access for Enterprise Access Points and Campus deployments. The QCN9074 chip platform is a single band 4x4 802.11 ax WLAN. The I9074L M.2 module is includes 2.4 GHz and 5 GHz, however it only works in either 2.4 GHz or 5 GHz, not dual band operation. 2. Features and Specification The following table shows the detailed features and Spec. of I9074L M.2 module. Key features of I9074L M.2 module Item Description Chip Platform Qualcomm QCN9074 Technology Wi-Fi 6, IEEE 802.11ax/ac/n/g/b/a MIMO 4T4R Frequency US : 2412MHz~2462MHz, 5180MHz~5240MHz / 5745MHz~5825MHz JP : 2412MHz~2472MHz, 5180MHz~5240MHz RF signal B.W FCC 20MHz /40MHz, JP 20MHz Data rate (Max.) UDP 240 Mbps, TCP 140 Mbps (via 20MHz B.W) RF Tx Power  ≦ 24dBm @ 2.4GHz  ≦ 24dBm @ 5GHz RF Rx Sensitivity -95 dBm @ 20MHz Interfaces 2 lanes PCIe Gen 2, over M.2 (E key) Power Supply 3.3V, 5V on M.2 Power Consumption  2.4GHz 4T4R < TBC  5GHz 4T4R < TBC Dimension 53 x 31 x 4.3 mm Weight Around 16 g Operation Temp. -20 ~ 70 °C Storage Temp. -20 ~ 70 °C Device Driver Ubuntu Driver for QBR5165 I9074L M.2 MODULE USER MANUAL I9074L 2 COREXOM Notice : When using, be sure to connect the antenna as a load at the antenna terminal to prevent no-load reflection from damaging the PA. 3. Interface 3.1 Major interface Connector location Below picture identify the major interface connectors found on the I9074L M.2 module No. Function Description 1 IPEX4 ANT Conn, CH 1 2 IPEX4 ANT Conn, CH 2 3 IPEX4 ANT Conn, CH 3 4 IPEX4 ANT Conn, CH 4 5 M.2 E-Key pins array 3.2 MIMO RF Channels’ configuration I9074L M.2 module can be configured MIMO models listed in below CH1 CH2 CH3 CH4 4T/4R TX/RX TX/RX TX/RX TX/RX RF Antenna Connect type : I-PEX MHF4, P/N : 20449-001E-03 TOP VIEW BOT VIEW 1 2 3 4 5 I9074L M.2 MODULE USER MANUAL I9074L 3 COREXOM 3.3 M.2 Pin Assignment The following figure shows the M.2 pin assignment of the module. TOP BOT PIN 1 PIN 2 PIN 23 PIN 22 PIN 33 PIN 32 PIN 74 PIN 75 M.2 E-Key Pin # Pin Name 75 GND 73 NA 71 NA 69 GND 67 PCIE0_TX1_N 65 PCIE0_TX1_P 63 GND 61 PCIE0_RX1_N 59 PCIE0_RX1_P 57 GND 55 PCIE0_WAKE_N 53 PCIE0_CLKREQ_N 51 GND 49 PCIE0_REFCLK_N 47 PCIE0_REFCLK_P 45 GND 43 PCIE0_TX0_N 41 PCIE0_TX0_P 39 GND 37 PCIE0_RX0_N 35 PCIE0_RX0_P 33 GND 31-25 NOTCH 23 VDD_XPA_PCIE 21 VDD_XPA_PCIE 19 VDD_XPA_PCIE 17 VDD_XPA_PCIE 15 VDD_XPA_PCIE 13 VDD_XPA_PCIE 11 VDD_XPA_PCIE 9 TP9 7 GND 5 NA 3 NA 1 GND Pin Name Pin # VDD_3P3_PCIE 74 VDD_3P3_PCIE 72 NA 70 NA 68 NA 66 NA 64 NA 62 NA 60 NA 58 PCIE0_WDIS_1P8_L 56 NA 54 PCIE0_PERST 52 NA 50 PINE_BT_ACT 48 MOD_WL_ACT 46 MOD_BT_STS 44 PINE_BT_ACT_2 42 MOD_WL_ACT_2 40 MOD_WL_STS_2 38 NA 36 NA 34 NA 32 NOTCH 30-24 NA 22 NA 20 GND 18 PCIE_LED1 16 NA 14 NA 12 WCI2_UART_RXD_PCIE 10 WCI2_UART_TXD_PCIE 8 PCIE_LED0 6 VDD_3P3_PCIE 4 VDD_3P3_PCIE 2 I9074L M.2 MODULE USER MANUAL I9074L 4 COREXOM The following table shows the M.2 module pin function description Pin # Pin name Voltage Type Description 47 PCIE0_REFCLK_P PCIe AI,AO PCIe Gen …

Text truncated - open the document above for the full version.

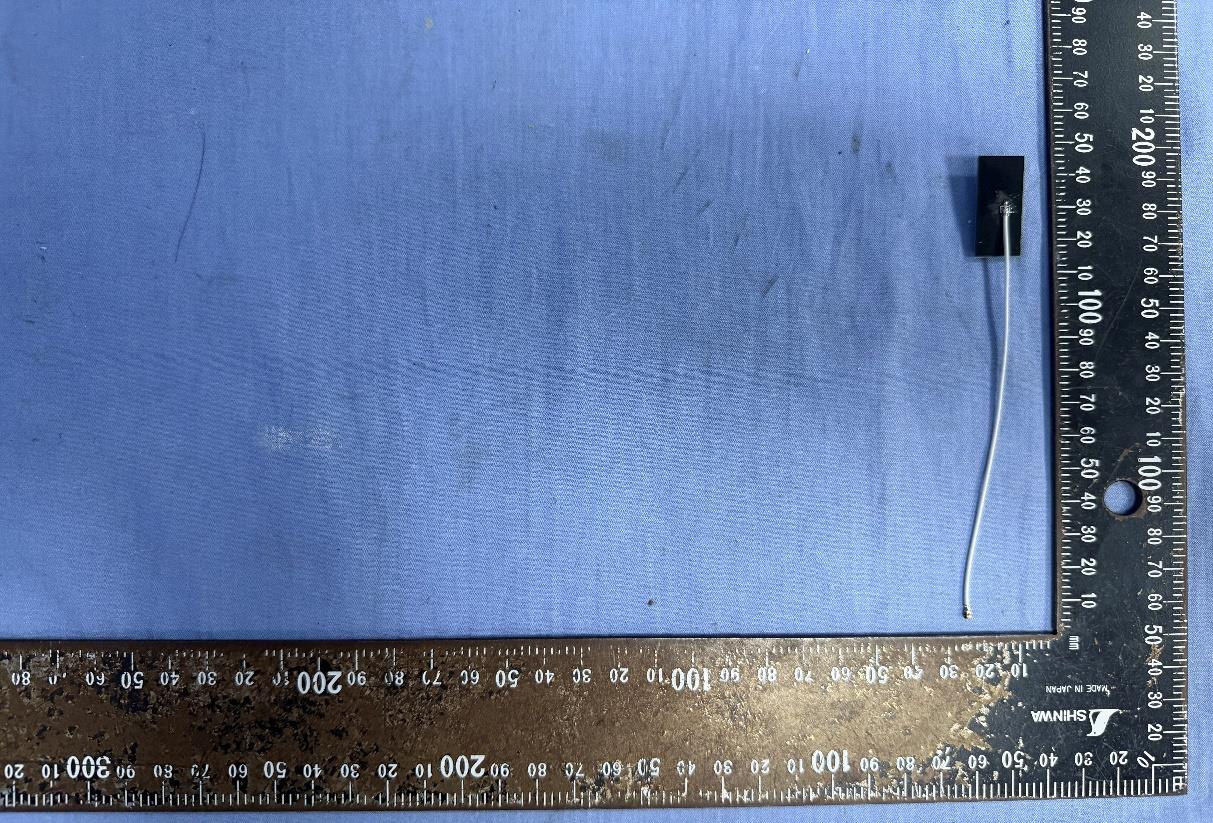

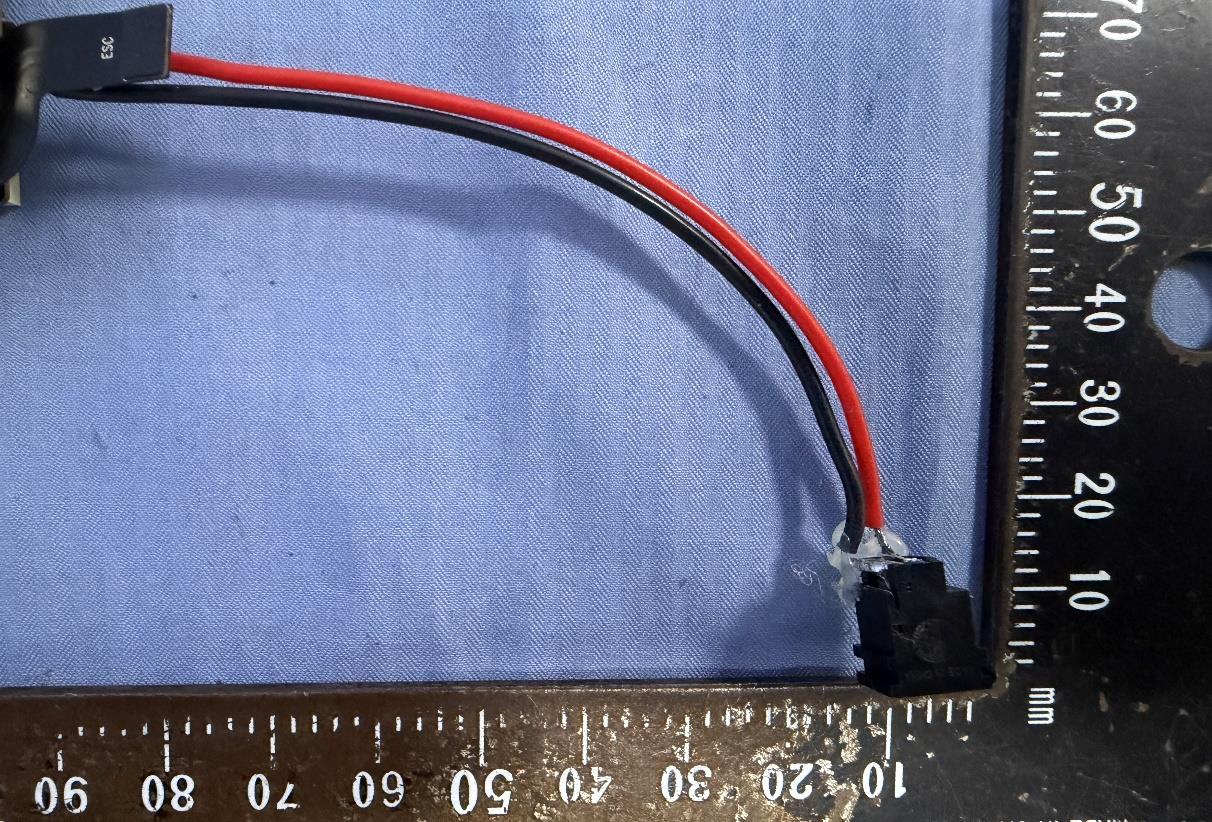

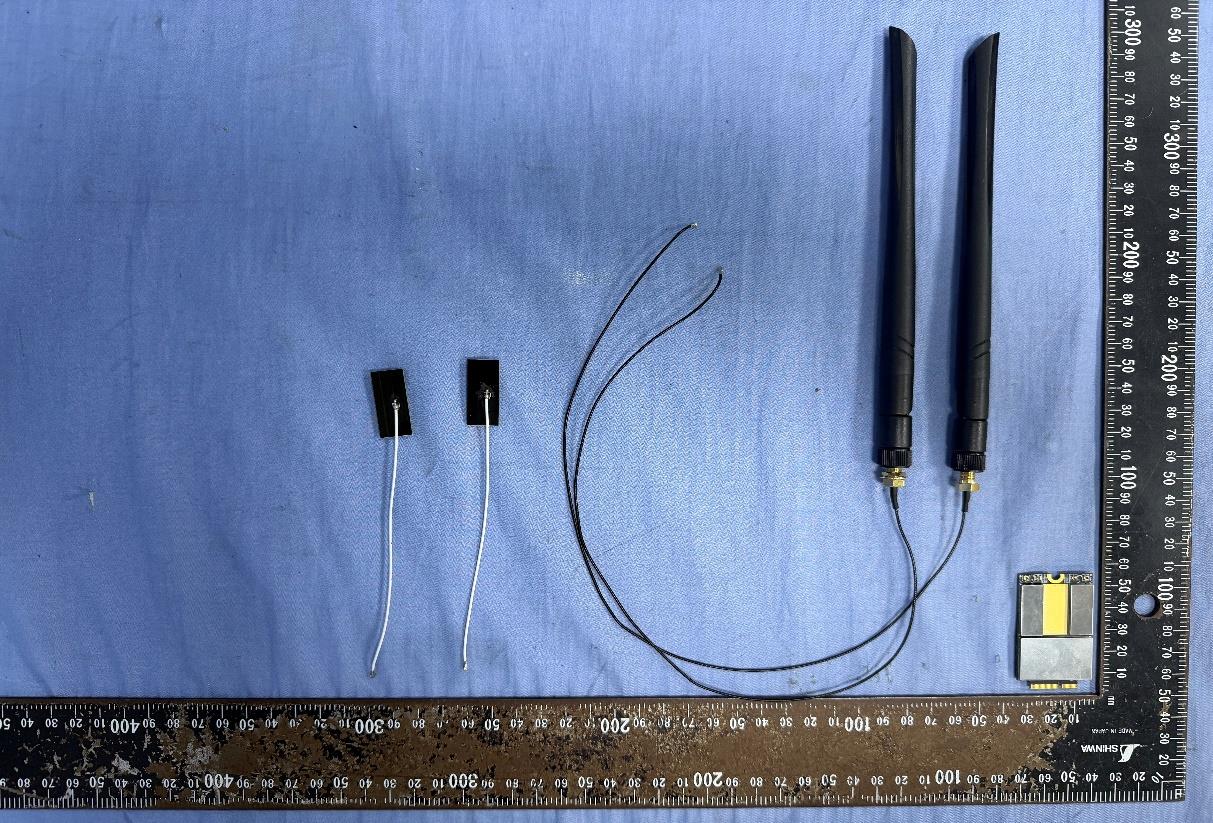

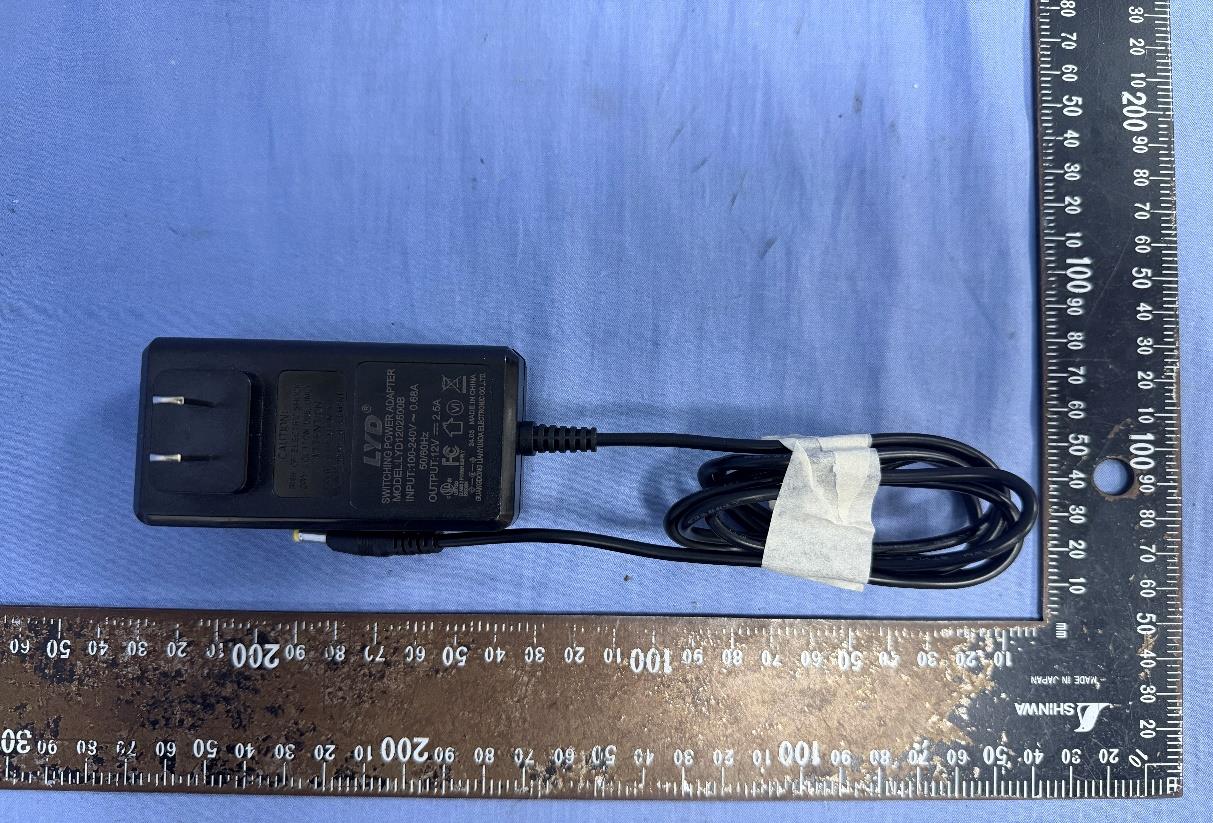

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 1 / 12 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 2 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 3 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 4 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 5 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 6 / 12 Rev. 00 Antenna-1: Dipole Antenna Antenna-2: PCB Antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 7 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 8 / 12 Rev. 00 Test Board This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 9 / 12 Rev. 00 Adapter

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 10 / 12 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 11 / 12 Rev. 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 12 / 12 Rev. 00 Module Crystal

Project No.: TM-2601000305P Page 1 / 15 Report No.: TMWK2601000344KS FCC ID: 2BPQQ-I9074L Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for COREXOM Model Name.: I9074L Prepared for: Coretronic Reality Inc. 15F., No 225, Sec.3, Beixin Rd., Xindian Dist., New Taipei City, 231 Taiwan Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. Issue Date: March 25, 2026 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 2 / 15 Report No.: TMWK2601000344KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 25, 2026 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 3 / 15 Report No.: TMWK2601000344KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION ............................................................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES .............................................................................................................................. 7 4 MEASUREMENT UNCERTAINTY ....................................................................... 9 5 MAXIMUM PERMISSIBLE EXPOSURE ............................................................ 10 5.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................................. 10 5.2 MPE CALCULATION METHOD .......................................................................................................................... 11 5.3 MPE EXEMPTION .............................................................................................................................................. 12 5.4 MULTIPLE RF SOURCES .................................................................................................................................. 13 6 MPE EXEMPTION OPTION B ............................................................................ 14 7 FACILITIES ........................................................................................................ 15 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 4 / 15 Report No.: TMWK2601000344KS Rev.: 00 1 Attestation of Test Results Applicant Name Coretronic Reality Inc. Model Name I9074L Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: January 19, 2026 Date of Test: March 12, 2026 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Tested by: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. KW Huang Engineer Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2601000305P Page 5 / 15 Report No.: TMWK2601000344KS Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF expo…

Text truncated - open the document above for the full version.

ARS-NT5B 2.4GHz + 5GHz Dual-Band 5dBi Dipole Antenna - RSMA Copyright @2014 Alfa Networks Inc. All Rights Reserved Changes to specifications and descriptions may change at any time without prior notice Alfa Network Inc., http://www.alfa.com.tw contact: [email protected] Specification Frequency 2400 ~ 2500MHz 5150 ~ 5850MHz S.W.R ≦ 2.0 Antenna Gain 5dBi ± 0.5dBi @ 2400~2500MHz 5dBi ± 0.5dBi @ 5150~5850MHz Efficiency >81% @ 2400 ~ 2500MHz >73% @ 5150~5850MHz Polarization Linear Impedance 50 Ohm Connector RP-SMA male Environmental Operation Temperature: -40°C ~ +65°C Storage Temperature: -40°C ~ +80°C Copyright @2014 Alfa Networks Inc. All Rights Reserved Changes to specifications and descriptions may change at any time without prior notice Alfa Network Inc., http://www.alfa.com.tw contact: [email protected] ARS-NT5B Copyright@ 2014 Alfa Networks Inc. All Rights Reserved Changes to specifications and descriptions may change at any time without prior notice Alfa Network Inc., http://www.alfa.com.tw contact: [email protected] ARS-NT5B

Issued：2024-05-29 http:// www.smartant.com E-mail: [email protected] L=65±5 IPEX: MHF 4L- 20632-001R-37 線徑 ?1.37 BLACK 12.2±0.3 41.6±0.5 示意圖 0.75 Tri-Band Omni Directional Antenna for 2400 – 2500 / 4900 – 7125 MHz CIR22-440330 Electrical Specification Environmental & Mechanical Characteristics Frequency range 2400- 2500 MHz 4900 - 7125 MHz Peak gain* 2 dBi 2 dBi VSWR* 2.0 : 1 (max.) Horizontal HPBW 360° Vertical HPBW 80° Polarization Linear, vertical ower handling 2 W (cw) Impedance 50 Ohm Connector IPEX:MHF 4L-20632-001R-37 Cable ψ1.37mm cable L:65 mm(black) Temperature -10°C to +55°C Humidity 95% @ 55°C Weight 1.25g Dimensions 12.2 x41.6 mm Version 0.1 *exclusive of cable loss, inclusive antenna radome.

Project No: TM-2601000305P Page: 1 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard : FCC Part 15.247 Product name : COREXOM Brand Name : Coretronic Reality Inc. Model No. : I9074L Test Result : Pass Statements of Conformity : Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10-2020 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.( Wugu Laboratory) Approved by: Shawn Wu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 2 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 25, 2026 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 3 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 Table of contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 EUT INFORMATION ......................................................................................................... 4 1.2 EUT CHANNEL INFORMATION ....................................................................................... 5 1.3 ANTENNA INFORMATION ............................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY .................................................................................... 6 1.5 FACILITIES AND TEST LOCATION................................................................................. 6 1.6 INSTRUMENT CALIBRATION ......................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ....................................................... 9 1.8 TEST SET UP DIAGRAM ............................................................................................... 10 1.9 TEST PROGRAM ........................................................................................................... 11 1.10 TEST METHODOLOGY AND APPLIED STANDARDS .................................................. 11 2. TEST SUMMARY............................................................................................................ 12 3. DESCRIPTION OF TEST MODES .................................................................................. 13 3.1 THE WORST MODE OF OPERATING CONDITION ...................................................... 13 3.2 THE WORST MODE OF MEASUREMENT..................................................................... 14 3.3 EUT DUTY CYCLE ......................................................................................................... 15 4. TEST RESULT ................................................................................................................ 17 4.1 AC POWER LINE CONDUCTED EMISSION .................................................................. 17 4.2 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ............................................. 26 4.3 OUTPUT POWER MEASUREMENT .............................................................................. 33 4.4 POWER SPECTRAL DENSITY ...................................................................................... 37 4.5 CONDUCTED BANDEDGE AND SPURIOUS EMISSION .............................................. 43 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION ................................................. 55 APPENDIX 1 - PHOTOGRAPHS OF EUT .............................................................................. A-1 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 4 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 1. GENERAL INFORMATION 1…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 46 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11ax_20MHz_Chain0_2412MHz 802.11ax_20MHz_Chain0_2437MHz 802.11ax_20MHz_Chain0_2462MHz 802.11ax_20MHz_Chain1_2412MHz 802.11ax_20MHz_Chain1_2437MHz 802.11ax_20MHz_Chain1_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 47 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11ax_40MHz_Chain0_2422MHz 802.11ax_40MHz_Chain0_2437MHz 802.11ax_40MHz_Chain0_2452MHz 802.11ax_40MHz_Chain1_2422MHz 802.11ax_40MHz_Chain1_2437MHz 802.11ax_40MHz_Chain1_2452MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 48 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 Band Edge 802.11b_20MHz_Chain0_2412MHz 802.11b_20MHz_Chain0_2462MHz 802.11b_20MHz_Chain1_2412MHz 802.11b_20MHz_Chain1_2462MHz 802.11g_20MHz_Chain0_2412MHz 802.11g_20MHz_Chain0_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 49 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11g_20MHz_Chain1_2412MHz 802.11g_20MHz_Chain1_2462MHz 802.11ax_20MHz_Chain0_2412MHz 802.11ax_20MHz_Chain0_2462MHz 802.11ax_20MHz_Chain1_2412MHz 802.11ax_20MHz_Chain1_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 50 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11ax_40MHz_Chain0_2422MHz 802.11ax_40MHz_Chain0_2452MHz 802.11ax_40MHz_Chain1_2422MHz 802.11ax_40MHz_Chain1_2452MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 51 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 Spurious Emission 802.11b_20MHz_Chain0_2412MHz 802.11b_20MHz_Chain0_2437MHz 802.11b_20MHz_Chain0_2462MHz 802.11b_20MHz_Chain1_2412MHz 802.11b_20MHz_Chain1_2437MHz 802.11b_20MHz_Chain1_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 52 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11g_20MHz_Chain0_2412MHz 802.11g_20MHz_Chain0_2437MHz 802.11g_20MHz_Chain0_2462MHz 802.11g_20MHz_Chain1_2412MHz 802.11g_20MHz_Chain1_2437MHz 802.11g_20MHz_Chain1_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 53 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11ax_20MHz_Chain0_2412MHz 802.11ax_20MHz_Chain0_2437MHz 802.11ax_20MHz_Chain0_2462MHz 802.11ax_20MHz_Chain1_2412MHz 802.11ax_20MHz_Chain1_2437MHz 802.11ax_20MHz_Chain1_2462MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 54 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 802.11ax_40MHz_Chain0_2422MHz 802.11ax_40MHz_Chain0_2437MHz 802.11ax_40MHz_Chain0_2452MHz 802.11ax_40MHz_Chain1_2422MHz 802.11ax_40MHz_Chain1_2437MHz 802.11ax_40MHz_Chain1_2452MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 55 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION 4.6.1 Test Limit FCC according to §15.247(d), §15.209 and §15.205, In any 100 kHz bandwidth outside the authorized frequency band, all harmonic and spurious must be least 20 dB below the highest emission level with the authorized frequency band. Radiation emission which fall in the restricted bands must also follow the FCC section 15.209 as below limit in table. Below 30 MHz Frequency Field Strength (microvolts/m) Magnetic H-Field (microamperes/m) Measurement Distance (metres) 9-490 kHz 2,400/F (F in kHz) 2,400/F (F in kHz) 300 490-1,705 kHz 24,000/F (F in kHz) 24,000/F (F in kHz) 30 1.705-30 MHz 30 N/A 30 Above 30 MHz Frequency Field Strength (microvolts/m) Measurement Distance (metres) 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Remark: Although these tests were performed other than open area test site, adequate comparison measurements were confirmed against 30 m open are test site. Therefore sufficient tests were made to demonstrate that the alternative site produces results that correlate with the ones of tests made in an open field based on KDB 414788. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2601000305P Page: 56 / 156 Report No.: TMWK2601000342KR FCC ID: 2BPQQ-I9074L Rev.: 00 4.6.2 Test Procedure Test method Refer as ANSI C63.10-2020. 1. The EUT is placed on a turntable, Above 1 GHz is 1.5m and below 1 GHz is 0.8m above ground plane. The EUT Configured un accordance with ANSI C63.10-2020, and the EUT set in a continuous mode. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. And EUT is set 3m away from the receiving antenna, which is scanned from 1m to 4m above the ground plane to find out the highest emissions. Measurement are made polarized in both the vertical and the horizontal positions with antenna. 3. Span shall wide enough to full capture the emission measured. The SA from 9kHz to 26.5GHz set to the low, Mid and High channels with the EUT transmit. 4. No emission found between lowest internal used/generated frequency to 30MHz (9KHz~30MHz). Radiated emission below 30MHz is measured …
