2BQLG-CM-CMTReceiver

第 1 页 共 2 页 Electric winch wireless controller instructions A, Features Overview The wireless receiver operates at 315 MHz and has a control range of more than 25 meters. It is used for wireless control of electric winch B, The wireless remote control parameters 1, Working voltage: DC7-18V. 2, The working current: 7mA ± 3mA 3, Receiving frequency : 315MHz C, Installation and function 1,Disconnect Power to the winch 2,Confirm that the plug is the correct type for this winch and plug it in 3.Select an area for the receiver on the vehicle close enough to the winch to allow cable connection 4.Investigate the chosen area to make sure no components will be damaged by installation. 5.Permanently (optional) mount the remote control receiver to the vehicle using appropriate hardware (not included). 6.Preare the winch for operation as explained in its manual 7.Reconnect winch’s power 8.Release the clutch handle and pull out about 10 feet of wire rope Leave the wire rope laying on the ground and stay clear of the wire rope and hook 9.Reengage the clutch handle 第 2 页 共 2 页 10.Watch the spool and wire rope and briefly, press the out button on the remote control to verify that the cable feeds out WARNING! If the cable does not feed out ,check and correct the winch’s wiring. Retest after correction. 11.Watch the spool and wire rope and briefly press the in button on the remote control to verify that the cable retracts WARNING! If the cable does not feed out ,check and correct the winch’s wiring .Retest BOTH functions after correction. 12.If the remote operates the winch properly, it is ready for use. 13.After use, disconnect control box from winch to prevent accidental operation D,WARNING! To prevent serious injury 1. Disconnect control box from winch before service and after every use. WINCH CAN OPERATE SUDDENLY AT ANY TIME WHILE CONNECTED. 2. Stand clear of winch, fairlead, and wire rope while connected. Keep bystanders away. 3. Only operate controls when winch and entire wire rope is within view. 4. Use with vehicle mounted recovery winches only. Do not use for any other application. 5. Confirm control box mounting location has no wire or components that can be damaged drilling. 6. Read winch manual before use. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

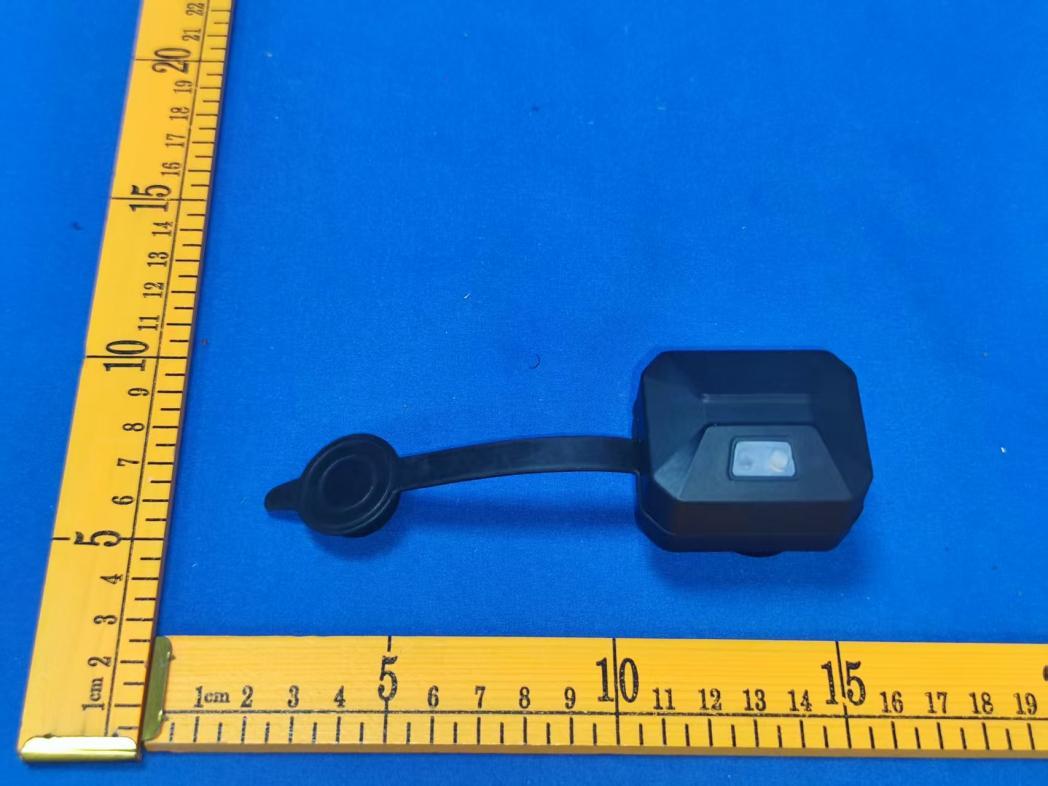

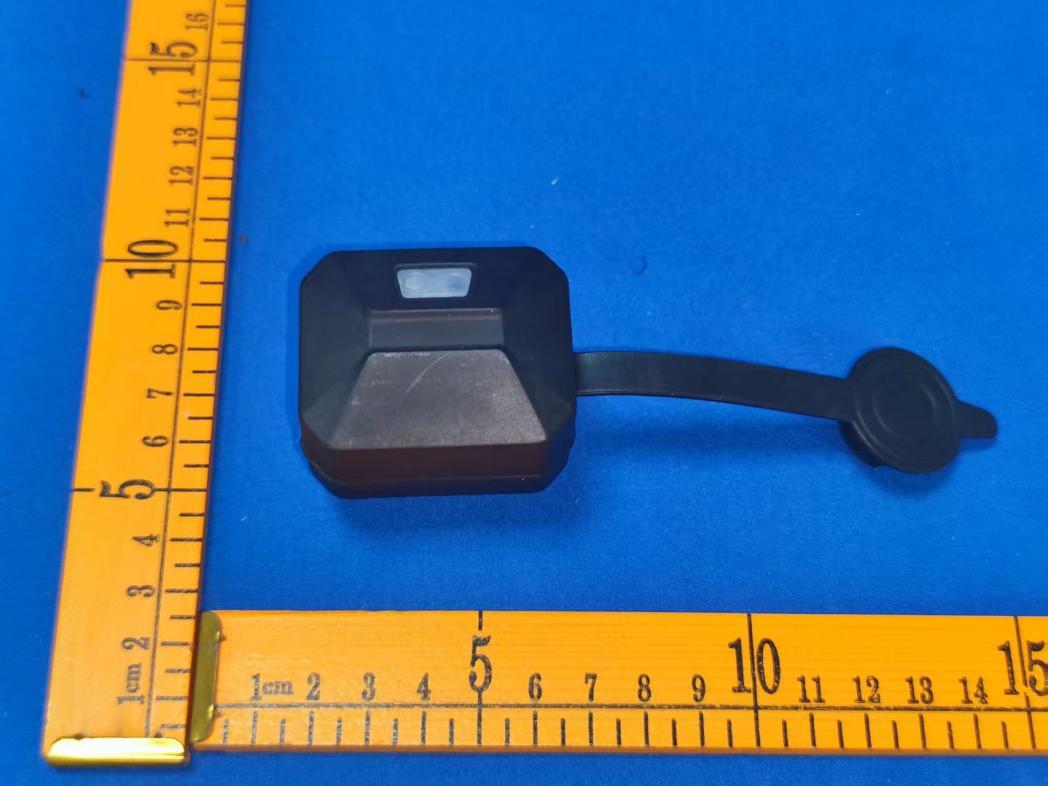

Page15of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 5.PHOTOGRAPHSOFEUT ExternalPhotographs Page16of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. Page17of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. Page18of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd.

Annex of Test Report Annex J. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location FCC ID:2BQLG-CM-CMT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page19of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. InternalPhotos Page20of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. Page21of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. Page22of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. ********************THEEND**********************

AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,ShenzhenCity,GuangdongProvince,China Tel.:+(86)075585250797E-mail:[email protected]:www.Aibonorm.com TESTREPORT ReportNo...........................................: AB25060073FW01 FCCID...........................................:2BQLG-CM-CMT Applicant.............................................:ChimaWinch(Thailand)Co.,Ltd Address..............................................: No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Manufacturer.......................................:ChimaWinch(Thailand)Co.,Ltd Address..............................................: No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province ProductName....................................: Receiver TradeMark.........................................:N/A Model/Typereference........................:CM-CMT(RX) ListedModel(s)..................................:/ Standard............................................:FCCPart15SubpartB DateofReceipt....................................: 2025.07.03 DateofTestDate.................................: 2025.07.03-2025.07.15 Dateofissue ......................................... : 2025.07.15 Testresult .............................................. : Pass Compiledby: (Printedname+signature) HuaijieLi Supervisedby: (Printedname+signature) JayLiu Approvedby: (Printedname+signature) MicCheng TestingLaboratoryName...................: AiboStandardTechnology(Shenzhen)Co.,Ltd. Address............................................:101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnotbe reproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseittoclaim productendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjectionsmust beraisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakeninto considerationbeyondthislimit. Page2of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. TABLEOFCONTENTSPage 1.TESTSUMMARY..........................................................................................................................................................3 1.1.TESTSTANDARDS............................................................................................................................................................3 1.2.REPORTVERSION............................................................................................................................................................3 1.3.TESTDESCRIPTION..........................................................................................................................................................3 1.4.MEASUREMENTUNCERTAINTY..........................................................................................................................................4 1.5.ENVIRONMENTALCONDITIONS..........................................................................................................................................4 1.6.DESCRIPTIONOFTESTFACILITY.................................................................................................................................4 2.GENERALINFORMATION............................................................................................................................................5 2.1.GENERALDESCRIPTIONOFEUT........................................................................................................................................5 2.2.DESCRIPTIONOFTESTMODES.........................................................................................................................................5 2.3.MEASUREMENTINSTRUMENTSLIST...................................................................................................................................6 2.4.TESTSOFTWARE.............................................................................................................................................................6 3.EMCEMISSIONTEST...................................................................................................................................................7 4.EUTTESTPHOTO.......................................................................................................................................................13 5.PHOTOGRAPHSOFEUT............................................................................................................................................15 Page3of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 1.TESTSUMMARY 1.1.TestStandards Thetestswereperformedaccordingtofollowingstandards: 47CFRFCCPart15SubpartB:UnintentionalRadiators. ANSIC63.4:2014:AmericanNationalStandardforMethodsofMeasurementofRadio-Noise EmissionsfromLow-VoltageElectricalandElectronicEquipmentintheRangeof9kHzto40GHz. 1.2.Reportversion RevisedNo.DateofissueDescription 01 2025.07.15 Original 1.3.TestDescription Testproceduresaccordingtothetechnicalstandards: TestStandardClassResult Test Engineer RadiatedEmission FCCPart15 Section15.109 ClassBPASSHeChen Page4of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 1.4.MeasurementUncertainty ThemeasurementdatashowhereinmeetsorexceedstheCISPRmeasurementuncertaintyvaluesspecified inCISPR16-4-2andcanbecompareddirectlytospecifiedlimittodeterminecompliance. ItemsMeasurementUncertainty PowerLineConductedEmission(9kHz~150kHz) ±3.62dB PowerLineConductedEmission(150kHz~30MHz) ±3.40dB RadiatedEmission(9kHz~30MHz) ±3.10dB RadiatedEmission(30MHz~1GHz) ±4.90dB RadiatedEmission(1GHz~18GHz) ±3.88dB RadiatedEmission(8GHz~40…

Text truncated - open the document above for the full version.

Page13of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 4.EUTTESTPHOTO RadiatedMeasurementPhoto(below1GHz) Page14of22ReportNo.:AB25060073FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. RadiatedMeasurementPhoto(above1GHz)
