2BQLG-CM-MRCWireless winch remote control system for vehicle

第 1 页共 3 页 Electricwinchwirelesscontrollerinstructions A,FeaturesOverview Thiswirelessremotecontrolfiringfrequencyof315MHz,thecontrolrangeofmorethan 25m,usedinelectricwinchwirelesscontrol. B,Thewirelessremotecontrolparameters 1,Workingvoltage:DC12V,23Abattery. 2,Theworkingcurrent:25mA±5mA 3,Transmittingfrequency:315MHz 4,Thetransmitpower:<10dBm 5,Standbycurrent:<5uA C, Using Theremotecontrolerhas2buttons.Pressandholdontheremotecontrol"OUT"or"IN" button,itwilltrigger315MHzhighfrequency.Thehigh-frequencysignalemittedbythe antennatocontrolreceiverunit. D,Installationandfunction 1,DisconnectPowertothewinch 2,Confirmthattheplugisthecorrecttypeforthiswinchandplugitin 3.Selectanareaforthereceiveronthevehiclecloseenoughtothewinchtoallowcable connection 4.Investigatethechosenareatomakesurenocomponentswillbedamagedbyinstallation. 5.Permanently(optional)mounttheremotecontrolreceivertothevehicleusingappropriate hardware(notincluded). 6.Prearethewinchforoperationasexplainedinitsmanual 7.Reconnectwinch’spower 8.Releasetheclutchhandleandpulloutabout10feetofwireropeLeavethewirerope layingonthegroundandstayclearofthewireropeandhook 9.Reengagetheclutchhandle 10.Watchthespoolandwireropeandbriefly,presstheoutbuttonontheremotecontrolto verifythatthecablefeedsout WARNING!Ifthecabledoesnotfeedout,checkandcorrectthewinch’swiring.Retest aftercorrection. 11.Watchthespoolandwireropeandbrieflypresstheinbuttonontheremotecontrolto verifythatthecableretracts WARNING!Ifthecabledoesnotfeedout,checkandcorrectthewinch’swiring.Retest BOTHfunctionsaftercorrection. 12.Iftheremoteoperatesthewinchproperly,itisreadyforuse. 13.Afteruse,disconnectcontrolboxfromwinchtopreventaccidentaloperation 第 2 页共 3 页 E,Wiringdiagram F,WARNING! Topreventseriousinjury 1.Disconnectcontrolboxfromwinchbeforeserviceandaftereveryuse. WINCHCANOPERATESUDDENLYATANYTIMEWHILECONNECTED. 2.Standclearofwinch,fairlead,andwireropewhileconnected.Keepbystandersaway. 3.Onlyoperatecontrolswhenwinchandentirewireropeiswithinview. 4.Usewithvehiclemountedrecoverywinchesonly.Donotuseforanyotherapplication. 5.Confirmcontrolboxmountinglocationhasnowireorcomponentsthatcanbedamaged drilling. 6.Readwinchmanualbeforeuse. 第 3 页共 3 页 FCCStatement Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergy and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

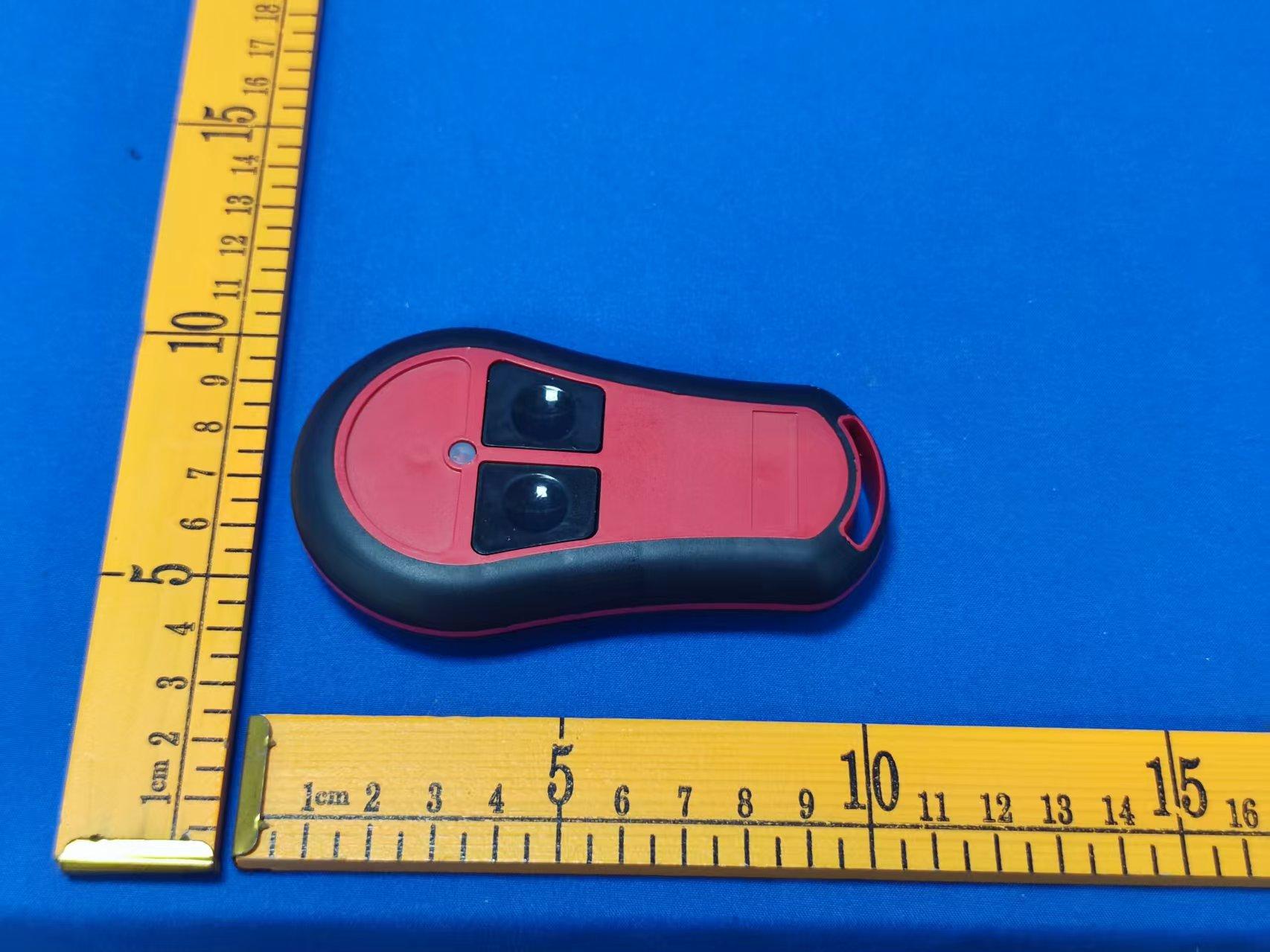

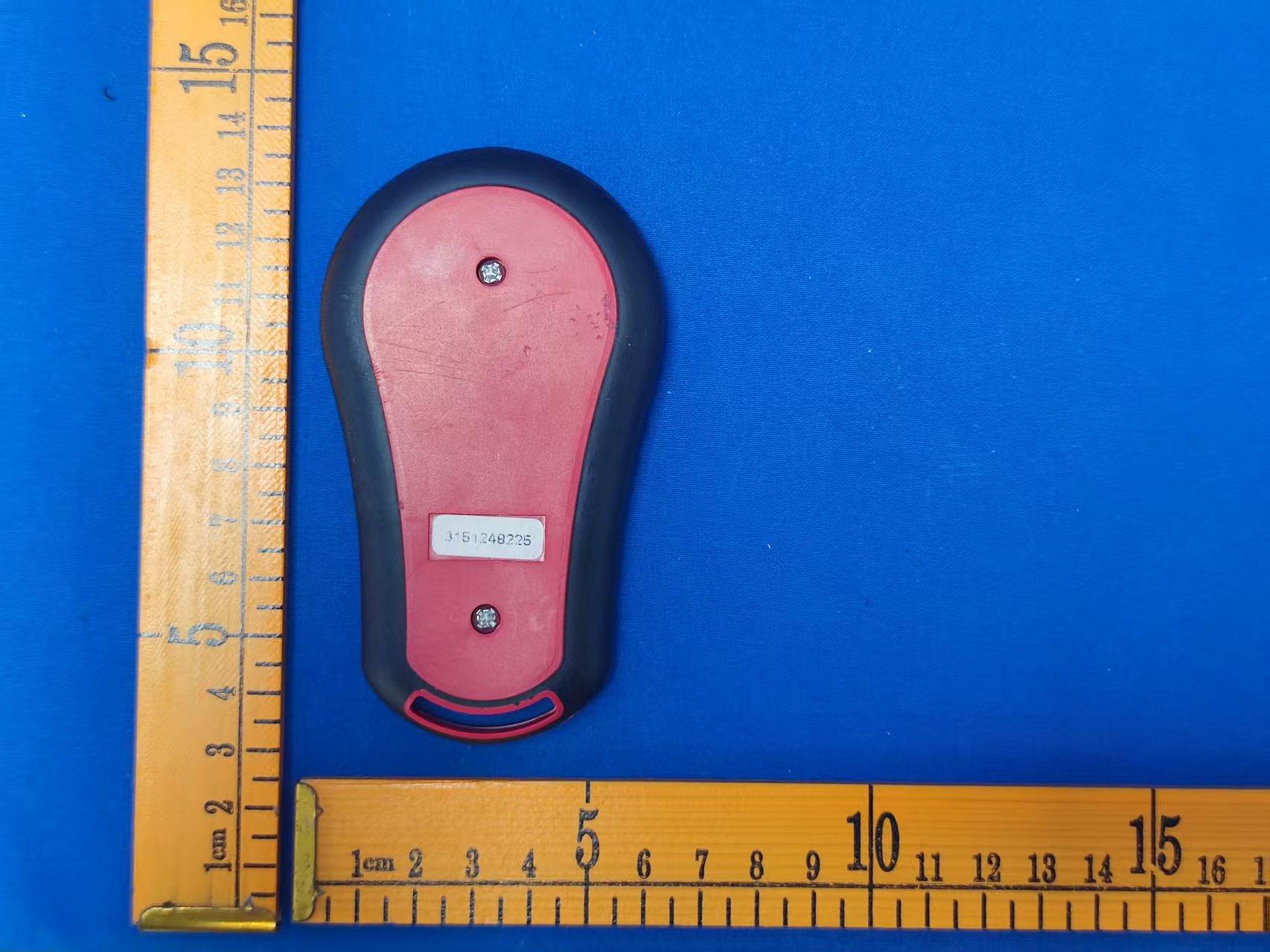

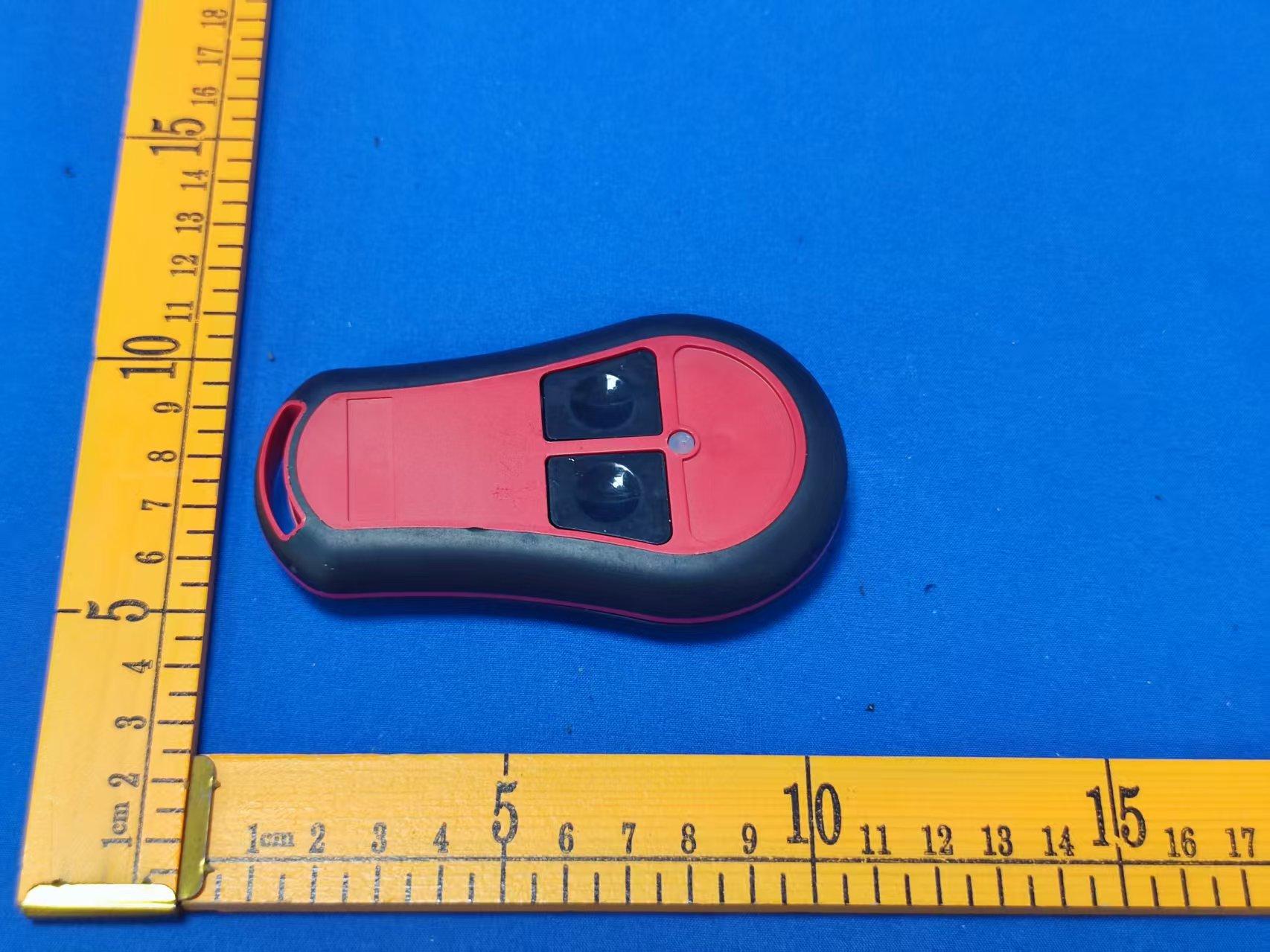

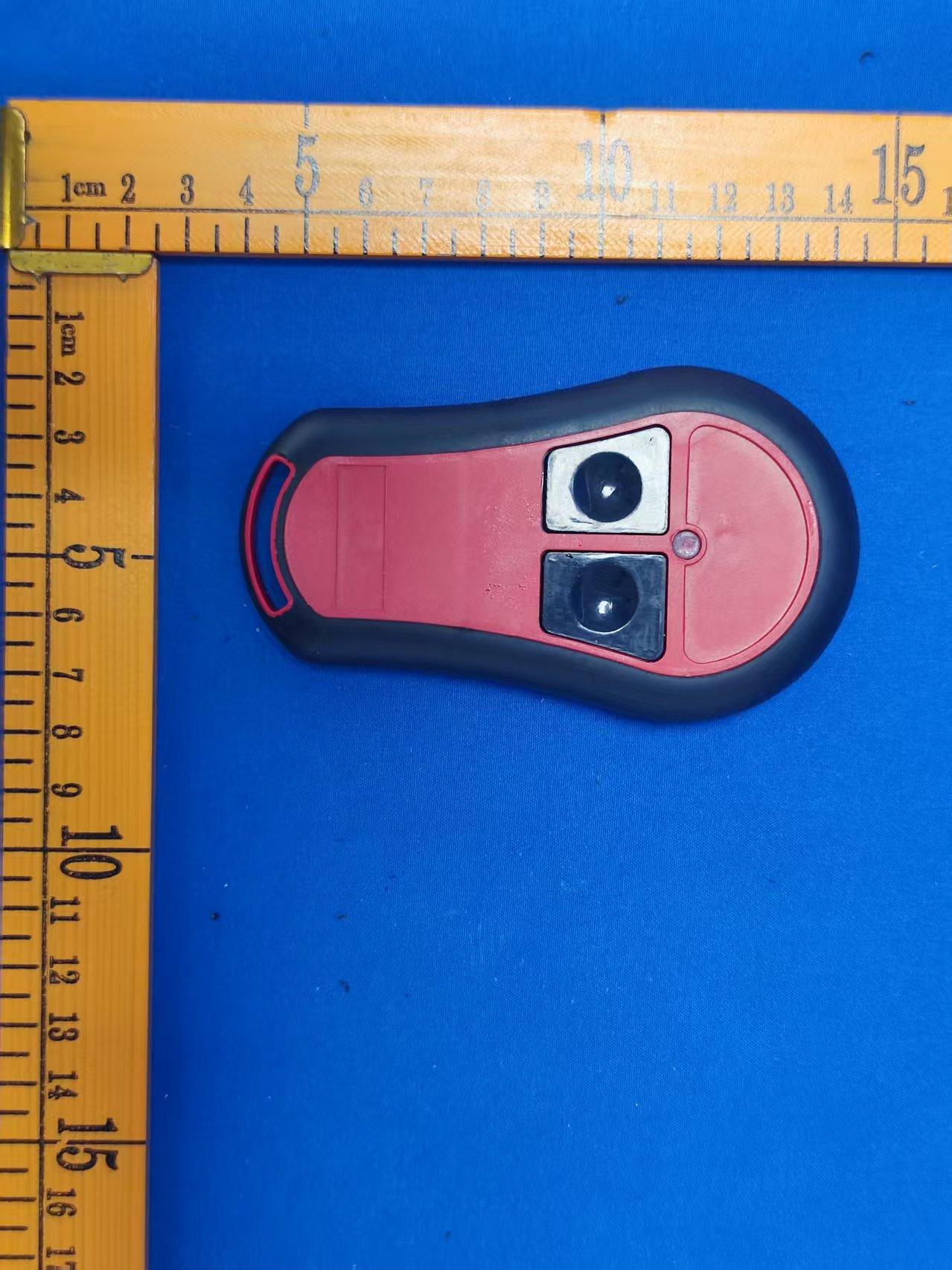

ReportNo.:AB25070013FW Page1of3 AppendixBExternalPhotos ReportNo.:AB25070013FW Page2of3 ReportNo.:AB25070013FW Page3of3

Annex of Test Report Annex J. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location FCC ID:2BQLG-CM-MRC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ReportNo.:AB25070013FW Page 1 of 5 AppendixCEUTInternalPhotos ReportNo.:AB25070013FW Page 2 of 5 IntegralAntenna ReportNo.:AB25070013FW Page 3 of 5 ReportNo.:AB25070013FW Page 4 of 5 ReportNo.:AB25070013FW Page 5 of 5

AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet,Guangming District,ShenzhenCity,GuangdongProvince,China Tel.:+(86)075585250797E-mail:[email protected]:www.Aibonorm.com FCCTESTREPORT ReportNo. ............................................. : AB25070013FW01 FCCID...................................................: 2BQLG-CM-MRC Applicant................................................: ChimaWinch(Thailand)Co.,Ltd Address ................................................. : No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Manufacturer......................................: ChimaWinch(Thailand)Co.,Ltd Address..............................................: No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province ProductName ...................................... : Wirelesswinchremotecontrolsystemforvehicle TradeMark............................................: / TestModel.............................................:CM-MRC(TX) AdditionalModel(s) .............................. : SKU#71280 Standard................................................: FCC47CFR§1.1310 FCC47CFR § 2.1093 KDB447498D01GeneralRFExposureGuidancev06 DateofReceipt....................................:2025.07.03 DateofIssue ........................................ :2025.08.14 TestResult............................................:Pass Compiledby: (PrintedName+Signature) HuaijieLi Supervisedby: (PrintedName+Signature) JayLiu Approvedby: (PrintedName+Signature) MicCheng TestingLaboratoryName ................... :AiboStandardTechnology(Shenzhen)Co.,Ltd. Address.................................................:101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnotbe reproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseittoclaim productendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjectionsmustbe raisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakenintoconsideration beyondthislimit.Thetestreportmerelycorrespondtothetestsample. ReportNo.:AB25070013FW02 FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:AB25060072FW02 2025.08.14 Dateofissue EUT......................................... : Wirelesswinchremotecontrolsystemforvehicle TestModel.............................. : CM-MRC(TX) Applicant...............................:ChimaWinch(Thailand)Co.,Ltd Address...................................:No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Telephone...............................:/ Fax..........................................:/ Manufacturer......................... : ChimaWinch(Thailand)Co.,Ltd Address...................................:No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Telephone...............................:/ Fax..........................................:/ ReportNo.:AB25070013FW02 REPORTVERSION VersionNo.IssueDateDescription 012025.08.14InitialIssue ReportNo.:AB25070013FW02 TABLEOFCONTENTS 1.GENERALINFORMATION...................................................................................................................................5 1.1.GENERALDESCRIPTIONOFEUT..................................................................................................................5 1.2.DESCRIPTIONOFSUPPORTEQUIPMENT...................................................................................................6 1.3.DESCRIPTIONOFEXTERNALI/O...................................................................................................................6 1.4.GENERALDESCRIPTIONOFAPPLIEDSTANDARDS...............................................................................7 1.5.DESCRIPTIONOFTESTFACILITY.................................................................................................................7 2.RFEXPOSUREEVALUATION............................................................................................................................8 2.1LIMIT..........................................................................................................................................................................8 2.2EVALUATIONRESULT...............................................................................................................................................9 2.3CONCLUSION............................................................................................................................................................9 ReportNo.:AB25070013FW02 1.GENERALINFORMATION 1.1.GENERALDESCRIPTIONOFEUT ProductName:Wirelesswinchremotecontrolsystemforvehicle TradeMark:/ TestModel:CM-MRC(TX) AdditionalModel(s):SKU#71280 ModelDifference:AllmodelsarethesamecircuitandRFmodule,exceptthemodelname. HardwareVersion:/ SoftwareVersion:/ PowerSupply:DC3.0VFromBattery TestSample(s)Number:AB25060013-01(EngineerSample) RadioSpecificationSubjecttothisReport OperatingFrequency:315MHz ModulationType:ASK ChannelNumber(s):1 AntennaType: IntegralAntenna AntennaGain:0dBi ReportNo.:AB25070013FW02 1.2.DESCRIPTIONOFSUPPORTEQUIPMENT DescriptionManufacturerModelSerialNumberSuppliedby \\\\\ 1.3.DESCRIPTIONOFEXTERNALI/O I/OPortDescriptionQuantityCable \\\ \1\ ReportNo.:AB25070013FW02 1.4.GENERALDESCRIPTIONOFAPPLIEDSTANDARDS Thetestswereperformedaccordingtofollowingstandards: FCCCFR47part11.1310-Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093-Radiofrequencyradiationexposureevaluation:portabledevices FCCKDB447498D01GeneralRFExposureGuidancev06-MobileandPortableDevice,RF…

Text truncated - open the document above for the full version.

FCCID:2BQLG-CM-MRCReportNo.:AB25070013FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,ShenzhenCity,GuangdongProvince,China Tel.:+8675585250797E-mail:[email protected]:www.aibonorm.com FCCTESTREPORT ReportNo..............................................:AB25070013FW01 FCCID..................................................:2BQLG-CM-MRC Applicant................................................:ChimaWinch(Thailand)Co.,Ltd Address ................................................. :No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Manufacturer......................................:ChimaWinch(Thailand)Co.,Ltd Address..............................................:No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province ProductName ...................................... :Wirelesswinchremotecontrolsystemforvehicle TradeMark............................................:/ TestModel.............................................:CM-MRC(TX) AdditionalModel(s)..............................:SKU#71280 Standard................................................:FCC47CFRPart15SubpartC(Part15.231) DateofReceipt .................................... :2025.07.03 DateofTestDate.................................:2025.07.03-2025.07.15 DateofIssue........................................:2025.07.15 TestResult............................................:Pass Compiledby: (PrintedName+Signature) HuaijieLi Supervisedby: (PrintedName+Signature) DavidHuang Approvedby: (PrintedName+Signature) JayLiu TestingLaboratoryName...................:AiboStandardTechnology(Shenzhen)Co.,Ltd. Address.................................................:101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnotbe reproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseittoclaim productendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjectionsmustbe raisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakenintoconsideration beyondthislimit.Thetestreportmerelycorrespondtothetestsample. FCCID:2BQLG-CM-MRCReportNo.:AB25070013FW01 Page2of25 FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:AB25070013FW01 2025.07.15 Dateofissue EUT......................................... : Wirelesswinchremotecontrolsystemforvehicle TestModel.............................. : CM-MRC(TX) Applicant...............................:ChimaWinch(Thailand)Co.,Ltd Address...................................:No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Telephone...............................:/ Fax..........................................:/ Manufacturer......................... : ChimaWinch(Thailand)Co.,Ltd Address...................................:No.299/9,Moo7,BuengSub-district,SrirachaDistrict,Chonburi Province Telephone...............................:/ Fax..........................................:/ FCCID:2BQLG-CM-MRCReportNo.:AB25070013FW01 Page3of25 REPORTVERSION VersionNo.IssueDateDescription 012025.07.15InitialIssue FCCID:2BQLG-CM-MRCReportNo.:AB25070013FW01 Page4of25 TABLEOFCONTENTS 1.GENERALINFORMATION...........................................................................................................................................5 1.1.GENERALDESCRIPTIONOFEUT........................................................................................................................................5 1.2.DESCRIPTIONOFSUPPORTEQUIPMENT..........................................................................................................................6 1.3.DESCRIPTIONOFEXTERNALI/O.......................................................................................................................................6 1.4.GENERALDESCRIPTIONOFAPPLIEDSTANDARDS............................................................................................................7 1.5.DESCRIPTIONOFTESTFACILITY........................................................................................................................................7 1.6.MEASUREMENTUNCERTAINTY........................................................................................................................................8 1.7.ENVIRONMENTALCONDITIONS.......................................................................................................................................8 1.8.DESCRIPTIONOFTESTMODES.........................................................................................................................................9 2.SUMMARYOFTESTRESULT...................................................................................................................................10 3.MEASUREMENTINSTRUMENTSLIST ...................................................................................................................11 4.RADIATEDEMISSIONMEASUREMENT.................................................................................................................12 4.1.LIMITOFRADIATEDEMISSIONMEASUREMENT............................................................................................................12 4.2TESTPROCEDURES...........................................................................................................................................................12 4.3TESTSETUP......................................................................................................................................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model CM-MRC(TX) Frequency range 315 MHz Manufacturer Chima Winch (Thailand) Co., Ltd No.299/9, Moo 7, Bueng Sub-district, Sriracha District, Chonburi Province Gain 2.73dBi 2. Antenna Photo: We, Chima Winch (Thailand) Co., Ltd, states that All measurements were performed radiated and therefore additional antenna gain documentation is not required.
