2BSCX-A02Smart glasses

SMART GLASSES User Manual Power on:Press and hold the left/right touch strip for 2 seconds Shutdown: Press and hold the left/right touch strip for 5 seconds (Note: If there is sweat on the glasses, it will affect the switching effect, please pay attention to clean it) Switch machine After the boot two miror legs automatically paired pair Phone Incoming call answer/end call:touch (left or right) 1 times Reject a call: long press the touch key (left or right) for 2 seconds (Note: the volume of the call can be adjusted on the phone) Music Music pause/play: touch (left or right)1 times Music switch: touch and click left 2 down to switch to the previous song; Touch and click right 2 down to switch to the next song Remote camera Remote control photo: First open the camera on your smartphone, then double-tap the left/right touch area to take photos remotely Voice assistance Wake up voice assistant: Press and hold the touch area on both sides for 2 seconds (left or right) Turn off the voice assistant: Touch and tap (left or right) 1 time Recharge Sett ings Wireless Wireless Now discoverable as "iPhone". DEVICES 5s 5s 2 2 1 2S Magnetic charging:The orange light stays on constantly while charging; the green light stays on constantly when fully charged. GUIDE DE L'UTILISATEUR OCCHIALI INTELLIGENTI Manuel d'utilisation Mise sous tension : Maintenez la ligne tactile gauche/droite enfoncée pendant 2 secondes Arrêt: Maintenez la ligne tactile gauche/droite enfoncée pendant 5 secondes (Remarque: s'il y a de la sueur surles lunettes, cela affectera l'effet de commutation, veuillez fai re attention au nettoyage.) Les branches sont automatiquement couplées après la mise sous tension Prise d'appel/raccrochage : touchez et cliquezune fois (gauche ou droite) Rejete r l'appel : appuyez et maintenez enfoncéle bouton tactile (gauche ou droit) pendant 2 (Remarque : le volume est réglé sur lesecondestéléphone) Pause/lecture de la musique: appuyez sur clic (gauche ou droit e) 1 fois Changement de musique : touchez et cliquez à gauche 2 pour passer à la chanson précédente, touchez et cliquez à droite 2 pour passer à la chanson suivante Caméra télécommandée : Ouvrez d'abord l'appareil photo sur le smartphone,puis double-touchez la zone tactile gauche/droite pour effectuer une prise de vue à distance Charge magnétique :Une lumière orange reste allumée pendant la charge ; une lumière verte reste allumée lorsque la charge est complète. Manuale utente Accensione: Mantenere premuta la linea tattile sinistra/destra per 2 secondi Spegnimento: Mantenere premuta la linea tattile sinistra/destra per 5 secondi (Nota: se sudi sugli occhiali, influenzerà l'effettodi commutazione, quindi fai attenzione allapulizia.) Le aste vengono accoppiate automaticamente dopo l'accensione Dopo che gli occhiali intelligenti sono accesi, attiva il Bluetooth del tuo telefono, cerca il nome del dispositivo A02 e connettiti Après avoir allumé les lunettes intelligentes, active le Bluetooth de votre téléphone, recherchez le nom du périphérique A02 et établissez la connexion After turning on the smart glasses, enable your phone's Bluetooth, search for the device name A02 and connect to it Rispondi al telefono/aggancia il telefono: Tocca (a sinistra o a destra) e fai clic una volt a Rifiuta la chiamata: tieni premuto il pulsantetouch (a sinistra o a destra) per 2 secondi. (Nota: il volume delle chiamate può essere regolato sul tuo cellulare.) Metti in pausa/riproduci musica: tocca fai clic(a sinistra o a destra) Cambia musica una volta: tocca e fai clic a sinistra 2 per passare alla canzone precedente e tocca e fai clic a destra 2 per passare allacanzone successiva Fotocamera con telecomando: Aprire prima la fotocamera sullo smartphone, quindi toccare due volte l'area tattile sinistra/destra per eseguire la ripresa fotografica a distanza Ricarica magnetica: Durante la ricarica, una luce arancione rimane accesa costantemente; quando la ricarica è completata, una luce verde rimane accesa costantemente. Sveglia l'assistente vocale: Mantenere premuto l'area tattile su entrambi i lati per 2 secondi (sinistra o destra) Disattiva l'assistente vocale: tocca e tocca (sinistra o destra) 1 volta Réveiller l’assistant vocal : Maintenez la zone tactile des deux côtés enfoncée pendant 2 secondes (gauche ou droite) Pour désactiver l’assistant vocal : Touchez et appuyez (gauche ou droite) 1 fois Interrupteur apparierapparier Téléphone Musique Caméra à Distance Assistant Vocal Charge Cambiare macchina accoppiareaccoppiare Telefono Musica Videocamera remota Assistente vocale Ricarica （Nota：Gli occhiali intelligenti si spengono automaticamente durante la ricarica, riconoscono i dispositivi accoppiati e si connettono automaticamente） （Nota：Les lunettes intelligentes s’éteignent automatiquement pendant la charge, reconnaissent les appareils appariés et se connectent automatiquement） （Nota：The smart glasses power off automatically during charging. They automatically recognize paired devices and connect to them） （Nota:Non in riproduzione musicale o chiamata） （Nota: Hors mode musique ou appel） （Nota: Not in music / call mode） FCC Warning FCC Avertissement FCC Avvertimento A02 pair This device complies with Part �� of the FCC Rules. Operation is subject to the following two conditions: (�) This device may not cause harmful interference. (�) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the responsible party could void the user’s authority to operate the equipment under compliance regulations. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part �� of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordan…

Text truncated - open the document above for the full version.

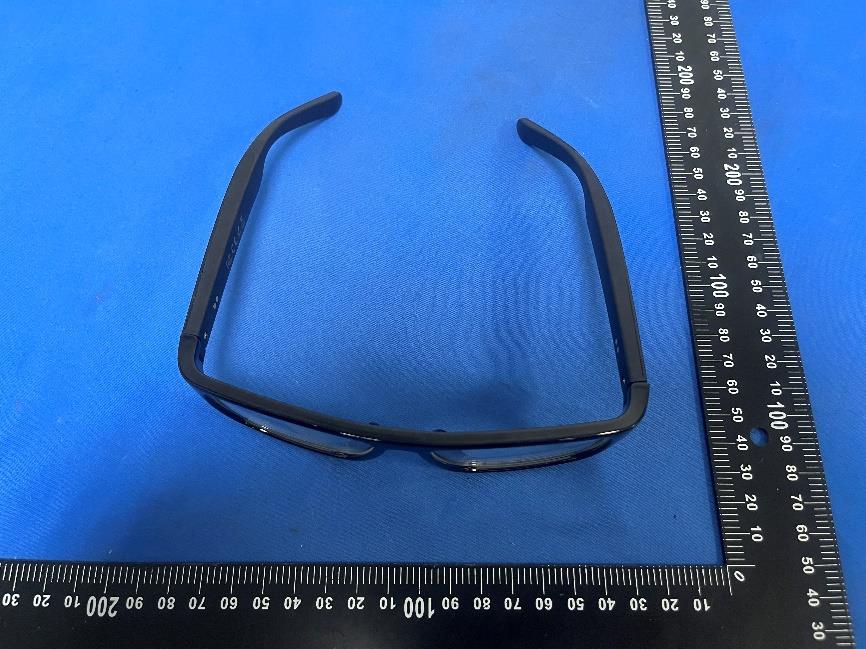

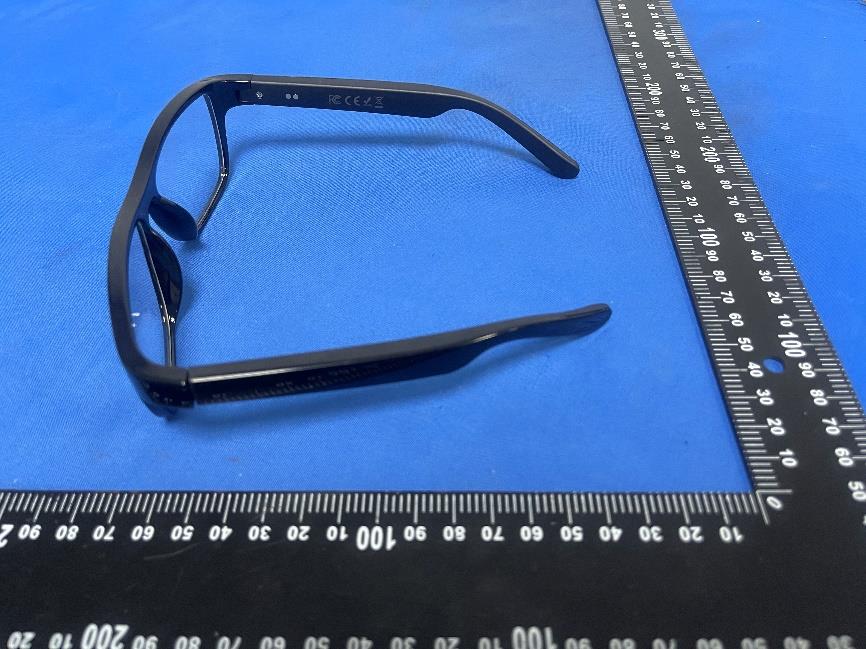

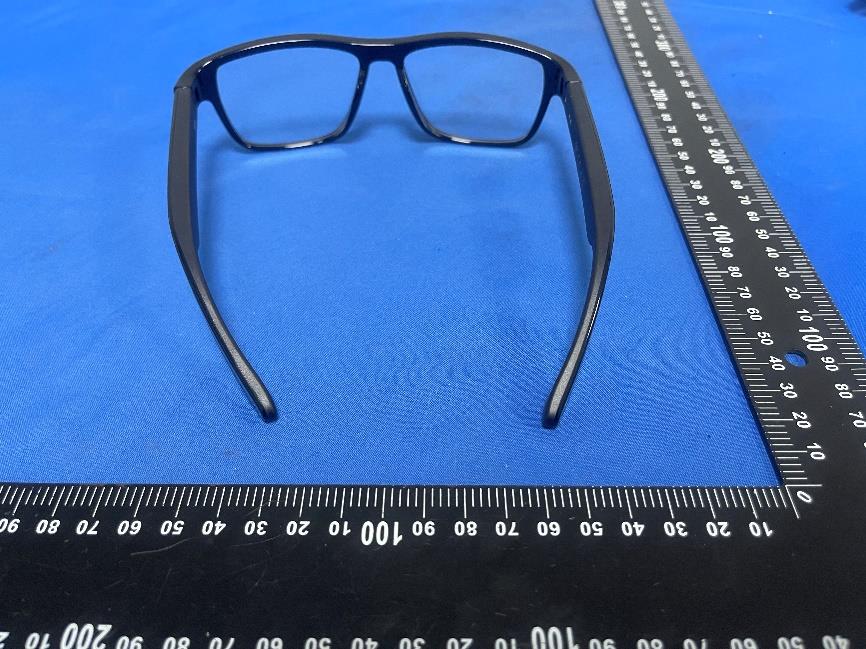

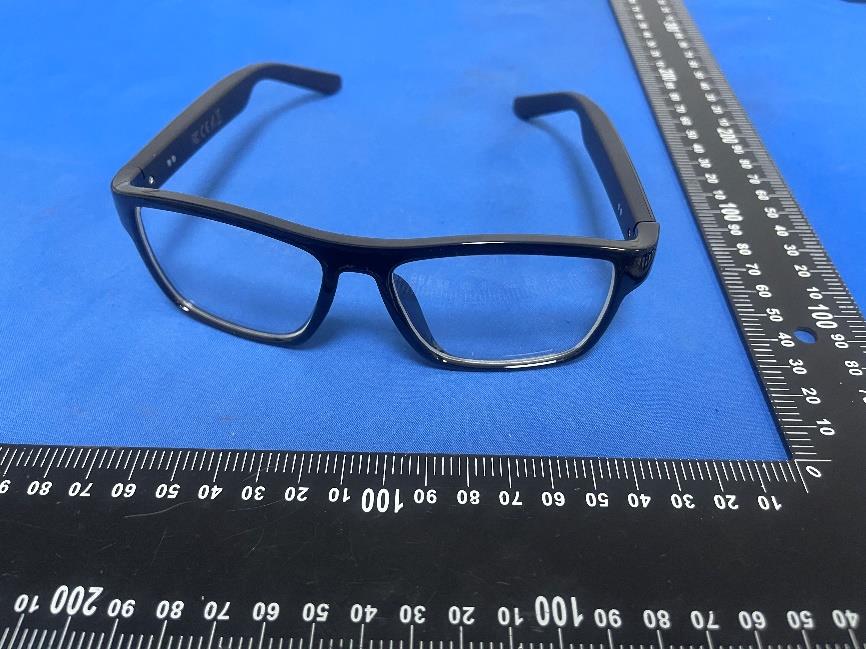

FCC ID:2BSCX-A02 External Photos of the EUT FCC ID:2BSCX-A02 FCC ID:2BSCX-A02

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BSCX-A02

FCC ID:2BSCX-A02 Internal Photos of the EUT FCC ID:2BSCX-A02 Antenna FCC ID:2BSCX-A02 FCC ID:2BSCX-A02 FCC ID:2BSCX-A02 FCC ID:2BSCX-A02

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26041700502 2BSCX-A02 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 30, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen Glasse Technology Co.,Ltd. Address............................................ : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : A02 Listed Models ................................... : N/A Rating ............................................... : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26041700502 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart glasses Model /Type : A02 Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041700502 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26041700502 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed accordi…

Text truncated - open the document above for the full version.

2.4GHz 1608 Chip Antenna: RANT1608F245X07 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1608F245 (A)(B)(C)(D) ElectricalSpecificatio X (E) 07 (F) n DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Chip Antenna: RANT1608F245X07 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation ElectricalCharacteristics Freque ncy EfficPercen 2400-1.6472.27% 2450-1.3375.34% 2500-1.5972.98% Gain(DBi) 2.38 2.7 2.59 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Chip Antenna: RANT1608F245X07 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. _ 2.4GHz 1608 Chip Antenna: RANT1608F245X07 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 3216 Chip Antenna: RANT1608F245X07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26041700501 2BSCX-A02 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 30, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : ShenZhen Glasse Technology Co.,Ltd. Address ............................................ : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : A02 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26041700501 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart glasses Model /Type : A02 Listed Models : N/A Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District,Shenzhen City China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041700501 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement result…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BSCX-A02 Company : ShenZhen Glasse Technology Co.,Ltd. EUT : Smart glasses Model Number : A02 Report No. : CTA26041700501 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.547 2402.498 --- --- 2441 0.963 2440.544 2441.507 --- --- 2480 0.948 2479.550 2480.498 --- --- 2DH5 Ant1 2402 1.347 2401.337 2402.684 --- --- 2441 1.284 2440.382 2441.666 --- --- 2480 1.323 2479.346 2480.669 --- --- 3DH5 Ant1 2402 1.311 2401.358 2402.669 --- --- 2441 1.347 2440.337 2441.684 --- --- 2480 1.323 2479.355 2480.678 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87892 2401.5782 2402.4571 --- --- 2441 0.86329 2440.5773 2441.4406 --- --- 2480 0.87634 2479.5747 2480.4510 --- --- 2DH5 Ant1 2402 1.1920 2401.4153 2402.6073 --- --- 2441 1.1826 2440.4193 2441.6019 --- --- 2480 1.1720 2479.4275 2480.5995 --- --- 3DH5 Ant1 2402 1.1813 2401.4268 2402.6081 --- --- 2441 1.1899 2440.4168 2441.6067 --- --- 2480 1.1832 2479.4239 2480.6071 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.29 ≤20.97 PASS 2441 0.05 ≤20.97 PASS 2480 0.06 ≤20.97 PASS 2DH5 Ant1 2402 -3.88 ≤20.97 PASS 2441 -4.10 ≤20.97 PASS 2480 -4.18 ≤20.97 PASS 3DH5 Ant1 2402 -3.57 ≤20.97 PASS 2441 -3.84 ≤20.97 PASS 2480 -3.86 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.992 ≥0.963 PASS 2DH5 Ant1 Hop 1.018 ≥0.898 PASS 3DH5 Ant1 Hop 1.052 ≥0.898 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 316 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.662 153 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.910 101 0.294 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 316 0.131 ≤0.4 PASS 2DH3 Ant1 Hop 1.668 166 0.277 ≤0.4 PASS 2DH5 Ant1 Hop 2.917 110 0.321 ≤0.4 PASS 3DH1 Ant1 Hop 0.415 319 0.132 ≤0.4 PASS 3DH3 Ant1 Hop 1.664 157 0.261 ≤0.4 PASS 3DH5 Ant1 Hop 2.917 105 0.306 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.18 -54.24 ≤-20.18 PASS High 2480 -0.66 -51.02 ≤-20.66 PASS Low Hop_2402 -9.09 -57.8 ≤-29.09 PASS High Hop_2480 -7.06 -57.44 ≤-27.06 PASS 2DH5 Ant1 Low 2402 -8.36 -57.64 ≤-28.36 PASS High 2480 -7.32 -54.73 ≤-27.32 PASS Low Hop_2402 -12.07 -58.4 ≤-32.07 PASS High Hop_2480 -9.28 -57.21 ≤-29.28 PASS 3DH5 Ant1 Low 2402 -7.18 -57.28 ≤-27.18 PASS High 2480 -7.96 -56.37 ≤-27.96 PASS Low Hop_2402 -10.45 -57.52 ≤-30.45 PASS High Hop_2480 -8.35 -56.31 ≤-28.35 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -1.07 -1.07 --- PASS 30~1000 -1.07 -68.09 ≤-21.07 PASS 1000~26500 -1.07 -44.4 ≤-21.07 PASS 2441 Reference -1.32 -1.32 --- PASS 30~1000 -1.32 -68.12 ≤-21.32 PASS 1000~26500 -1.32 -45.23 ≤-21.32 PASS 2480 Reference -1.33 -1.33 --- PASS 30~1000 -1.33 -67.88 ≤-21.33 PASS 1000~26500 -1.33 -42.78 ≤-21.33 PASS 2DH5 Ant1 2402 Reference -6.92 -6.92 --- PASS 30~1000 -6.92 -68.03 ≤-26.92 PASS 1000~26500 -6.92 -52.49 ≤-26.92 PASS 2441 Reference -8.07 -8.07 --- PASS 30~1000 -8.07 -67.82 ≤-28.07 PASS 1000~26500 -8.07 -53.23 ≤-28.07 PASS 2480 Reference -8.45 -8.45 --- PASS 30~1000 -8.45 -68.26 ≤-28.45 PASS 1000~26500 -8.45 -55.77 ≤-28.45 PASS 3DH5 Ant1 2402 Reference -9.54 -9.54 --- PASS 30~1000 -9.54 -67.22 ≤-29.54 PASS 1000~26500 -9.54 -53.61 ≤-29.54 PASS 2441 Reference -7.59 -7.59 --- PASS 30~1000 -7.59 -68.16 ≤-27.59 PASS 1000~26500 -7.59 -51.65 ≤-27.59 PASS 2480 Reference -9.70 -9.70 --- PASS 30~1000 -9.70 -67.85 ≤-29.7 PASS 1000~26500 -9.70 -53.83 ≤-29.7 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference

39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.76 77.66 1.10 --- --- 2441 2.92 3.76 77.66 1.10 --- --- 2480 2.92 3.76 77.66 1.10 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480 50 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.24 2.70 1.10 38.76 ≤54 PASS AV 2365.625 -58.36 2.70 1.10 40.64 ≤54 PASS AV 2390.000 -59.13 2.70 1.10 39.87 ≤54 PASS Peak 2310.000 -52.76 2.70 0.00 45.14 ≤74 PASS Peak 2352.500 -48.31 2.70 0.00 49.59 ≤74 PASS Peak 2390.000 -50.91 2.70 0.00 46.99 ≤74 PASS High 2480 AV 2483.500 -57.91 2.70 1.10 41.09 ≤54 PASS AV 2483.600 -57.56 2.70 1.10 …

Text truncated - open the document above for the full version.
