2BSCX-V03PROSmart glasses

FCC 警告 本设备符合 FCC 规则的第 �� 部分。操作受以下两个 约束条件： (�)本设备不会造成有害干扰 (�)本设备必须接受接收到的任何干扰，包括可能导致意外操作。未经 责任方明确批准的任何更改或修改因为合规可能会使用户操作设备的权 限失效。 注意： 本设备已经过测试，符合 B 类数字设备的限制，根据 FCC规则 第 �� 部分。这些限制旨在提供合理的保护防止住宅安装中的有害干扰 。本设备产生用途并可以辐射射频能量，如果不按照说明安装和使用， 可能会不能保证在特定安装中不会发生干扰。如果此设备确实会对无线 电或电视接收造成有害干扰，这是可以确定的通过关闭和打开设备，鼓 励用户尝试通过一个来纠正干扰或以下多项措施： - 重新定向或重新定位接收天线。 - 增加设备和接收器之间的距离。 - 将设备连接到与接收器所连接的电路不同的电路上的 插座。 - 向经销商或有经验的无线电/电视技术人员寻求帮助。 该设备已经过评估，符合一般射频暴露要求。该设备可以使用在无限制 的便携式暴露条件下。 FCC Warning This device complies with Part �� of the FCC Rules. Operation is subject to the following two conditions: (�) This device may not cause harmful interference (�) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the responsible party could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part �� of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation distance between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device has been evaluated to meet general RF exposure requirements.The device can be used under unrestricted portable exposure conditions. Advertencia FCC Este dispositivo cumple con la Parte �� de las Normas de la FCC. Su funcionamiento está sujeto a las siguientes dos condiciones: (�) Este dispositivo no debe causar interferencias perjudiciales. (�) Este dispositivo debe aceptar cualquier interferencia recibida, incluyendo aquellas que puedan provocar un funcionamiento no deseado. Cualquier cambio o modificación no aprobado expresamente por la parte responsable podría invalidar la autorización del usuario para operar el equipo por motivos de cumplimiento normativo. Nota: Este dispositivo ha sido probado y cumple con los límites establecidos para dispositivos digitales de Clase B, de conformidad con la Parte �� de las Normas de la FCC. Dichos límites están diseñados para proporcionar una protección razonable contra las interferencias perjudiciales en una instalación residencial. Este dispositivo genera, utiliza y puede irradiar energía de frecuencia radioeléctrica y, si no se instala y utiliza de acuerdo con las instrucciones, podría causar interferencias perjudiciales en las comunicaciones por radio. Sin embargo, no existe garantía de que no se produzcan interferencias en una instalación específica. Si este dispositivo causa interferencias perjudiciales en la recepción de radio o televisión, lo cual se puede determinar encendiendo y apagando el dispositivo, se recomienda al usuario intentar corregir la interferencia mediante una o varias de las siguientes medidas: -Reorientar o reubicar la antena receptora. -Aumentar la distancia de separación entre el dispositivo y el receptor. -Conectar el dispositivo a un tomacorriente de un circuito diferente al del receptor. -Consultar con el distribuidor o un técnico experto en radio y televisión para obtener ayuda. Este dispositivo ha sido evaluado y cumple con los requisitos generales de exposición a RF.El dispositivo puede utilizarse en condiciones de exposición portátil sin restricciones. 7 开关机 Power On/OffPair with Phone Encender/ApagarEmparejar con Teléfono 开机:长按右实体按键�秒 关机:长按右实体按键�秒 (注:五分钟未连接自动关机，如未连接 上建议重启) 扫码下载APP Scan to Download APP Escanea para descargar la APP 配对手机使用 Music Música 音乐 Power On: Press and hold the right physical button for � seconds Power Off: Press and hold the right physical button for � seconds (Note: It will power off automatically if not connected within � minutes. Restart is recommended if connection fails.) Encender: Mantener presionado el botón físico derecho durante � segundos Apagar: Mantener presionado el botón físico derecho durante � segundos (Nota: Se apagará automáticamente si no se conecta en � minutos. Se recomienda reiniciar si no logra conectarse.) 播放/暂停:双击触控区 音乐切换:长按触控区�秒切换下一曲 三击触控区切换上一曲 Play/Pause: Double-tap the touch area Music Switch: Press and hold the touch area for � seconds to play the next track Triple-tap the touch area to play the previous track Reproducir/Pausar: Doble toque en la zona táctilCambiar música: Mantenga presionada la zona táctil durante � segundos para pasar a la siguiente canciónToque triple en la zona táctil para reproducir la canción anterior Volume Volumen 音量 音量加:右侧滑动条往前滑 音量减:右侧滑动条往后滑 Volume Up: Slide forward on the right slider bar Volume Down: Slide backward on the right slider bar Subir volumen: Deslice hacia adelante la barra deslizante derecha Bajar volumen: Deslice hacia atrás la barra deslizante derecha Wake Voice Assistant Activar asistente de voz 唤醒语音助手 AI助手:短按左实体按键�次 手机语音助手:长按左实体按键�秒 AI Assistant: Short press the left physical button once Phone Voice Assistant: Press and hold the left physical button for � seconds Asistente de IA: Presione brevemente el botón físico izquierdo una vez Asistente de voz del teléfono: Mantenga presionado el botón físico izquierdo durante � segundos Phone Teléfono 电话 来电接听/挂断:短按左/右实体按键�次 拒接来电:长按左/右实体按键�秒 Answer/Hang up call: Short press the left/right physical button once Reject incoming call: Press and hold the left/…

Text truncated - open the document above for the full version.

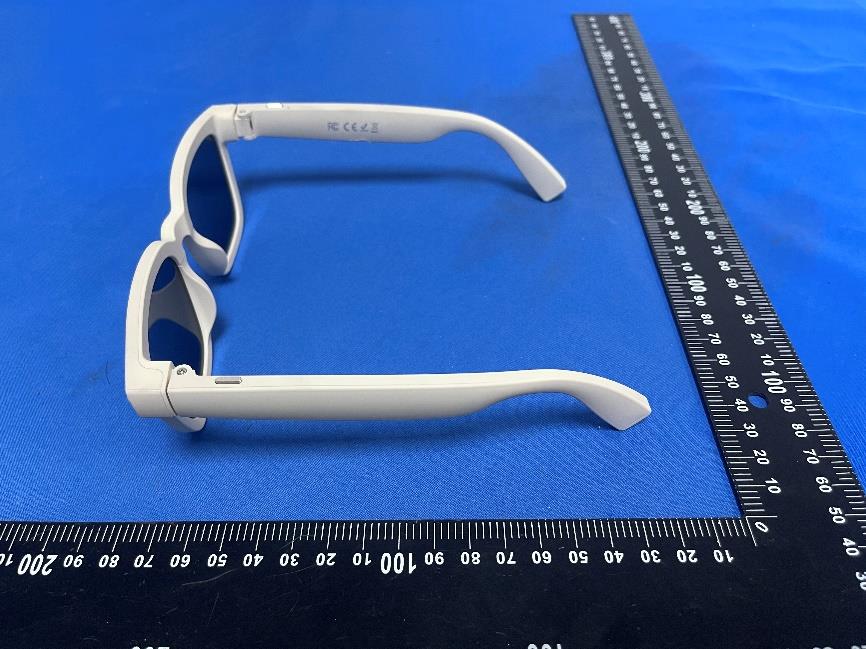

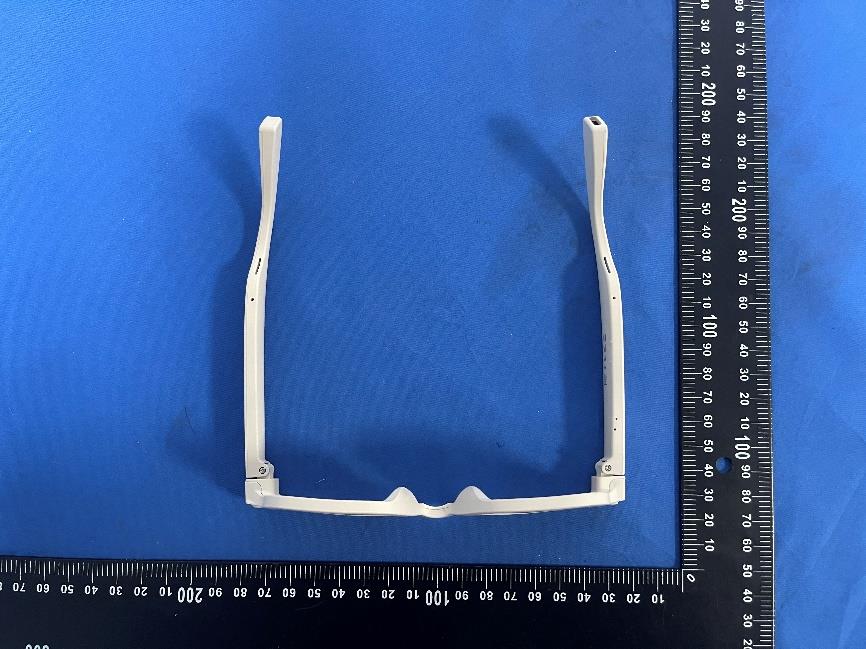

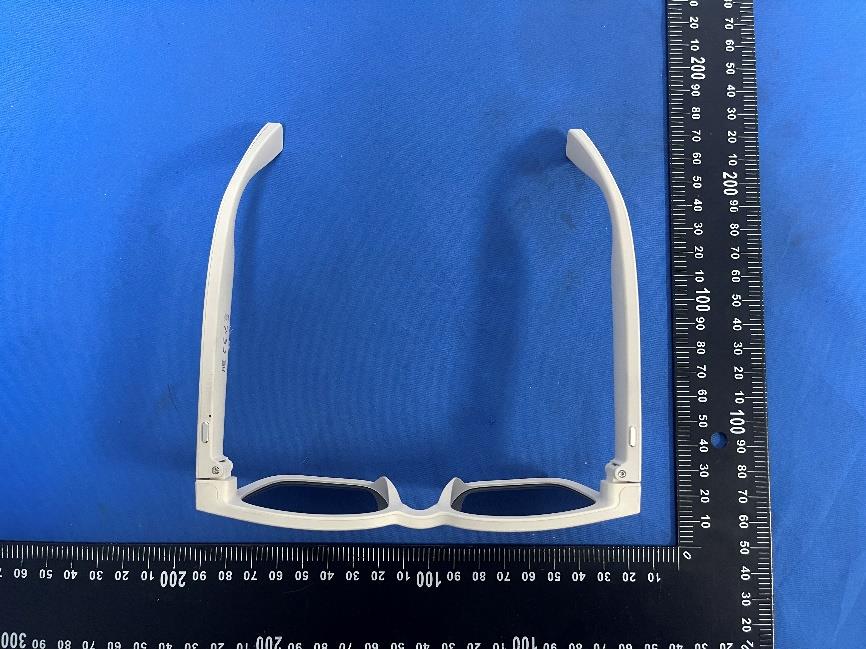

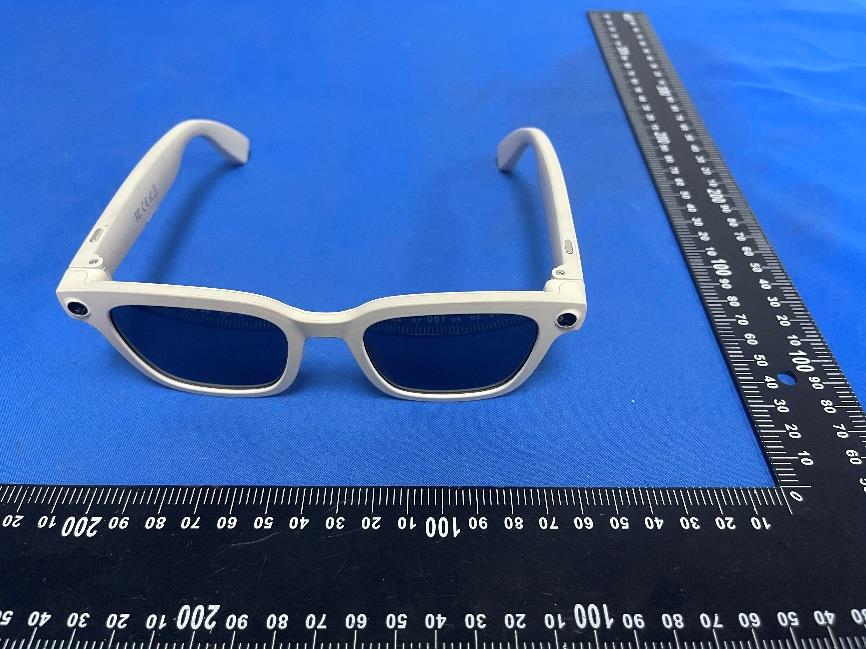

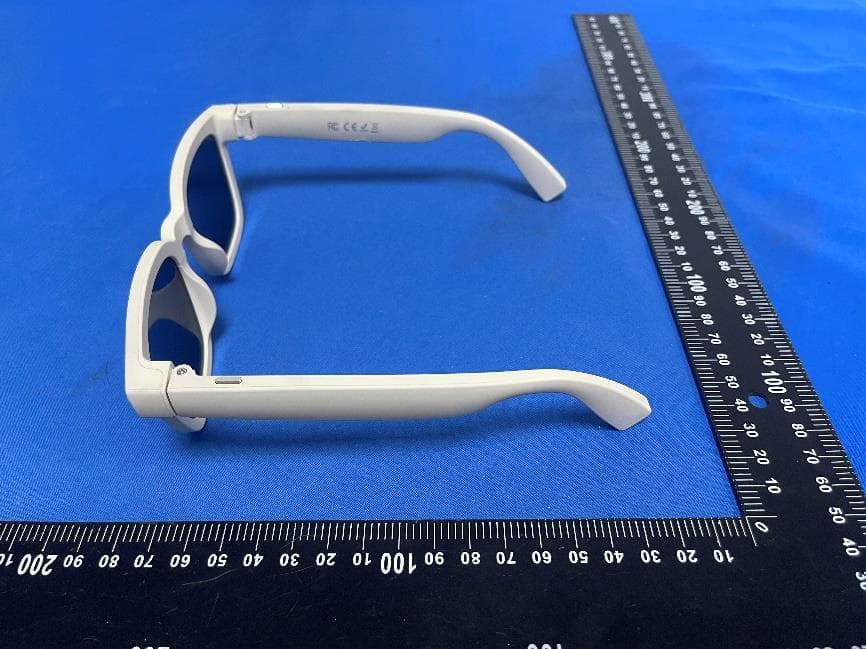

FCC ID: 2BSCX-V03PRO External Photos of the EUT FCC ID: 2BSCX-V03PRO FCC ID: 2BSCX-V03PRO

Label and Location Size: L: 1.0cm*W: 0.3cm Label and Location FCC ID : 2BSCX-V03PRO

FCC ID: 2BSCX-V03PRO Internal Photos of the EUT FCC ID: 2BSCX-V03PRO FCC ID: 2BSCX-V03PRO FCC ID: 2BSCX-V03PRO WIFI Antenna FCC ID: 2BSCX-V03PRO BT Antenna

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26042900603 2BSCX-V03PRO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 12, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen Glasse Technology Co.,Ltd. Address............................................ : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : V03 Pro Listed Models ................................... : V07, V07 Pro, X3, X3 Pro Rating ............................................... : Input: DC 5V Battery: 3.85V 220mAh 0.85Wh Result ............................................... : PASS Report No.: CTA26042900603 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart glasses Model /Type : V03 Pro Listed Models : V07, V07 Pro, X3, X3 Pro Model Difference The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model V03 Pro and the test results for the main test model can cover the listed models. Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042900603 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 9 5 Conclusion ..........................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26042900601 2BSCX-V03PRO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 12, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : ShenZhen Glasse Technology Co.,Ltd. Address ............................................ : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : V03 Pro Listed Models ................................... : V07, V07 Pro, X3, X3 Pro Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: DC 5V Battery: 3.85V 220mAh 0.85Wh Result ............................................... : PASS Report No.: CTA26042900601 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart glasses Model /Type : V03 Pro Listed Models : V07, V07 Pro, X3, X3 Pro Model Difference The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model V03 Pro and the test results for the main test model can cover the listed models. Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3,Xinhe Community, Bao'an District,Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042900601 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility..............…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BSCX-V03PRO Company : ShenZhen Glasse Technology Co.,Ltd. EUT : Smart glasses Model Number : V03 Pro Report No. : CTA26042900601 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.963 2401.544 2402.507 --- --- 2441 0.936 2440.556 2441.492 --- --- 2480 0.951 2479.547 2480.498 --- --- 2DH5 Ant1 2402 1.311 2401.358 2402.669 --- --- 2441 1.317 2440.352 2441.669 --- --- 2480 1.317 2479.352 2480.669 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86970 2401.5764 2402.4461 --- --- 2441 0.85709 2440.5769 2441.4340 --- --- 2480 0.85979 2479.5787 2480.4385 --- --- 2DH5 Ant1 2402 1.1897 2401.4169 2402.6066 --- --- 2441 1.1844 2440.4178 2441.6022 --- --- 2480 1.1981 2479.4122 2480.6103 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.82 ≤20.97 PASS 2441 0.70 ≤20.97 PASS 2480 0.75 ≤20.97 PASS 2DH5 Ant1 2402 -3.41 ≤20.97 PASS 2441 -3.53 ≤20.97 PASS 2480 -3.41 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.024 ≥0.963 PASS 2DH5 Ant1 Hop 1.132 ≥0.878 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 317 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.662 153 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.910 113 0.329 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 313 0.13 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 157 0.262 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 110 0.321 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.83 -52.7 ≤-19.17 PASS High 2480 0.01 -51.65 ≤-20 PASS Low Hop_2402 -6.90 -53.78 ≤-26.9 PASS High Hop_2480 -6.80 -57.21 ≤-26.8 PASS 2DH5 Ant1 Low 2402 -7.12 -53.63 ≤-27.12 PASS High 2480 -6.18 -57.21 ≤-26.18 PASS Low Hop_2402 -9.20 -56.22 ≤-29.2 PASS High Hop_2480 -8.37 -57.37 ≤-28.37 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.23 -0.23 --- PASS 30~1000 -0.23 -68.29 ≤-20.23 PASS 1000~26500 -0.23 -40.17 ≤-20.23 PASS 2441 Reference -0.39 -0.39 --- PASS 30~1000 -0.39 -67.42 ≤-20.39 PASS 1000~26500 -0.39 -40.78 ≤-20.39 PASS 2480 Reference -0.10 -0.10 --- PASS 30~1000 -0.10 -68.31 ≤-20.1 PASS 1000~26500 -0.10 -41.75 ≤-20.1 PASS 2DH5 Ant1 2402 Reference -8.10 -8.10 --- PASS 30~1000 -8.10 -67.5 ≤-28.1 PASS 1000~26500 -8.10 -50.87 ≤-28.1 PASS 2441 Reference -8.45 -8.45 --- PASS 30~1000 -8.45 -67.42 ≤-28.45 PASS 1000~26500 -8.45 -51.75 ≤-28.45 PASS 2480 Reference -9.38 -9.38 --- PASS 30~1000 -9.38 -68.3 ≤-29.38 PASS 1000~26500 -9.38 -51.21 ≤-29.38 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.74 78.07 1.08 --- --- 2480 2.92 3.75 77.87 1.09 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(M Hz) Detecto r Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.14 2.00 1.10 38.16 ≤54 PASS AV 2371.820 -58.52 2.00 1.10 39.78 ≤54 PASS AV 2390.000 -59.65 2.00 1.10 38.65 ≤54 PASS Peak 2310.000 -52.01 2.00 0.00 45.19 ≤74 PASS Peak 2385.785 -47.74 2.00 0.00 49.46 ≤74 PASS Peak 2390.000 -49.55 2.00 0.00 47.65 ≤74 PASS High 2480 AV 2483.500 -57.64 2.00 1.10 40.66 ≤54 PASS AV 2483.520 -57.64 2.00 1.10 40.66 ≤54 PASS AV 2500.000 -58.99 2.00 1.10 39.31 ≤54 PASS Peak 2483.500 -50.37 2.00 0.00 46.83 ≤74 PASS Peak 2484.480 -40.61 2.00 0.00 56.59 ≤74 PASS Peak 2500.000 -50.49 2.00 0.00 46.71 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.23 2.00 1.09 38.06 ≤54 PASS AV 2378.750 -58.72 2.00 1.09 39.57 ≤54 PASS AV 2390.000 -59.59 2.00 1.09 38.70 ≤54 PASS Peak 2310.000 -51.01 2.00 0.00 46.19 ≤74 PASS Peak 2371.085 -48.16 2.00 0.00 49.04 ≤74 PASS Peak 2390.000 -50.5 2.00 0.00 46.70 ≤74 PASS High 2480 AV 2483.500 -59.32 2.00 1.09 38.97 ≤54 PASS AV 2483.840 -58.32 2.00 1.09 39.97 ≤54 PASS AV 2500.000 -58.8 2.00 1.09 39.49 ≤54 PASS Peak 2483.500 -50.24 2.00 0.00 46.96 ≤74 PASS Peak 2489.600 -47.95 2.00 0.00 49.25 ≤74 PASS Peak 2500.000 -49.29 2.00 0.00 47.91 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

Shenzhen Yixiantong Cable Co., Ltd address：Building 21, Wanfeng 98 Industrial City, Shajing Street, Bao'an District, Shenzhen Antenna Specification for Approval CustomerName：MO YOUNG LIMITED ： ProductName： 2.4Gantenna length25mm Red ProductName: ： Part NO.: C10- 35- 2.5 ： WriteBy：zhuangjiebin IssuedDate: 2021- 10-08 R& D Dept Business Dept Approved By R& D Dept Engineer Dept Approval zhuangcaihong zhuangjiebin zhuangjiebin Test Equipment & Conditions 1. NetworkAnalyzers: Agilent 8753D 5071C 2. Communications TestSet: Agilent E5525C 3. 3D Chamber TestSystem Product Specification A . ElectricalCharacteristics Frequency 2400MHz ~2500MHz VSWR<3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 0.17DBi B. Material & MechanicalCharacteristics Material of Radiator Cu Cable Type 1.0 19P 红 Connector Type : NO Dimension C. Environmental Operation Temperature - 3 0 °C ~ + 8 0 °CStorage Temperature - 30 °C~+ 8 5 °C Effiency& Gain Radiation Pattern:

FCC ID: 2BSCX-V03PRO Test Setup Photos of the EUT FCC ID: 2BSCX-V03PRO
