2BSCX-G16Intelligent glasses

Settings Ws Wireles ireles s Now discoverable as "iPhone". DEVICES G16 FCC FCC Warnung FCC Warning Remote Photo Capture: Open the camera interface iOS: Double-tap left/right button Android/HarmonyOS: Tap left/right button (Note: When not in call/playback mode. Some Android models require double-tap) 遥控拍照：打开相机界面 iOS系统⸺双击左/右按键 安卓、鸿蒙系统⸺单击左/右按键 （注：非通话非播放状态下，个别安卓 双击左/右按键拍照） Fernauslösung für Fotos: Kameraoberfläche öffnen iOS: Linke/rechte Taste doppelt antippen Android/HarmonyOS: Linke/rechte Taste antippen (Hinweis: Nur bei inaktiven Anrufen/ Wiedergabe. Einige Android-Modelle erfordern Doppelantippen) 1 1 1 1 1 1 1 After turning on the smart glasses, the two temples will automatically pair. Turn on your phone's Bluetooth, search for the device named G��, and connect. Note: After turning on the smart glasses, enable Bluetooth on your phone, search for the device named G�� and connect. Then open the APP and tap Add Device. When used with the APP, functions such as AI translation and EQ auto-adjustment are available. 注:智能眼镜开机后打开手机蓝牙，搜索设备名称G��并连接;再打开APP 点击添加设备 配合APP使用，可实现AI翻译、EQ自调整等功能 Nach dem Einschalten der intelligenten Brille koppeln sich die beiden Bügel automatisch. Schalten Sie die Bluetooth-Funktion Ihres Mobiltelefons ein, suchen Sie nach dem Gerätenamen G�� und stellen Sie die Verbindung her. 扫码下载APP唤醒语音助手 Scan to download APP Hinweis: Schalten Sie nach dem Einschalten der intelligenten Brille die Bluetooth-Funktion Ihres Mobiltelefons ein, suchen Sie das Gerät mit dem Namen G�� und verbinden Sie es. Öffnen Sie anschließend die App und tippen Sie auf „Gerät hinzufügen“. Zusammen mit der App stehen Funktionen wie KI-Übersetzung und automatische EQ-Einstellung zur Verfügung. QR-Code scannen für App 唤醒手机语音助手：三击左侧按键 唤醒APP AI助手：三击右侧按键 （注：保持APP打开界面） Wake up voice assistant Wake up phone voice assistant: Triple-press the left button Wake up APP AI assistant: Triple-press the right button (Note: Keep the APP interface open.) Sprachassistent aktivieren Telefon-Sprachassistent aktivieren: Dreifach auf die linke Taste drücken APP-KI-Assistent aktivieren: Dreifach auf die rechte Taste drücken (Hinweis: Die APP-Oberfläche geöffnet lassen) 本设备符合 FCC 规则的第 �� 部分。操作受以下两个约束条件： (�)本设备不会造成有害干扰 (�)本设备必须接受接收到的任何干扰，包括可能导致意外操作。未经责任方 明确批准的任何更改或修改因为合规可能会使用户操作设备的权限失效。 注意： 本设备已经过测试，符合 B 类数字设备的限制，根据 FCC规则第 �� 部分。这些限制旨在提供合理的保护防止住宅安装中的有害干扰。本设备产 生用途并可以辐射射频能量，如果不按照说明安装和使用，可能会不能保证 在特定安装中不会发生干扰。如果此设备确实会对无线电或电视接收造成有 害干扰，这是可以确定的通过关闭和打开设备，鼓励用户尝试通过一个来纠 正干扰或以下多项措施： - 重新定向或重新定位接收天线。 - 增加设备和接收器之间的距离。 - 将设备连接到与接收器所连接的电路不同的电路上的 插座。 - 向经销商或有经验的无线电/电视技术人员寻求帮助。 该设备已经过评估，符合一般射频暴露要求。该设备可以使用在无限制的便 携式暴露条件下。 This device complies with Part �� of the FCC Rules. Operation is subject to the following two conditions: (�) This device may not cause harmful interference. (�) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the responsible party could void the user’s authority to operate the equipment under compliance regulations. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part �� of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment has been evaluated and complies with general RF exposure requirements. This equipment can be used in unlimited portable exposure conditions. Dieses Gerät entspricht Teil �� der FCC-Bestimmungen. Der Betrieb unterliegt den folgenden zwei Bedingungen: (�) Dieses Gerät darf keine schädlichen Störungen verursachen. (�) Dieses Gerät muss alle empfangenen Störungen akzeptieren, einschließlich solchen, die zu einem unerwarteten Betrieb führen können. Jegliche Änderungen oder Modifikationen, die nicht ausdrücklich von der verantwortlichen Partei genehmigt wurden, können die Berechtigung des Benutzers zum Betrieb des Geräts aufgrund der Konformitätsbestimmungen aufheben. Hinweis: Dieses Gerät wurde getestet und erfüllt die Grenzwerte für ein digitales Gerät der Klasse B gemäß Teil �� der FCC-Bestimmungen. Diese Grenzwerte sind darauf ausgelegt, einen angemessenen Schutz vor schädlichen Störungen bei der Installation in Wohnbereichen zu bieten. Dieses Gerät erzeugt, nutzt und kann Hochfrequenzenergie abstrahlen und kann, wenn es nicht gemäß den Anweisungen installiert und betrieben wird, schädliche Störungen für Funkkommunikationen verursachen. Es gibt jedoch keine Garantie dafür, dass bei einer bestimmten Installation keine Störungen auftreten. Wenn dieses Gerät tatsächlich schädliche Störungen für Radio- oder Fernsehempfang verursacht, was durch Ein- und Ausschalten des Geräts festgestellt werden kann, wird der Benutzer ermutigt, die Störung durch eine oder mehrere der folgenden Maßnahmen zu beheben: -Neuausrichtung oder Neupositionierung der Empfangsantenne. -Erhöhung des Abstands zwischen Gerät und Empfänger. -Anschluss des Geräts an eine Steckdose in einem anderen Stromkreis als dem, an den der Empfänger angeschlossen ist. -Hilfe beim Händler oder einem erfahrenen Radio-/Fernsehtechniker suchen. Dieses Gerät wurde geprüft und erfüllt die a…

Text truncated - open the document above for the full version.

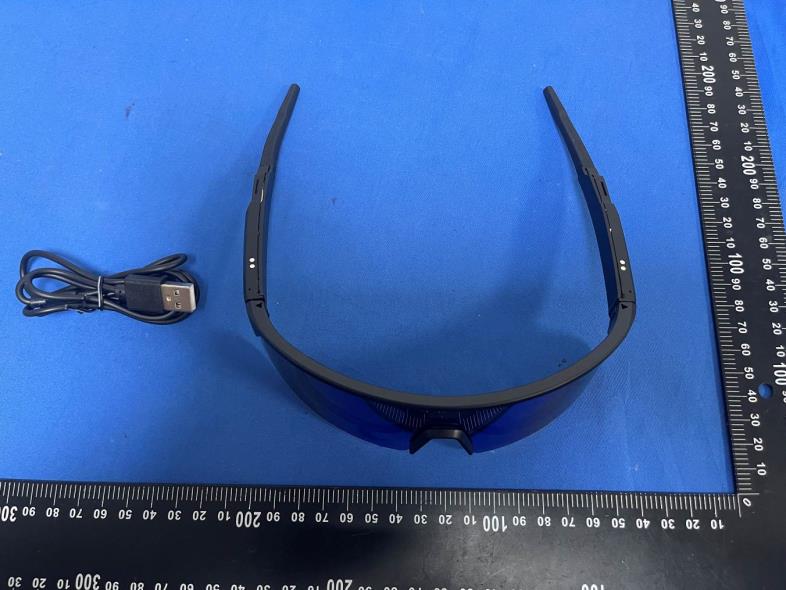

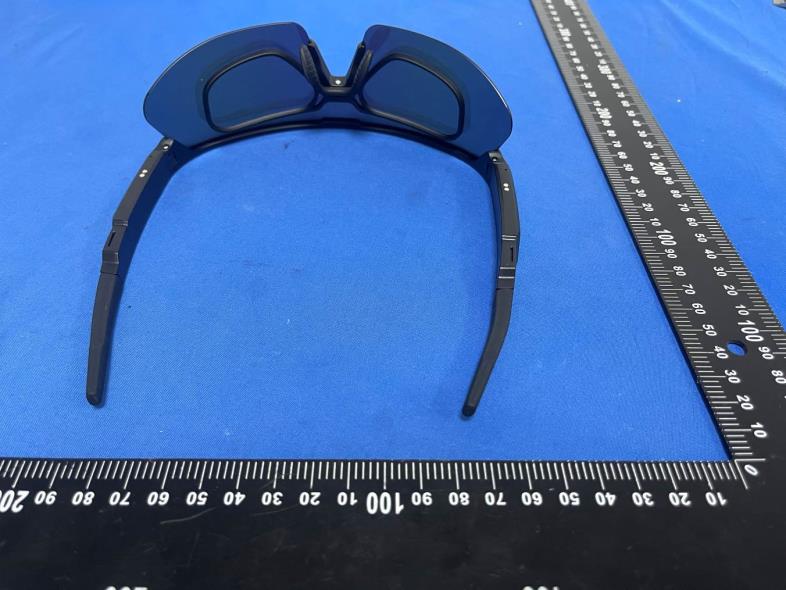

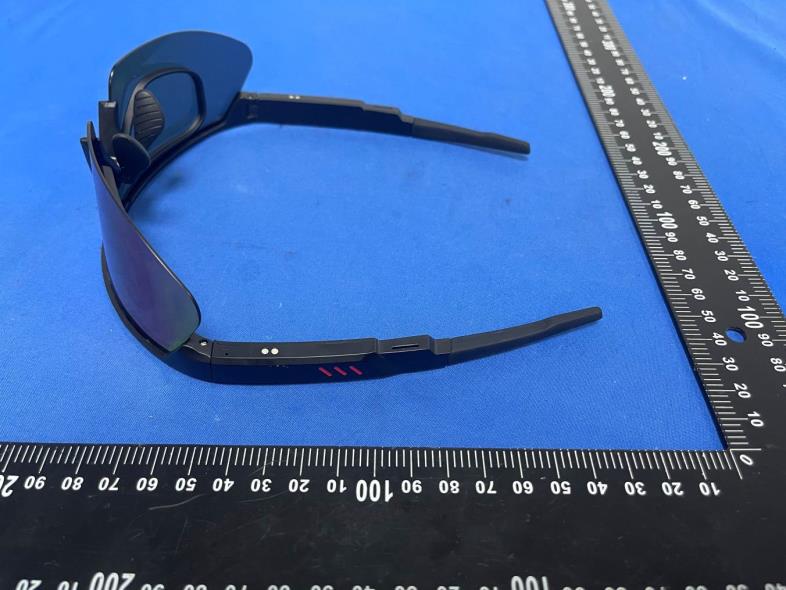

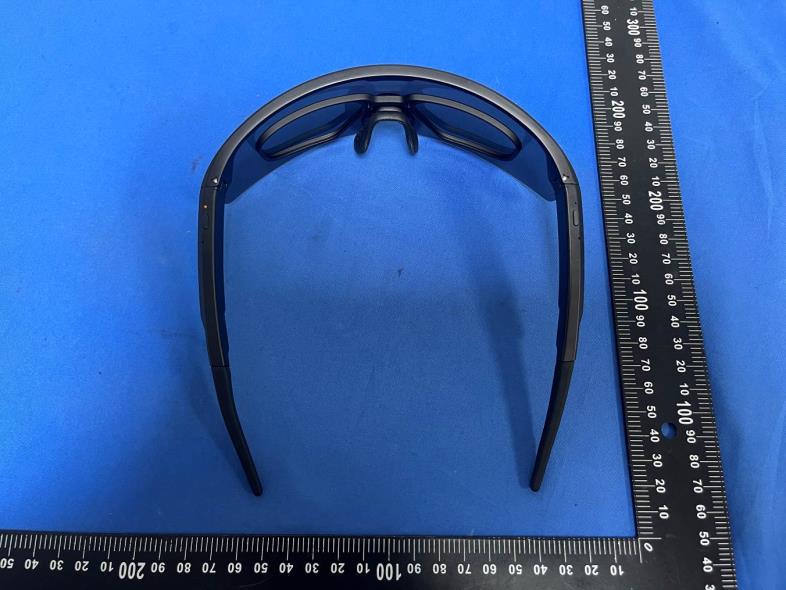

FCC ID:2BSCX-G16 External Photos of the EUT FCC ID:2BSCX-G16 FCC ID:2BSCX-G16

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BSCX-G16

FCC ID:2BSCX-G16 Internal Photos of the EUT FCC ID:2BSCX-G16 BT ANT FCC ID:2BSCX-G16 FCC ID:2BSCX-G16 FCC ID:2BSCX-G16 FCC ID:2BSCX-G16 FCC ID:2BSCX-G16

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26040200302 2BSCX-G16 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 09, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen Glasse Technology Co.,Ltd. Address............................................ : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Intelligent glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : G16 Listed Models ................................... : G16 Pro, G18, G18 Pro, G19, G19 Pro Rating ............................................... : DC 3.87V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26040200302 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent glasses Model /Type : G16 Listed Models : G16 Pro, G18, G18 Pro, G19, G19 Pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040200302 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26040200302 Page 4 of 8 Shenzhen CTA Testing Technolog…

Text truncated - open the document above for the full version.

RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第1页 天线规格书 Antennaspecificationforapproval 客户名称 Customername 机型 Model 天线频段 Antennaband 2.4GHZ 天线类型 Antennatype 天线材质 Antenna materia MLB-G16-PFC-V1.0 l FPC FPC颜色 FPCcolor 料号 Material numbe black r 厂商承认签章 Barenacceptedthesignature 客户承认签章 Clientacknowledgessignature 结构 structure 采购 Purchase 品质 QC 结构 structure 射频 radiofrequency 工程 engineering 审核 Toexamine 品质 QC 盖章区 Sealare 日期 date a 盖章区 Sealare 日期 date a MLB-G16-PFC-V1.0 RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第2页 目录 一:Device support & can test antenna types.......1 二:summariz.........................................2 三:Match circuit diagram & machine picture & anten na picture.......................................3 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR)............................................ 4 五:3D pattern .......................................5 六:Structural drawing...............................6 RAIN Shenzhen Yongcheng International Technology Co., LTD 第3 13530576606 页 一:Device support & can test antenna types RAIN Shenzhen Yongcheng International Technology Co., LTD 第4 13530576606 页 (1)Antennaperformanc 二:summarize e Descriptio 1.ThisapprovalsheetsupportsforMIDproject.FPCantennasincludeinthisproject.Thisreport isfortheperformanceofBTantenna. 2.Antennashapesize：MeettherequirementofMID 3.Antennaband：2400MHz~2500MHz 4.Antennamaterial：AntennamaterialmeettherequirementofMID 5.Adhesiveperformance：AdhesiveperformancemeettherequirementofMID 6.Antennaperformancemeetthespecbelow： n2.4GHZ~2.5GHzUnits VSWR ≤2.0 AverageAntennaGain ≥-4.5 dB AntennaEfficiency≥40 FeedImpedance50ohms OperatingTemperature-40to+85degC Polarization/AzimuthLinear/Omni-directional (2)MechanicalInformation MechanicalDimension CableLengthNA DescriptionBTantenna MaterialFPC CoaxialCableNA Environmental OperationTemperature-40to+85degC StorageTemperature-40to+85degC RAIN 第5 Shenzhen Yongcheng International Technology Co., LTD 13530576606 页 三:Match circuit diagram & machine picture & antenna picture (2) Machine picture & antenna picture 1: gold plating; 3: Surface black matte ink; 4: Meet the latest environmental requirements: RoHS&REACH; 5: The whole board shipment; RAIN Shenzhen Yongcheng International Technology Co., LTD 第6 13530576606 页 Frequency(MHz 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR) )VSWR 24001.29 24401.02 24801.38 RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第7页 五:3Dpattern RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第8页 六:Structuraldrawing

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26040200301 2BSCX-G16 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 09, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : ShenZhen Glasse Technology Co.,Ltd. Address ............................................ : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Intelligent glasses Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Glasse Technology Co.,Ltd. Model/Type reference ...................... : G16 Listed Models ................................... : G16 Pro, G18, G18 Pro, G19, G19 Pro Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 3.87V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26040200301 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent glasses Model /Type : G16 Listed Models : G16 Pro, G18, G18 Pro, G19, G19 Pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Manufacturer : ShenZhen Glasse Technology Co.,Ltd. Address : Factory Building D6, Phase II, Fuzhao District 3, Xinhe Community, Bao'an District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040200301 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility.......................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BSCX-G16 Company : ShenZhen Glasse Technology Co.,Ltd. EUT : Intelligent glasses Model Number : G16 Report No. : CTA26040200301 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.963 2401.541 2402.504 --- --- 2441 0.957 2440.541 2441.498 --- --- 2480 0.951 2479.547 2480.498 --- --- 2DH5 Ant1 2402 1.326 2401.343 2402.669 --- --- 2441 1.308 2440.355 2441.663 --- --- 2480 1.329 2479.349 2480.678 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.84960 2401.5832 2402.4328 --- --- 2441 0.86540 2440.5804 2441.4458 --- --- 2480 0.86367 2479.5784 2480.4421 --- --- 2DH5 Ant1 2402 1.1902 2401.4136 2402.6038 --- --- 2441 1.1873 2440.4148 2441.6021 --- --- 2480 1.1969 2479.4121 2480.6090 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Left: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.05 ≤20.97 PASS 2441 -0.51 ≤20.97 PASS 2480 -0.76 ≤20.97 PASS 2DH5 Ant1 2402 -0.81 ≤20.97 PASS 2441 -1.42 ≤20.97 PASS 2480 -1.69 ≤20.97 PASS Right: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.16 ≤20.97 PASS 2441 -0.28 ≤20.97 PASS 2480 -0.43 ≤20.97 PASS 2DH5 Ant1 2402 -0.57 ≤20.97 PASS 2441 -1.26 ≤20.97 PASS 2480 -1.43 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.986 ≥0.963 PASS 2DH5 Ant1 Hop 1.116 ≥0.886 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 320 0.13 ≤0.4 PASS DH3 Ant1 Hop 1.662 162 0.269 ≤0.4 PASS DH5 Ant1 Hop 2.910 112 0.326 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 318 0.132 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 160 0.267 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 106 0.309 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.27 -53.58 ≤-20.27 PASS High 2480 -1.33 -56.1 ≤-21.33 PASS Low Hop_2402 -8.06 -57.32 ≤-28.06 PASS High Hop_2480 -8.16 -57.92 ≤-28.16 PASS 2DH5 Ant1 Low 2402 -5.64 -57.13 ≤-25.64 PASS High 2480 -5.20 -57.36 ≤-25.2 PASS Low Hop_2402 -8.59 -57.56 ≤-28.59 PASS High Hop_2480 -7.08 -57.14 ≤-27.08 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -1.04 -1.04 --- PASS 30~1000 -1.04 -67.6 ≤-21.04 PASS 1000~26500 -1.04 -43 ≤-21.04 PASS 2441 Reference -1.58 -1.58 --- PASS 30~1000 -1.58 -67.24 ≤-21.58 PASS 1000~26500 -1.58 -43.33 ≤-21.58 PASS 2480 Reference -1.93 -1.93 --- PASS 30~1000 -1.93 -67.09 ≤-21.93 PASS 1000~26500 -1.93 -45.6 ≤-21.93 PASS 2DH5 Ant1 2402 Reference -6.31 -6.31 --- PASS 30~1000 -6.31 -68.18 ≤-26.31 PASS 1000~26500 -6.31 -49.16 ≤-26.31 PASS 2441 Reference -4.22 -4.22 --- PASS 30~1000 -4.22 -67.9 ≤-24.22 PASS 1000~26500 -4.22 -47.02 ≤-24.22 PASS 2480 Reference -7.68 -7.68 --- PASS 30~1000 -7.68 -67.01 ≤-27.68 PASS 1000~26500 -7.68 -49.21 ≤-27.68 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.92 3.76 77.66 1.10 --- --- 2441 2.92 3.76 77.66 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.74 78.07 1.08 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -59.86 2.69 1.10 39.13 ≤54 PASS AV 2380.955 -58.48 2.69 1.10 40.51 ≤54 PASS AV 2390.000 -59.34 2.69 1.10 39.65 ≤54 PASS Peak 2310.000 -52.16 2.69 0.00 45.73 ≤74 PASS Peak 2386.310 -48.3 2.69 0.00 49.59 ≤74 PASS Peak 2390.000 -50.35 2.69 0.00 47.54 ≤74 PASS High 2480 AV 2483.500 -58.63 2.69 1.10 40.36 ≤54 PASS AV 2484.480 -58.05 2.69 1.10 40.94 ≤54 PASS AV 2500.000 -59.37 2.69 1.10 39.62 ≤54 PASS Peak 2483.500 -49.16 2.69 0.00 48.73 ≤74 PASS Peak 2484.320 -47.53 2.69 0.00 50.36 ≤74 PASS Peak 2500.000 -50.23 2.69 0.00 47.66 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -59.58 2.69 1.09 39.4 ≤54 PASS AV 2363.000 -58.45 2.69 1.09 40.53 ≤54 PASS AV 2390.000 -59.37 2.69 1.09 39.61 ≤54 PASS Peak 2310.000 -51.22 2.69 0.00 46.67 ≤74 PASS Peak 2382.425 -48.39 2.69 0.00 49.5 ≤74 PASS Peak 2390.000 -50.7 2.69 0.00 47.19 ≤74 PASS High 2480 AV 2483.500 -58.87 2.69 1.08 40.1 ≤54 PASS AV 2485.440 -58.41 2.69 1.08 40.56 ≤54 PASS AV 2500.000 -59.74 2.69 1.08 39.23 ≤54 PASS Peak 2483.500 -50.42 2.69 0.00 47.47 ≤74 PASS Peak 2484.240 -48.57 2.69 0.00 49.32 ≤74 PASS Peak 2500.000 -51.97 2.69 0.00 45.92 ≤74 PASS Note: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

FCC ID:2BSCX-G16 Test Setup Photos of the EUT FCC ID:2BSCX-G16
