2BTRQ-KSW-1108Speaker

mitzu.commitzu.oficialmitzu.oficialMitzuCorpMitzu.Corp Images are for illustrative purposes only; colors and design may vary. MODEL: Read the entire manual before using this product for the first time. Rechargeable Portable Speaker with FM Player KSW-1108 mitzu.com 2 WELCOME Thank you for purchasing the new KAISER® product. We are confident that you will be very satisfied with your purchase. CONTENTS HOW TO TURN ON? 1. Rechargeable Speaker (1 unit). 2. Remote Control (1 unit). 3. Wired Microphone (1 unit). 4. Power Adapter (1 unit). 1 2 34 Connect the power cable to the electrical outlet and then to the speaker. Allow charging for 4 hours before turning it on for the first time. POWER SUPPLY After charging the battery for the first time, you can press the POWER switch to turn on the device. To maximize battery life, connect to a power outlet when the battery is low, for up to 3 hours of charging (see charging LED). You can continue using it while it is connected. - Set all switches to OFF. - Check that the volume is set to the lowest level. - Verify that the voltage of the power source is compatible with the equipment’s required voltage. If the device is used intermittently, it is recommended to fully charge the battery at least every 30 days. TIP 3 mitzu.oficialmitzu.oficialMitzuCorpMitzu.Corp GENERAL DESCRIPTION OPERATION A) CONTROL PANEL C) REMOTE CONTROL D) WIRED MICROPHONE VOLUMEN KSR-LINK GRABAR MODO LED ECO BAJOS AGUDOS MIN MAX MIN MIN MAX MAX MAX MIN VOL MIC CARGA MIN MAX MICRO SD USB AUX MIC ON OFF ON OFF REC PLAY AJUSTES MICRÓFONO PODER LED ENTRADA DE AUDIO REPRODUCTOR DIGITAL ALIMENTACIÓN CONTROL PANEL A 1 2 3 4 5 6 1) DISPLAY: Shows what is being played. 2) MODE / MIC PRIO BUTTON: Switches between USB, FM, AUX, Micro SD, and Bluetooth modes. Press MODE until the desired function appears on the screen. BC A mitzu.com 4 AUX MODE Connect a 3.5 mm cable to the speaker and the audio device. NOTE: Does not include a 3.5 mm to 3.5 mm cable. Press MODE until the desired function is indicated on the screen. NOTE: In some cases, playback may start automatically. BLUETOOTH® MODE Enable Bluetooth on your mobile phone. Search for and connect to the unit named “KSW-1108”. After successful pairing, you can play music. You will not need to reconnect Bluetooth when switching modes. USB / MICRO SD PORT MODE Connect a USB flash drive or Micro SD card. Press MODE until the desired function appears on the screen. NOTE: In some cases, playback may start automatically. MIC PRIO Turn the microphone priority function on and off by pressing the “MIC PRIO” or “MODE” button. Please insert the microphone before using this function and ensure the microphone is turned on. 3) PREVIOUS TRACK / PREVIOUS STATION / RECORD BUTTON RECORD A) Insert the USB / Micro SD card and then the microphone. B) Press and hold the “RECORD” button for more than 3 seconds to start recording. C) When finished, press the button again to stop. To listen to the recording, press the “NEXT TRACK” button. D) Press again to exit the recording function. 4) PLAY / PAUSE / KSR-LINK BUTTON Play and pause, or press to scan FM stations. KSR-LINK A) Only 2 speakers can be connected at the same time. B) Both speakers must be in BT MODE to use KSR-LINK. C) Press and hold the PLAY / PAUSE / KSR-LINK button for 3 seconds. D) The speakers will connect automatically. To listen to music via BT, you must pair your mobile phone with the main device. 5) NEXT TRACK / NEXT STATION / REC PLAY BUTTON REC PLAY Press REC PLAY briefly to play the recording. 6) MICRO SD AND USB PORTS: Play stored audio files. 5 mitzu.ocialmitzu.ocialMitzuCorpMitzu.Corp 12 3 4 5 6 7 9 11 10 8 1) MASTER VOLUME KNOB Adjusts the overall volume. 2) CHARGING LED When lit (red), it means it is charging; when off, it means the battery is fully charged. 3) TREBLE Adjust the high-frequency level. Equalize the sound with this tone control. 4) BASS Adjust the low-frequency level. Equalize the sound with this tone control. 5) ECHO Microphone sound effect. 6) MICROPHONE VOLUME Controls the microphone volume. 7) POWER ON / OFF SWITCH Turns the device on and off. 8) LED ON / OFF SWITCH Turns the LEDs on and off. 9) 6.3 mm INPUT For wired microphone. 10) 3.5 mm AUXILIARY INPUT Plays audio devices (see Auxiliary Mode). 11) POWER INPUT. -Continuous exposure to audio pressure levels exceeding 100 dB can cause total hearing loss. Some sound systems can generate levels above 130 dB. mitzu.com 6 REMOTE CONTROL B 1 23 4 8 6 5 9 7 10 11 12 1. STAND BY. 2. MODE: USB, TF, FM, AUX, BLUETOOTH®. 3. MUTE. 4. PREVIOUS TRACK BUTTON. 5. NEXT TRACK BUTTON. 6. VOL-: Decreases the main volume. 7. VOL+: Increases the main volume. 8. REPEAT: Repeats the currently playing track. 9. SCAN: Scan channels in FM mode. 10. NUMERIC KEYS FOR SONG SELECTION (0–9). 11. EQ (EQUALIZER). 12. PLAY / PAUSE BUTTON. WIRED MICROPHONE C WOOFER 1.Connect the microphone to the speaker. 2. Slide the microphone switch to turn it on. Turn on the LED switch to make the woofer light up and flash (rear panel). NOTE: In FM mode, the LED light should be turned off to improve radio signal reception. 7 mitzu.ocialmitzu.ocialMitzuCorpMitzu.Corp Power Supply: 7,4 Vcc 2 200 mAh (rechargeable battery) Charging: 9 Vcc 1,5 A Woofer: 8” (20,32 cm) Impedance: 2,5 ohm Frequency Response: 45 Hz - 8 kHz Sensitivity: 92 dB Tweeter: 1,5” (3,81cm) Bluetooth® Version: 5.3 Bluetooth® Frequency Range: 2.4 GHz Bluetooth® Range: Up to 32.8 ft tested in an unobstructed line of sight under optimal conditions AC / DC ADAPTER: Input: 100 - 240 Vca 50 - 60 Hz 0,625 A Output: 9 Vcc 1,5 A SPECIFICATIONS Model: KSW-1108 Product Name: Portable Rechargeable Speaker with FM Player FCC ID: TBD V olume level Battery duration 25% volume3 hours 50% volume 2 hours 100% volume1 hour mitzu.com 8 This device must not be exposed to dripping or splashing liquids. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device…

Text truncated - open the document above for the full version.

MITZU GLOBAL LLC 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/24 U.S. Agent Designation MITZU GLOBAL LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTRQ-KSW-1108): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of MITZU GLOBAL LLC MITZU GLOBAL LLC with the FRN [0037764321] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Rodolfo Cruz Purchasing Director MITZU GLOBAL LLC Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

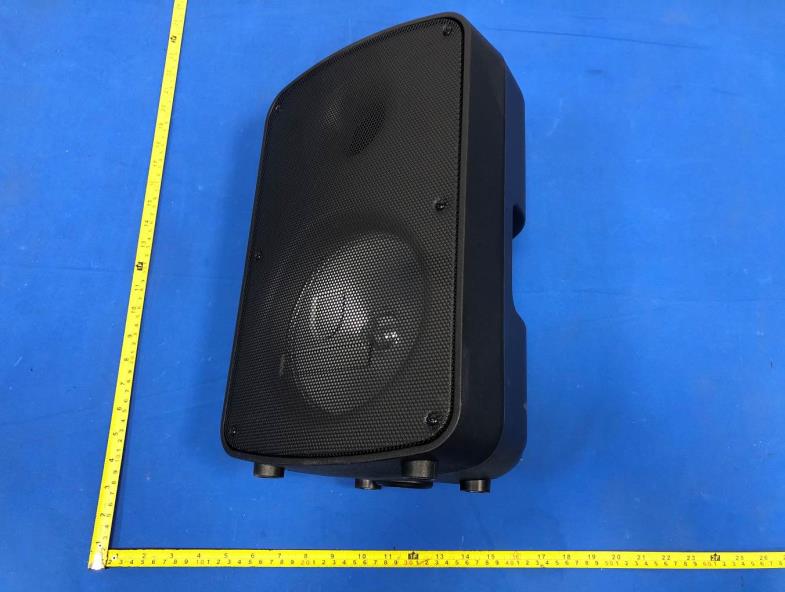

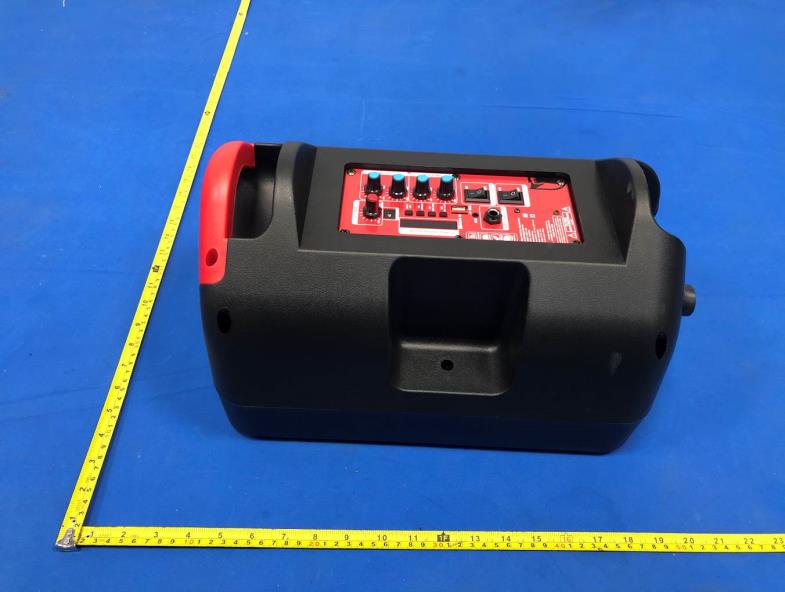

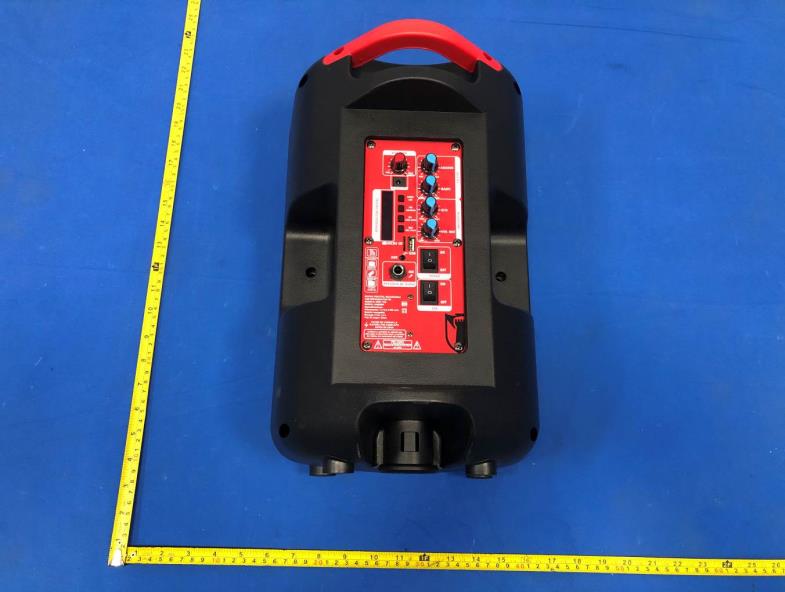

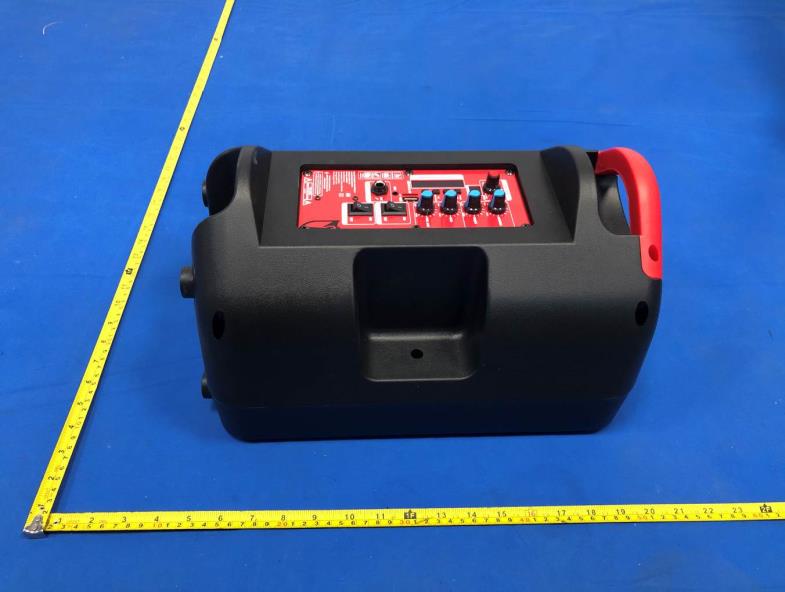

FCC ID: 2BTRQ-KSW-1108 External Photos of the EUT FCC ID: 2BTRQ-KSW-1108 FCC ID: 2BTRQ-KSW-1108

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BTRQ-KSW-1108 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2BTRQ-KSW-1108 Internal Photos of the EUT FCC ID: 2BTRQ-KSW-1108 ANT FCC ID: 2BTRQ-KSW-1108 FCC ID: 2BTRQ-KSW-1108

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA25120801802 2BTRQ-KSW-1108 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : MITZU GLOBAL LLC Address ........................................... : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Standard .......................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Speaker Trade Mark ...................................... : KAISER Manufacturer .................................... : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Model/Type reference ...................... : KSW-1108 Listed Models ................................... : KSW-1208 Rating ............................................... : DC 7.4V From battery and DC 9.0V From external circuit Result ............................................... : PASS Report No.: CTA25120801802 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : KSW-1108 Listed Models : KSW-1208 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : MITZU GLOBAL LLC Address : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Manufacturer : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Address : NO.2 DONGSHENG SANHENG ROAD, CHADONG VILLAGE, DALONG STREET, PANYU DISTRICT, GUANGZHOU, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120801802 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120801802 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mai…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model KSW-1108 Frequency range 2400-2500MHz Manufacturer MITZU GLOBAL LLC Address 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States ANT Peak Gain 0.95 dBi 2. Antenna Photo: Length :14.63mm Width:3.39mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25120801801 2BTRQ-KSW-1108 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : MITZU GLOBAL LLC Address ............................................ : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Speaker Trade Mark ....................................... : KAISER Manufacturer .................................... : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Model/Type reference ...................... : KSW-1108 Listed Models ................................... : KSW-1208 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 7.4V From battery and DC 9.0V From external circuit Result ............................................... : PASS Report No.: CTA25120801801 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : KSW-1108 Listed Models : KSW-1208 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : MITZU GLOBAL LLC Address : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Manufacturer : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Address : NO.2 DONGSHENG SANHENG ROAD, CHADONG VILLAGE, DALONG STREET, PANYU DISTRICT, GUANGZHOU, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120801801 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ............................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BTRQ-KSW-1108 Company : MITZU GLOBAL LLC EUT : Speaker Model Number : KSW-1108 Report No. : CTA25120801801 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.945 2401.553 2402.498 --- --- 2441 0.930 2440.556 2441.486 --- --- 2480 0.939 2479.550 2480.489 --- --- 2DH5 Ant1 2402 1.317 2401.352 2402.669 --- --- 2441 1.332 2440.343 2441.675 --- --- 2480 1.278 2479.382 2480.660 --- --- 3DH5 Ant1 2402 1.320 2401.355 2402.675 --- --- 2441 1.281 2440.364 2441.645 --- --- 2480 1.266 2479.379 2480.645 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86145 2401.5804 2402.4418 --- --- 2441 0.87109 2440.5750 2441.4461 --- --- 2480 0.87254 2479.5732 2480.4457 --- --- 2DH5 Ant1 2402 1.1860 2401.4175 2402.6035 --- --- 2441 1.1852 2440.4177 2441.6029 --- --- 2480 1.1861 2479.4193 2480.6054 --- --- 3DH5 Ant1 2402 1.1834 2401.4202 2402.6036 --- --- 2441 1.1921 2440.4132 2441.6053 --- --- 2480 1.1892 2479.4158 2480.6050 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.25 ≤20.97 PASS 2441 -3.42 ≤20.97 PASS 2480 -3.55 ≤20.97 PASS 2DH5 Ant1 2402 -3.92 ≤20.97 PASS 2441 -4.14 ≤20.97 PASS 2480 -4.25 ≤20.97 PASS 3DH5 Ant1 2402 -3.66 ≤20.97 PASS 2441 -3.87 ≤20.97 PASS 2480 -3.93 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.016 ≥0.945 PASS 2DH5 Ant1 Hop 1.12 ≥0.888 PASS 3DH5 Ant1 Hop 1 ≥0.880 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.650 168 0.277 ≤0.4 PASS DH5 Ant1 Hop 2.890 112 0.324 ≤0.4 PASS 2DH1 Ant1 Hop 0.400 316 0.126 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 154 0.254 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 110 0.319 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 320 0.125 ≤0.4 PASS 3DH3 Ant1 Hop 1.650 162 0.267 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 115 0.334 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.75 -57.97 ≤-23.75 PASS High 2480 -4.06 -41.17 ≤-24.06 PASS Low Hop_2402 -7.20 -59.88 ≤-27.2 PASS High Hop_2480 -6.93 -64.44 ≤-26.93 PASS 2DH5 Ant1 Low 2402 -7.85 -61.4 ≤-27.85 PASS High 2480 -7.54 -64.26 ≤-27.54 PASS Low Hop_2402 -7.21 -63.9 ≤-27.21 PASS High Hop_2480 -7.64 -64.07 ≤-27.64 PASS 3DH5 Ant1 Low 2402 -6.57 -63.16 ≤-26.57 PASS High 2480 -6.89 -64.42 ≤-26.89 PASS Low Hop_2402 -8.69 -63.39 ≤-28.69 PASS High Hop_2480 -7.50 -64.61 ≤-27.5 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -4.24 -4.24 --- PASS 30~1000 -4.24 -63.98 ≤-24.24 PASS 1000~26500 -4.24 -48.47 ≤-24.24 PASS 2441 Reference -4.93 -4.93 --- PASS 30~1000 -4.93 -61.18 ≤-24.93 PASS 1000~26500 -4.93 -47.41 ≤-24.93 PASS 2480 Reference -4.68 -4.68 --- PASS 30~1000 -4.68 -63.69 ≤-24.68 PASS 1000~26500 -4.68 -48.54 ≤-24.68 PASS 2DH5 Ant1 2402 Reference -6.67 -6.67 --- PASS 30~1000 -6.67 -67.72 ≤-26.67 PASS 1000~26500 -6.67 -49.04 ≤-26.67 PASS 2441 Reference -9.94 -9.94 --- PASS 30~1000 -9.94 -67.87 ≤-29.94 PASS 1000~26500 -9.94 -54.29 ≤-29.94 PASS 2480 Reference -10.15 -10.15 --- PASS 30~1000 -10.15 -67.76 ≤-30.15 PASS 1000~26500 -10.15 -54.32 ≤-30.15 PASS 3DH5 Ant1 2402 Reference -9.18 -9.18 --- PASS 30~1000 -9.18 -67.53 ≤-29.18 PASS 1000~26500 -9.18 -54.57 ≤-29.18 PASS 2441 Reference -7.17 -7.17 --- PASS 30~1000 -7.17 -61.52 ≤-27.17 PASS 1000~26500 -7.17 -47.65 ≤-27.17 PASS 2480 Reference -8.09 -8.09 --- PASS 30~1000 -8.09 -68.15 ≤-28.09 PASS 1000~26500 -8.09 -53.6 ≤-28.09 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000

37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480

FCC ID: 2BTRQ-KSW-1108 Test Setup Photos of the EUT FCC ID: 2BTRQ-KSW-1108
