/Mitzu_Corp/Mitzu.Corp/MitzuCorpmitzu.com Images are for illustrative purposes only; colors and design may vary. Read the entire manual before using this product for the first time. MODEL: MSA-7908MX Portable Rechargeable Speaker with FM Player mitzu.com 2 WELCOME Thank you for purchasing the new KAISER® product. We are confident that you will be very satisfied with your purchase. 1 3 24 1. Rechargeable speaker (1 piece). 2. Remote control (1 piece). 3. Wired microphone (1 piece). 4. Power adapter (1 piece). 1. Connect the adapter to the power outlet and then to the speaker. Allow it to charge for 4 hours before turning it on for the first time. 2. After charging the battery for the first time, press the ON switch to turn on the unit. 3. To maximize battery life, connect it to the power outlet when the battery is low; it requires up to 3 hours to recharge. It can continue to be used while connected. If the device is used intermittently, it is recommended to fully charge the battery at least every 30 days. CONTENTS HOW TO TURN ON? - Set all switches to OFF. - Check that the volume is set to the lowest level. - Verify that the voltage of the power source is compatible with the equipment’s required voltage. /Mitzu_Corp/Mitzu.Corp/MitzuCorp 3 A)DISPLAY WITH PLAYBACK BUTTONS B)CONTROL PANEL C)WOOFER D)REMOTE CONTROL E)WIRED MICROPHONE E C DISPLAY WITH PLAYBACK BUTTONS A 1) DISPLAY: Shows what is being played. 2) MODE / MIC PRIO • Selects the operating mode (Auxiliary Mode, Micro SD, USB, BLUETOOTH®, or Radio). Press multiple times until the desired mode is displayed on the screen. D GENERAL DESCRIPTION OPERATION 2 3 4 5 6 7 1 A B 1 2 mitzu.com 4 3) PREVIOUS TRACK / PREVIOUS STATION / RECORD RECORD • Insert a USB/Micro SD card into the slot, then connect the wired microphone and ensure it is working. • Press and hold “RECORD” to start audio recording. • Short press “REC PLAY” to play the recorded file. • Press again to exit the recording function. 4) PLAY / PAUSE / KSR-LINK / FM STATION SCAN KSR-LINK • Only 2 speakers can be connected at the same time. • Both speakers must be in BLUETOOTH® MODE to use KSR-LINK. • Press the PLAY/PAUSE button for 3 seconds. • The speakers will connect automatically. To listen to music via BLUETOOTH®, you must pair your phone with the main device. • Press the PLAY/PAUSE button for 3 seconds to exit KSR-LINK mode. 5) REC PLAY / NEXT TRACK / NEXT STATION REC PLAY • Briefly press REC PLAY to play the recording. 6) MICRO SD AND USB PORTS • Plays stored audio files. 7) 3.5 mm AUX INPUT • Plays audio devices (see Auxiliary Mode). CONTROL PANEL B 5 4 3 2 1 6 7 8 9 /Mitzu_Corp/Mitzu.Corp/MitzuCorp 5 1) MASTER VOLUME KNOB • Adjusts the overall volume. 2) TREBLE • Adjusts high-frequency level. • Equalizes sound with this tone control. 3) BASS • Adjusts the low-frequency level. • Equalizes sound with this tone control. 4) ECHO • Microphone sound effect. 5) MICROPHONE VOLUME • Controls the microphone volume. 6) POWER SWITCH • Turns the device on and off. 7) LED LIGHT SWITCH • Turns the LED light on and off. 8) 6.3 mm INPUT • For wired microphone. 9) POWER INPUT • Connects the power adapter. OPERATION MODES AUXILIARY • Connect a 3.5 mm cable to the speaker and the audio device. (Note: 3.5 mm to 3.5 mm cable not included) • Press MODE until the desired mode is displayed on the screen. (Note: Playback may start automatically in some cases) USB/MICRO SD PORT • Connect a USB flash drive or Micro SD card. • Press MODE until the desired function is displayed on the screen. (Note: Playback may start automatically in some cases) BLUETOOTH® • Enable BLUETOOTH® on your phone. • Search for and connect to the device named “MSA-7908MX”. After successful pairing, you can play music. You won’t need to reconnect BLUETOOTH® when switching modes. 1 2 mitzu.com 6 REMOTE CONTROL D 1. STANDBY 2. MODE 3. MUTE 4. VOLUME 5. FM STATION SCAN 6. REPEAT TRACK 7. NUMERIC SELECTOR 8. EQUALIZER 9. PLAYBACK BUTTONS 1 4 2 8 7 6 5 3 9 MICROPHONE E 1. 1. Locate the 6.3 mm connection for the microphone on the back. 2. Slide the switch to turn it on. WOOFER C Turn on the LED switch and increase the volume; the woofer will automatically flash (rear panel). - In FM mode, the LED light must be turned off to improve radio signal reception. MIC PRIO Puts the microphone voice in the foreground and music playback in the background. • To turn the microphone priority function on and off, press and hold the “MIC PRIO” button. • Insert the microphone before using this function and ensure the microphone is turned on. /Mitzu_Corp/Mitzu.Corp/MitzuCorp 7 SPEAKER Power supply: 7,4 Vcc 2 200 mAh (rechargeable battery) Charging: 9 Vcc 1,5 A Woofer: 8” (20,32 cm) Impedance: 2,5 ohm Frequency response: 45 Hz - 8 kHz Sensitivity: 92 dB Tweeter: 1,5” (3,81cm) Bluetooth® version: 5.3 Frequency range: 2.4 GHz Bluetooth® range: Up to 32.8 ft, tested in an unobstructed line of sight under optimal conditions. AC / DC ADAPTER: Input: 100 - 240 Vca 50 - 60 Hz 0,625 A Output: 9 Vcc 1,5 A Volume levelBattery duration 25% volume 4 hours 50% volume 2 hours 100% volume 1.5 hours SPECIFICATIONS Model: MSA-7908MX Product Name: Portable Rechargeable Speaker with FM Player FCC ID: TBD 1 2 mitzu.com 8 During use, keep other devices at least 30 cm away from this equipment. This equipment has no ventilation slots. Do not place the device on flammable sources such as lit candles. The device should not be exposed to dripping or splashing water, and objects filled with liquids (such as glasses) should not be placed on the device. Installed batteries should only be replaced by qualified personnel. Risk of explosion if the battery is not replaced correctly. Replace only with the same type or equivalent. Batteries (installed) should not be exposed to excessive heat such as sunlight, fire, or similar. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, an…

Text truncated - open the document above for the full version.

MITZU GLOBAL LLC 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/24 U.S. Agent Designation MITZU GLOBAL LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTRQ-MSA-7908MX): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of MITZU GLOBAL LLC MITZU GLOBAL LLC with the FRN [0037764321] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Rodolfo Cruz Purchasing Director MITZU GLOBAL LLC Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

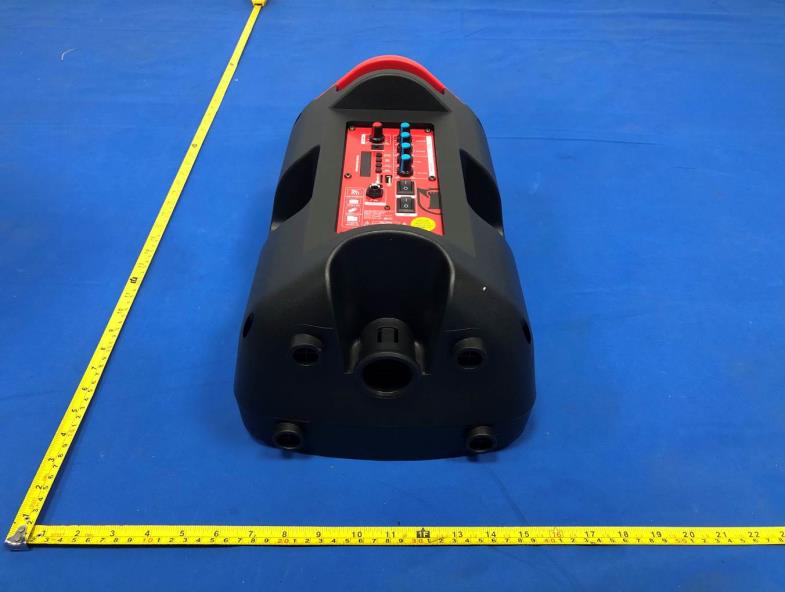

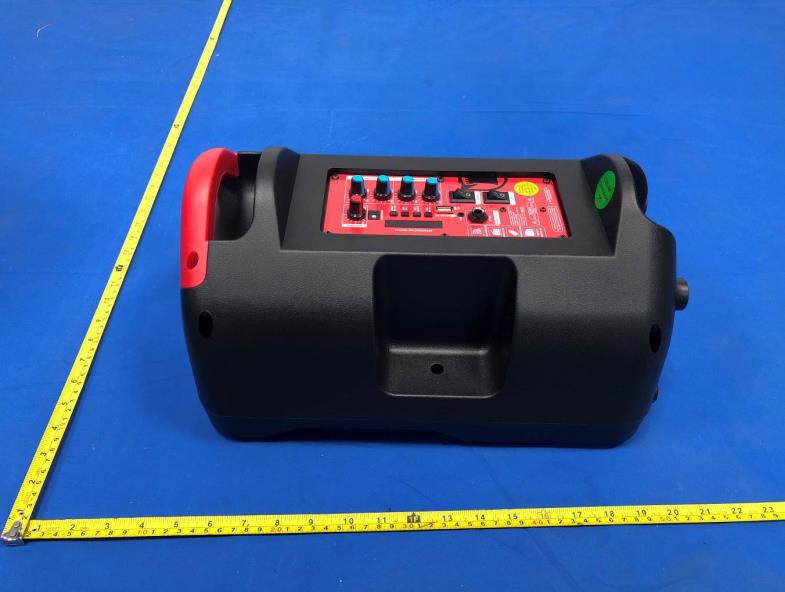

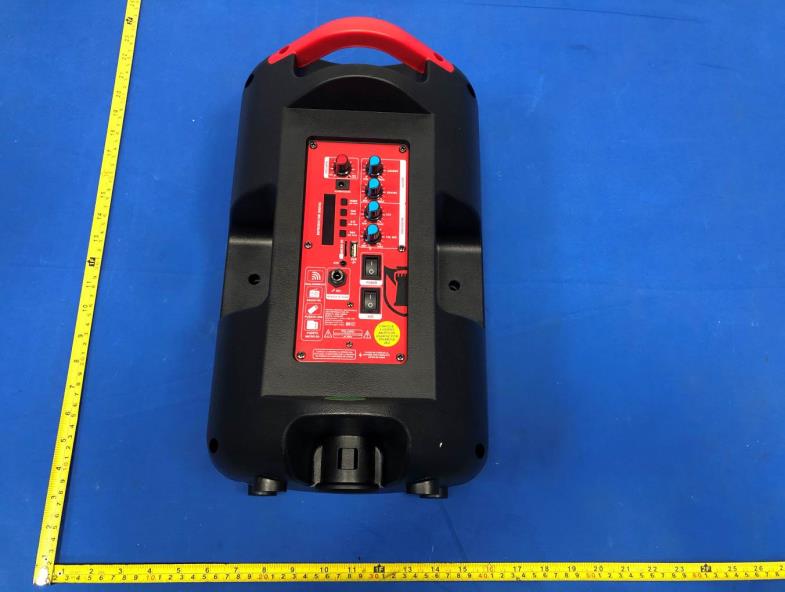

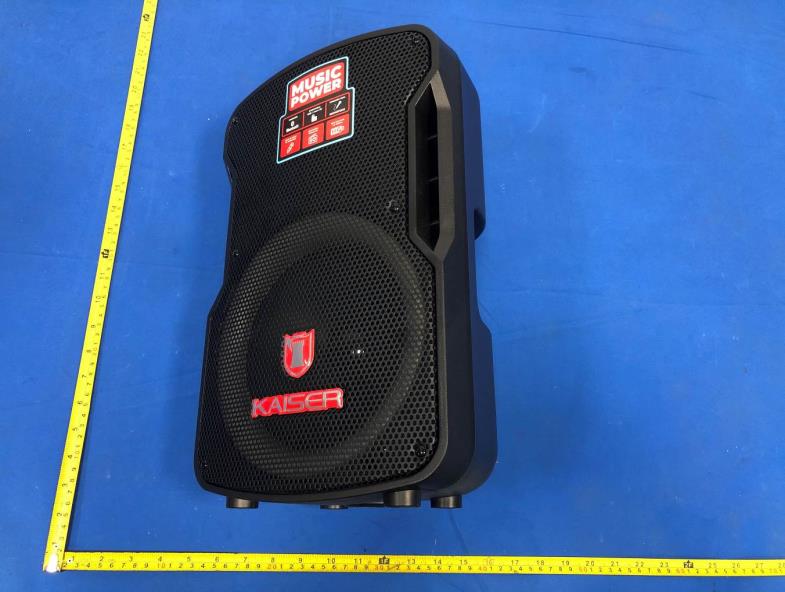

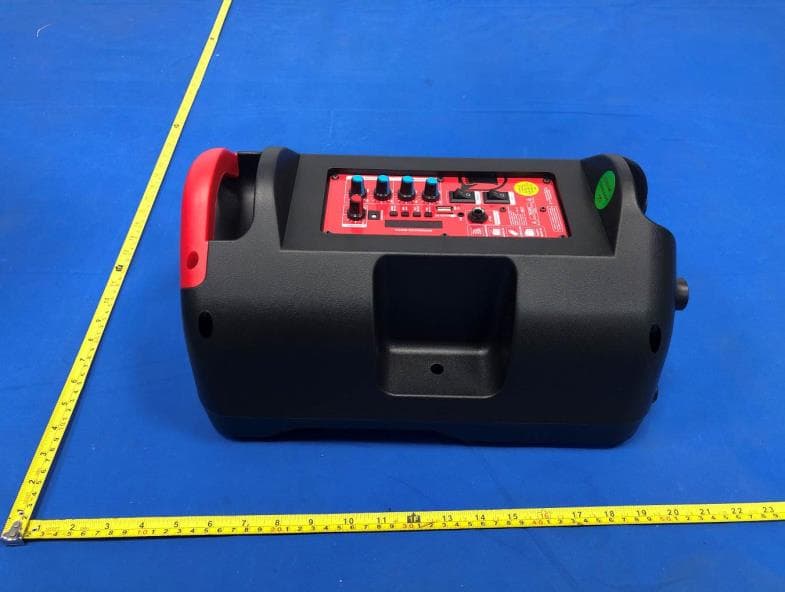

FCC ID: 2BTRQ-MSA-7908MX External Photos of the EUT FCC ID: 2BTRQ-MSA-7908MX FCC ID: 2BTRQ-MSA-7908MX

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BTRQ-MSA-7908MX This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2BTRQ-MSA-7908MX Internal Photos of the EUT FCC ID: 2BTRQ-MSA-7908MX FM RX Antenna FCC ID: 2BTRQ-MSA-7908MX BT Antenna FCC ID: 2BTRQ-MSA-7908MX FCC ID: 2BTRQ-MSA-7908MX

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA25120801702 2BTRQ-MSA-7908MX Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 16, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : MITZU GLOBAL LLC Address ............................................ : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description..................... : Speaker Trade Mark ....................................... : KAISER Manufacturer ..................................... : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Model/Type reference ....................... : MSA-7908MX Listed Models .................................... : KSE-1008MX, ZXP-0803 Rating ............................................... : DC 7.4V From battery and DC 9.0V From external circuit Result ................................................ : PASS Report No.: CTA25120801702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : MSA-7908MX Listed Models : KSE-1008MX, ZXP-0803 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : MITZU GLOBAL LLC Address : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Manufacturer : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Address : NO.2 DONGSHENG SANHENG ROAD, CHADONG VILLAGE, DALONG STREET, PANYU DISTRICT, GUANGZHOU, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120801702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120801702 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, S…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model MSA-7908MX Frequency range 2400-2500MHz Manufacturer MITZU GLOBAL LLC Address 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States ANT Peak Gain 0.92 dBi 2. Antenna Photo: Length :14.96mm Width:3.39mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25120801701 2BTRQ-MSA-7908MX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : MITZU GLOBAL LLC Address ............................................ : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Speaker Trade Mark ....................................... : KAISER Manufacturer .................................... : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Model/Type reference ...................... : MSA-7908MX Listed Models ................................... : KSE-1008MX, ZXP-0803 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 7.4V From battery and DC 9.0V From external circuit Result ............................................... : PASS Report No.: CTA25120801701 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : MSA-7908MX Listed Models : KSE-1008MX, ZXP-0803 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : MITZU GLOBAL LLC Address : 7345 W Sand Lake Rd Ste 210 Office 7075 Orlando , Florida , 32819 United States Manufacturer : GUANGZHOU MINFU ELECTRONIC AUDIO CO.,LTD. Address : NO.2 DONGSHENG SANHENG ROAD, CHADONG VILLAGE, DALONG STREET, PANYU DISTRICT, GUANGZHOU, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120801701 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ..............................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BTRQ-MSA-7908MX Company : MITZU GLOBAL LLC EUT : Speaker Model Number : MSA-7908MX Report No. : CTA25120801701 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.544 2402.495 --- --- 2441 0.945 2440.553 2441.498 --- --- 2480 0.951 2479.550 2480.501 --- --- 2DH5 Ant1 2402 1.320 2401.346 2402.666 --- --- 2441 1.281 2440.379 2441.660 --- --- 2480 1.275 2479.394 2480.669 --- --- 3DH5 Ant1 2402 1.281 2401.367 2402.648 --- --- 2441 1.284 2440.373 2441.657 --- --- 2480 1.287 2479.367 2480.654 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86290 2401.5767 2402.4396 --- --- 2441 0.86709 2440.5730 2441.4400 --- --- 2480 0.87115 2479.5727 2480.4439 --- --- 2DH5 Ant1 2402 1.1868 2401.4178 2402.6046 --- --- 2441 1.1873 2440.4162 2441.6035 --- --- 2480 1.1873 2479.4173 2480.6046 --- --- 3DH5 Ant1 2402 1.1881 2401.4181 2402.6062 --- --- 2441 1.1860 2440.4187 2441.6047 --- --- 2480 1.1868 2479.4179 2480.6047 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.06 ≤20.97 PASS 2441 -0.20 ≤20.97 PASS 2480 -0.24 ≤20.97 PASS 2DH5 Ant1 2402 -0.72 ≤20.97 PASS 2441 -0.99 ≤20.97 PASS 2480 -1.00 ≤20.97 PASS 3DH5 Ant1 2402 -0.39 ≤20.97 PASS 2441 -0.63 ≤20.97 PASS 2480 -0.65 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.036 ≥0.951 PASS 2DH5 Ant1 Hop 0.992 ≥0.880 PASS 3DH5 Ant1 Hop 1.132 ≥0.858 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 319 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.640 164 0.269 ≤0.4 PASS DH5 Ant1 Hop 2.900 103 0.299 ≤0.4 PASS 2DH1 Ant1 Hop 0.400 319 0.128 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 165 0.272 ≤0.4 PASS 2DH5 Ant1 Hop 2.890 116 0.335 ≤0.4 PASS 3DH1 Ant1 Hop 0.400 317 0.127 ≤0.4 PASS 3DH3 Ant1 Hop 1.650 154 0.254 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 103 0.299 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.29 -51.47 ≤-20.29 PASS High 2480 -0.66 -60.65 ≤-20.66 PASS Low Hop_2402 -4.26 -61.91 ≤-24.26 PASS High Hop_2480 -4.69 -65.65 ≤-24.69 PASS 2DH5 Ant1 Low 2402 -3.80 -56.06 ≤-23.8 PASS High 2480 -4.56 -64.52 ≤-24.56 PASS Low Hop_2402 -4.20 -62.93 ≤-24.2 PASS High Hop_2480 -3.91 -64.17 ≤-23.91 PASS 3DH5 Ant1 Low 2402 -3.91 -59.41 ≤-23.91 PASS High 2480 -4.76 -63.26 ≤-24.76 PASS Low Hop_2402 -5.84 -62.11 ≤-25.84 PASS High Hop_2480 -6.22 -63.54 ≤-26.22 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.30 -0.30 --- PASS 30~1000 -0.30 -67.23 ≤-20.3 PASS 1000~26500 -0.30 -43.31 ≤-20.3 PASS 2441 Reference -1.35 -1.35 --- PASS 30~1000 -1.35 -68.53 ≤-21.35 PASS 1000~26500 -1.35 -43.8 ≤-21.35 PASS 2480 Reference -0.82 -0.82 --- PASS 30~1000 -0.82 -67.59 ≤-20.82 PASS 1000~26500 -0.82 -42.5 ≤-20.82 PASS 2DH5 Ant1 2402 Reference -3.57 -3.57 --- PASS 30~1000 -3.57 -67.76 ≤-23.57 PASS 1000~26500 -3.57 -49.32 ≤-23.57 PASS 2441 Reference -4.78 -4.78 --- PASS 30~1000 -4.78 -68.25 ≤-24.78 PASS 1000~26500 -4.78 -48.47 ≤-24.78 PASS 2480 Reference -5.78 -5.78 --- PASS 30~1000 -5.78 -64.76 ≤-25.78 PASS 1000~26500 -5.78 -50.13 ≤-25.78 PASS 3DH5 Ant1 2402 Reference -4.36 -4.36 --- PASS 30~1000 -4.36 -67.8 ≤-24.36 PASS 1000~26500 -4.36 -46.48 ≤-24.36 PASS 2441 Reference -6.59 -6.59 --- PASS 30~1000 -6.59 -67.97 ≤-26.59 PASS 1000~26500 -6.59 -49.87 ≤-26.59 PASS 2480 Reference -5.01 -5.01 --- PASS 30~1000 -5.01 -67.71 ≤-25.01 PASS 1000~26500 -5.01 -37.95 ≤-25.01 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000

37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.74 77.81 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480
