2BTRQ-YW22OWS Bluetooth earphones

WIRELESS BLUETOOTH® HEADPHONES mitzu.com Please read the entire manual carefully before using the product for the first time and keep it for future reference. MODEL: KTE-3002BK mitzu.com 2 WELCOME Thank you for purchasing this KAISER ® product. We are confident you will be very satisfied with its performance. Package Contents: USE 1. Music Playback. 2. Hands-Free Phone Calls. 3. Voice Assistant Activation. NOTE: Before turning it on, please make sure the product’s volume levels are at a minimum for the protection of the equipment and user. CHARGING CASE CHARGING CABLE EARBUDS mitzu.com 3 TWS CONNECTION • Take the Kaiser earbuds out of the charging case, these will automatically link together. • If connection is successful, the earbuds’ LED light will turn off. NOTE: Do not charge the product with a power adapter higher than the recommended rating, as this may cause damage to the battery and product, rendering it inoperable. * With case completely charged to 100%. * Case hols a single charge for earbuds. Earbuds + Case 7.5 hours of total playtime* When the charging case is low on battery, a red light will start flashing, then: • Connect the USB Type-C cable to the charging case. • Plug the cable into a compatible USB power source. • A red indicator light will turn on while charging. • When fully charged, the indicator light will turn off. When the earbuds are low on battery, the LED light will start flashing every three minutes, then: • Place the earbuds into the charging case. • The LED indicators will light up while charging and turn off when fully charged. Charging the case A Charging the earbuds B NOTE: Before using the product for the first time, please verify that the earbuds and case are completely charged. Let the product charge for 2 hours before the first use, then the average charging time will be around 2 hours. BATTERY LIFE & CHARGING BLUETOOTH® PAIRING • Remove both earbuds from the charging case. They will automatically power on and pair with each other. • On your device, enable Bluetooth® and search for KTE-3002BK. • Select the device to connect. • Once connected, the LED indicators will turn off. If pairing fails: Place both earbuds back into the charging case. Remove them again and repeat the pairing process. 4 mitzu.com MULTIFUNCTION BUTTON Press once to answer a call and press again to hang up. x1 Press 3 times to activate the device’s voice assistant. x3 Press once to play or pause music. x1 Press the right earbud’s multifunction button twice to turn volume up. x2 Press the left earbud’s multifunction button twice to turn volume down. x2 CALL CONTROL PLAYBACK CONTROL VOICE ASSISTANT Driver size: 13 mm Impedance: 16 Ω Bluetooth® version: 5.4 Audio Frecuency Response: 20 Hz ~ 20 KHz Bluetooth® range: 33 ft FFC ID: Power Supply (USB port): 5 Vcc / 1 A Earbud Battery: 3.7 Vcc / 30 mAh Charging Case Battery: 3.7 Vcc / 300 mAh RF Frecuency Band: 2402 MHz ~2408 MHz TECHNICAL SPECIFICATIONS Press and hold (2 seconds) the right earbud’s multifunction button to play the next song. 2s Press and hold (2 seconds) the left earbud’s multifunction button to play the previous song. 2s LEFTRIGHT mitzu.com 5 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.The device can be used in portable exposure condition without restriction. For questions regarding operation or compliance, contact: MITZU GLOBAL, LLC 828 Hallmark Dr, Laredo, TX 78045, EE. UU. [email protected] +1 (956)740-7746 6 mitzu.com IMPORTANT Avoid placing the headphones near water to prevent damage to the product’s sound quality. Do not attempt to open the device, as this may cause malfunction and cancel the warranty. Performance will be affected in a magnetic environment. Do not expose the product to temperatures below 14°F or above 140°F. For safety reasons, do not use headphones in hazardous environments, while driving, or when performing activities that require your full attention. Recommendations It is recommended to fully charge the earphones every 3 months, as failure to do so may result in the headphones losing their charge completely. When using the device, do not place any equipment within 30 cm of it. This device does not have ventilation slots. Do not place any sources of ignition, such as lit candles, on top of the device. The device should not be exposed to dripping or splashing water, and objects filled with liquids, such as glasses, should not be placed on the dev…

Text truncated - open the document above for the full version.

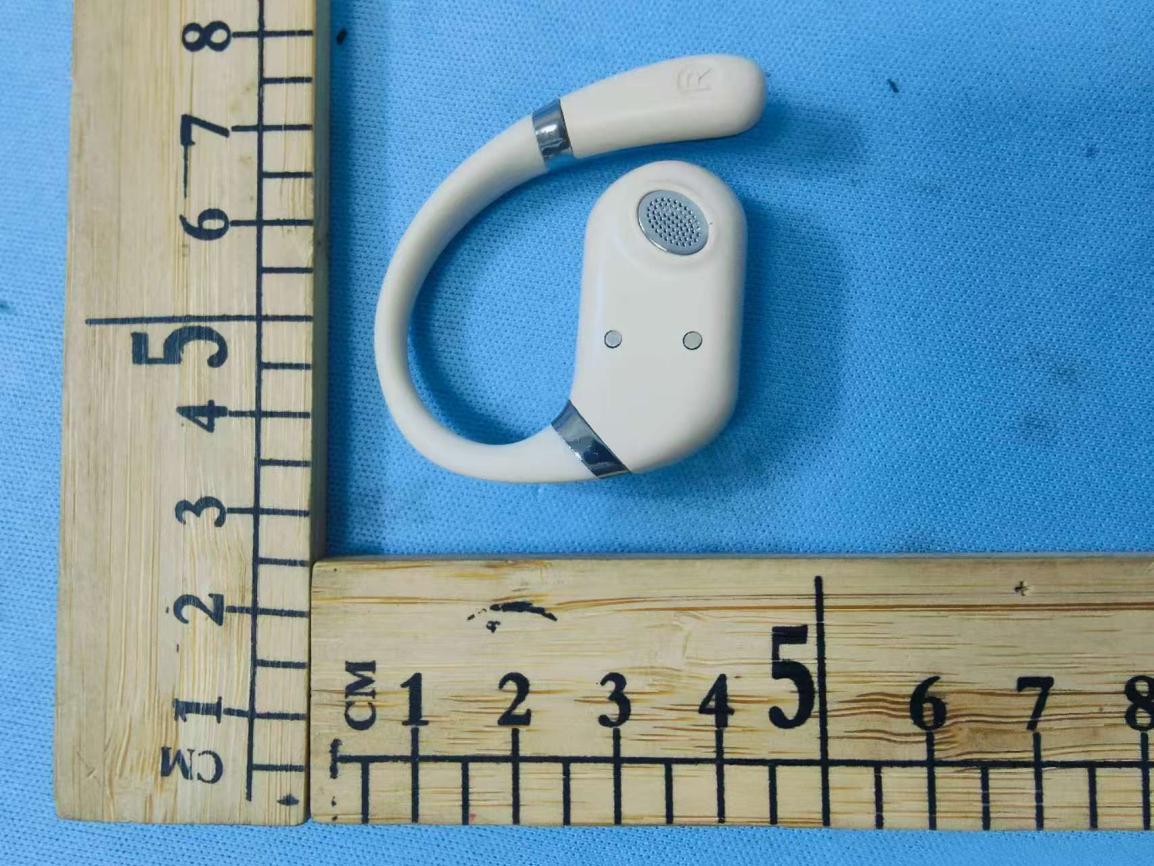

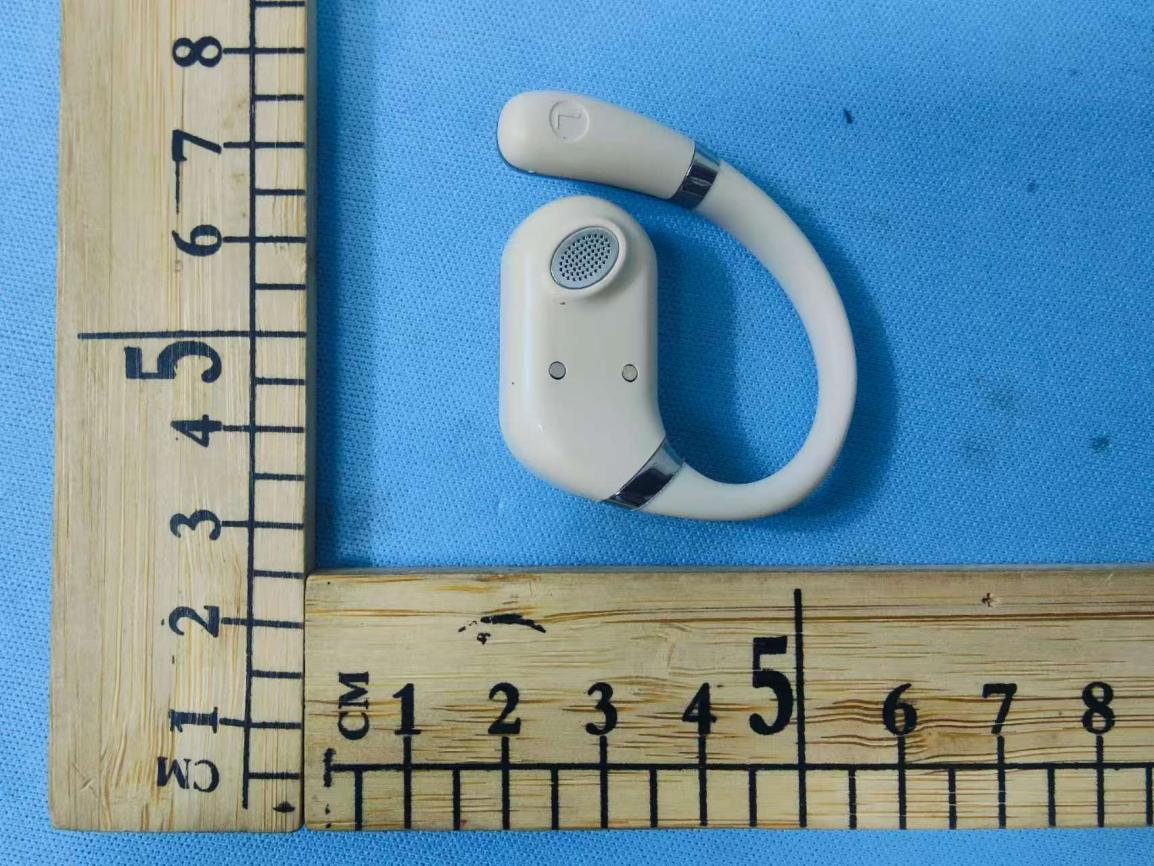

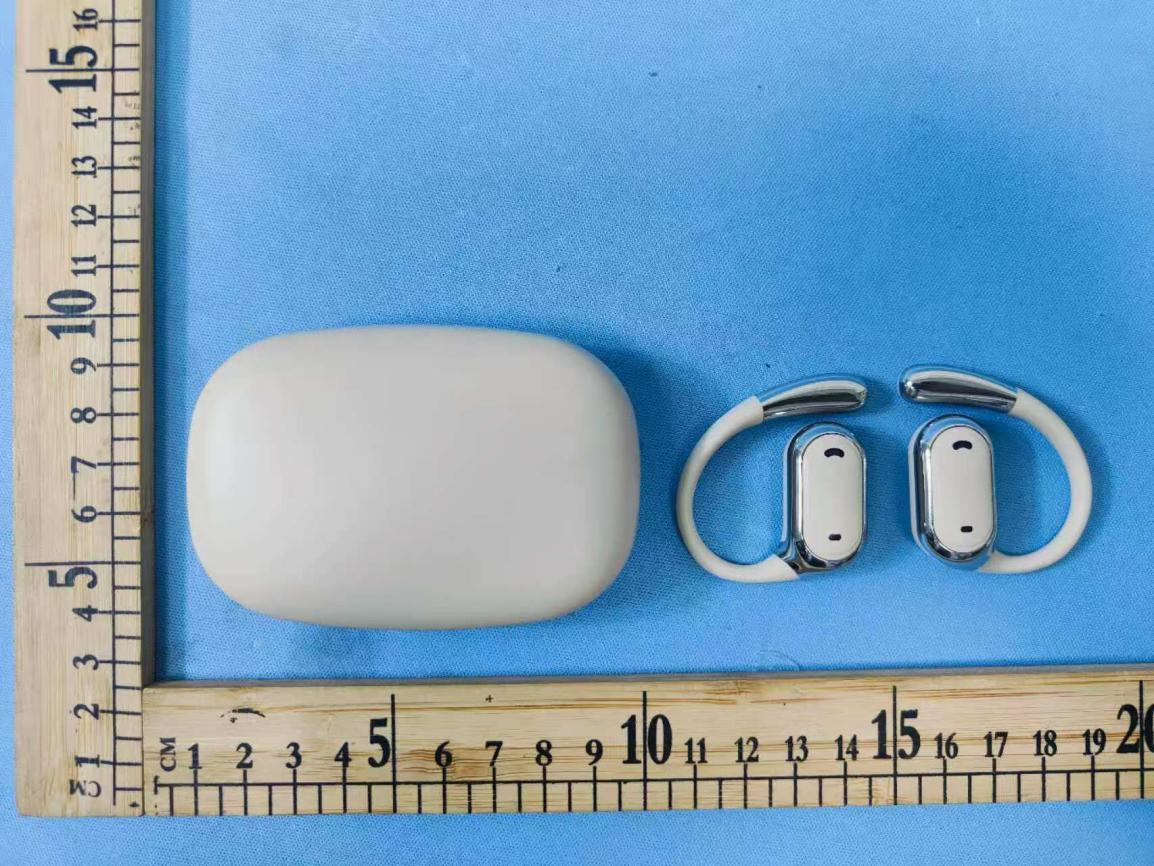

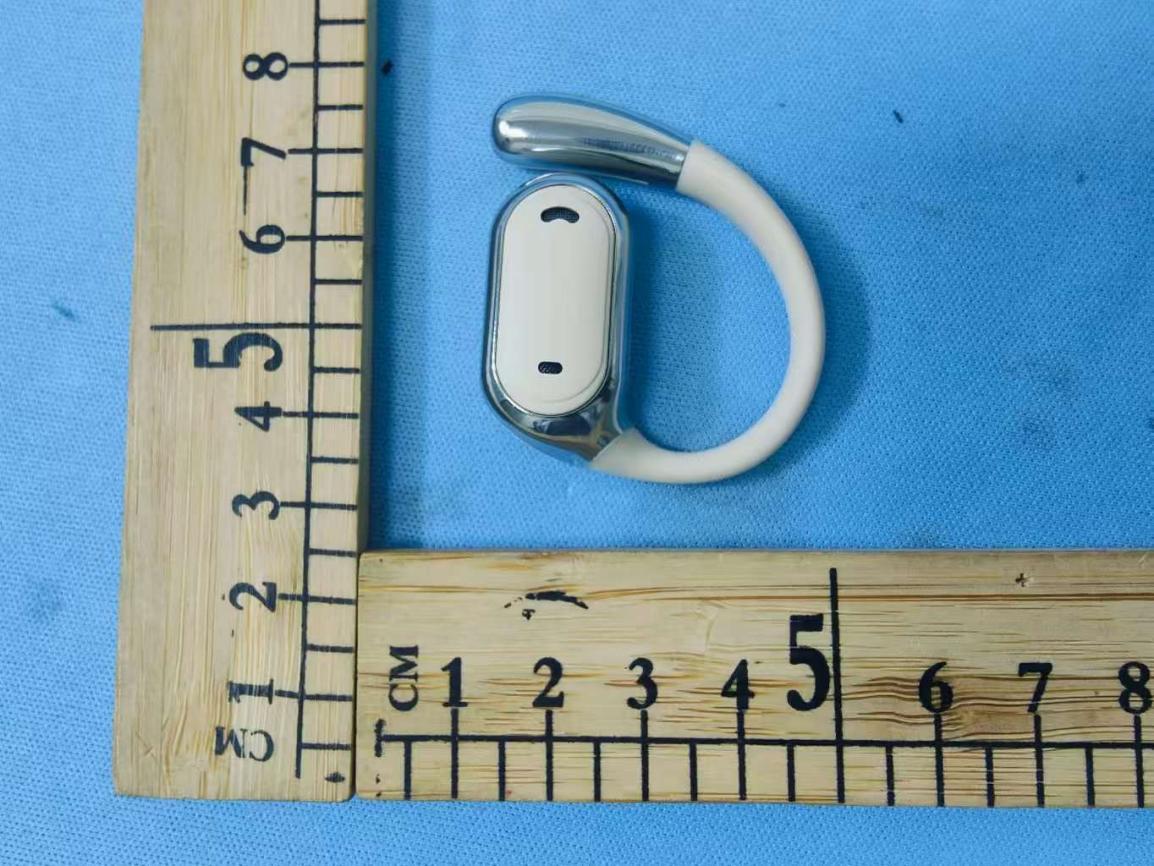

DNT2512080239R14345-P01Page: 1 of 7 PHOTOGRAPHSOFEUT FCCID:2BTRQ-YW22 ExternalPhotos ExternalPhotos(Leftearphone) DNT2512080239R14345-P01Page: 2 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Leftearphone) DNT2512080239R14345-P01Page: 3 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Leftearphone) DNT2512080239R14345-P01Page: 4 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Rightearphone) DNT2512080239R14345-P01Page: 5 of 7 ExternalPhotos(Rightearphone) ExternalPhotos(Rightearphone) DNT2512080239R14345-P01Page: 6 of 7 ExternalPhotos(Rightearphone) ExternalPhotos(Rightearphone) DNT2512080239R14345-P01Page: 7 of 7 ExternalPhotos(Rightearphone) --END--

FCCID:2BTRQ-YW22

DNT2512080239R14345-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BTRQ-YW22 InternalPhotos(Leftearphone) InternalPhotos(Leftearphone) DNT2512080239R14345-P01Page: 2 of 4 InternalPhotos(Leftearphone) InternalPhotos(Rightearphone) DNT2512080239R14345-P01Page: 3 of 4 InternalPhotos(Rightearphone) InternalPhotos(Rightearphone) DNT2512080239R14345-P01Page: 4 of 4 InternalPhotos(Rightearphone) InternalPhotos(Rightearphone) --END--

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2512080239R14345-16700 Applicant: MITZUGLOBALLLC AddressofApplicant: 7345WSandLakeRdSte210Office7075Orlando,FL32819 EUTDescription: OWSBluetoothearphones ModelNo.: YW22 AdditionalModel(s): KTE-3002BK FCCID: 2BTRQ-YW22 PowerSupply (ChargingBox): Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery PowerSupply (Earphone): DC3.7Vfromrechargeablelithium-ionbattery TradeMark: KAISER Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2025/12/08 DateofTest: 2025/12/09to2025/12/17 DateofIssue: 2026/05/08 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2512080239R14345-16700Date：December19,2025Page： 2 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/May8,2026ValidOriginalReport ReportNo.:DNT2512080239R14345-16700Date：December19,2025Page： 3 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2512080239R14345-16700Date：December19,2025Page： 4 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang ＇ anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer:DongguanKunTengTechnologyCo.,Ltd AddressofManufacturer: 5Floor,No.DBuilding,QianweiIndustryArea,YiHengRoadofNo.4,Bulong IndustryRoad,YantianStreet,FenggangTown,Dongguan EUTDescription: OWSBluetoothearphones ModelNo.: YW22 AdditionalModel(s): KTE-3002BK PowerSupply (ChargingBox): Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery PowerSupply (Earphone): DC3.7Vfromrechargeablelithium-ionbattery TradeMark:KAISER HardwareVersion:V1.0 SoftwareVersion:V1.0 Serialnumber:PR2512080239R14345 ChipType:D1618C SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 2.7dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. *Allmodelsarejustnamedifferences, motherboard,PCBcircuitboard,chip,electroniccomponentsisallthesame. ReportNo.:DNT2512080239R14345-16700Date：December19,2025Page： 5 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemM…

Text truncated - open the document above for the full version.

2.4GHz1608ChipAntenna:RANT1608F245C04 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1608F245C04 (A)(B)(C)(D)(E)(F) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=04 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation ElectricalCharacteristics Freque ncy EfficPercenGain 2400-1.6472.27%2.38 2450-1.3375.34%2.7 2500-1.5972.98%2.59 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1 6 0 8 Chip Antenna: RANT1608F245C04 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds. NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2512080239R14345-16701 Applicant: MITZU GLOBAL LLC Address of Applicant: 7345 W Sand Lake Rd Ste 210 Office 7075Orlando, FL 32819 EUT Description: OWS Bluetooth earphones Model No.: YW22 Additional Model(s): KTE-3002BK FCC ID: 2BTRQ-YW22 Power Supply: Input:DC 5V;DC 3.7V from rechargeable lithium-ion battery Trade Mark: KAISER Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2025/12/08 Date of Test: 2025/12/09 to 2025/12/17 Date of Issue: 2026/05/08 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 2 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/May 8, 2026ValidOriginal Report Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 3 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 4 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth................................................................................................................................... 12 3.3 Conducted Output Power...............................................................…

Text truncated - open the document above for the full version.

Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 51 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 52 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 53 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 54 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 55 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference2.102.10---PASS 30~10002.10-59.45≤-17.9PASS 1000~265002.10-21.93≤-17.9PASS 2441 Reference2.232.23---PASS 30~10002.23-59.6≤-17.77PASS 1000~265002.23-24.52≤-17.77PASS 2480 Reference0.810.81---PASS 30~10000.81-58.55≤-19.19PASS 1000~265000.81-26.54≤-19.19PASS 2DH5Ant1 2402 Reference2.362.36---PASS 30~10002.36-59.76≤-17.64PASS 1000~265002.36-25.12≤-17.64PASS 2441 Reference1.521.52---PASS 30~10001.52-58.65≤-18.48PASS 1000~265001.52-27.75≤-18.48PASS 2480 Reference0.270.27---PASS 30~10000.27-59.05≤-19.73PASS 1000~265000.27-31.21≤-19.73PASS 3DH5Ant1 2402 Reference2.492.49---PASS 30~10002.49-59.38≤-17.51PASS 1000~265002.49-28.6≤-17.51PASS 2441 Reference2.112.11---PASS 30~10002.11-58.95≤-17.89PASS 1000~265002.11-28.76≤-17.89PASS 2480 Reference0.870.87---PASS 30~10000.87-59.5≤-19.13PASS 1000~265000.87-31.79≤-19.13PASS Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 56 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 57 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 58 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 59 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 60 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 61 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 62 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 63 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 Report No.: DNT2512080239R14345-16701Date：December 19, 2025Page： 64 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected]…

Text truncated - open the document above for the full version.

DNT2512080239R14345-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BTRQ-YW22 AntennaTerminalTestView DNT2512080239R14345-P01Page: 2 of 3 ConducedEmissionTestView RadiatedEmissionTestV…
