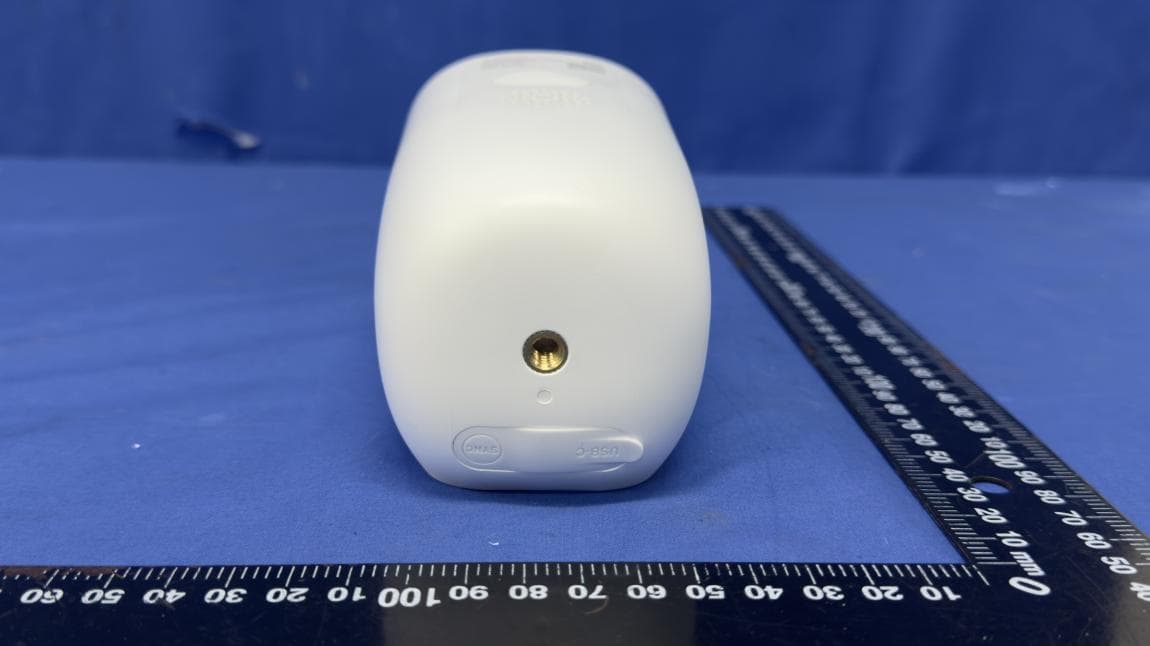

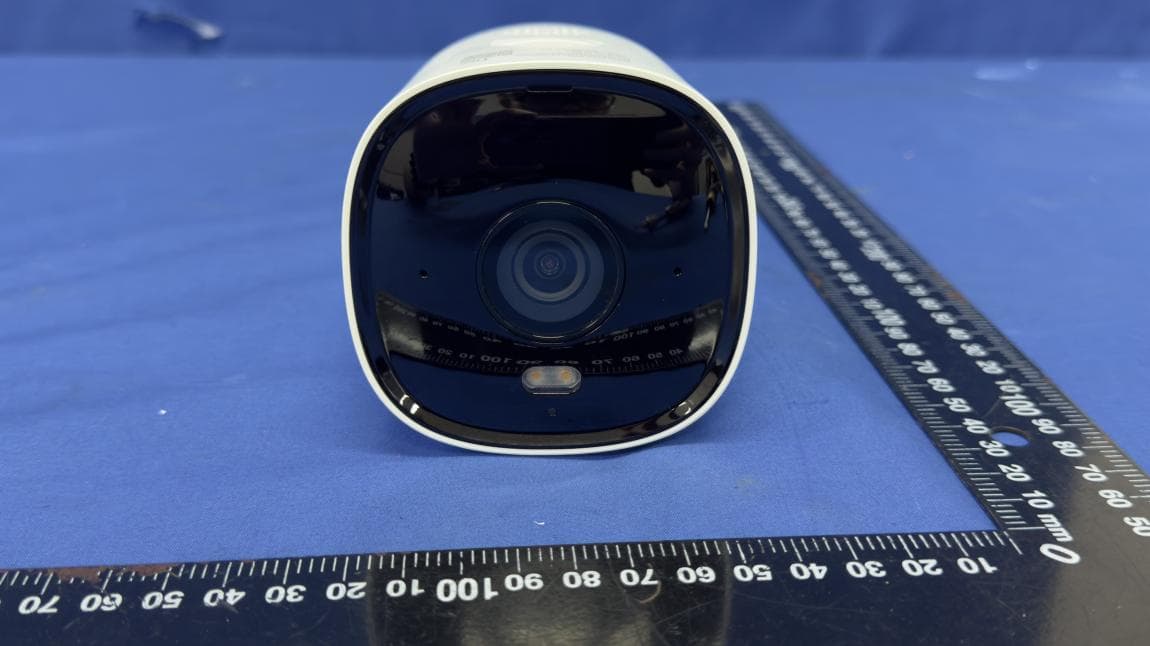

2BU4T-TC0235CC46USolarCam Pro

1 EN Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors. Unless permitted, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form or by any means. About This Manual  This manual is intended for multiple product models, and the photos, illustrations, descriptions, etc, in this manual may be different from the actual appearances, functions, features, etc, of the product.  This manual is intended for multiple software versions, and the illustrations and descriptions in this manual may be different from the actual GUI and functions of the software.  Despite our best efforts, technical or typographical errors may exist in this manual. Our company cannot be held responsible for any such errors and reserves the right to change the manual without prior notice.  Users are fully responsible for the damages and losses that arise due to improper operation.  Our company reserves the right to change any information in this manual without any prior notice or indication. Due to such reasons as product version upgrade or regulatory requirement of relevant regions, this manual will be periodically updated. Safety Warnings The device must be installed, serviced and maintained by a trained professional with necessary safety knowledge and skills. Before you start using the device, please read through this guide carefully and make sure all applicable requirements are met to avoid danger and loss of property. Storage, Transportation, and Use  Store or use the device in a proper environment that meets environmental requirements, including and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic radiation, etc.  Make sure the device is securely installed or placed on a flat surface to prevent falling.  Unless otherwise specified, do not stack devices.  Ensure good ventilation in the operating environment. Do not cover the vents on the device. Allow adequate space for ventilation.  Protect the device from liquid of any kind.  Make sure the power supply provides a stable voltage that meets the power requirements of the device. Make sure the power supply's output power exceeds the total maximum power of all the connected devices.  Verify that the device is properly installed before connecting it to power.  Do not remove the seal from the device body without consulting our company first. Do not attempt to service the product yourself. Contact a trained professional for maintenance.  Always disconnect the device from power before attempting to move the device.  Take proper waterproof measures in accordance with requirements. Battery Use Caution  When battery is used, avoid:  Extremely high or low temperature and air pressure during use, storage and transportation;  Battery replacement.  Use the battery properly. Improper use of the battery such as the following may cause risks of fire, explosion or leakage of flammable liquid or gas.  Replace battery with an incorrect type;  Dispose of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery;  Dispose of the used battery according to your local regulations or the battery manufacturer's instructions. Avertissement de l’utilisation de la batterie  Lorsque utiliser la batterie, évitez:  Température et pression d'air extrêmement élevées ou basses pendant l'utilisation, le stockage et le transport.  Remplacement de la batterie.  Utilisez la batterie correctement. Mauvaise utilisation de la batterie comme celles mentionnées ici, peut entraîner des risques d’incendie, d’explosion ou de fuite liquide de gaz inflammables.  Remplacer la batterie par un type incorrect;  Disposer d’une batterie dans le feu ou un four chaud, écraser mécaniquement ou couper la batterie;  Disposer la batterie utilisée conformément à vos règlements locaux ou aux instructions du fabricant de la batterie. 2 Regulatory Compliance FCC Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Visit https://3comtec.github.io/3comusa-download/3Guard/C-S54M0-A/C-S54M0-A-3comusa-SafetyWarning-Multilingual.pdf for SDoC Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure …

Text truncated - open the document above for the full version.

EFGX26060387-IE-09-E01 Appendix 1 / 56 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.696 2401.648 2402.344 0.5 PASS 2440 0.704 2439.644 2440.348 0.5 PASS 2480 0.696 2479.648 2480.344 0.5 PASS BLE_2M Ant1 2402 1.256 2401.344 2402.600 0.5 PASS 2440 1.248 2439.352 2440.600 0.5 PASS 2480 1.244 2479.352 2480.596 0.5 PASS EFGX26060387-IE-09-E01 Appendix 2 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-09-E01 Appendix 3 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-09-E01 Appendix 4 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-09-E01 Appendix 5 / 56 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0366 2401.4871 2402.5237 --- --- 2440 1.0359 2439.4863 2440.5222 --- --- 2480 1.0365 2479.4849 2480.5214 --- --- BLE_2M Ant1 2402 2.0697 2400.9761 2403.0458 --- --- 2440 2.0685 2438.9773 2441.0458 --- --- 2480 2.0673 2478.9767 2481.0440 --- --- EFGX26060387-IE-09-E01 Appendix 6 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-09-E01 Appendix 7 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-09-E01 Appendix 8 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-09-E01 Appendix 9 / 56 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] EIRP[dBm] EIRP Limit[dBm] Verdict BLE_1M Ant1 2402 6.62 ≤30 8.02 ≤36 PASS 2440 6.08 ≤30 7.48 ≤36 PASS 2480 6.22 ≤30 7.62 ≤36 PASS BLE_2M Ant1 2402 6.48 ≤30 7.88 ≤36 PASS 2440 6.13 ≤30 7.53 ≤36 PASS 2480 6.35 ≤30 7.75 ≤36 PASS EFGX26060387-IE-09-E01 Appendix 10 / 56 Test Graphs Peak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-09-E01 Appendix 11 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-09-E01 Appendix 12 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-09-E01 Appendix 13 / 56 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -10.03 ≤8.00 PASS 2440 -10.51 ≤8.00 PASS 2480 -10.39 ≤8.00 PASS BLE_2M Ant1 2402 -13.81 ≤8.00 PASS 2440 -14.15 ≤8.00 PASS 2480 -13.99 ≤8.00 PASS EFGX26060387-IE-09-E01 Appendix 14 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-09-E01 Appendix 15 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-09-E01 Appendix 16 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-09-E01 Appendix 17 / 56 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 5.78 -44.95 ≤-14.22 PASS High 2480 5.44 -46.2 ≤-14.56 PASS BLE_2M Ant1 Low 2402 4.36 -26.3 ≤-15.64 PASS High 2480 5.02 -46.92 ≤-14.98 PASS EFGX26060387-IE-09-E01 Appendix 18 / 56 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 EFGX26060387-IE-09-E01 Appendix 19 / 56 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 EFGX26060387-IE-09-E01 Appendix 20 / 56 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 5.57 5.57 --- PASS 30~1000 5.57 -62.28 ≤-14.43 PASS 1000~26500 5.57 -57.33 ≤-14.43 PASS 2440 Reference 5.09 5.09 --- PASS 30~1000 5.09 -62.39 ≤-14.91 PASS 1000~26500 5.09 -49.39 ≤-14.91 PASS 2480 Reference 5.23 5.23 --- PASS 30~1000 5.23 -62.98 ≤-14.77 PASS 1000~26500 5.23 -55.26 ≤-14.77 PASS BLE_2M Ant1 2402 Reference 5.08 5.08 --- PASS 30~1000 5.08 -62.38 ≤-14.92 PASS 1000~26500 5.08 -57.11 ≤-14.92 PASS 2440 Reference 4.77 4.77 --- PASS 30~1000 4.77 -63.19 ≤-15.23 PASS 1000~26500 4.77 -55.71 ≤-15.23 PASS 2480 Reference 4.95 4.95 --- PASS 30~1000 4.95 -63.04 ≤-15.05 PASS 1000~26500 4.95 -57.88 ≤-15.05 PASS EFGX26060387-IE-09-E01 Appendix 21 / 56 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 EFGX26060387-IE-09-E01 Appendix 22 / 56 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference EFGX26060387-IE-09-E01 Appendix 23 / 56 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference EFGX26060387-IE-09-E01 Appendix 24 / 56 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 EFGX26060387-IE-09-E01 Appendix 25 / 56 BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 EFGX26060387-IE-09-E01 Appendix 26 / 56 BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 EFGX26060387-IE-09-E01 Appendix 27 / 56 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 EFGX26060387-IE-09-E01 Appendix 28 / 56 BLE_2M_Ant1_2480_1000~26500 EFGX26060387-IE-09-E01 Appendix 29 / 56 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] BLE_1M Ant1 2402 0.30 0.93 32.26 2440 0.30 0.93 32.26 2480 0.30 0.93 32.26 BLE_2M Ant1 2402 0.16 0.93 17.20 2440 0.16 0.93 17.20 2480 0.16 0.93 17.20

EFGX26060387-IE-09-Setup Photos 1 / 2 EFGX26060387-IE-09-Setup Photos 2 / 2

广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第1页共7页 产品规格承认书 SpecificationForApproval 客户名称： Customer 浙江宇视科技有限公司 供应商： Supplier 广州市高科中实通信技术有限公司 客户料号： CustomerP/N 产品名称： ProductionName 2.4G内置天线 产品型号： ProductionNumber GKZS-2.4G-F0211-RF1.13I-100 供应商确认盖章(SupplierSignature) 工程师Engineer审核Checkedby批准Approvedby 何明卫谢倩菊胡泽伟 2025年06月23日2025年06月23日2025年06月23日 客户确认盖章(CustomerSignature) 工程师Engineer审核Checkedby批准Approvedby 年月日年月日年月日 注：客户确认盖章后，请将此承认书回传到我公司。 广州市高科中实通信技术有限公司 地址:中国广东省广州市从化区神岗广从南路22号 Tel:020-87080630/87080639/87080632 Fax:020-87080731 http://www.gkzs.com.cn 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第2页共7页 变更履历表 DescriptionRecord 版本 Version 修改内容 ContentRevised 创建者 Modifier 日期 Date A/0初始新建谢倩菊2025.06.23 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第 3 页共 7 页 一、结构尺寸图：（单位：mm) 标记 位置更改内容版本签名日期 图样名称 表面处理 第三视角： 审核 工艺 标准化 批准 产品型号 比例 图样编号 单位 mm 版本页次 材料 重量 设 计 广州市高科中实通信技术有限公司 1/1A0 2.4G内置天线 混合 GKZS-2.4G-F0211-RF1.13I-100 G K - F 0 2 1 1 - A 0 2 7 . 5 ± 0 . 5 16.7 ± 0.5 IPEX头 一代 RF1.13线 （黑色） 100±5 FPC板 手撕位 离型纸面 不背切 二、实物图 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第 4 页共 7 页 三、天线技术参数 DesignSpecificationsTypical 天线形式FPC天线 工作频率(workingFrequency) 2400-2500MHz 增益（Gain）1.05dBi（平均）、1.42dBi（峰值） 天线效率（Antennaefficiency）≥40% 电压驻波比（VSWR）≤3.0 极化方式(Ploriaztion)线极化 辐射方向(Radiationpattern)全向 馈电阻抗(impedance)50Ω 天线接口(Interface)IPEX头（一代）/RF1.13线（黑色）线长100mm 天线尺寸(Overaldimensions) 27.5x16.7mm 重量(Weight)≤10g 盐雾等级（Saltspraygrade）48H（接头） 工作温度(OperatinTemp)-40°C~80°C 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第 5 页共 7 页 四、性能测试图（单天线测试） 1、回波损耗驻波比 微波暗室检测 检测图如下所示： 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第 6 页共 7 页 2、方向图（3D及2D图） 3、效率图 4、增益图 广州市高科中实通信技术有限公司 GaokeAntCo.,Ltd. 第 7 页共 7 页 五、包装说明 1、100PCS/扎,1000pcs/袋，封口袋。 2、装纸箱，5000PCS/箱 (实际以出货数量为准) 3、内附出货检验报告， 在箱外侧面右上角贴标签，封口。 G K - F 0 2 1 1 - A 0 G K - F 0 2 1 1 - A 0 G K - F 0 2 1 1 - A 0 G K - F 0 2 1 1 - A 0 G K - F 0 2 1 1 - A 0 G K - F 0 2 1 1 - A 0 单个产品毛 重 产品本体裸 重 外 包数量 外包 净重 纸箱尺寸 整箱质量（含 产品） 包装方式 0.57g0.57g1000PCS/袋570g50.5x27x26cm 未量产无法提 供 胶袋+纸 箱

EFGX26060387-IE-09-E02 Appendix 80 / 101 Appendix I: Spurious emissions Test Result Note: The low frequency, which starts from 9 kHz to 30 MHz, is pre-scanned and the result which is 20 dB lower than the limit line is not reported. During the test, the Radiates Emission from 30MHz to 1GHz was performed in all modes with all channels. The test data of the worst-case condition was recorded in this report. The measurement results above 18GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz are reported. QP Final Data List NO. Freq. [MHz] Factor [dB/m] QP Value [dBμV/m] QP Limit [dBμV/m] QP Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 143.9750 -16.26 31.63 43.50 11.87 100 246 Vertical PASS 2 191.9900 -18.66 31.71 43.50 11.79 100 200 Vertical PASS 3 288.0200 -16.49 40.45 46.00 5.55 200 104 Vertical PASS 4 528.0950 -10.75 40.11 46.00 5.89 100 68 Vertical PASS 5 559.9838 -9.75 41.65 46.00 4.35 200 123 Vertical PASS 6 640.0088 -7.53 40.88 46.00 5.12 100.1 197 Vertical PASS EFGX26060387-IE-09-E02 Appendix 81 / 101 QP Final Data List NO. Freq. [MHz] Factor [dB/m] QP Value [dBμV/m] QP Limit [dBμV/m] QP Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 74.9838 -19.14 24.55 40.00 15.45 100 150 Horizontal PASS 2 143.9750 -16.26 29.72 43.50 13.78 200 99 Horizontal PASS 3 191.9900 -18.66 30.87 43.50 12.63 100 307 Horizontal PASS 4 287.9950 -16.49 41.52 46.00 4.48 100 49 Horizontal PASS 5 480.0800 -11.77 38.41 46.00 7.59 200 102 Horizontal PASS 6 559.9838 -9.75 40.97 46.00 5.03 100 120 Horizontal PASS EFGX26060387-IE-09-E02 Appendix 82 / 101 Mode: B Channel: 2412 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1183.0000 40.05 39.74 -0.31 74.00 34.26 150 222 PK Vertical PASS 2 1817.8000 40.59 41.73 1.14 74.00 32.27 150 114 PK Vertical PASS 3 3946.0000 59.58 42.07 -17.51 74.00 31.93 150 124 PK Vertical PASS 4 5258.0000 60.19 46.91 -13.28 74.00 27.09 150 136 PK Vertical PASS 5 7717.0000 52.32 44.09 -8.23 74.00 29.91 150 186 PK Vertical PASS 6 12285.500 0 48.42 47.10 -1.32 74.00 26.90 150 312 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 83 / 101 Mode: B Channel: 2412 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1318.4000 40.22 39.97 -0.25 74.00 34.03 150 59 PK Horizontal PASS 2 1769.6000 40.04 41.02 0.98 74.00 32.98 150 110 PK Horizontal PASS 3 4823.5000 65.26 50.33 -14.93 74.00 23.67 150 69 PK Horizontal PASS 4 6412.0000 53.41 42.99 -10.42 74.00 31.01 150 326 PK Horizontal PASS 5 9263.5000 49.77 45.09 -4.68 74.00 28.91 150 231 PK Horizontal PASS 6 12170.000 0 48.86 47.58 -1.28 74.00 26.42 150 24 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 84 / 101 Mode: B Channel: 2437 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1457.8000 40.12 40.05 -0.07 74.00 33.95 150 358 PK Vertical PASS 2 3945.0000 59.96 42.39 -17.57 74.00 31.61 150 124 PK Vertical PASS 3 4873.5000 61.14 46.93 -14.21 74.00 27.07 150 55 PK Vertical PASS 4 6479.0000 53.72 43.38 -10.34 74.00 30.62 150 18 PK Vertical PASS 5 9867.5000 50.59 46.24 -4.35 74.00 27.76 150 186 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 85 / 101 Mode: B Channel: 2437 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1485.8000 39.88 39.88 0.00 74.00 34.12 150 138 PK Horizontal PASS 2 1804.8000 39.99 41.00 1.01 74.00 33.00 150 316 PK Horizontal PASS 3 4874.0000 63.64 49.44 -14.20 74.00 24.56 150 68 PK Horizontal PASS 4 6497.0000 52.74 42.76 -9.98 74.00 31.24 150 63 PK Horizontal PASS 5 7993.5000 52.96 45.47 -7.49 74.00 28.53 150 281 PK Horizontal PASS 6 10073.500 0 50.89 46.51 -4.38 74.00 27.49 150 68 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 86 / 101 Mode: B Channel: 2462 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1200.6000 39.94 39.66 -0.28 74.00 34.34 150 217 PK Vertical PASS 2 1766.2000 40.07 41.01 0.94 74.00 32.99 150 94 PK Vertical PASS 3 3693.0000 60.72 41.35 -19.37 74.00 32.65 150 93 PK Vertical PASS 4 4735.0000 63.01 47.78 -15.23 74.00 26.22 150 42 PK Vertical PASS 5 7992.5000 54.19 46.75 -7.44 74.00 27.25 150 168 PK Vertical PASS 6 10574.500 0 50.04 46.26 -3.78 74.00 27.74 150 331 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 87 / 101 Mode: B Channel: 2462 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1318.6000 40.17 39.92 -0.25 74.00 34.08 150 169 PK Horizontal PASS 2 1811.4000 40.00 41.02 1.02 74.00 32.98 150 162 PK Horizontal PASS 3 4923.5000 63.02 49.36 -13.66 74.00 24.64 150 230 PK Horizontal PASS 4 7018.0000 52.59 43.13 -9.46 74.00 30.87 150 324 PK Horizontal PASS 5 9266.0000 50.32 45.49 -4.83 74.00 28.51 150 311 PK Horizontal PASS 6 11283.500 0 49.72 46.85 -2.87 74.00 27.15 150 356 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 88 / 101 Mode: AX20 Channel: 2412 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1473.4000 39.82 39.76 -0.06 74.00 34.24 150 225 PK Vertical PASS 2 1953.4000 39.18 40.76 1.58 74.00 3…

Text truncated - open the document above for the full version.

EFGX26060387-IE-09-E02 Appendix 51 / 101 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference EFGX26060387-IE-09-E02 Appendix 52 / 101 11AX20SISO_Ant1_2412_30~1000 11AX20SISO_Ant1_2412_1000~26500 EFGX26060387-IE-09-E02 Appendix 53 / 101 11AX20SISO_Ant1_2437_0~Reference 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 EFGX26060387-IE-09-E02 Appendix 54 / 101 11AX20SISO_Ant1_2462_0~Reference 11AX20SISO_Ant1_2462_30~1000 EFGX26060387-IE-09-E02 Appendix 55 / 101 11AX20SISO_Ant1_2462_1000~26500 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 EFGX26060387-IE-09-E02 Appendix 56 / 101 11AX40SISO_Ant1_2422_1000~26500 11AX40SISO_Ant1_2437_0~Reference EFGX26060387-IE-09-E02 Appendix 57 / 101 11AX40SISO_Ant1_2437_30~1000 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference EFGX26060387-IE-09-E02 Appendix 58 / 101 11AX40SISO_Ant1_2452_30~1000 11AX40SISO_Ant1_2452_1000~26500 EFGX26060387-IE-09-E02 Appendix 59 / 101 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.19 13.76 59.52 2437 8.19 13.75 59.56 2462 8.19 13.75 59.56 11G Ant1 2412 1.36 2.29 59.39 2437 1.36 2.29 59.39 2462 1.36 2.29 59.39 11N20SIS O Ant1 2412 1.27 5.15 24.66 2437 1.26 5.15 24.47 2462 1.28 5.16 24.81 11N40SIS O Ant1 2422 0.63 9.13 6.90 2437 0.64 9.13 7.01 2452 0.63 9.13 6.90 11AX20SI SO Ant1 2412 0.99 7.42 13.34 2437 0.98 7.41 13.23 2462 0.98 7.41 13.23 11AX40SI SO Ant1 2422 0.51 13.26 3.85 2437 0.53 13.26 4.00 2452 0.53 13.26 4.00 EFGX26060387-IE-09-E02 Appendix 60 / 101 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 EFGX26060387-IE-09-E02 Appendix 61 / 101 11B_Ant1_2462 11G_Ant1_2412 EFGX26060387-IE-09-E02 Appendix 62 / 101 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 EFGX26060387-IE-09-E02 Appendix 63 / 101 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 EFGX26060387-IE-09-E02 Appendix 64 / 101 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 EFGX26060387-IE-09-E02 Appendix 65 / 101 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 EFGX26060387-IE-09-E02 Appendix 66 / 101 11AX20SISO_Ant1_2462 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26060387-IE-09-E02 Appendix 67 / 101 11AX40SISO_Ant1_2452 EFGX26060387-IE-09-E02 Appendix 68 / 101 Appendix H: Emissions in Restricted Bands Test Result Mode: B Channel: 2412 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2310.0000 38.41 41.08 2.67 74.00 32.92 150 308 PK Vertical PASS 2 2331.1900 40.88 43.66 2.78 74.00 30.34 150 72 PK Vertical PASS 3 2340.2900 40.90 43.75 2.85 74.00 30.25 150 52 PK Vertical PASS 4 2369.1500 41.86 44.88 3.02 74.00 29.12 150 198 PK Vertical PASS 5 2386.3100 44.15 47.14 2.99 74.00 26.86 150 54 PK Vertical PASS 6 2390.0000 41.84 44.79 2.95 74.00 29.21 150 90 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 69 / 101 Mode: B Channel: 2412 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2310.0000 38.62 41.29 2.67 74.00 32.71 150 82 PK Horizontal PASS 2 2332.7500 40.50 43.25 2.75 74.00 30.75 150 339 PK Horizontal PASS 3 2362.5200 41.30 44.19 2.89 74.00 29.81 150 31 PK Horizontal PASS 4 2375.0000 40.30 43.30 3.00 74.00 30.70 150 85 PK Horizontal PASS 5 2386.9600 41.89 44.85 2.96 74.00 29.15 150 99 PK Horizontal PASS 6 2390.0000 42.22 45.17 2.95 74.00 28.83 150 110 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 70 / 101 Mode: B Channel: 2462 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2483.5000 43.29 46.75 3.46 74.00 27.25 150 23 PK Vertical PASS 2 2486.8000 43.29 46.82 3.53 74.00 27.18 150 60 PK Vertical PASS 3 2487.5000 43.54 47.04 3.50 74.00 26.96 150 19 PK Vertical PASS 4 2490.1000 42.47 46.04 3.57 74.00 27.96 150 29 PK Vertical PASS 5 2496.6500 41.29 44.87 3.58 74.00 29.13 150 57 PK Vertical PASS 6 2500.0000 38.37 41.87 3.50 74.00 32.13 150 26 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 71 / 101 Mode: B Channel: 2462 MHz Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2483.5000 40.21 43.67 3.46 74.00 30.33 150 356 PK Horizontal PASS 2 2486.6000 40.93 44.44 3.51 74.00 29.56 150 27 PK Horizontal PASS 3 2489.2000 40.99 44.55 3.56 74.00 29.45 150 30 PK Horizontal PASS 4 2492.8500 39.92 43.49 3.57 74.00 30.51 150 206 PK Horizontal PASS 5 2496.0000 39.97 43.53 3.56 74.00 30.47 150 219 PK Horizontal PASS 6 2500.0000 38.05 41.55 3.50 74.00 32.45 150 139 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 72 / 101 Mode: AX20 Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.37 40.04 74.00 33.96 35.83 38.50 54.00 15.50 150 63 Vertical PASS 2 2367.5900 2.99 44.03 47.02 74.00 26.98 41.69 44.68 54.00 9.32 150 192 Vertical PASS 3 2378.9000 3.06 46.69 49.75 74.00 24.25 42.79 45.85 54.00 8.15 150 52 Vertical PASS 4 2385.4000 3.02 51.45 54.47 74.00 19.53 41.94 44.96 54.00 9.04 150 70 Vertical PASS 5 2388.0000 2.94 55.48 58.42 74.00 15.58 44.09 47.03 54.00 6.97 150 86 Vertical PASS 6 2390.0000 2.95 54.44 57.39 74.00 16.61 43.56 46.51 54.00 7.49 150 44 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-09-E02 Appendix 73 / 101 Mode: AX20 Channel: 2412 MHz Test Graph Fina…

Text truncated - open the document above for the full version.

EFGX26060387-IE-09-E02 Appendix 27 / 101 11AX20SISO_Ant1_2462 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26060387-IE-09-E02 Appendix 28 / 101 11AX40SISO_Ant1_2452 EFGX26060387-IE-09-E02 Appendix 29 / 101 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 3.77 -42.78 ≤-26.24 PASS High 2462 3.45 -46.36 ≤-26.55 PASS 11G Ant1 Low 2412 0.91 -30.33 ≤-29.09 PASS High 2462 1.04 -45.29 ≤-28.96 PASS 11N20SIS O Ant1 Low 2412 1.25 -30.47 ≤-28.75 PASS High 2462 0.97 -45.37 ≤-29.03 PASS 11N40SIS O Ant1 Low 2422 -1.96 -39.61 ≤-31.96 PASS High 2452 -1.92 -41.93 ≤-31.92 PASS 11AX20SI SO Ant1 Low 2412 2.14 -29.07 ≤-27.86 PASS High 2462 2.85 -45.01 ≤-27.15 PASS 11AX40SI SO Ant1 Low 2422 -0.99 -36.59 ≤-30.99 PASS High 2452 -0.12 -42.32 ≤-30.12 PASS EFGX26060387-IE-09-E02 Appendix 30 / 101 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 EFGX26060387-IE-09-E02 Appendix 31 / 101 11G_Ant1_Low_2412 11G_Ant1_High_2462 EFGX26060387-IE-09-E02 Appendix 32 / 101 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 EFGX26060387-IE-09-E02 Appendix 33 / 101 11N40SISO_Ant1_High_2452 11AX20SISO_Ant1_Low_2412 EFGX26060387-IE-09-E02 Appendix 34 / 101 11AX20SISO_Ant1_High_2462 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 EFGX26060387-IE-09-E02 Appendix 35 / 101 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.74 3.74 --- PASS 30~1000 3.74 -62.62 ≤-26.26 PASS 1000~26500 3.74 -52.09 ≤-26.26 PASS 2437 Reference 3.29 3.29 --- PASS 30~1000 3.29 -62.49 ≤-26.71 PASS 1000~26500 3.29 -55.98 ≤-26.71 PASS 2462 Reference 3.46 3.46 --- PASS 30~1000 3.46 -62.53 ≤-26.54 PASS 1000~26500 3.46 -53.72 ≤-26.54 PASS 11G Ant1 2412 Reference 1.25 1.25 --- PASS 30~1000 1.25 -62.55 ≤-28.75 PASS 1000~26500 1.25 -55.02 ≤-28.75 PASS 2437 Reference 0.58 0.58 --- PASS 30~1000 0.58 -62.91 ≤-29.42 PASS 1000~26500 0.58 -55.58 ≤-29.42 PASS 2462 Reference 0.89 0.89 --- PASS 30~1000 0.89 -62.8 ≤-29.11 PASS 1000~26500 0.89 -54.16 ≤-29.11 PASS 11N20SI SO Ant1 2412 Reference 1.04 1.04 --- PASS 30~1000 1.04 -62.35 ≤-28.96 PASS 1000~26500 1.04 -55.18 ≤-28.96 PASS 2437 Reference 0.81 0.81 --- PASS 30~1000 0.81 -62.84 ≤-29.19 PASS 1000~26500 0.81 -55.31 ≤-29.19 PASS 2462 Reference 1.01 1.01 --- PASS 30~1000 1.01 -62.3 ≤-28.99 PASS 1000~26500 1.01 -53.48 ≤-28.99 PASS 11N40SI SO Ant1 2422 Reference -1.67 -1.67 --- PASS 30~1000 -1.67 -62.91 ≤-31.67 PASS 1000~26500 -1.67 -55.6 ≤-31.67 PASS 2437 Reference -2.05 -2.05 --- PASS 30~1000 -2.05 -63.28 ≤-32.05 PASS 1000~26500 -2.05 -54.6 ≤-32.05 PASS 2452 Reference -1.99 -1.99 --- PASS 30~1000 -1.99 -62.86 ≤-31.99 PASS 1000~26500 -1.99 -54.65 ≤-31.99 PASS 11AX20SAnt1 2412 Reference 9.43 9.43 --- PASS EFGX26060387-IE-09-E02 Appendix 36 / 101 ISO 30~1000 9.43 -62.28 ≤-20.57 PASS 1000~26500 9.43 -53.04 ≤-20.57 PASS 2437 Reference 2.18 2.18 --- PASS 30~1000 2.18 -62.11 ≤-27.82 PASS 1000~26500 2.18 -55.37 ≤-27.82 PASS 2462 Reference 2.20 2.20 --- PASS 30~1000 2.20 -62.35 ≤-27.8 PASS 1000~26500 2.20 -54.44 ≤-27.8 PASS 11AX40S ISO Ant1 2422 Reference 0.21 0.21 --- PASS 30~1000 0.21 -62.41 ≤-29.79 PASS 1000~26500 0.21 -55.98 ≤-29.79 PASS 2437 Reference -0.70 -0.70 --- PASS 30~1000 -0.70 -62.59 ≤-30.7 PASS 1000~26500 -0.70 -60.35 ≤-30.7 PASS 2452 Reference -0.49 -0.49 --- PASS 30~1000 -0.49 -62.22 ≤-30.49 PASS 1000~26500 -0.49 -55.05 ≤-30.49 PASS EFGX26060387-IE-09-E02 Appendix 37 / 101 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 EFGX26060387-IE-09-E02 Appendix 38 / 101 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference EFGX26060387-IE-09-E02 Appendix 39 / 101 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference EFGX26060387-IE-09-E02 Appendix 40 / 101 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 EFGX26060387-IE-09-E02 Appendix 41 / 101 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 EFGX26060387-IE-09-E02 Appendix 42 / 101 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 EFGX26060387-IE-09-E02 Appendix 43 / 101 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 EFGX26060387-IE-09-E02 Appendix 44 / 101 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference EFGX26060387-IE-09-E02 Appendix 45 / 101 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference EFGX26060387-IE-09-E02 Appendix 46 / 101 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 EFGX26060387-IE-09-E02 Appendix 47 / 101 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 EFGX26060387-IE-09-E02 Appendix 48 / 101 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 EFGX26060387-IE-09-E02 Appendix 49 / 101 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 EFGX26060387-IE-09-E02 Appendix 50 / 101 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference

EFGX26060387-…

Text truncated - open the document above for the full version.
