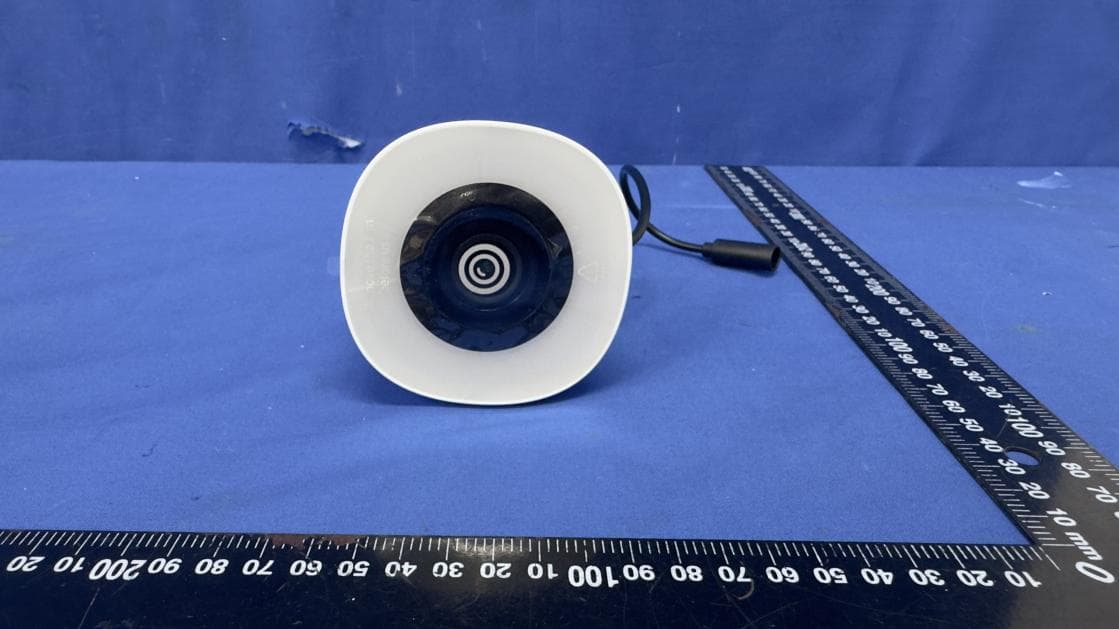

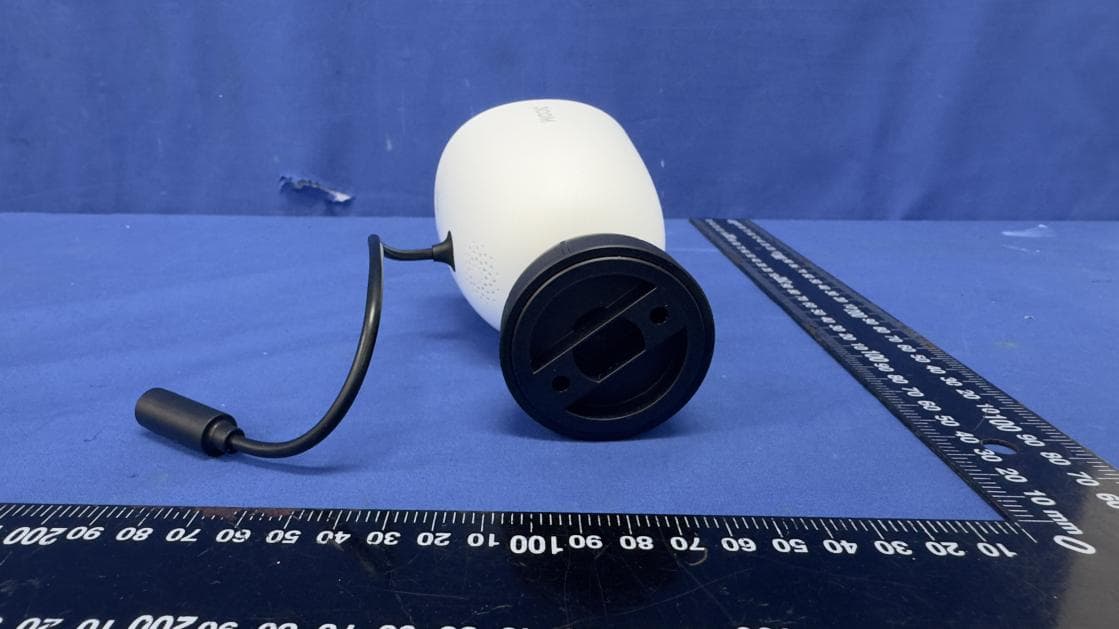

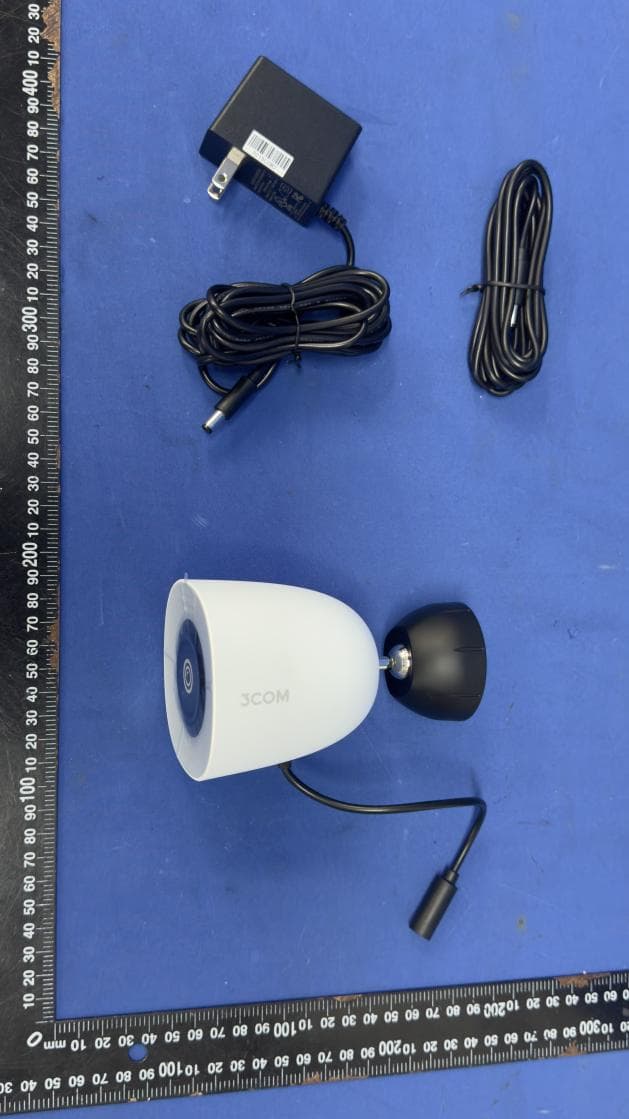

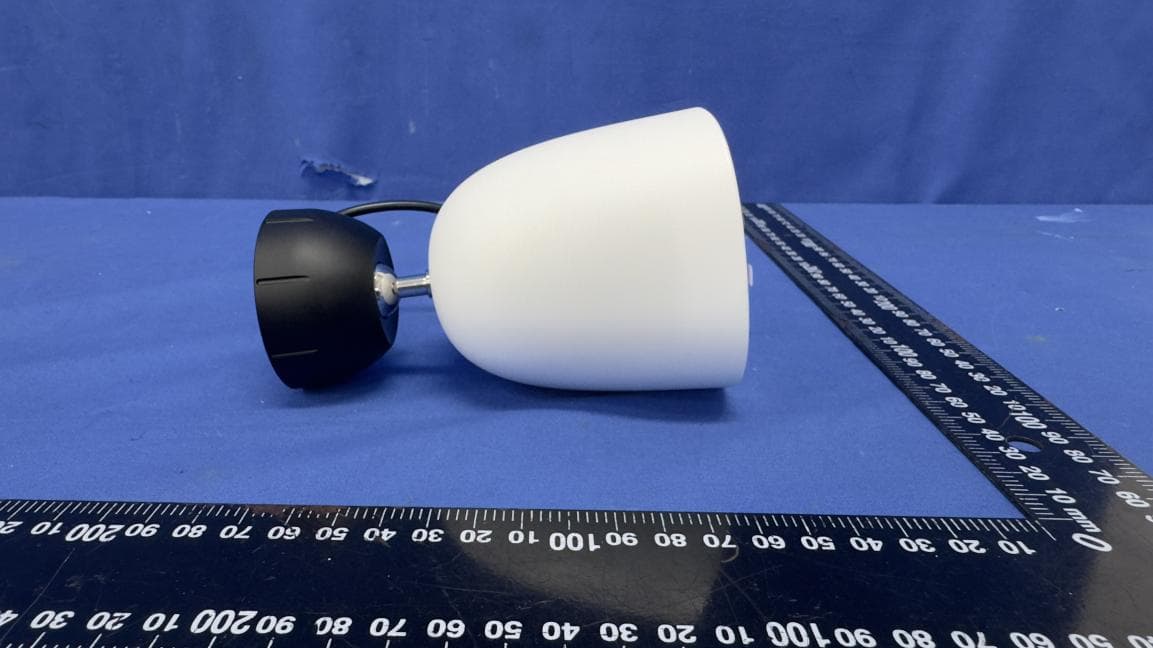

2BU4T-TC0235CC4FUWiredCam

1 EN Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors. Unless permitted, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form or by any means. About This Manual l This manual is intended for multiple product models, and the photos, illustrations, descriptions, etc, in this manual may be different from the actual appearances, functions, features, etc, of the product. l This manual is intended for multiple software versions, and the illustrations and descriptions in this manual may be different from the actual GUI and functions of the software. l Despite our best efforts, technical or typographical errors may exist in this manual. Our company cannot be held responsible for any such errors and reserves the right to change the manual without prior notice. l Users are fully responsible for the damages and losses that arise due to improper operation. l Our company reserves the right to change any information in this manual without any prior notice or indication. Due to such reasons as product version upgrade or regulatory requirement of relevant regions, this manual will be periodically updated. Safety Warnings The device must be installed, serviced and maintained by a trained professional with necessary safety knowledge and skills. Before you start using the device, please read through this guide carefully and make sure all applicable requirements are met to avoid danger and loss of property. Storage, Transportation, and Use l Store or use the device in a proper environment that meets environmental requirements, including and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic radiation, etc. l Make sure the device is securely installed or placed on a flat surface to prevent falling. l Unless otherwise specified, do not stack devices. l Ensure good ventilation in the operating environment. Do not cover the vents on the device. Allow adequate space for ventilation. l Protect the device from liquid of any kind. l Make sure the power supply provides a stable voltage that meets the power requirements of the device. Make sure the power supply's output power exceeds the total maximum power of all the connected devices. l Verify that the device is properly installed before connecting it to power. l Do not remove the seal from the device body without consulting our company first. Do not attempt to service the product yourself. Contact a trained professional for maintenance. l Always disconnect the device from power before attempting to move the device. l Ta ke p r o p e r wat e r p r o o f m ea s u r e s i n a cco r d a n ce w i t h r e q u i r e m e n t s . Power Requirements l Install and use the device in strict accordance with your local electrical safety regulations. l Use a UL certified power supply that meets LPS requirements if an adapter is used. l Use the recommended cordset (power cord) in accordance with the specified ratings. l Only use the power adapter supplied with your device. l Use a mains socket outlet with a protective earthing (grounding) connection. l Ground your device properly if the device is intended to be grounded. Battery Use Caution l When battery is used, avoid: Ø Extremely high or low temperature and air pressure during use, storage and transportation; Ø Battery replacement. l Use the battery properly. Improper use of the battery such as the following may cause risks of fire, explosion or leakage of flammable liquid or gas. Ø Replace battery with an incorrect type; Ø Dispose of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery; l Dispose of the used battery according to your local regulations or the battery manufacturer's instructions. 2 Avertissement de l’utilisation de la batterie l Lorsque utiliser la batterie, évitez: Ø Te mp é rat u re et p re s s i o n d ' a i r ext rê me me n t é l e v é e s o u ba s s e s p e n d a n t l ' u t i l i s at i o n , l e sto c ka ge et l e t ra n s p o r t . Ø Remplacement de la batterie. l Utilisez la batterie correctement. Mauvaise utilisation de la batterie comme celles mentionnées ici, peut entraîner des risques d’incendie, d’explosion ou de fuite liquide de gaz inflammables. Ø Remplacer la batterie par un type incorrect; Ø Disposer d’une batterie dans le feu ou un four chaud, écraser mécaniquement ou couper la batterie; l Disposer la batterie utilisée conformément à vos règlements locaux ou aux instructions du fabricant de la batterie. Regulatory Compliance FCC Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Visit https://3comtec.github.io/3comusa-download/3Guard/C-D38M0-S/C-D38M0-S-3comusa-SafetyWarning-Multilingual.pdf for SDoC Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu…

Text truncated - open the document above for the full version.

EFGX26060387-IE-12-E01 Appendix 1 / 56 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.672 2401.656 2402.328 0.5 PASS 2440 0.676 2439.652 2440.328 0.5 PASS 2480 0.680 2479.648 2480.328 0.5 PASS BLE_2M Ant1 2402 1.256 2401.340 2402.596 0.5 PASS 2440 1.248 2439.348 2440.596 0.5 PASS 2480 1.244 2479.348 2480.592 0.5 PASS EFGX26060387-IE-12-E01 Appendix 2 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-12-E01 Appendix 3 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-12-E01 Appendix 4 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-12-E01 Appendix 5 / 56 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0224 2401.4852 2402.5076 --- --- 2440 1.0242 2439.4822 2440.5064 --- --- 2480 1.0261 2479.4806 2480.5067 --- --- BLE_2M Ant1 2402 2.0681 2400.9765 2403.0446 --- --- 2440 2.0720 2438.9746 2441.0466 --- --- 2480 2.0769 2478.9720 2481.0489 --- --- EFGX26060387-IE-12-E01 Appendix 6 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-12-E01 Appendix 7 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-12-E01 Appendix 8 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-12-E01 Appendix 9 / 56 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 2.96 ≤30 PASS 2440 1.97 ≤30 PASS 2480 1.39 ≤30 PASS BLE_2M Ant1 2402 2.88 ≤30 PASS 2440 1.87 ≤30 PASS 2480 1.30 ≤30 PASS EFGX26060387-IE-12-E01 Appendix 10 / 56 Test Graphs Peak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-12-E01 Appendix 11 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-12-E01 Appendix 12 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-12-E01 Appendix 13 / 56 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -13.11 ≤8.00 PASS 2440 -14.20 ≤8.00 PASS 2480 -14.89 ≤8.00 PASS BLE_2M Ant1 2402 -16.66 ≤8.00 PASS 2440 -17.74 ≤8.00 PASS 2480 -18.34 ≤8.00 PASS EFGX26060387-IE-12-E01 Appendix 14 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 EFGX26060387-IE-12-E01 Appendix 15 / 56 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 EFGX26060387-IE-12-E01 Appendix 16 / 56 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 EFGX26060387-IE-12-E01 Appendix 17 / 56 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 2.45 -46.62 ≤-17.55 PASS High 2480 0.87 -46.78 ≤-19.13 PASS BLE_2M Ant1 Low 2402 1.31 -30.28 ≤-18.69 PASS High 2480 0.07 -46.63 ≤-19.93 PASS EFGX26060387-IE-12-E01 Appendix 18 / 56 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 EFGX26060387-IE-12-E01 Appendix 19 / 56 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 EFGX26060387-IE-12-E01 Appendix 20 / 56 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 2.44 2.44 --- PASS 30~1000 2.44 -67.98 ≤-17.56 PASS 1000~26500 2.44 -56.94 ≤-17.56 PASS 2440 Reference 1.42 1.42 --- PASS 30~1000 1.42 -68.63 ≤-18.58 PASS 1000~26500 1.42 -57 ≤-18.58 PASS 2480 Reference 0.80 0.80 --- PASS 30~1000 0.80 -68.44 ≤-19.2 PASS 1000~26500 0.80 -59.16 ≤-19.2 PASS BLE_2M Ant1 2402 Reference 1.34 1.34 --- PASS 30~1000 1.34 -67.99 ≤-18.66 PASS 1000~26500 1.34 -59.1 ≤-18.66 PASS 2440 Reference 0.31 0.31 --- PASS 30~1000 0.31 -68.17 ≤-19.69 PASS 1000~26500 0.31 -60.27 ≤-19.69 PASS 2480 Reference -0.32 -0.32 --- PASS 30~1000 -0.32 -68.62 ≤-20.32 PASS 1000~26500 -0.32 -60.68 ≤-20.32 PASS EFGX26060387-IE-12-E01 Appendix 21 / 56 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 EFGX26060387-IE-12-E01 Appendix 22 / 56 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference EFGX26060387-IE-12-E01 Appendix 23 / 56 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference EFGX26060387-IE-12-E01 Appendix 24 / 56 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 EFGX26060387-IE-12-E01 Appendix 25 / 56 BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 EFGX26060387-IE-12-E01 Appendix 26 / 56 BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 EFGX26060387-IE-12-E01 Appendix 27 / 56 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 EFGX26060387-IE-12-E01 Appendix 28 / 56 BLE_2M_Ant1_2480_1000~26500 EFGX26060387-IE-12-E01 Appendix 29 / 56 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] BLE_1M Ant1 2402 2.12 2.50 84.80 2440 2.12 2.50 84.80 2480 2.12 2.50 84.80 BLE_2M Ant1 2402 1.06 1.87 56.68 2440 1.06 1.87 56.68 2480 1.06 1.87 56.68

EFGX26060387-IE-12-Setup Photos 1 / 2 EFGX26060387-IE-12-Setup Photos 2 / 2

规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2025/07/29 编号 File No 25072901 版本 Revision 1.0 客户 CUSTOMER: 宇视 客户料号 CUSTOMER NO: 常电筒机 品名 PARTNAME: WIFI Antenna 供方料号 SUPPLIERNO: YJH01.059.018.303A 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 SUPPLIERNO: YJH01.059.018.303A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（ Spec Item ） 12 3 工程成品图（ Drawing） 13 4 包装图（ Package Drawing） 14 5 天线规格（Antenna Specification） 15 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 5 天线规格（Antenna Specification） 15 6 S参数测试（S Parameter ） 16 7 无源测试（Passive Test ） 37~ 9 8 方向图（Radiation Pattern ） 310 ~ 12 9 有源测试（Active Test ） 213 ~ 14 10 天线装配图（Antenna Profile） 315 ~ 17 11 材质证明（Material Certificate ） 4018 ~ 57 12 RoHS报告（RoHSTest Report ） **** 13N/AN/AN/A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R 2.0 [email protected] 2.5 [email protected] Gain 3.6 [email protected] 1.9 [email protected] RadiationOmni-directional 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length100mm Cable ColorBlack Operating Temp -20~+70°C Storage Temp -20~+70°C Agilent E5071C S 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 S Parameter Test // WiFi Antenna Z Y X Antenna Passive Test 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Y X Z Passive Test For WiFiAntenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 51.0 -2.9 2.4 2410 51.6 -2.9 2.2 2420 53.5 -2.7 2.6 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 2430 53.5 -2.7 2.6 2440 51.8 -2.9 2.9 2450 52.4 -2.8 2.7 2460 51.2 -2.9 2.5 2470 52.9 -2.8 2.8 2480 54.7 -2.6 3.4 2490 56.5 -2.5 3.6 2500 55.3 -2.6 3.4 Passive Test For WiFiAntenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 45.2 -3.4 0.7 5200 50.3 -3.0 1.8 5250 50.2 -3.0 1.5 5300 52.7 -2.8 1.9 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 5350 49.8 -3.0 1.1 5400 53.8 -2.7 1.8 5450 50.8 -2.9 1.3 5500 45.4 -3.4 1.2 5550 51.7 -2.9 1.5 5600 45.1 -3.5 1.7 5650 50.1 -3.0 1.7 5700 47.6 -3.2 1.5 5750 47.9 -3.2 1.2 5800 45.2 -3.4 1.3 5850 44.4 -3.5 1.0 Radiation Pattern For WiFiAntenna （ 2450MHz ） 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For WiFiAntenna （ 5500MHz ） 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For WiFiAntenna Phi 0° 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Phi 90° Theta 90° Antenna Active Test 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Active Test For WiFiAntenna BandChannel Data Rate TRP Data Rate TIS WIFI 2.4G 802.11b 1 11Mbps 19.2 11Mbps -77.4 -80.2 19.3 6 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 11 19.1 -81.5 WIFI 5G 802.11a 36 54Mbps 14.6 54Mbps -65.8 100 11.0 -69.2 165 14.2-69.7 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 Device 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 WiFi Antenna WiFi ANT 东莞市长安镇沙头社区木鱼路59号Tel:0769-82586086 Fax:0769-82586086 3M MATERIAL SAFETY DATA SHEET 3M(TM) Laminating Adhesives 9471LE, 9472LE, 9671LE, 9672LE, 9653LE, 9453LE 06/20/2003 Page 1 of 6 Material Safety Data Sheet Copyright, 2003, 3M Company. All rights reserved. Copying and/or downloading of this information for the purpose of properly utilizing 3M products is allowed provided that: (1) the information is copied in full with no changes unless prior written agreement is obtained from 3M, and (2) neither the copy nor the original is resold or otherwise distributed with the intention of earning a profit thereon. This material safety data sheet (MSDS) is provided as a courtesy in response to a customer request. This product is not regulated under, and a MSDS is not required for this product by the OSHA Hazard Communication Standard (29 CFR 1910.1200) because, when used as recommended or under ordinary conditions, it should not present a health and safety hazard. However, use or processing of the product not in accordance with the product's recommendations or not under ordinary conditions may affect the performance of the product and may present potential health and safety hazards. SECTION 1: PRODUCT AND COMPANY IDENTIFICATION PRODUCT NAME: 3M(TM) Laminating Adhesives 9471LE, 9472LE, 9671LE, 9672LE, 9653LE, 9453LE MANUFACTURER: 3M DIVISION: Industrial Adhesives and Tapes ADDRESS: 3M Center St. Paul, MN 55144-1000 EMERGENCY PHONE: 1-800-364-3577 or (651) 737-6501 (24 hours) Issue Date: 06/20/2003 Supercedes Date: 05/22/2001 Document Group: 08-9111-9 Product Use: Specific Use:Laminating Adhesive SECTION 2: INGREDIENTS IngredientC.A.S. No.% by Wt TACKIFIED ACRYLATE POLYMERNone 100 SECTION 3: HAZARDS IDENTIFICATION 3.1 EMERGENCY OVERVIEW Specific Physical Form: Roll of Tape Odor, Color, Grade: Tan, Acrylate odor when unrolled. General Physical Form: Solid Immediate health, physical, and environmental hazards: This product, when used under reasonable conditions and in accordance with the 3M directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards. 3M MATERIAL SAFETY DATA SHEET 3M(TM) Laminating Adhesives 9471LE, 9472LE, 9671LE, 9672LE, 9653LE, 9453LE 06/20/2003 Page 2 of 6 3.2 POTENTIAL HEALTH EFFECTS Eye Contact: No health effects are expected. Skin Contact: No health effects are expected. Inhalation: No health effects are expected. This product may have a characteristic odor; however, no adverse health effects are anticipated. Ingestion: No health effects are expected. SECTION 4: FIRST AID MEASURES 4.1 FIRST AID PROCEDURES The following first aid recommendations are based on an assumption that appropriate personal and industrial hygiene practices are followed. Eye Contact:…

Text truncated - open the document above for the full version.

EFGX26060387-IE-12-E02 Appendix 80 / 101 Appendix I: Spurious emissions Test Result Note: The low frequency, which starts from 9 kHz to 30 MHz, is pre-scanned and the result which is 20 dB lower than the limit line is not reported. During the test, the Radiates Emission from 30MHz to 1GHz was performed in all modes with all channels. The test data of the worst-case (AX20-2412MHz) condition was recorded in this report. The measurement results above 18GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz are reported. NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 54.8345 43.92 27.44 -16.48 40.00 12.56 150 120 Vertical PASS 2 59.9760 50.36 33.56 -16.80 40.00 6.44 150 270 Vertical PASS 3 144.0834 51.20 34.94 -16.26 43.50 8.56 150 170 Vertical PASS 4 236.0486 39.49 21.09 -18.40 46.00 24.91 150 30 Vertical PASS 5 328.1108 39.47 24.62 -14.85 46.00 21.38 150 60 Vertical PASS 6 542.7933 35.41 24.87 -10.54 46.00 21.13 150 70 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 81 / 101 NO. Frequency [MHz] Reading [dBμV/ m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 47.9468 33.91 17.83 -16.08 40.00 22.17 150 70 Horizontal PASS 2 85.6836 39.96 19.63 -20.33 40.00 20.37 150 150 Horizontal PASS 3 124.9725 45.48 28.07 -17.41 43.50 15.43 150 280 Horizontal PASS 4 168.0448 51.35 35.26 -16.09 43.50 8.24 150 40 Horizontal PASS 5 317.7308 39.61 24.57 -15.04 46.00 21.43 150 40 Horizontal PASS 6 485.3635 31.60 19.87 -11.73 46.00 26.13 150 70 Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 82 / 101 Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 1444.0000 -0.12 43.18 43.06 74.00 30.94 42.78 42.66 54.00 11.34 150 43 Vertical PASS 2 1706.2000 0.66 38.7 39.36 74.00 34.64 38.47 39.13 54.00 14.87 150 222 Vertical PASS 3 3944.0000 -17.64 55.32 37.68 74.00 36.32 52.92 35.28 54.00 18.72 150 190 Vertical PASS 4 4823.5000 -14.93 66.14 51.21 74.00 22.79 64.40 49.47 54.00 4.53 150 329 Vertical PASS 5 7064.5000 -9.60 52.27 42.67 74.00 31.33 50.38 40.78 54.00 13.22 150 304 Vertical PASS 6 9011.5000 -6.33 51.68 45.35 74.00 28.65 49.66 43.33 54.00 10.67 150 78 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 83 / 101 Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 1448.8000 -0.09 43.43 43.34 74.00 30.66 43.02 42.93 54.00 11.07 150 322 Horizonta l PASS 2 1905.8000 1.50 38.15 39.65 74.00 34.35 37.90 39.40 54.00 14.60 150 216 Horizonta l PASS 3 3789.5000 -18.51 55 36.49 74.00 37.51 51.63 33.12 54.00 20.88 150 30 Horizonta l PASS 4 4824.0065 -14.93 70.54 55.61 74.00 18.39 65.91 50.98 54.00 3.02 150 51.7 Horizonta l PASS 5 7146.5000 -9.67 52.39 42.72 74.00 31.28 49.38 39.71 54.00 14.29 150 357 Horizonta l PASS 6 9814.5000 -4.33 50.82 46.49 74.00 27.51 47.46 43.13 54.00 10.87 150 17 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 84 / 101 Mode: B Channel: 2437 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 1461.2000 -0.07 40.88 40.81 74.00 33.19 40.72 40.65 54.00 13.35 150 48 Vertical PASS 2 1657.8000 0.47 38.61 39.08 74.00 34.92 38.30 38.77 54.00 15.23 150 48 Vertical PASS 3 4873.5000 -14.21 64.9 50.69 74.00 23.31 63.58 49.37 54.00 4.63 150 304 Vertical PASS 4 6587.0000 -10.05 53.91 43.86 74.00 30.14 51.62 41.57 54.00 12.43 150 304 Vertical PASS 5 8387.0000 -7.38 52.54 45.16 74.00 28.84 50.39 43.01 54.00 10.99 150 236 Vertical PASS 6 10993.500 0 -2.91 49.65 46.74 74.00 27.26 47.86 44.95 54.00 9.05 150 91 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 85 / 101 Mode: B Channel: 2437 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 1461.6000 -0.08 41.44 41.36 74.00 32.64 41.34 41.26 54.00 12.74 150 179 Horizonta l PASS 2 3778.0000 -18.81 55.46 36.65 74.00 37.35 49.21 30.40 54.00 23.60 150 286 Horizonta l PASS 3 4873.9386 -14.21 69.63 55.42 74.00 18.58 66.72 52.51 54.00 1.49 150 63.3 Horizonta l PASS 4 6887.0000 -10.00 52.43 42.43 74.00 31.57 50.28 40.28 54.00 13.72 150 215 Horizonta l PASS 5 9021.0000 -6.35 52.27 45.92 74.00 28.08 48.25 41.90 54.00 12.10 150 156 Horizonta l PASS 6 12214.000 0 -1.47 49.07 47.60 74.00 26.40 46.13 44.66 54.00 9.34 150 189 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 86 / 101 Mode: B Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 1479.4000 0.03 39.86 39.89 74.00 34.11 39.36 39.39 54.00 14.61 150 80 Vertical PASS 2 1846.0000 1.31 38.47 39.78 74.00 34.22 37.99 39.30 54.00 14.70 150 80 Vertical PASS 3 4923.5000 -13.66 66.82 53.16 74.00 20.84 60.62 46.96 54.00 7.04 150 298 Vertical PASS 4 4923.5000 -13.66 66.82 53.16 74.00 20.84 64.62 50.96 54.00 3.04 150 298 Vertical PASS 5 7066.0000 -9.60 …

Text truncated - open the document above for the full version.

EFGX26060387-IE-12-E02 Appendix 51 / 101 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference EFGX26060387-IE-12-E02 Appendix 52 / 101 11AX20SISO_Ant1_2412_30~1000 11AX20SISO_Ant1_2412_1000~26500 EFGX26060387-IE-12-E02 Appendix 53 / 101 11AX20SISO_Ant1_2437_0~Reference 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 EFGX26060387-IE-12-E02 Appendix 54 / 101 11AX20SISO_Ant1_2462_0~Reference 11AX20SISO_Ant1_2462_30~1000 EFGX26060387-IE-12-E02 Appendix 55 / 101 11AX20SISO_Ant1_2462_1000~26500 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 EFGX26060387-IE-12-E02 Appendix 56 / 101 11AX40SISO_Ant1_2422_1000~26500 11AX40SISO_Ant1_2437_0~Reference EFGX26060387-IE-12-E02 Appendix 57 / 101 11AX40SISO_Ant1_2437_30~1000 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference EFGX26060387-IE-12-E02 Appendix 58 / 101 11AX40SISO_Ant1_2452_30~1000 11AX40SISO_Ant1_2452_1000~26500 EFGX26060387-IE-12-E02 Appendix 59 / 101 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 12.22 22.25 54.92 2437 12.22 23.11 52.88 2462 12.22 24.08 50.75 11G Ant1 2412 2.03 12.06 16.83 2437 2.03 12.06 16.83 2462 2.03 12.05 16.85 11N20SISO Ant1 2412 1.89 11.92 15.86 2437 1.89 11.92 15.86 2462 1.89 11.92 15.86 11N40SISO Ant1 2422 0.93 10.96 8.49 2437 0.93 10.96 8.49 2452 0.94 10.96 8.58 11AX20SISO Ant1 2412 1.73 11.81 14.65 2437 1.47 11.49 12.79 2462 1.46 11.90 12.27 11AX40SISO Ant1 2422 0.75 10.78 6.96 2437 0.10 10.12 0.99 2452 0.77 10.79 7.14 EFGX26060387-IE-12-E02 Appendix 60 / 101 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 EFGX26060387-IE-12-E02 Appendix 61 / 101 11B_Ant1_2462 11G_Ant1_2412 EFGX26060387-IE-12-E02 Appendix 62 / 101 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 EFGX26060387-IE-12-E02 Appendix 63 / 101 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 EFGX26060387-IE-12-E02 Appendix 64 / 101 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 EFGX26060387-IE-12-E02 Appendix 65 / 101 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 EFGX26060387-IE-12-E02 Appendix 66 / 101 11AX20SISO_Ant1_2462 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26060387-IE-12-E02 Appendix 67 / 101 11AX40SISO_Ant1_2452 EFGX26060387-IE-12-E02 Appendix 68 / 101 Appendix H: Emissions in Restricted Bands Test Result Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.38 40.05 74.00 33.95 35.00 37.67 54.00 16.33 150 72 Vertical PASS 2 2332.3600 2.75 38.11 40.86 74.00 33.14 35.99 38.74 54.00 15.26 150 130 Vertical PASS 3 2342.8900 2.90 38.99 41.89 74.00 32.11 35.13 38.03 54.00 15.97 150 20 Vertical PASS 4 2373.7000 3.00 39.23 42.23 74.00 31.77 37.22 40.22 54.00 13.78 150 80 Vertical PASS 5 2387.7400 2.94 39.42 42.36 74.00 31.64 37.40 40.34 54.00 13.66 150 359 Vertical PASS 6 2390.0000 2.95 37.92 40.87 74.00 33.13 37.14 40.09 54.00 13.91 150 328 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 69 / 101 Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.79 40.46 74.00 33.54 35.55 38.22 54.00 15.78 150 356 Horizonta l PASS 2 2337.9500 2.82 39.9 42.72 74.00 31.28 37.40 40.22 54.00 13.78 150 128 Horizonta l PASS 3 2340.8100 2.86 38.21 41.07 74.00 32.93 36.43 39.29 54.00 14.71 150 13 Horizonta l PASS 4 2362.1300 2.90 38.99 41.89 74.00 32.11 36.85 39.75 54.00 14.25 150 74 Horizonta l PASS 5 2382.5400 3.02 39.06 42.08 74.00 31.92 35.38 38.40 54.00 15.60 150 120 Horizonta l PASS 6 2390.0000 2.95 38.49 41.44 74.00 32.56 36.66 39.61 54.00 14.39 150 356 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 70 / 101 Mode: B Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 3.46 37.28 40.74 74.00 33.26 35.41 38.87 54.00 15.13 150 340 Vertical PASS 2 2485.5500 3.50 38.93 42.43 74.00 31.57 37.28 40.78 54.00 13.22 150 236 Vertical PASS 3 2489.1000 3.56 38.91 42.47 74.00 31.53 37.00 40.56 54.00 13.44 150 213 Vertical PASS 4 2490.7000 3.56 39.31 42.87 74.00 31.13 37.85 41.41 54.00 12.59 150 230 Vertical PASS 5 2495.4500 3.56 38.68 42.24 74.00 31.76 35.34 38.90 54.00 15.10 150 230 Vertical PASS 6 2500.0000 3.50 37.31 40.81 74.00 33.19 35.34 38.84 54.00 15.16 150 282 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 71 / 101 Mode: B Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 3.46 37.32 40.78 74.00 33.22 35.61 39.07 54.00 14.93 150 2 Horizonta l PASS 2 2485.2000 3.53 39.37 42.90 74.00 31.10 36.84 40.37 54.00 13.63 150 5 Horizonta l PASS 3 2487.3000 3.52 39.12 42.64 74.00 31.36 36.50 40.02 54.00 13.98 150 326 Horizonta l PASS 4 2491.8000 3.56 38.76 42.32 74.00 31.68 35.40 38.96 54.00 15.04 150 280 Horizonta l PASS 5 2494.6500 3.57 37.95 41.52 74.00 32.48 36.70 40.27 54.00 13.73 150 5 Horizonta l PASS 6 2500.0000 3.50 38.7 42.20 74.00 31.80 36.49 39.99 54.00 14.01 150 160 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-12-E02 Appendix 72 / 101 Mode: AX Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB]…

Text truncated - open the document above for the full version.

EFGX26060387-IE-12-E02 Appendix 27 / 101 11AX20SISO_Ant1_2462 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26060387-IE-12-E02 Appendix 28 / 101 11AX40SISO_Ant1_2452 EFGX26060387-IE-12-E02 Appendix 29 / 101 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 3.47 -38.97 ≤-16.53 PASS High 2462 4.05 -46.53 ≤-15.95 PASS 11G Ant1 Low 2412 1.22 -27.91 ≤-18.79 PASS High 2462 1.83 -45.59 ≤-18.17 PASS 11N20SISO Ant1 Low 2412 1.44 -25.73 ≤-18.56 PASS High 2462 1.09 -44.61 ≤-18.91 PASS 11N40SISO Ant1 Low 2422 -1.30 -33.57 ≤-21.3 PASS High 2452 -4.27 -44.88 ≤-24.27 PASS 11AX20SISO Ant1 Low 2412 3.37 -24.28 ≤-16.64 PASS High 2462 4.09 -40.08 ≤-15.91 PASS 11AX40SISO Ant1 Low 2422 -0.41 -30.47 ≤-20.41 PASS High 2452 -2.42 -42.68 ≤-22.42 PASS EFGX26060387-IE-12-E02 Appendix 30 / 101 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 EFGX26060387-IE-12-E02 Appendix 31 / 101 11G_Ant1_Low_2412 11G_Ant1_High_2462 EFGX26060387-IE-12-E02 Appendix …

Text truncated - open the document above for the full version.
