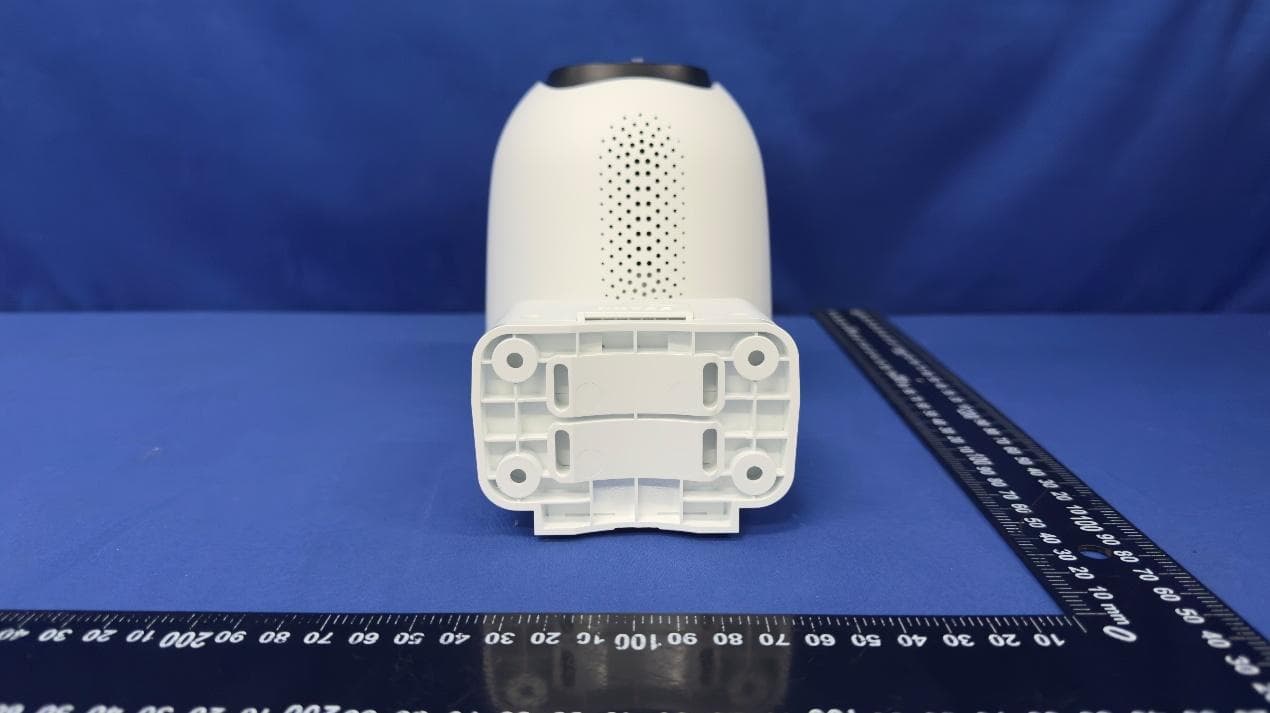

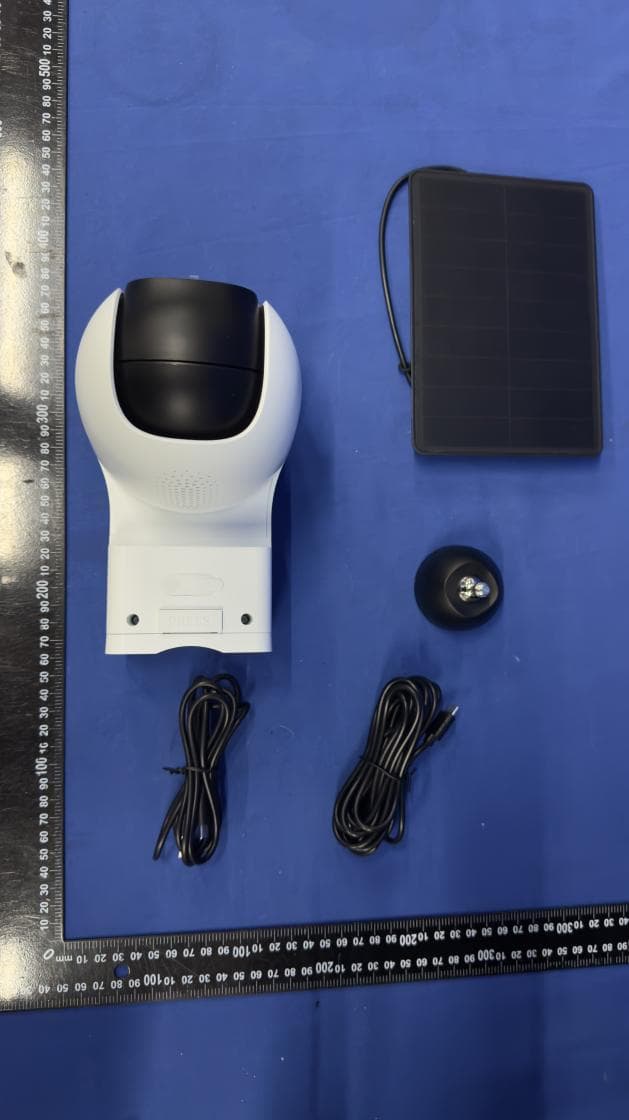

2BU4T-TC0235CC47USolarCam PT

1 EN Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors. Unless permitted, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form or by any means. About This Manual  This manual is intended for multiple product models, and the photos, illustrations, descriptions, etc, in this manual may be different from the actual appearances, functions, features, etc, of the product.  This manual is intended for multiple software versions, and the illustrations and descriptions in this manual may be different from the actual GUI and functions of the software.  Despite our best efforts, technical or typographical errors may exist in this manual. Our company cannot be held responsible for any such errors and reserves the right to change the manual without prior notice.  Users are fully responsible for the damages and losses that arise due to improper operation.  Our company reserves the right to change any information in this manual without any prior notice or indication. Due to such reasons as product version upgrade or regulatory requirement of relevant regions, this manual will be periodically updated. Safety Warnings The device must be installed, serviced and maintained by a trained professional with necessary safety knowledge and skills. Before you start using the device, please read through this guide carefully and make sure all applicable requirements are met to avoid danger and loss of property. Storage, Transportation, and Use  Store or use the device in a proper environment that meets environmental requirements, including and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic radiation, etc.  Make sure the device is securely installed or placed on a flat surface to prevent falling.  Unless otherwise specified, do not stack devices.  Ensure good ventilation in the operating environment. Do not cover the vents on the device. Allow adequate space for ventilation.  Protect the device from liquid of any kind.  Make sure the power supply provides a stable voltage that meets the power requirements of the device. Make sure the power supply's output power exceeds the total maximum power of all the connected devices.  Verify that the device is properly installed before connecting it to power.  Do not remove the seal from the device body without consulting our company first. Do not attempt to service the product yourself. Contact a trained professional for maintenance.  Always disconnect the device from power before attempting to move the device.  Take proper waterproof measures in accordance with requirements. Battery Use Caution  When battery is used, avoid:  Extremely high or low temperature and air pressure during use, storage and transportation;  Battery replacement.  Use the battery properly. Improper use of the battery such as the following may cause risks of fire, explosion or leakage of flammable liquid or gas.  Replace battery with an incorrect type;  Dispose of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery;  Dispose of the used battery according to your local regulations or the battery manufacturer's instructions. Avertissement de l’utilisation de la batterie  Lorsque utiliser la batterie, évitez:  Température et pression d'air extrêmement élevées ou basses pendant l'utilisation, le stockage et le transport.  Remplacement de la batterie.  Utilisez la batterie correctement. Mauvaise utilisation de la batterie comme celles mentionnées ici, peut entraîner des risques d’incendie, d’explosion ou de fuite liquide de gaz inflammables.  Remplacer la batterie par un type incorrect;  Disposer d’une batterie dans le feu ou un four chaud, écraser mécaniquement ou couper la batterie;  Disposer la batterie utilisée conformément à vos règlements locaux ou aux instructions du fabricant de la batterie. 2 Regulatory Compliance FCC Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Visit https://3comtec.github.io/3comusa-download/3Guard/C-S54M0-A/C-S54M0-A-3comusa-SafetyWarning-Multilingual.pdf for SDoC Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure …

Text truncated - open the document above for the full version.

x 1 x 1 x 1 x 1 x 1 x 1 x 1 x 1 x 1 US+1 833 700 5555 SD Status Description Flashing green Network configuration status Steady green Connected to the network Steady red Device is starting up Flashing red Network Abnormality Quick Guide Scan for video, user guide, support... 100% x 1 x 1 x 1

EFGX26060387-IE-07-E01 Appendix 1 / 56 Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.652 2401.632 2402.284 0.5 PASS 2440 0.624 2439.652 2440.276 0.5 PASS 2480 0.600 2479.676 2480.276 0.5 PASS BLE_2M Ant1 2402 1.064 2401.448 2402.512 0.5 PASS 2440 1.072 2439.440 2440.512 0.5 PASS 2480 1.072 2479.440 2480.512 0.5 PASS EFGX26060387-IE-07-E01 Appendix 2 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 3 / 56 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 EFGX26060387-IE-07-E01 Appendix 4 / 56 BLE_2M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 5 / 56 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0423 2401.4753 2402.5176 --- --- 2440 1.0405 2439.4704 2440.5109 --- --- 2480 1.0076 2479.4724 2480.4800 --- --- BLE_2M Ant1 2402 2.0254 2400.9665 2402.9919 --- --- 2440 2.0143 2438.9861 2441.0004 --- --- 2480 1.9770 2478.9737 2480.9507 --- --- EFGX26060387-IE-07-E01 Appendix 6 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 7 / 56 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 EFGX26060387-IE-07-E01 Appendix 8 / 56 BLE_2M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 9 / 56 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 4.83 ≤30 PASS 2440 5.05 ≤30 PASS 2480 5.42 ≤30 PASS BLE_2M Ant1 2402 4.92 ≤30 PASS 2440 5.12 ≤30 PASS 2480 5.50 ≤30 PASS EFGX26060387-IE-07-E01 Appendix 10 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 11 / 56 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 EFGX26060387-IE-07-E01 Appendix 12 / 56 BLE_2M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 13 / 56 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -2.96 ≤8.00 PASS 2440 -2.67 ≤8.00 PASS 2480 -2.32 ≤8.00 PASS BLE_2M Ant1 2402 -7.18 ≤8.00 PASS 2440 -6.97 ≤8.00 PASS 2480 -6.63 ≤8.00 PASS EFGX26060387-IE-07-E01 Appendix 14 / 56 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 15 / 56 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 EFGX26060387-IE-07-E01 Appendix 16 / 56 BLE_2M_Ant1_2480 EFGX26060387-IE-07-E01 Appendix 17 / 56 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 3.19 -50.24 ≤-16.82 PASS High 2480 2.87 -49.31 ≤-17.13 PASS BLE_2M Ant1 Low 2402 3.70 -38.06 ≤-16.3 PASS High 2480 3.90 -49.89 ≤-16.1 PASS EFGX26060387-IE-07-E01 Appendix 18 / 56 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 EFGX26060387-IE-07-E01 Appendix 19 / 56 BLE_2M_Ant1_High_2480 EFGX26060387-IE-07-E01 Appendix 20 / 56 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 1.97 1.97 --- PASS 30~1000 1.97 -50.28 ≤-18.03 PASS 1000~25000 1.97 -44.76 ≤-18.03 PASS 2440 Reference 3.90 3.90 --- PASS 30~1000 3.90 -50.94 ≤-16.1 PASS 1000~25000 3.90 -44.17 ≤-16.1 PASS 2480 Reference 4.41 4.41 --- PASS 30~1000 4.41 -50.94 ≤-15.59 PASS 1000~25000 4.41 -44.62 ≤-15.59 PASS BLE_2M Ant1 2402 Reference -1.41 -1.41 --- PASS 30~1000 -1.41 -51.03 ≤-21.41 PASS 1000~25000 -1.41 -44.17 ≤-21.41 PASS 2440 Reference -0.01 -0.01 --- PASS 30~1000 -0.01 -50.87 ≤-20.01 PASS 1000~25000 -0.01 -44.79 ≤-20.01 PASS 2480 Reference -0.69 -0.69 --- PASS 30~1000 -0.69 -50.67 ≤-20.69 PASS 1000~25000 -0.69 -43.94 ≤-20.69 PASS EFGX26060387-IE-07-E01 Appendix 21 / 56 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~25000 EFGX26060387-IE-07-E01 Appendix 22 / 56 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 EFGX26060387-IE-07-E01 Appendix 23 / 56 BLE_1M_Ant1_2440_1000~25000 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 EFGX26060387-IE-07-E01 Appendix 24 / 56 BLE_1M_Ant1_2480_1000~25000 BLE_2M_Ant1_2402_0~Reference EFGX26060387-IE-07-E01 Appendix 25 / 56 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~25000 BLE_2M_Ant1_2440_0~Reference EFGX26060387-IE-07-E01 Appendix 26 / 56 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~25000 EFGX26060387-IE-07-E01 Appendix 27 / 56 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~25000 EFGX26060387-IE-07-E01 Appendix 28 / 56 EFGX26060387-IE-07-E01 Appendix 29 / 56 Appendix G: Duty Cycle Test Result TestMode Antenna Channel ON Time [ms] Period [ms] X DC [%] BLE_1M Ant1 2402 0.30 0.93 0.3226 32.26 2440 0.30 0.93 0.3226 32.26 2480 0.30 0.93 0.3226 32.26 BLE_2M Ant1 2402 0.15 0.92 0.1630 16.30 2440 0.15 0.92 0.1630 16.30 2480 0.15 0.93 0.1613 16.13

EFGX26060387-IE-07-Setup Photos 1 / 2 EFGX26060387-IE-07-Setup Photos 2 / 2

东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 规 格 承 认 书 SPECIFICATION FOR APPROVAL 日 期 Date 2026/06/18 编 号 File No 26061801 版 本 Revision 1.0 客 户 CUSTOMER: 宇视 客户料号 CUSTOMER NO: AOV球机 品 名 PART NAME: WIFI Antenna 供方料号 SUPPLIER NO: YJH01.059.044.302A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认 SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangZhangLiqunChenXingyi YJ-RD-F04-A 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 承认书项目表 NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1承认书封面（Spec Cover）11 2承认书项目表（Spec Item ）12 3工程成品图 （Drawing）13 4包装图（Package Drawing）14 5天线规格（Antenna Specification）15 6S参数测试 （S Parameter ）16 7无源测试 （Passive Test ）27 ~ 8 8方向图（Radiation Pattern ）29 ~ 10 9有源测试（Active Test）211 ~ 12 10天线装配图（Antenna Profile）313 ~ 15 11材质证明（ Material Certificate ）3216 ~ 47 12RoHS报告（ RoHS Test Report ）**** 13N/AN/AN/A DC R E V . E D E S C R I P T I O N D A T E B 8 6 7 5 4 A 1 2 3 A 首 次 发 行 2 0 2 6 - 0 6 - 1 6 P A R T N A M E : X . X X X . X X ° ± 3 ° ± 0 . 5 0 ± 0 . 1 5 P A R T N O . : P A R T N O M a t e r i a l P a r t N u m b e r T E R 1 0 0 0 X A . P 0 1 C O A 1 0 0 0 X A . P 0 1 W I F I A n t e n n a Y J H 0 1 . 0 5 9 . 0 4 4 . 3 0 2 A F P C 1 0 0 0 X A . P 0 1 B 2 1 0 . 0 ± 6 G K - F 0 2 1 1 - A 0 17.0 2 9 . 0 4.0 3 . 0 背 胶 手 撕 位 DC R E V . E D E S C R I P T I O N D A T E B 8 6 7 5 4 A 1 2 3 A 首 次 发 行 2 0 2 6 - 0 6 - 1 6 P A R T N A M E : X . X X X . X X ° ± 3 ° ± 0 . 5 0 ± 0 . 1 5 P A R T N O . : Y J H 0 1 . 0 5 9 . 0 4 4 . 3 0 2 A W I F I A n t e n n a 包 装 说 明 环 保 标 签 R o H S 备 注 : 天 线 交 货 袋 装 及 箱 装 尺 寸 根 据 实 际 出 货 数 量 进 行 调 整 。 珍 珠 泡 棉 单 个 克 重 ： 约 0 . 9 g GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 珍 珠 泡 棉 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 珍 珠 泡 棉 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 GK-F0211-A0 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 3.9 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector Cable Type Cable Length Cable Color Operating Temp. Storage Temp / Humidit IPEX-1 O.D.1.13mm 210mm Black -20 ~ +70 ̊C y -20 ~ +70 ̊C 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Agilent E5071C S Parameter Test // WiFi Antenna 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Z Y X Y X Z Antenna Passive Test 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Passive Test For WiFi Antenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 47.4 -3.2 3.9 2410 48.7 -3.1 3.6 2420 50.5 -3.0 3.8 2430 50.9 -2.9 3.6 2440 49.3 -3.1 3.1 2450 48.0 -3.2 3.0 2460 49.1 -3.1 2.8 2470 48.6 -3.1 2.9 2480 49.0 -3.1 2.7 2490 53.4 -2.7 3.6 2500 52.9 -2.8 3.4 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For WiFi Antenna （ 2450MHz ） 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For WiFi Antenna Phi 0° Phi 90° Theta 90° 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Antenna Active Test 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Active Test For WiFi Antenna BandChannel Data Rate TRPData RateTIS WIFI 2.4G 802.11b 1 11Mbps 19.5 11Mbps -89.5 619.0-89.1 -83.919.211 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Device 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 WiFi Antenna 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 WiFi ANT 物质安全资料表 Material Safety Data Sheet（ MSDS ） 1 / 6 电镀金层 Gold Plating 一、 外观：表面金黄色，无污染物。 Appearance：Golden surface & no contaminants. 二、 标 示：参照欧盟 ROHS无铅规格之规范提示。 Symbol：Refer to EU ROHS Lead-free Specification 三、 特性：光亮均匀 。 Characteristic： bright & uniform. 四、 用途：提高基材焊接性能、防护性、耐磨性，降低接触阻抗。 Purpose：Improve the weldability, protection and wear resistance of the base metal, and reduce the contact impedance. 五、 规 格：符合欧盟ROHS要求。 SPEC：Conform to EU ROHS requirements 六、 物理性质PHYSICAL PROPERTIES： （1） 液相温度：约1064°C。 LIQUIDUS TEMPERATURE：About 1064°C （2） 比重：17.6 g/cm 3 (25°C)。 SPECIFIC GRAVITY：17.6 g/cm 3 (25°C) 物质安全资料表 Material Safety Data Sheet（ MSDS ） 2 / 6 七、 物品与厂商资料 Items and Manufacturer information 八、 主要成份资料 Main Composition： 中（英）文名称 Chinese（English）Name 化学式 Chemical formula 含量(WT%) Content(WT%) 化学文摘社登记号码 （CAS NO） 金（Gold） Au >99.7 7440-57-5 钴（Cobalt） Co 0.15-0.3 7440-48-4 九、 危害性资料 Harmfulness Information： 本产品是根据在欧盟立法之WEEE及ROHS要求、美国环保局（ENA）禁止使用铅和镉（及 其衍生物）之相关规定而开发之环保产品，电镀层合金成份中含铅量（其产品中关健之两个参 数之一,Wt%）≤90PPM。此项要求能保证不对人体及环保产生直接性危害，故其危害性并无更 深入之资料。 This green product is developed in accordance with the requirements of WEEE and ROHS in EU legislation and the relevant regulations of ENA prohibiting the use of lead and cadmium (and its derivatives). Lead content (Wt%) of electroplated alloy composition, one of two key 物品名称：无铅电镀金层 Item Name：Lead-free gold plating 物品编号：KSYTAu-001 Item No： 制造厂商： 翊腾电子科技（昆山）有限公司 Manufacturer：YTOP Electronic Technology （Kunshan）Co.,Ltd. 制作部门：PBU工程部 Prepared Dept.：Engineering Dept | PBU 制作日期：2013.05.14 Prepared Date： 版本 Revision No. V1.4 文件编号：YT-MSDS-AU File No.: 修改日期：2022-6-8 Revised Date： 有效期 Validity period 3年 3 years 联络电话： Tel：+86-512-55101900 Fax：+86-512-55101905 物质安全资料表 Material Safety Data Sheet（ MSDS ） 3 / 6 parameters of this product, is ≤90PPM.This requirement can ensure that there is no direct harm to human and environmental protection. Therefore, there is no more in-depth information on its harmfulness.. 十、 急救措施 First-aid Measures 使用过程中如遇下列情况，请根据相应之指引进行处理： If you encounter the following situations in the course of use, please deal with them according to the corresponding guidelines： *吸入：将患者移至有清新空气处；如果患者已停止呼吸，则施以人工呼吸，送急诊。 Inhalation： Move the patient to a place with fresh air.If the patient has stopped breathing, apply artificial breathing and send to the emergency department. *皮肤接触：/ Skin Contact *眼睛接触：以大量的清水冲洗15 分钟或者直到刺激感消失。如果刺激感仍存在，则去医 院救治。 Eye Contact：Rinse with plenty of water for 15 minutes …

Text truncated - open the document above for the full version.

EFGX26060387-IE-07-E02 Appendix 67 / 101 EFGX26060387-IE-07-E02 Appendix 68 / 101 Appendix H: Emissions in Restricted Bands Test Result Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.56 40.23 74.00 33.77 35.75 38.42 54.00 15.58 150 12 Vertical PASS 2 2316.8900 2.89 38.73 41.62 74.00 32.38 37.68 40.57 54.00 13.43 150 234 Vertical PASS 3 2334.4400 2.80 40.02 42.82 74.00 31.18 36.17 38.97 54.00 15.03 150 204 Vertical PASS 4 2348.6100 2.99 38.73 41.72 74.00 32.28 37.12 40.11 54.00 13.89 150 226 Vertical PASS 5 2372.1400 3.02 39.55 42.57 74.00 31.43 36.76 39.78 54.00 14.22 150 226 Vertical PASS 6 2390.0000 2.95 39.32 42.27 74.00 31.73 37.18 40.13 54.00 13.87 150 48 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 69 / 101 Mode: B Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.11 39.78 74.00 34.22 35.20 37.87 54.00 16.13 150 4 Horizonta l PASS 2 2316.5000 2.88 41.01 43.89 74.00 30.11 37.54 40.42 54.00 13.58 150 139 Horizonta l PASS 3 2334.9600 2.81 40.62 43.43 74.00 30.57 38.11 40.92 54.00 13.08 150 73 Horizonta l PASS 4 2353.8100 2.97 48.14 51.11 74.00 22.89 45.40 48.37 54.00 5.63 150 231 Horizonta l PASS 5 2383.4500 3.02 40.54 43.56 74.00 30.44 39.32 42.34 54.00 11.66 150 30 Horizonta l PASS 6 2390.0000 2.95 41.39 44.34 74.00 29.66 38.74 41.69 54.00 12.31 150 231 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 70 / 101 Mode: B Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 3.46 39.43 42.89 74.00 31.11 37.69 41.15 54.00 12.85 150 210 Vertical PASS 2 2487.9500 3.46 41.71 45.17 74.00 28.83 38.30 41.76 54.00 12.24 150 184 Vertical PASS 3 2490.8500 3.55 40.31 43.86 74.00 30.14 38.66 42.21 54.00 11.79 150 184 Vertical PASS 4 2494.6500 3.57 38.92 42.49 74.00 31.51 36.29 39.86 54.00 14.14 150 210 Vertical PASS 5 2497.7000 3.58 39.77 43.35 74.00 30.65 37.76 41.34 54.00 12.66 150 197 Vertical PASS 6 2500.0000 3.50 38.32 41.82 74.00 32.18 35.05 38.55 54.00 15.45 150 11 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 71 / 101 Mode: B Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 3.46 43.48 46.94 74.00 27.06 41.95 45.41 54.00 8.59 150 72 Horizonta l PASS 2 2487.0000 3.54 44.51 48.05 74.00 25.95 42.47 46.01 54.00 7.99 150 69 Horizonta l PASS 3 2490.3500 3.56 43.33 46.89 74.00 27.11 39.00 42.56 54.00 11.44 150 277 Horizonta l PASS 4 2493.9500 3.59 39.89 43.48 74.00 30.52 37.29 40.88 54.00 13.12 150 56 Horizonta l PASS 5 2498.4000 3.55 40.23 43.78 74.00 30.22 38.55 42.10 54.00 11.90 150 274 Horizonta l PASS 6 2500.0000 3.50 38.09 41.59 74.00 32.41 36.63 40.13 54.00 13.87 150 311 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 72 / 101 Mode: AX20 Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.6 40.27 74.00 33.73 35.57 38.24 54.00 15.76 150 330 Vertical PASS 2 2323.5200 2.86 40.88 43.74 74.00 30.26 37.99 40.85 54.00 13.15 150 194 Vertical PASS 3 2346.4000 2.96 46.79 49.75 74.00 24.25 43.78 46.74 54.00 7.26 150 212 Vertical PASS 4 2361.3500 2.92 40.8 43.72 74.00 30.28 36.64 39.56 54.00 14.44 150 197 Vertical PASS 5 2376.9500 3.07 49.5 52.57 74.00 21.43 41.98 45.05 54.00 8.95 150 189 Vertical PASS 6 2390.0000 2.95 48.09 51.04 74.00 22.96 44.46 47.41 54.00 6.59 150 199 Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 73 / 101 Mode: AX20 Channel: 2412 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 2.67 37.03 39.70 74.00 34.30 35.67 38.34 54.00 15.66 150 181 Horizonta l PASS 2 2325.4700 2.86 40.73 43.59 74.00 30.41 38.55 41.41 54.00 12.59 150 224 Horizonta l PASS 3 2340.8100 2.86 41.23 44.09 74.00 29.91 38.71 41.57 54.00 12.43 150 29 Horizonta l PASS 4 2363.1700 2.92 41.2 44.12 74.00 29.88 39.95 42.87 54.00 11.13 150 47 Horizonta l PASS 5 2385.5300 3.02 49.67 52.69 74.00 21.31 47.78 50.80 54.00 3.20 150 29 Horizonta l PASS 6 2390.0000 2.95 50.42 53.37 74.00 20.63 47.78 50.73 54.00 3.27 150 59 Horizonta l PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level EFGX26060387-IE-07-E02 Appendix 74 / 101 Mode: AX20 Channel: 2462 MHz Test Graph Final Data List NO. Frequency [MHz] Factor [dB] PK Reading [dBμV/ m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Reading [dBμV/ m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 3.46 47.63 51.09 74.00 22.91 46.13 49.59 54.00 4.41 150 187 Vertical PASS 2 2483.7500 3.45 51.3 54.75 74.00 19.25 45.80 49.25 54.00 4.75 150 206 Vertical PASS 3 2486.7000 3.52 48.44 51.96 74.00 22.04 44.31 47.83 54.00 6.17 150 225 Vertical PASS 4 2490.000…

Text truncated - open the document above for the full version.

EFGX26060387-IE-07-E02 Appendix 47 / 101 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~25000 11N40SISO_Ant1_2422_0~Reference EFGX26060387-IE-07-E02 Appendix 48 / 101 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~25000 EFGX26060387-IE-07-E02 Appendix 49 / 101 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~25000 EFGX26060387-IE-07-E02 Appendix 50 / 101 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 EFGX26060387-IE-07-E02 Appendix 51 / 101 11N40SISO_Ant1_2452_1000~25000 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 EFGX26060387-IE-07-E02 Appendix 52 / 101 11AX20SISO_Ant1_2412_1000~25000 11AX20SISO_Ant1_2437_0~Reference EFGX26060387-IE-07-E02 Appendix 53 / 101 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~25000 11AX20SISO_Ant1_2462_0~Reference EFGX26060387-IE-07-E02 Appendix 54 / 101 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~25000 EFGX26060387-IE-07-E02 Appendix 55 / 101 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~25000 EFGX26060387-IE-07-E02 Appendix 56 / 101 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 EFGX26060387-IE-07-E02 Appendix 57 / 101 11AX40SISO_Ant1_2437_1000~25000 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 EFGX26060387-IE-07-E02 Appendix 58 / 101 11AX40SISO_Ant1_2452_1000~25000 EFGX26060387-IE-07-E02 Appendix 59 / 101 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.19 13.77 59.48 2437 8.19 13.75 59.56 2462 8.19 13.77 59.48 11G Ant1 2412 1.36 2.29 59.39 2437 1.36 2.29 59.39 2462 1.36 2.29 59.39 11N20SISO Ant1 2412 1.27 5.16 24.61 2437 1.28 5.16 24.81 2462 1.27 5.15 24.66 11N40SISO Ant1 2422 0.62 9.13 6.79 2437 0.62 9.13 6.79 2452 0.62 9.12 6.80 11AX20SISO Ant1 2412 0.98 7.42 13.21 2437 0.98 7.41 13.23 2462 0.98 7.41 13.23 11AX40SISO Ant1 2422 0.51 13.26 3.85 2437 0.53 13.26 4.00 2452 0.51 13.26 3.85 EFGX26060387-IE-07-E02 Appendix 60 / 101 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 EFGX26060387-IE-07-E02 Appendix 61 / 101 11G_Ant1_2412 11G_Ant1_2437 EFGX26060387-IE-07-E02 Appendix 62 / 101 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 EFGX26060387-IE-07-E02 Appendix 63 / 101 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 EFGX26060387-IE-07-E02 Appendix 64 / 101 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 EFGX26060387-IE-07-E02 Appendix 65 / 101 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 EFGX26060387-IE-07-E02 Appendix 66 / 101 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452

EFGX26060387-IE-07-E02 Appendix 25 / 101 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 EFGX26060387-IE-07-E02 Appendix 26 / 101 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 EFGX26060387-IE-07-E02 Appendix 27 / 101 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 EFGX26060387-IE-07-E02 Appendix 28 / 101 EFGX26060387-IE-07-E02 Appendix 29 / 101 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.92 -47.8 ≤-28.08 PASS High 2462 2.54 -49.62 ≤-27.47 PASS 11G Ant1 Low 2412 0.29 -31.71 ≤-29.71 PASS High 2462 1.18 -45.96 ≤-28.82 PASS 11N20SISO Ant1 Low 2412 1.56 -30.42 ≤-28.44 PASS High 2462 0.81 -46.37 ≤-29.19 PASS 11N40SISO Ant1 Low 2422 4.34 -26.88 ≤-25.66 PASS High 2452 2.00 -28.66 ≤-28 PASS 11AX20SISO Ant1 Low 2412 -0.49 -32.25 ≤-30.49 PASS High 2462 -0.26 -46.82 ≤-30.26 PASS 11AX40SISO Ant1 Low 2422 3.10 -28.02 ≤-26.9 PASS High 2452 4.10 -28.03 ≤-25.9 PASS EFGX26060387-IE-07-E02 Appendix 30 / 101 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 EFGX26060387-IE-07-E02 Appendix 31 / 101 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 EFGX26060387-IE-07-E02 Appendix 32 / 101 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 EFGX26060387-IE-07-E02 Appendix 33 / 101 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 EFGX26060387-IE-07-E02 Appendix 34 / 101 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 EFGX26060387-IE-07-E02 Appendix 35 / 101 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.62 1.62 --- PASS 30~1000 1.62 -51.46 ≤-28.38 PASS 1000~25000 1.62 -43.92 ≤-28.38 PASS 2437 Reference 1.47 1.47 --- PASS 30~1000 1.47 -51.41 ≤-28.53 PASS 1000~25000 1.47 -41.33 ≤-28.53 PASS 2462 Reference 2.38 2.38 --- PASS 30~1000 2.38 -50.91 ≤-27.62 PASS 1000~25000 2.38 -44.17 ≤-27.62 PASS 11G Ant1 2412 Reference -2.41 -2.41 --- PASS 30~1000 -2.41 -50.88 ≤-32.41 PASS 1000~25000 -2.41 -44.58 ≤-32.41 PASS 2437 Reference 0.40 0.40 --- PASS 30~1000 0.40 -51.21 ≤-29.6 PASS 1000~25000 0.40 -44.88 ≤-29.6 PASS 2462 Reference -2.04 -2.04 --- PASS 30~1000 -2.04 -51.4 ≤-32.04 PASS 1000~25000 -2.04 -44.07 ≤-32.04 PASS 11N20SISO Ant1 2412 Reference -1.73 -1.73 --- PASS 30~1000 -1.73 -49.46 ≤-31.73 PASS 1000~25000 -1.73 -44.86 ≤-31.73 PASS 2437 Reference -2.96 -2.96 --- PASS 30~1000 -2.96 -50.78 ≤-32.96 PASS 1000~25000 -2.96 -44.49 ≤-32.96 PASS 2462 Reference 1.29 1.29 --- PASS 30~1000 1.29 -50.87 ≤-28.71 PASS 1000~25000 1.29 -44.73 ≤-28.71 PASS 11N40SISO Ant1 2422 Reference -0.01 -0.01 --- PASS 30~1000 -0.01 -50.68 ≤-30.01 PASS 1000~25000 -0.01 -44.49 ≤-30.01 PASS 2437 Reference -0.51 -0.51 --- PASS 30~1000 -0.51 -51.01 ≤-30.51 PASS 1000~25000 -0.51 -45.07 ≤-30.51 PASS 2452 Reference 0.16 0.16 --- PASS 30~1000 0.16 -50.38 ≤-29.84 PASS 1000~25000 0.16 -44.12 ≤-29.84 PASS 11AX20SISO Ant1 2412 Reference -1.84 -1.84 --- PASS EFGX26060387-IE-07-E02 Appendix 36 / 101 30~1000 -1.84 -50.51 ≤-31.84 PASS 1000~25000 -1.84 -44.74 ≤-31.84 PASS 2437 Reference -2.07 -2.07 --- PASS 30~1000 -2.07 -50.7 ≤-32.07 PASS 1000~25000 -2.07 -44.73 ≤-32.07 PASS 2462 Reference -3.08 -3.08 --- PASS 30~1000 -3.08 -51.16 ≤-33.08 PASS 1000~25000 -3.08 -44.43 ≤-33.08 PASS 11AX40SISO Ant1 2422 Reference 0.07 0.07 --- PASS 30~1000 0.07 -51.04 ≤-29.93 PASS 1000~25000 0.07 -44.37 ≤-29.93 PASS 2437 Reference 1.48 1.48 --- PASS 30~1000 1.48 -51.55 ≤-28.52 PASS 1000~25000 1.48 -44.8 ≤-28.52 PASS 2452 Reference 0.88 0.88 --- PASS 30~1000 0.88 -50.77 ≤-29.12 PASS 1000~25000 0.88 -44.18 ≤-29.12 PASS EFGX26060387-IE-07-E02 Appendix 37 / 101 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~25000 EFGX26060387-IE-07-E02 Appendix 38 / 101 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 EFGX26060387-IE-07-E02 Appendix 39 / 101 11B_Ant1_2437_1000~25000 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 EFGX26060387-IE-07-E02 Appendix 40 / 101 11B_Ant1_2462_1000~25000 11G_Ant1_2412_0~Reference EFGX26060387-IE-07-E02 Appendix 41 / 101 11G_Ant1_2412_30~10…

Text truncated - open the document above for the full version.
