This Document can not be used without Samsung’s authorization Samsung Electronics 5-1 5. Block Diagram DECK ASS'Y (DP-15) FIC1 (FAN8004) Motor Driver Disk Motor Pick-up & I/V Amp Feed Motor Coaxial Super RIC1 (S5L1463) RF IC ZIC1 (Vaddis 6E) A/V Decoder AIC2 (PCM1742KE) 2CH Audio DAC TR DRIVE (Q701~Q705, Q708~Q715) LED Drive (DT701) VIC1 (LA73054) Video Amp 6CH S/W ZIC3 (MBM29LV800BA) IMB Flash Memory ZIC4 (TC74VHCT125) Level Shifter Component IC801 (MM1501) Output Video Signal Switch IC501 (LA72670BM) Hi-FI Audio Processor IC301 (LA71207) Video Signal Processor IC601 (MN101D10F) VCR Main Micom Audio Common Video Common Front A/V Jack Audio ZIC2 64MB SD RAM DVD CompositeVideo VCR Composite Video Video IN IC603 EEPROM

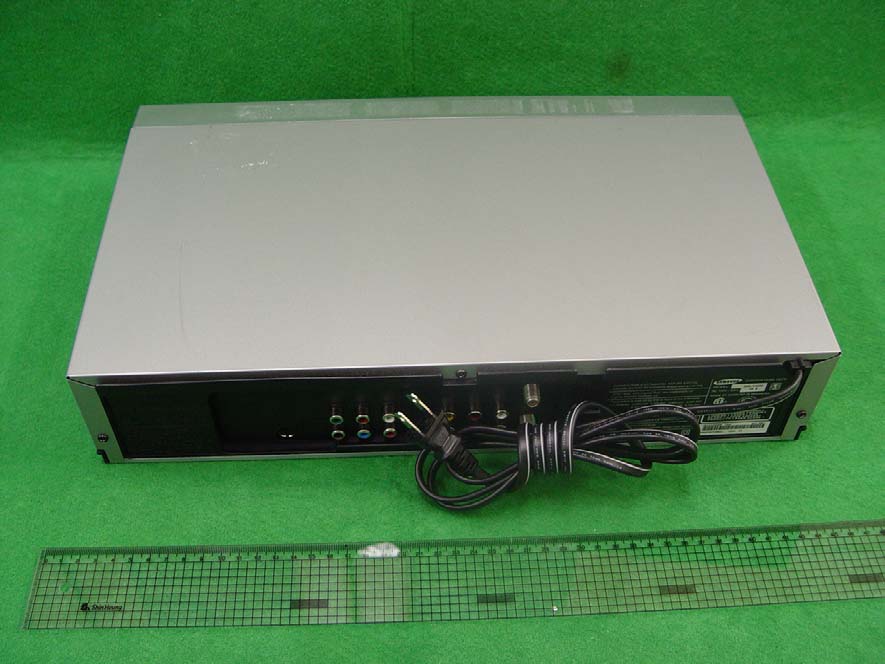

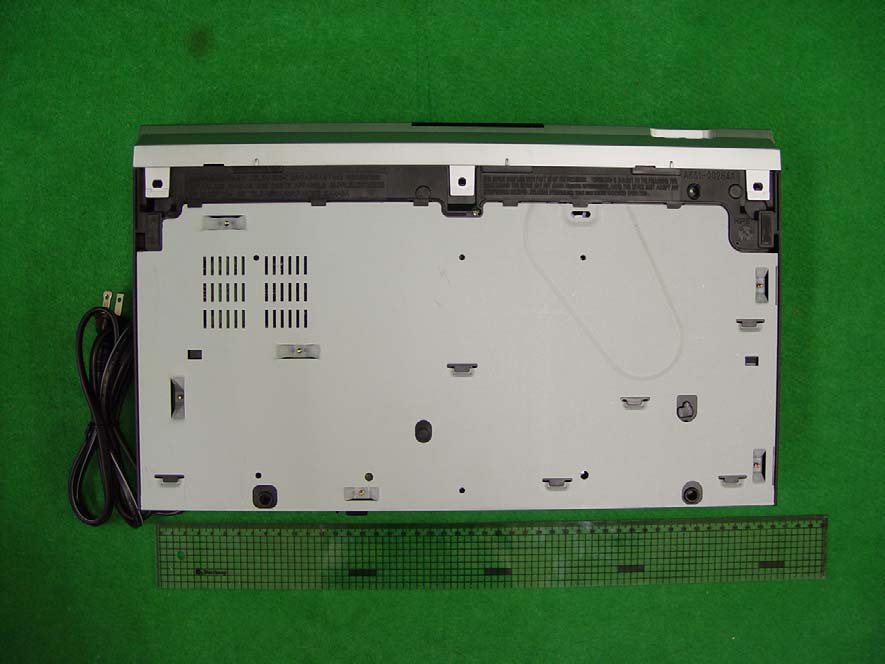

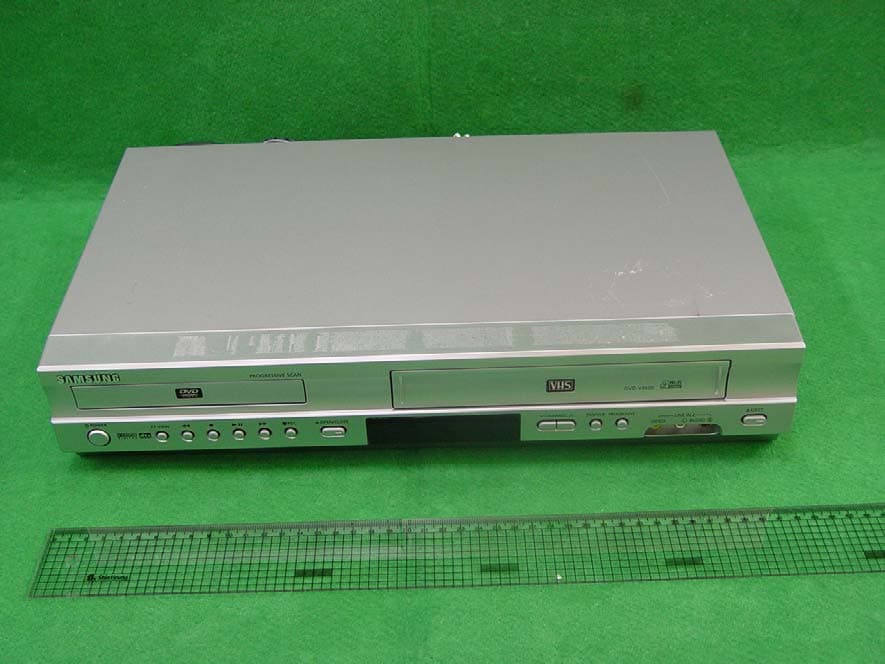

Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Fro nt View Rear View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER To p V i e w Bottom View

Labeling requirement FCC IDENTIFICATION Location: on the label rating STATEMENT Location: on the bottom of product THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: A3L2004KAISER MADE BY SAMSUNG IN INDONESIA

Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Front View – Front/Top cover open Top View – Top cover open Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of Main PCB View Bottom of Main PCB View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of DVD PCB View Bottom of Main PCB View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of SMPS PCB View Bottom of SMPS PCB View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of Key function PCB View Bottom of Key function PCB View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of VHS Deck Mechanism View Bottom of VHS Deck Mechanism View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Top of DVD Deck Mechanism View Bottom of DVD Deck Mechanism View Photograph of DVD-V4600 - FCC ID : A3L2004KAISER Front Metal Shield View Rear Metal Shield View Photograph of TM-BLOCK TM-BLOCK TYPE: TCMN0682PA20A To p V i e w Bottom View

DVS 사업부 귀중 NO. 승인원 품명 TM-BLOCK 규격 TCMN0682PA20A 제조자규격 TCMN0682PA20A CODE NO. 적용기종 특기사항 검토심사승인 승인유효기간 승인일로 부터년 신청회사명삼성전기(주)TEL 031-210-6026 주소수원시 팔달구 매탄동 314번지 OS-06B-043(92.11.30) 개정 NO. 1 T O : SEC DATE : 14.AUG.2003 SPECIFICATION TM BLOCK (RF-MOD + TUNER + PIF) TCMN0682PA20A (NTSCM/USA) SAMSUNG ELECTRO-MECHANICS CO ., LTD. WRITTENCHECKEDAPPROVED MAIN FACTORY ADD : 314, MAETAN-DONG, PALDAL-KU, SUWON-CITY, KYUNGKI-DO, KOREA TEL : (031)210-6860,6026,3214 FAX : (031)210-6380 THAILAND FACTORY ADD : WELLGROW INDUSTRIAL ESTATE 93 M005 T. BANGSMARK A.BANGPAKONG CHACHENGSAO 24130 THAILAND TEL : (65)(038)570-191~2 FAX : (65)(038)570-193 SPECIFICATION PAGE TM-BLOCK1/20 SAMSUNG ELECTRO - MECHANICS CO.,LTD. INDEX Item NO.ITEMPage 1. General Specification Application Receiving channels Intermediatefrequency Receiving system Output channelof modulation Operating conditions for guarantee Storage condition Testing ambient condition Terminal names and functions Semiconductor used Current consumption & supply voltage PLL data format 2 2 2 2 2 2 2 2 3 4 4 4~6 2.Electrical characteristics RF section (Video, Sound, Output, ANT.charateristic) Tuner section IF section 7~9 10~12 13~16 3.Environment test Heat load test Humidity load test Cold test Vibration test Operating life test Impact test Static electricity test 17 17 17 17 18 18 18 4.Mechanical Characteristics Outdrawing diagram19 5.Circuit viewCircuit diagram20 1. GENERAL SPECIFICATION 1) APPLICATION This specification is applied to the VCR receiving the US 181 channel system VHF and UHF bands. ( RF modulator output channel is 3 or 4 CH. ) 2) RECEIVING CHANNELS * M NTSC / USA * UHF : CH. W+12 - CH. 69 * VHF HIGH BAND : CH. C - CH. W+11 * VHF LOW BAND : CH. 2 - CH. B 3) INTERMEDIATE FREQUENCY * PIF : 45.75MHz * SIF : 41.25MHz 4) RECEIVING SYSTEM * UPPER HETERODYNE SYSTEM 5) OUTPUT CHANNEL OF MODULATION * 3 CH. : OPEN (61.25MHz) * 4 CH. : GND (67.25MHz) By controlled PIN NO.2 (CH) 6) OPERATING CONDITIONS FOR GUARANTEE * TEMPERATURE : -10 ~ 60°C, HUMIDITY 85% OR LESS 7) STORAGE CONDITION * TEMPERATURE : - 20 ~ 70°C, HUMIDITY 90% OR LESS 8) TESTING AMBIENT CONDITION * DEFINED AS TEMPERATURE OF 25 ±5°C AND HUMIDITY OF 65 ±10% RH 9) REGULATION * TCMN0682PA20A IS APPLIED FOR FCC REGULATION. SPECIFICATION PAGE TM-BLOCK2/ 20 SAMSUNG ELECTRO - MECHANICS CO.,LTD. 10) TERMINAL NAMES AND FUNCTIONS SAMSUNG ELECTRO - MECHANICS CO.,LTD. SPECIFICATION PAGE T M BLOCK3/20 ITEMPIN NO.TERMINALFUNCTIONREMARK RF SECTION RF INPUTRF SIGNAL INTPUT TERMINAL RF OUTPUTRF SIGNAL OUTPUT TERMINAL 1AIAUDIO INPUT 2CHCHANNEL CONTROL(OPEN:3CH,GND:4CH ) 3B+POWER SUPPLY TERMINAL 5V DC 4CONTROLVIDEO /TV CONTROL TERMINAL 5VIVIDEO SIGNAL INPUT TUNER / PIF SECTION 6N.C- 7X-TALCRYSTAL INPUT TERMINAL 8SASSERIAL ADDRESS TERMINAL 9SCLSERIAL CLOCK SUPPLY TERMINAL 10SDASERIAL DATA SUPPLY TERMINAL 11AFTAFT OUTPUT TERMINAL 12AOAUDIO OUTPUT TERMINAL 13SIFSIF OUTPUT TERMINAL 14BTTUNING VOLTAGE POWER SUPPLY TERMINAL33V DC 15N.C- 16VOVIDEO OUTPUT TERMINAL 11) SEMICONDUCTOR USED 12) CURRENT CONSUMPTION & SUPPLY VOLTAGE 13) PLL DATA FORMAT 13-1) Description of Tuner PLL Block The PLL on this IC supports the IIC bus control format. The control pins are as shown in the table below. ref) ADSW(Address selection), SCL(SCL input), SDA(SDA I/O) SPECIFICATION PAGE TM-BLOCK4/20 SAMSUNG ELECTRO - MECHANICS CO.,LTD. ITEMFUNCTIONQ'TYNAME OF SEMICONDUCTORREMARK RF SECTION IC1LA77000 S/W TRANSISTOR2BF799W OR EQUIVALENT DEVICE S/W DIODE1KDS114E TUNER SECTION MOPLL IC1TDA6503ATS VVC DIODE11BB153,BB149(BB178, BB179) RF AMP VHF1BF909WR UHF1BF909WR OR BF2030WR PIF SECTION IC1LA75676V FILTER SAW-FILTER1M1867M C - TRAP1TPS4.5MB, XT4.5MB C - FILTER1SFSH4.5MDB, LT4.5MH TERMINAL STANDARD SUPPLY VOLTAGE( V ) CURRENT CONSUMPTION( mA ) GURANTEE VOL.RATINS MIN.TYP.MAX. MOD. MB5±0.1V DC-50554.9 ~ 5.1 V CON.5±0.1V DC-0.0470.1734.9 ~ 5.1 V TUNER AND PIF BT33±0.1V DC-2.5530 ~ 34 V BP5V±0.1V DC1151401654.9 ~ 5.1 V SPECIFICATION PAGE TM-BLOCK5/20 13-2) INPUT SIGNAL LEVEL(SCL,SDA) HIGH -LEVEL INPUT VOLTAGE : 3.0V MIN. LOW -LEVEL INPUT VOLTAGE : 1.5V MAX. 13-3) X-TAL FREQUENCY :3.58MHz (from SET) STEP SIZE IS CHANGED BY REFERENCE DIVIDER. 13-4) Address Setting The response address can be changed according to the ADSW pin voltage, so that multiple PLL can exist within one system. ADSW pin voltage MA1MA0 0 to 0.1Vcc00 Open or 0.2Vcc to 0.3Vcc01 0.4Vcc to 0.6Vcc10 0.9Vcc to Vcc11 HEXA MODE =C2 SAMSUNG ELECTRO - MECHANICS CO.,LTD. 13-5) The TDA6503ATS control format is as follows 13-5-1) Write-mode Byte Write Data Byte Bits Remarks MSBLSB Address byteADB11000MA1MA00A Divider byte 1DB10N14N13N12N11N10N9N8A Divider byte 2DB2N7N6N5N4N3N2N1N0A Control byteCB10(CP)0000(RSA)1(RSB)0(OS)A band SW byteBBXXXXPUHFXPVHFHPVHFLA 13-5-2) Read-mode : Slave Transmitter 13-5-3) Description of symbols used in table Modebit7bit6bit5bit4bit3bit2bit1bit0 Address byte11000MA1MA01A Status bytePORFLR11A2A1A0A SAMSUNG ELECTRO - MECHANICS CO.,LTD. SPECIFICATION PAGE TM-BLOCK6/20 SYMBOLDESCRIPTION AAcknowledge bit MA1,MA0programmable address bits ( MA1=0 ,MA0=1 ) ref: 13-4) N14 to N0programmable divider bits CP charge pump current bit( output current ) logic 0 : charge pump current is 60㎂(default) logic 1 : charge pump current is 280㎂ OS tuning amplifier control bits logic 0:tuning voltage is 'on' (during normal operating) logic 1:tuning voltage is 'off';high impedance output of pin VT(at power-on) PVHFL,PVHFH,PUHF and FMST PMOS ports control bis: logic 0 : corresponding buffer is 'off' logic 1 : corresponding buffer is 'on' Xdon't care : may be a logic 0 or a logic 1. RSA and RSB Reference Divider ratio select bits RSARSBDividerFREQUENCY STEP(KHz) X08050 01128(1024)31.25 116462.5 POR power-on reset flag: logic 0 : after an end-of-data detected b the device. logic1:atpower on FL in-lock flag : logic 0 : loop is not locked logic 1 : loop is locked R ready flag: logic 0 : mode after power-on reset and the PLL is locked logic1:inother conditions A2,A1 and A0digital output of the…

Text truncated - open the document above for the full version.

Page : 1 of 44 Samsung EMC Testing and Certification LaboratoryProject No. : LBE032550 Applicant FCC ID Product Name Model Name Manufacturer Brand Name Variant Model Name/Position Tae Young, Jang Test Engineer No Cheon, Park Manager of EMC Lab. Kyu Baek, Chung Chief of EMC Lab. Address Telephone No. Fax No. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory EMC Test Report Project No. LBE032550 Equipment under Test Samsung Electronics Co.Ltd 416 Maetan-3 Dong, YoungTong-Ku, Suwon City, Gyeonggi-Do, Korea, 442-742 A3L2004KAISER Video Cassette Recorder DVD-V4600 Samsung Electronics Co. Ltd SAMSUNG See Page 2 Issued Date 30-Dec-03 Applied StandardsFCC Part 15 Result Passed The equipment under test has found to be compliant with the applied standards. Signature Tested by Reviewed by Authorized by 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators.All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. SAMSUNG ELECTRONICS Co., Ltd. SUWON EMC Test Lab. 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do,Korea, 442-742 82-31-200-2135 82-31-200-2189 NVLAP LAB CODE 200623-0 Page : 2 of 44 Samsung EMC Testing and Certification Laboratory 1. General Information 1.1 Basic Information related Product 1.2 Power Input Ports DescriptionVoltage(V)Frequency(Hz)No of phases Mains Cable120V60Hz1 1.3 EUT & Support Equipment MarkItemModel No.Serial No.ManufacturerRemark AVideo Cassette Recorder DVD-V4600-SAMSUNGEUT BRemote Controller--SAMSUNGEUT This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory A3L2004KAISER Visual Carrier : 61.25 MHz Aural Carrier : 65.75 MHz CH. 4 Visual Carrier : 67.25 MHz Aural Carrier : 71.75 MHz Applicant Samsung Electronics Co. Ltd Product name Video Cassette Recorder Model name DVD-V4600 Brand Name SAMSUNG Used EUT and Peripherals Manufacturer Samsung Electronics Co. Ltd Variant Models None Type of RF Output Connector Type "F" Connector 75 ohm(Unbalanced) FCC ID Number CH. 3 Operating (RF Modulator) Frequency Page : 3 of 44 Samsung EMC Testing and Certification Laboratory This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Page : 4 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 1.4 Operating Mode and Conditions The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report : 1) Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.5(77.25MHz) through the ant. Input connector for recording. 2) Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 3) Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) VCR Play In this test mode, a video tape recorded with VITS signal was played on the EUT. Note : Recording( NTSC Signal ) mode is not applicable to the antenna transfer switch test. 5) DVD Play In this test mode, a video tape recorded with VITS signal was played on the EUT. 1.5 Block Diagram This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory A B Page : 5 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 1.6 Test Facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Gyeonggi-Do, Korea. This sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation scheme(KOLAS) which . signed the International Laboratory Accreditation Cooperation(ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(S) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory General Information Accreditation and Listing LAB CODE 200623-0 R-1221,C-1095 No.195 Reg. No.98856 Reg. No. KR0004 App. No.001 H9354285 Reg. No. 124 Page : 6 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 1.7 Applied Standards List This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory FCC Rule Part(s)Test Procedure(s) FCC Part 15 Subpart BANSI C63.4-2001 - - Page : 7 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 2. Summary of Test Results Result : The equipment under test(EUT) has been found to comply with the applied standards Applied StandardResult 3.1AC Powerline Conducted Emission MeasurementFCC Part 15Complied 3.2Radiated Emission MeasurementFCC Part 15Complied 3.3Output Signal Level MeasurementFCC Part 15Complied 3.4 Output Terminal Conducted Spurious Emission Measurement FCC Part 15Complied 3.5Antenna Transfer Switch MeasurementFCC Part 15Complied * N/A : Test not applicable This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Section of the Product Standard Electromagnetic Emission Test Page : 8 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 3. Description of Individual Tests 3.1 AC Powerline Conducted Emission Measurement Test Information Test Engineer Test Date Climate Condition Test Place Test Equipments EquipmentModel NameManufacturerSerial No.Calibration Date TEST RECEIVERESI26R & S839809/0022004-11-04 LISNESH3-Z5R & S847265/0282004-07-16 LISNESH3-Z5R…

Text truncated - open the document above for the full version.

Page : 41 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 4. Appendix 4.1 Test Photography This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Pic. 1 AC Powerline Conducted Emission [Front] Pic. 2 AC Powerline Conducted Emission [Rear] Page : 42 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Pic. 3 Radiated Emission [Front] Pic. 4 Radiated Emission [Rear] Page : 43 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE032550 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Pic. 5 RF Output Signal Level & Output Terminal Conducted Spurious Emission Pic. 6 Antenna Transfer Switch
