This Document can not be used without Samsung’s authorization Samsung Electronics 5-1 5. Block Diagram DECK ASS'Y (DP-15) FIC1 (FAN8004) Motor Driver Disk Motor Pick-up & I/V Amp Feed Motor Coaxial Super RIC1 (S5L1463) RF IC ZIC1 (Vaddis 6E) A/V Decoder AIC2 (PCM1742KE) 2CH Audio DAC TR DRIVE (Q701~Q705, Q708~Q715) LED Drive (DT701) VIC1 (LA73054) Video Amp 6CH S/W ZIC3 (MBM29LV800BA) IMB Flash Memory ZIC4 (TC74VHCT125) Level Shifter Component IC801 (MM1501) Output Video Signal Switch IC501 (LA72670BM) Hi-FI Audio Processor IC301 (LA71207) Video Signal Processor IC601 (MN101D10F) VCR Main Micom Audio Common Video Common Front A/V Jack Audio ZIC2 64MB SD RAM DVD CompositeVideo VCR Composite Video Video IN IC603 EEPROM

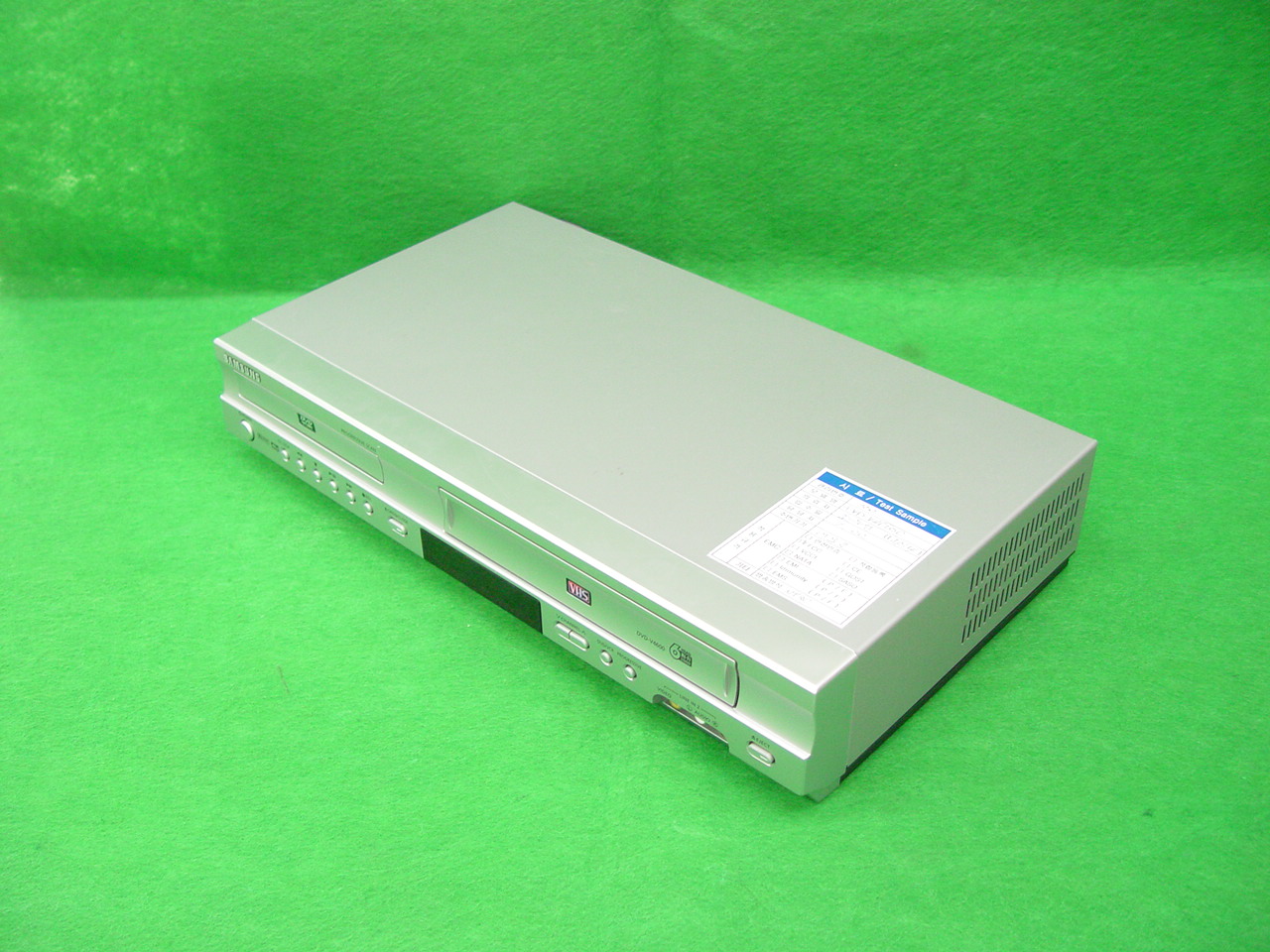

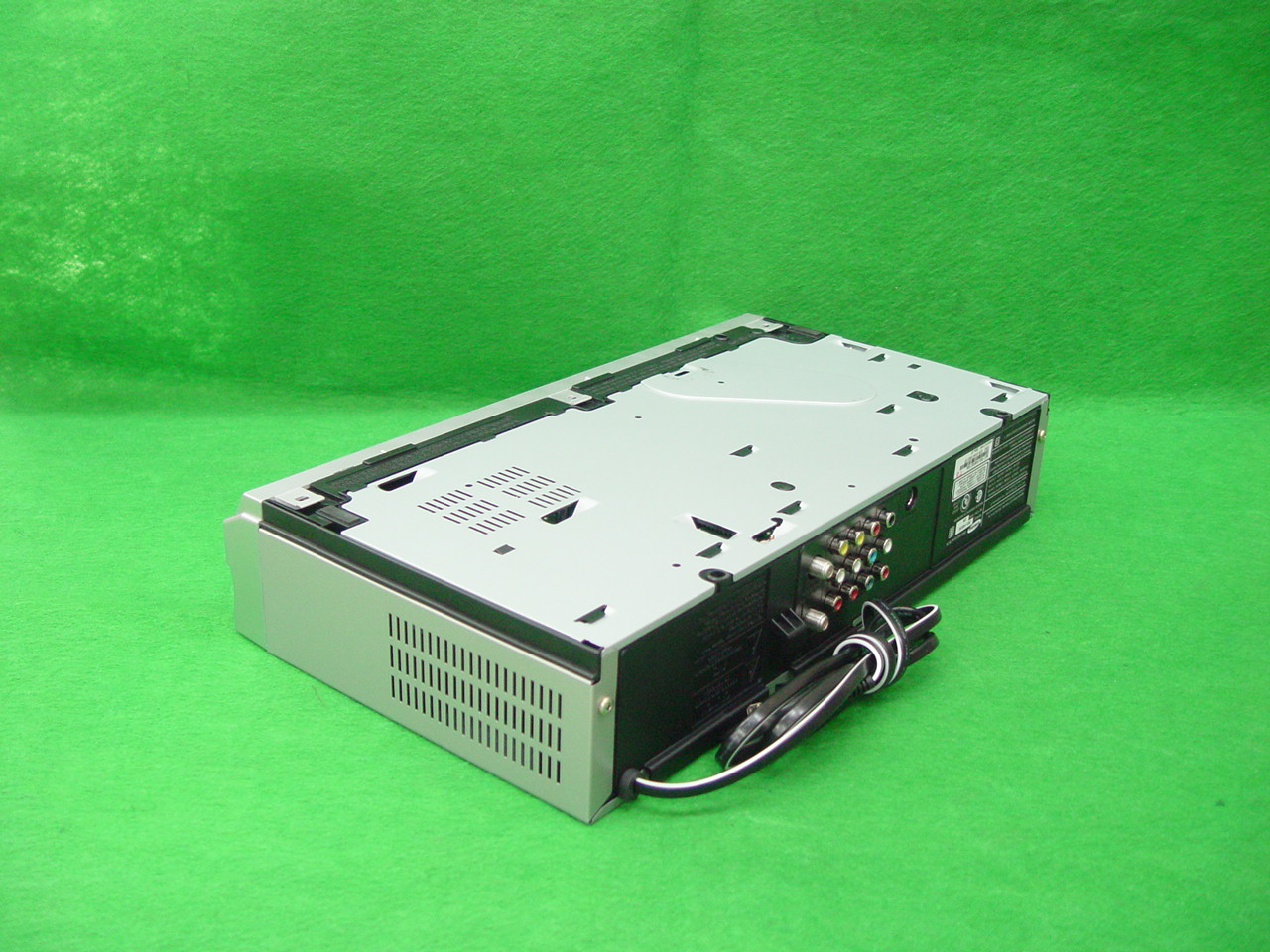

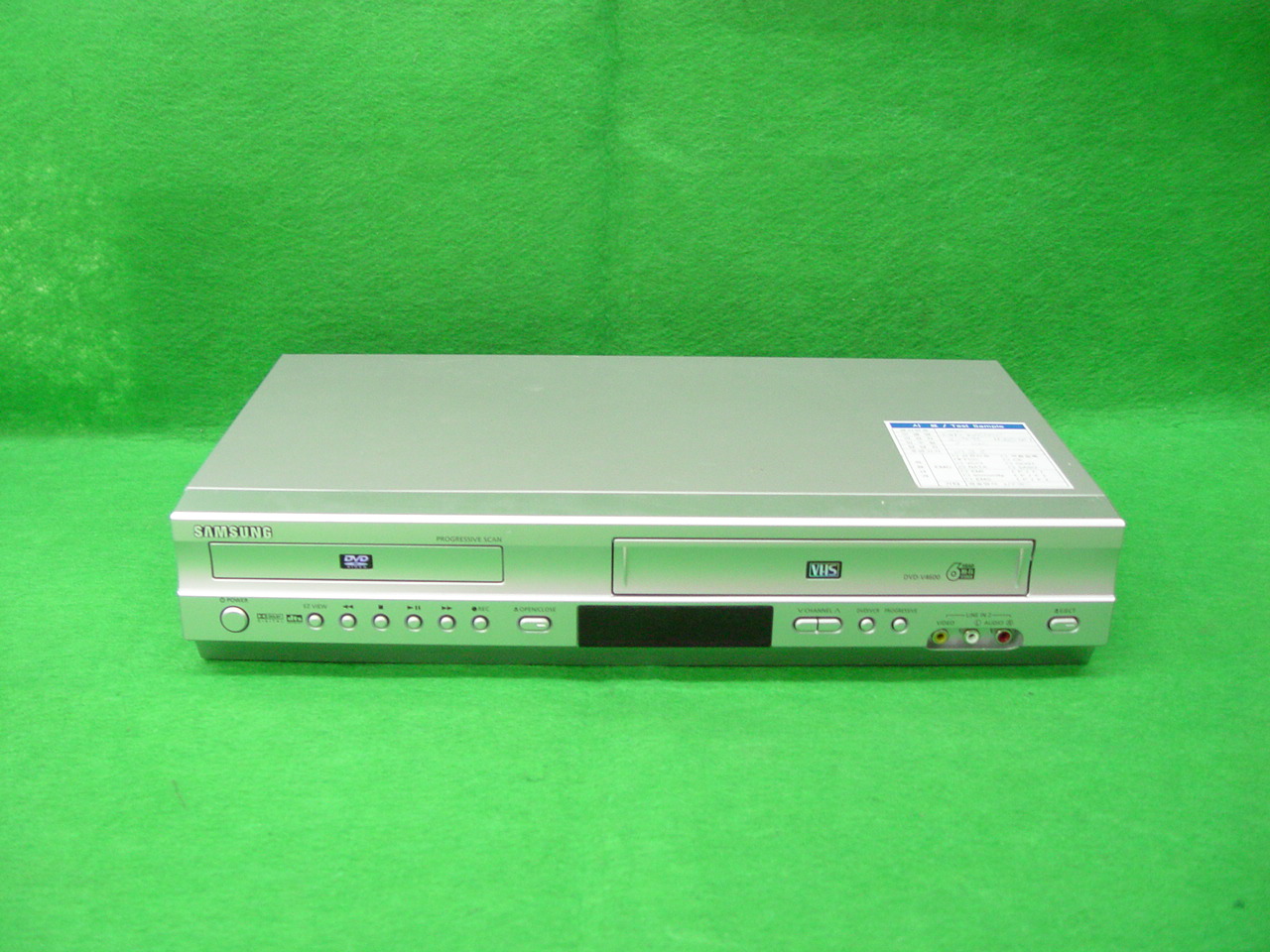

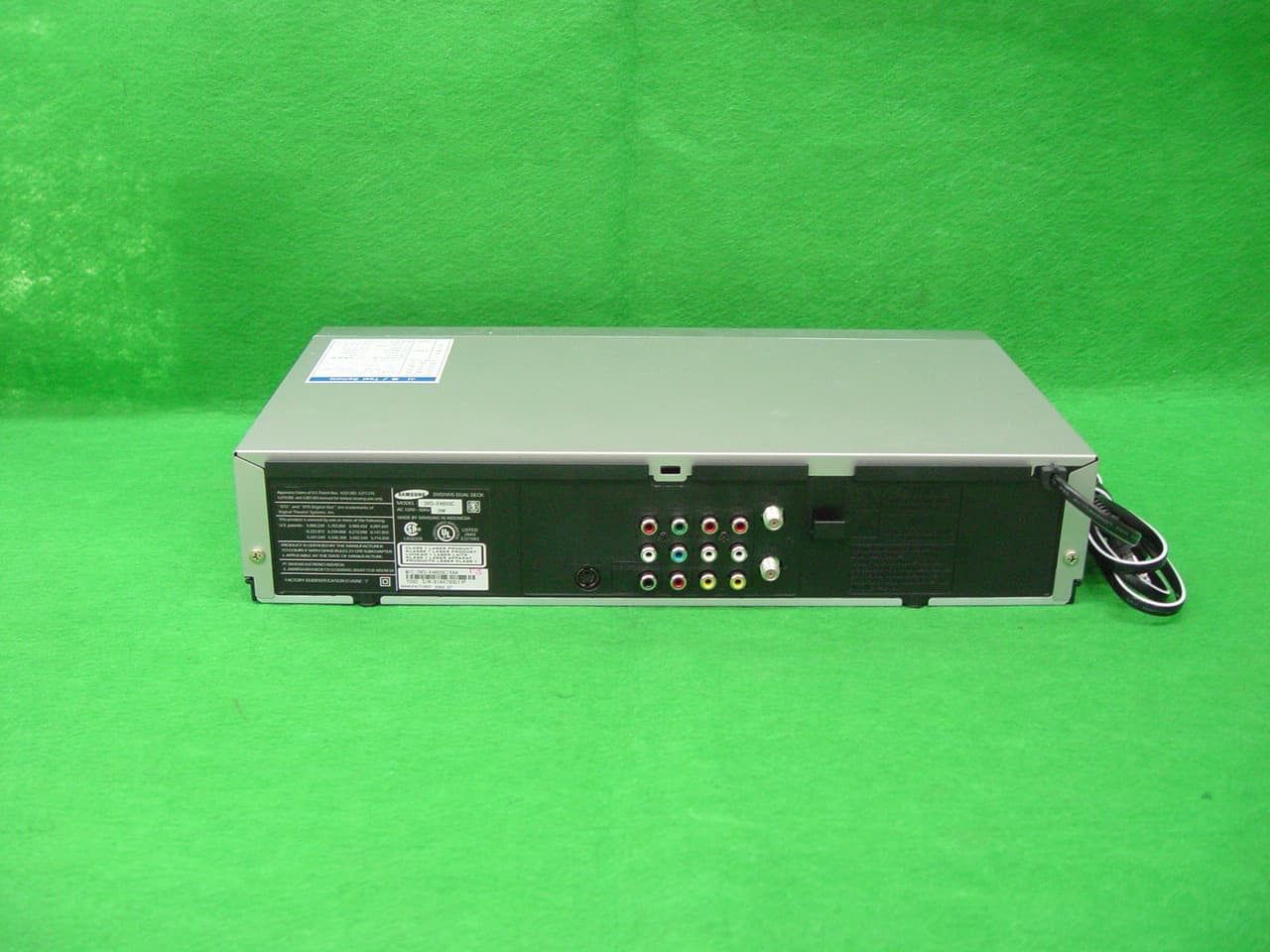

Photograph of DVD-V4600C - FCC ID : A3L2004KAISER2 Fro nt View Rear View Photograph of DVD-V4600c - FCC ID : A3L2004KAISER2 To p V i e w Bottom View

Labeling requirement FCC IDENTIFICATION Location: on the label rating STATEMENT Location: on the bottom of product THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Photograph of DVD-V4600c - FCC ID : A3L2004KAISER2 Front View – Front/Top cover open Top View – Top cover open Photograph of DVD-V4600c - FCC ID : A3L2004KAISER2 Top of PCB View Bottom of PCB View Photograph of TM-BLOCK TM-BLOCK TYPE: VHA35ASE To p V i e w Bottom View

“” “” ““ ’

Page : 1 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE041536 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name DVD/VHS DUAL DECK Model Name DVD-V4600C Manufacturer SAMSUNG Brand Name SAMSUNG Broadcasting System NTSC Variant Model See Page 3 Date of Test July 26 ~ 28, 2004 Issued Date July 29, 2004 Name/Position Signature Tested by Min Kyung Chul Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. Page : 2 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 3. 3 Output Signal Level 3. 4 Output Terminal Conducted Spurious Emission 3. 5 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd Model name DVD-V4600C Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Contact Person Min Kyung Chul Kind of product DVD/VHS DUAL DECK Valiant list None Manufacturer Samsung Electronics Co.Ltd New / Alternative / Permissive change Information This report is original report # Page : 4 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.2 Detail Information related Product Specification Page : 5 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. This EUT has the following operating mode(s). - VCR Record(TV Receiving) - VCR Record(1V VITS) - VCR Record(5V VITS) - VCR Play - DVD Play 1.4 Equipment Modifications No equipment modifications were required. Page : 6 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A DVD/VHS DUAL DECK DVD-V4600 - SAMSUNG B Remote Contoller - - SAMSUNG Used Cable Description Connect Cable Length Shielded [Y/N] Remark 1 Mains 1.5 N 2 Front AV In 1.5 N 3 S-Video Out 1.0 N 4 Componet Video Out 1.5 N 5 Audio Out 1.5 N 6 Digital Audio Out 1.5 N 7 AV In 1 1.5 N 8 AV Out 1.5 N 9 Ant In 1.5 Y 10 Ant Out 1.5 Y Page : 7 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 8 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Applied Standards Test Procedure FCC Part15 Subpart B ANSI 63.4 : 2000 Page : 9 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22, 16-1, 16-2. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Disturbance 5.09 Disturbance voltage at the mains terminals 1.64 (According to NAMAS Pub.NIS81) Page : 10 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B Complied 3.3 Output Signal Level FCC Part15 Subpart BComplied 3…

Text truncated - open the document above for the full version.

Page : 46 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) Page : 47 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear) Page : 48 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Output Signal Level Picture 6. Output Terminal Conducted Spurious Emission Page : 49 of 50 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041536 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 7. Ant. Transfer Switch
