A3L403SCMulti-band GSM/EDGE Tablet with WLAN, Bluetooth and ANT+

www.samsung.com User Manual DRAFT 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. DRAFT About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2014 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. DRAFT About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. DRAFT 5 Table of Contents Getting started 7 Device layout 8 Butt ons 9 Package contents 10 Charging the battery 12 Inser ting a memory card 14 Tur ning the device on and off 15 Holding the device 15 Locking and unlocking the device 15 Adjusting the v olume 15 Switching to silent mode Basics 16 Indicator icons 17 Using the touch screen 20 Con trol motions 22 Using Multi Window 26 Notifica tions 27 Home screen 29 Applica tions screen 31 Using applications 31 Help 32 Ent ering text 34 Connec ting to a Wi-Fi network 35 Setting up ac counts 36 Transferring files 38 Securing the device 39 Upgr ading the device Communication 40 Contacts 44 Email 46 Google Mail 48 Hangouts 48 Google+ 49 Photos Web & network 50 Internet 51 Chrome 52 Bluetooth Media 54 Music 56 Camera 61 G allery 65 Video 66 Y ouTube DRAFT Table of Contents 6 97 General 100 Google Settings Troubleshooting Application & media stores 67 Play Store 68 Samsung Apps 68 Pla y Music 69 Play Games 69 Play Newsstand Utilities 70 Memo 71 S Planner 73 Dropbox 74 Cloud 75 Dr ive 75 Hancom V iewer 78 A larm 79 World Clock 79 C alculator 80 S Voic e 81 G oogle 82 Voice Search 82 My F iles Travel & local 85 Maps Settings 86 About Settings 86 Connections 89 D evice 94 C ontrols DRAFT 7 Getting started Device layout Recent apps button Home button Touch screen Front camera Back button Multipurpose jack Volume button Memory card slot Microphone P ower button Rear camera Speaker Headset jack SIM card slot DRAFT Getting started 8 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Do not use a screen protector. This causes sensor malfunctions. • Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press and hold for 8 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Recent apps • Tap to open the list of recent applications. Home • Press to return to the Home screen. • Press and hold to launch Google search. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. DRAFT Getting started 9 Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for …

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Nov. 18, 2014 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. FCC ID: A3L403SC Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea November 20, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L403SC Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Nov. 3, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L403SC To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

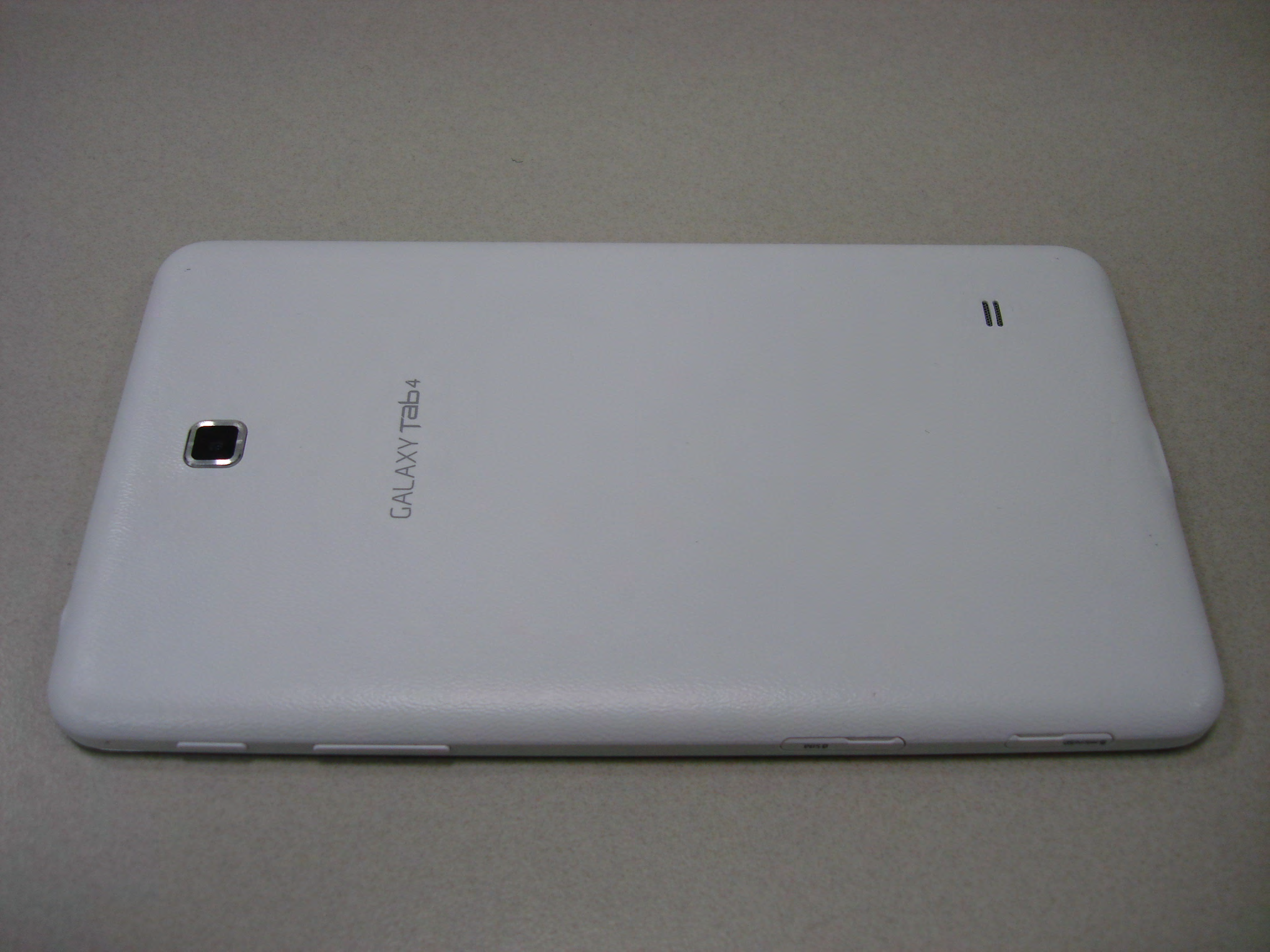

Label and Location Model: 403SC FCC ID: A3L403SC Label: Location: Top Back of device Bottom Label

FCC ID: A3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 38 0Y1410272043.A3L 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/29/14 - 11/03/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1410272043.A3L FCC ID: A3L403SC APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): 403SC 1 gm Body (W /kg) PCBGPRS/EDGE 850824.20 - 848.80 MHz0.91 PCBGPRS/EDGE 19001850.20 - 1909.80 MHz1.05 DTS2.4 GHz WLAN2412 - 2462 MHz1.10 DTS5.8 GHz WLAN5745 - 5825 MHz1.07 NII5.2 GHz WLAN5180 - 5240 MHz0.53 NII5.3 GHz WLAN5260 - 5320 MHz0.60 NII5.5 GHz WLAN5500 - 5700 MHz0.84 DSS/DTSBluetooth2402 - 2480 MHz 1.59 N/A SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 38 0Y1410272043.A3L 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................8 3 DOSIMETRIC ASSESSMENT .........................................................................................................9 4 SAR TESTING PROCEDURES .................................................................................................... 10 5 RF EXPOSURE LIMITS ................................................................................................................ 11 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 7 RF CONDUCTED POWERS ......................................................................................................... 14 8 SYSTEM VERIFICATION .............................................................................................................. 20 9 SAR DATA SUMMARY ................................................................................................................. 22 10 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 25 11 SAR MEASUREMENT VARIABILITY ........................................................................................... 32 12 EQUIPMENT LIST ......................................................................................................................... 33 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 34 14 CONCLUSION ............................................................................................................................... 36 15 REFERENCES .............................................................................................................................. 37 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 38 0Y1410272043.A3L 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GPRS/EDGE 850Data824.20 - 848.80 MHz GPRS/EDGE 1900Data1850.20 - 1909.80 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx Frequency Operating Modes 1.2 Power Reduction for SAR This device uses a sensor for SAR compliance. The sensor is activated when used in close proximity to the user’s body. The sensor triggers power reduction for data modes and is only applicable for tablet operations. Since the device is a full tablet size, the Body SAR was evaluated per FCC KDB Publication 616217 D04v01 for full sized tablets. 1.3 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Device operating at maximum output power…

Text truncated - open the document above for the full version.

FCC ID: A3L403SC FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1410272045.A3L 10/27 - 11/04/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/27 - 11/04/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1410272045.A3L FCC ID: A3L403SC APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model: 403SC EUT Type: Portable Tablet Max. RF Output Power: 1.668 mW (2.22 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3L403SC FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1410272045.A3L 10/27 - 11/04/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 34 7.0 CONCLUSION ....................................................................................................................................... 36 FCC ID: A3L403SC FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 36 0Y1410272045…

Text truncated - open the document above for the full version.

FCC ID: A3L403SC FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 65 0Y1410272046.A3L 10/27 - 11/04/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/27 - 11/04/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1410272046.A3L FCC ID: A3L403SC APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): 403SC EUT Type: Portable Tablet FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 802.11b2412 - 246215.922 12.02 29.040 14.63 802.11g2412 - 246210.965 10.40 131.826 21.20 802.11n2412 - 24629.3549.7140.458 16.07 802.11a5745 - 582510.641 10.27 37.584 15.75 802.11n (20MHz) 5745 - 582510.740 10.31 48.865 16.89 802.11n (40MHz) 5755 - 57957.4138.7033.884 15.30 Mode Tx Frequency (MHz) Conducted Power Max. Power (mW) Max. Power (dBm) Avg ConductedPeak Conducted Max. Power (mW) Max. Power (dBm) PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11a/b/g/n FCC ID: A3L403SC FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 65 0Y1410272046.A3L 10/27 - 11/04/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT ........................................................................................................... 11 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 22 6.4 POWER SPECTRAL DENSITY ................................................................................................................... 25 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 43 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 57 6.9 LINE-CONDUCTED TEST DATA ............................................................…

Text truncated - open the document above for the full version.

FCC IDA3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 5 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 5 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 1 – Back Side at 0.0 cm SAR Test Setup Photo 2 – Back Side at 1.6 cm FCC IDA3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 5 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 3 – Top Edge at 0.0 cm SAR Test Setup Photo 4 – Top Edge at 0.9 cm FCC IDA3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 5 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 5 – Bottom Edge at 0.0 cm SAR Test Setup Photo 6 – Right Edge at 0.0 cm FCC IDA3L403SC SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 5 10/29/14 - 11/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 7 – Left Edge at 0.0 cm

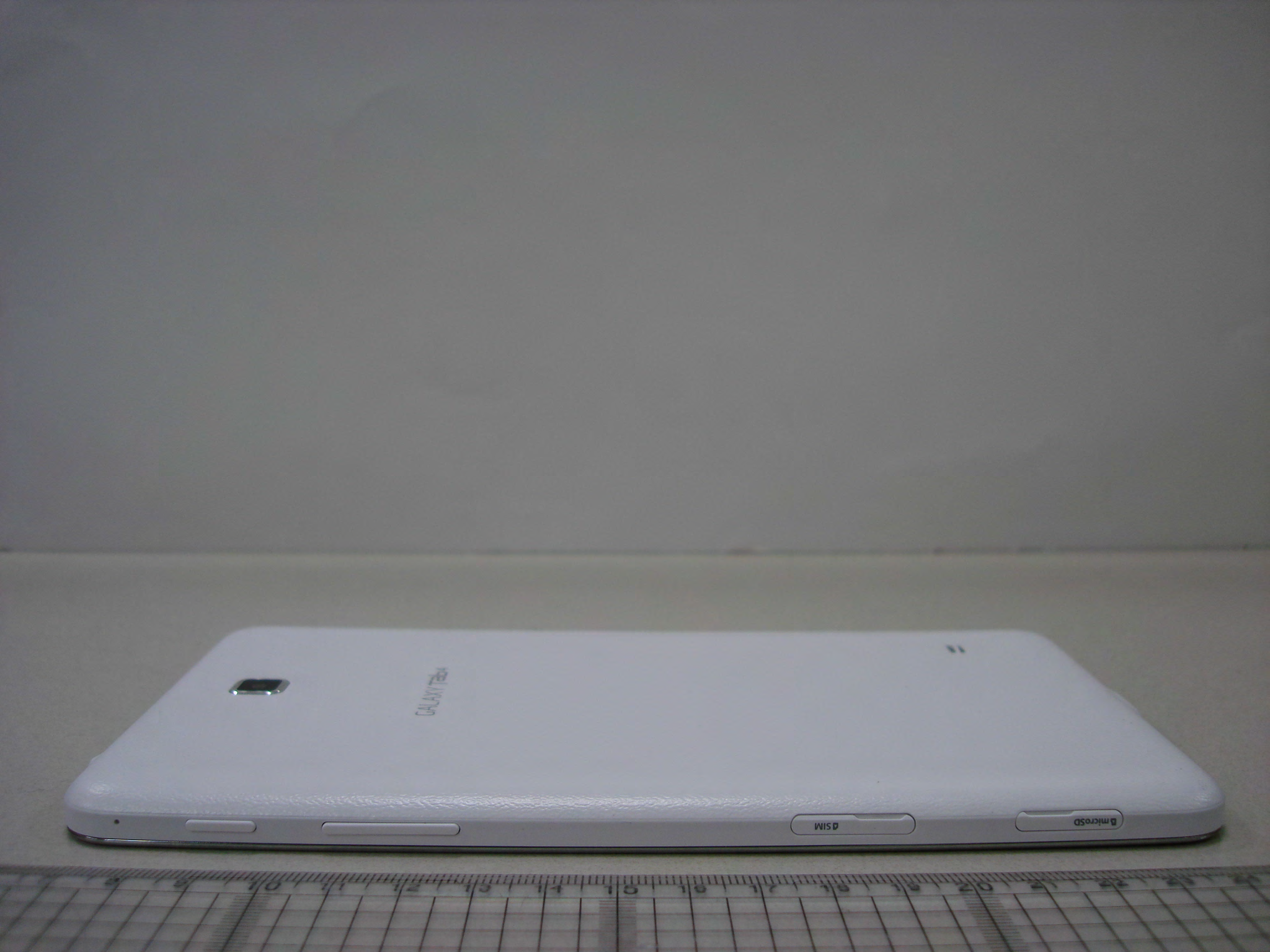

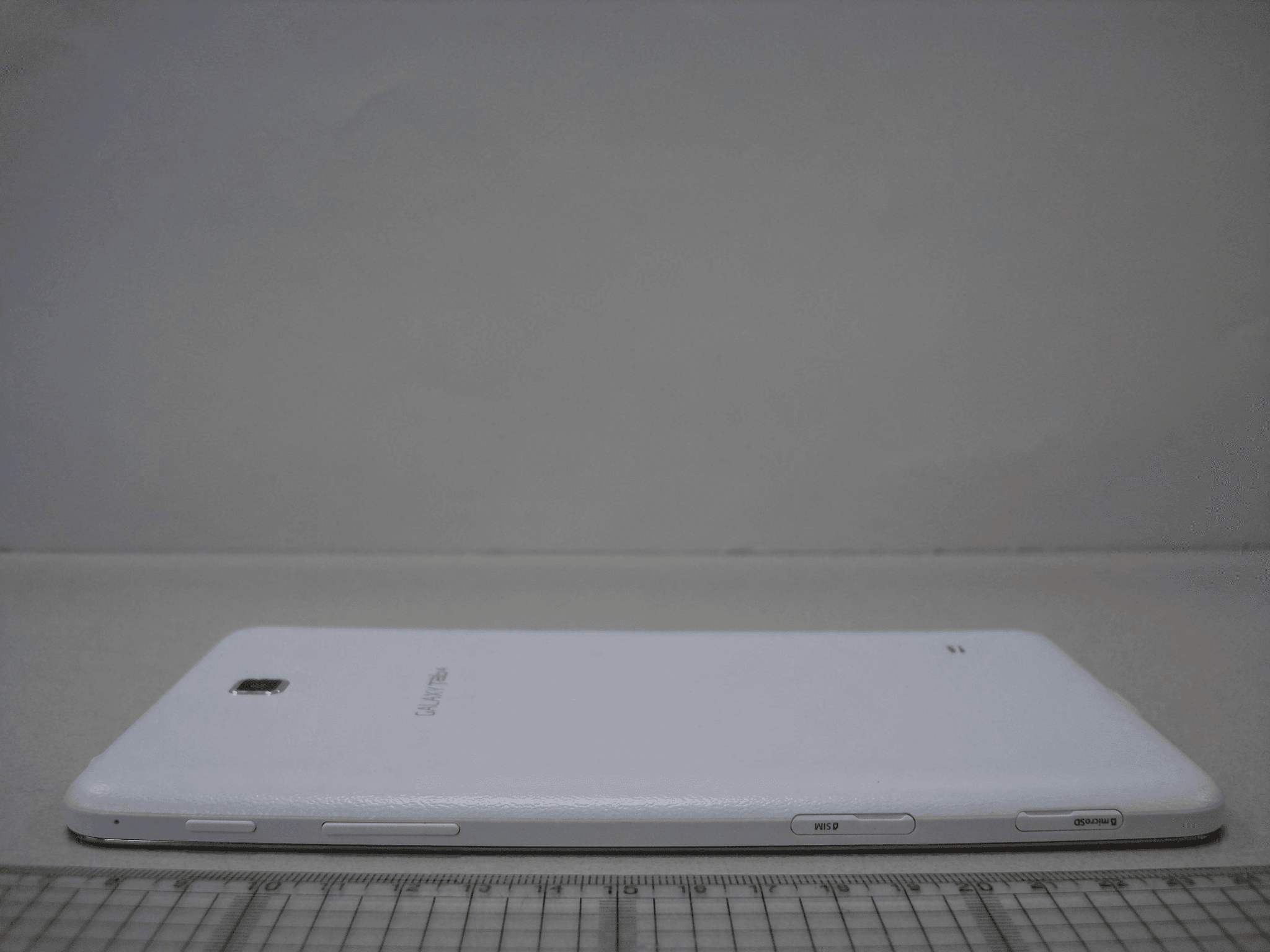

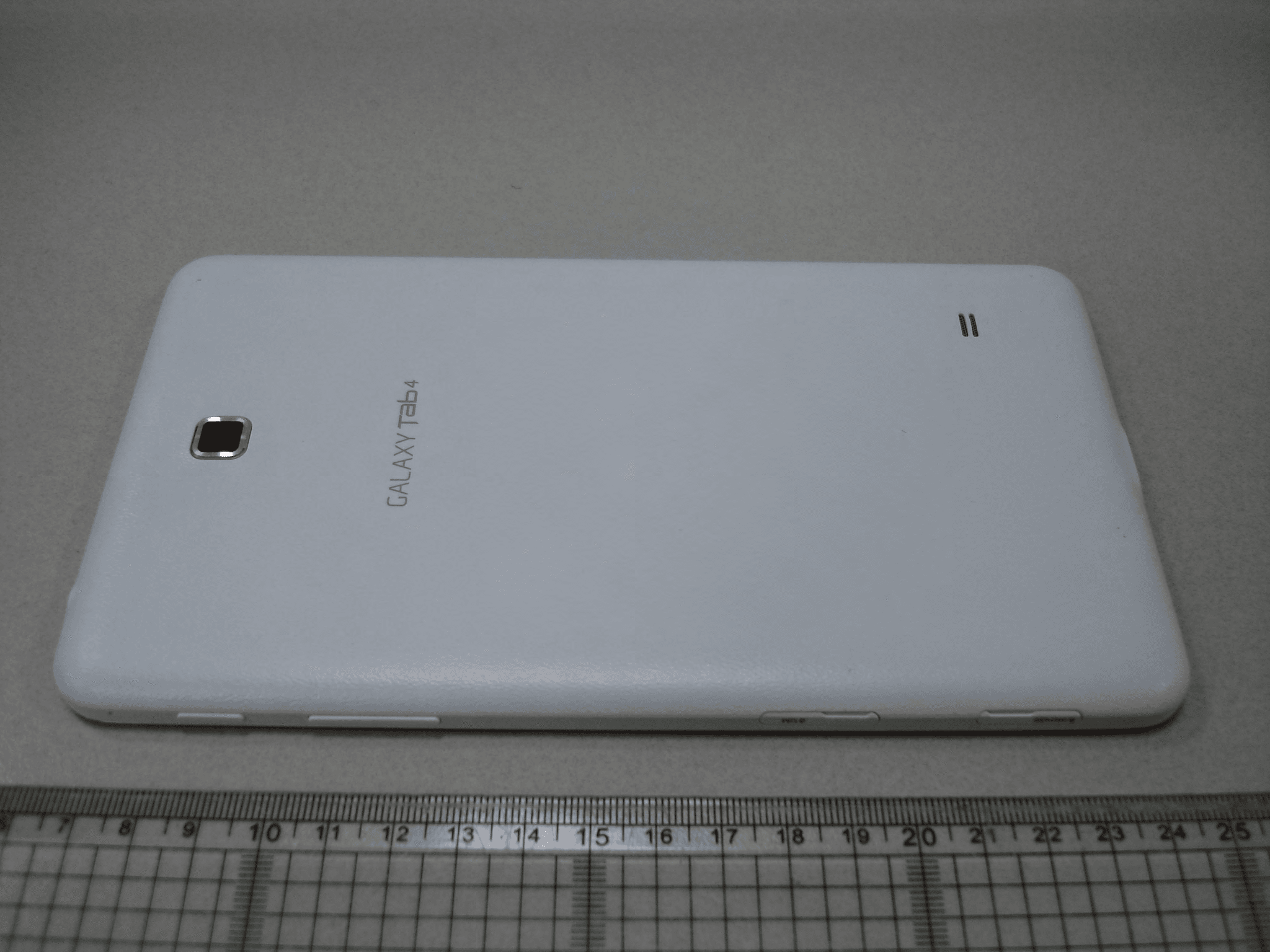

Samsung Electronics, Co. Ltd. FCC ID: A3L403SC Model: 403SC Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3L403SC Model: 403SC Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014 Samsung Electronics, Co. Ltd. FCC ID: A3L403SC Model: 403SC Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.27 10/24/2014
