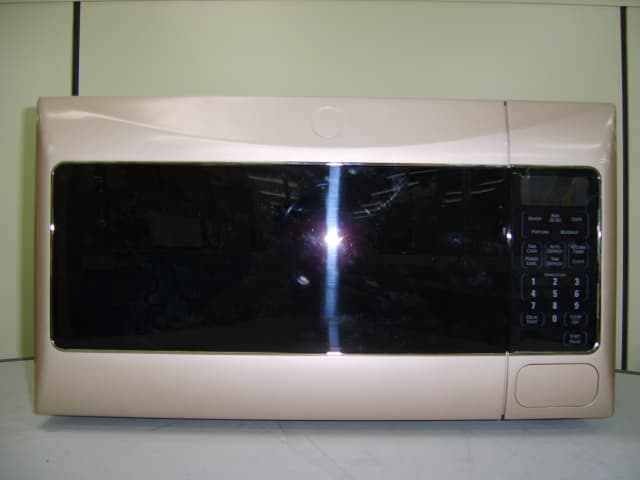

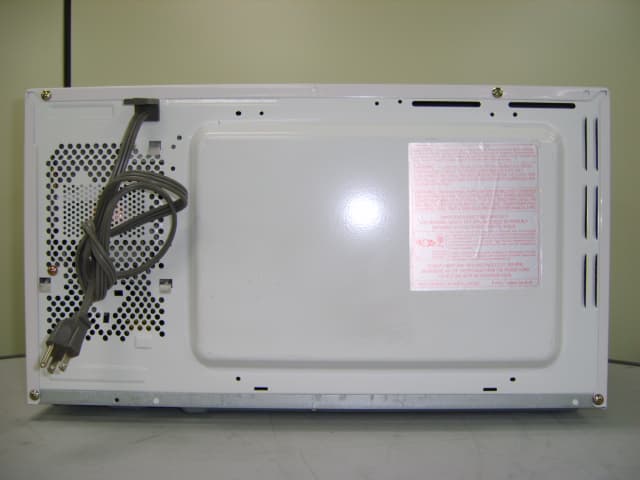

EUT Photography Rear Front

Frequence vs Load Variation Test 120V(200ml) Label location

Inside

JOB Number : LBE060352 Page 1 of 16 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE060352 1. This test report does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3L5TH5896N 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GE 2.4 Model Number :JES1036NL Variant Model : None 2.5 RF Output Power : 1100W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :February 2 , 2006 Tested by: Hee Sung, KIM / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorised by: Seung Kyu, CHA / Chief of EMC Lab. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 JOB Number : LBE060352 Page 2 of 16 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Conducted Emission Measurement 4.5.1 Conducted Emission Measurement Procedure 4.5.2 Conducted Emission Measurement Configuration 4.5.3 Conducted Emission Measurement Data(0.15~30MHz) 4.6 Radiated Emission Measurement 4.6.1 Radiated Emission Measurement Procedure 4.6.2 Radiated Emission Measurement Configuration 4.6.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.6.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060352 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model : JES1036NLis a1100 W microwave oven with digital controls. Installation Type: Count top Clock Frequency : 8 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1550 W 4) RF Power Output : 1100 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060352 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.151.0 20.101.0 30.101.0 All others0.11.0 This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. 12 3 4 5 6 7 8 9 JOB Number : LBE060352 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput current [Vac][amps][watts][amps] 12013.816021550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060352 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001019.8381058.0 10001020.0381082.0 10001020.0381081.0 1073.7 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the me…

Text truncated - open the document above for the full version.

JOB Number : LBE060352 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.151.0 20.101.0 30.101.0 All others0.11.0 This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. 12 3 4 5 6 7 8 9 JOB Number : LBE060352 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput current [Vac][amps][watts][amps] 12013.816021550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060352 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001019.8381058.0 10001020.0381082.0 10001020.0381081.0 1073.7 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. Average RF Power of 3 Trials
