COLOR LASER PRINTER Setup Guide Antes de operar el producto, por favor lea el instructivo, a fin de evitar fallas y conserve para futuras referencias. CLP-500 CLP-500N SAMSUNG LASER PRINTER Setup Guide CLP-500 S ETUP G UIDE 2 C ONTENTS Step 1. Unpacking ............................................. 3 Step 2. Understanding Your Printer ................... 5 Step 3 . Installing the Drum Cartridge, Image Transfer, and Toner Cartridges .. 7 Step 4 . Loading Paper ..................................... 18 Step 5. Connecting a Printer Cable .................. 21 Using a Parallel Cable .................................21 Using a USB Cable .....................................22 For Networking Printing ..............................23 Step 6. Turning the Printer On ........................ 24 Step 7. Printing a Demo Page .......................... 25 Step 8. Changing the Display Language .......... 26 Step 9. Installing the Printer Software ............ 27 Installing Printer Software in Windows ..........27 Reinstalling Printer software ........................29 Removing Printer software ..........................29 Changing the Display Language ...................29 Step 10. Viewing the User’s Guide ................... 30 In Windows ..............................................30 In Macintosh .............................................30 In Linux ...................................................31 S ETUP G UIDE 3 English Step 1. Unpacking 1 Remove the printer and all of the accessories from the packing carton. Make sure that the printer has been packed with the following items: N OTES : • If any items are missing or damaged, notify your dealer immediately. • Components may differ from one country to another. • The CD-ROM contains the printer driver, the User’s Guide, and the Adobe Acrobat Reader program. • The power cord may be different depending on your country. Toner CartridgesPower Cord Image Transfer UnitDrum Cartridge CD-ROM Setup Guide S ETUP G UIDE 4 2 Carefully remove all of the packing tapes from the printer. 3 Pull the paper tray out of the printer and remove the packing tapes from the tray. 4 Select a location for the printer: •Leave enough room to open the printer trays, covers, and allow for proper ventilation. •Provide the proper environment: – A firm, level surface – Away from direct airflow of air conditioners, heaters, or ventilators – Free of temperature, sunlight, or humidity extremes or fluctuations – Clean, dry, and free of dust S ETUP G UIDE 5 English Step 2. Understanding Your Printer These are the main components of your machine: Control Panel (see the User’s Guide of the printer in the CD-ROM.) Paper Output Tray Top Cover (Open to install the drum, and image transfer unit.) Front Cover (Open to remove the waste toner and clean the LSU.) Left Cover (Open to install the toner cartridges press the top cover release button.) Output Support Tray 1 (250-sheet paper feeder) Top Cover Release Button Optional Tray 2 (500-sheet paper feeder) Handle (Use it to lift the machine.) S ETUP G UIDE 6 Optional Tray 2 Jam Cover (Open to remove jams in the optional tray 2.) Muti-purpose Tray (Open to load special print materials.) Right Cover (Open to remove paper jams.) Power Switch USB Port Power Receptacle Control Board Cover (Open to install optional accessories.) Wireless Network Antenna * Network Port** Parallel Port*** * This wireless network port is not available when you purchased the machine. You can install it using an option. ** The network port is provided at default for CLP-500N. CLP-500 users should install it using an optional network interface card. For details, see the User’s Guide of the printer in the CD-ROM. *** The parallel port may not be available depending on your country. S ETUP G UIDE 7 English Step 3. Installing the Drum Cartridge, Image Transfer, and Toner Cartridges 1 Using the handle, open the left cover completely. C AUTION : If the left cover is not completely open, the top cover release button does not press. 2 Press the top cover release button to unlatch the top cover and open it all the way. Top cover release button S ETUP G UIDE 8 3 Remove the LSU label. 4 Take the drum cartridge out of the package using the handle. 5 Remove the paper covering the drum cartridge by removing the tape under the handle of the drum cartridge. C AUTIONS : • Don’t use sharp objects, such as a knife or scissors, to open the drum cartridge package. You could damage the surface of the drum. • To prevent damage, do not expose the drum cartridge to light for more than a few minutes. Cover it with black paper, if necessary. • Do not touch the surface of the green roller on the drum cartridge or print quality problems can occur. S ETUP G UIDE 9 English 6Locate the drum cartridge slots inside the printer, one on each side. 7Hold the handle on the drum cartridge with the green roller facing you. Then align the drum cartridge with the slots in your printer. CAUTION: Insert the drum cartridge carefully so as not to scratch and damage the surface of the green roller. SETUP GUIDE 10 8Slide the drum cartridge down into the printer until it latches into place and fold the handle down. CAUTION: To prevent damage, do not expose the drum cartridge to light for more than a few minutes. 9Take the image transfer unit out of the package. 10Remove the paper covering the image transfer unit by removing the tape under the handle of the image transfer unit. CAUTION: Don’t use sharp objects, such as a knife or scissors, to open the image transfer unit package. You could damage the surface of the image transfer. SETUP GUIDE 11 English 11Locate the image transfer unit slots inside the printer, one on each side. 12Hold the handle on the image transfer unit and align it with the slots in your printer. NOTE: Do not turn the transfer unit over. If you do this, the toner may spill. 13Slide the image transfer unit down into the printer. Press it firmly to make sure that it latches into place. SETUP GUID…

Text truncated - open the document above for the full version.

MAINTAINING YOUR PRINTER 6.3 6 Replacing the Supplies From time to time, you need to replace the following items to maintain top performance and to avoid print quality problems. Refer to the table below: Item(s)Printer message Pages Printed See page Black toner cartridge Replace Toner Black 7,000 pages * *Average A4-/letter-sized pages counts based on 5% coverage of individual colors on each page. Usage conditions and print patterns may cause results to vary. 6.7. Color toner cartridges Replace Toner [Color] 5,000 pages * 6.7. Waste toner container Waste Toner Tank Full/Not Install 3,000 images ** 6.10. Drum cartridge Replace Drum Cartridge 50,000 images ** 6.13. Image transfer unit Replace Image Transfer 50,000 images ** **Image counts based on one color on each page. If you print documents in full colors (Cyan, Magenta, Yellow, Black), the lives of these three items are reduced by 25%. 6.21. MAINTAINING YOUR PRINTER 6.4 Managing the Toner Cartridges Toner Cartridge Storage To get the maximum results from the toner cartridge, keep the following guidelines in mind: • Do not remove the toner cartridges from their packages until you are ready to use them. • Do not refill the toner cartridges. The printer warranty does not cover damage caused by using a refilled cartridge. • Store the toner cartridges in the same environment as the printer. • To prevent damage to the toner cartridges, do not expose them to light for more than a few minutes. Toner Cartridge Life Expectancy The life of the toner cartridge depends on the amount of toner that your print jobs require. When printing text at 5% coverage, a new toner cartridge lasts an average of 7,000 pages for black and 5,000 pages for each color. The initial toner cartridge supplied with the printer lasts an average of 2,000 pages for black and 1,500 pages for each color. At any time, you can verify the life expectancy by checking the toner level. See the below. Checking the Remaining Toner You can check the level of toner left in each cartridge. 1Press the Menu button ( ) on the control panel until you see ‘Setup’ on the bottom line of the display. 2Press the Enter button ( ) to access the menu. 3Press the scroll button ( or ) until ‘Maintenance’ displays on the bottom line. 4Press the Enter button ( ). 5When ‘Check Toner’ displays on the bottom line, press the Enter button ( ). MAINTAINING YOUR PRINTER 6.5 6 6Press the scroll button ( or ) until the color of the toner cartridge you want to check displays on the bottom line. 7Press the Enter button ( ). The display shows the percentage of the remaining toner. Redistributing the Toner When a toner cartridge is nearly empty, faded or light areas may appear on a printed page and ‘Ready [CMYK] Low Toner’ appears on the display. The printer can continue to print using the current toner cartridge until the control panel displays a message telling you to replace the cartridge. You may be able to temporarily improve the print quality by redistributing the toner. The control panel display tells you which color cartridge is low in toner. 1Using the handle, open the left cover completely. 2Pull the handle lightly first, and then holding the used toner cartridge, remove it. CAUTION: If you open the left cover for a long time, the drum cartridge can be exposed to light. This causes damage to the drum cartridge. MAINTAINING YOUR PRINTER 6.6 3Holding both sides of the toner cartridge, gently roll it from side to side to redistribute the toner. NOTE: If toner gets on your clothing, wipe it off with a dry cloth and wash it in cold water. Hot water sets toner into fabric. 4Slide the toner cartridge back into the printer. 5Close the left cover. Make sure that the cover is securely latched. MAINTAINING YOUR PRINTER 6.7 6 Replacing the Toner Cartridges The printer uses four colors and has a different toner cartridge for each one: cyan (C), magenta (M), yellow (Y), and black (B). Replace a toner cartridge when the printer control panel displays ‘Replace Toner [Color]’. The control panel display tells you which color needs to be replaced. 1Turn the printer off. 2Using the handle, open the left cover completely. 3Pull the handle lightly first, and then holding the used toner cartridge, remove it. CAUTION: If you open the left cover for a long time, the drum cartridge can be exposed to light. This causes damage to the drum cartridge. MAINTAINING YOUR PRINTER 6.8 4Take a new toner cartridge out of the package. CAUTION: Don’t use sharp objects, such as a knife or scissors, to open the toner cartridge package. You could damage the surface of the toner cartridge. 5Place the toner cartridge on a flat surface as shown and remove the paper covering the toner cartridge by removing the tape. Discard the paper and tape. 6Holding both sides of the toner cartridge, gently roll it from side to side to distribute the toner. NOTE: If toner gets on your clothing, wipe it off with a dry cloth and wash it in cold water. Hot water sets toner into fabric. MAINTAINING YOUR PRINTER 6.9 6 7Make sure that the color of the toner cartridge matches the color slot and then slide the new toner cartridge into the printer. 8Close the left cover. Make sure that the cover is securely latched, and then turn the printer on. 9Open the front cover and clean the LSU. For details, see page 6.27. MAINTAINING YOUR PRINTER 6.10 Replacing the Waste Toner Container Replace the waste toner container when the control panel displays ‘Waste Toner Tank Full/Not Install’. 1Unlatch the front cover, by quickly pressing and releasing it using the depressions at the top. 2Push the lock lever up and pull the waste toner container out. NOTE: Make sure that you lay the waste toner container on a flat surface so that the toner does not spill. MAINTAINING YOUR PRINTER 6.11 6 3Remove the container’s caps which are attached as shown below and use them to close the waste toner container. 4Take a new waste toner container out of the package. 5Open the caps on the new container and…

Text truncated - open the document above for the full version.

BigBangControllerBlockDiagram IEEE 1284 USB 2.0 UART(Rx,Tx),Reset NPC (Opt) Deve Drive Deve OEMKey T1,T2(+),Charge, AC_Vpp,AC_Freq/Duty Supply(PWMcontrol) T2(-),ACEnable Sts,Cmd,Clk,Rdy nVDO,nLDon,nSH, nHsync, nStart,nRDY,Clk OPPANEL Solenoid:4EA Clutch:4EA BLDCMotor DEVCartridge (Y/M/C/K) IDresister Supply Deve Blade HVPS T1(+DC) T2(+DC,-DC) SUPPLY(AC+DC) CHARGE(-DC) CurrentDetect Charge,T1,T2current T1Roll T2Roll ChargeRoll FAN(Fuser) BLDCMotor(Main) Solenoid(CST_PU,MP,Duplex,T2,ITB_CLN) Clutch(feed) HIC Super1284 NPC Option Board nRD,nWR nNPC_CS nWait, nNPC_INT VBUS,DN,DP FlashMemory AM29LV160 2MB SDRAM K4S281632 32MB EEPROM 93C66L 512Bytes SDRAMDIMMOption 32MB,64MB,128MB D[31:16] A[15:3] A[21:2] D[31:0] SA[12:0] SD[31:0] SD[31:0] SA[12:0] CS,SK DI,DO PD[7:0] nRD,nWR nCS_LPEC nRESET Crystal 12.00M A[9:2] SPGPm ARM946ES Embedded MainControlBoard nVDO OSC 19.9M Engine Control ASIC (LPEC1) USB FUSER HeaterThermostat Thermistor PTL Eraser D[7:0] LSU ITBUnit CTDSensor HomeSensor OPCUnit IDResister SCF(Option) Deve_ID New Waste_Toner CST_empt,MP_empt,Feed,Exit, M U X FS781 BZB Reset IC BigBangT/FEnCon +3.3V Right Cover S/W SMPS Regul ator +1.8V Left Cover S/W +5V (forLSU,ITB)+5VL +3.3V +5V +24V WasteAgt.Motor ADC OSC 12.00M Mclk Uclk Vclk +24VF

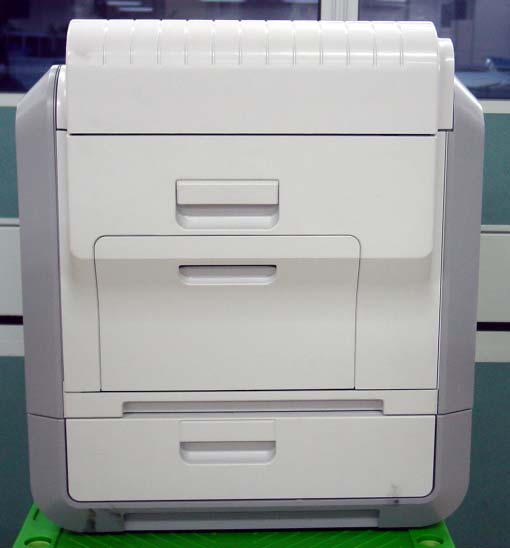

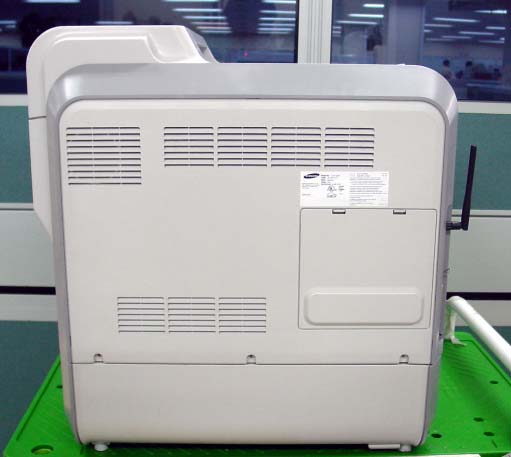

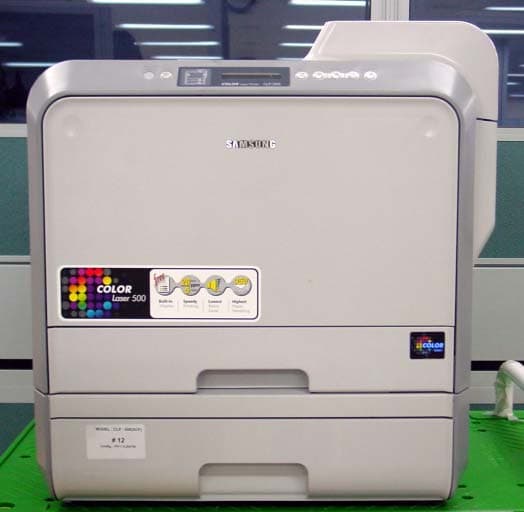

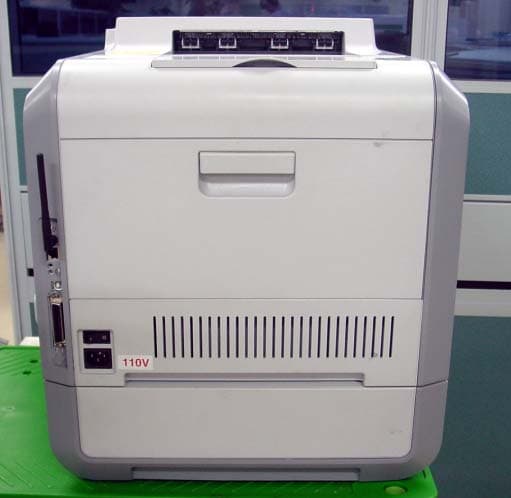

Front View Left View Rear View Right View To p V i e w

Page 17 of 18 Project NO. : LBE031333 5. FCC Label Configuration and Location 5.1 Label Configulation 5.2 Location of Label This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.

DEV_OEM Board TOP DEV_OEM Board BOTTOM DEV_Switch Board TOP DEV_Switch Board BOTTOM RAM DIMM Board TOP RAM DIMM Board BOTTOM HVPS Board TOP HVPS Board BOTTOM MAIN Board TOP MAIN Board BOTTOM PANEL Board TOP PANEL Board BOTTOM SCF Board TOP SCF Board BOTTOM SMPS Board TOP SMPS Board BOTTOM

Page 1 of 18 Project NO. : LBE031333 Product :Laser Beam Printer Model No. : CLP-500N FCC ID : A3LCLP500N 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 4. That data in this report are traceable to National or International Standards. Date of test :June 27, 2003 Issued Date :June 30, 2003 Tested by: Jong Ho,LEE / Test Engineer Reviewed by: Choon Kil,KIM / Manager of EMC Lab. Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT According to FCC Part 15 Subpart B/Class B NVLAP Code: 200447 Page 2 of 18 Project NO. : LBE031333 Table of Contents 1. General Information 1.1 Product Description 1.2 Configuration of EUT and peripherals 1.3 Used Cable Description 1.4 System Block Diagram of Test Configuration 1.5 Test Facility 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Environment 2.3 Test Procedure 2.4 Measurement Uncertainty 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Label Configuration and Location 6. Test Equipment Used Distribution This test report has been made available as follows: CS Management Center, EMC Laboratory1 original Printer Division1 copy This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 18 Project NO. : LBE031333 1. General Information Applicant :Samsung Electronics Co., Ltd. Full Address :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 Kind of Product :Laser Beam Printer FCC ID:A3LCLP500N Project Name :- Model & Variant Names : CLP-500 Brand : Samsung ; Basic Model ; Option: IEEE802.11,10/100 BaseTX Ethernet ; Memory : 32MB Test Report Produced by : Jong Ho,LEE / Test Engineer This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 18 Project NO. : LBE031333 1.1 Product Description 1) Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. In each test mode, Finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the DATA of the maximum EUT operation was reported. Further details of cabling and configuration are shown in the test system configuration. 2) Operating Frequency : CLP-500N is supporting the IEEE1284,USB,LAN,WireLess LAN Printing Mode. CLP-500N model have Video : 19.00064MHz,CPU:60MHz,LPEC clock:19.00064MHz,Main Clock:12MHz USB clock:30MHz,N/W clock:25MHz Wireless LAN BW:2.4GHz This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 5 of 18 Project NO. : LBE031333 3) Description of Testing operating mode USB PrintingContinously H pattern printing by Computer IEEE1284 PrintingContinously H pattern printing by Computer Continously H pattern Receiving and Transmitting Continously H pattern Copying EUT was tested all operating mode as above. Finally EUT was tested USB Printing mode as maximum emission. 4) Tested Resolution : 5) Manufacturer :SAMSUNG Electronics Co., Ltd. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Wireless LAN Printing Tested Video modeResolutionsRefresh rates Operating Mode Operating section of EUT LAN Printing Colors Page 6 of 18 Project NO. : LBE031333 1.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A Laser Beam Printer CLP-500N-SamsungEUT BComputer 8311 15U 11s32p4744zj1lh8800773 IBMDoC CMonitor CX151SN209H4NT726970 SamsungDoC DMouse M-S35LZB05162649 LogitechDoC EKeyboard SDL352027011380 SamsungDoC This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 18 Project NO. : LBE031333 1.3 Used Cable Description No.ItemLength[m]Shielded (Y/N)Remark 1AC Power Cable1.7N- 2LAN2.0Y- 3USB Cable1.5Y- 4Parallel Cable1.5Y- 5AC Power Cable1.5N- This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 18 Project NO. : LBE031333 1.4 System Block Diagram of Test Configuration 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 Semi Anechoic Chamber #2(Registration Number:873282) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1995. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 9 of 18 Project NO. : LBE031333 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 18 Project NO. : LBE031333 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 11 of 18 Project NO. : LBE031333 2…

Text truncated - open the document above for the full version.

Page 9 of 18 Project NO. : LBE031333 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 18 Project NO. : LBE031333 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
