A3LGH30CPNColor Laser Printer

Code: Rev.No: OldCode: REF NR Initial Release Date PAGE 1 Confidential DEVE JOINT FUSER INLET&SWITCH DRAWER CON. 14P 3P 10P 2P 16P 24P Halogen Lamp Thermostat 2P 3P 2P 3P 2P 3P 2P 1P Dev Bias & SUPPLY Y Dev Bias & SUPPLY M Dev Bias & SUPPLY C Dev Bias & SUPPLY K Y CRUM M CRUM C CRUM K CRUM SMPS Standard Type 3 +24V 4.5A, +5V 3A TONER KIT 2P 22P MAINBOARD EEPROM 64Kbit SD[31:0] SA[12:0],BA0,1 nSCS0 SDRAM 32MB nRAS,nCAS, nWE,DQM,CKE, SDCLK0 ADDR[13:2] ADDR[22:2] nRD,nWR,nCS DATA[31:16] DATA[31:0] nRD,nWR,nCS 12MHz USB2.0 Dev SCL SDA USB_D Conn 12MHz SystemClock CHORUSm ARM9- 300MHz SDRAM Controller Local Controller MAC I2C UART ADC 8ch PWM 8ch LSU Controller Image Processor HPVC STEPMotor GPIO Light-Emitting Deve AT34C02 CRUM 2P HVPS Charger 1ea T1 1ea T2 1ea Bias AC 1ea DC 1ea RELAY RELAY RELAYRELAY DEV_CLT T2_CLT ITB_CLT PICKUP_CLT REGI_CLT COVER_S/W LSU S/W LSU BLDC 2P INNER TEMP SENSOR 4P 4P 4P 4P TONER CLT TONER CLTTONER CLT TONER CLT 2P 2P 2P 2P TONER SENSOR TONER SENSORTONER SENSORTONER SENSOR FUSER_CLT 2P ITB_JOINT ITB_HOME_SENSOR PTL & ERASER 4P 2P WASTE LEVEL RX 2P WASTE LEVEL TX 2P 2P 2P2P EMPTY_SENSOR REGI_SENSOR THERMISTOR DEVE HOME SENSOR MP_SENSOR 9P 2P EXIT SENSOR PPI 1284 14P CM YK STATUS STOP OPE Flash 2MB SYSTEM PLL VIDEO PLL RTC VideoClock 12MHz EEPROM 64Kbit TX_CLK,RX_CLK,MAC_TXD[3:0] MAC_RXD[3:0] 25MHz Flash 4MB CLP-300CLP-300N SDRAM 64MB N/W Φ STE100P RJ-45 [CLP-300(N)] Block Diagram

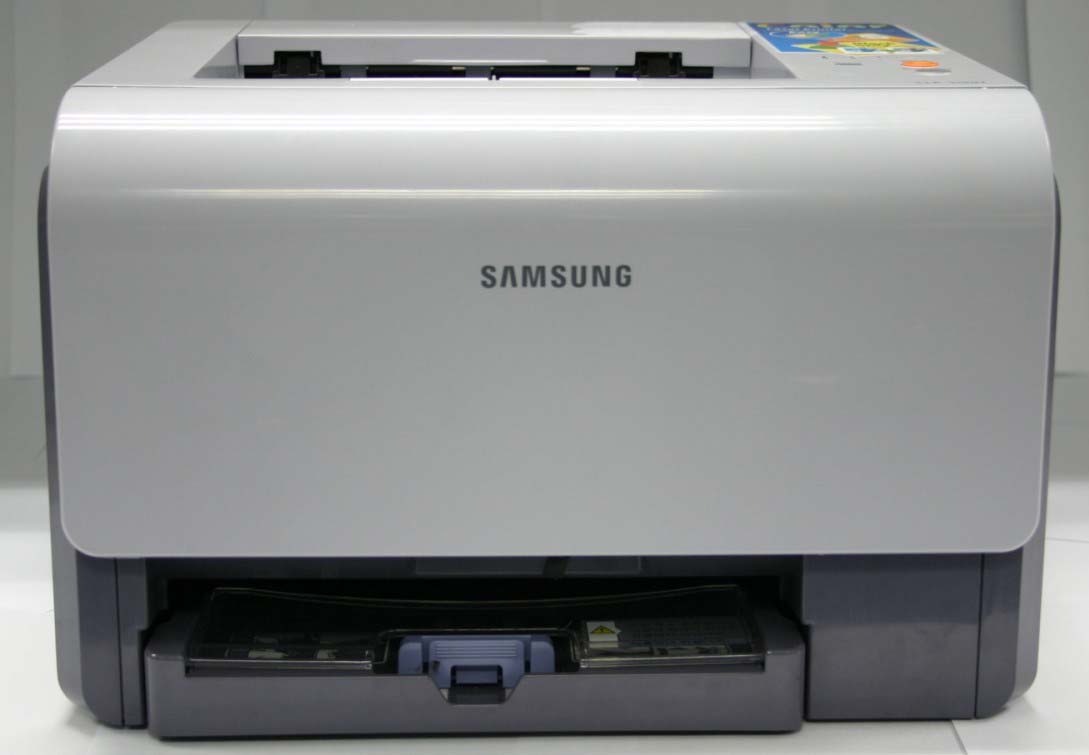

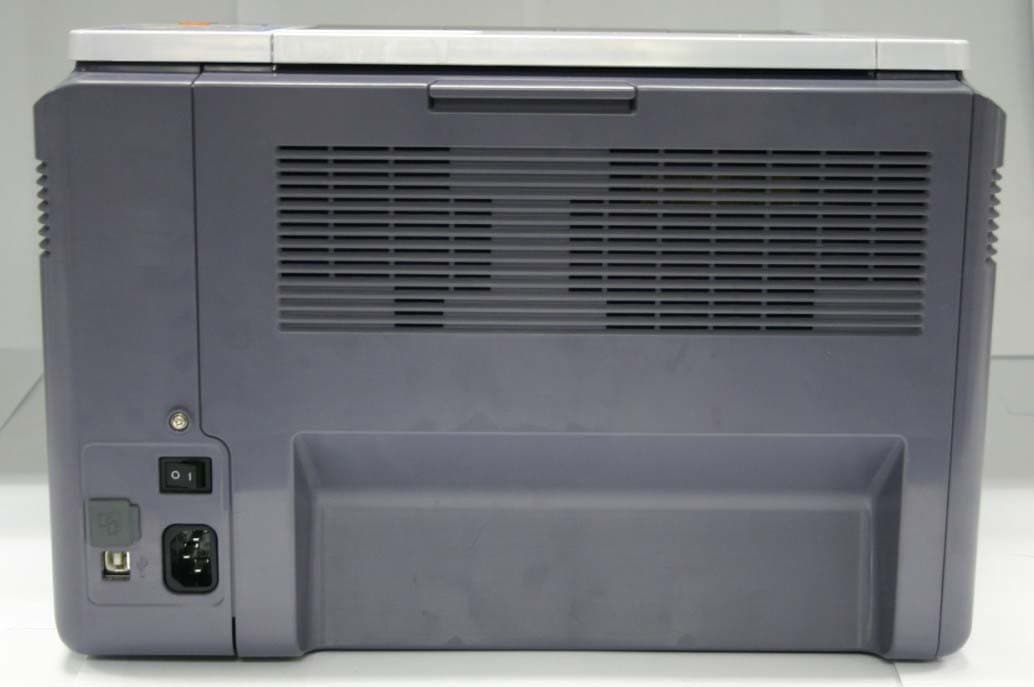

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

2. Internal Pictures 1) Front View 2) Rear View 3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of OPE 8) Bottom View of OPE

CLP-300/300N Technical Specification ItemSpecification and Description Print Speed Black and White : Up to 16 PPM in A4(17 PPM in Letter) Color : Up to 4 PPM in A4 Resolution Up to 2400 x 600 dpi effective output First print out time From Ready Black and White : Less than 14 seconds Color : Less than 26 seconds From ColdBoot Black and White : Less than 45 seconds Color : Less than 57 seconds Warm-up time Less than 35 seconds Power Rating 110~127VAC,5A,50/60Hz Power Consumption Average : 350 W Power Save mode : Less than 17 W Noise Level Printing mode Black and white : Less than 48 dBA Color : Less than 48 dBA Standby mode : Less than 35 dBA Consumable life Black Toner Cartridge : Approx. 2,000 A4/Letter pages at 5% Coverage Yellow/Magenta/Cyan Toner Cartridge : Approx. 1,000 A4/Letter pages at 5% Coverage Duty cycle Monthly : Up to 24,200 images Weight 13.6 kg (including consumables) Package weight Paper : 2 Kg, Plastic : 900 g External dimensions (W x D x H) 390 x 344 x 265 mm(15.4 x 13.6 x 10.4 in) Operating Environment Temperature : 50 ~ 90 °F (10 ~ 32.5 °C ) Humidity : 20 ~ 80 % RH Printer Language SPL-C Memory CLP-300 : 32MB CLP-300N : 64MB Interface CLP-300 : USB 2.0 CLP-300N : USB 2.0, Ethernet 10/100 Base TX OS compatibility Windows 98/Me/NT/2000/XP/2003 Various Linux OS Mac OS 10.3 ~ 10.4 Windows NT 4.0 is only supported on the CLP-300N ■ Type No : GH30CPN ■ Clock Frequency List Main Source Clock : 12 MHz Video Source Clock : 12 MHz CPU Clock: 300 MHz SDRAM Clock: 100 MHz Network Clock: 25 MHz USB Device Clock : 12 MHz Video Data Clock : 15.922 MHz ■ Variant Models GH30CPN (with Wired LAN function ) CLP-300N (with Wired LAN function ) GH30CPB (without Wired LAN function ) CLP-300 (without Wired LAN function ) (Variant model 은함께보내는라벨을참조해주십시오 ..) ■생산공장주소 Samsung Electronics Co.,Ltd. 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea Place:M259

1 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE052276 Equipment under Test Applicant Samsung Electronics Co., Ltd 416 Maetan 3-dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 FCC ID A3LGH30CPN Product Name Laser Printer Model Name GH30CPN Manufacturer Samsung Electronics Co. Ltd 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030, KOREA Date of Test Oct 05, 2005 ~ Oct 12, 2005 Issued Date Oct 18, 2005 Name/Position Signature Tested by Young Hun. Cheong Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC filing Registration Number : 873282 NVLAP LAB CODE 200623-0 2 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd Model name GH30CPN Applicant Address 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742, Korea Contact Person Young Hun. Cheong Kind of product Laser Printer Valiant list GH30CPN, CLP-300N (with network) GH30CPB, CLP-300 (without network) Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030, KOREA Place:M259 New / Alternative / Permissive change Information New 1.2 Detail Information related Product Specification Item Specification and Description Print Speed Black and White : Up to 16 PPM in A4(17 PPM in Letter) Color : Up to 4 PPM in A4 Resolution Up to 2400 x 600 dpi effective output First print out time From Ready Black and White : Less than 14 seconds Color : Less than 26 seconds From ColdBoot Black and White : Less than 45 seconds Color : Less than 57 seconds Warm-up time Less than 35 seconds 4 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Power Rating 110 ~ 127 VAC, 5A, 50/60 Hz Power Consumption Average : 350 W Power Save mode : Less than 17 W Noise Level Printing mode Black and white : Less than 48 dBA Color : Less than 48 dBA Standby mode : Less than 35 dBA Consumable life Black Toner Cartridge : Approx. 2,000 A4/Letter pages at 5% Coverage Yellow/Magenta/Cyan Toner Cartridge : Approx. 1,000 A4/Letter pages at 5% Coverage Duty cycle Monthly : Up to 24,200 images Weight 13.6 kg (including consumables) Package weight Paper : 2 Kg, Plastic : 900 g External dimensions (W x D x H) 390 x 344 x 265 mm(15.4 x 13.6 x 10.4 in) Operating Environment Temperature : 50 ~ 90 °F (10 ~ 32.5°C) Humidity : 20 ~ 80 % RH Printer Language SPL-C Memory CLP-300 : 32MB CLP-300N : 64MB Interface CLP-300 : USB 2.0 CLP-300N : USB 2.0, Ethernet 10/100 Base TX OS compatibility Windows 98/Me/NT/2000/XP/2003 Various Linux OS Mac OS 10.3 ~ 10.4 5 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Windows NT 4.0 is only supported on the CLP-300N Operating Frequency Video(15.922 MHz), SDRAM(100 MHz), USB (12 MHz), CPU (300MHz), Network (25MHz) 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. The EUT is supporting the USB and LAN printing mode. In each test mode, finally we found worst case emission that is above configuration with the worst case components(in the above table). So, the data of the maximum EUT operation, USB printing was reported. - USB Printing Mode (worst emission) - LAN Printing Mode - Standby Mode - Power Input Voltage : AC 110V Frequency : 60Hz 1.4 Test System Details Refer to 1.2 1.5 Equipment Modifications No equipment modifications were required. 6 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Disturbance Voltage at Mains EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and…

Text truncated - open the document above for the full version.

17 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 20 Samsung EMC Laboratory Project No: LBE052276 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3. Radiated Emission (Front) Pic. 4. Radiated Emission (Rear)
