A3LGTI8268PCS GSM/EDGE Phone with WLAN, Bluetooth and RFID

User manual GT-I8268 Draft 6.1 2012-12-28 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perman…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 4, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI8268 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea January 4, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGT I8268 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

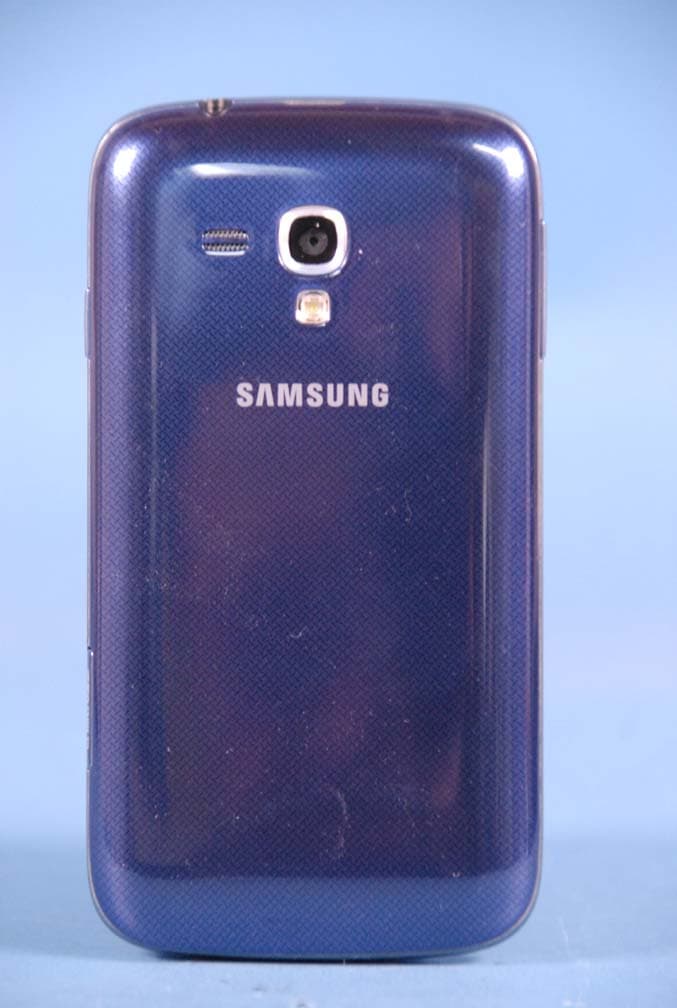

SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: GT-I8268 FCC ID: A3LGTI8268 Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 1 of 6 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 2 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 3 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 4 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 5 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTI8268 Model: GT-I8268 Internal Photos EUT Type: Portable Handset Page 6 of 6 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID:A3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 27 0Y1212141814.A3L 12/17/12 - 12/18/12 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/17/12 - 12/18/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Document Serial No.: 0Y1212141814.A3L FCC ID: A3LGTI8268 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-I8268 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 28.66 0.310.551.01 DTS2.4 GHz WLAN2412 - 2462 MHz18.210.11 0.310.31 DSSBluetooth2402 - 2480 MHz7.43 0.42 0.861.32 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 27 0Y1212141814.A3L 12/17/12 - 12/18/12 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 14 9 SYSTEM VERIFICATION .............................................................................................................. 16 10 SAR DATA SUMMARY ................................................................................................................. 17 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 20 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 22 13 EQUIPMENT LIST ......................................................................................................................... 23 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 24 15 CONCLUSION ............................................................................................................................... 25 16 REFERENCES .............................................................................................................................. 26 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 27 0Y1212141814.A3L 12/17/12 - 12/18/12 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots Maximum29.0 29.0 28.0 26.0 24.5 24.0 23.5 21.0 19.5 Nominal28.5 28.5 27.5 25.5 24.0 23.5 23.0 20.5 19.0 Burst Average 8‐PSK (dBm) Mode / Band Burst Average GMSK (dBm) GSM/GPRS/EDGE 1900 Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal 7.0 18.0 15.5 14.0 14.5 Bluetooth 7.5 IEEE 802.11n (2.4 GHz) Modulated Average (dBm) IEEE 802.11g (2.4 GHz) IEEE 802.11b (2.4 GHz) 18.5 16.0 Mode / Band 1.3 DUT Antenna Locations Note: Specific antenna dimensions and separation distances are shown in the antenna distance document…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : GT-I8268 FCC ID(Requested) : A3LGTI8268 Report No : FJ-320-R1 Job No : FJ-320 Date issued : Jan 4, 2013 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By HK LEE – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FJ-320-R1 2 of 36 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION ..................................................................... 3 1.1. §2.1033 General Information ......................................................................... 3 2. INTRODUCTION ....................................................................................................... 4 2.1. General .......................................................................................................... 4 3. MEASURING INSTRUMENT CALIBRATION ........................................................... 5 4. TEST EQUIPMENT LIST ........................................................................................... 6 5. DESCRIPTION OF TESTS ........................................................................................ 7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power .................. 7 5.2. Radiated Spurious & Harmonic Emission ...................................................... 8 5.3. Peak-Average Ratio ....................................................................................... 9 5.4. Occupied Bandwidth .................................................................................... 10 5.5. Spurious and Harmonic Emission at Antenna Terminal ................................ 10 5.5.1. Occupied Bandwidth Emission Limits .............................................. 10 5.5.2. Conducted Spurious Emission ......................................................... 12 5.6. Frequency Stability / Temperature Variation ................................................. 13 6. TEST DATA ............................................................................................................. 14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................ 14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................ 15 6.3. Frequency Stability ....................................................................................... 16 6.3.1. GSM1900 Frequency Stability Table ................................................ 16 6.3.2. GSM1900 Frequency Stability Graph ............................................... 17 7. CONCLUSION ......................................................................................................... 19 8. TEST PLOTS ........................................................................................................... 20 Report Number : FJ-320-R1 3 of 36 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID • Model : A3LGTI8268 GT-I8268 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM1900), 243KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.268 W EIRP GSM1900 (31.03 dBm) 0.573 W EIRP GSM1900 EDGE(27.58 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Portable Handset • Device Capabilities 1900 GSM/GPRS/EDGE Phone with Bluetooth, WLAN and RFID • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : December 5-6, 2012 • Place of Test : SAMSUNG Lab, • Test Report S/N : FJ-320-R1 Report Number : FJ-320-R1 4 of 36 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FJ-320-R1 5 of 36 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FJ-320-R1 6 of 36 4. TEST EQUIPMENT LIST Name …

Text truncated - open the document above for the full version.

FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 1 - Right Cheek SAR Test Setup Photo 2 - Right Tilt FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 3 - Left Cheek SAR Test Setup Photo 4 - Left Tilt FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 5 - Back Side at 1.0 cm SAR Test Setup Photo 6 - Front Side at 1.0 cm FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 7 - Top Edge at 1.0 cm SAR Test Setup Photo 8 - Bottom Edge at 1.0 cm FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 9 - Right Side at 1.0 cm SAR Test Setup Photo 10 - Left Side at 1.0 cm FCC IDA3LGTI8268 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 7 12/17/12 - 12/18/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 11 - DUT Horizontal and Vertical Reference Lines

SAMSUNG FCC ID: A3LGTI8268 1900 GSM/GPRS/EDGE Phone with Bluetooth, WLAN and RFID
