A3LGTI9070PCellular/PCS GSM/EDGE/WCDMA Phone with WLAN, RFID and Bluetooth

User manual GT-I9070P This device is capable of operating in 802.11a mode. For 802.11a devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft 6 2011-12-23 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: February 23, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI9070P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea

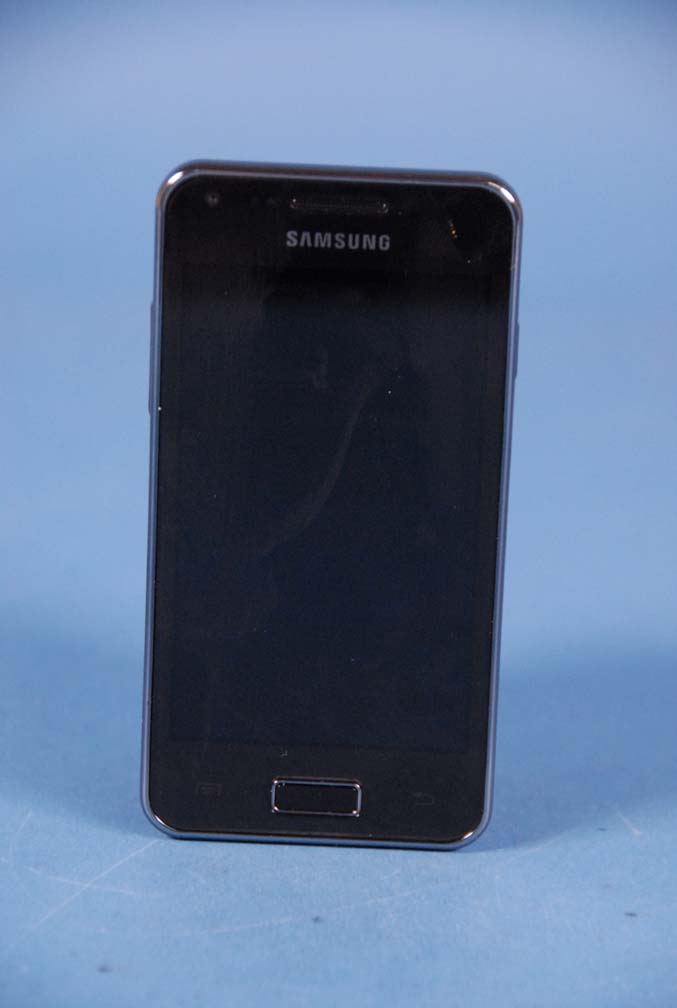

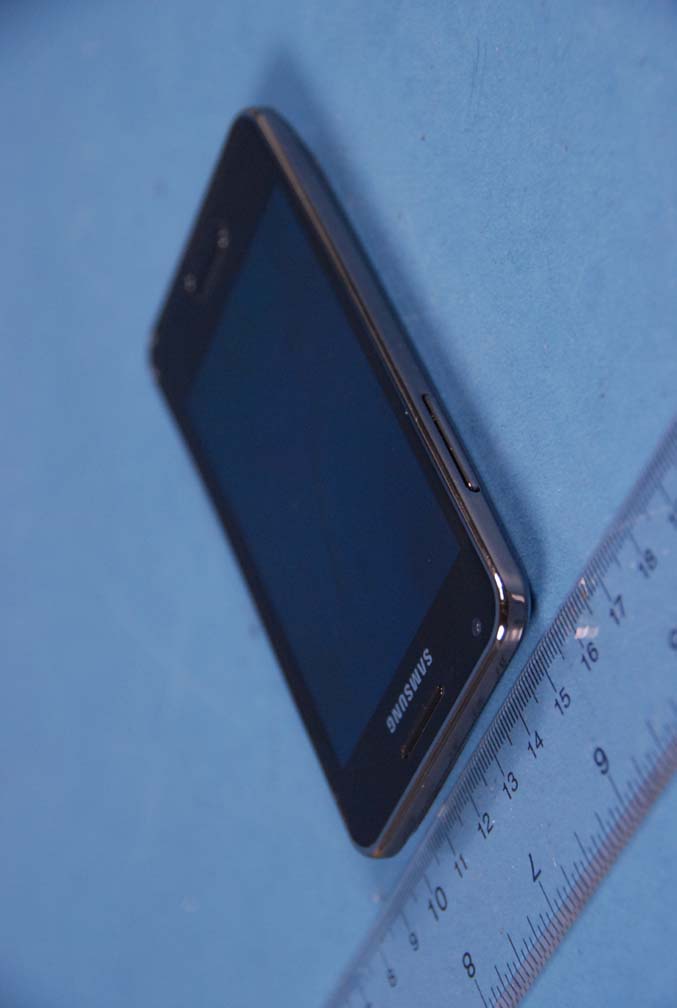

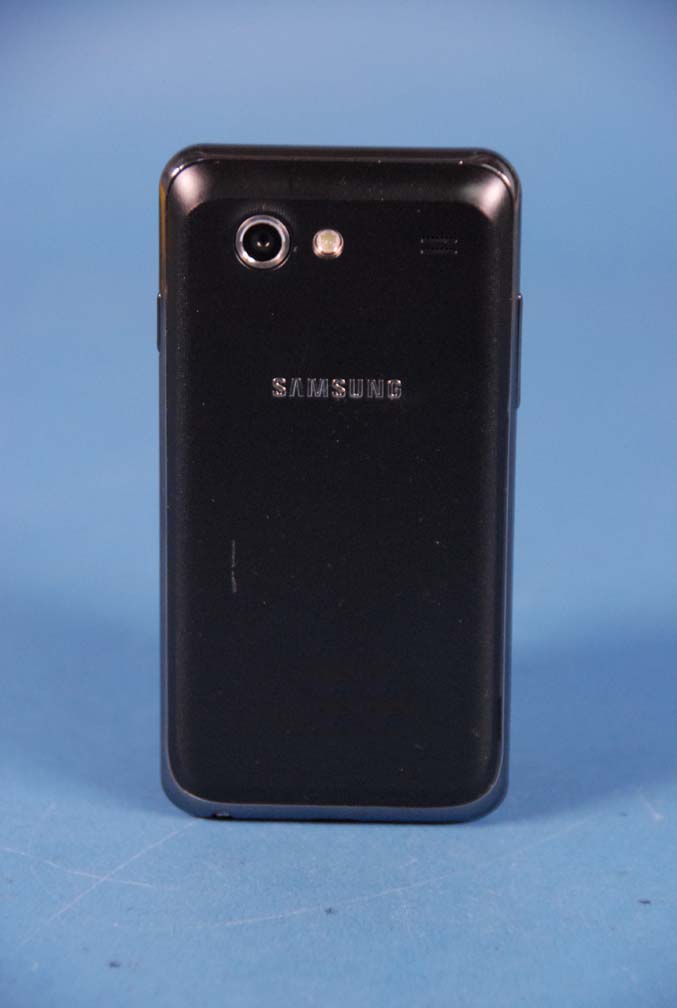

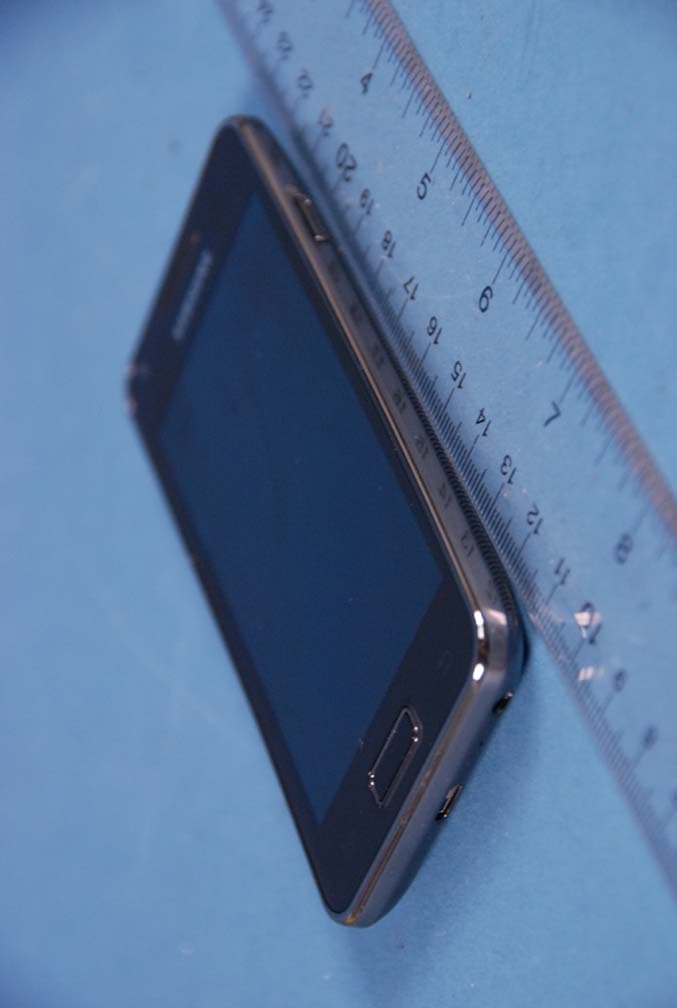

Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: GT-I9070P FCC ID: A3LGTI9070P Label: Location: Top Back plate of GT-I9070P Bottom Label is placed inside of the battery compartment. (Tablet: FCC ID is printed on the bottom of device.) Label

Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTI9070P FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1202090168.A3L February 13 - 14, 2012 Portable Handset Page 1 of 67 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.3UAN 09/14/11 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. February 13 - 14, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1202090168.A3L FCC ID: A3LGTI9070P APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-I9070P EUT Type: Portable Handset Max. RF Output Power: 9.57 mW (9.81 dBm) Conducted (802.11a UNII Band 1) 8.97 mW (9.53 dBm) Conducted (802.11a UNII Band 2) 9.98 mW (9.99 dBm) Conducted (802.11a UNII Band 3) 9.35 mW (9.71 dBm) Conducted (802.11n UNII Band 1) 8.79 mW (9.44 dBm) Conducted (802.11n UNII Band 2) 8.95 mW (9.52 dBm) Conducted (802.11n UNII Band 3) Frequency Range: 5180MHz – 5240MHz (UNII Band 1), 5260MHz – 5320MHz (UNII Band 2), 5500MHz – 5700MHz (UNII Band 3) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LGTI9070P FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1202090168.A3L February 13 - 14, 2012 Portable Handset Page 2 of 67 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.3UAN 09/14/11 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.4 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT .....................................................................................................11 6.3 UNII BAND 1 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 21 6.4 UNII BAND 2 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 22 6.5 UNII BAND 3 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 23 6.6 PEAK POWER SPECTRAL DENSITY.....................................................................................................24 6.7 PEAK EXCURSION RATIO ..................................................................................................................... 34 6.8 FREQUENCY STABILITY ........................................................................................................................ 44 6.9 R…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTI9070P FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1202090169.A3L February 13 - 14, 2012 Portable Handset Page 1 of 22 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. February 13 - 14, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1202090169.A3L FCC ID: A3LGTI9070P COMPANY: Samsung Electronics, Co. Ltd. Model(s): GT-I9070P EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 8.97 mW (9.53 dBm) Conducted (802.11a UNII Band 2) 9.98 mW (9.99 dBm) Conducted (802.11a UNII Band 3) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 and FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 Reviewed by: FCC ID: A3LGTI9070P FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1202090169.A3L February 13 - 14, 2012 Portable Handset Page 2 of 22 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 MODIFICATIONS....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS ..................................................................................................8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA UNII - II BAND .............................................................................................12 6.0 TEST PLOTS AND DATA UNII – III BAND............................................................................................17 7.0 CONCLUSION .......................................................................................................................................22 Reviewed by: FCC ID: A3LGTI9070P FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1202090169.A3L February 13 - 14, 2012 Portable Handset Page 3 of 22 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 18600 Broadwick St. Rancho Dominguez, CA 90220, United States TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: GT-I9070P FCC ID: A3LGTI9070P Test Device Serial No.: FJ-031-C Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: February …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Test Set-Up Photos EUT Type: Portable Handset 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Test Set-Up Photos EUT Type: Portable Handset 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTI9070P Model: GT-I9070P Test Set-Up Photos EUT Type: Portable Handset 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D1 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D2 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D3 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D4 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 SAR Test Setup Photo 5 – Back at 1.0 cm SAR Test Setup Photo 6 – Front at 1.0 cm FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D5 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 SAR Test Setup Photo 7 – Bottom at 1.0 cm SAR Test Setup Photo 8 – Right at 1.0 cm FCC ID: A3LGTI9070P SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D6 of D6 02/11/12 - 02/15/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11M 02/09/2012 SAR Test Setup Photo 9 – Left at 1.0 cm SAR Test Setup Photo 10 – Body-worn at 1.0 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.
