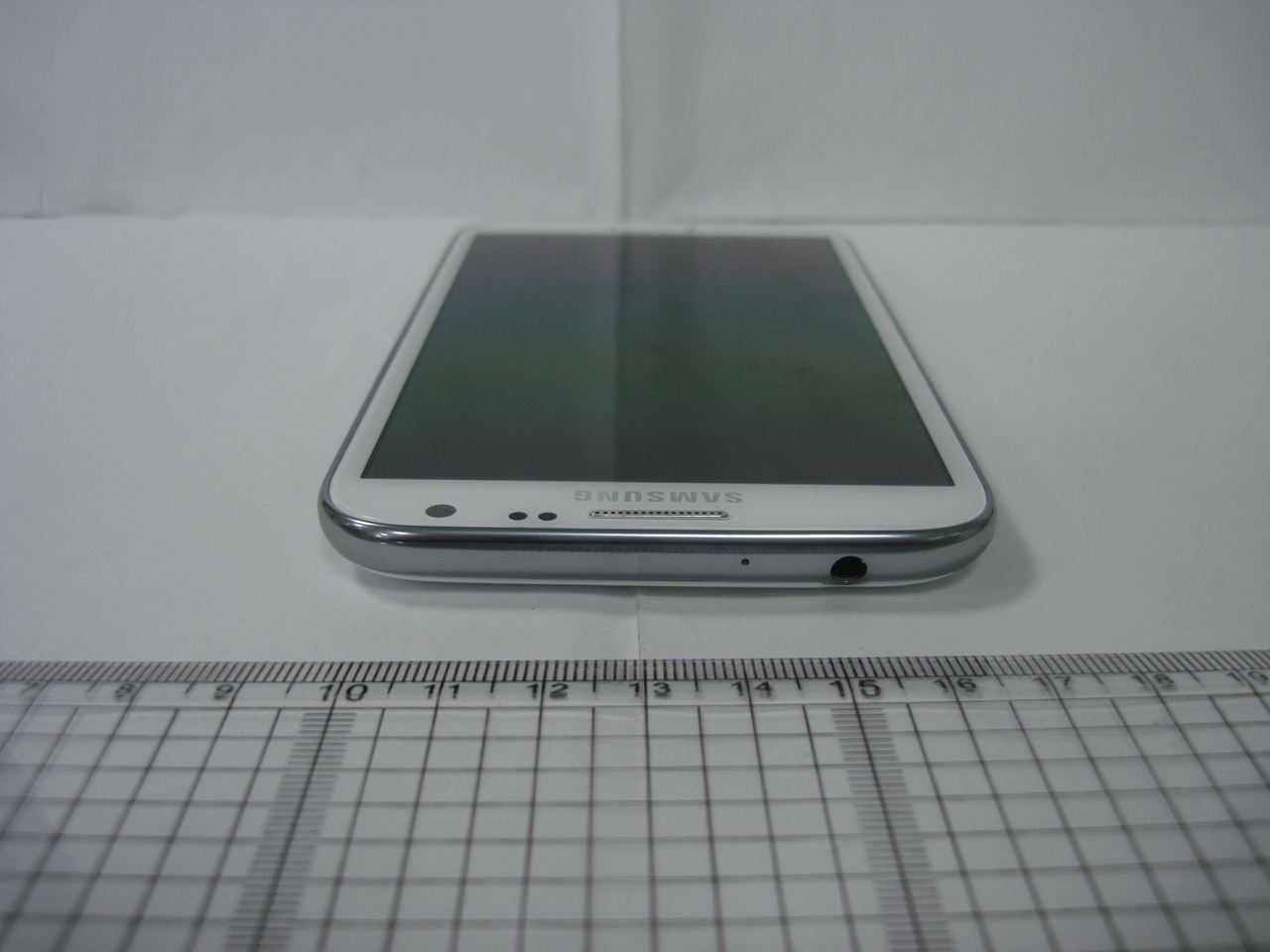

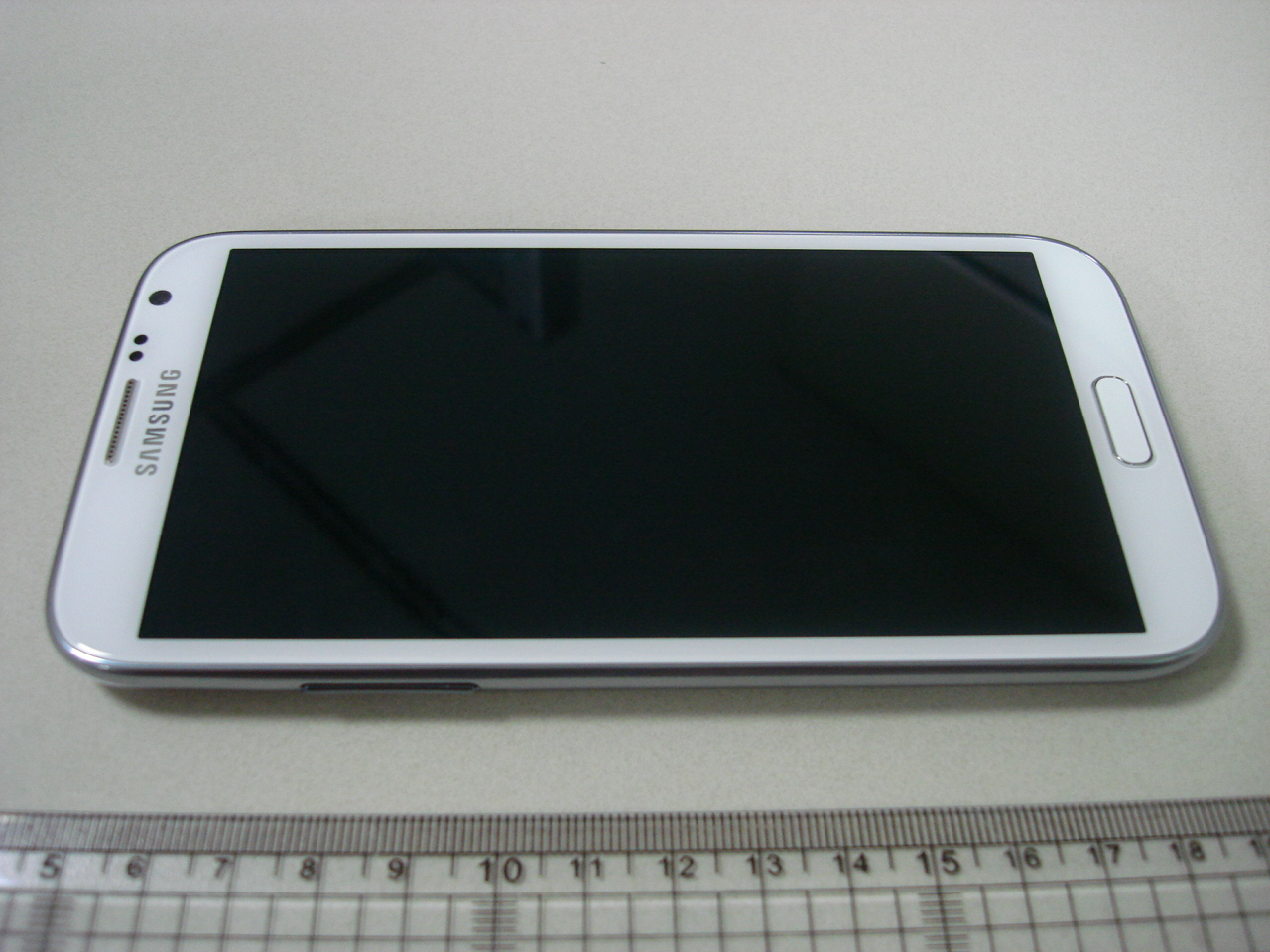

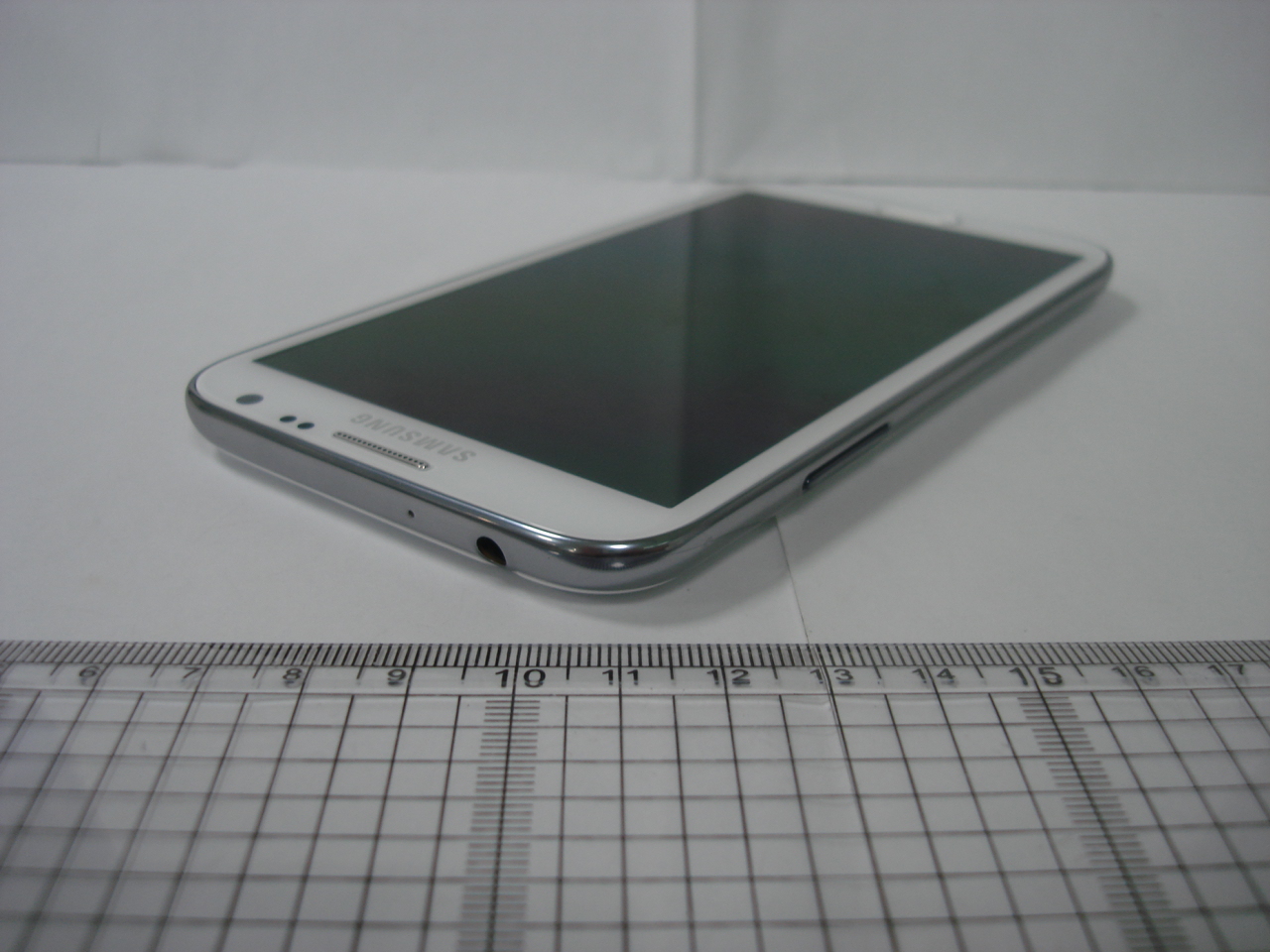

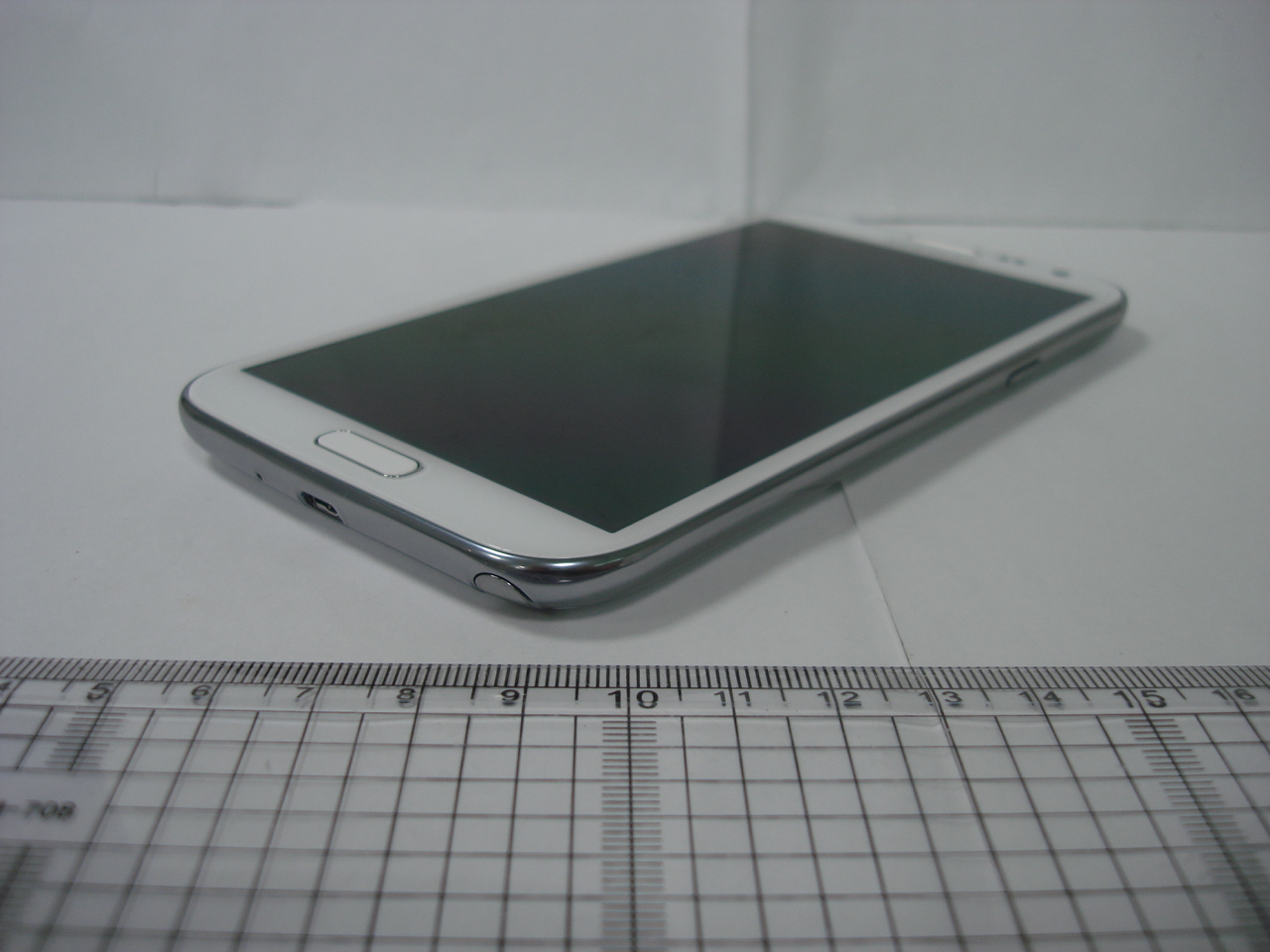

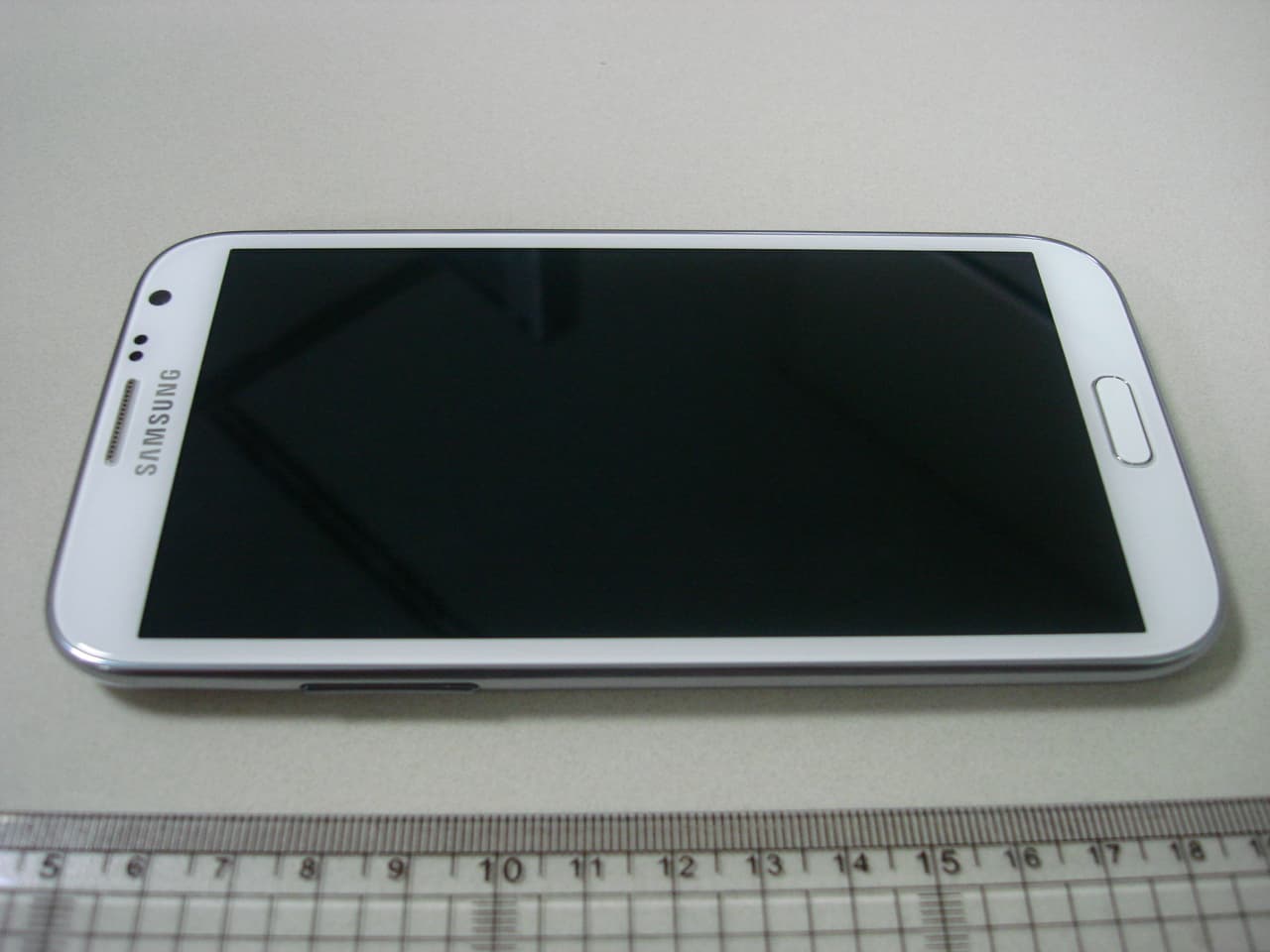

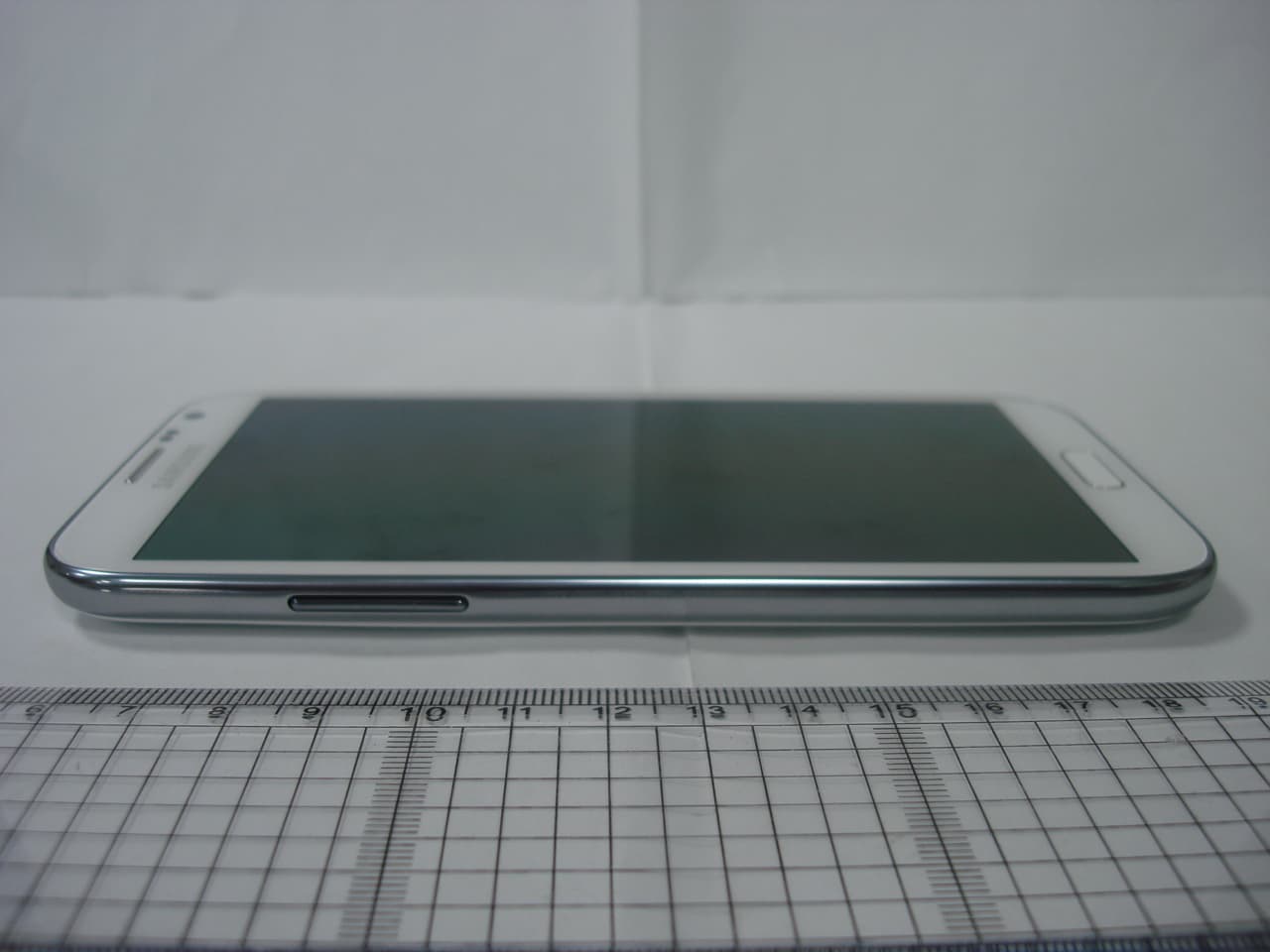

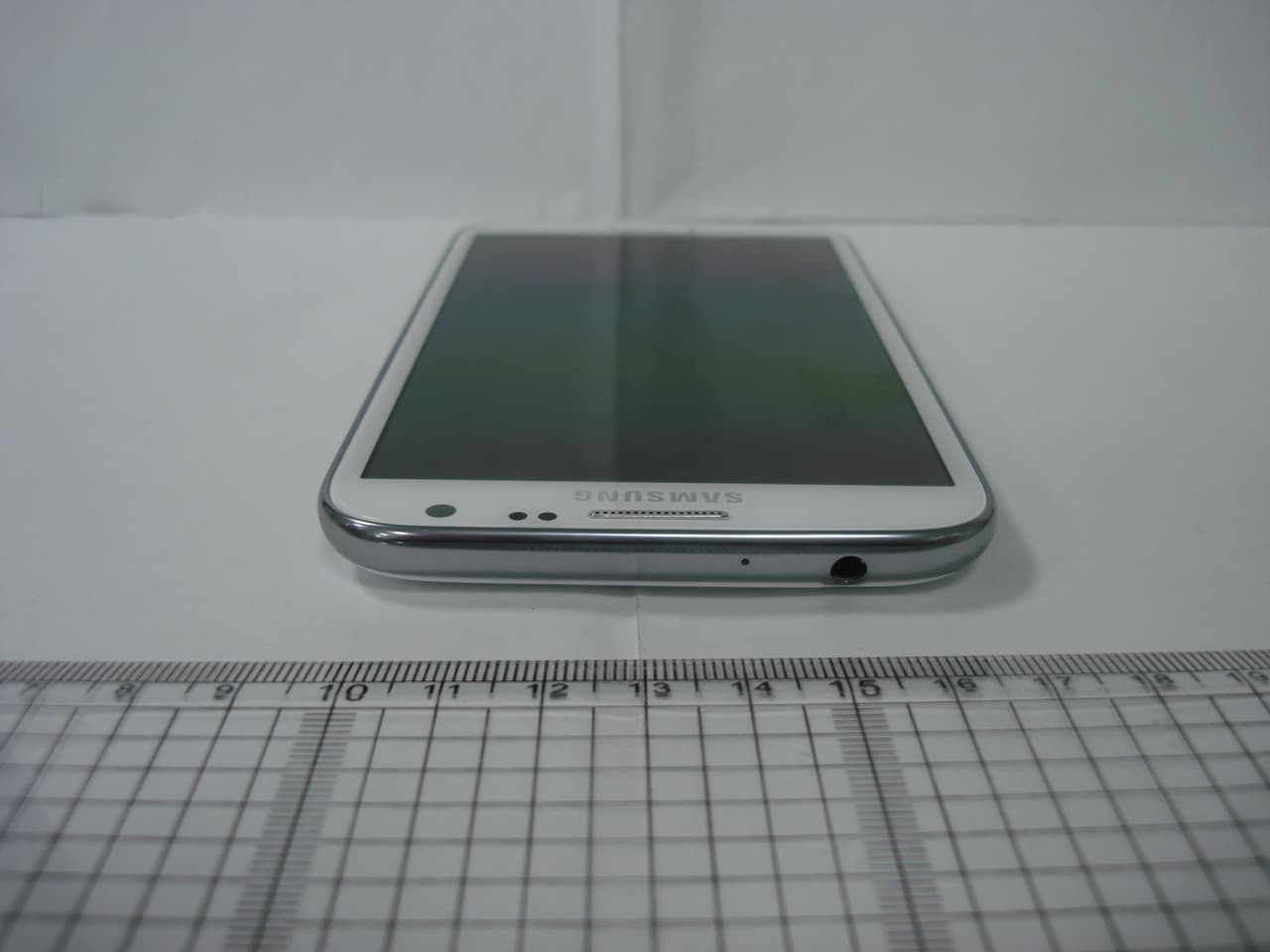

A3LGTN7102IPortable Handset

User manual GT-N7102i This device is capable of operating in 802.11a/n mode. For 802.11a devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a/n mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft 6.1 2012-09-08 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cau…

Text truncated - open the document above for the full version.

April 19, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3L GTN7102I To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Date: April 1, 2013 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg. D, Pine Brook, NJ 07058

SAMSUNG ELECTRONICS CO., LTD 129,Samsung-ro,Yeongtong-gu Suwon-city,Gyeonggi-do, 443-742 Korea April 19, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGT N7102I Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: GT-N7102i FCC ID: A3LGTN7102I Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 167 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. ２０ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２１ 10. SYSTEM VERIFICATION ....................................................................................................................... ２２ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２４ 12. SAR Test configuration & Antenna Information ................................................................................ ３８ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３９ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ３９ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ４０ 13.3 Measurement Results (WCDMA850 Head SAR) .......................................................................... ４１ 13.4 Measurement Results (WCDMA1900 Head SAR) ........................................................................ ４２ 13.5 Measurement Results (802.11b/g/n Head SAR) ........................................................................... ４３ 13.6 Measurement Results (802.11a/n 5GHz Head SAR) .................................................................... ４４ 13.7 Measurement Results (GSM850 Hotspot SAR) ............................................................................ ４５ 13.8 Measurement Results (GSM1900 Hotspot SAR) .......................................................................... ４６ 13.9 Measurement Results (WCDMA850 Hotspot SAR) ...................................................................... ４７ 13.10 Measurement Results (WCDMA1900 Hotspot SAR) .................................................................. ４８ 13.11 Measurement Results (802.11b/g/n Hotspot SAR) ...................................................................... ４９ 13.12 Measurement Results (802.11a/n 5GHz NII Body SAR) ............................................................. ５０ 13.13 Measurement Results (802.11a/n 5GHz DTS Hotspot SAR) ...................................................... ５１ 13.14 Measurement Results (Body-worn SAR) .................................................................................... ５２ 14. SAR Measurement Variability and Uncertainty.................................................................................. ５３ 15. SAR Summation Scenario ................................................................................................................... ５４ 16. CONCLUSION ........................................................................................................................................ ６０ 17. REFERENCES ....................................................................................................................................... ６１ Attachment 1. – SAR Test Plots ................................................................................................................ ６２ Attachment 2. – Dipole Verification Plots .............................................................................................. １００ Attachment 3. – Probe Calibration Data ................................................................................................ １１５ Attachment 4. – Dipole Calibration Data ............................................................................................... １２７ Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 167 Version Rev DATE DESCRIPTION Apr. 18, 2013 First Approval Report 1 Apr. 23, 2013 Page 6, 52, 79, 80 and 112 is revised. 2 Apr. 24, 2013 Page 52 is reviesed 3 Apr. 26, 2013 Page 6, 51 and 55 is revised. 4 Apr. 29, 2013 Page 6, 50, 51, 54, 56 and 57 is reviesd. Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 4 of 167 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environme…

Text truncated - open the document above for the full version.

Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 86 of 167 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID Liquid Temperature: 21.7 °C Ambient Temperature: 22.0 °C Test Date: Apr. 12, 2013 Plot NO. 5 DUT: GT-N7102i; Type: bar; Serial: FK-080-C Communication System: 2450MHz FCC; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.8 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3797; ConvF(6.76, 6.76, 6.76); Calibrated: 2012-11-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: 1800/1900 Phantom; Type: SAM Left Touch 6/Area Scan (91x131x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.107 mW/g Left Touch 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.99 V/m; Power Drift = 0.100 dB Peak SAR (extrapolated) = 0.189 W/kg SAR(1 g) = 0.092 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.101 mW/g Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 87 of 167 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID Liquid Temperature: 21.4 °C Ambient Temperature: 22.6 °C Test Date: Apr. 15, 2013 Plot NO. 6 DUT: GT-N7102i; Type: bar; Serial: FK-080-C Communication System: WIFI 5GHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 4.53 mho/m; ε r = 36.1; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3797; ConvF(4.84, 4.84, 4.84); Calibrated: 2012-11-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: 800/900 Phantom; Type: SAM 802.11a Left tilt 40ch 6Mbps/Area Scan (111x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.009 mW/g 802.11a Left tilt 40ch 6Mbps/Zoom Scan (7x7x11)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.352 V/m; Power Drift = 0.072 dB Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.00553 mW/g; SAR(10 g) = 0.0008 mW/g . Maximum value of SAR (measured) = 0.007 mW/g Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 88 of 167 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID Liquid Temperature: 21.4 °C Ambient Temperature: 22.6 °C Test Date: Apr. 15, 2013 Plot NO. 7 DUT: GT-N7102i; Type: bar; Serial: FK-080-C Communication System: WIFI 5GHz; Frequency: 5320 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5320 MHz; σ = 4.67 mho/m; ε r = 35.8; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3797; ConvF(4.61, 4.61, 4.61); Calibrated: 2012-11-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: 800/900 Phantom; Type: SAM 802.11a Left tilt 64ch 6Mbps/Area Scan (111x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.025 mW/g 802.11a Left tilt 64ch 6Mbps/Zoom Scan (7x7x11)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.270 V/m; Power Drift = 0.062 dB Peak SAR (extrapolated) = 0.331 W/kg SAR(1 g) = 0.034 mW/g; SAR(10 g) = 0.0082 mW/g Maximum value of SAR (measured) = 0.012 mW/g Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 89 of 167 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID Liquid Temperature: 21.4 °C Ambient Temperature: 22.6 °C Test Date: Apr. 15, 2013 Plot NO. 8 DUT: GT-N7102i; Type: bar; Serial: FK-080-C Communication System: WIFI 5GHz; Frequency: 5700 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5700 MHz; σ = 5.06 mho/m; ε r = 35.3; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3797; ConvF(4.45, 4.45, 4.45); Calibrated: 2012-11-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: 800/900 Phantom; Type: SAM 802.11a Left tilt 140ch 6Mbps/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.028 mW/g 802.11a Left tilt 140ch 6Mbps/Zoom Scan (7x7x11)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.849 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.462 W/kg SAR(1 g) = 0.041 mW/g; SAR(10 g) = 0.0088 mW/g Maximum value of SAR (measured) = 0.022 mW/g Report No.: HCTA1304FS05 FCC ID: A3LGTN7102I Date of Issue: Apr.29, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 90…

Text truncated - open the document above for the full version.

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1304FR17 Date of Issue: April 18, 2013 EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC ID: A3LGTN7102I Page ２ of 51 Version TEST REPORT NO. DATE DESCRIPTION HCTR1304FR17 April 18, 2013 - First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1304FR17 Date of Issue: April 18, 2013 EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC ID: A3LGTN7102I Page ３ of 51 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 3. TEST METHODOLOGY ............................................................................................................................... ５ 3.1 EUT CONFIGURATION ...................................................................................................................... ５ 3.2 EUT EXERCISE .................................................................................................................................. ５ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ５ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ５ 4. INSTRUMENT CALIBRATION..................................................................................................................... ６ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ６ 5.1 FACILITIES ......................................................................................................................................... ６ 5.2 EQUIPMENT ....................................................................................................................................... ６ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ７ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ８ 8. TEST RESULT ............................................................................................................................................. ９ 8.1 6dB BANDWIDTH MEASUREMENT ................................................................................................. ９ 8.2 OUTPUT POWER MEASUREMENT .............................................................................................. １３ 8.3 POWER SPECTRAL DENSITY ...................................................................................................... ２０ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ２４ 8.5 RADIATED MEASUREMENT. ........................................................................................................ ３２ 8.5.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. ３２ 8.5.2 RADIATED RESTRICTED BAND EDGES .......................................................................... ４０ 8.6 POWERLINE CONDUCTED EMISSIONS ..................................................................................... ４６ 9. LIST OF TEST EQUIPMENT ................................................................................................................... ５１ FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1304FR17 Date of Issue: April 18, 2013 EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC ID: A3LGTN7102I Page ４ of 51 1. GENERAL INFORMATION Applicant: SAMSUNG Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Rep. of Korea FCC ID: A3LGTN7102I EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID Model name(s): GT-N7102I Date(s) of Tests: January 12, 2013 ~ January 19, 2013 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC Model Name GT-N7102I Power Supply DC 3.8 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2402 MHz ~ 2480 MHz RX: 2402 MHz ~ 2480 MHz Max. RF Output Power Peak 7.09 dBm (5.12 mW) Average 3.79 dBm (2.39 mW) BT Operating Mode BT 4.0_Low Energy Mode Modulation Type GFSK Number of Channels 40 Channels Antenna Specification Manufacturer: Partron. Antenna type: FPCB Antenna Peak Gain : 0.06 dBi FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1304FR17 Date of Issue: April 18, 2013 EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC ID: A3LGTN7102I Page ５ of 51 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v02 dated October 04, 2012 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) and the measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) Operating Under §15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requir…

Text truncated - open the document above for the full version.

FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1304FR18 Date of Issue: April 18, 2013 EUT Type: 850/1900 GSM/GPRS/EDGE and Cellular/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth v4.0+HS, WLAN 2.4GHz/5GHz, Hotspot and RFID FCC ID: A3LGTN7102I Page୎ o…

Text truncated - open the document above for the full version.
