SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 8, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP5210 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

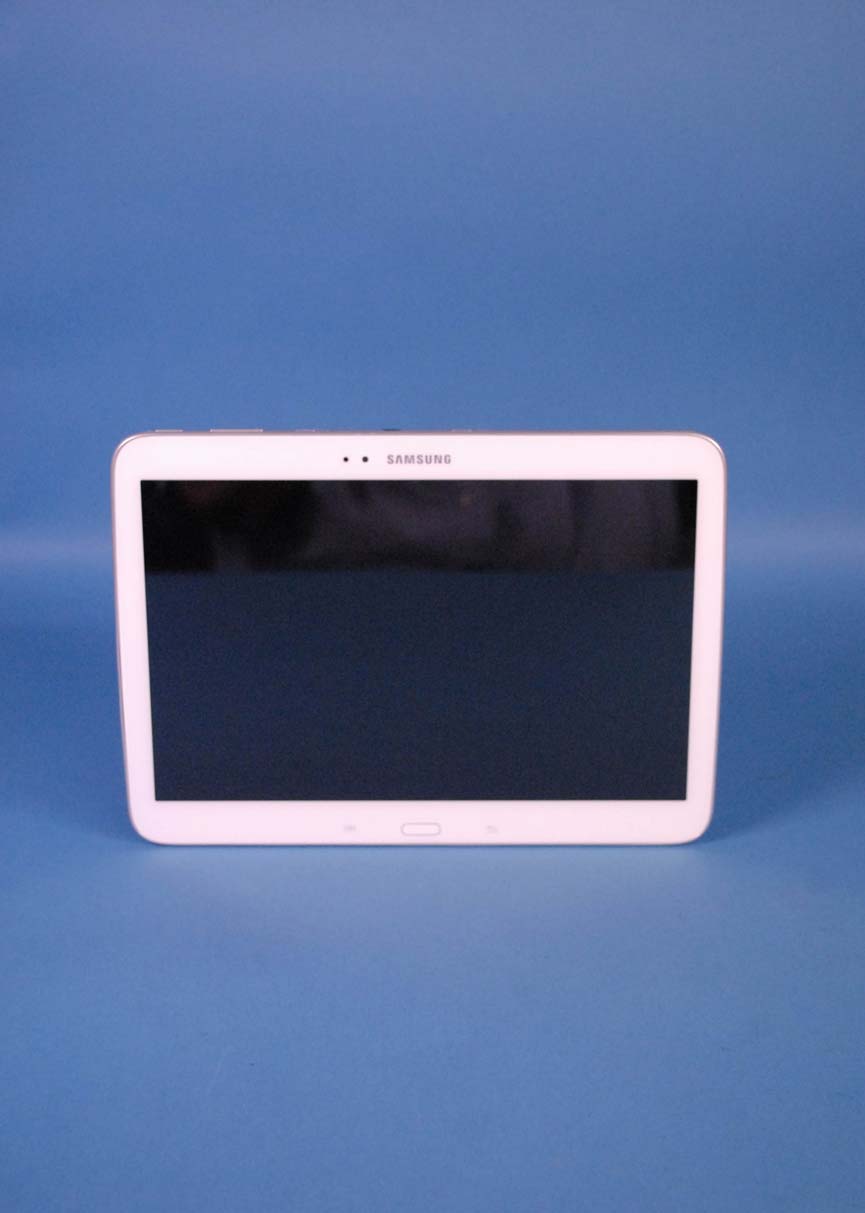

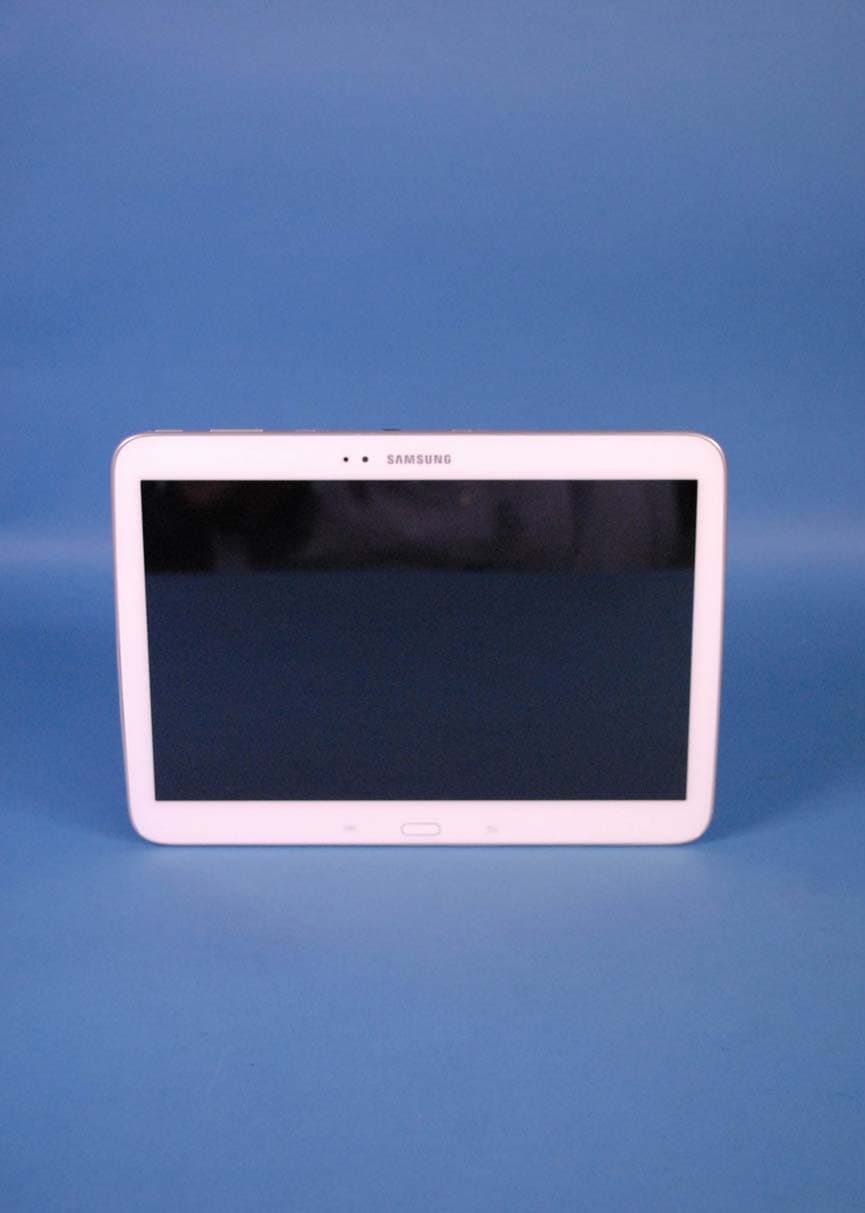

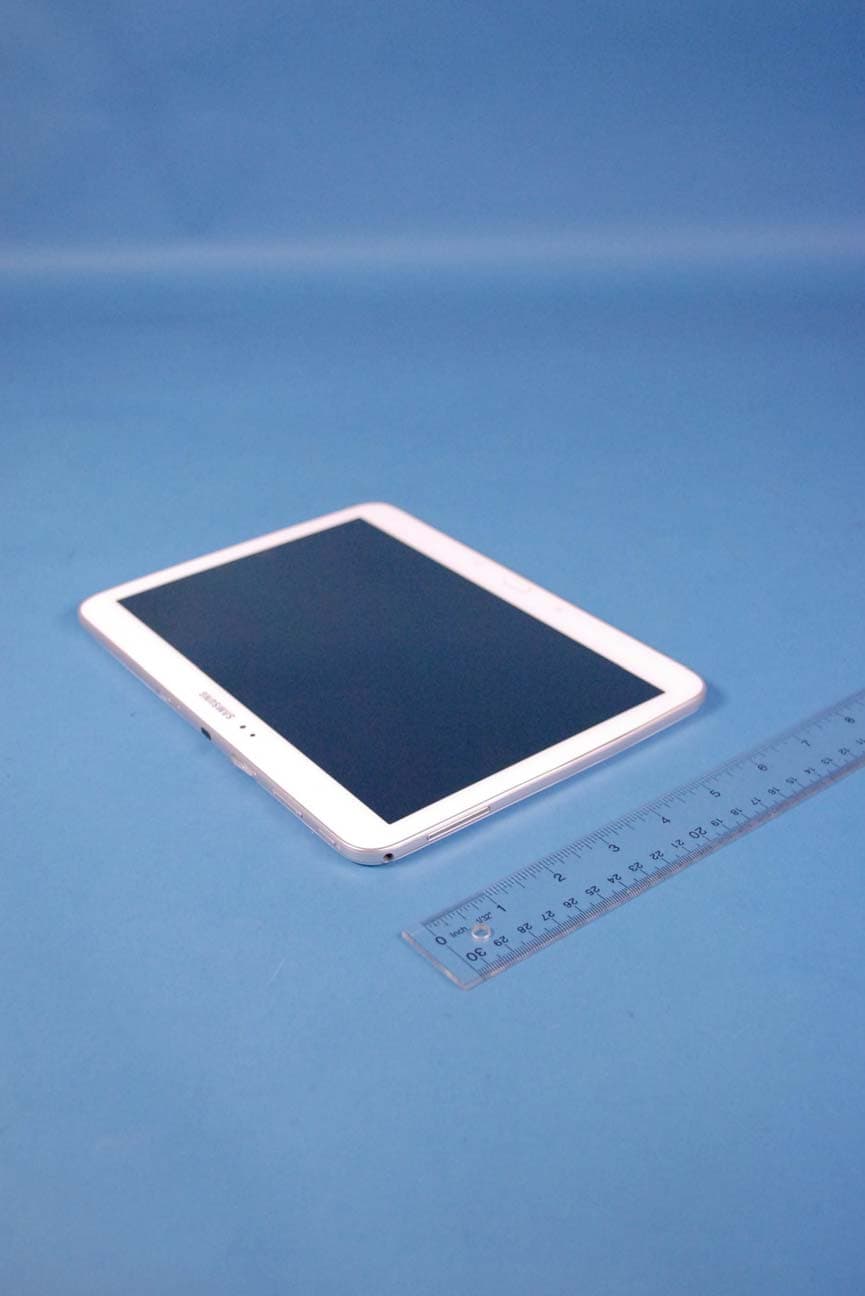

Samsung FCC ID: A3LGTP5210 Model: GT-P5210 External Photos EUT Type: Portable Tablet Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP5210 Model: GT-P5210 External Photos EUT Type: Portable Tablet Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 External Photos EUT Type: Portable Tablet Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 External Photos EUT Type: Portable Tablet Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung EUT Model: GT-P5210 FCC ID:A3LGTP5210 Label Location Top Back of EUT Bottom FCC ID is printed on bottom of the EUT

Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 2 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 6 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Internal Photos EUT Type: Portable Tablet Page 7 of 7 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTP5210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 23 0Y1304220686.A3L 04/29/13 - 05/03/13 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/29/13 - 05/03/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si, PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742 , Republic of Korea Document Serial No.: 0Y1304220686.A3L F C C I D : A3 LG T P 5 2 1 0 AP P L I C AN T : S AMS UN G E LE CT RO NI CS , CO . LT D. DUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-P5210 Test Device Serial No.: Pre-Production [S/N: R32D300TK1W] 1 gm Body (W/kg) DTS2.4 GHz WLAN2412 - 2462 MHz12.050.83 DTS5.8 GHz WLAN5745 - 5825 MHz11.040.59 DTSBluetooth LE2402 - 2480 MHz4.84 NII5.2 GHz WLAN5180 - 5240 MHz11.030.68 NII5.3 GHz WLAN5260 - 5320 MHz10.960.56 NII5.5 GHz WLAN5500 - 5700 MHz10.720.50 DSSBluetooth2402 - 2480 MHz10.38 N/A 0.25 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LGTP5210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 23 0Y1304220686.A3L 04/29/13 - 05/03/13 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 DOSIMETRIC ASSESSMENT .........................................................................................................7 4 RF EXPOSURE LIMITS ...................................................................................................................8 5 FCC MEASUREMENT PROCEDURES ...........................................................................................9 6 RF CONDUCTED POWERS ......................................................................................................... 10 7 SYSTEM VERIFICATION .............................................................................................................. 13 8 SAR DATA SUMMARY ................................................................................................................. 15 9 SAR MEASUREMENT VARIABILITY ........................................................................................... 17 10 EQUIPMENT LIST ......................................................................................................................... 18 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 19 12 CONCLUSION ............................................................................................................................... 21 13 REFERENCES .............................................................................................................................. 22 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTP5210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 23 0Y1304220686.A3L 04/29/13 - 05/03/13 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 D E V I C E U N D E R T E S T 1.1 Device Overview 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz Bluetooth LEData2402 - 2480 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Bluetooth LE 7.0 6.5 IEEE 802.11n (5 GHz) 11.5 Bluetooth 10.5 10.0 IEEE 802.11n (2.4 GHz) 10.5 IEEE 802.11a (5 GHz) 11.5 Modulated Average (dBm) IEEE 802.11b (2.4 GHz) 12.5 IEEE 802.11g (2.4 GHz) Mode / Band 12.0 10.0 10.0 11.0 11.0 10.5 FCC ID: A3LGTP5210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 23 0Y1304220686.A3L 04/29/13 - 05/03/13 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1.3 DUT Antenna Locations Note: Exact antenna dimensions and separation distances are shown in t…

Text truncated - open the document above for the full version.

FCC ID: A3LGTP5210 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 71 0Y1304220687.A3L 4/25 - 5/1/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 3.9 04/30/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/25 - 5/1/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304220687.A3L FCC ID: A3LGTP5210 IC CERTIFICATION NO.: 649E-GTP5210 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): GT-P5210 EUT Type: Portable Tablet FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246217.45812.4229.85414.75 802.11g 2412 - 246210.99010.4159.97917.78 802.11n 2412 - 246211.19410.4966.98818.26 802.11a 5745 - 582512.70611.0467.76418.31 802.11n (20MHz) 5745 - 582512.41710.9467.29818.28 802.11n (40MHz) 5755 - 579512.64711.0271.12118.52 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n FCC ID: A3LGTP5210 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 71 0Y1304220687.A3L 4/25 - 5/1/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 3.9 04/30/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N ............................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) ......................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) ........................................................................................ 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 43 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LGTP5210 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1304220690.A3L 4/26 - 4/29/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.6 04/30/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/26 - 4/29/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304220690.A3L FCC ID: A3LGTP5210 IC CERTIFICATION NO.: 649E-GTP5210 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: GT-P5210 EUT Type: Portable Tablet Max. RF Output Power: 4.843 mW (6.85 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LGTP5210 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1304220690.A3L 4/26 - 4/29/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.6 04/30/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 34 7.0 CONCLUSION ....................................................................................................................................... 36 FCC ID: A3LGTP5210 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Te…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5210 Model: GT-P5210 Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.
