A3LGTP6800Cellular/PCS WCDMA/GSM/EDGE Tablet PC with WLAN and Bluetooth

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider. www.samsung.com English (EU). 11/2011. Rev. 1.0 To install Kies (PC Sync) Download the latest version of Kies from the 1. Samsung website (www.samsung.com/kies) and install it on your PC. Using a USB cable, connect your device to your PC. 2. Samsung Kies will launch automatically. Refer to the Kies help for more information. GT-P6800 user manual Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, ● or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by user editing of registry settings. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p. 12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Using this manual 5 Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ............................................................. 11 Unpack .................................................................................... 11 Install the SIM or USIM card ............................................... 12 Charge the battery ............................................................... 12 Insert a memory card (optional) ....................................... 14 Getting started ....................................................... 17 Turn your device on and off ............................................... 17 Get to know your device ...........................................…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: September 28, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP6800 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communications C ommission 7435 Oakland Mills Road Columbia, MD 21046 SUBJ ECT : Label Stat ement FCC ID : A3L Gentlemen: We hereby provide the label statement letter f or the above-mentioned Tablet by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the FCC ID label is on exterior. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

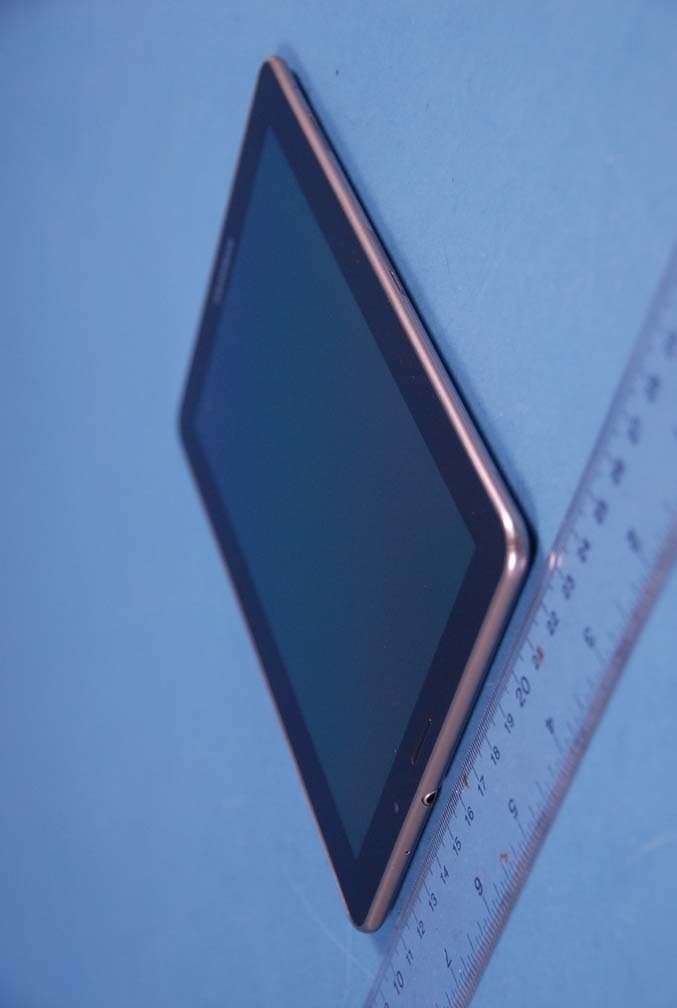

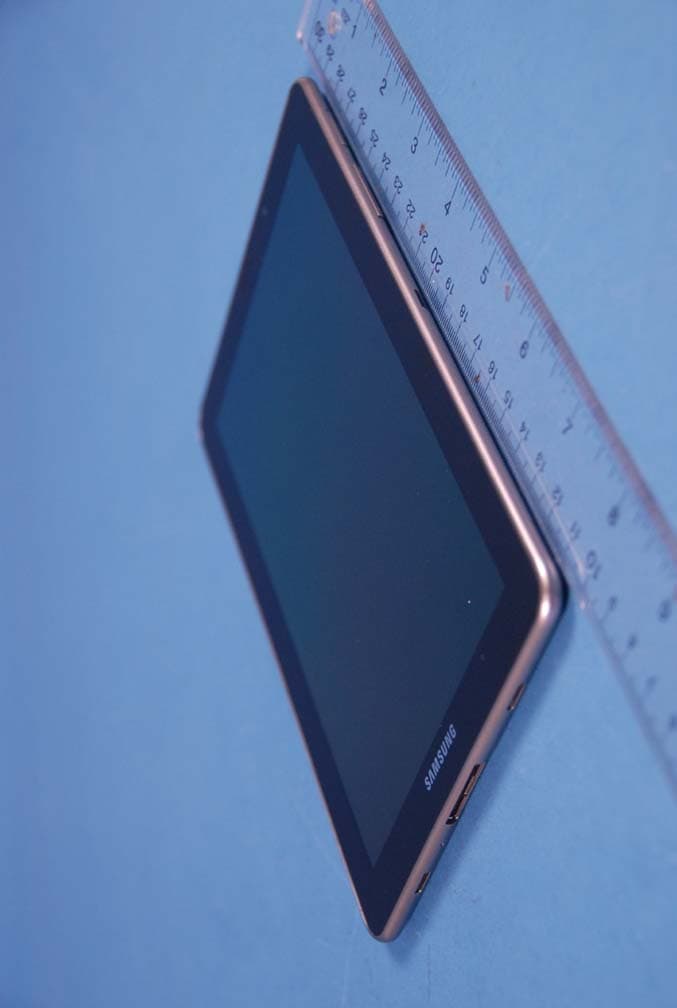

Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 External Photos EUT Type: Portable Tablet Computer Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 External Photos EUT Type: Portable Tablet Computer Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 External Photos EUT Type: Portable Tablet Computer Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 External Photos EUT Type: Portable Tablet Computer Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: GT-P6800 FCC ID: A3LGTP6800 Label: Location: Top Back plate of GT-P6800 Bottom FCC ID is printed on the bottom of device.

FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 70 0Y1108311482-R1.A3L 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/01/11 - 09/27/11 & 11/11/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1108311482-R1.A3L FCC ID: A3LGTP6800 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] GT-P6800 Test Device Serial No.: Pre-Production [S/N:SAR 1, SAR 2, SAR 3, SAR 4] 1 gm Head (W/kg) 1 gm Body (W/kg) GSM/GPRS/EDGE 850824.20 - 848.80 MHz32.050.031.13 WCDMA/HSPA 850826.40 - 846.60 MHz21.870.020.41 GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.670.060.85 WCDMA/HSPA 19001852.4 - 1907.6 MHz21.640.040.99 2.4 GHz WLAN2412 - 2462 MHz14.250.510.62 5.2 GHz WLAN5180 - 5240 MHz11.200.060.10 5.3 GHz WLAN5260 - 5320 MHz11.200.050.19 5.5 GHz WLAN5500 - 5700 MHz10.400.080.31 5.8 GHz WLAN5745 - 5825 MHz10.410.070.51 Bluetooth2402 - 2480 MHz6.93 1.37 W/kg SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations applicable and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1108311482-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 70 0Y1108311482-R1.A3L 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 ANTENNA LOCATIONS AND KEY FEATURES .......................................................................... 16 12 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 30 13 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 35 14 SYSTEM VERIFICATION .............................................................................................................. 38 15 SAR DATA SUMMARY ................................................................................................................. 42 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 56 17 VERTEX SAR TESTS ................................................................................................................... 63 18 EQUIPMENT LIST ......................................................................................................................... 64 19 MEASUREMENT UNCERTAINTIES ............................................................................................ 66 20 CONCLUSION ............................................................................................................................... 68 21 REFERENCES .............................................................................................................................. 69 FCC ID: A3LGTP…

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

SAMSUNG A3LGTP6800 11/21/2011 Reliability Sensor Triggering Data Bottom Edge Sensor triggering distance onthe Bottom side with respect to the Right edge 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Sensor activating Sensor de-activating Distance from Right edge of DUT (mm) d m nstant e SAMSUNG A3LGTP6800 11/21/2011 Reliability Sensor Triggering Data Back side, Right Sensor triggering distance on the Back side with respect to the Right edge 01234567891011121314151617181920 Sensor activating Sensor de-activating Distance from Right edge of DUT (mm) d nt SAMSUNG A3LGTP6800 11/21/2011 Reliability Sensor Triggering Data at the Vertex, by Angle 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 Sensor Activated Sensor de-activated Angle between phantom and the DUT bottom side Triggering angle of Grip sensor between phantom And the bottom side

Reviewed by: FCC ID: A3LGTP6800 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1108311483.A3L 9/01/11 - 9/16/11 Portable Tablet Computer Page 1 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 9/01/11 - 9/16/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1108311483.A3L FCC ID: A3LGTP6800 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Portable Tablet Computer Model(s): GT-P6800 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.538 W ERP Cell. GSM (27.31 dBm) /0.957 W EIRP PCS GSM (29.81 dBm) 0.137 W ERP EDGE850 (21.37 dBm) /0.367 W EIRP EDGE1900 (25.65 dBm) 00.045 W ERP Cell. WCDMA (16.56 dBm) /0.047 W EIRP PCS WCDMA (16.69 dBm) Emission Designator(s): 241KGXW (Cellular GSM), 240KGXW (PCS GSM) 241KG7W (EDGE850), 241KG7W (EDGE1900) 4M05F9W (Cellular WCDMA), 4M06F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: EMC #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LGTP6800 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1108311483.A3L 9/01/11 - 9/16/11 Portable Tablet Computer Page 2 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIAT…

Text truncated - open the document above for the full version.

FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 5 - Back at 0.0 cm SAR Test Setup Photo 6 - Back at 1.0 cm FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 7 – Top at 0.0 cm SAR Test Setup Photo 8 – Bottom at 0.0 cm FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 8 – Bottom at 0.5 cm SAR Test Setup Photo 9 – Right at 0.0 cm FCC ID: A3LGTP6800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vii of vii 09/01/11 - 09/27/11 & 11/11/11 Portable Tablet © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 10 – Left at 0.0 cm SAR Test Setup Photo 11 – 45 ̊ Vertex at 0.0 cm

Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 2 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTP6800 Model: GT-P6800 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc.
