A3LGTS3370DCellular/PCS GSM/EDGE Phone with Bluetooth

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (EU). 01/2010. Rev. 1.0 GT-S3370D user manual Using this manual 2 Using this manual Thank you for purchasing this Samsung mobile phone. This phone will provide you with high quality mobile communication and entertainment based on Samsung’s exceptional technology and hight standards. This user manual has been specially designed to guide you through the functions and features of your phone. Please read this manual carefully before using • your phone to ensure safe and correct use. The descriptions in this manual are based on • the default settings of your phone. Please keep this manual in reserve for future • reference. Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information ► Refer to—pages with related information; for example: ► p.12 (represents “see page 12”) Using this manual 3 Copyright information Rights to all technologies and products that comprise this phone are the property of their respective owners: Bluetooth® is a registered trademark of the • Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B015189 Java™ is a trademark of Sun Microsystems, Inc. • Windows Media Player® is a registered • trademark of Microsoft Corporation. • and are trademarks of SRS Labs, Inc. CS Headphone and WOW HD technologies are incorporated under licence from SRS Labs, Inc. DivX® is a registered trademark of DivX, Inc. and • is used under licence. → Followed by—the order of options or menus you must select to perform a step; for example: In Idle mode, select Messages → Create message (represents Messages, followed by Create message) []Square brackets—phone keys; for example: [ ] (represents the Power/ End key) Using this manual 4 ABOUT DIVX VIDEO DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Plays DivX® video up to 320x240. ABOUT DIVX VIDEO-ON-DEMAND This DivX® Certified device must be registered with DivX in order to play DivX Video-on- Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorised for your device, the message “Authorization Error” will be displayed and your content will not play.] Learn more at http://vod.divx.com. Contents 5 Contents Getting started ............................... 20 Turn your phone on and off ................... 20 Get to know your phone ........................ 20 Phone layout ....................................................................... 20 Keys ......................................................................................... 21 Idle screen ............................................................................ 22 Indicator icons .................................................................... 23 Use the touch screen ............................... 24 Lock or unlock the touch screen and keys 25 Access menus ............................................ 26 Organise applications in Menu mode ..................... 26 Launch and manage applications ........ 27 Launch multiple applications ...................................... 27 Use the task manager ..................................................... 27 Using this manual ............................ 2 Assembling ..................................... 12 Unpack ........................................................ 12 Install the SIM or USIM card and battery . 13 Charge the battery ................................... 14 Charge with the travel adapter ................................... 15 Charge with the PC data cable ................................... 16 Insert a memory card (optional) ........... 17 Remove the memory card ............................................ 18 Format the memory card .............................................. 18 Attach a hand strap (optional) .............. 19 Contents 6 Enter text .................................................... 35 Access help information ......................... 39 Communication ............................. 40 Calling ......................................................... 40 Make and answer a call .................................................. 40 Use the headset ................................................................. 41 Use options during a voice call ................................... 41 Use options during a video call .................................. 42 View and dial missed calls ............................................. 43 Use additional features .................................................. 43 Call log ........................................................ 46 View call and message logs .......................................... 46 View the call manager .................................................... 47 Messages .................................................... 48 Send a text message ....................................................... 48 Set up an MMS profile .................................................... 48 Send a multimedia message ....................................... 49 Set up an email account and profile ........................ 50 Use widgets ............................................... 28 Open the widget toolbar .............................................. 28 View or change widgets ................................................ 28 Download new widgets ................................................ 29 Cu…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: February 9, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS3370D To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/01/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1001220115.A3L F C C I D : A3 L G T S 3 3 7 0 D AP P L I C AN T : S AMS UNG E LE CT RO NI CS , CO . LT D. EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S3370D, GT-S3370 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 32.22 dBm GSM 850 29.54 dBm GSM 1900 Max. SAR Measurement: 0.6 W/kg GSM 850 Head SAR 1.37 W/kg GSM 850 Body SAR 0.45 W/kg GSM 1900 Head SAR 0.22 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: R8YSC59537E] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................15 11 MEASUREMENT UNCERTAINTIES .............................................................................................16 12 SYSTEM VERIFICATION...............................................................................................................17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................19 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................20 15 SAR DATA SUMMARY ..................................................................................................................21 16 EQUIPMENT LIST..........................................................................................................................24 17 CONCLUSION................................................................................................................................25 18 REFERENCES ...............................................................................................................................26 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................28 Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The me…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested : GT-S3370D Additional Model : GT-S3370 FCC ID(Requested) : A3LGTS3370D Report No : FH-003-R1 Job No : FH-003 Date issued : January 19, 2010 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FH-003-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION.............................................................................3 1.1. §2.1033 General Information..................................................................................3 2. INTRODUCTION....................................................................................................................4 2.1. General.......................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION..................................................................5 4. TEST EQUIPMENT LIST......................................................................................................6 5. DESCRIPTION OF TESTS..................................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power....................7 5.2. Radiated Spurious & Harmonic Emission.............................................................8 5.3. Peak-Average Ratio.................................................................................................9 5.4. Occupied Bandwidth..............................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal....................................10 5.5.1. Occupied Bandwidth Emission Limits....................................................10 5.5.2. Conducted Spurious Emission................................................................12 5.6. Frequency Stability / Temperature Variation.......................................................13 6. TEST DATA...........................................................................................................................14 6.1. Conducted Output Power......................................................................................14 6.2. Effective Radiated Power (E.R.P.).......................................................................15 6.3. Equivalent Isotropic Radiated Power (E.I.R.P.)..................................................16 6.4. GSM850 Radiated Spurious & Harmonic measurement..................................17 6.5. GSM1900 Radiated Spurious & Harmonic measurement................................18 6.6. GSM850 Radiated Spurious & Harmonic Conversion Table...........................19 6.7. GSM1900 Radiated Spurious & Harmonic Conversion Table.........................20 6.8. Frequency Stability.................................................................................................21 6.8.1. GSM850 Frequency Stability Table........................................................21 6.8.2. GSM850 Frequency Stability Graph.......................................................22 6.8.3. GSM1900 Frequency Stability Table......................................................24 6.8.4. GSM1900 Frequency Stability Graph.....................................................25 7. CONCLUSION......................................................................................................................27 8. TEST PLOTS........................................................................................................................28 Report Number : FH-003-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID : A3LGTS3370D • Model : GT-S3370D • Additional Model : GT-S3370 • Quantity : Quantity production is planned • Emission Designators : 248KGXW(GSM850), 247KG7W(GSM850 EDGE) 246KGXW(GSM1900), 250KG7W(GSM1900 EDGE) • Tx Freq. Range : 824.2 - 848.8MHz (GSM850) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 869.2 - 893.8 MHz (GSM850) 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.847 W ERP GSM850 (29.28 dBm) 0.785 W EIRP GSM1900 (28.95 dBm) 0.297 W ERP GSM850 EDGE(24.73 dBm) 0.562 W EIRP GSM1900 EDGE(27.50 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 850/1900 GSM/EDGE/GPRS Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : January 11-12, 2010 • Place of Test : SAMSUNG Lab, • Test Report S/N : FH-003-R1 Report Number : FH-003-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to e…

Text truncated - open the document above for the full version.

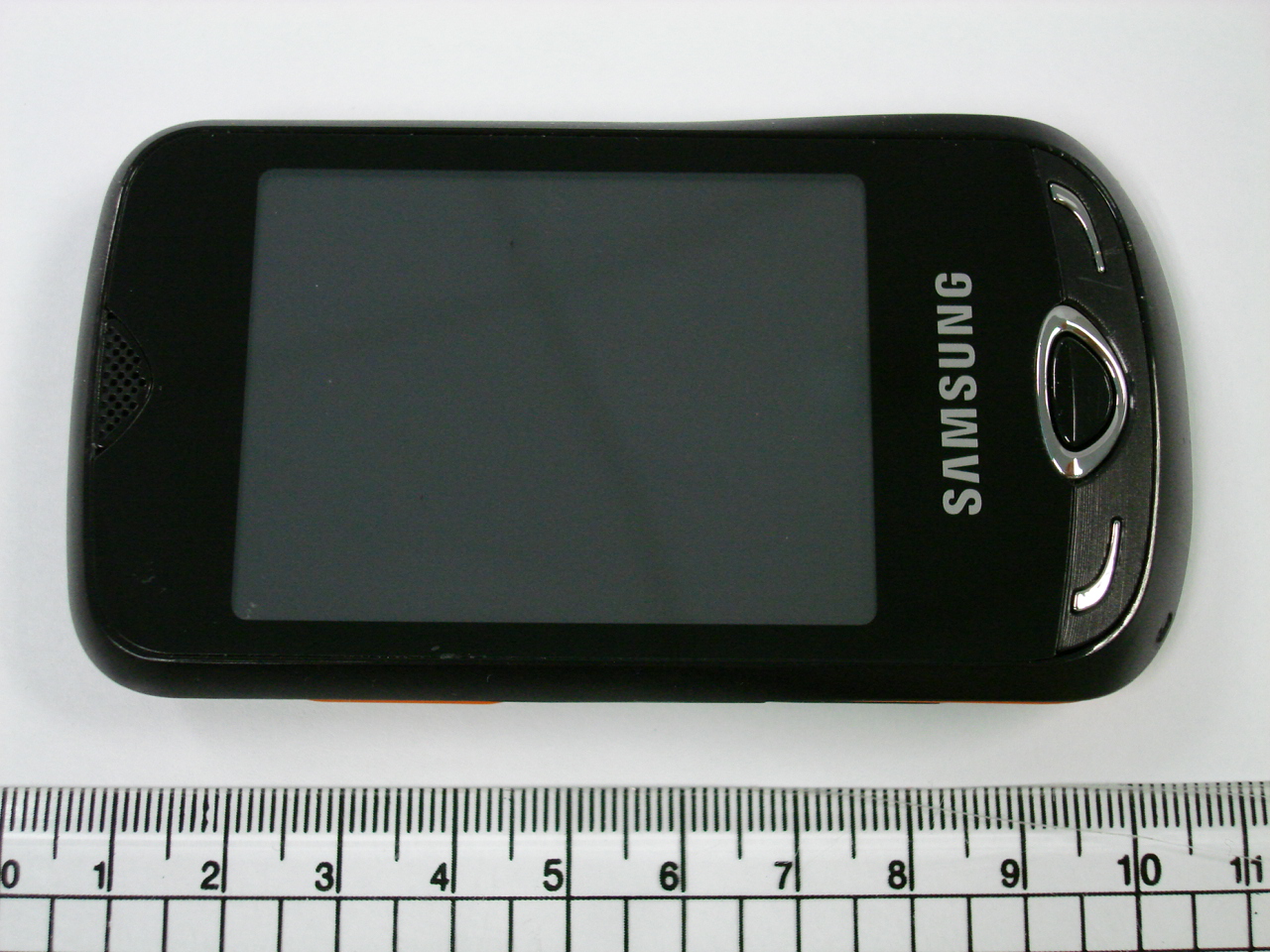

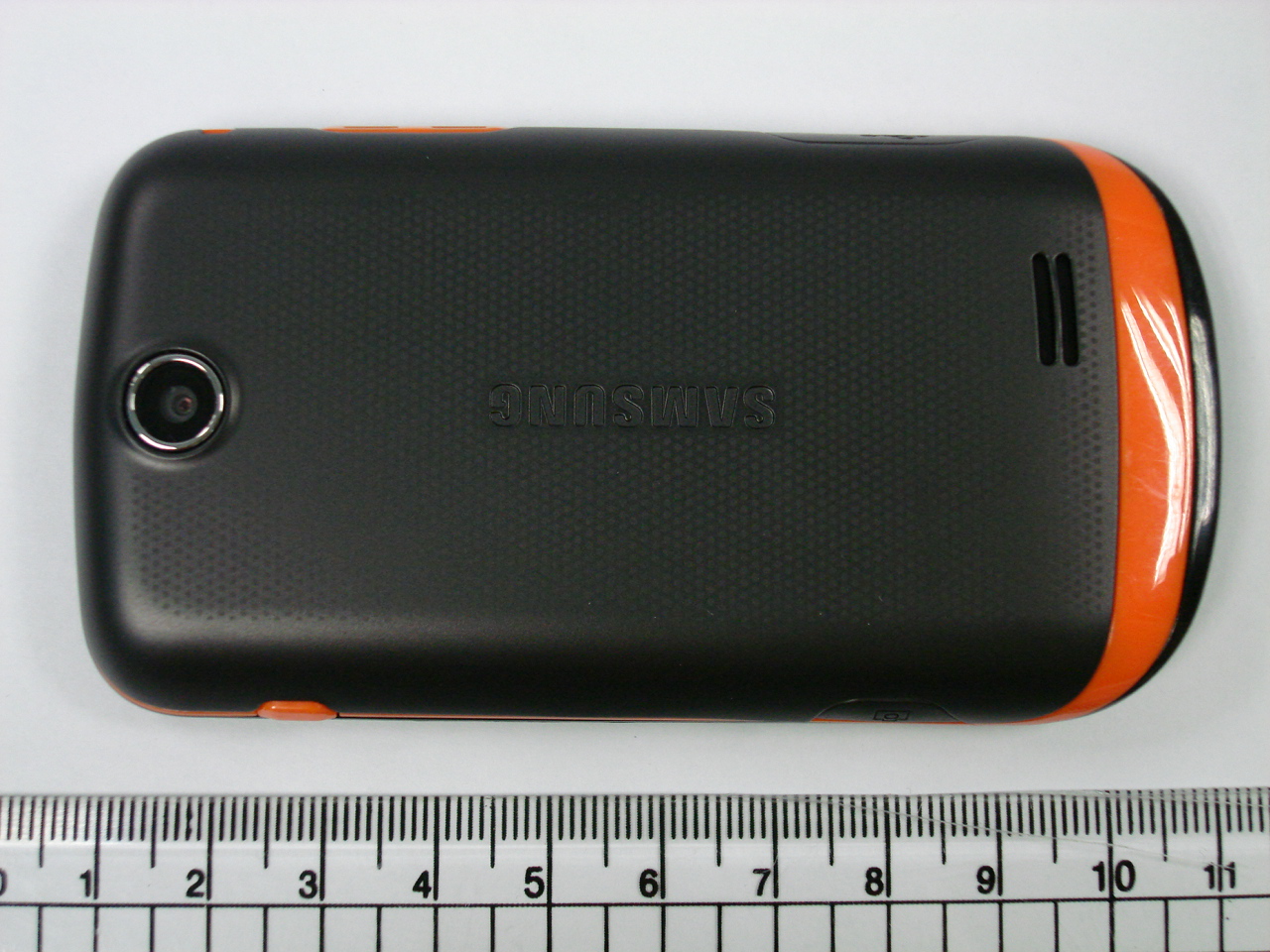

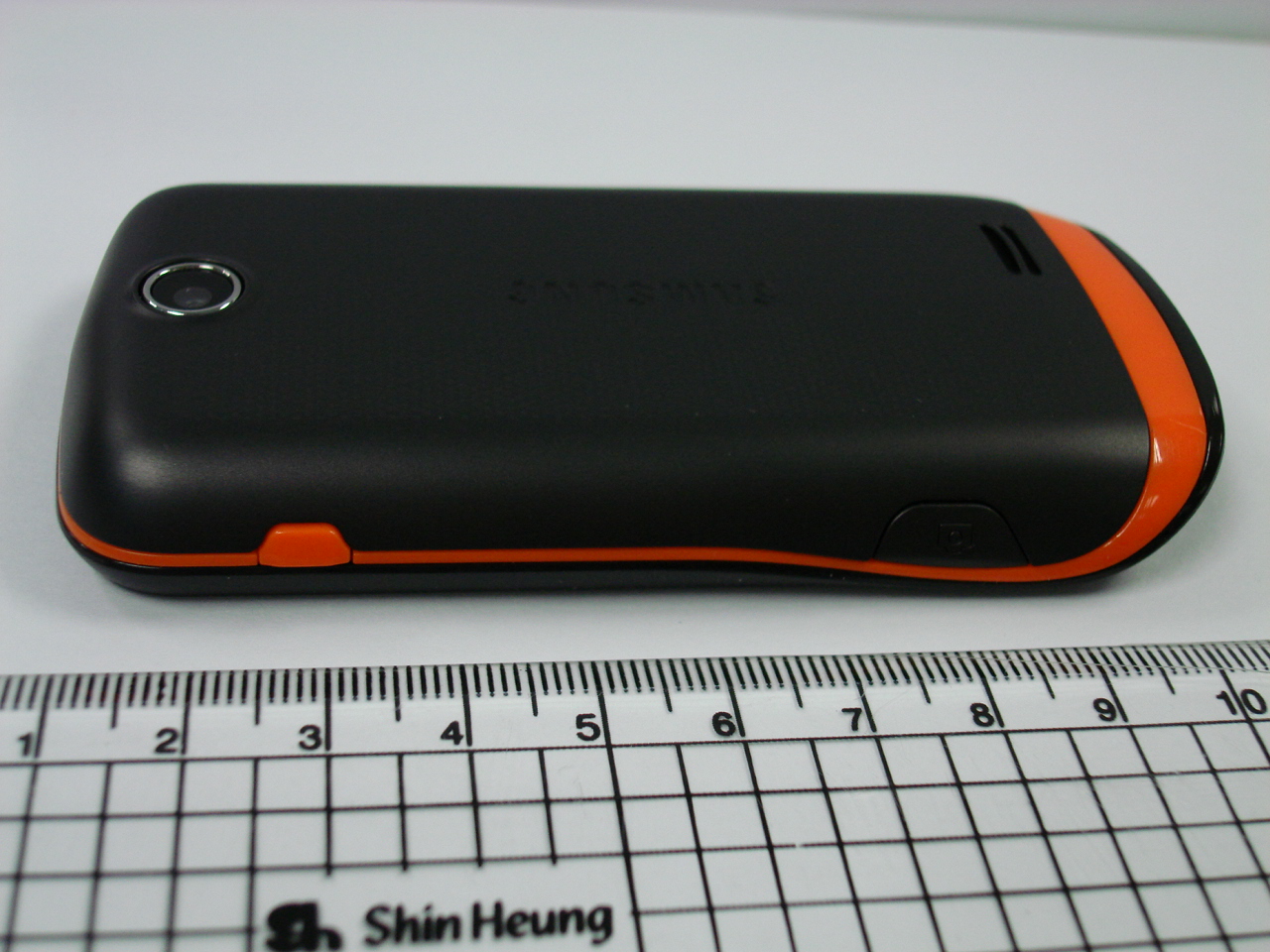

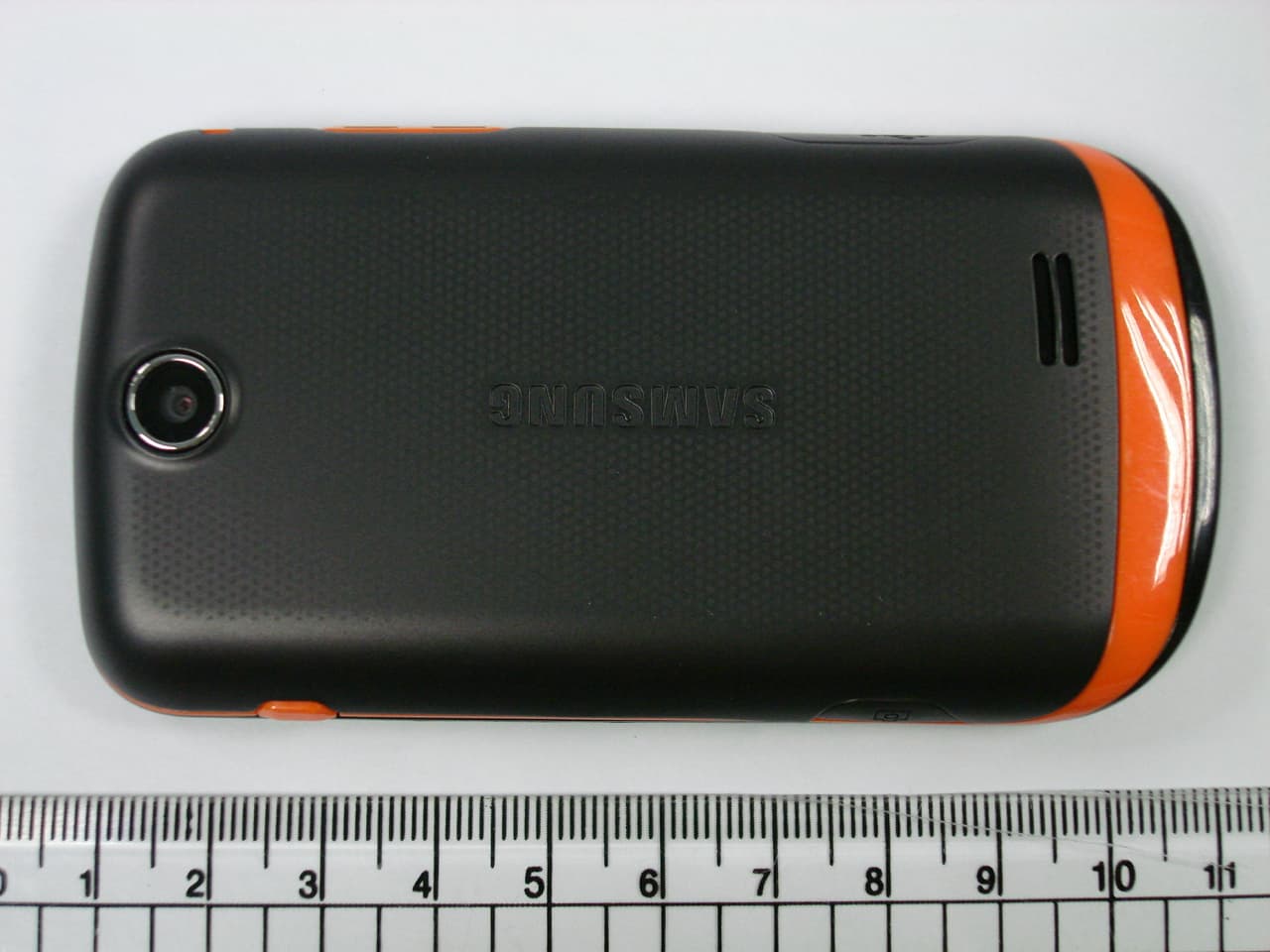

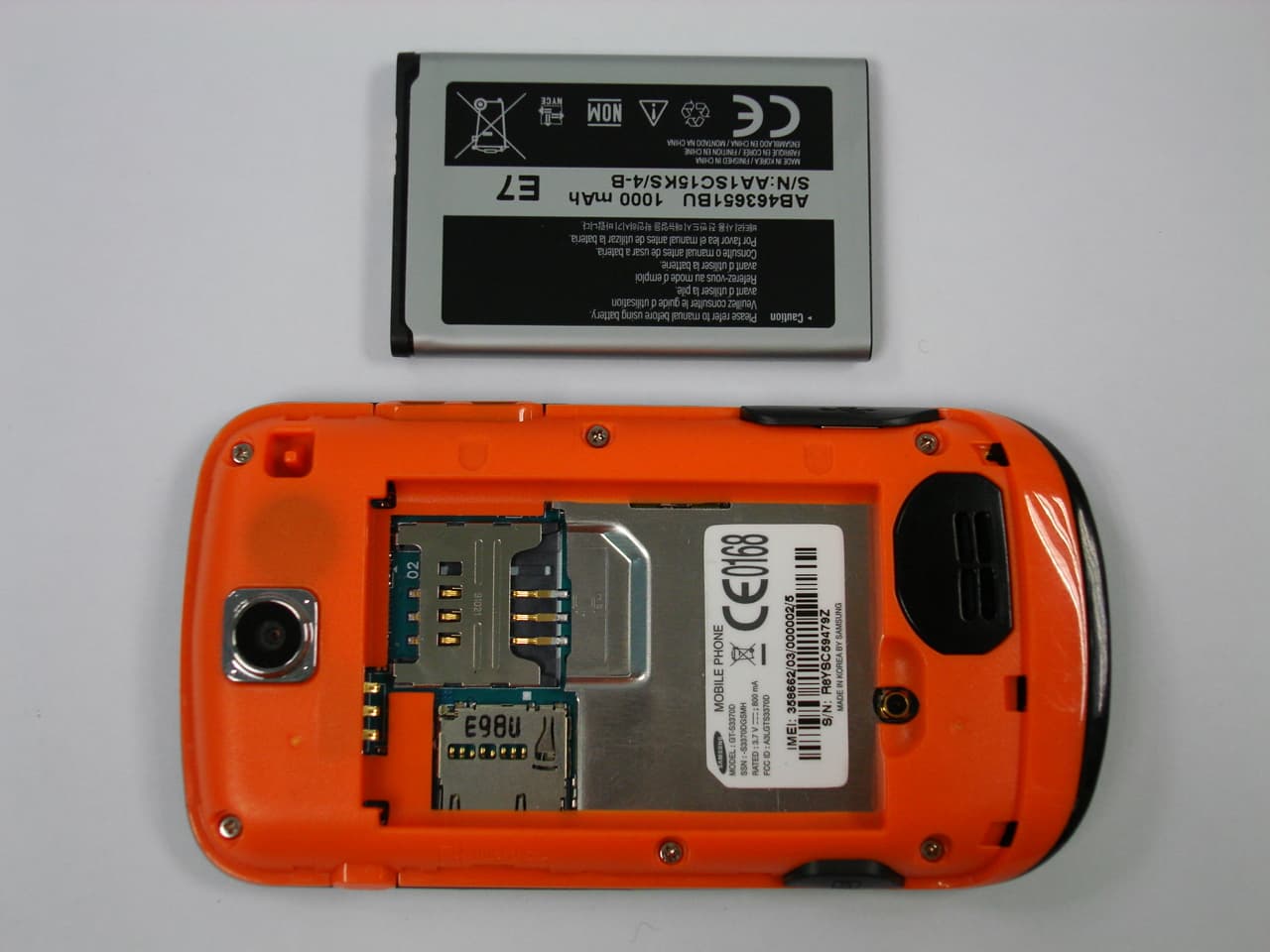

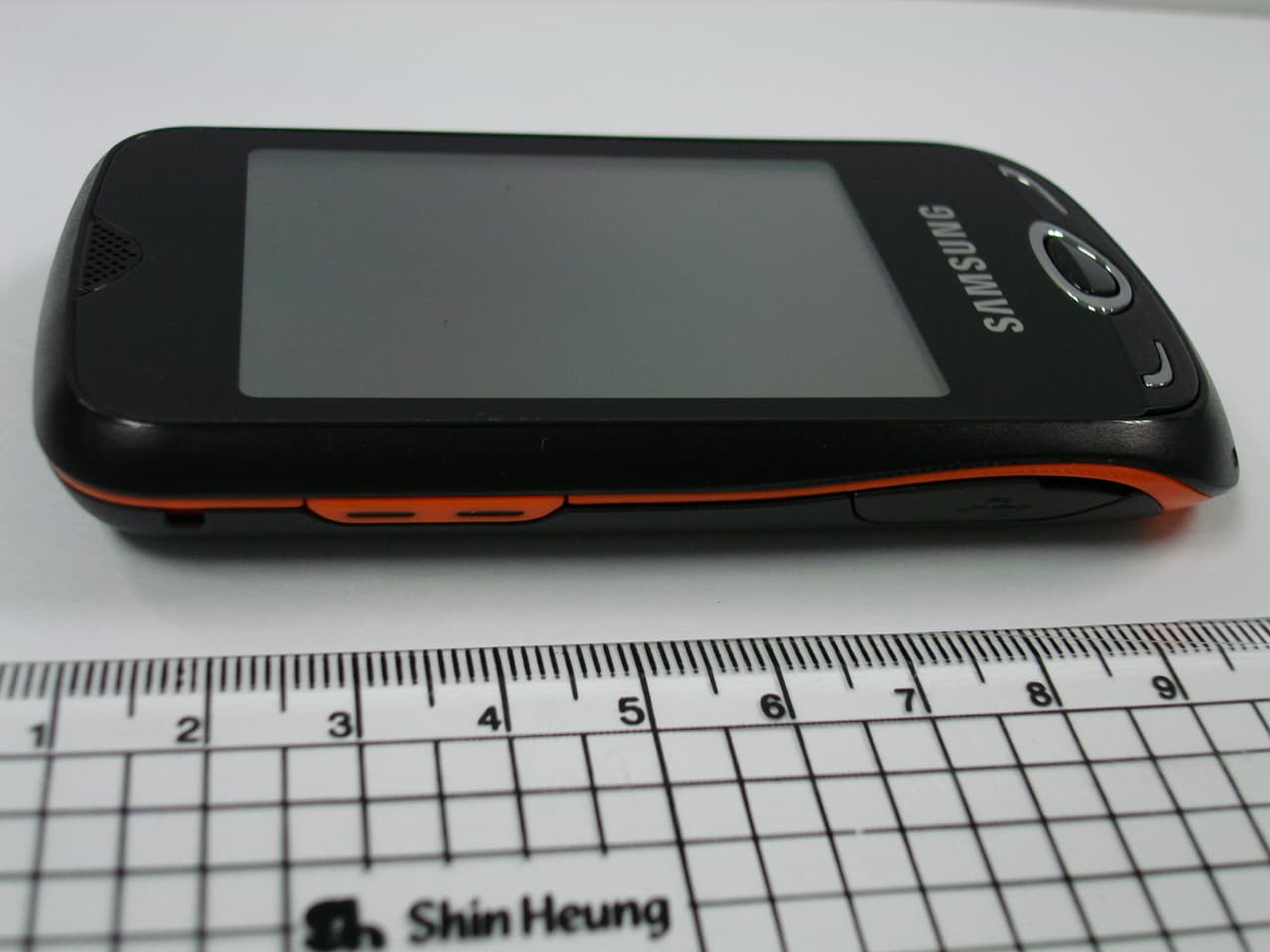

SAMSUNG FCC ID: A3LGTS3370D 850/1900 GSM/EDGE/GPRS Phone with Bluetooth.

Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 28 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 19 S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 29 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 30 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTS3370D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001220115.A3L 03/01/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 31 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/25/2010 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6
