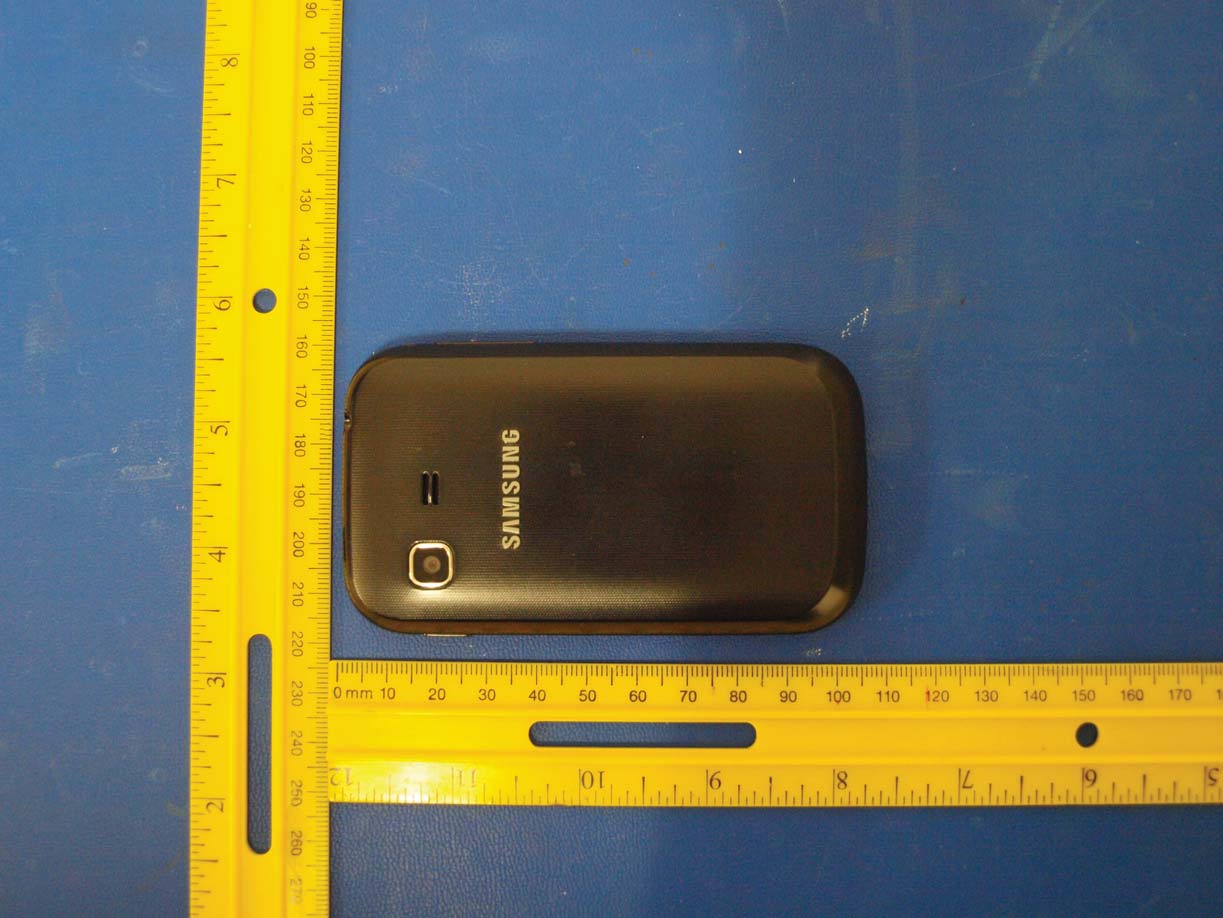

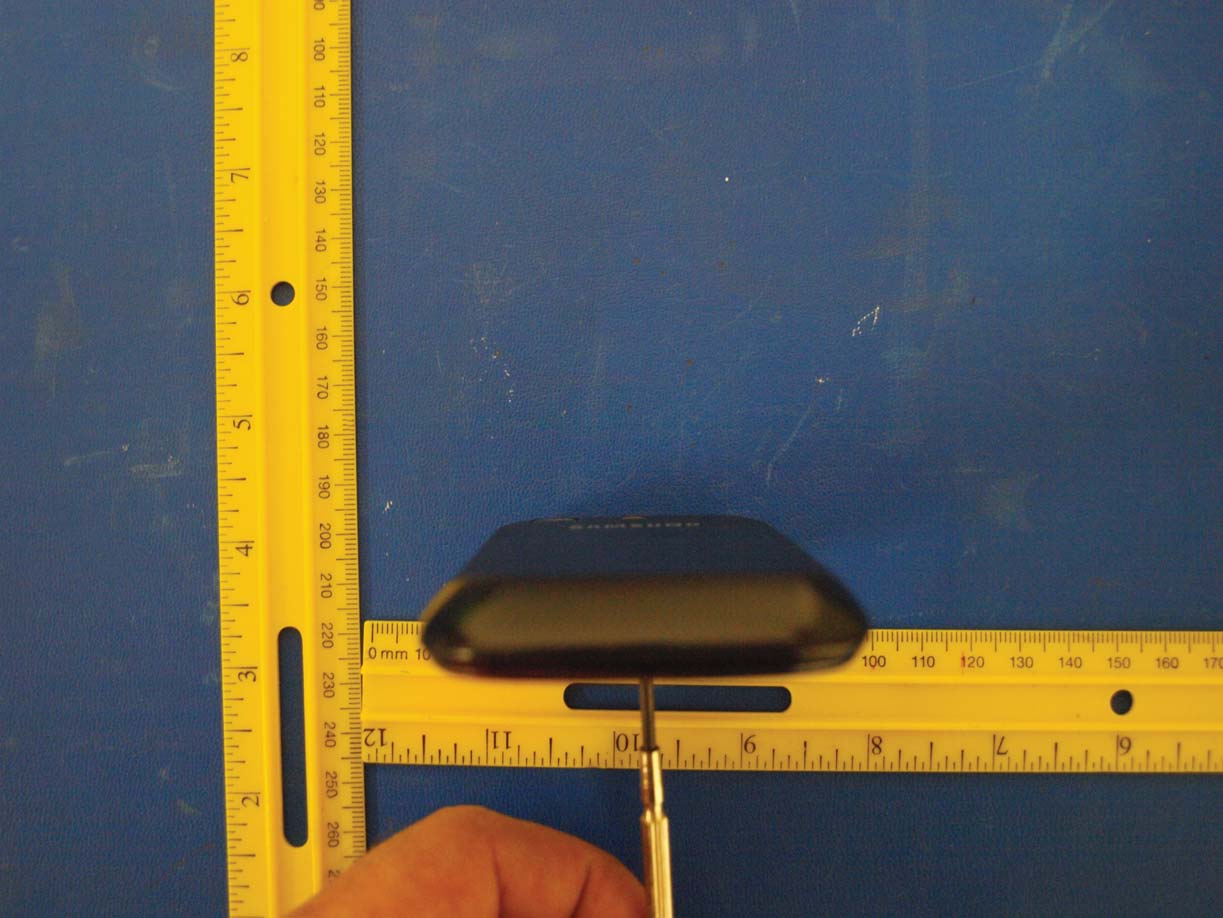

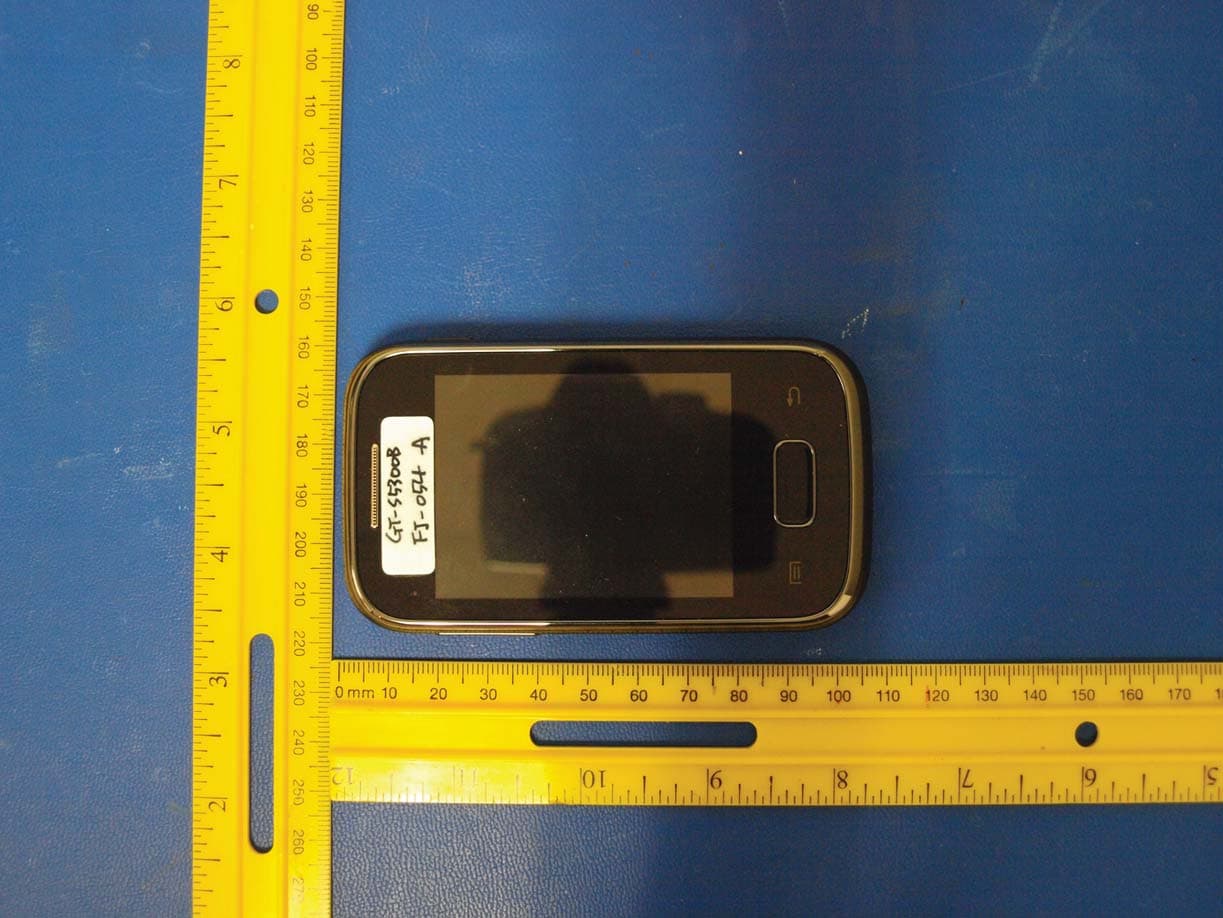

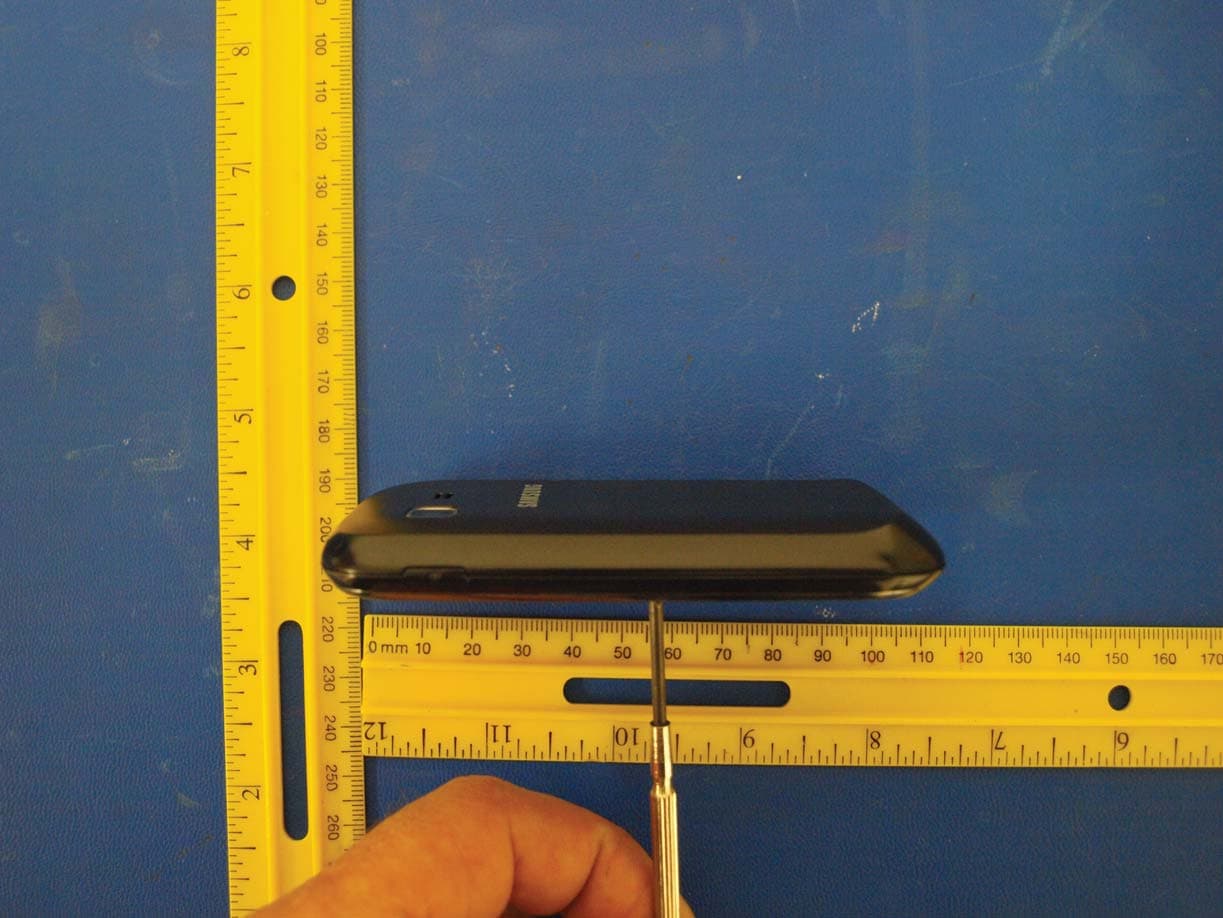

A3LGTS5300BPortable Handset

User manual GT-S5300B Draft 6 2011-12-23 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or per…

Text truncated - open the document above for the full version.

Date: March 14, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTS5300B To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Label and Location Samsung Phone Model: GT-S5300B FCC ID: A3LGTS5300B Label: Location: Top Back plate of GT-S5300B Bottom Label is placed inside of the battery compartment. MODELO : GT-S5300B FCC ID : A3LGTS5300B SSN : -S5300BGSMH ALIMENTACION : 3,7 V ;1000 mA PRODUCTO COREANO / KOREAN PRODUCT TELEFONO CELULAR / CELLULAR PHONE MODELO : GT-S5300B FCC ID : A3LGTS5300B SSN : -S5300BGSMH ALIMENTACION : 3,7 V ;1000 mA PRODUCTO COREANO / KOREAN PRODUCT TELEFONO CELULAR / CELLULAR PHONE

Test Laboratory: UL CCS SAR Lab B Date: 2/29/2012 20120229_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.818 mho/m; ε r = 38.425; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(7.4, 7.4, 7.4); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.537 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 63.205 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 11.7120 SAR(1 g) = 5.5 mW/g; SAR(10 g) = 2.52 mW/g Maximum value of SAR (measured) = 7.830 mW/g 0 dB = 7.830mW/g = 17.88 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 2/29/2012 20120229_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.738 mW/g Test Laboratory: UL CCS SAR Lab C Date: 2/29/2012 20120229_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.904 mho/m; ε r = 43.347; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.118 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.701 V/m; Power Drift = -0.21 dB Peak SAR (extrapolated) = 1.4780 SAR(1 g) = 0.980 mW/g; SAR(10 g) = 0.644 mW/g Maximum value of SAR (measured) = 1.201 mW/g 0 dB = 1.200mW/g = 1.58 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 2/29/2012 20120229_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.842 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/1/2012 20120301_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.879 mho/m; ε r = 41.429; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.059 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.674 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.4940 SAR(1 g) = 0.998 mW/g; SAR(10 g) = 0.653 mW/g Maximum value of SAR (measured) = 1.213 mW/g 0 dB = 1.210mW/g = 1.66 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/1/2012 20120301_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.830 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/1/2012 20120301_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.977 mho/m; ε r = 50.827; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(7.44, 7.44, 7.44); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.580 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.548 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 10.9340 SAR(1 g) = 5.25 mW/g; SAR(10 g) = 2.42 mW/g Maximum value of SAR (measured) = 7.389 mW/g 0 dB = 7.390mW/g = 17.37 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/1/2012 20120301_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.673 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/2/2012 20120302_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.984 mho/m; ε r = 53.507; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.64, 8.64, 8.64); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1121 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.083 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.656 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.4190 SAR(1 g) = 0.959 mW/g; SAR(10 g) = 0.632 mW/g Maximum value of SAR (measured) = 1.164 mW/g 0 dB = 1.160mW/g = 1.29 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/2/2012 20120302_SystemPerformanceCheck-D835V2 - SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, …

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 3/2/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.88 mho/m; ε r = 41.411; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left Touch/GSM_ch 190/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.675 mW/g Left Touch/GSM_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.824 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.9070 SAR(1 g) = 0.645 mW/g; SAR(10 g) = 0.449 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.761 mW/g 0 dB = 0.760mW/g = -2.38 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/2/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.88 mho/m; ε r = 41.411; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left Tilt/GSM_ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.278 mW/g Left Tilt/GSM_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.053 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.3080 SAR(1 g) = 0.254 mW/g; SAR(10 g) = 0.194 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.280 mW/g 0 dB = 0.280mW/g = -11.06 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/1/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.88 mho/m; ε r = 41.411; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right Touch/GSM_ch 190/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.674 mW/g Right Touch/GSM_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.929 V/m; Power Drift = -0.0024 dB Peak SAR (extrapolated) = 0.8530 SAR(1 g) = 0.614 mW/g; SAR(10 g) = 0.420 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.725 mW/g 0 dB = 0.730mW/g = -2.73 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/2/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.88 mho/m; ε r = 41.411; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right Tilt/GSM_ch 190/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.272 mW/g Right Tilt/GSM_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.904 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.3110 SAR(1 g) = 0.255 mW/g; SAR(10 g) = 0.193 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.284 mW/g 0 dB = 0.280mW/g = -11.06 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/3/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.986 mho/m; ε r = 53.495; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.64, 8.64, 8.64); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1121 Rear/Ch 190/Area Scan (10x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.882 mW/g Rear/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.318 V/m; Power Drift = -0.0014 dB Peak SAR (extrapolated) = 1.0030 SAR(1 g) = 0.725 mW/g; SAR(10 g) = 0.506 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.851 mW/g 0 dB = 0.850mW/g = -1.41 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/3/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037 Rear/Ch 190/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.828 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/3/2012 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.986 mho/m; ε r = 53.495; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1850.2 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.38 mho/m; ε r = 40.534; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left Touch/GSM Ch-512/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.988 mW/g Left Touch/GSM Ch-512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.783 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 1.4790 SAR(1 g) = 0.874 mW/g; SAR(10 g) = 0.466 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.127 mW/g 0 dB = 1.130mW/g = 1.06 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1850.2 MHz; Duty Cycle: 1:8.30042 Left Touch/GSM Ch-512/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.865 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 40.406; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left Touch/GSM Ch-661/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.054 mW/g Left Touch/GSM Ch-661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.187 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.4440 SAR(1 g) = 0.849 mW/g; SAR(10 g) = 0.442 mW/g Maximum value of SAR (measured) = 1.112 mW/g 0 dB = 1.110mW/g = 0.91 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1909.8 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1910 MHz; σ = 1.441 mho/m; ε r = 40.282; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left Touch/GSM Ch-810/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.870 mW/g Left Touch/GSM Ch-810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.877 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 1.2930 SAR(1 g) = 0.756 mW/g; SAR(10 g) = 0.403 mW/g Maximum value of SAR (measured) = 0.989 mW/g 0 dB = 0.990mW/g = -0.09 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 40.406; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left Tilt/GSM Ch-661/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.191 mW/g Left Tilt/GSM Ch-661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.949 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.3100 SAR(1 g) = 0.185 mW/g; SAR(10 g) = 0.105 mW/g Maximum value of SAR (measured) = 0.239 mW/g 0 dB = 0.240mW/g = -12.40 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 40.406; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right Touch/GSM Ch-661/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.571 mW/g Right Touch/GSM Ch-661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.226 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.8160 SAR(1 g) = 0.493 mW/g; SAR(10 g) = 0.268 mW/g Maximum value of SAR (measured) = 0.628 mW/g Right Touch/GSM Ch-661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.226 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.7970 SAR(1 g) = 0.479 mW/g; SAR(10 g) = 0.274 mW/g Maximum value of SAR (measured) = 0.592 mW/g 0 dB = 0.590mW/g = -4.58 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/6/2012 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 40.406; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Right Tilt/GSM Ch-661/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.191 mW/g Right Tilt/GSM Ch-661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.996 V…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 2/29/2012 UMTS Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.906 mho/m; ε r = 43.328; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left Touch/R99 RMC_Ch 4183/Area Scan (7x10x1): Measuremen…
