A3LML-2150Laser Beam Printer

SAMSUNG LASER PRINTER User’s Guide i This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual. © 2002 Samsung Electronics Co., Ltd. All rights reserved. •ML-2150 and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •PCL and PCL 6 are trademarks of Helett-Packard Company. •Centronics is a trademark of Centronics Data Computer Corporation. •IBM and IBM PC are trademarks of International Business Machines Corporation. •Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. •Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and Windows XP are registered trademarks of Micorsoft Corporation. •All other brand or product names are trademarks of their respective companies or organizations. ii C ONTENTS Chapter 1: I NTRODUCTION Special Features .................................................. 1.2 Printer Components ............................................. 1.4 Front View ..................................................... 1.4 Inside View .................................................... 1.5 Rear View ...................................................... 1.5 Understanding the Control Panel ............................ 1.6 On Line/Error and Toner Save LEDs ................... 1.6 Cancel button ................................................. 1.7 Chapter 2: S ETTING U P Y OUR P RINTER Unpacking .......................................................... 2.2 Selecting a Location ........................................ 2.3 Installing the Toner Cartridge ................................ 2.4 Loading Paper ..................................................... 2.6 Changing the Paper Size in the Tray .................. 2.8 Connecting a Printer Cable .................................... 2.9 Turning the Printer on ......................................... 2.11 Printing a Demo Page .......................................... 2.12 Installing Printer Software ................................... 2.13 Printer Driver Features ................................... 2.14 Installing Printer software in Windows .............. 2.15 Installing the USB Driver in Windows 98/Me ............................................. 2.18 iii Chapter 3: U SING P RINT M ATERIALS Choosing Paper and Other Materials ....................... 3.2 Sizes and Capacities ....................................... 3.3 Guidelines for Paper and Special Materials .......... 3.4 Selecting the Output Location ................................ 3.5 Printing to the Top Output Tray (Face down) ...... 3.5 Printing to the Rear Output Tray (Face up) ......... 3.6 Loading Paper ..................................................... 3.7 Using the Tray ................................................ 3.7 Using the Manual Feeder ................................. 3.8 Printing on Envelopes .......................................... 3.10 Printing on Labels ............................................... 3.12 Printing on Transparencies ................................... 3.13 Printing on Card Stock or Custom-sized Materials ....................................... 3.15 Chapter 4: P RINTING T ASKS Printing a Document ............................................ 4.2 Canceling a Print Job ....................................... 4.4 Using a Favorite Setting .................................. 4.5 Using Help ..................................................... 4.5 Setting Paper Properties ....................................... 4.6 Using the Toner Save Mode ................................... 4.8 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ................................................... 4.10 Scaling Your Document ....................................... 4.12 Fitting Your Document to a Selected Paper Size ...... 4.13 Printing Posters .................................................. 4.14 Setting Graphic Properties ................................... 4.16 Printing Watermarks ........................................... 4.19 Using an existing Watermark ........................... 4.19 Creating a Watermark .................................... 4.20 Editing a Watermark ...................................... 4.21 Deleting a Watermark .................................... 4.21 Printing Overlays ................................................ 4.22 What is an Overlay? ....................................... 4.22 Creating a New Page Overlay .......................... 4.22 Using a Page Overlay ..................................... 4.24 Deleting a Page Overlay ................................. 4.25 Using the Status Monitor ..................................... 4.26 Opening the Status Monitor ............................. 4.26 Setting Up Locally Shared Printer .......................... 4.28 Windows 98/Me ............................................. 4.28 Windows NT/2000/XP ..................................... 4.29 iv Chapter 5: M AINTAINING Y OUR P RINTER Maintaining the Toner Cartridge ............................. 5.2 Redistributing Toner ........................................ 5.3 Replacing the Toner Cartridge .......................... 5.4 Cleaning the Printer ............................................. 5.5 Cleaning the Outside ....................................... 5.5 Cleaning the Inside ......................................... 5.5 Consumables and Replacement Parts ..................... 5.8 Chapter 6: S OLVING P ROBLEMS Troubleshooting Checklist ..................................... 6.2 Solving General Printing Problems .......................... 6.3 Clearing Paper Jams ............................................. 6.7 In the Paper Exit Area ..................................... 6.7 In the Paper Feed Area .................................... 6.9 Around the Toner Cartridge .......................…

Text truncated - open the document above for the full version.

PRINTING TASKS 4.21 4 Editing a Watermark 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and click the Edit button in the Watermark section. The Watermarks window appears. 3Select the watermark you want to edit in the Current Watermarks list, and change the watermark message and the options. Refer to “Creating a Watermark” on page 4.20. 4Click Update to save the changes. 5Click OK. Deleting a Watermark 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2From the Extras tab, click the Edit button in the Watermark section. 3Select the watermark you want to delete in the Current Watermarks list, and click Delete. 4Click OK. PRINTING TASKS 4.22 Printing Overlays What is an Overlay? An overlay is text and/or images stored in the computer hard disk drive(HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the printer. You need only tell the printer to print the letterhead overlay on your document. Creating a New Page Overlay To use a page overlay, you must create a new page overlay containing your logo or image. 1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use. 2When you change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab, and click Edit button in the Overlay section. WORLD BEST Dear ABC Regards WORLD BEST PRINTING TASKS 4.23 4 4In the Overlays window, click Create Overlay. 5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover). 6Click Save. You will see the name in the Overlay List. 7Click OK or Yes until you complete creating. The file is not printed out. Instead it will be stored on your computer HDD disk. Note: The overlay document size must be the same as documents you will print with the overlay. Do not create an overlay with a watermark. PRINTING TASKS 4.24 Using a Page Overlay After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document: 1Create or open the document you want to print. 2When you change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab. 4Select the desired overlay from the Overlay drop-down list box. 5If the desired overlay file does not appear in the Overlay list, click Edit button and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use into an external source, you can also load the file when you access the Load Overlay window. After you select the file, click Open. The file is now shown in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. PRINTING TASKS 4.25 4 6If necessary, click Query Page Overlay. If this box is checked, a message window will appear each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document. Answering Yes to the window means that the selected overlay will be printed with your document. Answering No to the window cancels overlay printing. If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document. 7Click OK or Yes until the printing starts. The selected overlay will be downloaded with your print job and printed on your document. Note: The resolution of the overlay document must be the same as that of the document you will print with the overlay. Deleting a Page Overlay You can delete page overlays that are no longer used. 1In the printer properties window, click the Extras tab. 2Click Edit in the Overlay section. 3Select the overlay you want to delete from the Overlay List box. 4Click Delete Overlay. 5Click OK until you exit the Print window. PRINTING TASKS 4.26 Using the Status Monitor If you installed the Status Monitor software, you can check the current status of the printer whenever you want. If an error occurs in your printer, the Status Monitor window appears, showing the error. Note: The Status Monitor program can be used only if you connect the printer to your computer with the USB cable. Opening the Status Monitor 1Double click the Status monitor icon on the Windows task bar. Or, select Programs from Start, Samsung ML-2150 Series, and Samsung Printer Status Monitor. 2The Samsung ML-2150 Series Status monitor window appears. Double click this icon. You can change the Status Monitor program setting. To use Help, click this icon. You can check the version of the Status Monitor. PRINTING TASKS 4.27 4 Changing the Status Monitor Program Setting From the Status Monitor window if you click the configuration icon , you can see the following window. • Always On Top always shows the Status monitor window on the top of the window regardless opening other programs. • Pop up the Status Monitor Screen when print error occurs shows the Status monitor window when an error occurs in the printer. • Enable Error Indicator with Tray icon shows the blinking tray icon which indicates an error occurs in your printer. Note: When the Status monitor window appears to indicate an error, you can see the corresponding solution. Error message is displayed. Click this to see the video clip of the solution. To solve the problem, follow this solution. Click this icon to cancel the current print job. PRINTING TASKS 4.28 Setting Up …

Text truncated - open the document above for the full version.

ADDR(1:23) 29LV160 16Mbit Flash Memory Mask Font ROM ROM SPGP m nFSYNC ACK*,BUSY, SELECT,ERROR, FAULT* SELIN* STROBE* AUTOFD* INI* PD(0:7) EIRQ(0:3)* 4 nIOCS(0:5)* 6 RCS(0:3) 4 nWAIT nWR INT* nRD Centronics Connector PANEL 5Pin 5 HVPS Interface 2 4 HVPS/SMPS B'd 100PIN DIMM LCD Panel ML-2060/2061N Block Diagram 60Pin Network Network Card ADDR(1:13) DATA(16:3 1) nWAIT nRD nWR NPC_RESE T IOCS EIRQ Computer System clock 12MHz(X-tal) FS781 Frequency Scaling EMI Attenuator RESET* XC61FN3112MR DATA(16:31) Video-Clock 78MHz VCLK* 32 Memory Data Bus 11 Memory Address Bus 14 SDRAM_CAS,SDRAM_RAS, BA0*,BA1*,SDRAM_WE*, SDRAM_CS(0:1),SDQM(0:3), SD_CLK(1:2),CLKE 64Mbit SDRAM K4S641632C SDRAM 64Mbit SDRAM K4S641632C DRAMA(0:11) DRAMD(0:31) 100PIN DIMM 74ACT245 Transceive r 93C66 4Mbit Serial EEPROM 3 LSU LREADY*,,LSYNC*,VDO*,P_MOT*,CLK UART 16 11 Regulator 1.8V USB clock 12MHz(OSC)

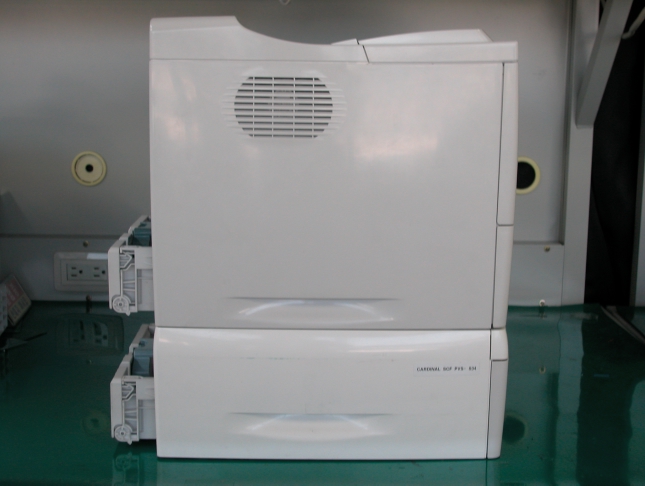

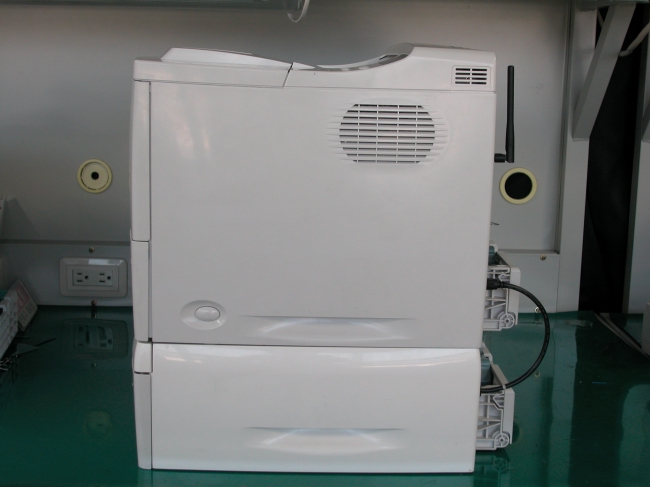

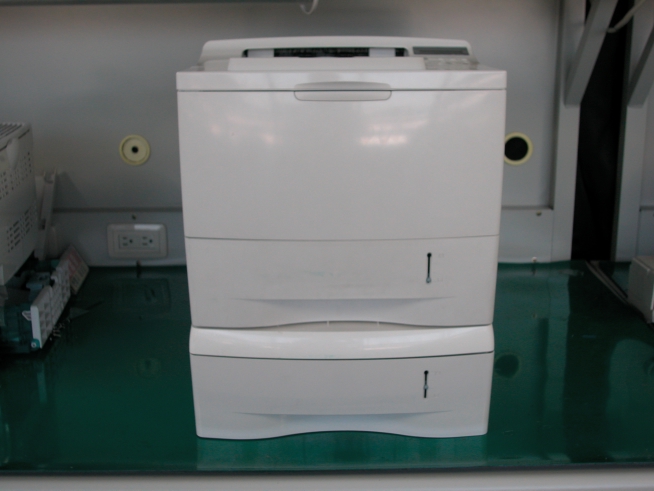

FrontViewofEUT Rear View of EUT Side View of EUT Side View of EUT

Top View of Main Controller Bottom View of Main Controller TopViewofSMPS+HVPS Bottom View of SMPS + HVPS Top View of SCF Board Bottom View of SCF Board Top View of ROM DIMM Bottom View of ROM DIMM Top View of RAM DIMM Bottom View of RAM DIMM Top View of N/W card Bottom View of N/W card Top View of WLAN module Bottom View of WLAN module

Page 1 of 16 Project NO. : LBE021056 Product :Laser Beam Printer Model No. : ML-2150 FCC ID : A3LML-2150 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test :November 29, 2002 ~December 2, 2002 Issued Date :December 3, 2002 Tested by: Jong Ho, Lee / Test Engineer Reviewed by: Yang Soo, KIM / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT According to FCC Part 15 Subpart B/Class B NVLAP Code: 200447 Page 2 of 16 Project NO. : LBE021056 Table of Contents 1. General Information 1.1 Product Description 1.2 Configuration of EUT and peripherals 1.3 Used Cable Description 1.4 System Block Diagram of Test Configuration 1.5 Test Facility 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Environment 2.3 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Label Configuration and Location 6. Test Equipment Used Distribution This test report has been made available as follows: CS Management Center, EMC Laboratory1 original Printer Division1 copy This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 16 Project NO. : LBE021056 1. General Information Applicant :Samsung Electronics Co., Ltd. Full Address :416 Maetan 3 Dong, Paldal-Gu, Suwon City, Gyunggi Do, Korea, 442-742 Kind of Product :Laser Beam Printer FCC ID:A3LML-2150 Project Name :- Model & Variant Names : ML-2151N(Installed 10/100 Base Tx LAN) ML-2152W (Installed 10/100 Base Tx & 802.11b Wireless LAN) Test Report Produced by : Jong Ho, Lee / Test Engineer This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 16 Project NO. : LBE021056 1.1 Product Description 1) Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. The system was pre-tested using the below additional components, and we found worst emission level for the components, were selected as the final components for the test. ML-00NB ML-00LB And then the system was tested with the configuration as above In each test mode, Finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the DATA of the maximum EUT operation was reported. Further details of cabling and configuration are shown in the test system configuration. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 802.11b Wireless LAN ComponentBrand and Model NameRemark Wireless NIC NIC10/100 Base Tx LAN Page 5 of 16 Project NO. : LBE021056 2) Operating Frequency : USB 30MHzCPU 120MHz Main Clock 60MHzVideo 19.61374MHz 3) Description of Testing operating mode USB2.0 PrintingContinuously H pattern printing by Computer IEEE1284 PrintingContinuously H pattern printing by Computer Continuously H pattern printing by Network Continuously H pattern printing by Network EUT was tested all operating mode as above.Finally EUT was tested USB2.0 Printing mode as maximum emission. 4) Tested Resolution : 5) Manufacturer : SAMSUNG Electronics Co., Ltd. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Tested Video mode LCD(14.1")1024 X 768 Operating Mode Operating section of EUT Refresh ratesColors Wireless LAN LAN Resolutions 60Hz32bits Page 6 of 16 Project NO. : LBE021056 1.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerFCC ID ALBPML-2150-SamsungEUT BComputerType831115VKAA6842IBMDoC CKeyboard SDL352027011381Samsung DoC DMouse P8012072747Samsung DoC EMonitor CX151S N209H4NT726970 Samsung DoC This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 16 Project NO. : LBE021056 1.3 Used Cable Description No.ItemLength[m] Shielded (Y/N) Remark 1AC Power Cable1.7N 2Mouse Cable1.2N 3Keyboard Cable1.2N 4Monitor Cable1.4Y 5IEEE1284 Cable1.5Y 6USB Cable1.4Y 7LAN Cable1.5Y EUT was connected to either Wireless LAN or LAN. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 16 Project NO. : LBE021056 1.4 System Block Diagram of Test Configuration LAN* : EUT was connected to either Wireless LAN or LAN. 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Gu, Suwon City, Gyunggi Do, Korea, 442-742 Semi Anechoic Chamber #1(Registration Number:98856) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. D B C E A















 Page 9 of 16 Project NO. : LBE021056 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)…

Text truncated - open the document above for the full version.

Page 9 of 16 Project NO. : LBE021056 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 16 Project NO. : LBE021056 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
