A3LSCHA205Dual-Mode Cellular Phone (AMPS/CDMA)

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL SCH-T300(Dual-Band Tri-Mode) September 18, 2000 FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only Samsung approved accessories. When carrying the phone while it is on, use the specific Samsung belt-clip that has been tested for compliance. The use of non-Samsung approved accessories may violate FCC RF exposure guidelines and should be avoided. FOR MORE INFORMATION ABOUT RF EXPOSURE, PLEASE VISIT THE FCC WEBSITE AT WWW.FCC.GOV WARNING! Read this information before using your phone

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL SCH-A205(Dual-Mode) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only Samsung approved accessories. When carrying the phone while it is on, use the specific Samsung belt-clip that has been tested for compliance. The use of non-Samsung approved accessories may violate FCC RF exposure guidelines and should be avoided. FOR MORE INFORMATION ABOUT RF EXPOSURE, PLEASE VISIT THE FCC WEBSITE AT WWW.FCC.GOV WARNING! Read this information before using your phone

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) October 23, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America October 23, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHA205 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. November 10, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHA205), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHA205) is so designed that it complies with all the requirements for ESN protection specified in Sec. 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. \\Test report\pctest\Master Word Documents\Master RF Exposure Statement October 23, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHA205 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER October 23, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHA205 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Dual-Mode Cellular (AMPS/CDMA): FCC ID: A3LSCHA205 TRADE / MODEL(s): SAMSUNG SCH-A205, SCH-A201 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.519 W ERP AMPS (27.15 dBm) 0.427 W ERP CDMA (26.30 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

January 8, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Steve Dayhoff SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA205 731 Confirmation No.: EA99283 Correspondence Reference No.: 17450 Request for Tech. Info.: 1/5/01 Dear Steve: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to the request for technical information. 1. Please find attached a letter from Samsung indicating the deletion of the necklace accessory, and the deletion of the necklace from the users manual page. 2. Please find attached the revised body-worn statement in the users manual. 3. Attached is the revised body-worn SAR data table summary (page 16). Please note that the submitted SAR plots are correct. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

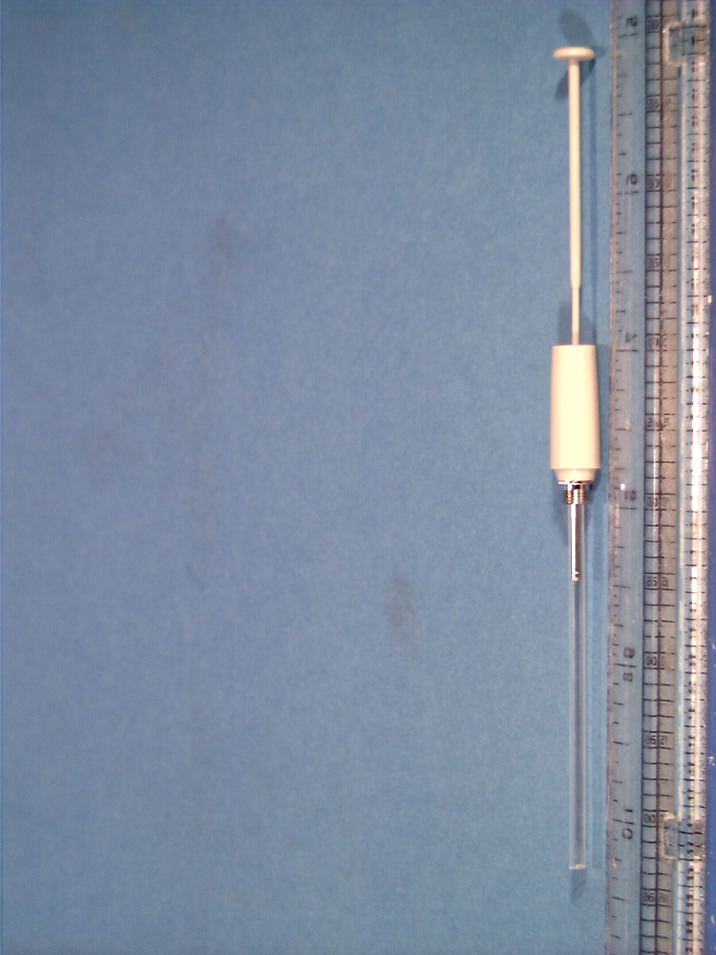

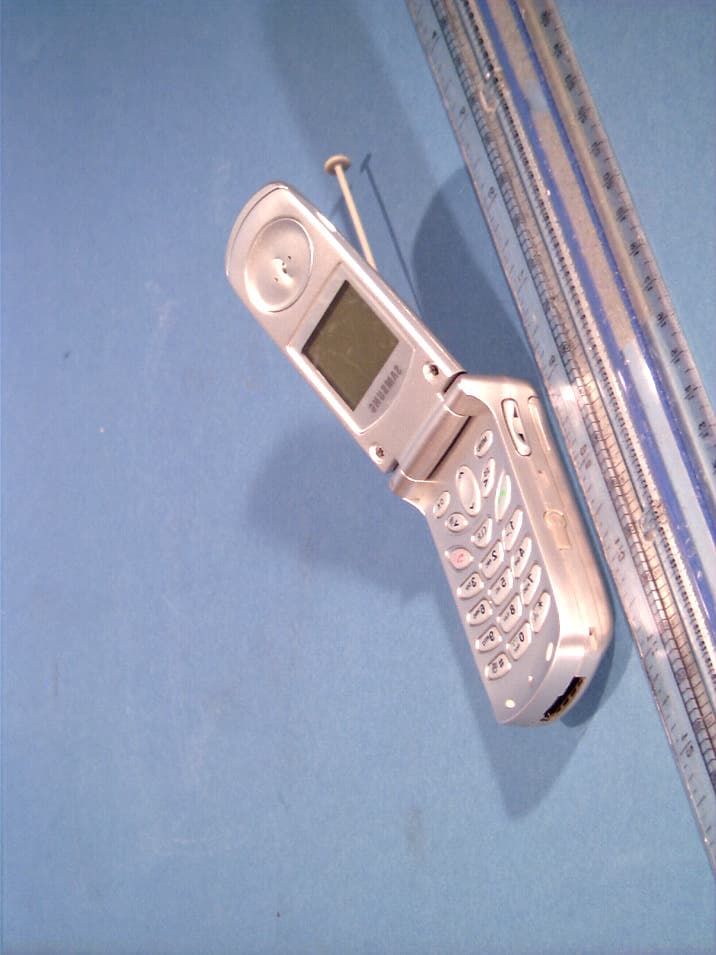

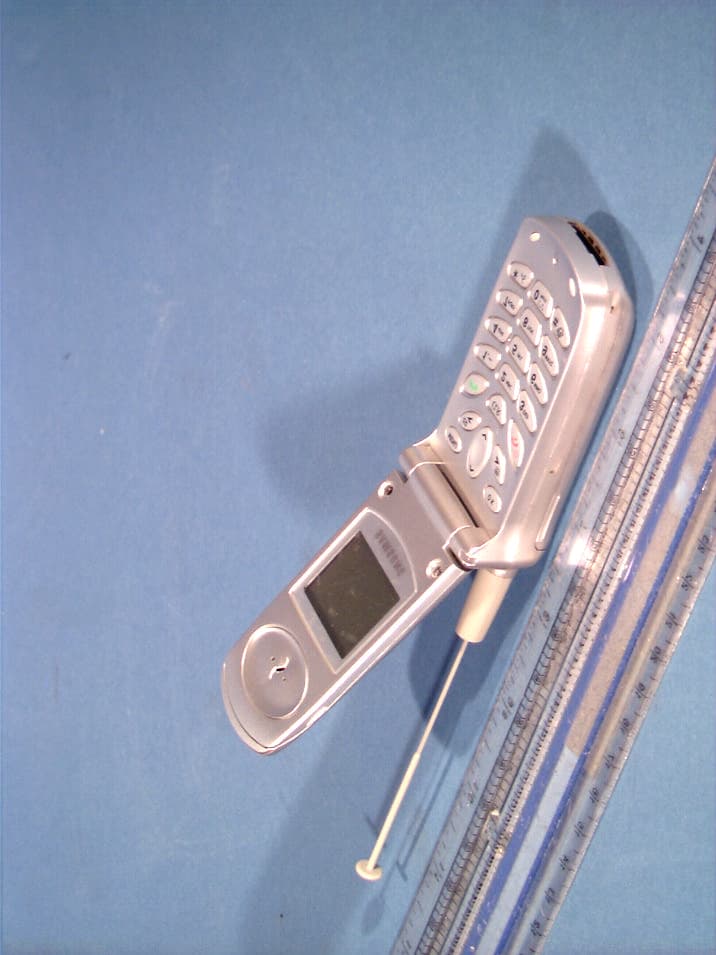

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-A205 FCC ID: A3LSCH-A201 MADE IN KOREA

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2000 PCTEST Lab ATTACHMENT K – PARTS LIST / TUNE UP PROCEDURES PARTS LIST sr;H-AZ01 & LiZOb(Uuai-mode ~elluhrj October 11, 2000 NAM PROGRAMMING ._bWu,i ua-mo e Test Commands & Test Procedure List SCH-AXW 6~ A2O5(Uual-mocIe tMiuiarj October 11, 2000 TEST ITEMS PROCEDURE ~REPARATIO Set test equipments up. N I’* 7 5 9 # 8 1 3 5 8 0" : Enter the Test Mode “0 1" : Suspend “0 4” : Current Mode Check Confirm that the phone is in the “AMPS Mode”. ( If not AMPS Mode, Use Test Command “21”, “10000” or “10001” and Enter “0 2” to restart) "4 6" : Initialize Vocoder in Analog mode If a wrong key would be selected, press Y#“, and then enter new command. 2. RF POWER “0 1” : Suspend. "4 6" : Initialize Vocoder in Analog mode. “0 9 fi 3.6 3 #” : Set channel to 363. "0 7" : Carrier On. “731” : Drive Amp “ON”. “1 0 2” : RF Power level selection ‘2” means one of the power levels (O-7). Measurement of the Power Output Levels 0-2 : 5 6 7 “0 8” : Carrier off +25.3 dBm +0.2/-4 dB + 22 dBm +2/-4 dB + 18 dBm +2/-4 dB + 14 dBm +2/-4 dB + 10 dBm +2/-4 dB + 6 dBm +2/-4 dB Note 1 : In case of using the antenna cable, compensation for the cable loss should be added (about 1.4dB). Note 2 : To prevent phones f?om being damaged, they must be measured only by calibrated test equipments. Warning ! Adjustments without calibrated equipments can cause phones to be heated excessively and would void the warranty. ‘R&ENCY “0 1” : Suspend. "4 6" : Initialize Vocoder in Analog mode. “0 9 0 9 6 3 #” : Set channel to 363. "0 7" : Carrier On. “731” : Drive Amp “ON”. Measure the TX frequency : 835.89 MHzk2.5ppm. w(lJual-mode Cellular) October 11, 2000

© 2000 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: October 23-27, 2000 416 Maetan-3 Dong, Paldal-KuTest Report S/N: SAR.201023532.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia MD U.S.A. Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA205 APPLICANT SAMSUNG Electronics Industries Co., Ltd. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 (CDMA) Max. RF Output Power:0.519W ERP AMPS (27.15 dBm) 0.427W ERP CDMA (26.30 dBm) Trade Name/Model(s):SAMSUNG SCH-A201, SCH-A205 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification FCC Rule Part(s):2.1093; ET Docket 96.326 Max. SAR Measurement:1.2695 W/kg AMPS Head; 1.3956 W/kg AMPS Body 0.1980 W/kg CDMA Head; 0.7598 W/kg CDMA Body This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201023532.A3L SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1: SCOPE ..............................................................1 2.1-2: INTRODUCTION / SAR DEFINITION ..........................2 3.1: SAR MEASUREMENT SET-UP .................................3 4.1-2: E-FIELD PROBE SYSTEM .......................................4 5.1-4: E-FIELD PROBE CALIBRATION .............................. 5-6 6.1-3: PHANTOM & EQUIVALENT TISSUE ...........................7 7.1-2: SYSTEM SPECIFICATIONS ..................................... 8 8.1-2: MEASUREMENT PROCESS ....................................9 9.1-2: TEST POSITION OF THE PHONE ............................. 10 10.1-2: BODY-WORN TEST SETUP .................................. 11 11.1: ANSI/IEEE C95.1 RF EXPOSURE LIMITS .................. 12 12.1: MEASUREMENT UNCERTAINTIES ....................... 13 13.1-3: TEST DATA SUMMARY ......................................... 14-16 14.1: SAR TEST EQUIPMENT LIST ............................... 17 15.1: CONCLUSION / REFERENCES .............................. 18 Test Report S/N: SAR.201023532.A3LSAR Measurement Report Test Dates: October 23-27, 2000FCC Part 22 Certification FCC ID: A3LSCHA205 (Models: SCH-A201 & SCH-A205) © 2000 PCTEST LabSAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SAMSUNG ELECTRONICS CO., LTD. Address:416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do 441-742, KOREA Attention:Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name:SAMSUNG • FCC IDENTIFIER:A3LSCHA205 • Models:SCH-A201, SCH-A205 • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§2.1093, Docket 96-326 • Max. RF Output Power:0.519W ERP AMPS (27.15 dBm) 0.427W ERP CDMA (26.30 dBm) • Modulation:AMPS / CDMA • Dates of Test(s):October 23-27, 2000 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.201023532.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201023532.A3LSAR Measurement Report Test Dates: October 23-27, 2000FCC Part 22 Certification FCC ID: A3LSCHA205 (Models: SCH-A201 & SCH-A205) © 2000 PCTEST LabSAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSCHA205 (Model(s): SCH-A201, SCH-A205) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2000 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2000 PCTEST Lab SAMSUNG FCC ID: A3LSCHA205 NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00102415_ZOOM.VLT Start : 24-Oct-100 02:48:20 pm End : 24-Oct-100 03:00:21 pm Radio Type : SAMSUNG Model Number : SCH-A205 Serial Number : 01 Frequency : 824.04 MHz Peak Trans. Pwr : 0.355 W Start Trans. Pwr: 0.355 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CHAN 0991 Conducted 25.5 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.000, Y = -1.500, Z = 0.000 (cm) Value = 20.945 Measured Values (volts) = 1.856E-002 1.441E-002 1.272E-002 1.129E-002 1.017E-002 8.919E-003 7.476E-003 6.252E-003 5.008E-003 3.887E-003 3.055E-003 2.631E-003 2.544E-003 2.736E-003 3.133E-003 3.454E-003 3.699E-003 3.488E-003 2.617E-003 1.729E-003 1.471E-003 Calc. Voltage @ Surface (Vs) = 0.0225 Voltage @ 1.00 cm (Vt) = 0.0113 Ave. Voltage (Vs+Vt)/2 = 0.0169 Ave. SAR over 1 g (mW/g) = 1.2315 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00102415_ZOOM Start : 24-Oct-100 02:48:20 pm End : 24-Oct-100 03:00:21 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00102415_ZOOM Start : 24-Oct-100 02:48:20 pm End : 24-Oct-100 03:00:21 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.53 1.42 1.30 1.19 1.08 0.96 0.85 0.74 0.63 0.51 File : 00102415_ZOOM Start : 24-Oct-100 02:48:20 pm End : 24-Oct-100 03:00:21 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.53 1.42 1.30 1.19 1.08 0.96 0.85 0.74 0.63 0.51 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00102416_ZOOM.VLT Start : 24-Oct-100 03:08:08 pm End : 24-Oct-100 03:17:20 pm Radio Type : SAMSUNG Model Number : SCH-A205 Serial Number : 01 Frequency : 824.04 MHz Peak Trans. Pwr : 0.355 W Start Trans. Pwr: 0.355 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CHAN 0991 Conducted 25.5 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.000, Y = -1.500, Z = 0.000 (cm) Value = 21.870 Measured Values (volts) = 2.174E-002 1.695E-002 1.479E-002 1.343E-002 1.202E-002 1.048E-002 8.824E-003 7.322E-003 5.826E-003 4.499E-003 3.631E-003 3.143E-003 3.019E-003 3.341E-003 3.743E-003 4.208E-003 4.413E-003 4.137E-003 3.182E-003 2.157E-003 1.946E-003 Calc. Voltage @ Surface (Vs) = 0.0264 Voltage @ 1.00 cm (Vt) = 0.0134 Ave. Voltage (Vs+Vt)/2 = 0.0199 Ave. SAR over 1 g (mW/g) = 1.4526 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00102416_ZOOM Start : 24-Oct-100 03:08:08 pm End : 24-Oct-100 03:17:20 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00102416_ZOOM Start : 24-Oct-100 03:08:08 pm End : 24-Oct-100 03:17:20 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.60 1.48 1.36 1.25 1.13 1.01 0.90 0.78 0.66 0.55 File : 00102416_ZOOM Start : 24-Oct-100 03:08:08 pm End : 24-Oct-100 03:17:20 pm SAMSUNG/SCH-A205/01;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.60 1.48 1.36 1.25 1.13 1.01 0.90 0.78 0.66 0.55 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00102419_ZOOM.VLT Start : 24-Oct-100 03:35:48 pm End : 24-Oct-100 03:48:19 pm Radio Type : SAMSUNG Model Number : SCH-A205 Serial Number : 01 Frequency : 836.49 MHz Peak Trans. Pwr : 0.355 W Start Trans. Pwr: 0.355 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CHAN 0383 Conducted 25.5 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.750, Y = -1.250, Z = 0.000 (cm) Value = 20.398 Measured Values (volts) = 1.942E-002 1.484E-002 1.293E-002 1.141E-002 1.034E-002 9.047E-003 7.833E-003 6.478E-003 5.184E-003 4.024E-003 3.116E-003 2.550E-003 2.408E-003 2.594E-003 2.998E-003 3.451E-003 3.711E-003 3.651E-003 2.892E-003 1.918E-003 1.465E-003 Calc. Voltage @ Surface (Vs) = 0.0239 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0176 Ave. SAR over 1 g (mW/g) = 1.2866 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00102419_ZOOM Start : 24-Oct-100 03:35:48 pm End : 24-Oct-100 03:48:19 pm SAMSUNG/SCH-A205/01;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00102419_ZOOM Start : 24-Oct-100 03:35:48 pm End : 24-Oct-100 03:48:19 pm SAMSUNG/SCH-A205/01;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.49 1.37 1.24 1.12 1.00 0.87 0.75 0.63 0.51 0.38 File : 00102419_ZOOM Start : 24-Oct-100 03:35:48 pm End : 24-Oct-100 03:48:19 pm SAMSUNG/SCH-A205/01;836.49MHz;W;Helical/In; Head/Left Ear;…

Text truncated - open the document above for the full version.

SCH-A205(Dual-Mode) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only Samsung approved accessories. When carrying the phone while it is on, use the specific Samsung belt-clip that has been tested for compliance. The use of non-Samsung approved accessories may violate FCC RF exposure guidelines and should be avoided. FOR MORE INFORMATION ABOUT RF EXPOSURE, PLEASE VISIT THE FCC WEBSITE AT WWW.FCC.GOV WARNING! Read this information before using your phone

January 10, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Subject: A3LSCHA205 Gentlemen: Samsung Electronics Co., Ltd., will not use any necklace accessory on SCH-A205 and the necklace accessory will not be marketed in the U.S. for it either. Should you have any questions or comments concerning the above, please feel free to contact me at Tel: 488-544-5124 or Fax: 408-544-5191 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and interna…

Text truncated - open the document above for the full version.
