A3LSCHA302Single-Mode Cellular CDMA Phone

May 01,2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 1 , 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA302 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHA302) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 01, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA302 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

June 8, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHA302), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned.

May 01, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHA302 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID: A3LSCHA302 TRADE / MODEL(s): SAMSUNG SCH-A302 EUT TYPE: Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 – 848.31 MHz Rx Freq. Range: 869.70 – 893.31 MHz Max. RF Output Power: 0.315 W ERP (24.977 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

July 5, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA302 731 Confirmation No.: 100907 Correspondence Reference No.: 19563 Request for Tech. Info.: 6/07/01 Dear Joe: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 7, 2001. 1. Please find attached the signed E911 Statement. 2. Please find attached a clearer version of the schematics. 3. Please find attached the data points for the standard battery to compare with the data for the extended battery. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

July 20, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA302 731 Confirmation No.: EA100907 Correspondence Reference No.: 19937 Request for Tech. Info.: 7/13/01 Dear Joe: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated July 13, 2001. 1. Please find attached a clearer version of the schematics. 2. Please find attached the data points for the standard battery to compare with the data for the extended battery. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

August 7, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA302 731 Confirmation No.: 100907 Correspondence Reference No.: 20042 Request for Tech. Info.: 7/24/01 Dear Joe: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated July 24, 2001. 1. Please find attached the SAR data points for the standard battery to compare with the data for the extended battery. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

© 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-A302 FCC ID: A3LSCHA302 MADE IN KOREA

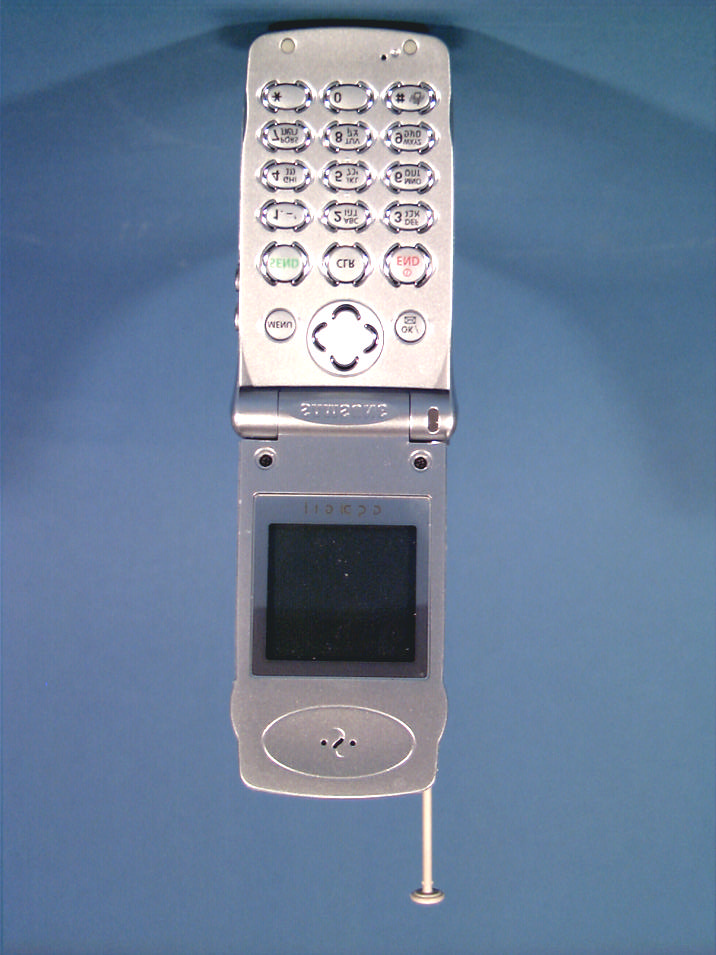

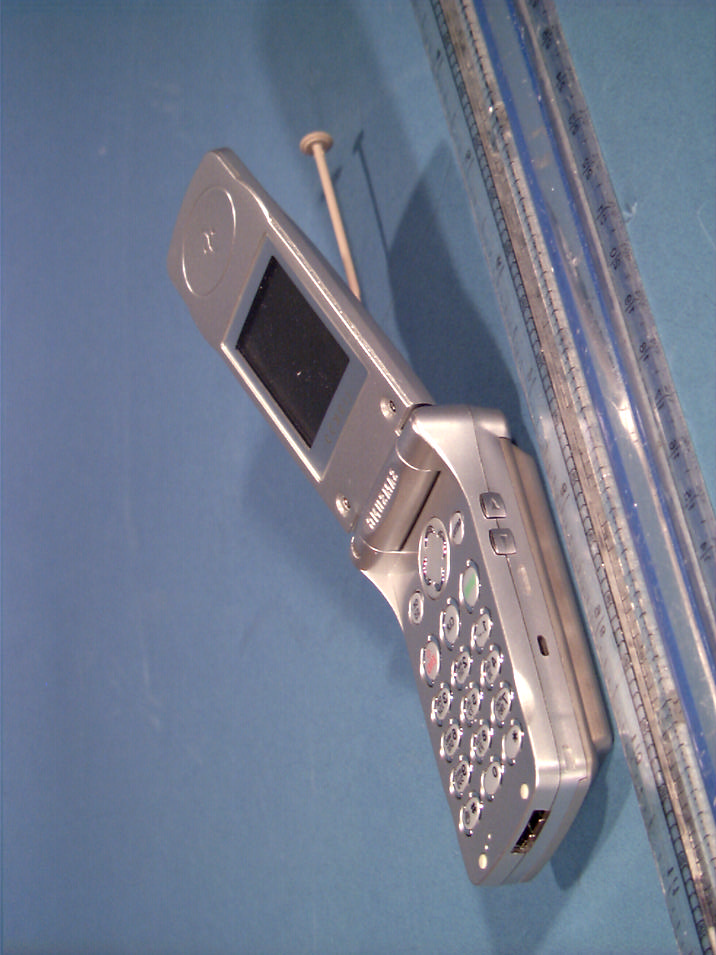

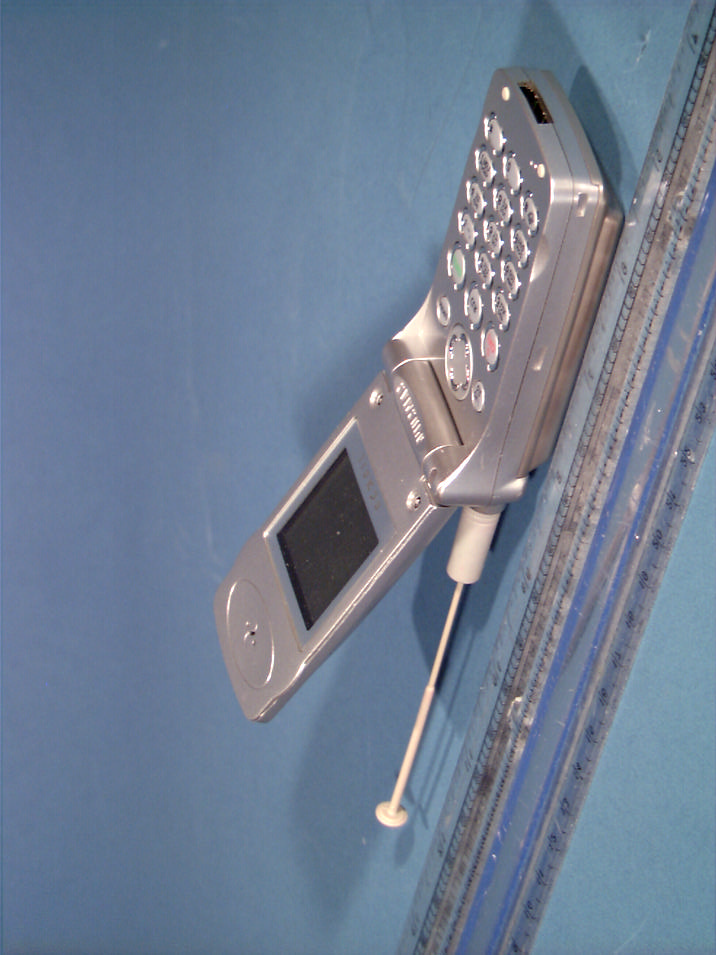

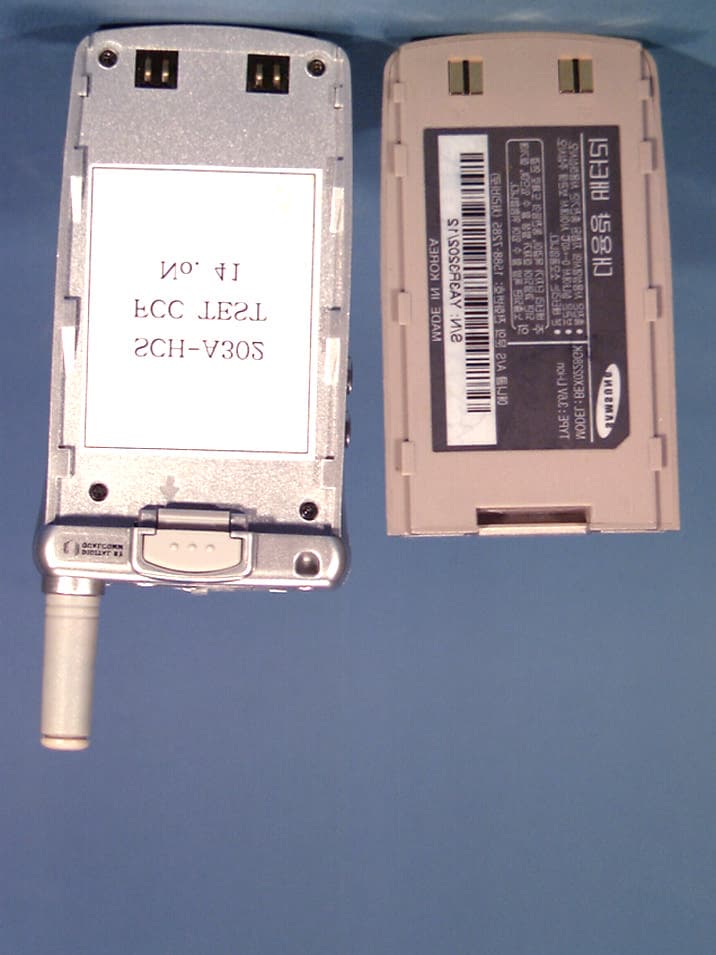

© 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone

CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 VENDOR LOCATIONVENDOR CODEDESCRIPTION MATSUSITAF302ETSD836MB2Z1DUPLEXER QUALCOMMU609MSM 3100C-208FPBGAMobile Station Modem ALPSOSC402UCVA3-112AVCO TIU402LMX2332LSLBTMXPLL KYOSERAOSC401KT18-DCV28A-19.68M-TVCTCXO QUALCOMMU302IFR3000-48BCCF-TRIFR3000 QUALCOMMU204RFT3100-32BCCPF-MTRFT3100 INFINEONU361CMY212BDOWN CONVERTER RFMDU360RF2366TR13LNA CONNEXANTU201RM912Power Amp Module QUALCOMMU501TWL2213PM1000 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 List of Equipment - DC Power Supply -TestJig - Test Cable - CDMA Mobile Station Test Set HP8924C, HP83236A, CMD-80, etc - Spectrum Analyzer(include CDMA Test Mode) HP8596E Configuration of Test CAUTION : The test jig and data cable has a voltage drop of 0.15V at FM Max power output, you'd better set the DC power supply is 3.8V for normal test condition. (Nominal voltage of battery is 3.8V at cellular phone) CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 TEST CABLE DESCRIPTION FOR SCH-A302 1. TEST CABLE 2. TEST CABLE CONNECTIONS 1 MHC 172 2 RF CABLE (1.4dB Loss for CDMA800 and AMPS, 2.1dB Loss for PCS) 3BNC CONNECTOR (RF) 4PLUG CONNECT TO SCH-A302 5DATA CABLE 6Dsub 25PIN CONNECTOR (DATA) CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 3. Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE) DATA DESCRIPTION Dsub CONN. PIN NO. DATA DESCRIPTION Dsub CONN. PIN NO. V_F12,21DP_RX_DATA8 DGND2,4,6,13,19HP_PWR9 BATT15,16,22RI10 C_F3,20CD11 TX_AUDIO5RTS14 DP_TX_DATA7CTS17 RX_AUDIO1DTR18 4. CONVERSION TABLE OF FREQUENCY vs CHANNEL TYPECHANNEL CONVERSION EQUATION REMARK TX FREQUENCY 1 N 799 990 N 1023 F=0.03 N + 825.00 F=0.03 (N-1023) + 825.00 N ; CH NUMBER F ; FREQUENCY (AMPS/CDMA) RX FREQUENCY 1 N 799 990 N 1023 F=0.03 N + 870.00 F=0.03 (N-1023) + 870.00 CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 Change to Test Mode A. To change the phone's state from Normal Mode to Test Mode, You should enter the following keys. :Press[MENU+#] B. The command "2 1" is mode and channel change. "20383" Mode:CDMA Channel number and Push the [ OK ] key to save. C. The command 0 1" is Suspend. D. To finish the Test Mode, You should enter the command " 0 2". Channel Selection and Tx Power Output Level Control 1. CDMA A. Enter to Test Mode [ MENU + # ] B. The command "2 1" is mode and channel change "20383" Mode:CDMA Channel number Push the [ OK ] key to save. C. "0 1" : Suspend. D. "0 2 0 3 8 3 '#' " : Set to '0383' channel. E. "0 7" : Carrier On. F. "3 4" : Spread spectrum to 1.23MHz band width. G."71***":AdjustRFpowerlevel . Set the acurate power with press 'SEND'(power growing up) or 'END'(power growing down). "* * *" means AGC level and AGC level range is from 000 to 511. CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 2. CDMA TEST ITEMSPROCEDURE 1. PREPARANCESet test equipments up. [ MENU + # ] : Enter the Test Mode "0 1" : Suspend Confirm that the phone is in the "CDMA Mode". (If not CDMA Mode, Use Test Command "020""2XXXX" and Push the [ save ] Key to "OK", and enter "0 2" to restart) If you select a wrong key, press "CLR", then enter new command. To exit the Test Mode at any time, just press [0 2]. 2. FREQUENCY ACCURACY "0 1" : Suspend. "0 2 0 3 8 3 '#' " : Set channel to 383. "0 7" : Carrier On. "3 4" : Spread spectrum. "71300'#'":SetAGClevel. Measure the TX frequency : 836.49MHz 300Hz. 3. OCCUPIED CDMA BANDWIDTH "0 1" : Suspend. "0 2 0 3 8 3 '#' " : Set channel to 383. "0 7" : Carrier On. "3 4" : Spread spectrum. "71XXX'#'":EnterAGCCode(XXX)toadjustRFOutputPower. Measure the bandwidth (spec: 1.23MHz). 4. LIMITATIONS ON EMISSIONS "0 1" : Suspend. "0 2 0 3 8 3 '#' " : Set channel to 383. "0 7" : Carrier On. "3 4" : Spread spectrum. "71XXX'#'":EnterAGCCode(XXX)toadjustRFOutputPower. Measure the spurious at F C 900kHz, F C 1.98MHz, 2F C, 3F C, 1/2F C . spec: F C 900kHz below 42dBc/30kHz F C 1.98MHz below 54dBc/30kHz Outside Receive Band 43+10log (PY) PY: Mean Output Power in watts CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 NAM PROGRAMMING NAM features can be programmed as follows: Notes: - If you enter the NAM program mode, each item shows the currenly stored data. Go to the next item by pressing OK . - You can modify the data by entering a new data. - If you enter a wrong digit, press CLR to delete the last digit. Press and hold CLR to delete all digits. - To scroll items backwards or forwards, press the VOLUME button on the left side of the phone. (1)General Setup LCD DisplayKey inFunction MENU #-selects NAM programming NAM Program 1:General 2.NAM1 Setup 3:NAM2 Setup 1-Choose 'General' ESN B0000000 Volume -Electronic Serial Number of the phone is displayed CAI version 3 Volume -Common Air Interface version is displayed 13K/EVRC/8K 13K voice * or # OK Vocoder sample rate - changes the status. -stores it. - 8K is not supported. SCM 01101010 Volume -Station Class Mark displays the power class, transmission, slotted class, dual mode. Lock Code 0000 Volume 4-digit code OK Lock code, current ststus is displayed -to change, enter new code. -stores it Slot Mode Yes * or # OK Slot mode. 'Yes' indicates the slot mode. - changes the status. -stores it. Slot Index 2 Volume 0-7 OK Slot mode index. The higher,the longer sleeping time - to change, enter new one. -stores it CONFIDENTIAL SCH-A302 (Single band CDMA) April 28, 2001 LCD Display Key inFunction NAM Program 1:General 2.NAM1 Setup 3:NAM2 setup 2-Choose 'NAM1 Setup' CDMA TEL NO. 3003003000 number OK MIN1,MIN2 is displayed -to change, enter new one. -stores it. IMSI MCC 000 number OK IMSI Moble Country Code,current code is displayed. -to change, enter new one. -stores it. IMSI MNC 00 number OK IMSI Moble Network Code,current code i…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.29 mW/g, SAR (10g): 0.870 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 1.17E-1 3.52E-1 5.86E-1 8.20E-1 1.05E+0 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.03 mW/g, SAR (10g): 0.682 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 9.77E-2 2.93E-1 4.88E-1 6.84E-1 8.79E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.995 mW/g, SAR (10g): 0.668 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 9.12E-2 2.74E-1 4.56E-1 6.38E-1 8.21E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.839 mW/g, SAR (10g): 0.564 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 7.82E-2 2.35E-1 3.91E-1 5.47E-1 7.04E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.32 mW/g, SAR (10g): 0.886 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0777 [848.31MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 1.22E-1 3.66E-1 6.10E-1 8.54E-1 1.10E+0 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.39 mW/g, SAR (10g): 0.920 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0777 [848.31MHz] Conducted Power = 24.0dBm; Flip = Open Test Date -- 05/01/2001 SAR Tot [mW/g] 1.33E-1 3.99E-1 6.65E-1 9.32E-1 1.20E+0 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.394 mW/g, SAR (10g): 0.273 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Flip = Closed Conducted Power = 24.0dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date -- 05/01/2001 SAR Tot [mW/g] 3.81E-2 1.14E-1 1.91E-1 2.67E-1 3.43E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.463 mW/g, SAR (10g): 0.323 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Flip = Closed Conducted Power = 24.0dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date -- 05/01/2001 SAR Tot [mW/g] 4.45E-2 1.34E-1 2.23E-1 3.12E-1 4.00E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.353 mW/g, SAR (10g): 0.242 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0363 [859.89MHz]; Flip = Closed Conducted Power = 24.0dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date -- 05/01/2001 SAR Tot [mW/g] 3.34E-2 1.00E-1 1.67E-1 2.34E-1 3.01E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.484 mW/g, SAR (10g): 0.334 mW/g SAMSUNG Cellular CDMA Only Phone Model:SCH-A302 Cellular CDMA Mode, Ch.0363 [835.89MHz]; Flip = Closed Conducted Power = 24.0dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date -- 05/01/2001 SAR Tot [mW/g] 4.64E-2 1.39E-1 2.32E-1 3.25E-1 4.18E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSCHA302 -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.414 mW/g, SAR …

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone © 2001 PCTEST Lab FCC ID: A3LSCHA302 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode Cellular CDMA Phone

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG Electronics Co., Ltd. Dates of Tests: May 01-03, 2001 146 Maetun-3 Dong, Paldal-Ku, Test Report S/N: SAR.210501261.A3L Suwon City, Kyungki-Do, KOREA 441-742 Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA302 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Single-Mode Cellular CDMA Internet Phone Tx Frequency: 824.70 — 848.31 MHz Rx Frequency: 869.70 — 893.31 MHz Max. RF Output Power: 0.315 W ERP (24.977 dBm) Max. SAR Measurement(s): 1.390 W/kg (1g) Cellular CDMA Head SAR; 0.585 W/kg (1g) Cellular CDMA Body SAR; 0.651 W/kg (10g) Cellular CDMA Hand SAR; Trade Name/Model(s): SAMSUNG SCH-A302 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210501261.A3L SAR Measurement Report FCC Part 22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-16 14.1 SAR TEST EQUIPMENT LIST 17 15.1 CONCLUSION 18 16.1 REFERENCES 19 Test Report S/N: SAR.210501261.A3L SAR Measurement Report Test Dates: May 01-03, 2001 FCC Part 22 Certification FCC ID: A3LSCHA302 (Tx 824-849 MHz) © 2001 PCTEST Lab SAMSUNG Single-Mode Cellular CDMA Phone 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: SAMSUNG Electronics Co., Ltd. Address: 146 Maetun-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, KOREA 441-742 Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Single-Mode Cellular CDMA Internet Phone • Trade Name: SAMSUNG • Model(s): SCH-A302 • FCC IDENTIFIER: A3LSCHA302 • S/N: Pre-production • Tx Frequency: 824.70 — 848.31 MHz • Rx Frequency: 869.70 — 893.31 MHz • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max. RF Output Power: 0.315 W ERP (24.977 dBm) • Max. SAR Measurement(s): 1.390 W/kg (1g) Cellular CDMA Head SAR; 0.585 W/kg (1g) Cellular CDMA Body SAR; 0.651 W/kg (10g) Cellular CDMA Hand SAR; • Antenna Type: Helical • Antenna Dimensions: 10.2 cm. (Length) • Dates of Tests: May 01-03, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210501261.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210501261.A3L SAR Measurement Report Test Dates: May 01-03, 2001 FCC Part 22 Certification FCC ID: A3LSCHA302 (Tx 824-849 MHz) © 2001 PCTEST Lab SAMSUNG Single-Mode Cellular CDMA Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have …

Text truncated - open the document above for the full version.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolate…

Text truncated - open the document above for the full version.
