A3LSCHI405Cellular/PCS CDMA and 700 MHz LTE Phone with WLAN and Bluetooth

User’s manual for SCH-I405 Using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to the sections “Introducing your mobile phone”, ”Assembling and preparing your mobile phone” and “Using basic functions”. Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [] (represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. Contents Safety and usage information Safety warnings Safety precautions Important usage information Introducing your mobile phone Unpack Phone layout Keys Display Icons Assembling and preparing your mobile phone Install the SIM card and battery Charge the battery Using basic functions Turn your phone on and off Access menus Customize your phone Use basic call functions Send and view messages Add and find contacts Troubleshooting Safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipments installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum distance of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipments Your phone can interfere with medical equipments in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: August 4, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI405 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3L Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: August 18,2011 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSCHI405 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSCHI405 Model(s): SCH-I405 Air Interfaces: CDMA, USPCS, LTE Radio Services: CDMA, PCS, EVDO Rev A, LTE GPS SMS Bluetooth/ WLan Key Features: MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Seyeol Kim Principal Engineer Samsung Electronics

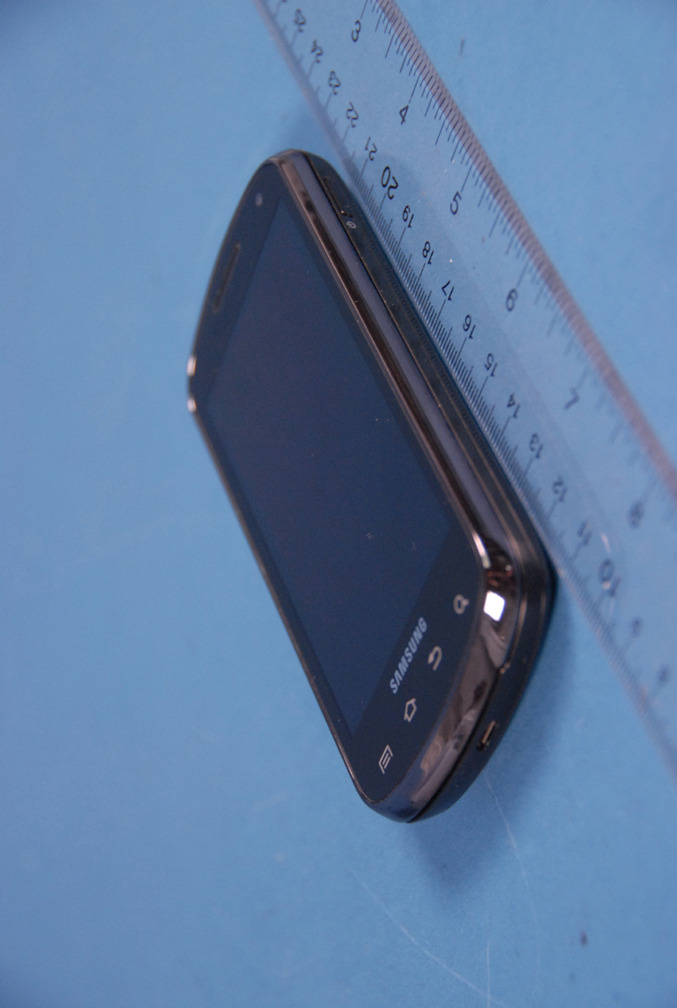

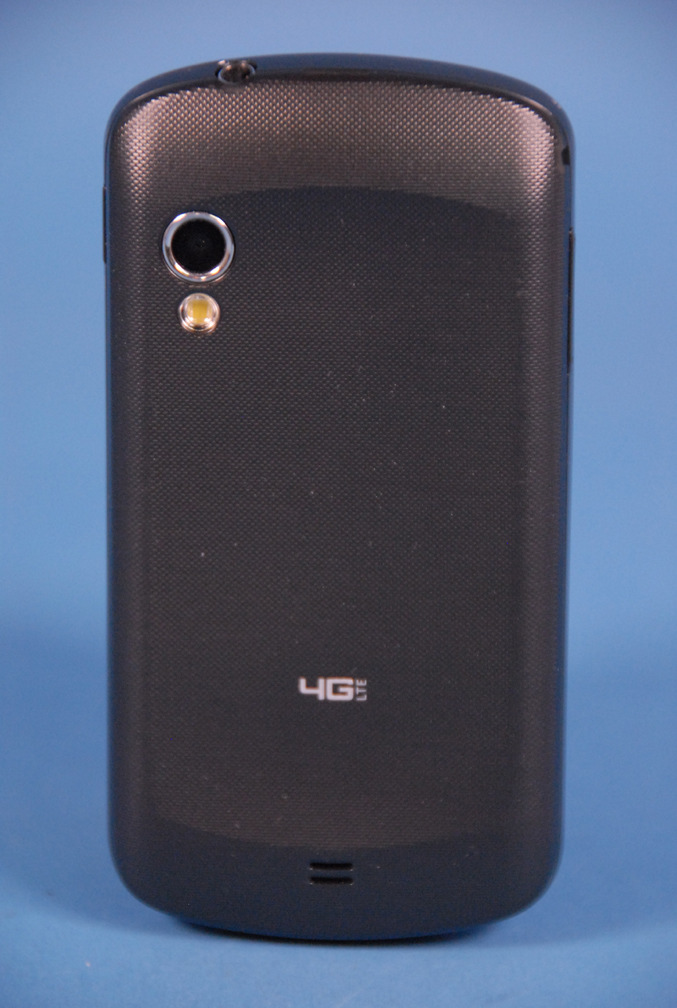

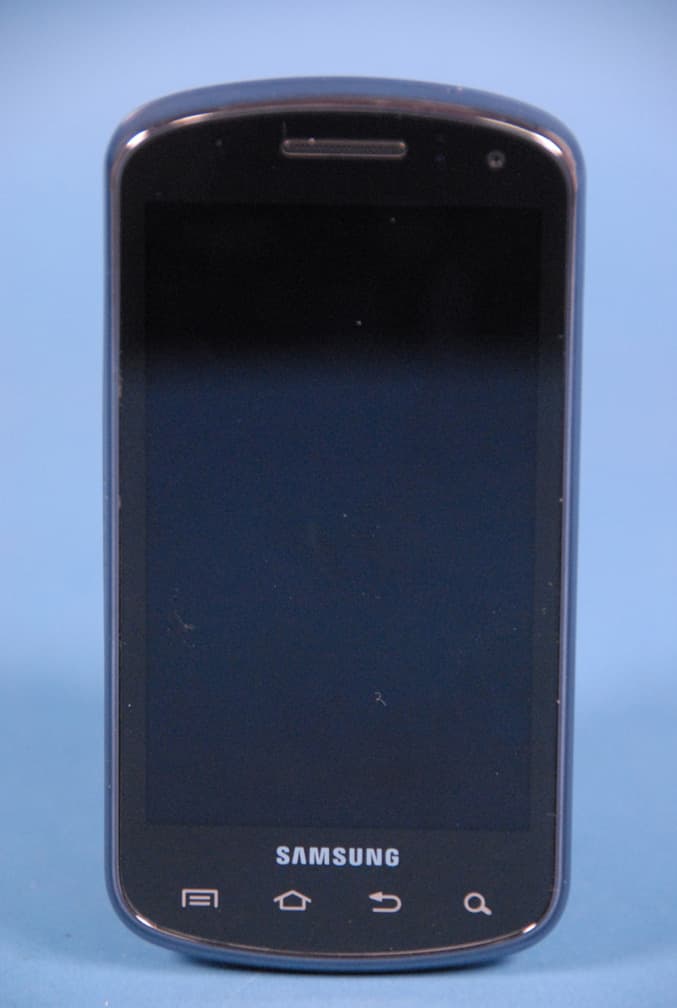

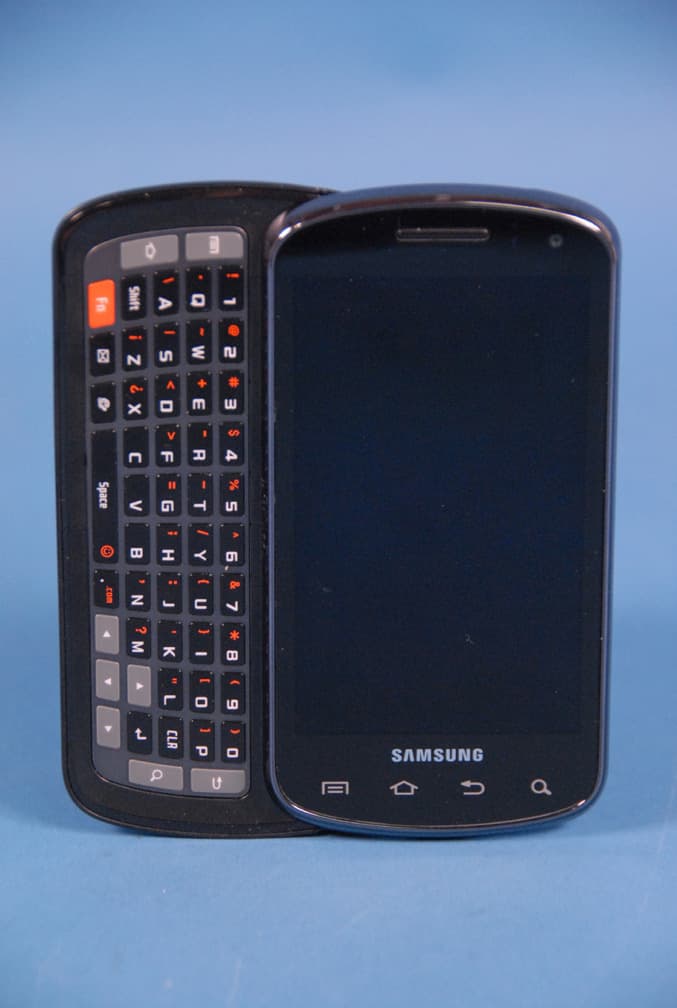

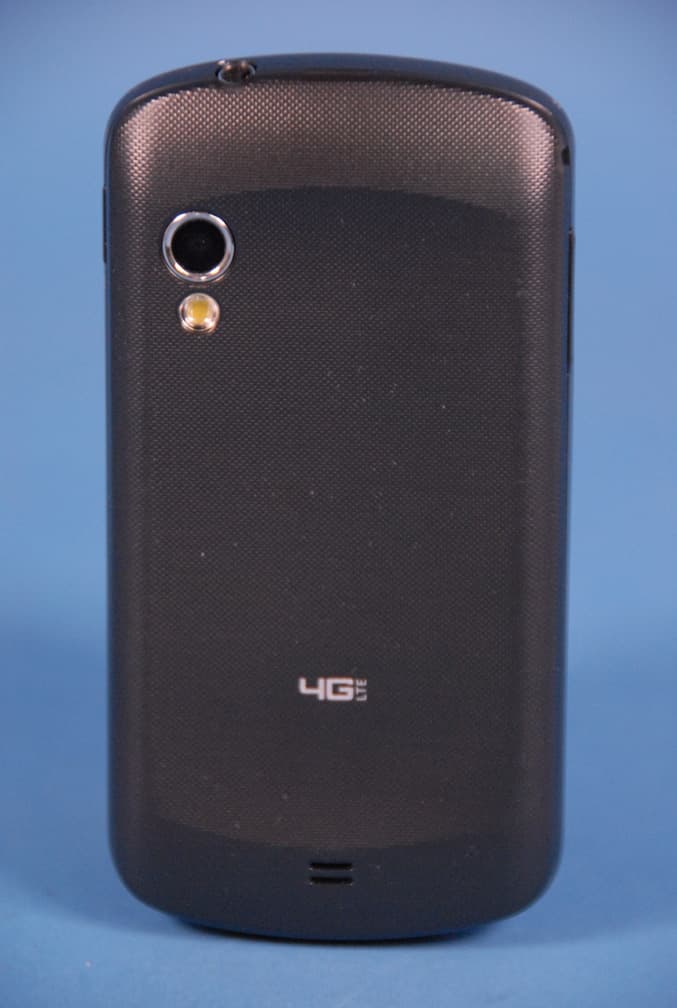

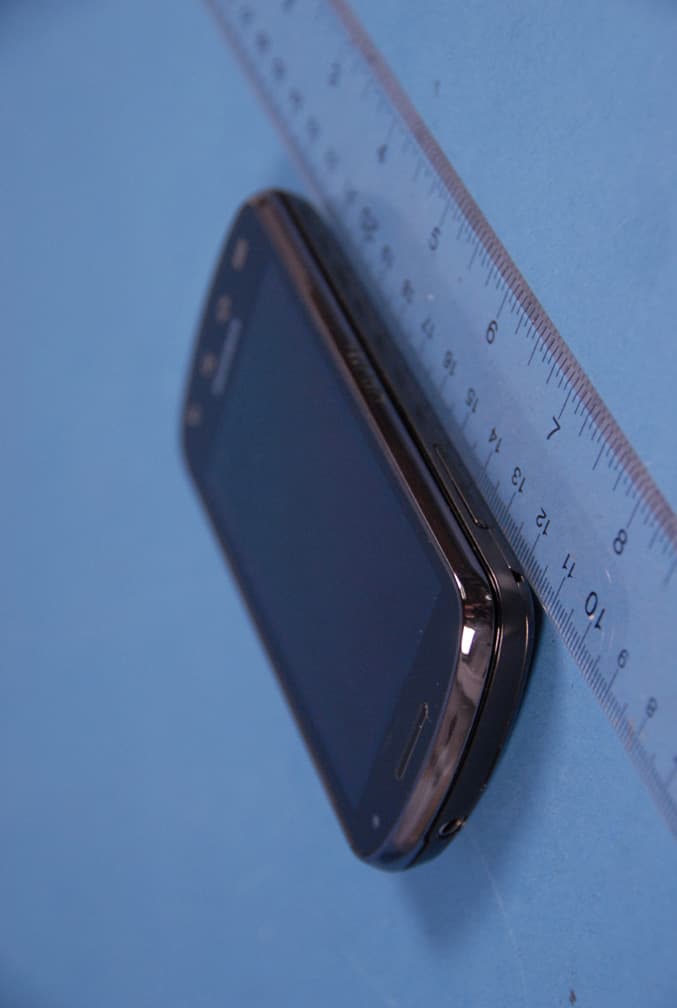

Samsung FCC ID: A3LSCHI405 Model: A3LSCHI405 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 1 © 2011 PCTEST Engineering Laboratory Inc. E X T E R N A L P H O T O G R A P H S Samsung FCC ID: A3LSCHI405 Model: A3LSCHI405 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: A3LSCHI405 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: A3LSCHI405 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: A3LSCHI405 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

SC H-I405 2011. 7. - 1 - 02. Sample Label SCH-I405 110712 110712 110712 WHITE Jaejin LeeKeonghwan Cho Junesop Kim Hansung P&I GH68-35385A Model : SCH-I405 FCC ID : A3LSCHI405 For Information call : 1 888 987 4357 SKU : SCHI405LKS

SC H-I405 2011. 7. - 1 - 03. Label Location Model : SCH-I405 FCC ID : A3LSCHI405 For Information call : 1 888 987 4357 SKU : SCHI405LKS The label is placed inside the battery compartment

Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 1 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 6 of 6 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 7 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 8 of 8 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 9 of 9 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 10 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405 Model: SCH-I405 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHI405 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: DUT Type: Page 1 of 53 0Y1107211278-R1.A3L 07/25/11 - 08/21/11 Cellular/PCS CDMA/EVDO Phone with LTE, Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 10.0L 06/10/2011 Applicant Name: Date of Testing: Samsung Electronics Co Ltd 07/25/11 - 08/21/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1107211278-R1.A3L FCC ID: A3LSCHI405 APPLICANT: SAMSUNG ELECTRONICS CO LTD Model(s): SCH-I405 DUT Type: Cellular/PCS CDMA/EVDO Phone with LTE, Bluetooth and WLAN Test Device Serial No.: Pre-Production [S/N: FCC #1, FCC #2] Applicable FCC Rules: CFR §2.1093 Report Type: Certification 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA824.70 - 848.31 MHz25.26 0.271.111.14 PCS CDMA1851.25 - 1908.75 MHz25.480.45 1.151.15 LTE782 MHz23.320.24 0.400.42 2.4 GHz WLAN2412 - 2462 MHz14.300.04 0.020.03 5.2 GHz WLAN5180 - 5240 MHz13.530.030.08 5.3 GHz WLAN5260 - 5320 MHz13.460.020.07 5.5 GHz WLAN5500 - 5700 MHz13.720.020.10 5.8 GHz WLAN5745 - 5825 MHz14.120.030.13 SAR Band & ModeTx Frequency Conducted Power [dBm] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1107211278-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSCHI405 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: DUT Type: Page 2 of 53 0Y1107211278-R1.A3L 07/25/11 - 08/21/11 Cellular/PCS CDMA/EVDO Phone with LTE, Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 10.0L 06/10/2011 TABLE OF CONTENTS 1 LTE INFORMATION PER FCC KDB 941225 D05 ...........................................................................3 2 INTRODUCTION ..............................................................................................................................4 3 TEST SITE LOCATION ....................................................................................................................5 4 SAR MEASUREMENT SETUP ........................................................................................................6 5 E-FIELD MEASUREMENT & PROBE ..............................................................................................8 6 SAR PHANTOM AND EQUIVALENT TISSUES ..............................................................................9 7 DOSIMETRIC SAR ASSESSMENT PROCEDURE ..................................................................... 11 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 9 TEST CONFIGURATION POSITIONS ......................................................................................... 13 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 16 11 POWER MEASUREMENT PROCEDURES ................................................................................. 17 12 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 21 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 23 14 OUTPUT POWER MEASUREMENTS .......................................................................................... 24 15 SYSTEM VERIFICATION .............................................................................................................. 28 16 SAR DATA SUMMARY ................................................................................................................. 31 17 SIMULTANEOUS TRANSMISSION ANALYSIS ........................................................................... 41 18 SVLTE POWER REDUCTION CONSIDERATIONS..................................................................... 45 19 EQUIPMENT LIST ......................................................................................................................... 48 20 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 21 CONCLUSION ............................................................................................................................... 51 22 REFERENCES .............................................................................................................................. 52 FCC ID: A3LSCHI405 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: DUT Type: Page 3 of 53 0Y1107211278-R1.A3L 07/25/11 - 08/21/11 Cellular/PCS CDMA/EVDO Phone with LTE, Bluetooth and WLAN © 2011 …

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LSCHI405 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107211271.A3L July 25-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. July 25-29, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1107211271.A3L FCC ID: A3LSCHI405 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Model(s): SCH-I405 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.182 W ERP Cell. CDMA (22.6 dBm), 0.753 W EIRP PCS CDMA (28.77 dBm) Emission Designator(s): 1M27F9W (CDMA) / 1M27F9W (PCS) Test Device Serial No.: identical prototype [S/N: FCC #2] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LSCHI405 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107211271.A3L July 25-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH.................................................................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................9 5.0 SAMPLE CALCULATIONS....................................................................................................10 6.0 TEST RESULTS...................................................................................................................11 6.1 SUMMARY.........................................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA.....................................................................................12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA..........................................................13 6.4 CEL…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI405 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107211272.A3L July 25-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 25 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. July 25-29, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1107211272.A3L FCC ID: A3LSCHI405 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §27 EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Model(s): SCH-I405 Tx Frequency Range: 782MHz (LTE - Band 13) Tx LTE Bandwidth: 10Mhz Max. RF Output Power: 0.049 W ERP (16.89 dBm) (QPSK), 0.041 W ERP (16.12 dBm) (16-QAM) Emission Designator(s): 8M91G7D (QPSK) / 8M90W7D (16-QAM) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: A3LSCHI405 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107211272.A3L July 25-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 25 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS...............................................................................................6 3.3 BLOCK C FREQUENCY RANGE.....................................................................................................................6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.5 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................7 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................8 5.0 SAMPLE CALCULATIONS......................................................................................................9 6.0 TEST RESULTS...................................................................................................................10 6.1 SUMMARY.........................................................................................................................................…

Text truncated - open the document above for the full version.
