A3LSCHLC11Cellular/PCS CDMA and 700 MHz LTE Portable Wireless Router with WLAN

User manual SCH-LC11 introducing your mobile device In this section, learn about your mobile device’s layout, keys, display, and icons Unpack Check your product box for the following items:  Mobile device  Battery  Travel adapter (charger)  User manual The items supplied with your device may vary depending on t he software and accessories available in your region or offered by your service provider. You can obtain additional accessorie s from your local Samsung dealer. Device layout The front of your device includes the following keys and features: The rear of your device includes the following keys and features: Keys Key Function Power Turn the device on and off (press and hold); Side keys Short press of the side key will help you set up your device automatically. Long press of the side key will reset the status of your device as the state of the factory LED indicators Your device’s LED indicators consist of four LEDs: LED Display LED 1 LTE Network Status (including the signal strength) LED 2 1x / EVDO Network Status (including the signal strength) LED 3 WiFi & Internet Status LED 4 Power & Charging Power & Charging Status Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments TA not connected Power Off / No Battery   [X]    [X]    [X]    [X]  ᅳ No light Power On   [X]    [X]    [X]    [B]  ᅳ LED4 : Blue - Solid ᅳ means a remained battery capacity of 100~20% Low Battery   [X]    [X]    [X]    [Y]  ᅳ LED4 : Yellow - Solid ᅳ means a remained battery capacity of 20~6% Critical Low Battery   [X]    [X]    [X]    [R]  ᅳ LED4 : Red - Solid ᅳ means a remained battery capacity of 5~1% TA connected Charging   [X]    [X]    [X]    [G] - Blinking -  ᅳ LED4 : Green - Blinking Charging Error   [X]    [X]    [X]    [R] - Blinking -  ᅳ LED4 : Red - Blinking Fully Charged   [X]    [X]    [X]    [G]  ᅳ LED4 : Green - Solid LTE Network Service Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments LTE_Strong / Modest RF Signal   [B]    [X]    [X]    [B]  ᅳ LED1 : Blue - Solid ᅳ Strong RF signals, meaning to 2~4 Antenna Bars LTE_Weak RF Signal   [Y]    [X]    [X]    [B]  ᅳ LED1 : Yellow - Solid ᅳ Weak RF signals, meaning 1 Antenna Bar LTE_Critical Weak RF & No Service   [R]    [X]    [X]    [B]  ᅳ LED1 : Red - Solid ᅳ Antenna Icon Only & No Service LTE Service Roaming   [W]    [X]    [X]    [B]  ᅳ LED1 : White - Solid LTE Service Failure   [R] - Blinking -    [X]    [X]    [B]  ᅳ LED1 : Red - Blinking No WAN Connection   [X]    [X]    [X]    [B]  ᅳ LED1 : No light 1x / EVDO Network Service Indication LTE EV 1x Scenario LED 1 LED 2 LED 3 LED 4 Comments 1x / EVDO_Strong / Modest RF Signal   [X]    [B]    [X]    [B]  ᅳ LED2 : Blue - Solid ᅳ Strong RF signals, meaning to 2~4 Antenna Bars 1x / EVDO_Weak RF Signal   [X]    [Y]    [X]    [B]  ᅳ LED2 : Yellow - Solid ᅳ Weak RF signals, meaning 1 Antenna Bar 1x / EVDO_Critical Weak RF & No Service   [X]    [R]    [X]    [B]  ᅳ LED2 : Red - Solid ᅳ Antenna Icon Only & No Service 1x / EVDO Service Roaming   [X]    [W]    [X]    [B]  ᅳ LED2 : White - Solid 1x / EVDO Service Failure   [X]    [R] - Blinking -    [X]    [B]  ᅳ LED2 : Red - Blinking No WAN Connection   [X]    [X]    [X]    [B]  ᅳ LED2 : No light WiFi & Internet Status Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments WiFi Standby (No WLAN connection & No WiFi connected)   [X]    [X]    [G]    [B]  ᅳ LED3 : Green - Solid WiFi Connected (WiFi connected but no data transfer)   [X]    [X]    [B]    [B]  ᅳ LED2 : Blue - Solid Data Transfer   [X]    [X]    [B] - Blinking in proportion to data rate -    [B]  ᅳ LED2 : Blue - Blinking ᅳ Blinking rates depends on the data transfer rates Combined Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments OTADM Downloading and Updating   [B] - Blinking →    [B] → Blinking →    [B] → Blinking -    [B]  ᅳ LED1, LED2, LED3 : Blue - Blinking Sequentially No SIM   [W]    [W]    [W]    [B]  ᅳ LED1, LED2, LED3 : White - Solid assembling and preparing your mobile device Get started by assembling and setting up your mobile device for its first use. Install the SIM card and battery When you subscribe to a cellular service, you will receive a S ubscriber Identity Module, or SI M card, with subscription details, such as your personal identificati on number (PIN) and optional services. To install the SIM card and battery, 1. Remove the battery cover. If the device is on, press and hold [ ] to turn it off. 2. Insert the SIM card. Place the SIM card in t he device with the gold-colour ed contacts facing down. 3. Insert the battery. 4. Replace the battery cover. Charge the battery Before using the device for the firs t time, you must charge the battery. 1. Open the cover to the multifunc tion jack on the side of the device. 2. Plug the small end of the travel adapter into the multifunction jack. Improperly connecting the travel adapter can cause serious damage to the device. Any damages by misuse are not covered by the warranty. 3. Plug the large end of the trav el adapter into a power outlet. 4. When the battery is fully charged (the [|||||] icon is no long er moving), unplug the travel ad apter from the power outlet. 5. Unplug the travel adap ter from the device. 6. Close the cover to the multifunction jack. About the low battery indicator When your battery is low, the device will change its LED color fr om green to yellowr. If the batte ry level becomes too low, it will show red colors and the device will automatically power off. Recharge your battery to continue using your device. Exposure to Radio Frequency (RF) Signals Your wireless device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Commu…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: November 16, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHLC11 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

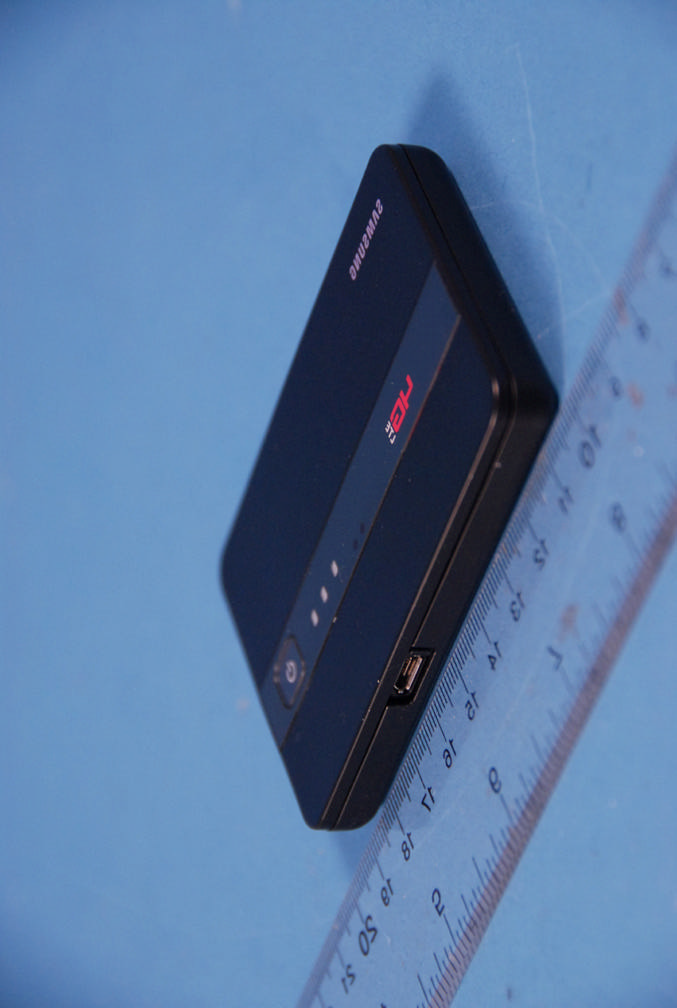

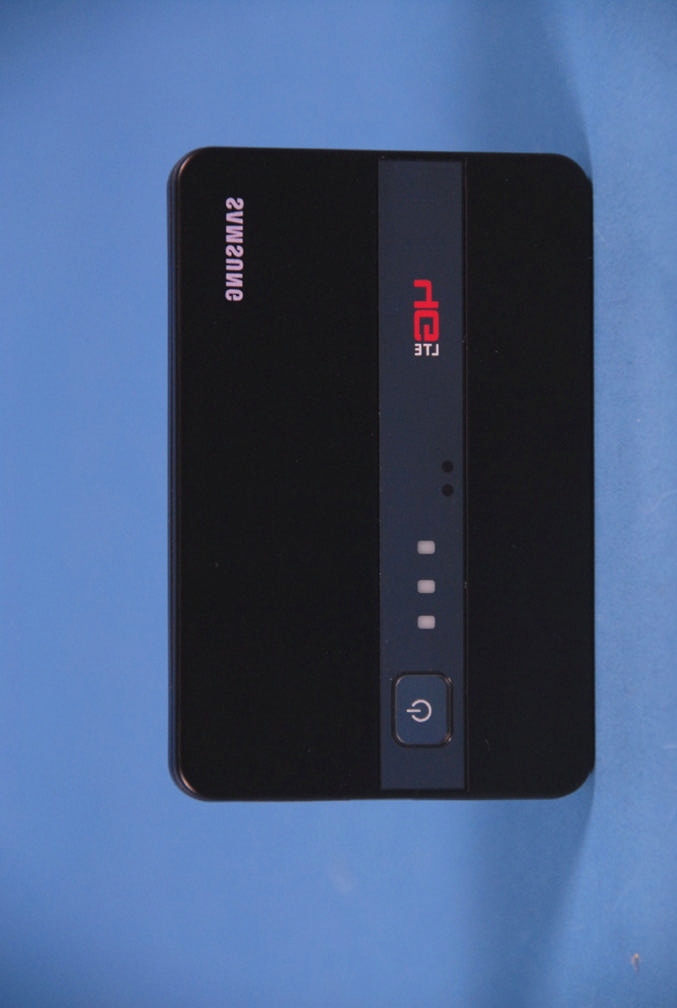

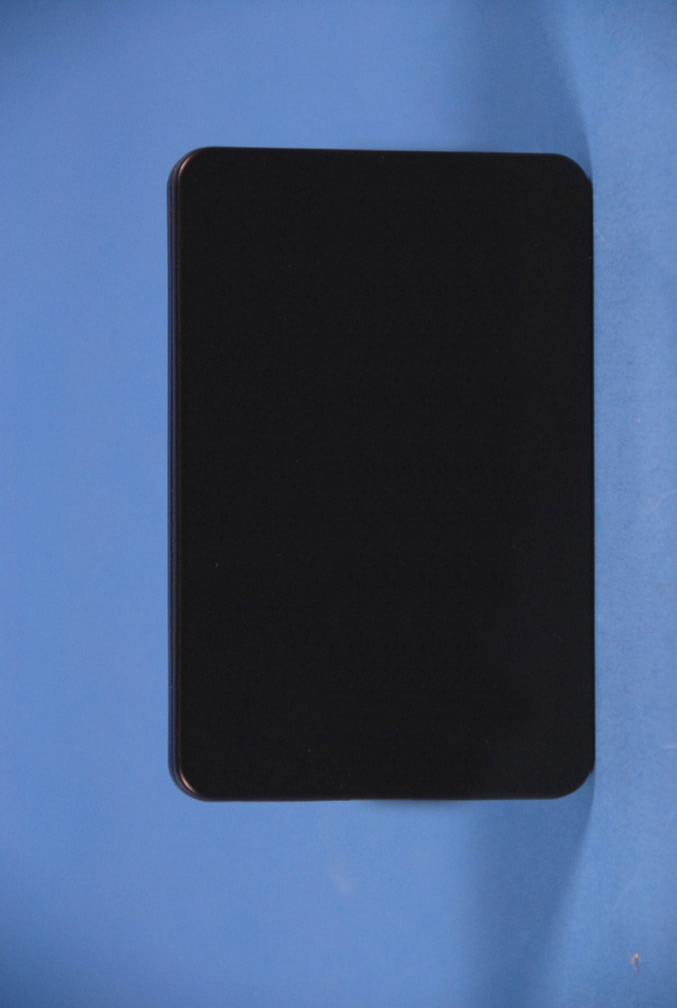

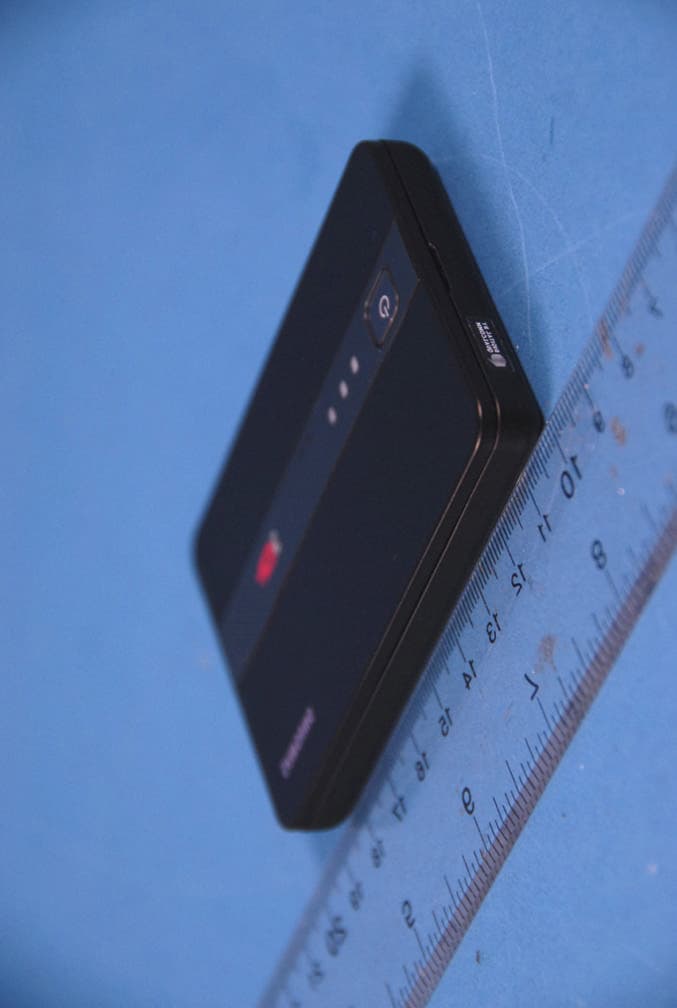

Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 External Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 External Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 External Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 External Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Model : SCH-LC11 SKU :SCHLC11ZKV FCC ID : A3LSCHLC11 For Information call 1 888 987 4357 The label is placed inside the battery compartment

Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 1 of 8 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 2 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 3 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 4 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 5 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 6 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 7 of 8 © 2010 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHLC11 Model: SCH-LC11 Internal Photos EUT Type: Cellular/PCS CDMA/EVDO and 750 MHz LTE Portable Wireless Router with WLAN Page 8 of 8 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHLC11 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1011101830.A3L 11/09/10 - 11/11/10 Cellular/PCS EVDO and 750 MHz LTE Portable 2.4 GHz WIFI Wireless Router Page 1 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 11/09/10 - 11/11/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1011101830.A3L FCC ID: A3LSCHLC11 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Cellular/PCS EVDO and 750 MHz LTE Portable 2.4 GHz WIFI Wireless Router Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: PCS Licensed Transmitter (PCB) Digital Transmission System (DTS) Model(s): SCH-LC11 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) 782 MHz (Band 13 LTE, 10 MHz BW) 2412 - 2462 MHz (WLAN) Conducted Power: 24.87 dBm Cell. CDMA 25.23 dBm PCS CDMA 23.07 dBm Band 13 LTE 17.38 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.48 W/kg Cell. CDMA Body SAR 0.86 W/kg PCS CDMA Body SAR 1.09 W/kg Band 13 LTE Body SAR 0.47 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FCC#1, FCC#3] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSCHLC11 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1011101830.A3L 11/09/10 - 11/11/10 Cellular/PCS EVDO and 750 MHz LTE Portable 2.4 GHz WIFI Wireless Router Page 2 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 11 8 RF EXPOSURE LIMITS ................................................................................................................ 12 9 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 13 10 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 15 11 4G LTE TEST CONFIGURATION................................................................................................. 19 12 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 20 13 SIMULTANEOUS TX SAR CONSIDERATIONS........................................................................... 21 14 SYSTEM VERIFICATION.............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 25 16 EQUIPMENT LIST......................................................................................................................... 29 17 MEASUREMENT UNCERTAINTIES ............................................................................................ 30 18 CONCLUSION............................................................................................................................... 31 19 REFERENCES .............................................................................................................................. 32 20 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 34 Reviewed by: FCC ID: A3LSCHLC11 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1011101830.A3L 11/09/10 - 11/11/10 Cellular/PCS EVDO and 750 MHz LTE Portable 2.4 GHz WIFI Wireless Router Page 3 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices…
