A3LSCX4725FNMulti Function Printer

SCX-4725F SCX-4725FN © 2006 Samsung Electronics Co., Ltd. All rights reserved. This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this manual. • SCX-4725F and SCX-4725FN are model names of Samsung Electronics Co., Ltd. • Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • Centronics is a trademark of Centronics Data Computer Corporation. • PCL and PCL 6 are trademarks of Hewlett-Packard company. • Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows XP(32/64bit), and Windows 2003(32/64bit) are registered trademarks of Microsoft Corporation. • PostScript 3 is a trademark of Adobe System, Inc. • UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc. • TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. CONTACT SAMSUNG WORLD WIDE If you have any comments or questions regarding Samsung products, contact the Samsung customer care center. CountryCustomer Care Center Web Site ARGENTINE0800-333-3733www.samsung.com/ar AUSTRALIA1300 362 603www.samsung.com/au BELGIUM02 201 2418www.samsung.com/be BRAZIL0800-124-421www.samsung.com/br CANADA1-800-SAMSUNG (7267864) www.samsung.com/ca CHILE800-726-7864 (SAMSUNG)www.samsung.com/cl CHINA800-810-5858 010- 6475 1880 www.samsung.com.cn COSTA RICA0-800-507-7267www.samsung.com/latin CZECH REPUBLIC 844 000 844www.samsung.com/cz DENMARK38 322 887www.samsung.com/dk ECUADOR1-800-10-7267www.samsung.com/latin EL SALVADOR800-6225www.samsung.com/latin FINLAND09 693 79 554www.samsung.com/fi FRANCE08 25 08 65 65 ( 0,15/min) www.samsung.com/fr GERMANY01805 - 121213 ( 0,12/min) www.samsung.de GUATEMALA1-800-299-0013www.samsung.com/latin HONG KONG2862 6001www.samsung.com/hk HUNGARY06 40 985 985www.samsung.com/hu INDIA3030 8282 1600 1100 11 www.samsung.com/in INDONESIA0800-112-8888www.samsung.com/id ITALIA199 153 153www.samsung.com/it JAMAICA1-800-234-7267www.samsung.com/latin JAPAN0120-327-527www.samsung.com/jp LUXEMBURG02 261 03 710www.samsung.lu MALAYSIA1800-88-9999www.samsung.com/my MEXICO01-800-SAMSUNG (7267864) www.samsung.com/mx NETHERLANDS0900 20 200 88 ( 0,10/min) www.samsung.com/nl NORWAY231 627 22www.samsung.com/no PANAMA800-7267www.samsung.com/latin PHILIPPINES1800-10-SAMSUNG (7267864) www.samsung.com/ph POLAND0 801 801 881www.samsung.com/pl PORTUGAL80 8 200 128www.samsung.com/pt PUERTO RICO1-800-682-3180www.samsung.com/latin REP. DOMINICA1-800-751-2676www.samsung.com/latin RUSSIA8-800-200-0400www.samsung.ru SINGAPORE1800-SAMSUNG (7267864)www.samsung.com/sg SLOVAKIA0850 123 989www.samsung.com/sk SOUTH AFRICA0860 7267864 (SAMSUNG)www.samsung.com/za SPAIN902 10 11 30www.samsung.com/es SWEDEN08 585 367 87www.samsung.com/se TAIWAN0800-329-999www.samsung.com/tw THAILAND1800-29-3232 02-689-3232 www.samsung.com/th TRINIDAD & TOBAGO 1-800-7267-864www.samsung.com/latin U.A.E800SAMSUNG (7267864)www.samsung.com/mea U.K0870 242 0303www.samsung.com/uk U.S.A1-800-SAMSUNG (7267864) www.samsung.com UKRAINE8-800-502-0000www.samsung.com/ur VENEZUELA1-800-100-5303www.samsung.com/latin VIETNAM1 800 588 889www.samsung.com/vn CountryCustomer Care Center Web Site CONTENTS 1. Introduction Special features ...................................................................................................................................................... 1.1 Printer overview ...................................................................................................................................................... 1.2 Finding more information ........................................................................................................................................ 1.4 Selecting a location ................................................................................................................................................. 1.4 2. System setup Menu overview ........................................................................................................................................................ 2.1 Changing the display language ............................................................................................................................... 2.2 Changing the country .............................................................................................................................................. 2.2 Setting the date and time ........................................................................................................................................ 2.2 Changing the clock mode ........................................................................................................................................ 2.2 Setting sounds ........................................................................................................................................................ 2.2 Entering characters using the number keypad ........................................................................................................ 2.3 Using the save modes ............................................................................................................................................. 2.3 3. Software overview Supplied software .................................................................................................................................................... 3.1 Printer driver features .............................................................................................................................................. 3.2 System requirements .............................................................................................................................................. 3.2 4. Network setup (SCX-4725FN only) Introductio…

Text truncated - open the document above for the full version.

MAIN CONTROLLER SRAM 128KB NOR FLASH (8MB x 2EA) SDRAM (16MB x 2EA) SFX336 (CX86710) OPE ADF ADF MOTOR LCD (16X2) CIS (600dpi Color) PICKUP CLUTCH LSU S/W LSU SCAN MOTOR MAIN MOTOR FAN_SMPS HVPS SMPS FUSER HT48C50 LCD/LED DRIVER KEY SCAN SENSOR DRIVER CIS HOME DETECTOR BATTERY Doc-EMPTYDoc-REGDoc-EXIT ADF MOTOR DRIVER (3718 X 2) USB 2.0 Modular COVER OPEN SWITCH P_EMPTY SENSOR ●THV ●MHV●OPC●DEV ●SUPPLY ● HR(ZENER) INLET & POWER S/W 5V / 24V Generation AC PWR FEED SENSOR JAM COVER S/W RESET THERMISTOR LSU Control AUDIO PART MAIN MOTOR DRIVER (A3977SLP) SCAN MOTOR DRIVER (AN44060A) CIS AFE 12V Regulator ARM 920T Core 300MHz SDRAMC ROMC LVDS Engine Controller RTC MAC PLL CIP4e AC 110V/220V 1.3V / 3.3V DC to DC Converter LSU_5V 24V SMART DAA (CX20493) SPEAKER 5V 14P 4P 16P 7P 12P 2P 14P 4P 4P 2P 3P 16P 2P 26P 9P 2P 3P 4P Ethernet Transceiver (BCM5241) SCX-4725FN Only USB 2.0 (ISP1582) EXIT_SENSOR 3P SCX SCX - - 4725FN/4725F H/W BLOCK DIAGRAM 4725FN/4725F H/W BLOCK DIAGRAM 24V 24VS1 24VS124VS2 Customer Replace Unit (S-CRUM) Ethernet 10/100 Tx (SCX-4725FN Only) FAN_MAIN 3P

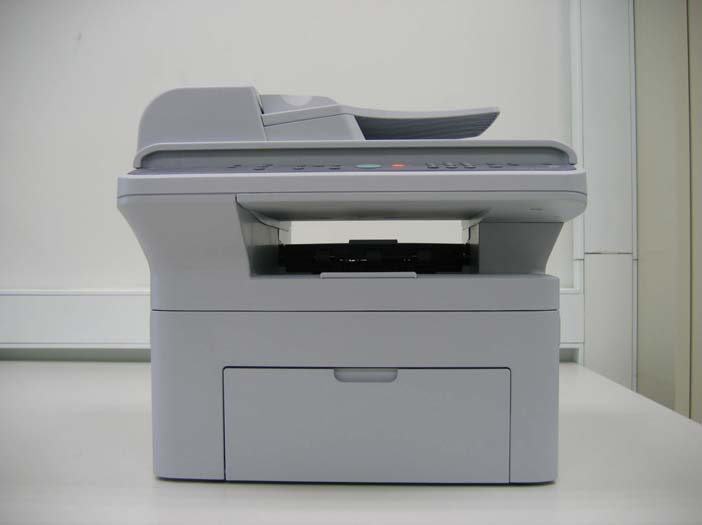

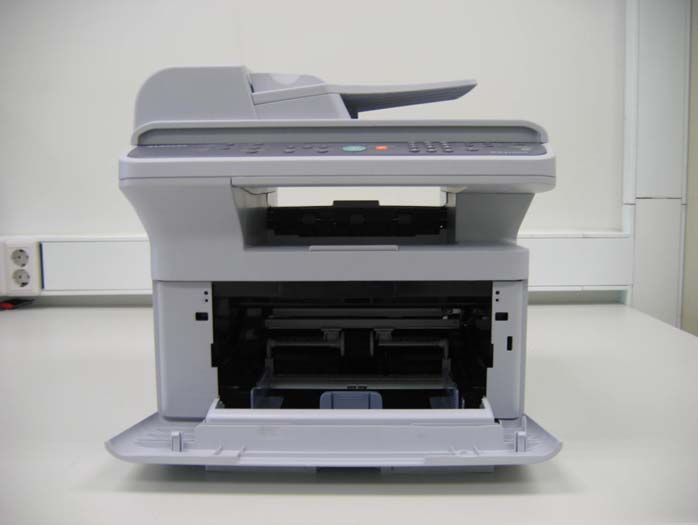

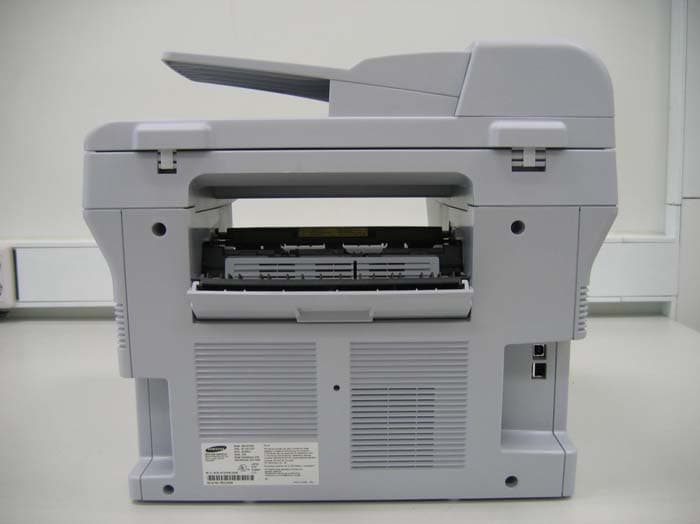

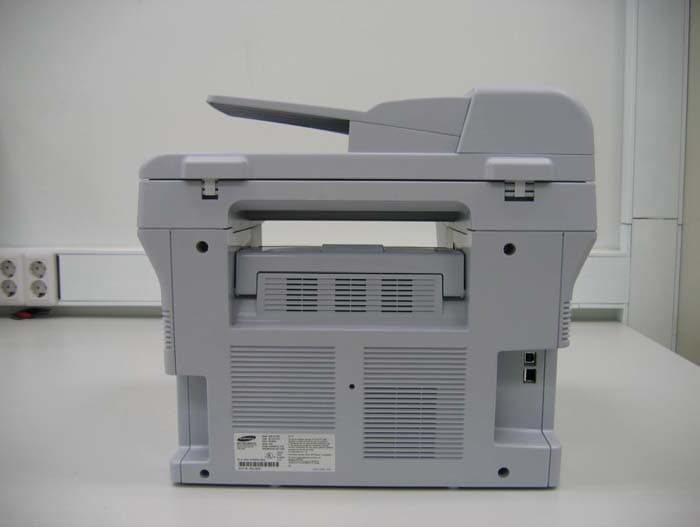

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2 2. Internal Pictures 1) Front View 2) Rear View

Report No. : LBE062064 -23/25- 4.3 Label (Picture 7~9 SCX-4725FN, Picture 10~12 SCX-4725F) Picture 7. Samsung Electronics Co., Ltd. Picture 8. Samsung Electronics (Shandong) Digital Printing Co.,Ltd. Picture 9. Weihai Shin Heung Digital Electronics Co., Ltd. Report No. : LBE062064 -24/25- Picture 10. Samsung Electronics Co., Ltd. Picture 11. Samsung Electronics (Shandong) Digital Printing Co.,Ltd. Picture 12. Weihai Shin Heung Digital Electronics Co., Ltd. Report No. : LBE062064 -25/25- 4.4 Label Location Picture 13. REAR

3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of OPE 8) Bottom View of OPE 9) Top View of Mudular 10) Bottom View of Modular

-1/25- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 031 277 7752, Fax: 031 277 7753) NVLAP Code : 200623-0 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea 2. Purpose for the report : Approval for EMC 3. Kind of product : Printer (Model name: SCX-4725FN) 4. Date of test : 2006.07.12 ~ 2006.07.15 5. Applied standard : FCC Part 15, Subpart B 6. Report No. : LBE062064 Issue 1 7. FCC ID : A3LSCX4725FN 8. Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by Name : Young Hun, Jeong Reviewed by Name : No Cheon, Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006.07.23 Samsung Electronics Co., Ltd. Chief of CS Management Center Report No. : LBE062064 -2/25- TEST RESULT Test Report No. : LBE062064 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98 ,Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China EUT : 1. Product name : Printer 2. Model name : SCX-4725FN 3. Brand name : Samsung 4. Variant model : SCX-4725F Test Method : ANSI C 63.4:2003 Test Result : Complied The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. Tested by : Young Hun, Jeong Reviewed by : No Cheon, Park Date of Issue : 2006.07.23 Report No. : LBE062064 -3/25- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standards 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted emission 3.2 Radiated emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 4.3 Label 4.4 Label Location Report No. : LBE062064 -4/25- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name SCX-4725FN Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Young Hun, Jeong Kind of product Printer Valiant model SCX-4725F Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98 ,Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Rated power 110~127 VAC, 50/60 Hz, 5.5 A New / Alternative / Permissive change information New Report No. : LBE062064 -5/25- 1.2 Detail Information related product 1.2.1 Specification Item Specification and Description Processor CHORUSm (ARM920T, 300MHz) Standard System memory 32MB (not expandable) Resolution Up to 1200 x 1200 dpi effective output Copy Quality mode Text : 600x300dpi (ADF, Platen) Text/Photo : 600x300dpi (ADF, Platen) Photo : 600x300dpi (ADF), 600X600 (Platen) Paper Handling ADF : Up to 30 Sheets Tray : Up to 250 Sheets Manual Tray: 1 sheet Power Rating 110~127 VAC, 5.5A, 50/60 Hz Power Consumption Power save mode : Less than 13.5 Watts Stand by mode : Less than 70 Watts Printing : Less than 400 Watts ADF Copy mode : Less than 320 Watts Printer Language PCL6, PS3(SCX-4725FN only), SPL(for Linux only) PC Interfaces USB2.0, Ethernet 10/100 Base Tx(SCX-4725FN Only) OS compatibility Windows 98/Me/NT4.0/2000/XP/2003 Server Various Linux OS(via USB interface only) Mac OS 10.3 ~ 10.4(SCX-4725FN only) Modes of Operation USB Printing, Network Printing(SCX-4725FN Only), ADF Scan,ADF Copy, Fax RX, Fax TX Intended Class for Emission s Class B Report No. : LBE062064 -6/25- ■ Clock Frequency List Main Clock : 12 MHz Video Clock : 22.5035 MHz CPU Internal Clock : 300 MHz SDRAM Clock : 100 MHz USB Device Clock : 12 MHz Network Clock : 25 MHz CIS : 4.167 MHz Report No. : LBE062064 -7/25- 1.3 Operating mode and condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB and Network(LAN) printing, FAX, Scan, and Copy. In each test mode, finally we found worst case emission that is above configuration with the Worst case components. So, the data of the maximum EUT operation, ADF Copy, was reported. 1.4 Equipment modifications No equipment modification Report No. : LBE062064 -8/25- 1.5 Test procedure 1.5.1 Conducted emission The EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting Ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the meas…

Text truncated - open the document above for the full version.

Report No. : LBE062064 -20/25- 4. Appendix 4.1 Test photography Picture 1. Conducted emission (Front) Picture 2. Conducted emission (Rear) Report No. : LBE062064 -21/25- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
