SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : January 17, 2006 PCTEST Engineering Laboratory Inc. Atten.: Mr. Randy Ortanez / Mr. Gregory Czumak 6660-B Dobbin Road Columbia, MD 21045 Subject: Radiated emission test FCC ID: A3LSCX5530FN Gentlemen: We, Samsung Electronics, hereby declare the comments regarding to radiated Emission test results above 1 GHz as follows; “ The measured peak emission levels do not exceed the average limit by more than 20dB.” Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

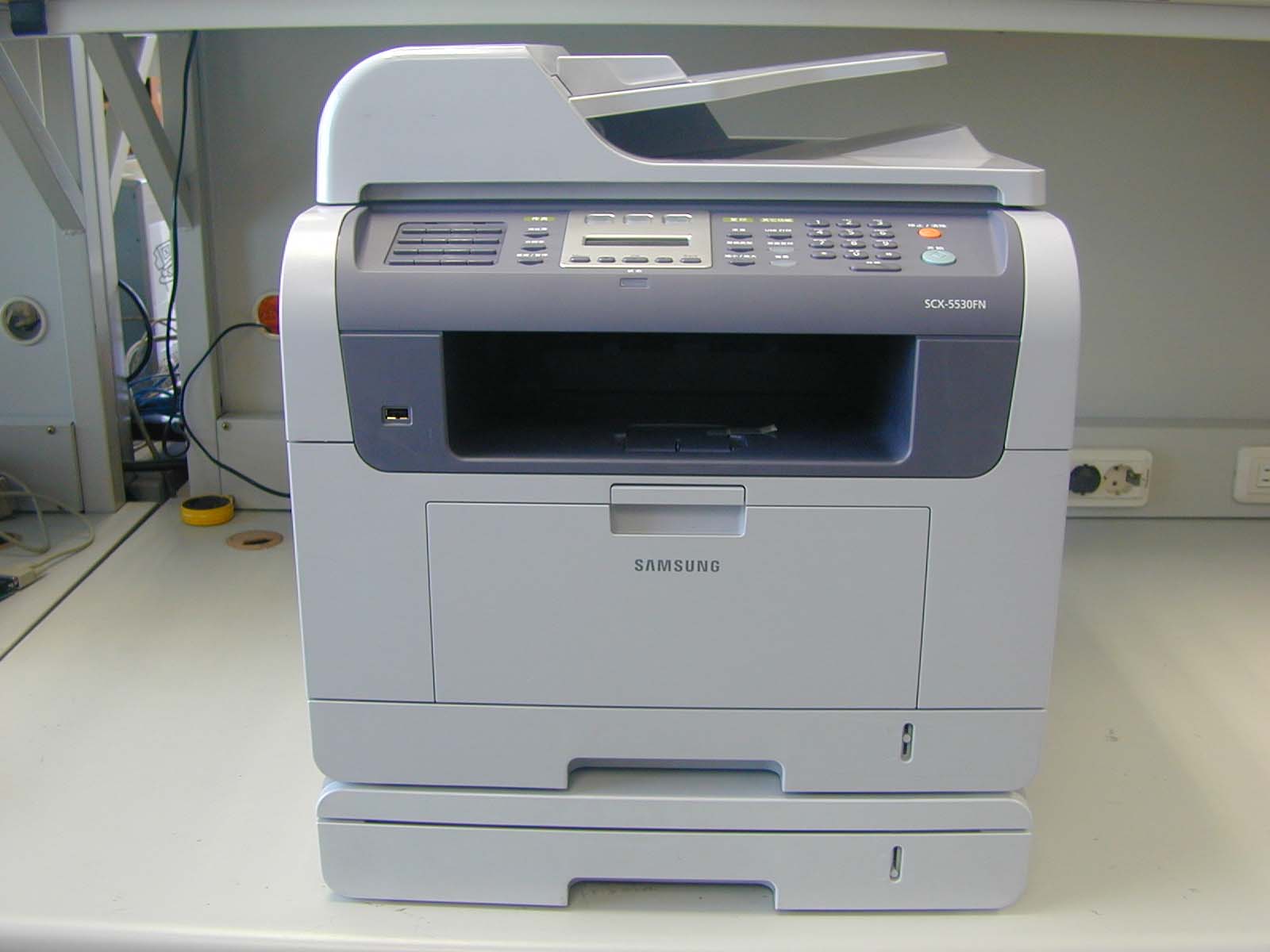

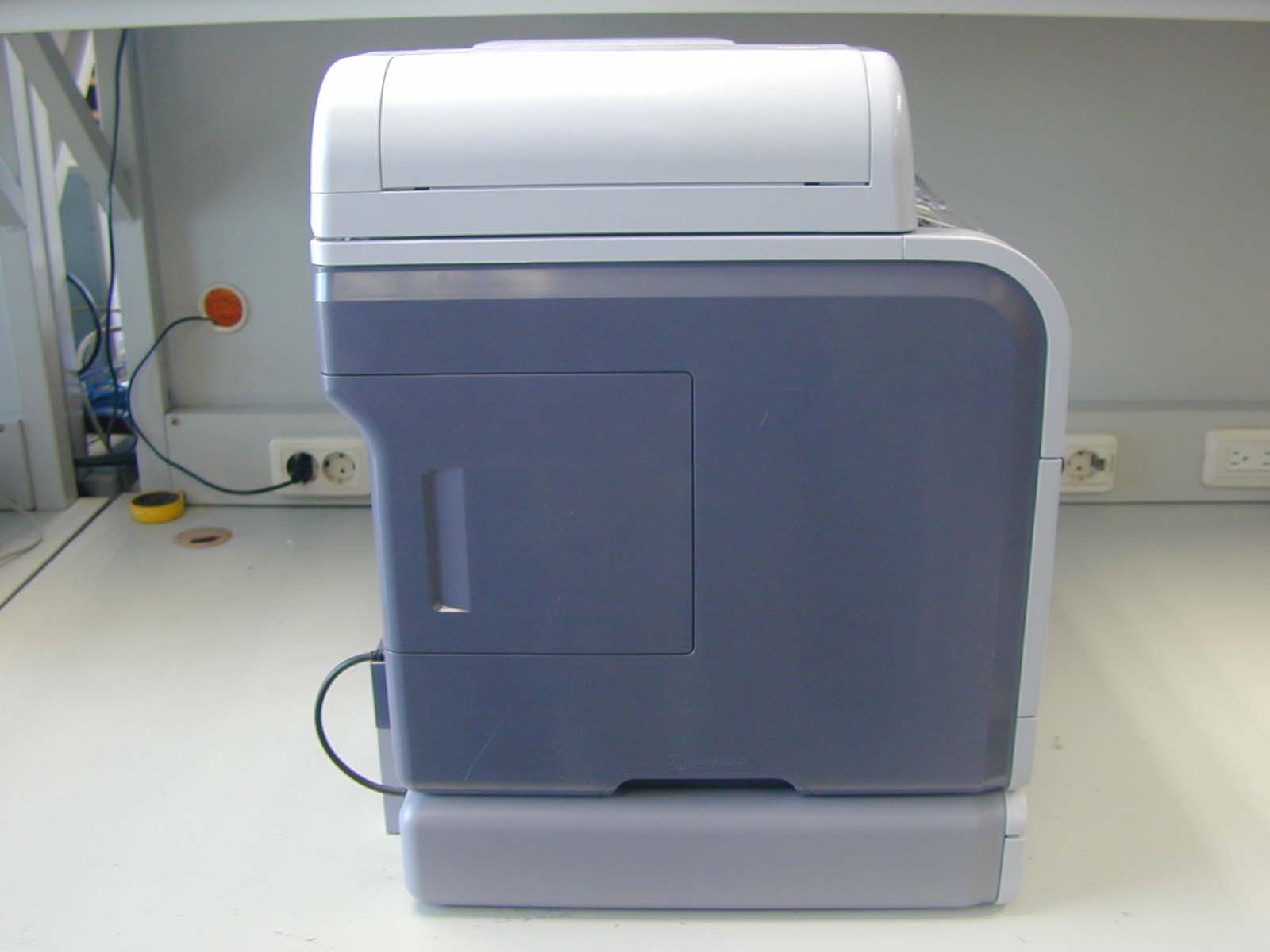

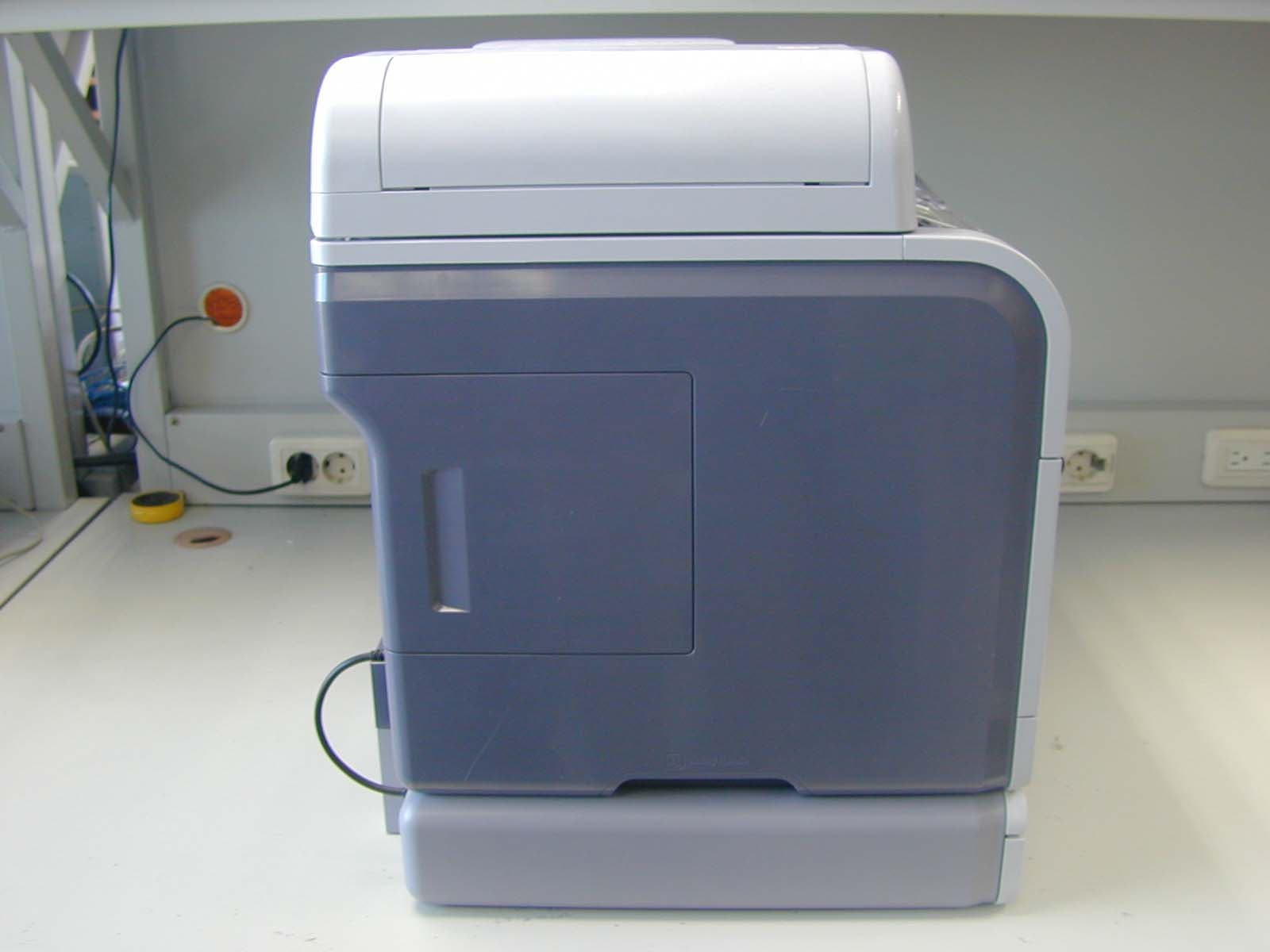

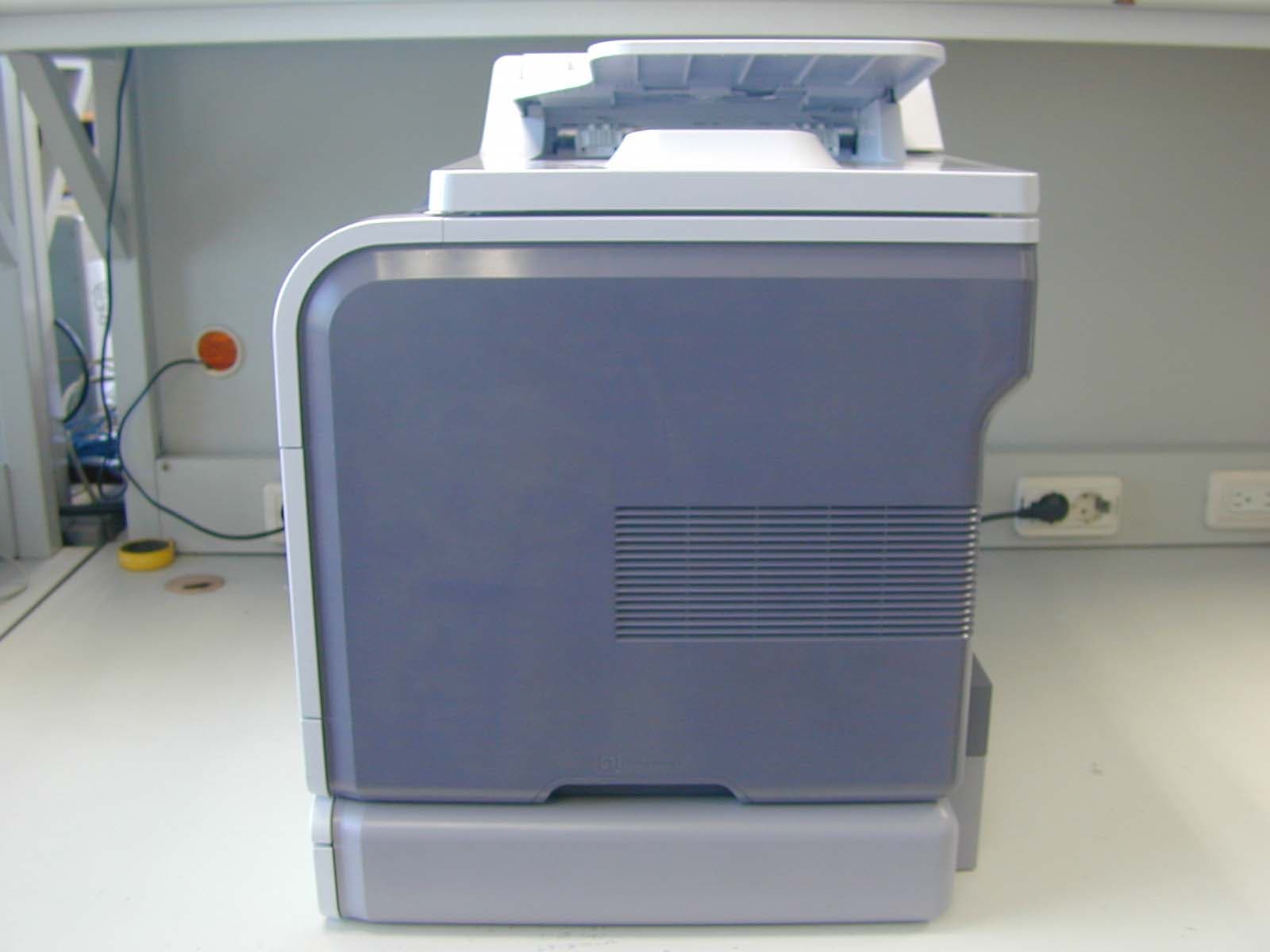

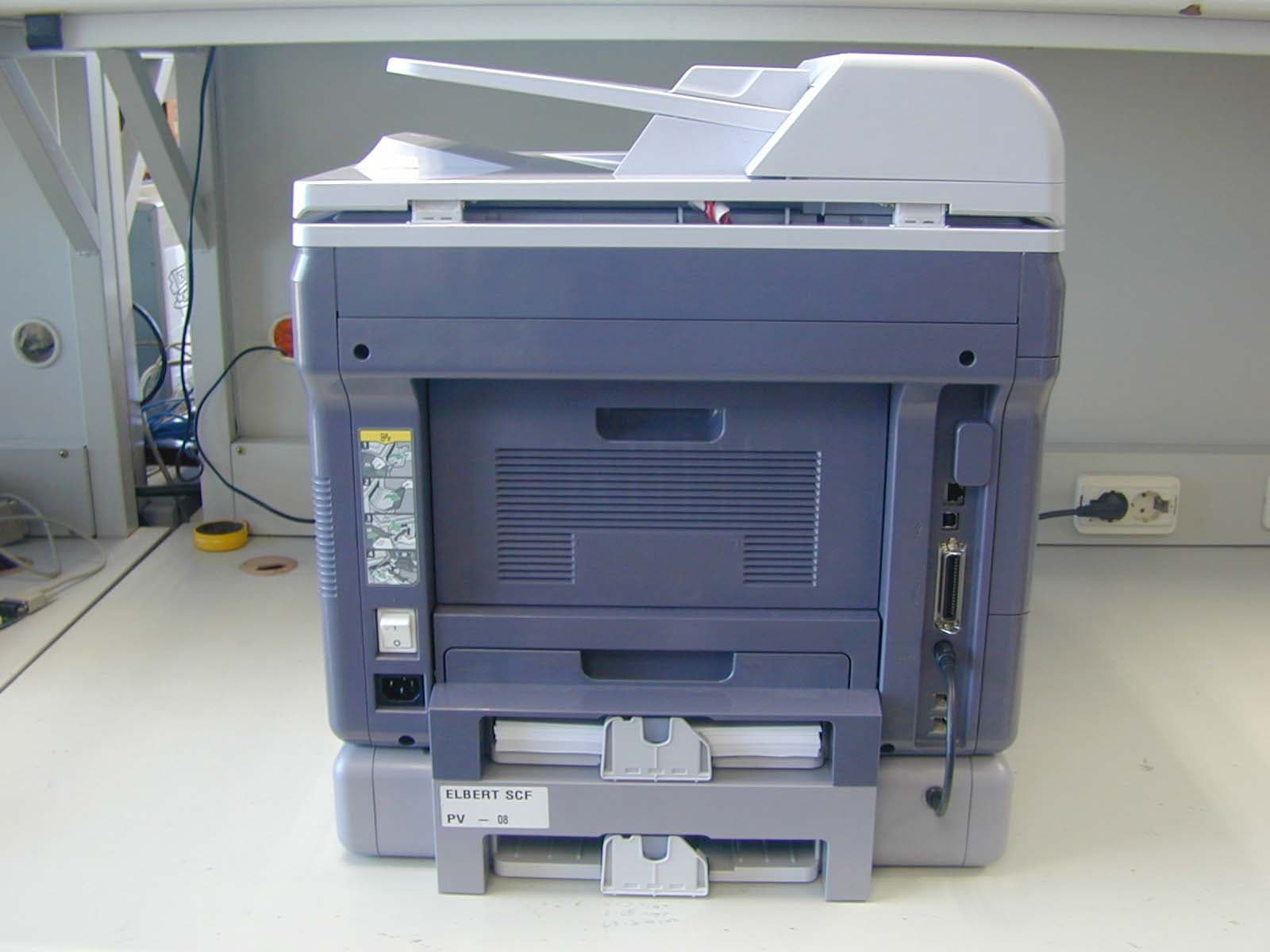

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

2. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View HVPS B'd 6) Bottom View of HVPS B'd 7) Top View of SCF B'd 8) Bottom View of SCF B'd

9) Top View of Modem B'd 10) Bottom View of Modem B'd 11) Top View of OPE B'd 12) Bottom View of OPE B'd 13) Top View of RAM B'd 14) Bottom View of RAM B'd 15) Top View of ADF B'd 16) Bottom View of ADF B'd

1 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE052607 Equipment under Test Applicant Samsung Electronics Co., Ltd 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea FCC ID A3LSCX5530FN Product Name Multi Function Printer Model Name SCX-5530FN Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Date of Test December 07, 2005 Issued Date December 16, 2005 Name/Position Signature Tes t ed b y Hak Seong, Kang Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC filing Registration Number : 873282 NVLAP LAB CODE 200623-0 2 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name SCX-5530FN Applicant Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Contact Person Hak Seong, Kang Kind of product Multi Function Printer Variant List SCX-5330N Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China New / Alternative / Permissive change Information New 1.2 Detail Information related Product Specification Item Specification Remark Power rating 110 ~ 127 VAC, 6.4A, 50/60 Hz - Power consumption Average : 520 W Power save mode : Less than 10 W - Display 16 characters x 2 lines - Toner cartridge life 4,000 or 8,000 pages at ISO 19752 5% coverage - Memory SCX-5330N: 64 MB (max. 320 MB) SCX-5530FN: 96 MB (max. 320 MB) - External dimension 467,5 x 435,5 x 458 mm (W x D x H) - Weight 17,5 Kg (including consumables) - Printing method Laser Beam Printing - Printing speed Up to 28 ppm in A4 (30 ppm in Letter) Print resolution Up to 1,200 x 1,200 dpi effective output - 4 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Duplex printing speed (SCX-5530FN ONLY) Up to 19ppm in A4 (21ppm in Letter) Interface IEEE 1284 Parallel High Speed USB 2.0 Ethernet 10/100 Base TX(Embedded type) - Scanning method ADF and Flat-bed Color CCD (Charge Coupled Device) - Scan Resolution Optical: 600 x 1,200 dpi (mono and color) Enhanced: 4,800 x 4,800 dpi - Copy speed Up to 28 ppm in A4 (30 ppm in Letter) - Copy resolution Scan: up to 600 x 300 (text, text/photo) up to 600 x 600 (photo using platen) up to 600 x 300 (photo using ADF) Print: up to 600 x 600 (text, text/photo, photo) - Modem speed 33,6 Kbps - Fax Resolution Standard: 203 x 98 dpi Fine: 203 x 196 dpi Super Fine: 300 x 300 dpi Photo: 203 x 196 dpi Color: 200 x 200 dpi - Fax Memory 8 MB - Fax Data coding MH/MR/MMR/JPEG/ECM (Error Correction Mode) - Operating Frequency - Main Source Clock : 12 MHz - Video Source Clock : 12 MHz - USB Device Source Clock : 12 MHz - USB Host Source Clock : 6 MHz - Network Source Clock : 25 MHz - CPU Operating Clock : 300 MHz - SDRAM Operating Clock : 100 MHz - CCD Operating Clock(mono) : 8.33 MHz - MODEM Source Clock : 28.224 MHz 5 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB and Network(LAN) printing, Fax Tx and Rx mode, Copy mode. In each test mode, finally we found worst case emission. So, the data of the maximum EUT operation, ADF Copy was reported. - ADF Copy Mode (worst emission) - IEEE1284 Parallel Printing Mode - USB Printing Mode - Network(LAN) Printing Mode - Fax Tx, Rx Mode - Standby Mode - Power Input Voltage : AC 110V Frequency : 60Hz 1.4 Test System Details Refer to 1.2 1.5 Equipment Modifications No equipment modifications were required. 6 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Conducted Emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to …

Text truncated - open the document above for the full version.

17 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 21 Samsung EMC Laboratory Project No: LBE052607 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3. Radiated Emission (Front) Pic. 4. Radiated Emission (Rear)
