A3LSGHA307Cellular/ PCS WCDMA/ GSM/ EDGE USB Modem

2 Welcome to AT&T Thank you for purchasing the AT&T USBConnect Force. Please use this Quickstart for a brief overview of device setup OR take advantage of our interactive web tutorials at for the most complete and up-to-date device setup information. The online tutorials include step-by-step instructions and an easy search function to find what you need quickly. att.com/Tutorials 3 Getting Started Insert device into the USB port Slide open the front.1. Open USB Connector.2. Swivel USB Connector if needed.3. Carefully insert device into available USB 4. port. Do not close slider or force it to close. Optional USB cable included for convenience. Install the software • After you insert the device into the laptop for the first time, the AT&T Communication Manager (ACM) auto-install begins. Follow the on-screen prompts. Note: The enclosed CD is provided as a backup option to install ACM. Start AT&T Communication Manager • For Windows, ACM automatically opens or click on the desktop shortcut. • For Mac, go to Applications > AT&T > AT&T Communication Manager. 3 Incor rect Cor rect 4 Use upright for optimal performance. 4 AT&T Communication Manager (ACM) is an auto-loading application that lets you control connections to the AT&T mobile network, other mobile networks worldwide and to available Wi-Fi networks, including thousands of AT&T Wi-Fi Hot Spots. ACM will auto-install when you first plug the device into your laptop and works on both Microsoft Windows (Windows 7, Vista and XP) and Apple Macintosh (MacOS 10.4 and above). ACM offers a range of tools to manage connections, find the best connection available and connect quickly. AT&T Communication Manager Connection: Use this screen to choose between connecting to the Mobile AT&T Network or to a local Wi-Fi network in range Settings: Use this screen to display all the settings or to customize ACM to better meet your needs. Updates: Use this screen to control update alerts and the status of any installed updates. Text Messages: Use this screen to send text messages or see sent or received messages. Contacts: Use this screen to view, add or shows a list of the numbers/names of those who you have sent or received text messages from, or allows you to add new numbers/names. ? AT&T COMMUNICATION MANAGER Rethink Possible Mobile(555) 123-4567 Wi-Firescan Connection AT&T ready to c onnect AT&T HOTSPOT HO TSPOT 2 HO TSPOT 3 HO TSPOT 4 HO TSPOT 5 HO TSPOT 6 HO TSPOT 7 HO TSPOT 8 usage details 5 days left in billing period 4GB Le ft 5G B connect usage det ail s 5 days left in billing period connect ACM offers two easy ways to access the Internet. Choose a mobile connection to get on the AT&T mobile network or a Wi-Fi connection. Both are available from the main Connect screen. Your data usage through the Mobile network is tracked and part of your data plan. Data usage through Wi-Fi does not count against your AT&T data usage. • Connect via Mobile network To get started, click the blue Connect button in the Mobile section. Once connected, launch your browser or, email or other Internet application. To disconnect, click the orange Disconnect button. The usage meter is displayed as a bar near the bottom of the Mobile connection section. Connect Options 5 ? AT&T COMMUNICATION MANAGER Rethink Possible Mobile(555) 123-4567 Wi-Firescan Connection AT&T ready to c onnect AT&T HOTSPOT HO TSPOT 2 HO TSPOT 3 HO TSPOT 4 HO TSPOT 5 HO TSPOT 6 HO TSPOT 7 HO TSPOT 8 usage details 5 days left in billing period 4GB Le ft 5G B connect usage det ail s 5 days left in billing period connect For all DataConnect plans, you can manage your monthly wireless data usage and avoid overage charges by: • Taking advantage of the usage meter provided as a way to easily track your data usage. The Usage meter in the Mobile connection section shows the estimated data usage within your monthly billing cycle compared to your monthly allowance as a bar graph as well as the number of days left in the cycle. Additional details are available by selecting the Usage Details link. Manage data usage • Using your Internet service (DSL, Cable, etc.) and home Wi-Fi networks to connect while at home and in the office. • Unlimited usage on AT&T’s entire national Wi-Fi network at no additional charge. Wi-Fi enabled device required. Other restrictions apply. For more details and locations see attwifi.com. 7 Samsung is a trademark of Samsung Electronics America, Inc. and/or its related entities. © 2010 AT&T Intellectual Property. All rights reserved. AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained herein are the property of their respective owners. GH68-31381A Printed in Korea Need help? For more information about using your new device and AT&T Communication Manager, please refer to the interactive web tutorial available at att.com/Tutorials. Call AT&T Customer Care at 800-331-0500 for assistance with your AT&T service. Please enter the 10-digit wireless number associated with your DataConnect service when prompted. This will direct your call to a specialized Care team. The wireless number associated with your DataConnect rate plan can be found: • on your sales receipt; • on your monthly statement; • on the main ACM screen (device must be inserted into laptop). Additional support is available online including device specifications, troubleshooting and user forums at att.com/DeviceSupport. Health and safety information Exposure to Radio Frequency (RF) Signals Certification Information (SAR) Your wireless dongle is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: September 20, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHA307 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

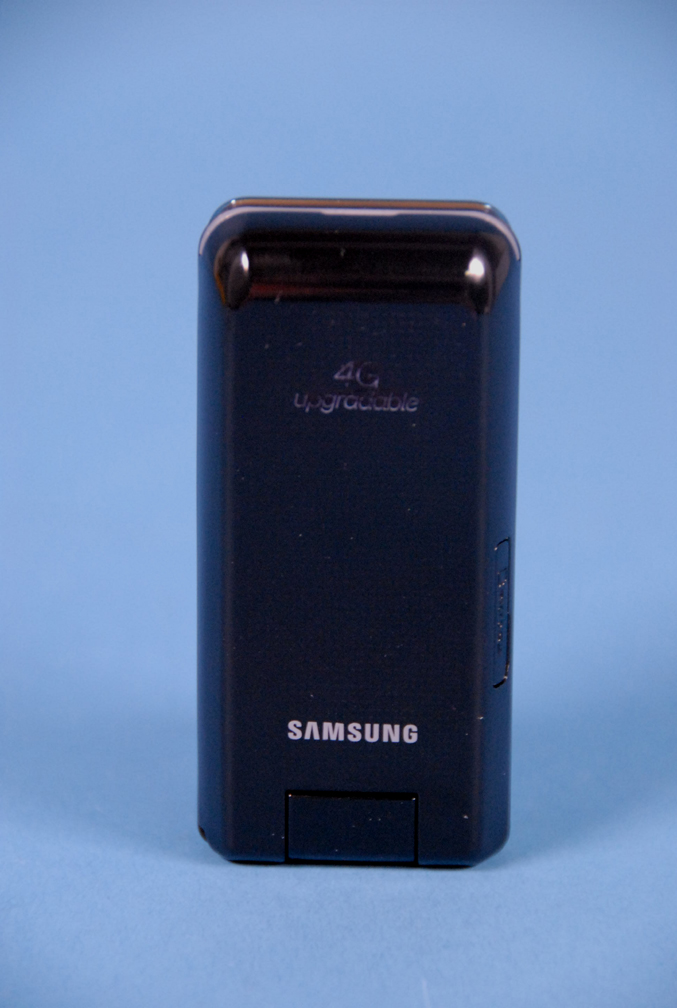

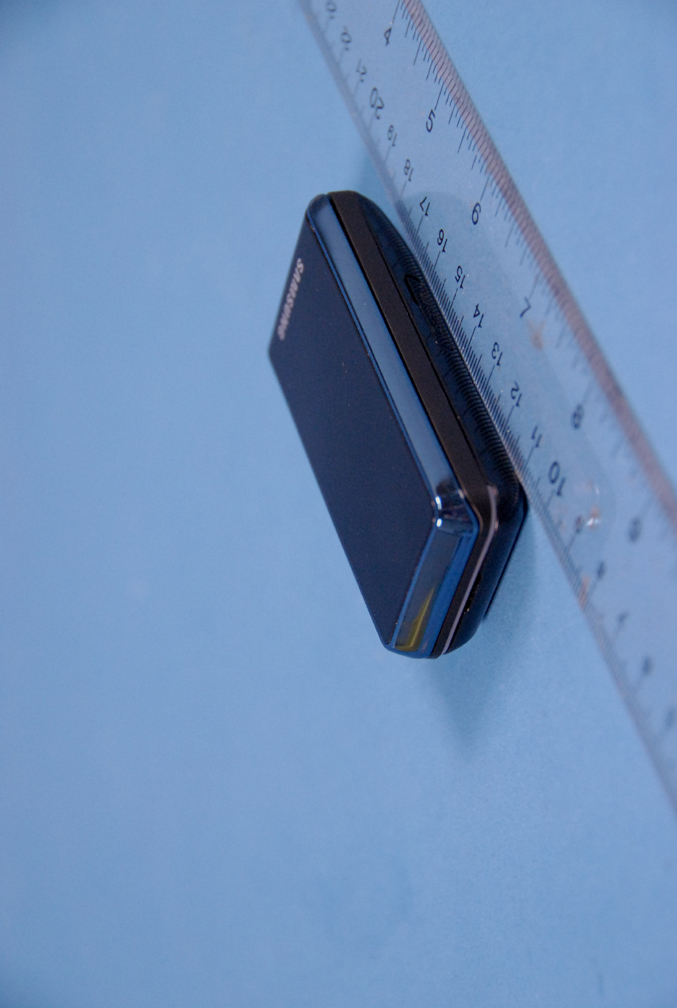

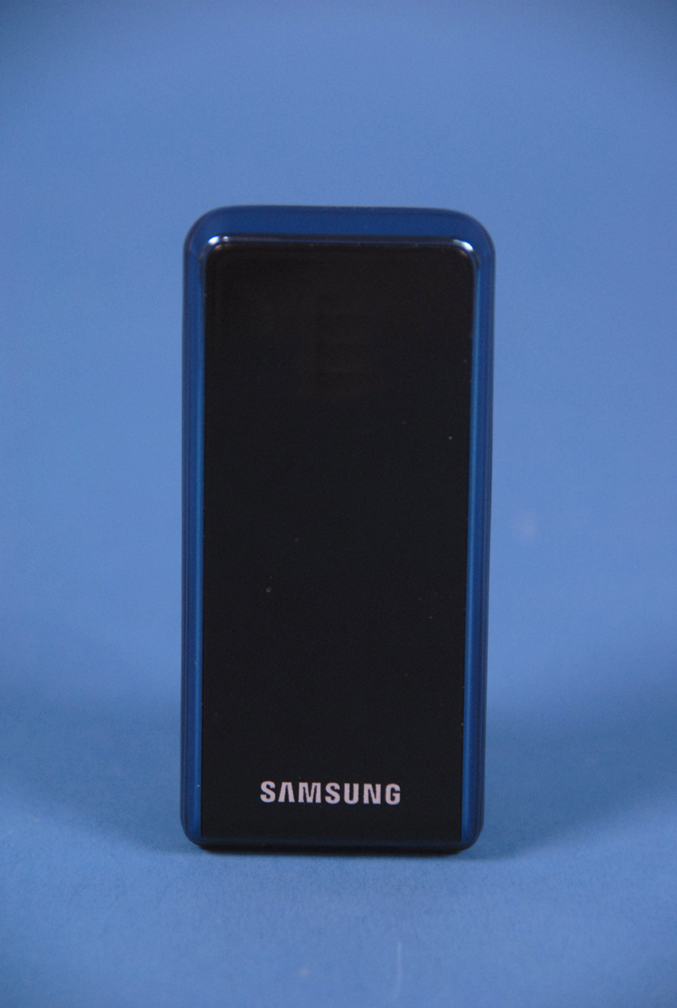

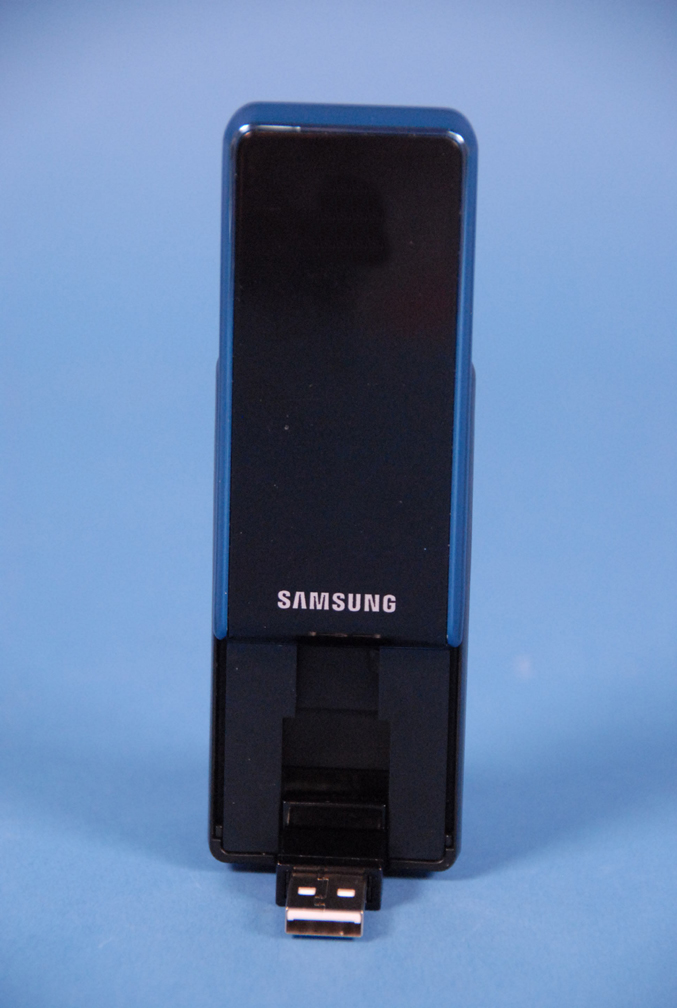

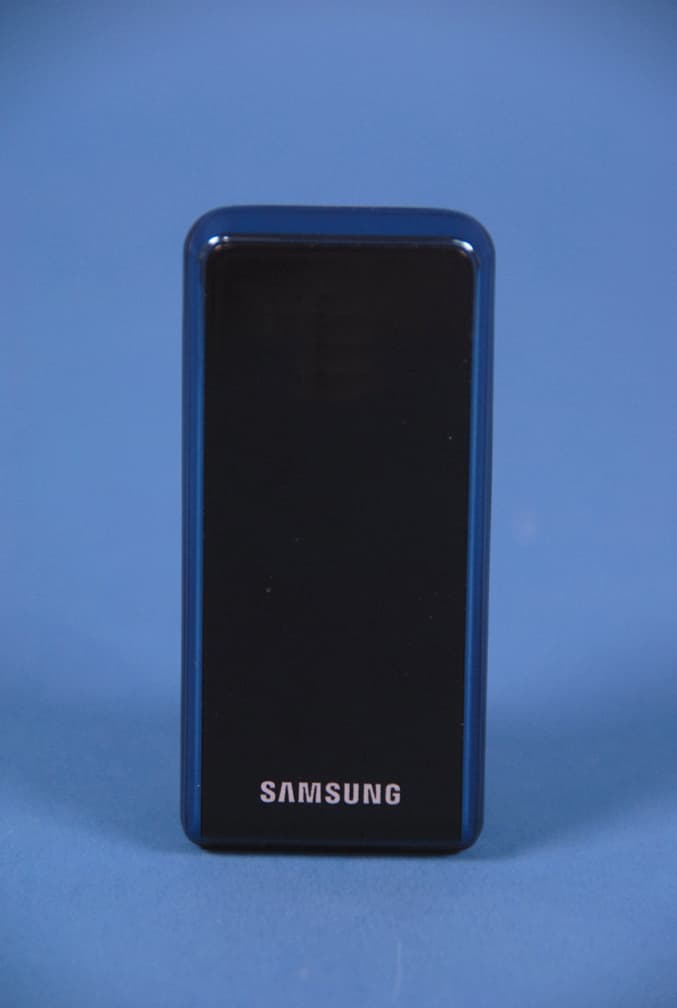

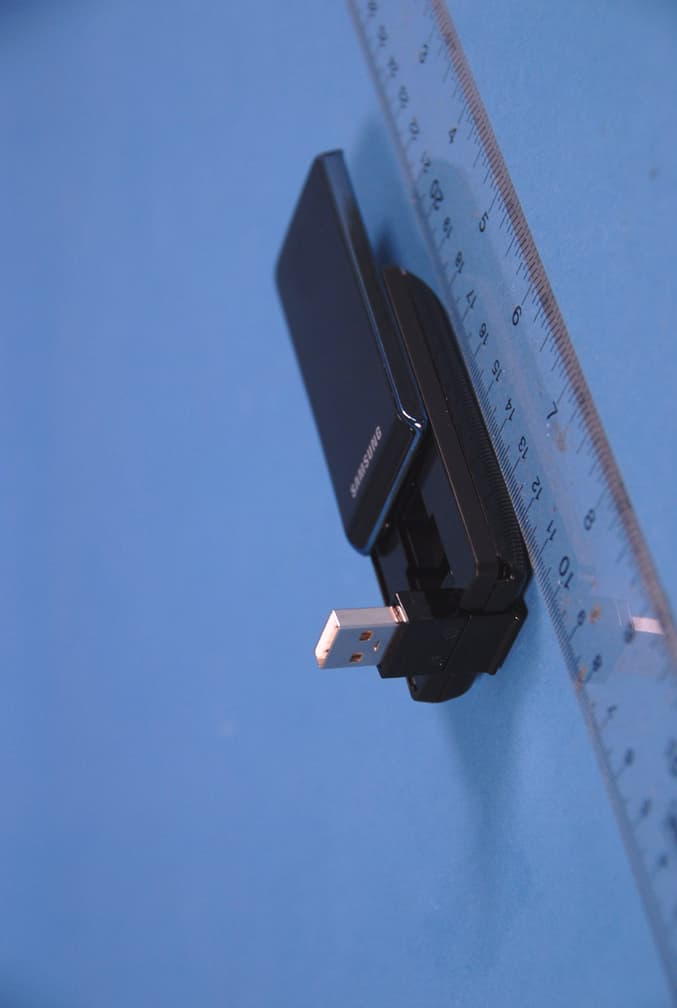

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 1 of 5 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 2 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 3 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 4 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 5 of 5 © 2010 PCTEST Engineering Laboratory Inc.

GH68- A JO KEONG HWAN MANUFACTURE 10-08-03 10-08-03 10-08-03 한성P&I KIM JUNE SOP MODEL: SGH-A307 RATED: 5.0 V; 600 mA FCC ID : A3LSGHA307 For information call : 1 888 987 4357 SGH-A307 5 5 Change number from 550 to 600mA August 3 The label is placed on rear case. MODEL : SGH-A307 RATED : 5.0 V; 600 mA FCC ID : A3LSGHA307 For information call : 1 888 987 4357

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 1 of 11 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 2 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 3 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 4 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 5 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 6 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 7 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 8 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 9 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 10 of 11 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHA307 Model: SGH-A307 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Dongle Page 11 of 11 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSGHA307 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 28 0Y1009161575.A3L 09/21/10 - 09/22/10 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/21/10 - 09/22/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009161575.A3L FCC ID: A3LSGHA307 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA USB Modem Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: PCS Licensed Transmitter (PCB) Model(s): SGH-A307 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 1852.4 - 1907.6 MHz (UMTS II) Conducted Power: 32.68 dBm GSM 850 29.71 dBm GSM 1900 22.95 dBm UMTS V 23.38 dBm UMTS II Max. SAR Measurement: 1.12 W/kg GSM 850 Body SAR 0.43 W/kg GSM 1900 Body SAR 1.10 W/kg UMTS V Body SAR 0.55 W/kg UMTS II Body SAR Test Device Serial No.: Pre-Production [S/N: FH-168-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSGHA307 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 28 0Y1009161575.A3L 09/21/10 - 09/22/10 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 TEST CONFIGURATION POSITIONS FOR USB DONGLES ...................................................... 11 9 RF EXPOSURE LIMITS ................................................................................................................ 12 10 MEASUREMENT UNCERTAINTIES ............................................................................................ 13 11 SYSTEM VERIFICATION .............................................................................................................. 14 12 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 13 SAR DATA SUMMARY ................................................................................................................. 19 14 EQUIPMENT LIST ......................................................................................................................... 21 15 CONCLUSION ............................................................................................................................... 22 16 REFERENCES .............................................................................................................................. 23 17 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 25 FCC ID: A3LSGHA307 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 28 0Y1009161575.A3L 09/21/10 - 09/22/10 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave [3] is used for guidance i…
