A3LSGHI537Portable Handset with Multi-band WCDMA/GSM/EDGE/LTE, WLAN, Bluetooth and RFID

4G LTE SMARTPHONE User Manual Please read this manual before operating your phone, and keep it for future reference. J Active Logo Treatment Goes Here DRAFT For Internal Use Only SGH-I537_UM_English_UCUAMD4_WC_042313_D1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT For Internal Use Only THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DRAFT For Internal Use Only DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) DRAFT For Internal Use Only ©2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electro…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 21, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHI537 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

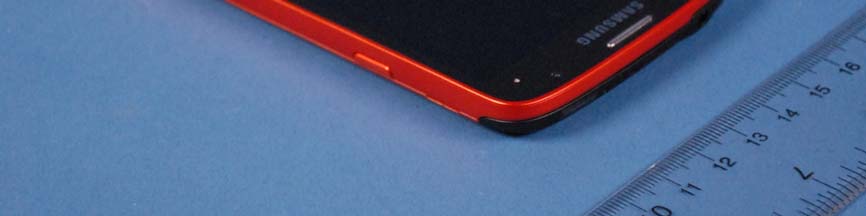

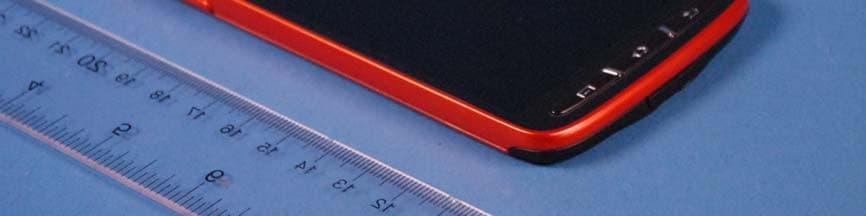

Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SGH-I537 FCC ID: A3LSGHI537 Label: Location: Top Back of device Bottom Phone: Label is placed inside of the battery compartment.

. The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.” Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 55 0Y1304240700-R1.A3L 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/24/13 - 04/29/13 129. Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Republic of Korea Document Serial No.: 0Y1304240700-R1.A3L FCC ID: A3LSGHI537 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SGH -I537 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.000.220.430.53 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.930.170.610.78 PCEUMTS 850826.40 - 846.60 MHz23.250.170.290.29 PCEUMTS 19001852.4 - 1907.6 MHz23.290.330.940.94 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz23.240.311.031.03 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz23.310.280.520.55 PCELTE Band 5 (Cell)826.5 - 846.5 MHz23.370.190.280.28 PCELTE Band 17706.5 - 713.5 MHz23.110.110.210.21 DTS2.4 GHz WLAN2412 - 2462 MHz16.080.280.120.13 DTS5.8 GHz WLAN5745 - 5825 MHz12.840.14< 0.1< 0.1 NII5.2 GHz WLAN5180 - 5240 MHz12.49< 0.1< 0.1N/A NII5.3 GHz WLAN5260 - 5320 MHz13.19< 0.1< 0.1N/A NII5.5 GHz WLAN5500 - 5700 MHz13.190.15< 0.1N/A DSS/DTSBluetooth2402 - 2480 MHz9.31 0.611.221.15 N/A SAR Band & Mode Tx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1304240700-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 55 0Y1304240700-R1.A3L 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 9 RF CONDUCTED POWERS ......................................................................................................... 20 10 SYSTEM VERIFICATION .............................................................................................................. 34 11 SAR DATA SUMMARY ................................................................................................................. 36 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 44 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 49 14 EQUIPMENT LIST ......................................................................................................................... 50 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 51 16 CONCLUSION ............................................................................................................................... 53 17 REFERENCES .............................................................................................................................. 54 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 55 0Y1304240700-R1.A3L 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 …

Text truncated - open the document above for the full version.

FCC ID: A3LSGHI537 FCC Pt. 15.247 802.11a/ac/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 67 0Y1304240703.A3L 4/26 - 5/4/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.8 04/10/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/26 - 5/4/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304240703.A3L FCC ID: A3LSGHI537 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SGH-I537 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246240.55116.0878.16318.93 802.11g 2412 - 246222.90913.60129.71821.13 802.11n 2412 - 246217.86512.52104.71320.20 802.11a 5745 - 582519.86112.98123.59520.92 802.11n (20MHz) 5745 - 582515.48811.9097.27519.88 802.11n (40MHz) 5755 - 579516.74912.2498.85519.95 802.11ac (80MHz)577511.74910.7050.24617.01 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/ac/b/g/n FCC ID: A3LSGHI537 FCC Pt. 15.247 802.11a/ac/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 67 0Y1304240703.A3L 4/26 - 5/4/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.8 04/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/AC/B/G/N ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N/AC (5GHZ) ................................................................... 25 6.5 POWER SPECTRAL DENSITY (802.11A/AC/B/G/N) .................................................................................. 26 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 37 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 45 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 53 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .........................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSGHI537 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 35 0Y1304240706.A3L April 25 - May 03, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.5 04/10/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. April 25 - May 03, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304240706.A3L FCC ID: A3LSGHI537 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SGH-I537 EUT Type: Portable Handset Max. RF Output Power: 3.45 mW (5.38 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSGHI537 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 35 0Y1304240706.A3L April 25 - May 03, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.5 04/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ........................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS .................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ..................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) ...................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .............................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE .................................................................................. 20 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .......................................................................... 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 32 6.9 LINE-CONDUCTED TEST DATA ............................................................................................................. 33 7.0 CONCLUSION ....................................................................................................................................... 35 FCC ID: A3LSGHI537 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 35 0Y1304240706.A3L April 25 - May 03, 2013 Portable Handset © 2013…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSGHI537 Model: SGH-I537 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 6 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 6 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1 - Right Cheek SAR Test Setup Photo 2 - Right Tilt FCC ID A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 6 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3 - Left Check SAR Test Setup Photo 4 - Left Tilt FCC ID A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 6 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5 - Back Side at 1.0 cm SAR Test Setup Photo 6 - Front Side at 1.0 cm FCC ID A3LSGHI537 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 6 04/24/13 - 04/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup P…

Text truncated - open the document above for the full version.
