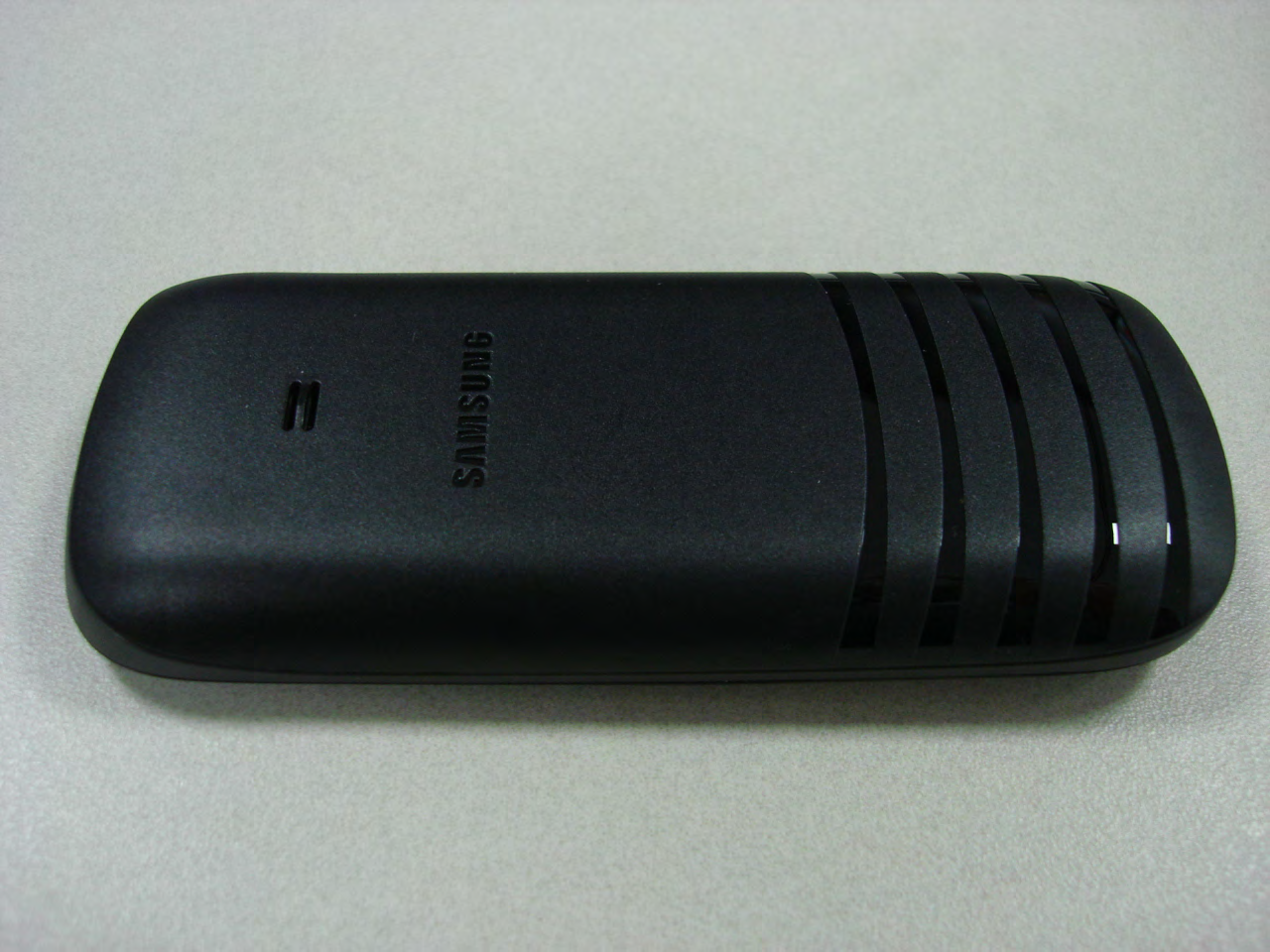

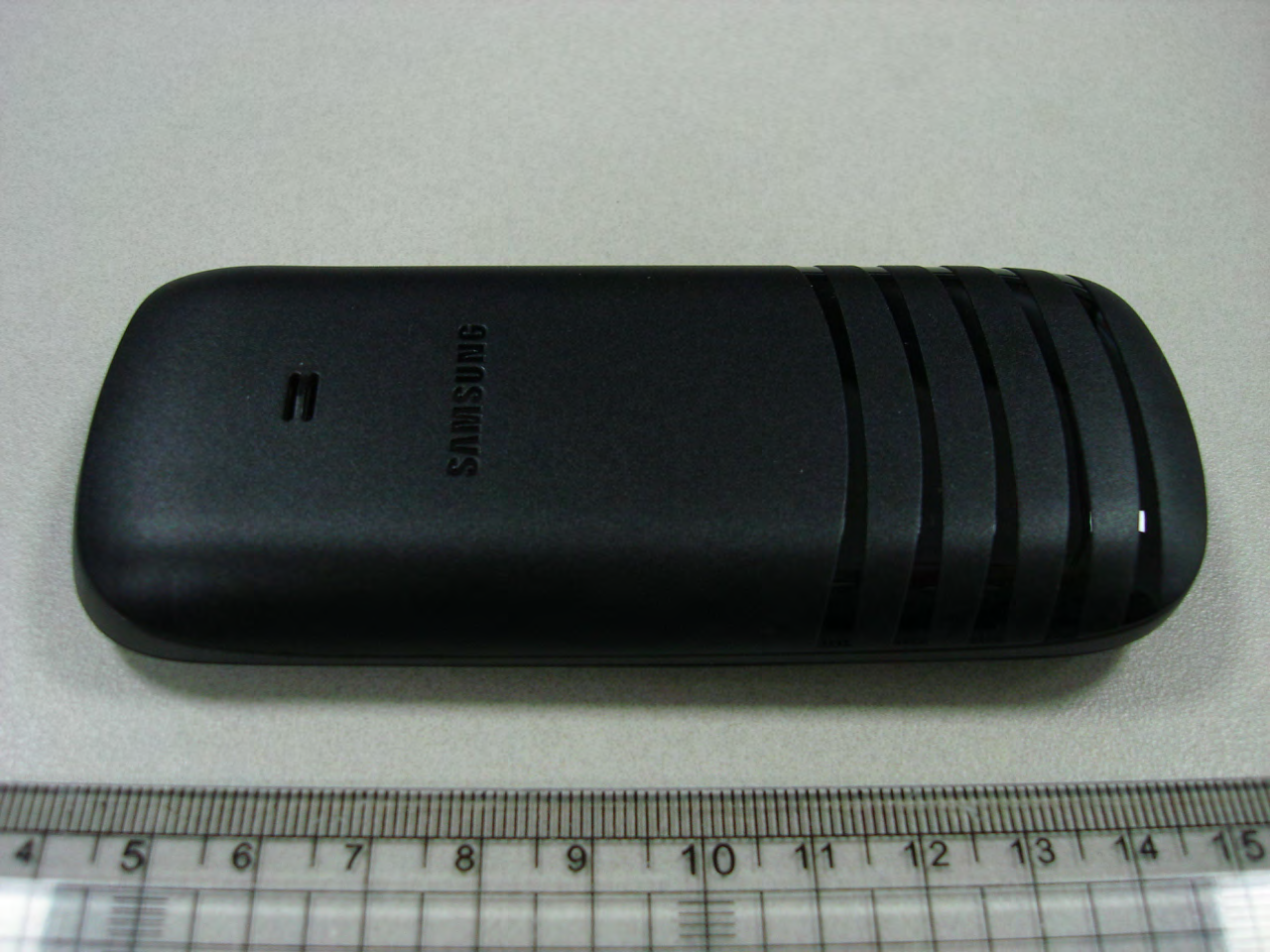

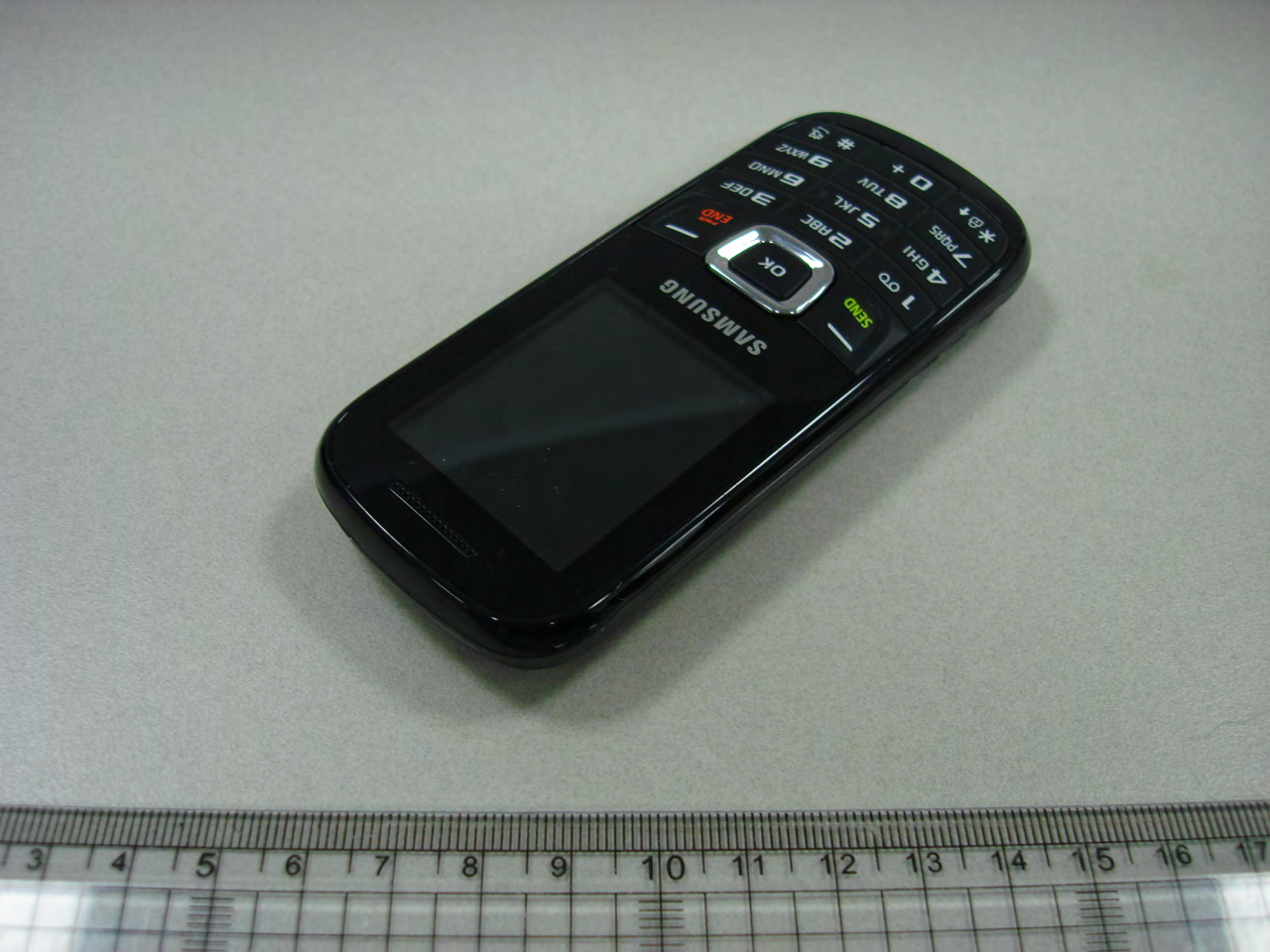

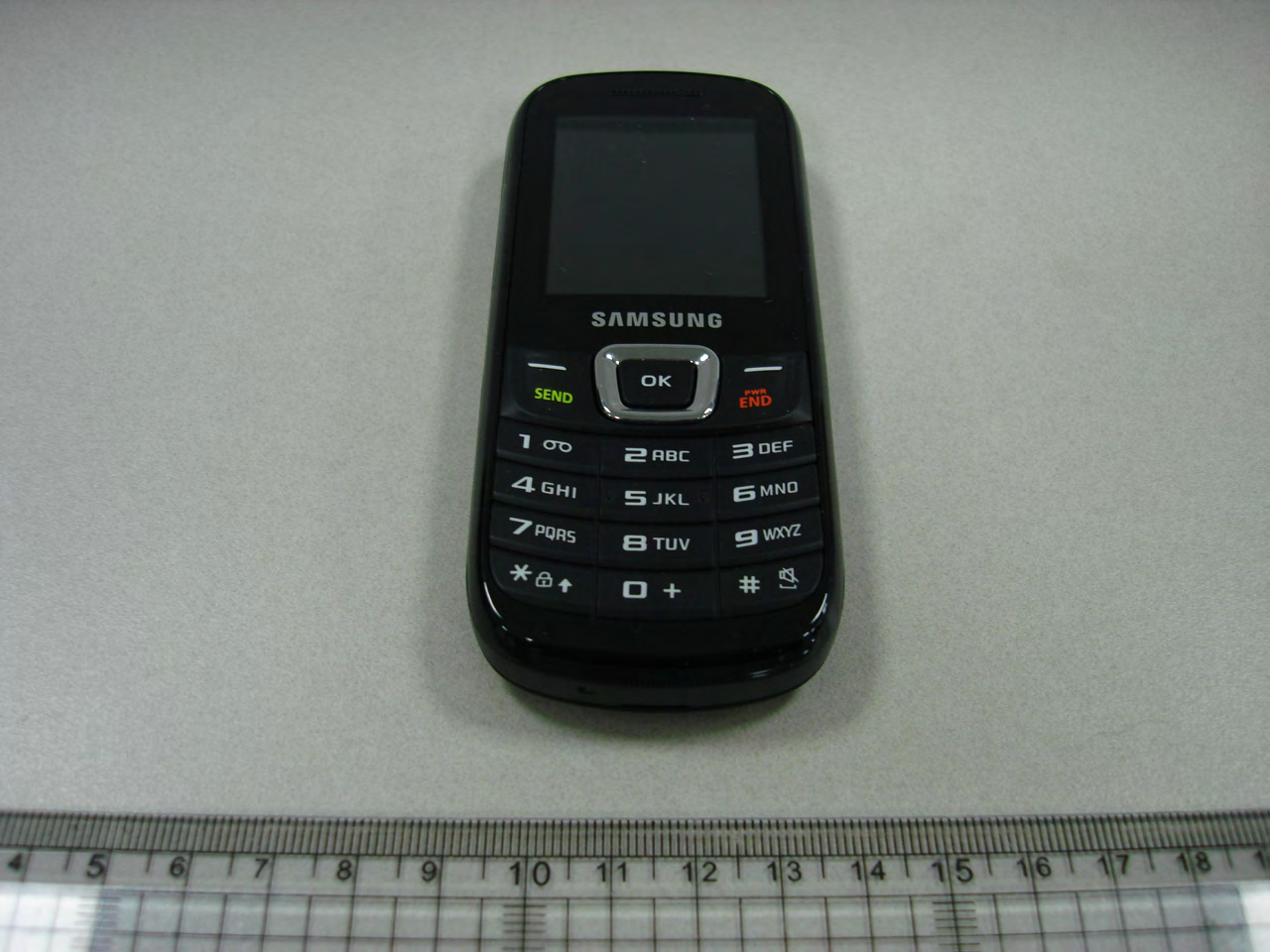

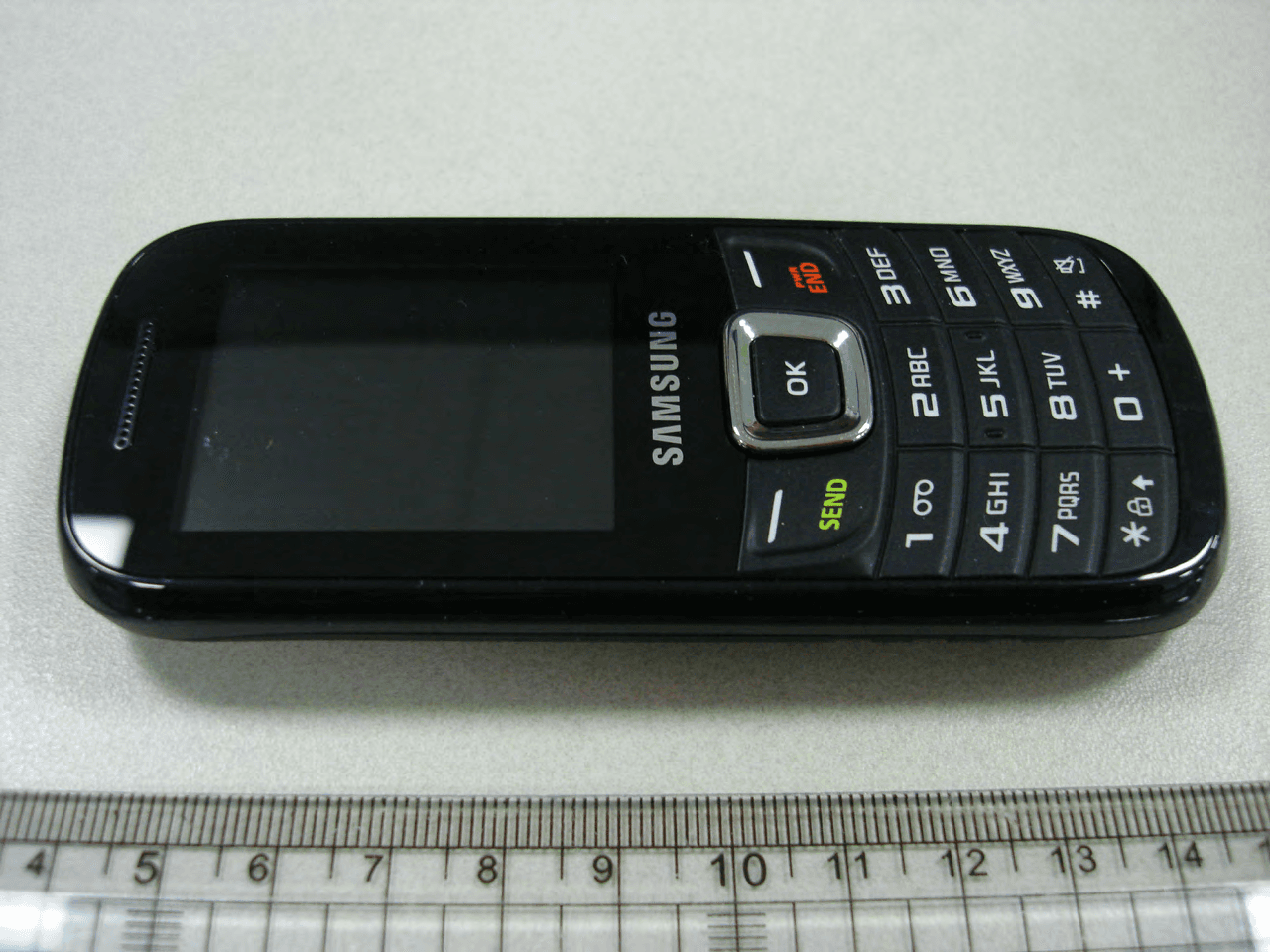

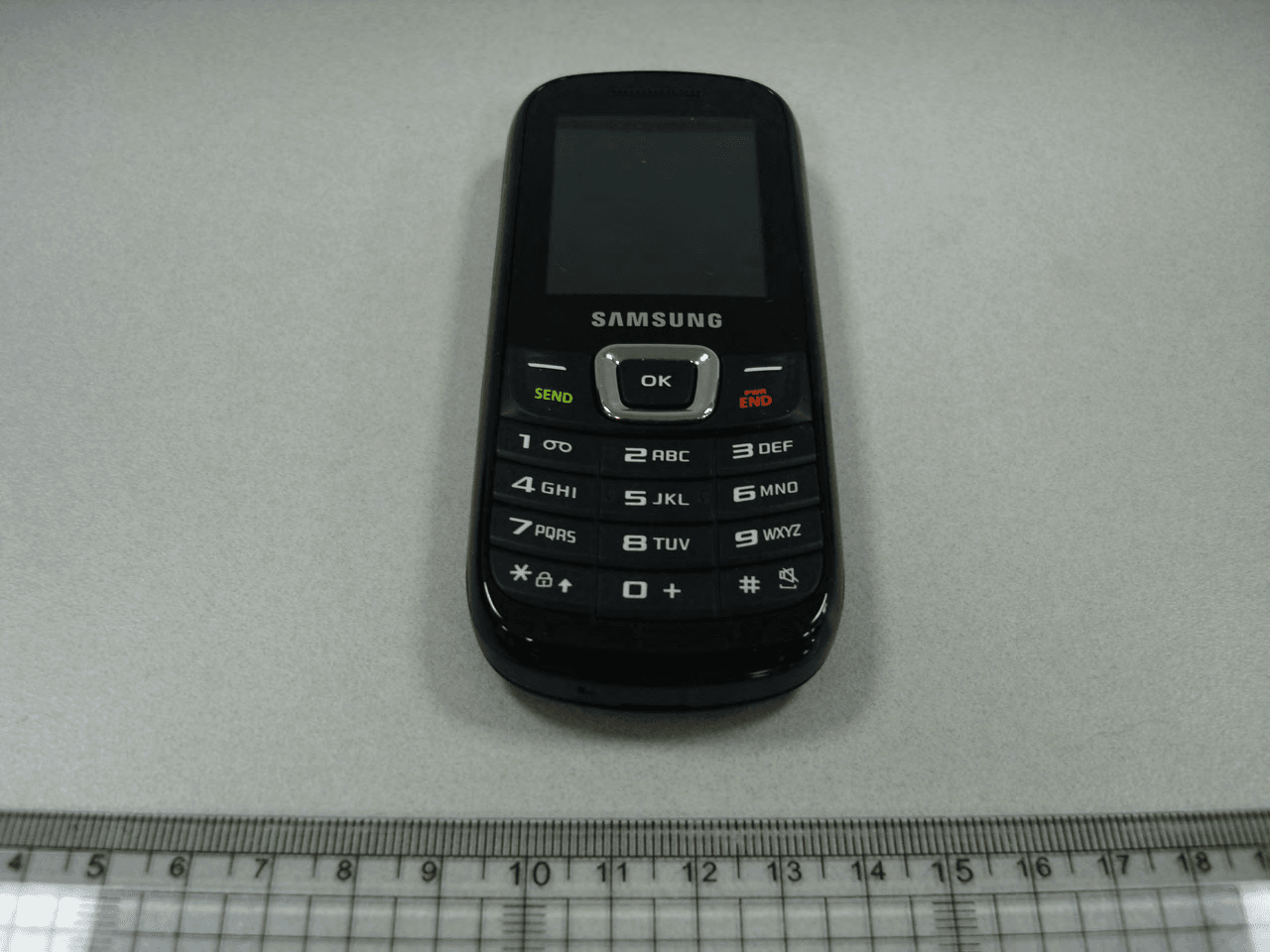

A3LSGHT199Portable Handset w/ Multi-Band GSM/EDGE/WCDMA

User manual SGH-T199 Draft 6.1 2012-09-08 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permane…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 14th, 2014 FCC ID: A3LSGHT199 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea N ov 22, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSGHT199 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 03, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHT199 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Samsung Phone Model: SGH-T199 Label and Location FCC ID: A3LSGHT199 Label: Top Location: Back plate of device Bottom Battery compartment Phone: Labelis placed inside of the battery compartment.

FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 27 0Y1312172403.A3L 12/19/13 - 12/27/13 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/19/13 - 12/27/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1312172403.A3L F C C I D : A3 LSG HT199 AP P L I C AN T : S AMS UN G ELE CT RONI CS, CO. LT D. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SGH-T199 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz32.000.400.47 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.540.960.52 PCEUMTS 17501712.4 - 1752.5 MHz23.140.660.70 PCEUMTS 19001852.4 - 1907.6 MHz22.001.030.64 Band & ModeTx Frequency Measured Conducted Power [dBm] Equipment Class SAR Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 27 0Y1312172403.A3L 12/19/13 - 12/27/13 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 DOSIMETRIC ASSESSMENT .........................................................................................................7 4 DEFINITION OF REFERENCE POINTS .........................................................................................8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 15 9 SYSTEM VERIFICATION .............................................................................................................. 17 10 SAR DATA SUMMARY ................................................................................................................. 19 11 SAR MEASUREMENT VARIABILITY ........................................................................................... 22 12 EQUIPMENT LIST ......................................................................................................................... 23 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 24 14 CONCLUSION ............................................................................................................................... 25 15 REFERENCES .............................................................................................................................. 26 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 27 0Y1312172403.A3L 12/19/13 - 12/27/13 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 D E V I C E U N D E R T E S T 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1750Voice/Data1712.4 - 1752.5 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots Maximum33.033.031.029.528.526.526.526.526.5 Nominal32.532.530.529.028.026.026.026.026.0 Maximum30.030.028.026.526.026.026.026.025.5 Nominal29.529.527.526.025.525.525.525.525.0 Burst Average 8-PSK (dBm) Mode / Band GSM/GPRS/EDGE 1900 GSM/GPRS/EDGE 850 Burst Average GMSK (dBm) 3GPP WCDMA Rel99 3GPP HSDPA Rel5 Maximum23.523.5 Nominal23.023.0 Maximum22.022.0 Nominal21.521.5 UMTS Band 2 (1900 MHz) Mode / Band UMTS Band 4 (1750 MHz) Modulated FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 27 0Y1…

Text truncated - open the document above for the full version.

FCC ID: A3LSGHT199 FCC Pt. 22, 24 & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 61 0Y1312172405.A3L 12/18 - 12/26/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/18 - 12/26/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312172405.A3L FCC ID: A3LSGHT199 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SGH-T199 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: FCC ERP/EIRP 2] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8242KGXW0.66728.24 EDGE850824.2 - 848.8239KG7W0.35825.54 GSM19001850.2 - 1909.8246KGXW1.14330.58 EDGE19001850.2 - 1909.8237KG7W0.50927.07 WCDMA17001712.4 - 1752.54M16F9W0.12821.08 WCDMA19001852.4 - 1907.64M18F9W0.30824.89 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 & 27 FCC ID: A3LSGHT199 FCC Pt. 22, 24 & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 61 0Y1312172405.A3L 12/18 - 12/26/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 22, 24 & 27 MEASUREMENT REPORT .................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.8 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 16 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 31 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 38 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 41 6.7 RADIATED SPURIOUS EMI…

Text truncated - open the document above for the full version.

FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. December 16-26, 2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312172404.A3L FCC ID: A3LSGHT199 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2011 EUT Type: Portable Handset Model(s): SGH-T199 Test Device Serial No.: Pre-Production Sample [S/N: AK-075-A] C63.19-2011 HAC Category: M3 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2011 and has been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS ........................................................................................................... 7 6. TEST PROCEDURE ..................................................................................................................... 12 7. SYSTEM CHECK .......................................................................................................................... 14 8. MODULATION INTERFERENCE FACTOR .................................................................................. 17 9. RF CONDUCTED POWER MEASUREMENTS ............................................................................ 19 10. JUSTIFICATION OF HELD TO EAR MODES TESTED ............................................................... 20 11. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 12. EQUIPMENT LIST ......................................................................................................................... 23 13. MEASUREMENT UNCERTAINTY ................................................................................................ 24 14. TEST DATA ................................................................................................................................... 25 15. CALIBRATION CERTIFICATES .................................................................................................... 30 16. CONCLUSION ............................................................................................................................... 58 17. REFERENCES .............................................................................................................................. 59 18. TEST PHOTOGRAPHS ................................................................................................................ 61 FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for:  RF Electric-field emissions  T-coil mode, magnetic-signal strength in the audio band  T-coil mode, magnetic-signal frequency response through the audio band  T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for:  RF immunity in microphone mode  RF immunity in T-coil mode In the following tests and results, this report includes the ev…

Text truncated - open the document above for the full version.

FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 61 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 18. TEST PHOTOGRAPHS See following Attached Pages for setup photographs. FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 62 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Figure 18-1 Ear Reference Point HAC Phantom Alignment Figure 18-2 HAC Phantom Plane Alignment FCC ID: A3LSGHT199 HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 63 of 63 0Y1312172404.A3L December 16-26, 2013 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Figure 18-3 5x5 Scan grid above WD Figure 18-4 E-Field WD Scan overlay

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT199 Model: SGH-T199 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT199 Model: SGH-T199 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 12/19/13 - 12/27/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 A P P E N D I X F : SA R T E S T S E T U P P H O T O GR A P H S FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 12/19/13 - 12/27/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 12/19/13 - 12/27/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LSGHT199 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Ty…

Text truncated - open the document above for the full version.
