A3LSGHT289Cellular/PCS/AWS GSM/EDGE/WCDMA Phone with Bluetooth

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: March 14, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHT289 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea March 19, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSGHT289 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: March 20, 2013 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSGHT289 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSGHT289 Model(s): SGH-T289 Air Interfaces: GSM850/1900, WCDMA850/1700/1900 Radio Services: GSM/EDGE/GPRS WCDMA, HSDPA Key Features: GPS SMS Bluetooth MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, xiaohui guo Engineer Samsung Electronics

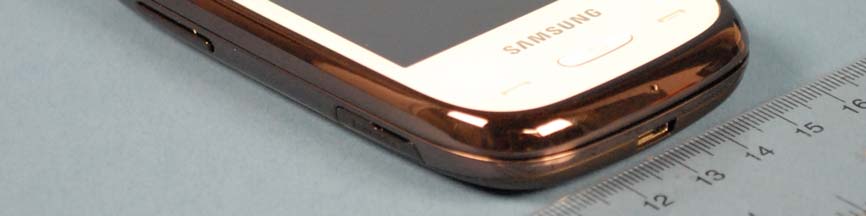

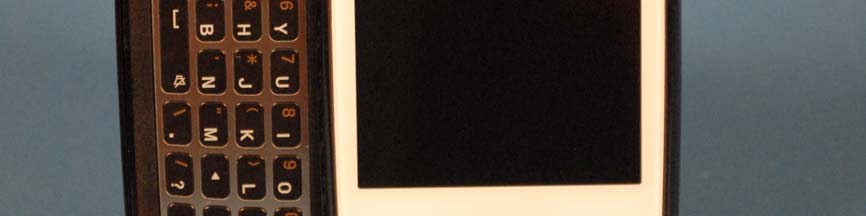

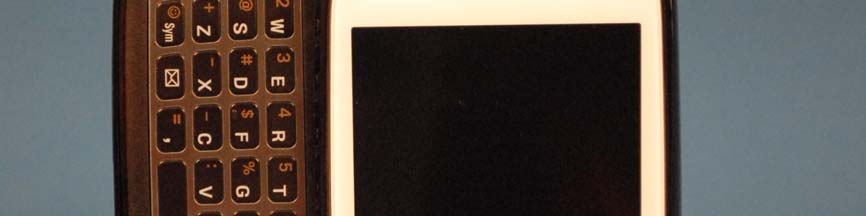

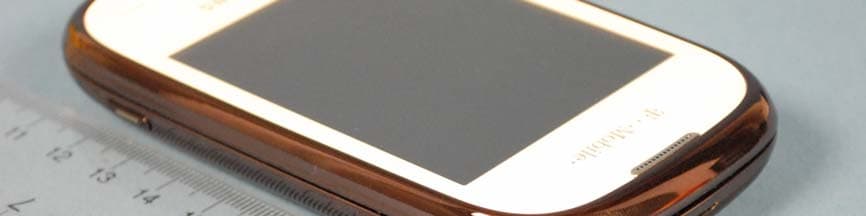

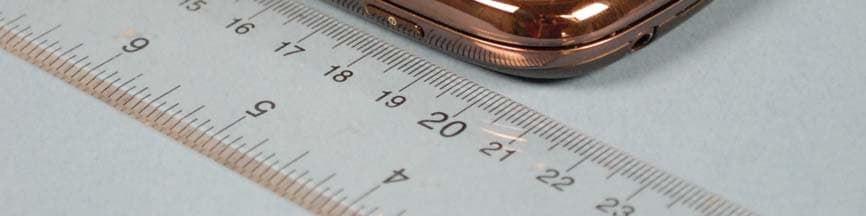

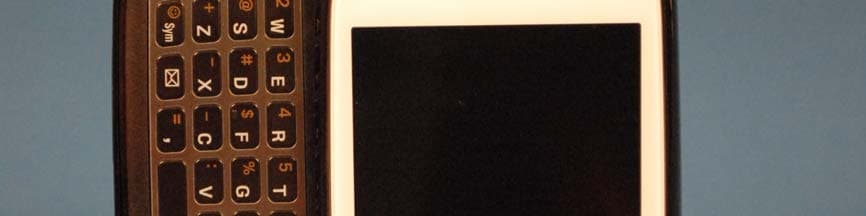

SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 External Photos EUT Type: PORTABLE HANDSET Page 1 of 5 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 External Photos EUT Type: PORTABLE HANDSET Page 2 of 5 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 External Photos EUT Type: PORTABLE HANDSET Page 3 of 5 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 External Photos EUT Type: PORTABLE HANDSET Page 4 of 5 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 External Photos EUT Type: PORTABLE HANDSET Page 5 of 5 © 2013 PCTEST Engineering Laboratory Inc.

Samsung Phone Model: SGH-T289 Label and Location FCC ID: A3LSGHT289 Label: Top Location: Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Tablet : FCC ID is printed on bottom of the device

SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 1 of 10 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 2 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 3 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 4 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 5 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 6 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 7 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 8 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 9 of 10 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSGHT289 Model: SGH-T289 Internal Photos EUT Type: PORTABLE HANDSET Page 10 of 10 © 2013 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID:A3LSGHT289 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1302260359-R1.A3L 02/27/13 - 03/04/13 Portable Handset Page 1 of 28 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/27/13 - 03/04/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1302260359-R1.A3L FCC ID: A3LSGHT289 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SGH-T289 Test Device Serial No.: Pre-Production [S/N: FK-045-A] 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz32.90 0.140.25 PCEUMTS 850826.40 - 846.60 MHz23.140.15 0.25 PCEUMTS 17501712.4 - 1752.5 MHz21.300.75 0.81 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.040.54 0.44 PCEUMTS 19001852.4 - 1907.6 MHz22.830.96 0.72 DSSBluetooth2402 - 2480 MHz6.71 N/A 0.88 SAR Equipment Class N/ A Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1302260359-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:A3LSGHT289 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1302260359-R1.A3L 02/27/13 - 03/04/13 Portable Handset Page 2 of 28 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES........................................................................................ 13 8 RF CONDUCTED POWERS......................................................................................................... 15 9 SYSTEM VERIFICATION.............................................................................................................. 17 10 SAR DATA SUMMARY ................................................................................................................. 19 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 22 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 23 13 EQUIPMENT LIST......................................................................................................................... 24 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 25 15 CONCLUSION............................................................................................................................... 26 16 REFERENCES .............................................................................................................................. 27 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID:A3LSGHT289 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1302260359-R1.A3L 02/27/13 - 03/04/13 Portable Handset Page 3 of 28 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.5 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots 1 T…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHT289 FCC Pt. 22, 24, & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1302260357.A3L Feb. 28 - March 12, 2013 Portable Handset Page 1 of 71 © 2013 PCTEST Engineering Laboratory, Inc. V 2.8 01/16/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. Feb. 28 - March 12, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302260357.A3L FCC ID: A3LSGHT289 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SGH-T289 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: FK-022-C] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8241KGXW0.87229.40 EDGE850824.2 - 848.8236KG7W0.11520.61 GSM19001850.2 - 1909.8241KGXW1.23630.92 EDGE19001850.2 - 1909.8245KG7W0.39926.01 WCDMA850826.4 - 846.64M15F9W0.08019.05 WCDMA17001712.4 - 1752.54M16F9W0.21723.36 WCDMA19001852.4 - 1907.64M15F9W0.27824.43 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 Reviewed by: FCC ID: A3LSGHT289 FCC Pt. 22, 24, & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1302260357.A3L Feb. 28 - March 12, 2013 Portable Handset Page 2 of 71 © 2013 PCTEST Engineering Laboratory, Inc. V 2.8 01/16/2013 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT........................................................................................................................................................3 1.0 INTRODUCTION .......................................................................................................................................................... 4 1.1 SCOPE ............................................................................................................................................................ 4 1.2 TESTING FACILITY ........................................................................................................................................ 4 2.0 PRODUCT INFORMATION ......................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION.......................................................................................................................... 5 2.2 DEVICE CAPABILITIES .................................................................................................................................. 5 2.3 TEST CONFIGURATION ................................................................................................................................ 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 3.0 DESCRIPTION OF TESTS .......................................................................................................................................... 6 3.1 EVALUATION PROCEDURE .......................................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................. 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS..............................................................................................6 3.4 PCS - BASE FREQUENCY BLOCKS ............................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS ......................................................................................................... 7 3.6 AWS - BASE FREQUENCY BLOCKS ............................................................................................................ 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ........................................................................................................ 7 3.8 OCCUPIED BANDWIDTH ............................................................................................................................... 7 3.9 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ........................................................ 8 3.10 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS................................................................... 8 3.11 PEAK-AVERAGE RATIO ................................................................................................................................ 9 3.12 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................................ 9 4.0 TEST EQUIPMENT CALIBRATION DATA ................................................................................................................ 10 5.0 SAMPLE CALCULATIONS ........................................................................................................................................ 11 6.0 TEST RESULTS..................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHT289 HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260360.A3L March 5-7, 2013 Portable Handset Page 1 of 87 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. March 5-7, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302260360.A3L FCC ID: A3LSGHT289 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2007; EUT Type: Portable Handset Model(s): SGH-T289 Tx Frequencies Tested: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 1712.4 - 1752.5 MHz (UMTS IV) 1852.4 - 1907.6 MHz (UMTS II) Test Device Serial No.: Pre-Production Sample [S/N: AK-008-B] C63.19-2007 HAC Category: M3 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and has been tested in accord ance with the spe cified measurement procedures. Hearing -Aid Compatibili ty is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: A3LSGHT289 HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260360.A3L March 5-7, 2013 Portable Handset Page 2 of 87 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 TABLE OF CONTENTS 1. INTRODUCTION............................................................................................................................. 3 2. TEST SITE LOCATION................................................................................................................... 4 3. EUT DESCRIPTION........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENT PROCEDURES.................................................................................. 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY................................................................................................ 25 13. TEST DATA................................................................................................................................... 26 14. CALIBRATION CERTIFICATES.................................................................................................... 43 15. CONCLUSION............................................................................................................................... 82 16. REFERENCES.............................................................................................................................. 83 17. TEST PHOTOGRAPHS ................................................................................................................85 Reviewed by: FCC ID: A3LSGHT289 HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260360.A3L March 5-7, 2013 Portable Handset Page 3 of 87 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for:  RF Electric-field emissions  RF Magnetic-field emissions  T-coil mode, magnetic-signal strength in the audio band  T-coil mode, magnetic-signal frequency response through the audio band  T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for:  RF immunity in microphone mode  RF immunity …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHT289 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260361-R1.A3L 3/7/2013 Portable Handset Page 1 of 38 © 2013 PCTEST Engineering Laboratory, Inc. REV 7.0U 01/18/11 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 3/7/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1302260361-R1.A3L FCC ID: A3LSGHT289 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Scope of Test: Audio Band Magnetic Testing (T-Coil) Application Type: Certification FCC Rule Part(s): CFR § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v) EUT Type: Portable Handset Model(s): SGH-T289 Tx Frequencies Tested: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 1712.4 - 1752.5 MHz (UMTS IV) 1852.4 - 1907.6 MHz (UMTS II) Test Device Serial No.: Pre-Production Sample [S/N: AK-008-B] C63.19-2007 HAC Category: T3 (SIGNAL TO NOISE CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and has been tested in accordance with the specified measurement procedures. Test results reported herein relate only to the item(s) tested. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This revised Test Report (S/N: 0Y1302260361-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard and destroy the previously issued test report (S/N: 0Y1302260361.A3L) and dispose of it accordingly. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: A3LSGHT289 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260361-R1.A3L 3/7/2013 Portable Handset Page 2 of 38 © 2013 PCTEST Engineering Laboratory, Inc. REV 7.0U 01/18/11 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI C63.19-2007 PERFORMANCE CATEGORIES..................................................................... 6 5. METHOD OF MEASUREMENT ...................................................................................................... 8 6. FCC 3G MEASUREMENTS .......................................................................................................... 18 7. TEST SUMMARY .......................................................................................................................... 19 8. MEASUREMENT UNCERTAINTY ................................................................................................ 24 9. EQUIPMENT LIST......................................................................................................................... 25 10. CALIBRATION CERTIFICATES.................................................................................................... 26 11. CONCLUSION............................................................................................................................... 33 12. REFERENCES .............................................................................................................................. 34 13. TEST SETUP PHOTOGRAPHS ................................................................................................... 36 Reviewed by: FCC ID: A3LSGHT289 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1302260361-R1.A3L 3/7/2013 Portable Handset Page 3 of 38 © 2013 PCTEST Engineering Laboratory, Inc. REV 7.0U 01/18/11 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. Approximately 500 million people worldwide and 30 million people in the United States suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for:  RF Electric-field emissions  RF Magnetic-field emissions  T-coil mode, magnetic-signal strength in the audio band  T-coil mode, magnetic-signal frequency response through the audio band  T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for:  RF immunity in microphone mode  RF immunity in T-coil mode In the following tests and results, this report includes the evaluation for a wireless communications device. Figure 1-1 Hearing Aid in-vitu 1 FCC Rule & Order, WT Docket 01-309 RM…
