A3LSGHT809Dual-Band GSM/ EDGE Phone with Bluetooth

UVEI7_1.3_WCt809_092705_F4 SGH-T809 PORTABLE Quad-Band TELEPHONE User Guide Please read this manual before operating your phone, and keep it for future reference. t809.book Page 1 Tuesday, September 27, 2005 4:18 PM Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters:Customer Care Center: 1301 E. Lookout Drive1000 Klein St. Richardson, TX 75082Plano, TX 75074 Tel: 972.761.7000Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsungusa.com © 2005 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities. t809.book Page 2 Tuesday, September 27, 2005 4:18 PM Printed in Korea. GH68-07931A Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered Trademark RSA Security, Inc. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. t809.book Page 3 Tuesday, September 27, 2005 4:18 PM t809.book Page 4 Tuesday, September 27, 2005 4:18 PM Table of Contents1 Table of Contents Table of Contents Section 1: Getting Started . . . . . . . . . . . . . . . . . . 5 Activating Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Switching the Phone On or Off . . . . . . . . . . . . . . . . . . . . . 10 Setting Up Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . 10 Section 2: Understanding Your Phone . . . . . . . 13 Features of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 14 View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Display Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Get More Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Section 3: Call Functions . . . . . . . . . . . . . . . . . . 21 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Adjusting the Call Volume . . . . . . . . . . . . . . . . . . . . . . . . 24 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Call Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Selecting Functions and Options . . . . . . . . . . . . . . . . . . . 29 Section 4: Menu Navigation . . . . . . . . . . . . . . . 37 Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Menu Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Section 5: Entering Text . . . . . . . . . . . . . . . . . . 45 Changing the Text Input Mode . . . . . . . . . . . . . . . . . . . . . 46 Using ABC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Using T9 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Using Number Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Using Symbol Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Section 6: Understanding Your Phonebook . . . 53 Storing a Number in the SIM Card . . . . . . . . . . . . . . . . . . 54 Storing a Number in the Phone’s Memory . . . . . . . . . . . . 55 t809.book Page 1 Tuesday, September 27, 2005 4:18 PM Ta b l e o f C o nt en t s 2 Finding a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . .57 Dialing a Number from Phonebook . . . . . . . . . . . . . . . . . .59 Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Editing a Caller Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Dialing a Number from the SIM Card . . . . . . . . . . . . . . . .62 Copying all SIM Phonebook Entries . . . . . . . . . . . . . . . . . .62 Deleting all of the Phonebook Entries . . . . . . . . . . . . . . . .63 My Name Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Finding My …

Text truncated - open the document above for the full version.

66 Section 6 • SIM card: new phonebook contacts will be saved to your SIM card. • Phone memory: new phonebook contacts will be saved to your phone. • Ask on saving: you will be prompted to choose between Phone memory or SIM card whenever you save a new contact. Copy All to Phone This option allows you to copy all contacts from your SIM card to your phone. For more information, see "Copying all SIM Phonebook Entries" on page 62. Sort by Contacts This options allows you to have your contacts sorted by first name or last name. Delete All Important! Once contact entries have been deleted, they cannot be recovered. This option allows you to delete your contacts. You may delete from SIM, Phone, FDN, or All. For more information, see "Deleting all of the Phonebook Entries" on page 63. Memory Status You can check how many names and numbers are stored in the Phonebook, in both SIM card and the phone memory. You can also see the capacity of both memories. 1.When the idle screen displays, press the Phonebook soft key. t809.book Page 66 Tuesday, September 27, 2005 4:18 PM Section 6: Understanding Your Phonebook67 Management Section 6 2.Highlight Management and press the Select soft key or the key. 3.Select the Memory status option by pressing the Up or Down Navigation key and press the Select soft key or the key. 4.When you are finished, press the key or the Back soft key. t809.book Page 67 Tuesday, September 27, 2005 4:18 PM 68 Section 6 t809.book Page 68 Tuesday, September 27, 2005 4:18 PM Section 7: Messages69 Section 7 Section 7: Messages Topics Covered •Voice Notes • Text Messages • Picture Messages • Inbox • Sentbox • Outbox • Drafts • Templates •Voice mail • Delete All • Settings • Broadcast Messages • Instant Messaging • Memory Status This section describes how to send or receive different types of messages. It also includes the features and functionality associated with messaging. t809.book Page 69 Tuesday, September 27, 2005 4:18 PM 70 Section 7 Types of Messages Your phone provides the following message types: • Voice Notes • Te xt M e ss a g e s • Picture Messages • Voice Mail Messages • Broadcast Messages (SIM Dependent) • Instant Messaging Voice Notes In this menu, you can record a voice note of up to one minute long and then immediately send it by a Picture Messaging message. When you access this menu, a timer appears on the screen. 1.In Idle mode, press the Menu soft key to access Menu mode. 2.Using the Navigation keys, scroll to the Voice notes icon. Press the Select soft key or the key to enter the menu. 3.Press the Record soft key to start recording. 4.Record a memo by speaking into the microphone. The display shows the elapsed time and the remaining time at one time. 5.When you are finished, press the Stop soft key. Or, when the recording time is expired, the display switches to the next screen. 6.Press the Options soft key for the following options: t809.book Page 70 Tuesday, September 27, 2005 4:18 PM Section 7: Messages71 Voice Notes Section 7 •Send: allows you to send the Voice note. • Play: plays back your Voice note. • Re-record: discards the Voice note and enables you to record another one. • Set default destination: allows you to remove or edit the default destination. • Save: saves the Voice note and continues to the Send option. 7.To send the Voice note, select the Send option in the Options menu and press the Select soft key or the key. 8.Highlight one the following options: •Recent log: allows you to select a number or an address from the 20 last destinations you entered for sending the last messages. • Phonebook: allows you to enter the phone number you want from your phonebook. Use the key to check the selected entries. • Phone number: allows you to enter a phone number. • Email address: allows you to enter an email address to send the voice note to. • My Album: allows you to send the voice note to My Album. • My Journal: allows you to send the voice note to My Journal. 9.Press the Select soft key or the key. 10.Select where you would like to send your voice note then and it will be entered in the Send menu in a To field. 11.To add another destination, select Empty and press the Options soft key. t809.book Page 71 Tuesday, September 27, 2005 4:18 PM 72 Section 7 Note: When entering multiple destinations, you can also choose Group, Change recipient, and Back options in addition to the other send options. 12.Repeat from step 8. You can enter up to 20 destinations. 13.When you have finished entering the destinations, press the Options soft key, highlight the Send option and press the Select soft key or the key. Your phone sends the message. After sending, the message is saved in the Sentbox. Text Messages Short Message Service (SMS) allows you to send and receive short text messages to and from other mobile phones. In addition, your phone supports the Enhanced Messaging Service (EMS), which enables you to include simple pictures, melodies, and animated images in your messages. To use this feature, you must subscribe to your service provider ’s message service. When the Message icon () appears, you have received new text messages. When the memory is full, the message icon will flash on your phone and you cannot receive any new messages. You must delete a message before you can receive additional messages. Use the Delete option in each message box to delete obsolete messages. Create new In this menu, you can write and send a text message. t809.book Page 72 Tuesday, September 27, 2005 4:18 PM Section 7: Messages73 Text Messages Section 7 Creating a Simple Text Message 1.In Idle mode, press the Menu soft key to access Menu mode. 2.Using the Navigation keys, scroll to the Messages icon. Press the Select soft key or the key to enter the menu. 3.Highlight the Create new option and press the Select soft key or the key. 4.Highlight the Text me ss a g e option and press the Select soft key or the key. 5.Create your message. Notes: For further details about entering characters, s…

Text truncated - open the document above for the full version.

136 Section 9 Editing the To do List When you select a To do list item from the Day view, the current contents display with a status checkbox and a priority marker. If the item has been done, a check appears in the checkbox. H i g h p r i o r i t y i t e m s h a v e a red explanation mark, Normal priority items have a blue explanation mark, and Low priority items have a gray explanation mark. 1.To mark an item Done, highlight the item and press the Options soft key. 2.Highlight the Done option and press the Select soft key or the key. 3.The status checkbox next to the To do item will be checked. 4.To edit other fields in the To do item, highlight the item and press the key. 5.Press the Options soft key. 6.Highlight the Edit option and press the Select soft key or the key. 7.Edit the items you wish to change. 8.Press the Save soft key or the key. Calculator With this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division. 1.Enter the first number using the numeric keys. t809.book Page 136 Tuesday, September 27, 2005 4:18 PM Section 9: Fun & Apps137 Organizer Section 9 2.Enter the operation for your calculation by pressing the following navigation keys: •Left: subtraction (-) • Right: addition (+) • Up: multiplication (x) • Down: division (÷) 3.The left soft key can be used to create a decimal point and left and right brackets. 4.Enter the next number. 5.To view the result, press the key. Repeat steps 1 to 5 as many times as required. World Time This feature allows you to find out what time it is another part of world, using the Left and Right Navigation keys. There are two time lines available. You can set the first setting to your home city and then use the second setting to check other city times. Press the Options soft key for the following options: • Save: this allows you to save your world time settings. • Set daylight saving time: use the key to place a checkmark next to the cities that you want to set daylight savings time. Each city listed represents a time zone. Unit conversion The conversion menu provides the following conversion categories: • Currency t809.book Page 137 Tuesday, September 27, 2005 4:18 PM 138 Section 9 • Length • Weight • Volume • Area • Te m p e r a t ur e To convert any of the above categories, do the following: 1.Scroll to the conversion feature you wish to use and press the Select soft key or the key. 2.Enter the quantity you want converted in the text box. Note: To include a decimal point, press the key. 3.Use the Up, Down, Left, and Right keys to select the From and To units of money or measure for the quantity you want converted. 4.Press the OK soft key or the key. Timer You can use this menu to set a timer. To enable the Timer, use the following options: 1.Press the Set soft key to enter the length of time. 2.Enter the time and press the OK soft key. 3.Press the key to start the timer. Press the key again to stop the timer. Stopwatch This feature allows you to use a stopwatch. Press the key to start the stopwatch. Press the Reset soft key to erase t809.book Page 138 Tuesday, September 27, 2005 4:18 PM Section 9: Fun & Apps139 Organizer Section 9 all stopwatch times recorded. Press the key for the lap time. You can have up to 4 lap times. t809.book Page 139 Tuesday, September 27, 2005 4:18 PM 140 Section 9 t809.book Page 140 Tuesday, September 27, 2005 4:18 PM Section 10: Camera and Camcorder141 Section 10 Section 10: Camera and Camcorder Topics Covered • Using the Camera and Camcorder • Take and Send • Record Video • My Photos • My Videos • My Album • My Journal This section explains how to use the camera and camcorder on your phone. You can take photos and video clips using the built-in camera and camcorder. t809.book Page 141 Tuesday, September 27, 2005 4:18 PM 142 Section 10 Using the Camera and Camcorder Using the camera/camcorder module in your phone, you can take photos or video clips of people or events while on the move. Additionally, you can send photos and video clips to other people in a Picture Messaging message or set a wallpaper or caller ID image. Note: Do not take photos or videos of people without their permission. Do not take photos or videos in places where cameras are not allowed. Do not take photos or videos in places where you may interfere with another person’s privacy. Take and Send Your camera produces photos in JPEG format. Note: When you take a photo in direct sunlight or in bright conditions, shadows may appear on the photo. 1.In Idle mode, press and Up navigation key to turn on the camera. You can also press the Menu soft key to access Menu mode. Highlight Camera and press the Select soft key or press the key. 2.Highlight Take and Send and press the Select soft key or the key. t809.book Page 142 Tuesday, September 27, 2005 4:18 PM Section 10: Camera and Camcorder143 Take and Send Section 10 3.Adjust the image by aiming the camera at the subject. Press the Left soft key to access the camera options. For details, see "Using Camera Options" on page 143. You can use the keypad to quickly change the camera options. 4.Press the key to take the photo. Send To: My Album? is displayed. Press the Ye s soft key if you want to send the photo to your T-Mobile My Album service. The phone’s default destination is set to My Album. The photo is automatically saved in My Photos in the phone. Note: To change the default destination for your pictures, press the Options soft key when Send To: My Album? appears on the display. Highlight the Default destination option. You can then change your default destination to a phone number, email address, Phonebook, My Album, My Journal, or a Recent log. 5.To use the photo options, press the Options soft key. 6.To return to Capture mode, select Take another. 7.To return to Idle mode, press the key. Using Camera Options In Capture mode, you can use various options for the camera by pressing the Left soft key…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : September 28, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A3LSGHT809 HAC Waiver at 850 MHz (FCC 05-166) Gentlemen: We, Samsung Electronics, hereby request for a waiver of the hearing aid Compatibility(HAC) requirements under Section 20.19(c)(3)(i)(A) of the FCC Rules Pursuant to Memorandum Opinion and Order adopted September 7, 2005. (WT Docket 01-309) for the above-referenced FCC ID. If you have any questions regarding this matter, please do not hesitate to contact the undersigned. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.


















18600 Broadwick Street






September 2, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4















September 2, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSGHT809 , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"
8
3
and Operational Description "
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0
















































September 2, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%
FCC ID: A3LSGHT809 - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

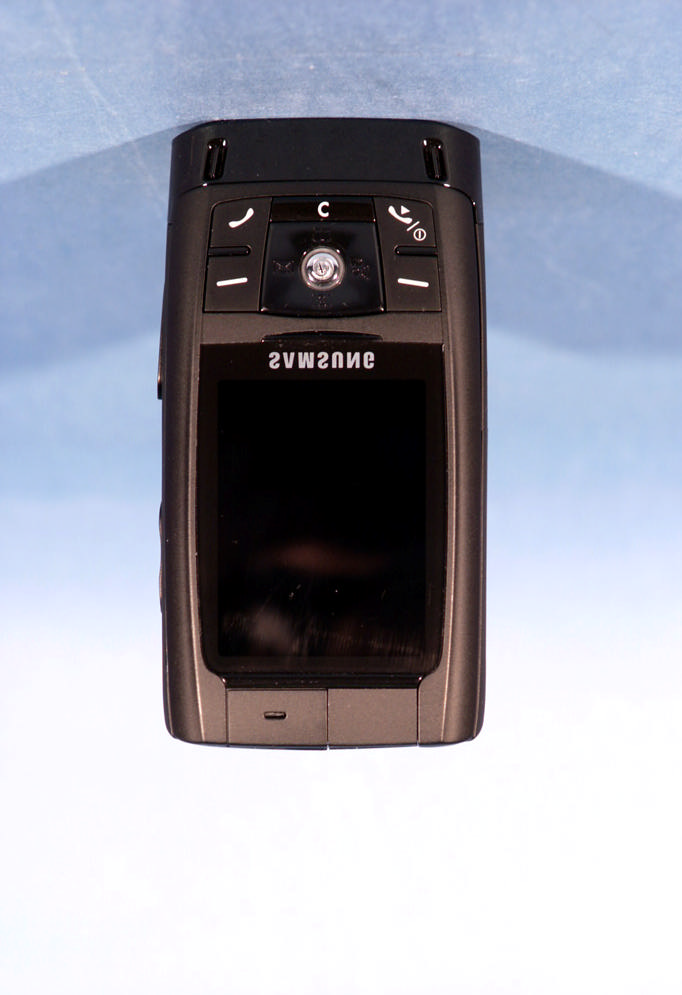

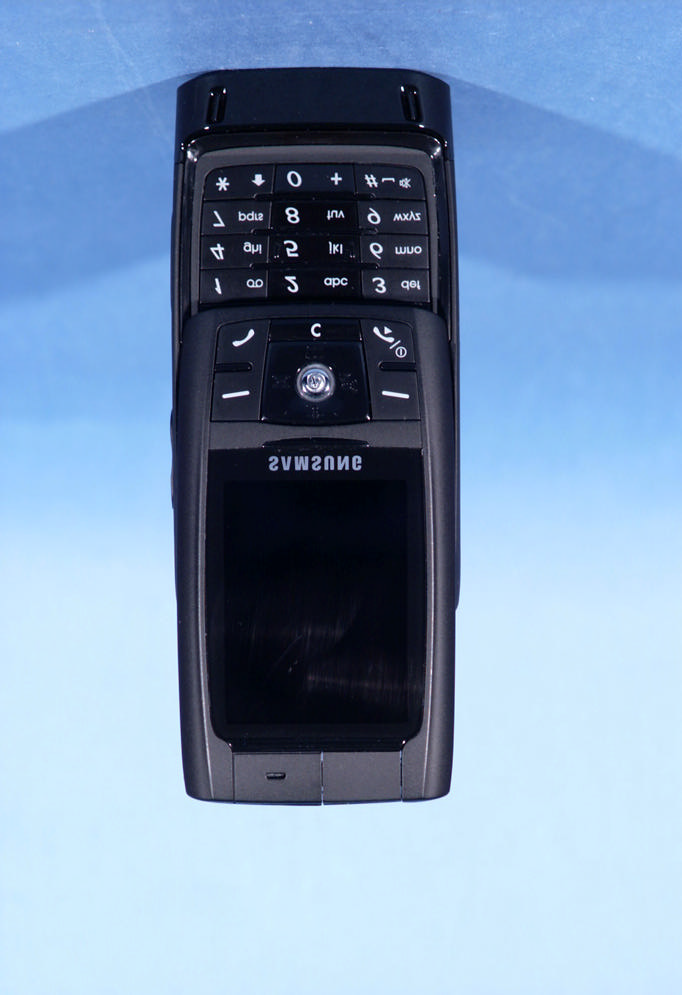

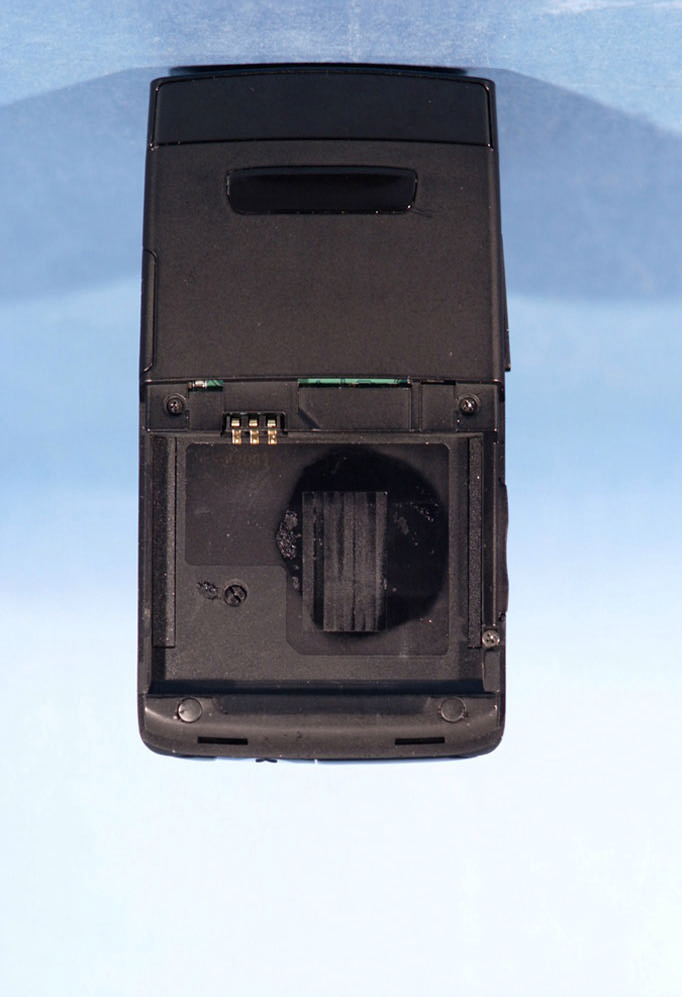

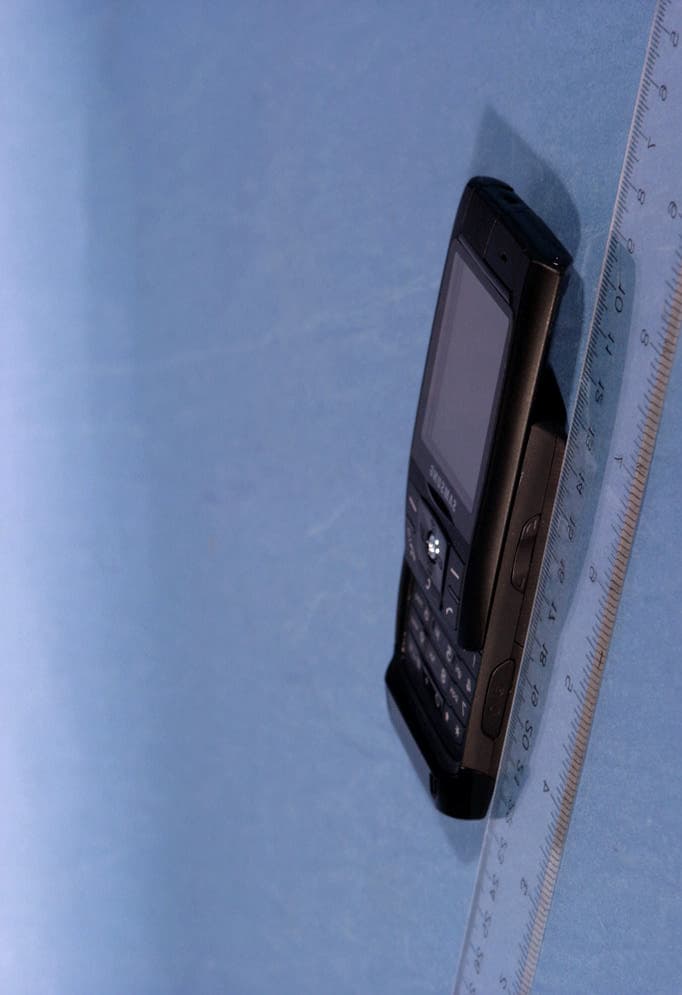

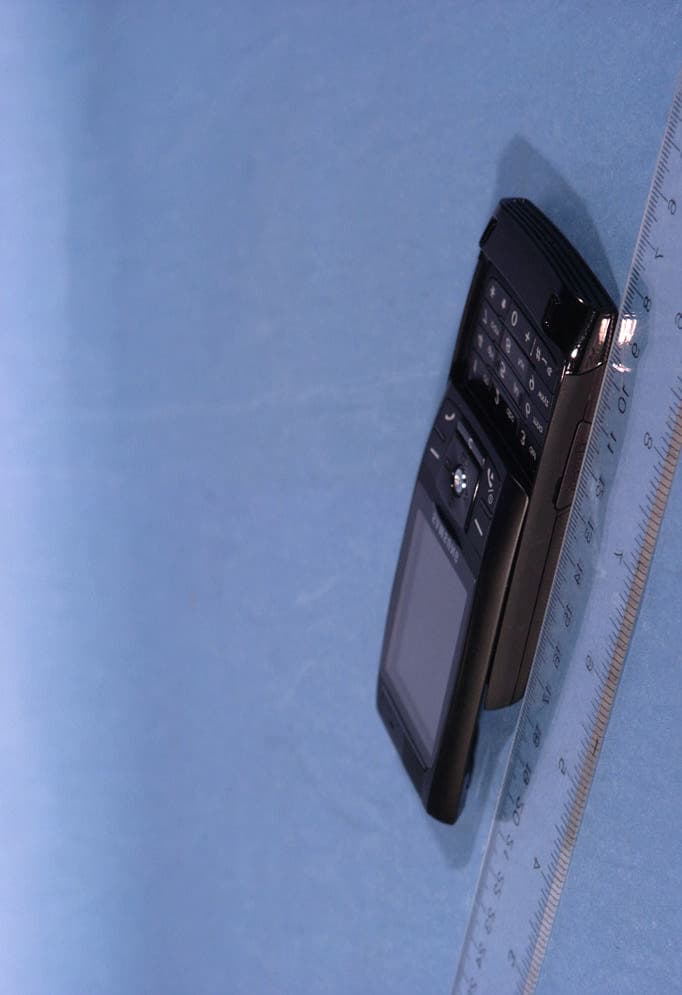

SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809

2. Sample Label 3. FCC ID Label Location

SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809 SAMSUNG FCC ID: A3LSGHT809 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM/EDGE Phone w/ Bluetooth Model: SGH-T809

Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510040689 10/13/2005 – 10/17/2005 Dual-Band GSM Slider Phone A3LSGHT809 Page 1 of 25 © 2005 PCTEST Engineering Laboratory, Inc. Applicant Name: Date of Testing: Samsung Electronics October 13, 2005 - October 17, 2005 18600 Broadwick Street Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0510040689 FCC ID: A3LSGHT809 APPLICANT: SAMSUNG ELECTRONICS Application Type: Certification FCC Rule Part(s): § 2.1093; FCC/OET Bulletin 65 Supplement C (July 2001) FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band GSM Slider Phone Model(s): SGH-T809 Tx Frequency: 824.20MHz - 848.8MHz (Cellular GSM) 1850.20MHz - 1909.8MHz (PCS GSM) RF Output Power: 1.508 W ERP Cellular GSM (31.783 dBm) 1.135 W EIRP PCS GSM(30.551 dBm) / 0.914 W ERP Cellular EDGE (29.597 dBm) 0.709 W EIRP PCS EDGE (28.495 dBm) Max. SAR Measurement: Cellular GSM: 0.32 W/kg Head SAR, 0.44 W/kg Body SAR PCS GSM: 0.20 W/kg Head SAR, 0.52 W/kg Body SAR Test Device Serial No.: Pre-Production Sample [S/N: FC-136-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510040689 10/13/2005 – 10/17/2005 Dual-Band GSM Slider Phone A3LSGHT809 Page 2 of 25 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION..............................................................ERROR! BOOKMARK NOT DEFINED. 2. TEST SITE LOCATION.....................................................ERROR! BOOKMARK NOT DEFINED. 3. SAR MEASUREMENT SETUP..........................................ERROR! BOOKMARK NOT DEFINED. 4. ALIDX-500 E-FIELD PROBE SYSTEM..............................ERROR! BOOKMARK NOT DEFINED. 5. PROBE CALIBRATION PROCESS....................................ERROR! BOOKMARK NOT DEFINED. 6. PHANTOM AND EQUIVALENT TISSUES..........................ERROR! BOOKMARK NOT DEFINED. 7. TEST SYSTEM SPECIFICATIONS....................................ERROR! BOOKMARK NOT DEFINED. 8. DOSIMETRIC ASSESSMENT AND PHANTOM SPECS.....ERROR! BOOKMARK NOT DEFINED. 9. DEFINITION OF REFERENCE POINTS............................ERROR! BOOKMARK NOT DEFINED. 10. TEST CONFIGURATION POSITION.................................ERROR! BOOKMARK NOT DEFINED. 11. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..............ERROR! BOOKMARK NOT DEFINED. 12. MEASUREMENT UNCERTAINTIES..................................ERROR! BOOKMARK NOT DEFINED. 13. SAR TEST EQUIPMENT...................................................ERROR! BOOKMARK NOT DEFINED. 14. CONCLUSION.................................................................ERROR! BOOKMARK NOT DEFINED. 15. REFERENCES.................................................................ERROR! BOOKMARK NOT DEFINED. EXHIBIT A. SYSTEM VERIFICATION............................................ERROR! BOOKMARK NOT DEFINED. EXHIBIT B. SAR SETUP PROCEDURES......................................ERROR! BOOKMARK NOT DEFINED. EXHIBIT C. SAR DATA SUMMARY...............................................ERROR! BOOKMARK NOT DEFINED. Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510040689 10/13/2005 – 10/17/2005 Dual-Band GSM Slider Phone A3LSGHT809 Page 3 of 25 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria…
