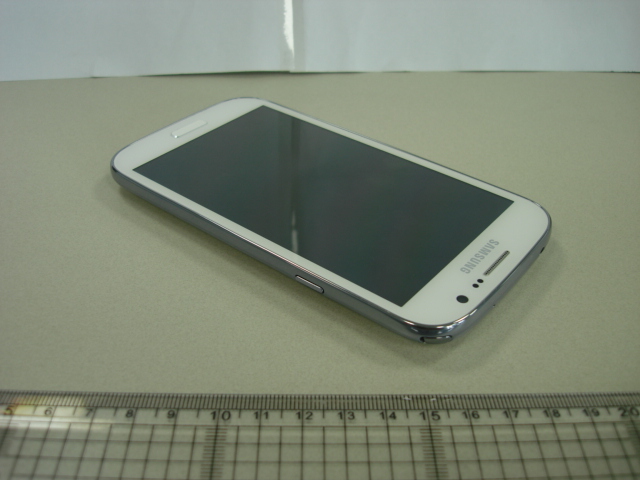

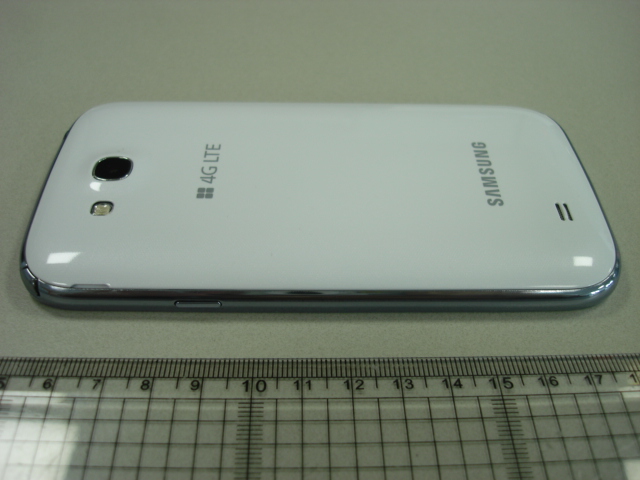

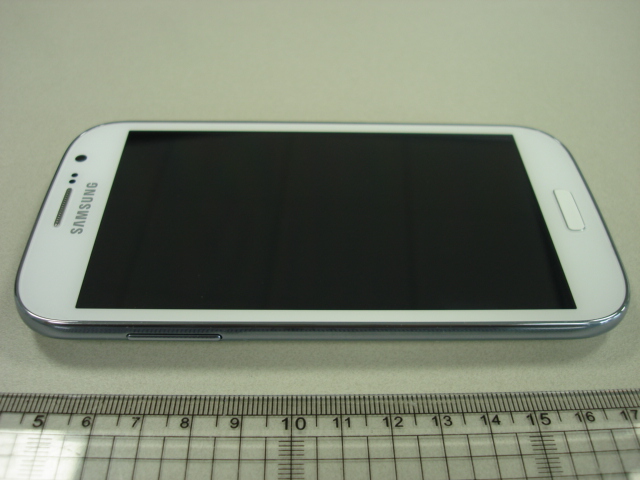

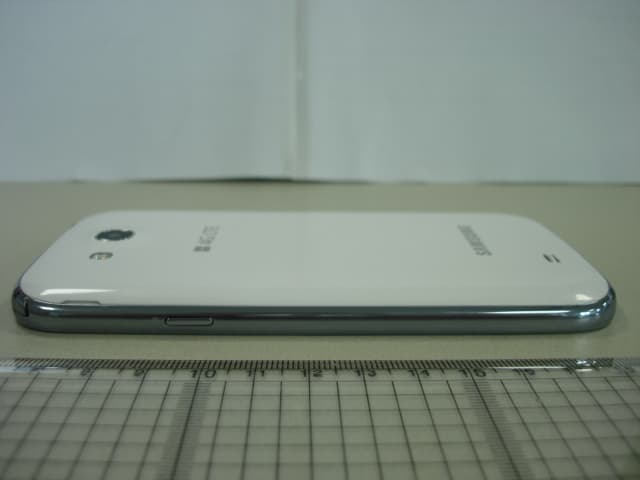

A3LSHVE275SMulti-Band GSM/UMTS/LTE Phone with WLAN, Bluetooth and RFID

User manual SHV-E275S This device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with MobileSatellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15- 5.25 GHz frequencies using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid…

Text truncated - open the document above for the full version.

Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: Aug. 7, 2013 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 66 60-B Dobbin Road Col umbia, MD 21045 Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSHVE275S To Whom it May Concern We attest the following regarding FCC ID: A3LSHVE275S 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 5 (Channel BW 5 & 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36. 101. With the MPR permanently implemented, this device will never operate higher than 22.5dBm in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below 1)The LTE MPR Targets for Band 5 (AWS) are: furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Senior Engineer Samsung Electronics CO. LTD TEL: +82-31-301-9618 E-mail: [email protected] 4.A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5.This device does not implement power back-off schemes for SAR compliance. 6.We attest to the Simultaneous Tx listed on Operational Description to be accurate and

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 25, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHVE275S To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea July 24, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L SHVE275S Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: SHV-E275S FCC ID: A3LSHVE275S Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Tablet : FCC ID is printed on bottom of the device Label

FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 46 0Y1307101236.A3L 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 07/08/13 - 07/29/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1307101236.A3L FCC ID: A3LSHVE275S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SHV-E275S 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W /kg) PCEGSM/GPRS 19001850.20 - 1909.80 MHz28.260.210.550.79 PCEUMTS 19001852.4 - 1907.6 MHz22.510.240.680.68 PCELTE Band 5 (Cell)826.5 - 846.5 MHz24.000.220.600.60 DTS2.4 GHz WLAN2412 - 2462 MHz16.660.44< 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz11.89< 0.1< 0.1 -1.00 NII5.2 GHz WLAN5180 - 5240 MHz11.410.47< 0.1 -1.00 NII5.3 GHz WLAN5260 - 5320 MHz11.350.290.11-1.00 NII 5.5 GHz WLAN5500 - 5700 MHz11.760.170.11-1.00 DSS/DTSBluetooth2402 - 2480 MHz9.36 0.68 0.860.84 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all co nfigurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 46 0Y1307101236.A3L 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 29 11 SAR DATA SUMMARY ................................................................................................................. 31 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 37 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 40 14 EQUIPMENT LIST ......................................................................................................................... 41 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 42 16 CONCLUSION ............................................................................................................................... 44 17 REFERENCES .............................................................................................................................. 45 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 46 0Y1307101236.A3L 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 1900 Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data 1852.4 - 1907.6 MHz LTE Band 5 (Cell) Data 826.5 - 846.5 MHz 2.4 GHz WLAN Data2412 - 2462 MHz 5.8 GHz WLANData 5745 - 5825 MHz 5.2 GHz WLAN Data5180 - 5240 MHz 5.3 GHz WLANData 5260 - 5320 MHz 5.5 GHz WLANData 5500 - 5700 MHz BluetoothData 2402 - 2480 MHz NFC Data 13.56 MHz Band & ModeTx Frequency Operating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance pe…

Text truncated - open the document above for the full version.

FCC ID: A3LSHVE275S FCC Pt. 24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 39 0Y1307101237.A3L 7/27-7/31/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/27-7/31/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1307101237.A3L FCC ID: A3LSHVE275S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SHV-E275S EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E) IC Specification(s): RSS-133 Issue 6 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 V02r01 Test Device Serial No.: identical prototype [S/N: July 22-1] Original Grant Date: Max. Power (W) Max. Power (dBm) GSM19001850.2 - 1909.8247KGXW1.56431.94 WCDMA19001852.4 - 1907.64M23F9W0.08819.42 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 24 / RSS-133 FCC ID: A3LSHVE275S FCC Pt. 24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 39 0Y1307101237.A3L 7/27-7/31/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 24 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.3 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.4 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.5 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 14 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 21 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 25 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 27 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 29 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 34 7.0 CONCLUSION ................................................................................................................................ 39 FCC ID: A3LSHVE275S FCC Pt. 24 GSM/WCDMA MEASUREMENT REPORT (C…

Text truncated - open the document above for the full version.

FCC ID: A3LSHVE275S FCC Pt. 22 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 31 0Y1307101238.A3L 7/20-7/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/20-7/29/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1307101238.A3L FCC ID : A3LSHVE275S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22 EUT Type: Portable Handset Model(s): SHV-E275S Max. Power (W) Max. Power (dBm) LTE Band 5826.5 - 846.54M51G7DQPSK0.09219.64 LTE Band 5826.5 - 846.54M51W7D16QAM0.08219.15 LTE Band 5829 - 8448M96G7DQPSK0.08819.46 LTE Band 5829 - 8448M94W7D16QAM0.07318.64 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 LTE FCC ID: A3LSHVE275S FCC Pt. 22 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 31 0Y1307101238.A3L 7/20-7/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 TABLE OF CONTENTS FCC PART 22 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 6 3.6 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER (ERP) ........................................................................................... 12 6.3 BAND 5 RADIATED SPURIOUS EMISSIONS .................................................................................. 13 6.4 BAND 5 FREQUENCY STABILITY MEASUREMENTS..................................................................... 16 7.0 BAND 5 PLOTS OF EMISSIONS ................................................................................................... 18 8.0 CONCLUSION ................................................................................................................................ 31 FCC ID: A3LSHVE275S FCC Pt. 22 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 31 0Y1307101238.A3L 7/20-7/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 MEASUREMENT REPORT FCC Part 22 §2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATOR…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSHVE275S Model: SHV-E275S Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. T E S T S E T U P P H O T O G R A PH S Samsung Electronics Co., Ltd. FCC ID: A3LSHVE275S Model: SHV-E275S Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 9 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 9 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 1 - Right Cheek Antenna Retracted SAR Test Setup Photo 2 - Right Cheek Antenna Extended FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 9 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 3 - Right Tilt Antenna Retracted SAR Test Setup Photo 4 - Right Tilt Antenna Extended FCC ID: A3LSHVE275S SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 9 07/08/13 - 07/29/13 Portable Handset © 2013 PCTEST Engineering…
