A3LSIT200EMRBOFFICESERV SOHO

User Guide 2 © SAMSUNG Electronics Co., Ltd. SAFETY CONCERNS For product safety and correct operation, the following information must be given to the operator/user and shall be read before the installation and operation. Conventions WARNING Provides information or instructions that you should follow in order to avoid personal injury or fatality. CAUTION Provides information or instructions that you should follow in order to avoid a service failure or damage to your phone. NOTE Indicates additional information for reference. Symbols Caution Indication of a general caution Restriction Indication for prohibiting an action for a product Instruction Indication for commanding a specifically required action © SAMSUNG Electronics Co., Ltd. 3 WARNING Connect the power adapter provided with the product, to the power connection port. Using adapters other than that provided may seriously damage the product or cause fire or electrocution. Insert power cord tightly and fully into the outlet. This is to prevent fires. Fix OfficeServ SOHO and power adapter by using screws after connecting the power adapter. Failing to do so can cause fire or electrocution. Be careful not to drop the product. This is to prevent product damage and injuries. Do not pull or excessively bend the power cord, and do not touch the power plug with wet hands. This prevents power cord damage, fire and electrocution. Adapter Fixing Screw 4 © SAMSUNG Electronics Co., Ltd. Do not use damaged power plugs and cords, or loose outlets. Failing to do so can cause fire or electrocution. Do not connect many devices to a single outlet. This is to prevent fires. Do not place the product in dusty areas or in environments with extreme thermal differences. Failing to do so can cause fire or electrocution. Do not place the product near items that can start a fire(e.g., cigarette fire, heaters). Failing to do so can cause fire or electrocution. Do not place the product under direct sunlight. The product may not operate properly due to damaged components. © SAMSUNG Electronics Co., Ltd. 5 Do not use or store inflammable sprays or material near the product. Failing to do so can cause fire or electrocution. Do not place vases, flowerpots, cups, cosmetics, or medicine, which contain water, near the product. Failing to do so can cause fire or electrocution. The power cable must be connected to an outlet equipped with a grounding terminal. This is to prevent fires and electrocution. Unplug the power cable when lighting and thunder is expected. This is to prevent fires and electrocution. If the product makes strange sound, smell, or smoke, unplug the cord immediately and contact the service center. Failing to do so can cause fire or electrocution. Grounding terminal 6 © SAMSUNG Electronics Co., Ltd. If dust or water is on the pin or the touching surface of the power plug, unplug the cord and clean the plug with cloth. If the substance cannot be cleaned, contact the service center. Failing to do so can cause fire or electrocution. Unplug the power cord when not using the product for a long time. This is to prevent fire or electrocution. To connect an external device(e.g., PC, modem, facsimile) to the product, turn off the power of both the product and the device before connecting the cable. This is to prevent fire or electrocution. CAUTION Accurately install and properly use the product according to the user guide. This is to prevent malfunctions and reductions in product lifetime. Do not install the product on unstable places. This is to protect the product from falling. © SAMSUNG Electronics Co., Ltd. 7 Do not place heavy items over the product. Components of the product can be damaged. Do not turn off the power while the product is upgrading its software. Turning off the power during upgrade will cancel the upgrade. Do not clean the product with chemicals such as wax, benzene, alcohol, thinner, insecticide, air freshener, and detergent. This is to protect the product from bleach or damage. Do not disassemble, repair, or modify the product without permission. Contact your dealer or the service center to repair the product. Do not connect the power cable to the improper AC power outlet. The power adapter type may be various depending on countries. The product may not operate normally if the voltage is improper. Clean the produce with a dry cloth after unplugging the power cord. This is to protect the product from damage. 8 © SAMSUNG Electronics Co., Ltd. TABLE OF CONTENTS TUSAFETY CONCERNSUT 2 TUConventionsUT................................................................................................................2 TUSymbolsUT.......................................................................................................................2 TUWARNINGUT....................................................................................................................3 TUCAUTIONUT.....................................................................................................................6 TUPREPARATIONUT 13 TUMain FeaturesUT...........................................................................................................13 TUProduct ContentUT.......................................................................................................15 TUFront PanelUT................................................................................................................16 TUINSTALLATIONUT 18 TUEnvironment DescriptionUT.........................................................................................19 TUNetwork Configuration DiagramUT....................................................................................... 19 TUCheck the following network environment:UT...................................................................... 20 TUChecking External Network Environment of UserUT............................................................ 21 TUOfficeServ SOHO Connection (ISDN Type)UT................................…

Text truncated - open the document above for the full version.

76 © SAMSUNG Electronics Co., Ltd. Menu Item Description Edit Group Add/modify/delete a group Register Memory Button Allows associating the most frequently used numbers with the memory(M1- M4) buttons. Delete All Delete all items in the phonebook Wakeup Call Set up wake up call alarm service Alarm Configuration of the Alarm service Scheduler Simple Scheduler Memo Memo for notes Calculator Calculator World Time Display the time in the various parts of the world D-Day Allow storing anniversary dates Unit Converter Conversion between the various units of measurement(weight, length, etc) Ring Tone Set the tones of the various ring types Key Tone Set the key tones Volume Set the volume of the various ring tones Missed calls Lists the calls that had no answer Conference conference services Services Activate the services provided by Service Provider(info 412, Wake Up Service, Chiarotel, Urgent Calls) User can make his/her own service phone number list. For example, customer service center, technical support center. My Phone Customization of the settings of the Base Station Mobile Setup Customization of the Wireless Terminals settings a/b Port Setup Customization of the a/b port(SLT) settings Network Setup Configuration of the IP network system parameters(WAN, LAN and WLAN) Global Setup Configuration of the settings of the System EasyInstall Guided procedure for the configuration of the basic system settings Auto Attendant Configuration of the automatic answering service Least Cost Routing Configure Least Cost Routing setup Symbol Description Describe the meaning of the icons on the display of the Base Station. © SAMSUNG Electronics Co., Ltd. 77 SMS Press [Menu] and select the Message icon( ) by using the direction button. Press [OK] button to display the Message menu screen below: Message Message can be sent or received through a cellular phone or equipment that can exchange text messages. Message may not be exchanged or message may be sent at very low speed due to the service provider. Or, message service contents may be changed due to the service provider. 78 © SAMSUNG Electronics Co., Ltd. Inbox This function allows you to check an incoming message or to set message reception status. Up to 60 incoming messages can be saved. [Menu] Æ Æ [1. Inbox] When new messages arrive, the number of the messages is displayed on the LCD. Outbox This function allows you to send a text message by using the writing or outgoing message box function. Up to 30 outgoing messages can be saved. [Menu] Æ Æ [2. Outbox] © SAMSUNG Electronics Co., Ltd. 79 Write This function allows you to write the new message. And Enter the destination Number to send the message [Menu] Æ Æ [2. Outbox] Æ [1. Write] Æ [1. New Message] Æ [OK] Enter the Destination Number Æ [OK] (Press [Menu] button to find the deston) Sent This function shows you the list of message sent. [Menu] Æ Æ [2. Outbox] Æ [2. Sent] 80 © SAMSUNG Electronics Co., Ltd. Templates This function allows you to write, edit, send, and delete a message saved in the message box, and to delete all messages saved in the message box. [Menu] Æ Æ [3. Templates] New Template This function allows you to register a new message to the Template list. [Menu] Æ Æ [3.Templates] Æ [1. New Template] Æ Write a message Æ [OK] • Up to 10 messages can be saved in the message box. Search Templates This function allows you to check the template saved in the Templates. When a call is connected while writing a new template, the template is saved. [Menu] Æ Æ [3. Templates] Æ [2. Search Template] Æ Select a Template Æ [OK] • Press the [Menu] button to add, edit, send or delete a message, or to delete all messages. © SAMSUNG Electronics Co., Ltd. 81 SMS Settings This function allows you to set a call back number or set the C.O. line to be used when a message is sent/received. [Menu] Æ Æ [4. SMS Settings] SMS Server Number This function allows you to set the callback number when a message is sent. [Menu] Æ Æ [4. SMS Settings]Æ [1. SMS Server Number] Æ Select the Sever to save the Number Æ Enter the SMS Number Æ [OK] button 82 © SAMSUNG Electronics Co., Ltd. Alert Time This function allows you to set alert time to notify a new message arrival. [Menu] Æ Æ [4. SMS Setting] Æ [2. Alert Time] Æ Set alert time Æ [OK] • Once: Alarm rings once when a message arrives. • Every 2 Min: Alarm rings every two minutes until a new message is checked. • No Tone: Alarm does not ring even if a new message arrives. Alert Type This function allows you to set alert type that notifies to the user when a message arrives. [Menu] Æ Æ [4. SMS Setting] Æ [3. Alert Type] Æ Select alert type Æ [OK] • Silent/Tone1/Tone2/Tone3/Tone4: The selected alarm rings at the setting alarm interval. Auto-Display This function allows you to set whether an incoming message is displayed on the LCD when the message arrives. [Menu] Æ Æ [4. SMS Setting] Æ [4. Auto-Display] Æ Set whether a message is displayed Æ [OK] • On: Displays message content and the message notifying a new message. • OFF: Displays only the message notifying a new message © SAMSUNG Electronics Co., Ltd. 83 PhoneBook Press the [Menu] button and select the PhoneBook icon( ) by using the direction button. Press the [OK] button to display the PhoneBook screen. Find Number This function allows you to search a registered phone number by name, phone number, speed dial number, group, or by time. [Menu] Æ Æ [1. Find Number] 84 © SAMSUNG Electronics Co., Ltd. By Name This function allows you to search a phone number from registered names. [Menu] Æ Æ [1. Find Number] Æ [1. By Name] Æ Enter a name Æ [OK] Æ Move the curser to the target name Æ Select a number of home/mobile/work/other Æ [Send] By Number This function allows you to search a phone number from registered phone numbers. [Menu] Æ Æ [1. Find Number] Æ [2. By Number] Æ Enter a phone number Æ [OK] Æ Move to the target phone number Æ [Send] By Location This function allows you to search a phone number from registered speed dial numbe…

Text truncated - open the document above for the full version.

PLL I/Q LO PLL DPDT SMP1345 40MHz XTAL REF IN PA GP1214 Hirose Connector XG-623 Block Diagram AES/Wep /TKRP DMA Host interface Internal BUS 802.11 MAC 802.11a/b/g Baseband Power management GPIO EEPROMI/F Host GPIO EEPROM AR2413 +1.8V Regulator VCC_in 3.3V SGA8343 ADCDAC

Head Office / Suwon Factory SAMSUNG ELECTRONICS CO.,LTD 314, Maetan 3-Dong, Yeongtong-Ku Suwon-Si, Gyeonggi-Do, KOREA, 442-743 TEL : 82-31-279-4248 FAX : 82-31-279-2296 Type of product : Wireless Base Station DATE: 2005.09.30 <NAME> Kim Min ho <Title > Engineer <TEL No.> 82-31-279-4248 SAMSUNG ELECTRONICS CO.,LTD

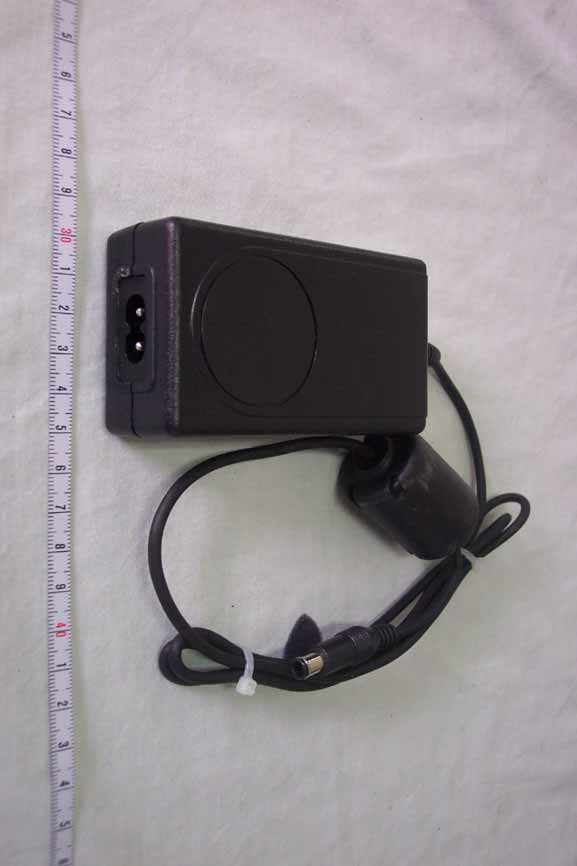

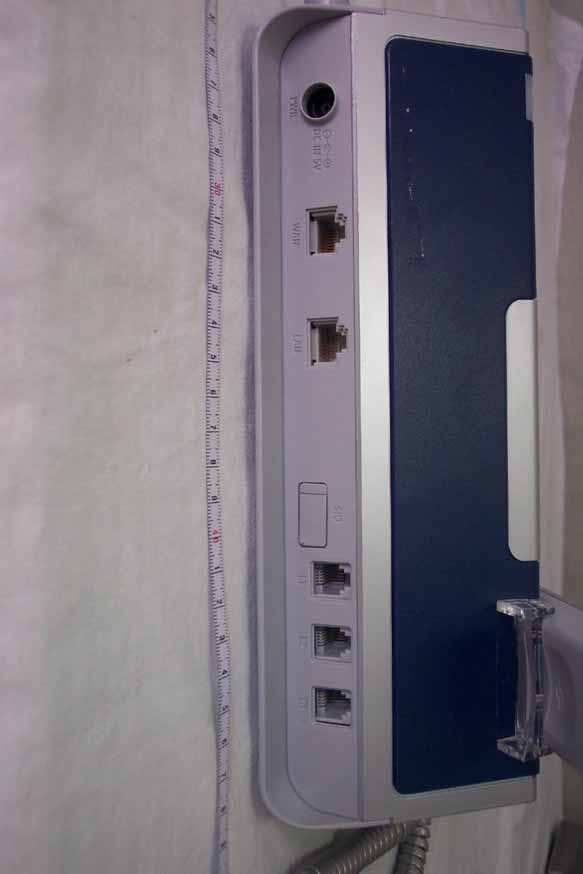

Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 59 of 78 APPENDIX D – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 60 of 78 z Rear View of EUT Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 61 of 78 z Ports View of EUT Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 71 of 78 z Enclosure View of Adaptor Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 72 of 78 z Label View of Adaptor

Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 55 of 78 APPENDIX A – LABELLING REQUIREMENTS Labelling Requirements The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : A3LSIT200EMRB Brand Name : SAMSUNG This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 62 of 79 z Inside View of EUT Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 63 of 79 z Front View of Main Board Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 64 of 79 z Rear View of Main Board Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 65 of 79 z Front View of LCD Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 66 of 79 z Rear View of LCD Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 67 of 79 z Front View of Key Panel Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 68 of 79 z Rear View of Key Panel Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 69 of 79 z Front View of Wireless LAN module Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 70 of 79 z Front View of Wireless LAN module Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 71 of 79 z Rear View of Wireless LAN module Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 74 of 79 z Inside View of Adaptor Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 75 of 79 z Front View of Adaptor Board Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 76 of 79 z Rear View of Adaptor Board

OPERATIONAL DESCRIPTION 1. Processor Part The iXP420 processor is one of the iXP42x series made of Intel. The iXP420 processor controls all functions of OfficeServ SOHO, and an Ethernet MAC controller is equipped with the processor. 32Bit Exp Bus Controller PCI Controller UART 921Kbaud Timers UART 921Kbaud GPIO Controller r USB Controller Test Logic Unit Ethernet NPE B Ethernet MAC Media Independent Interface Bridger Ethernet NPE B Ethernet MAC Queue Manager 8KB SRAM SRAM Controller 8-256MB Arbiter 32Bit 16Pins Intel Xscale Core 266 MHz 32 KB Data Cache 32 KB Instruction Cache 2 KB Mini-Data Cache 66MHz Advanced Perpheral Bus Interrupt Controller PMU (AHB) Bridger Arbiter JTAG 16Bit Media Independent Interface Figure 1. iXP420 Block Diagram The iXP420 processor is a multi-functional processor. This processor is configured with a 32 bit PCI controller, UARTs, a PC133 SDRAM memory controller, an interrupt controller, a UTOPIA-2, a GPIO, an internal bus of 133 MHz, and Media Independent Interface(MII), and has an Intel Xscale Core architecture. The main functions of iXP420 are as follows: y Intel Xscale Core − High performance processor is designed based on Xscale Core. − 7/8-stage Intel Super-Pipelined RISC Technology. − Instruction/data cache of 32 Kbytes − Mini data cache of 2 Kbytes − Clock rate of 266 MHz − ARM Version 5TE Compliant. y Three Network Processor Engines(NPEs) − Ethernet filtering − ATM SARing − HDLC y PCI Interface − 32 bit interface − Generates a clock of 33 MHz, and receives a clock of 0-66 MHz. (A clock can be selected.) − Supports the PCI local bus specification, Rev2.2. − Up to four external PCIs can be supported using the PCI arbiter. − Host/option enabled − Master/target enabled − Includes two DMA channels. − Data of 264 Mbps can be transferred. y Two MII/RMII Interfaces − Supports the 802.3 MII interface and RMII interface. − Has an MDIO interface to control two MII/RMII interfaces. y Two high-speed and serial interfaces − Are configured with six signal lines. − Can support interfaces of up to 8.192 MHz. − Supports a connection to the T1/E1 framers. − Supports a connection to Codec/SLIC. − Supports eight HDLC channels. y SDRAM Interface − Is configured with 32 bit data and 13 bit address. − Supports up to 133 MHz. − Maintains up to eight open pages simultaneously. − Performs automatic programmable refresh. − Delays programmable CAS/data. − Supports 8 MB to 256 MB. y Expansion Interface − Is configured with 24 bit address and 16 bit data. − Generates eight Chip select signals. − Supports interfaces of Intel or Motorola processors. − Provides HPI-8/HPI-16 to support DSP of Texas Instrument(TI). y High Speed UART, Console UART − Supports 1200 to 921 Kbaud. − Supports Tx/Rx FIFOs of 64 Byte. y 16 GPIOs y Four internal timers y PBGA packages that have 492 pins and can be used at 0~70 °C. 2. Memory Part Flash ROM(16 MB) and SDRAM(64 MB) are memory components OfficeServ SOHO. A 28F128J3A(flash memory, 16 MB) and two K4S56163Bs(SDRAM, 32 MB and 133 MHz) are in OfficeServ SOHO. 2.1 Flash Memory The boot area and program image area are not saved in each ROM but are divided into sectors in a single flash memory of OfficeServ SOHO. The IXP420 processor has eight interfaces for expansion. The flash memory is located in ‘0x00000000’ and can be expanded to 16 MB. Also, the flash memory is located in ‘0x5000_0000’ after boot. The main functions of the flash memory are as follows: y E28F128J3A 128 Mbit NOR type flash(Intel) y Is configured with 128 erase blocks of 128 Kbytes. Each block can be erased and be written again up to 100,000 times. y Block erase time: 0.7 sec y The flash memory has a buffer of 32 bytes internally, and writes 32 byte data to the buffer. Then, execute a command to enable the state machine to save the buffer in the memory. It takes 12.6 us to write the buffer of 32 byte while it takes about 6.6 sec to write that of 16 Mbytes except for the CPU overload. y 56 pin TSOP package y Internal logic power of 3.3 V and I/O logic power of 3.3 V Flash Host Interface Figure 2. Flash Memory Connection VCC 3.3 EXCSN (0) EXWRN EXRDN EXDATA[15:0] EXADDR [23:0] A(0)~A(24) D(0)~D(15) _OE _WE _CE0 _CE1 _CE2 _BYTE _RP STS 2.2 Synchronous DRAM (SDRAM) The main functions of SDRAM are as follows: y Two K4S561632B(32 Mbytes)-TC60 SDRAMs are used. Total 64 Mbytes y 15 bit row address and 9 bit column address y CAS-before-RAS refresh y 54pin TSOP 400 mil y Strong ARM accesses SDRAM at a synchronous high data rate. y Supplies JEDEC standard power of 3.3 V. y Compatible with LVTTL y Supports 4 banks. y MRS cycle through an address key program 1) CAS stop cycle(2 & 3) 2) Bust length(1, 2, 4, 8 & full page) 3) Bust type(Continuity or interrupt) y Input is performed at both variance of the system clock. y Reads bust, and reads 1 bit. y DQM for masking data range y Automatic refresh y Refresh cycle of 64ms(Cycle of 4 K) SDM_CKE SDM_CLKOU T SDM_BA(0) SDM_BA(1) SDM_RAS_N SDM_CAS_N SDM_WE_N SDM_DQM[3] SDM_DQM[2] ) SDM_CS_N(0 SDM_ADDR[12:0] SDM_CKE SDM_CLKOU T SDM_BA(0) SDM_BA(1) SDM_RAS_N SDM_CAS_N SDM_WE_N SDM_DQM[1] SDM_DQM[0] ) SDM_CS_N(0 SDM_DATA[31:1 6] SDM_DATA[15:0] 0] SDM_ADDR[12: CKE CLK D0~D15 A0~A12 BA0 BA1 RAS_ CAS_ WE_ CS_ LDQM CKE CLK D0~D15 A0~A12 BA0 BA1 RAS_ CAS_ WE_ CS_ LDQM SDM_DATA[31:0] Figure 3. Connections in SDRAM Block 3. WLAN Part WLAN 802.11g Block 2.4 GH 802.11g Mini PCI C PCI_PAR PCI_nCBE(0:3) PCI_AD(0:31)) PCI_nINTA PCI_nGNT(0) PCI_nREQ(0) PCI_IDSEK PCI_nDEVS PCI_nSERR PCI_nPERR PCI_nSTOP PCI_nIRDY PCI_nTRDY PCI_nFRAM Mini PCI CPU (iXP420) Figure 4.14 WLAN Related Blocks y Wireless LAN card supports IEEE802.11b/g and its frequency is 2.4 G band. Power used for Tx is below 600 mA, and the card is connected to the host processor through mini-PCI typeIIIB. y Data communications in the wireless LAN part are made through 802.11 g, and voice communications are made through 802.11b. 4. WLAN Module(XG-623) XG-623 802.11g/b Compliant Wireless LAN mini PCI Card Specificat…

Text truncated - open the document above for the full version.

主件品號元件品號品 名規 格生效日期累計用量 *XG-623 WLAN MINI PCIETSI NO BRAND BULK PACK 0 55-140001-10 N*NetgearXV5350II ElectronicBag80×180mm 靜電袋(for PCB)94/07/061 55-400001-09 N*Carton 570×380×108 XI-300NB楞94/07/060.005 55-400001-28 N*PC Card out Carton585×395×243 AB楞94/07/060.0025 55-500001-00 N*2432 蜂巢間隔板B楞3mm厚(560×375×90)mm94/07/060.005 55-500001-01 N*2432 隔板B 瓦楞 (365×555)mm94/07/060.01 56-090001-41 N*10272 Carton Label102×72mm80#白色銅版條碼貼紙94/07/060.005 56-090001-54 N*2923 SN/Mac Label29×23mm 珍珠94/07/061 58-040018-60 N*XG-623 CIS V1.0 NBSSID:2052 SVID:168C94/07/061 58-040018-63N*FW DOMAIN XG-623 V1.0ETSI94/07/061 71-530516-10 N*PCBA XG-623 V1.0Atheros Only G Mini PCI94/07/061 01-200005-00 N*R SMD 0Ω 5% 04020.063W94/06/038 01-201005-00 N*R SMD 10Ω 5% 04020.063W94/06/034 01-204705-00 N*R SMD 47Ω 5% 04020.063W94/06/032 01-205101-00 N*R SMD 51Ω 1% 04020.063W94/06/031 01-210001-00 N*R SMD 100Ω 1% 04020.063W94/06/031 01-210015-00 N*R SMD 1KΩ 5% 04020.063W94/06/031 01-210025-00 N*R SMD 10KΩ 5% 04020.063W94/06/035 01-218701-00 N*R SMD 187Ω 1% 04020.063W94/06/033 01-220005-00 N*R SMD 200Ω 5% 04020.063W94/06/031 01-222101-00 N*R SMD 221Ω 1% 04020.063W94/06/036 01-239005-00 N*R SMD 390Ω 5% 04020.063W94/06/031 01-243025-00 N*R SMD 43KΩ 5% 04020.063W94/06/031 01-247015-00 N*R SMD 4.7KΩ 5% 04020.063W94/06/031 01-251015-00 N*R SMD 5.1KΩ 5% 04020.063W94/06/031 01-261911-00 N*R SMD 6.19KΩ 1% 04020.063W94/06/031 01-282015-00 N*R SMD 8.2KΩ 5% 04020.063W94/06/031 01-300101-00 N*R SMD 1Ω 1% 06030.01W94/06/031 01-500005-00 N*R SMD 0Ω 5% 08050.125W94/06/033 11-201018-07 N*C SMD CER 1pF ±0.25pF 0402NPO 50V94/06/031 11-210011-01N*C SMD CER 10pF ±5% 0402NPO 50V94/06/0321 11-210222-00 N*C SMD CER 1nF ±10% 0402X7R 50V94/07/275 11-210322-00 N*C SMD CER 10nF ±10% 0402X7R 16V94/06/038 11-210432-00 N*C SMD CER 100nF ±10% 0402X5R 10V94/06/036 11-212111-00 N*C SMD CER 120pF ±5% 0402NPO 50V94/06/031 11-215011-00 N*C SMD CER 15pF ±5% 0402NPO 50V94/06/031 11-215918-01 N*C SMD CER 1.5pF ±0.25pF 0402NPO 50V94/06/031 11-218918-01 N*C SMD CER 1.8pF ±0.25pF 0402NPO 50V94/06/031 11-222011-00 N*C SMD CER 22pF ±5% 0402NPO 50V94/06/031 11-222918-01 N*C SMD CER 2.2pF ±0.25pF 0402NPO 50V94/06/033 11-233918-01 N*C SMD CER 3.3pF ±0.25pF 0402NPO 50V94/06/036 11-247818-01 N*C SMD CER 0.47pF ±0.25pF0402NPO 50V94/06/032 11-256919-01 N*C SMD CER 5.6pF ±0.5pF 0402NPO 50V94/06/033 11-310532-00 N*C SMD CER 1uF ±10% 0603X5R 10V94/06/033 11-522532-00 N*C SMD 2.2uF ±10% 0805X5R 6.3V94/06/032 20-233917-06 N*L SMD 3.3nH ±0.1nH 0402Cyntec 100MHZ 500mA 0.20Ω Q=994/06/032 20-239917-06 N*L SMD 3.9nH ±0.1nH 0402Cyntec 100MHZ 420mA 0.30Ω Q=994/06/031 24-000001-54 N*SMD Crystal CX-96F 40MHz(KSS)±18ppm 15pF 4.9×3.1×0.794/06/031 30-010001-10 N*Diode Switch SMP1345-518SMD LGA 4PIN 50V SKYWORKS94/06/031 32-000002-04 N*TR NPN 2SB1386R ROHMSMD SC-62 Ib=100mA94/06/031 32-003906-00 N*TR MMBT3906LT1G (SMD)PNP TR SOT2394/06/031 41-010001-80 N*IC MAC&BBP AR2413 AtherosSMD BGA224 13×13mm 3.3V94/06/031 41-060001-03 N*IC Gate NC7WZ07 FairchildSMD SC-70 3.3V Buffer94/06/031 42-030002-17 N*IC EEPROM M24C32WMN6TP STSO8 4096×8Bit 2.5V 2mA94/06/031 46-010001-16 N*LNA 2.4GHz SGA-8343 SirenzaNFmin:1.2dB94/06/031 46-040001-39 N*IC 2.4G PA GP1214LF SSTSMD 3×3mm 16-pin P1dB=27 G=3094/06/031 52-060001-26 N*Connector U.FL-R-SMT-1(10)6GHz VSWR< 1.3 HIROSE94/06/032 65-012001-53 N*Shielding-Cover (顏色：銀)43.48×36.08×1.55材質:TMBP94/06/031 65-020001-01 N*TOP Shielding-Frame (顏色:銀)43.9×36.5×1.85 材質:TMBP94/06/031 70-480309-10 N*PCB XG-623 V1.0 化金FR4 4L H=1mm 4連板94/06/031 11-522522-00 N*C SMD CER 2.2uF ±10% 0805X7R 10V94/07/272 30-110001-03 N*SchottkyDiodesSMS7630079(996)SC-79 DC-10GHz 50mA Pd=75mW94/07/271 56-090001-03N*3208 SN/Mac Label32×8mm 80#白色銅版條碼貼紙94/07/272 55-000001-23N *Sponge 25×25 t=1.5mm PORON Black94/08121 E-BOM List[SIT200EMRB/ITA] Printing Person : 김민호Printing Date : 2005-09-21 Level Parts Code 조립위치 구성 공정 수량 품명 Spec. 단위 ..1 3903-000055 001 1.000000 CBF-POWER CORD DT,EU,CP2/NO,E(IEC320C7),250/250V,2.5/2.5A,BLK,1830mm,-,H03VVH2-F 2x0.75mm^2,VD PC ..1 6002-000154 001 8.000000 SCREW-TAPPING PH,+,2,M3,L8,ZPC(YEL),SWRCH18A,P1.35 PC ..1 6902-000183 001 1.000000 BAG PE LDPE,T0.05,W350,L400,TRP,28,2- PC ..1 EJ69-90002A 001 1.000000 SILICAGEL LRS,SIO2,-,-,W52,L60,-,-,5G,- PC ..1 GA07-00004A XX 001 MA 1.000000 LCD-TG469DPRN CMF-TG469DPRN-W,DS-6014L,320X240DOTS,94.2X70.7X6.4MM,BLACK/WHITE,1/240 DUTY,0.24 PC ..1 GA68-11511C 001 0.400000 LABEL(P)-150X50CE DCS,SEC,ART,T0.1,W150,L50,BLK,WHT,-,- PC ..1 GA68-11517C 001 1.000000 LABEL(P)-60X40CE DCS,SEC,ART,T0.1,W60,L40,BLK,WHT,-,- PC ..1 GA68-11524A 001 0.200000 LABEL(P)-BAR CODE KP-ALL,SEC,ART,T0.1,W96,L62,BLK,WHT,-,-,-,-,- PC ..1 GB42-00005A XX 001 MA 1.000000 ANTENNA ET-AP04N,SIT200EM/SIT200EI,2.4~2.5GHZ,4DBI ,50OHM,-,156MM,-,LINEAR(VERTICAL),2. PC ..1 GB44-00011A 002 1.000000 AC/DC ADAPTOR PW118KA0500N58,15W(MAX),100~240VAC,5V,95*54*32,65%MINIMUM,50/60HZ,47HZ~63HZ,0 PC ..1 GB68-00013E 001 1.000000 LABEL(P)-RATING LABEL OFFICESERVSOHO,STD,POLYESTER,T0.05,W55,L82,BLK,SIL,-,- PC ..1 GB68-00065A 001 3.000000 LABEL(P)-SEAL LABEL SINUS PRO800,DT,ART,T0.1,W60,L40,BLK,WHT,-,- PC ..1 GB69-00069B 001 1.000000 BOX(P)-UNIT BOX(ENG) OFFICESERV SOHO,STB,A-S2,H110,W400,L210,-,- PC ..1 GB69-00070A 001 0.200000 BOX(P)-MASTER BOX SINUS PRO 800,SC2,A-1,H220,W575,L410,-,- PC ..1 GB92-00910A 001 1.000000 PBA SUB-ISDN KEYPAD SOHO MASTER,KT,KOR,ISDNKEYPAD,WLAN,-,-,179.7*107.1,ISDNKEYPAD PBA PC ....2 0202-000108 XX 001 SM 0.001000 SOLDER-CREAM RMA-20-21L,-,20~38㎛,62.8SN/36.8PB/0.4AG,10% KG ....2 0202-001091 XX 001 MA 0.001000 SOLDER-BAR HI-FLO,-,20X356X11,63SN/37PB,- KG ....2 0401-000191 D1 001 SM 1.000000 DIODE-SWITCHING MMBD4148,75V,200mA,SOT-23,TP PC ....2 0401-000191 D2 002 SM 1.000000 DIODE-SWITCHING MMBD4148,75V,200mA,SOT-23,TP PC ....2 0401-000191 D3 003 SM 1.000000 DIODE-SWITCHING MMBD4148,75V,200mA,SOT-23,TP PC ....2 0401-000191 D4 004 SM 1.000000 DIODE-SWITCHING MMBD4148,75V,200mA,SOT-23,TP PC ....2 0406-001083 D10 001 SM 1.000000 DIODE-TVS -,6.1/-/7.2V,150W,SOT-323-5L P…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 1 of 79 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Dates of Issue : Sep 15, 2005 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea. Test Report No. : NK2FR171 Test Site : Nemko Korea Co., Ltd. (Post code : 442-743) EMC site, Korea Attn. : Mr. Min-ho Kim FCC ID A3LSIT200EMRB SAMSUNG Samsung Electronics Co., Ltd. 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea, 442-743. Mr. Min-ho Kim Telephone No. : +82-016-230-4248 Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15, Subpart C : 2004 Classification : FCC Class B Device EUT Type: OfficeServ SOHO The device bearing the brand name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : M.C.Shin Reviewed By : H.H. Kim Senior Engineer Manager & Chief Engineer Test Report No.: NK2FR171 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSIT200EMRB Page 2 of 79 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS TEST DATA (Conducted Emissions) PLOT OF EMISSION TEST DATA (Radiated Emissions) TEST DATA ( Modulated Bandwidth) PLOT OF TEST DATA TEST DATA (Peak Power Output) TEST DATA (Conducted & Radiated Spurious Emission) PLOT OF TEST DATA TEST DATA (Peak Power Spectral Density) PLOT OF TEST DATA TEST DATA (Maximum Permissible Exposure) ACCURACY OF MEASUREMENT TEST EQUIPMENT APPENDIX A – LABELLING REQUIREMENTS APPENDIX B – CIRCUIT DIAGRAM APPENDIX C – PHOTOGRAPHS OF TEST SET-UP APPENDIX D – EUT PHOTOGRAPHS APPENDI…

Text truncated - open the document above for the full version.
