A3LSMA356UPortable Handset

Quick Reference Guide (Terms an d Conditions) SM-A356U, SM-A356U1, SM-S356V Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. Important l egal information Arbitration Agreement - This Product is subject to a binding arbitrat ion agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) approval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status Information Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ speci fic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because they may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell phone recycling, go to call2re cycle. org or call 1- 800-822-8837. F or more recycling information, go to our website: www.samsung.com/re cycling or call 1-800-S AMSUNG. Your location Location-based information on that can be used to determine the approximate location of a mobile device. If you use applic ations that require locat…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 11, 2023 FCC ID: A3LSMA356U To whom it may concern: We, the undersigned, hereby authorize Element Washington DC LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Element Washington DC LLC. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea Dec. 11, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMA356U To whom it may concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At t he time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CRF 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung have programmed the e-label and it is not able to be modified by any third party. Per CF R 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincer ely Yours, Jenni C hun/ General Manager Samsung Electronics America. Inc Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

47 CFR §2.911 (d)(7) Agent Designation Attestation Date: 12-11-2023 FCC ID: A3LSMA356U To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Samsung Electronics Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person : Ms. Jenni Chun Company Name : Samsung Electronics Co., Ltd. Company Address : Email : FRN: 19 Chapin Rd., Building D, Pine Brook, NJ 07058, USA [email protected] 0027908797 Sincerely yours, Name: Ms. Jenni Chun Job Title: Head of Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

47 CFR §2.903 and §2.911 (d)(5) Attestation Date: 12-11-2023 FCC ID: A3LSMA356U To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA 1.Samsung Electro nics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.Samsung Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Ms. Jenni Chun Job Title: Head of Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 11, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMA356U To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

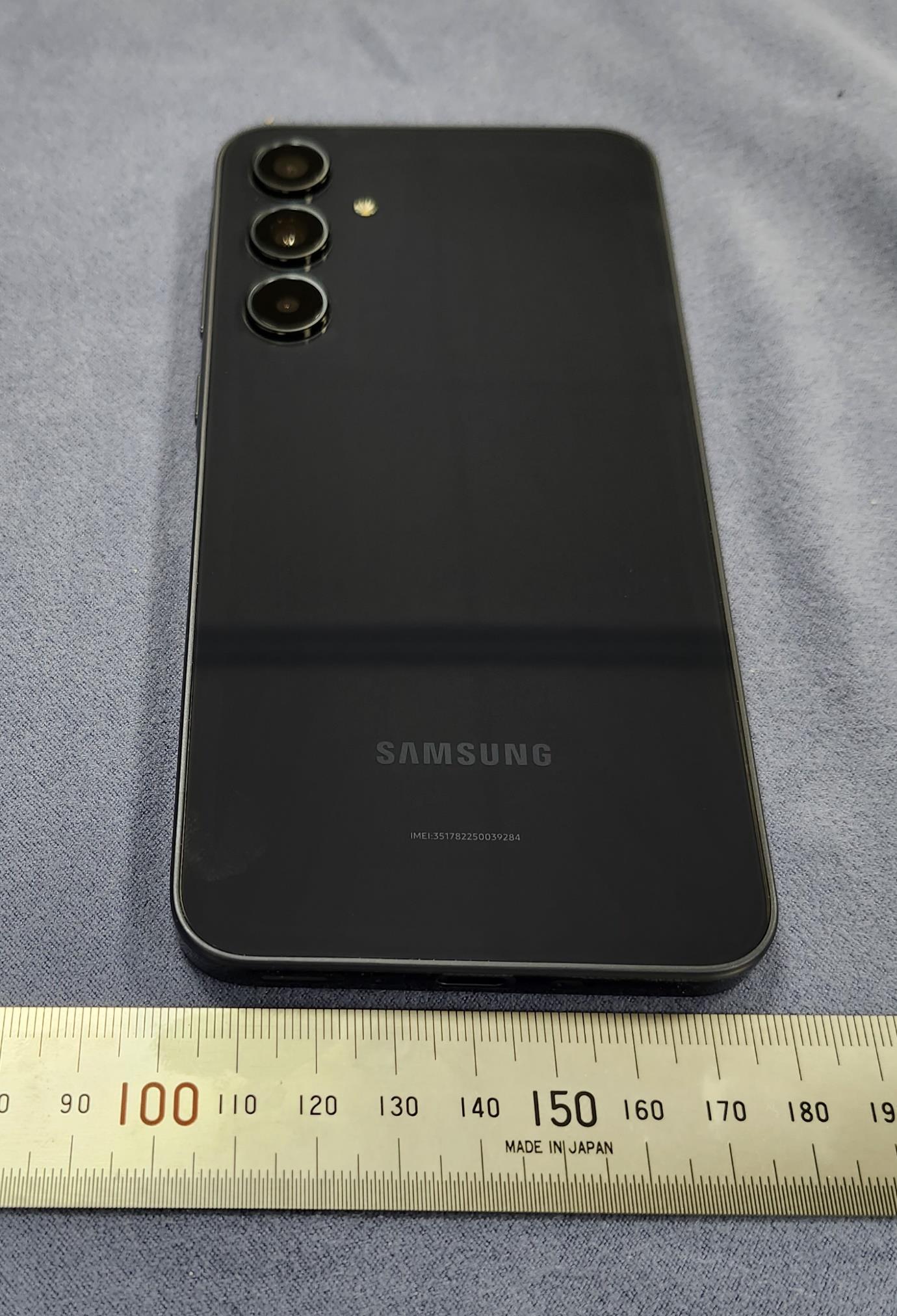

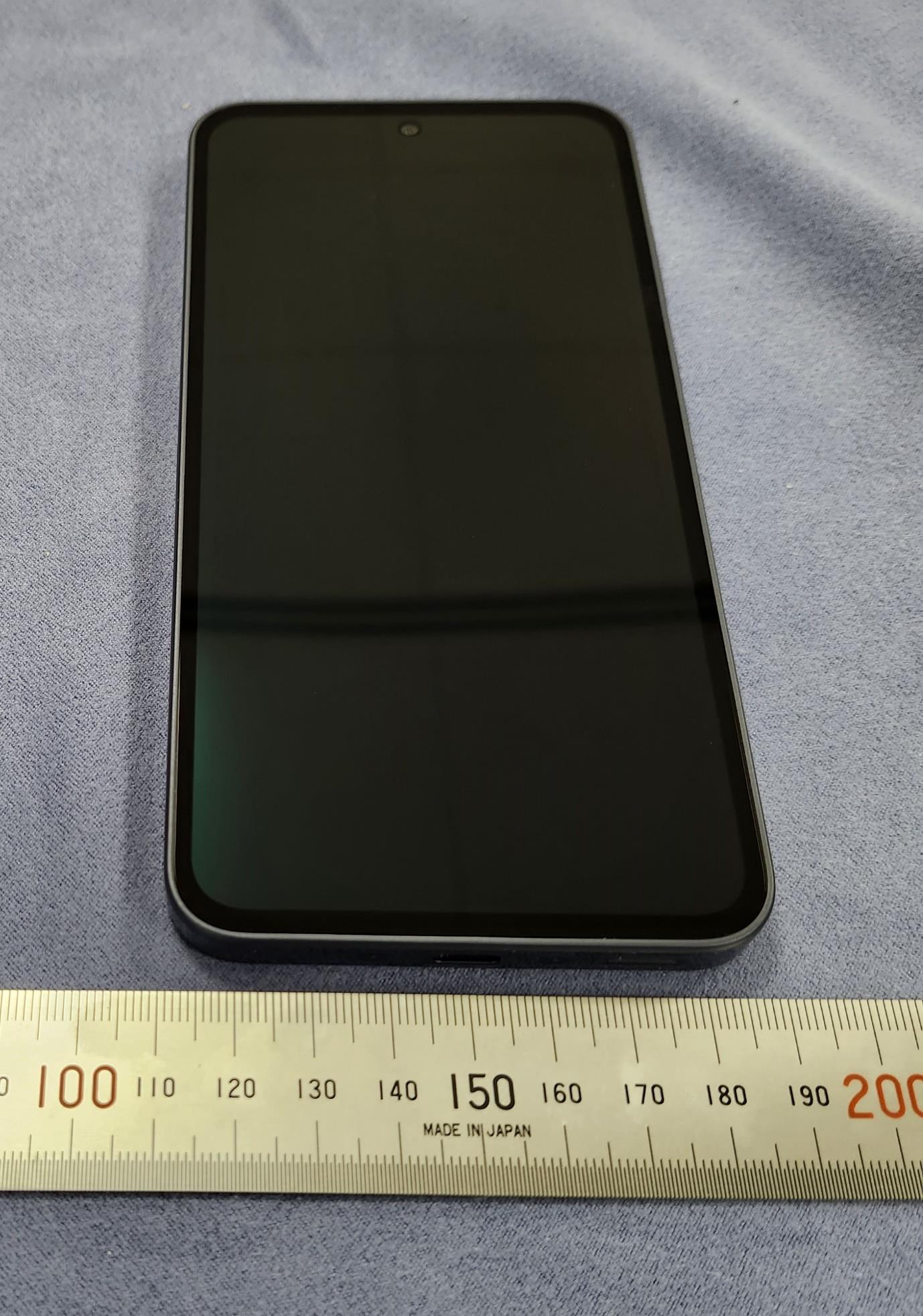

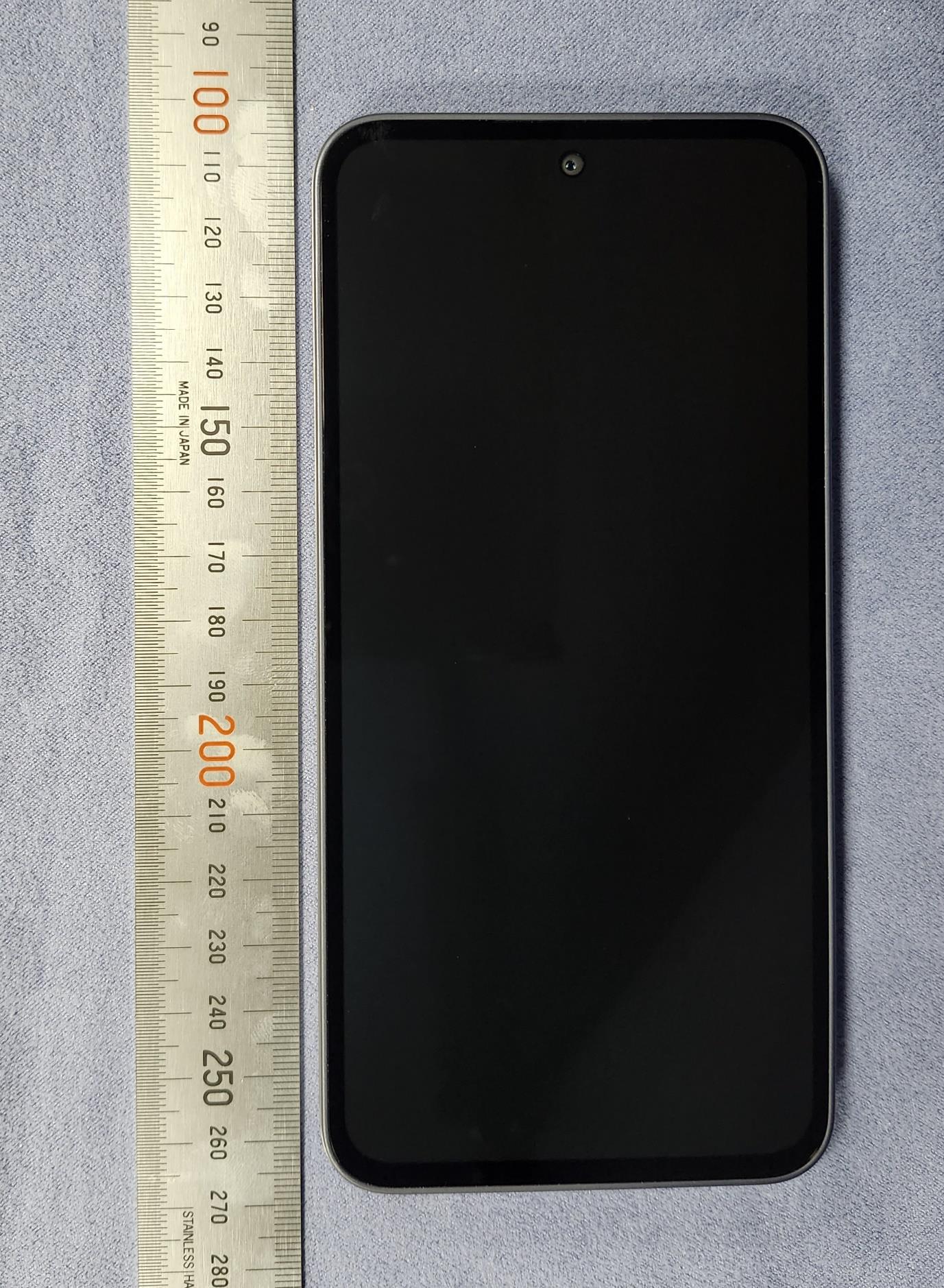

FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs FCC ID : A3LSMA356U External Photographs

Description of E-label on the A3LSMA356U Date: Dec. 11, 2023 FCC ID: A3LSMA356U This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status Information FCC certification FCC ID: A3LSMA356U <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMA356U [Model Number: SM-A356U, SM-A356U1, SM-S356V] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s website: www.samsung.com/sar

FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs FCC ID : A3LSMA356U Internal Photographs

FCC ID: A3LSMA356U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX B: Page 1 of 3 Portable Handset © 2023 Element REV 1.0 04/06/2020 A P P E N D I X B : T E S T S E Q U E N C E S 1.Test sequence is generated based on below parameters of the DUT: a.Measured maximum power (P max ) b.Measured Tx_power_at_SAR_design_target (P limit ) c.Setup time to make SAR ramining be full d.Do test according to test sequence 2.Test Sequence A Waveform: Based on the parameters above, the test sequence A is generated with one or two levels where one of the levels is maximum power level (Pmax) which is applied at least for 100s. Based on the second level this test sequence is sub-categorized into four different sequences used (a)Test Sequence A.i where after Pmax, a second level of Plimit is requested till the end of the test (b)Test Sequence A.ii where after Pmax, a second level of Pmax-3dB is requested till the end of the test (c)Test Sequence A.iii where after Pmax, a second level of Plimit-3dB is requested till the end of the test (d)Test Sequence A.iv where only Pmax is requested till the end of the test 3.Test Sequence B Waveform: Based on the parameters above, the Test Type B is generated with pre-defined power levels, which is described in Table B-1: FCC ID: A3LSMA356U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX B: Page 2 of 3 Portable Handset © 2023 Element REV 1.0 04/06/2020 Table B-1 Test Sequence B The Test Sequence 2 waveform is shown in Figure B-1. FCC ID: A3LSMA356U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX B: Page 3 of 3 Portable Handset © 2023 Element REV 1.0 04/06/2020 Figure B-1 Test sequence 2 waveform

FCC ID: A3LSMA356U SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: Portable Handset APPENDIX D: Page 1 of 3 A P P E N D I X D : S A R T I S S U E S P E C I F I C A T I O N S Measurement Procedure for Tissue verification: 1) The network analyzer and probe system was configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, ,  is the angular frequency, and . Figure D-1 Note: Liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data sheets are provided below. ( )          −  = b a b a r r d d d r r j a b j Y            0 2 / 1 0 ' 0 2 0 ) ( exp cos ln 2        −  + = cos 2 2 2 2 r 1 − = j FCC ID: A3LSMA356U SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: Portable Handset APPENDIX D: Page 2 of 3 Figure D-2 600 – 10000 MHz Head Tissue Equivalent Matter FCC ID: A3LSMA356U SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: Portable Handset APPENDIX D: Page 3 of 3 Figure D-3 5– 250 MHz Head Tissue Equivalent Matter

FCC ID: A3LSMA356U COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2311010111-18.A3L DUT Type: Portable Handset Page 1 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Test Site/Location: Samsung Electronics Co., Ltd. Element, Columbia, MD, USA 129, Samsung-ro, Maetan dong, Document Serial No.: Yeongtong-gu, Suwon-si 1M2311010111-18.A3L Gyeonggi-do, 16677, Korea FCC ID: A3LSMA356U APPLICANT: SAMSUNG ELECTRONICS CO., LTD Report Type: DUT Type: Compliance Summary Portable Handset Model(s): SM-A356U, SM-A356U1, SM-S356V ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com COMPLIANCE SUMMARY REPORT FCC ID: A3LSMA356U COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2311010111-18.A3L DUT Type: Portable Handset Page 2 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 STRATEGY FOR COMPLIANCE DEMONSTRATION 3 1.1 RF Exposure Evaluation Strategy 3 1.2 Nomenclature 4 1.3 Bibliography 4 2 TIME AVERAGING ALGORITHM 5 2.1 Algorithm Description 5 2.2 Basic concept of the algorithm 6 2.3 Configurable Parameters 7 3 DUT DESCRIPTION 9 3.1 Device Overview 9 4 COMPLIANCE SUMMARY 10 4.1 RF Exposure Compliance Summary 10 FCC ID: A3LSMA356U COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2311010111-18.A3L DUT Type: Portable Handset Page 3 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 STRATEGY FOR COMPLIANCE DEMONSTRATION 1.1 RF Exposure Evaluation Strategy The FCC RF exposure limits defined based on time-averaged RF exposure. The device under test (DUT) uses the S.LSI TAS feature to control and manage transmitting power in real time and to ensure at all times the time- averaged RF exposure is in compliance with the FCC requirement for 2G/3G/4G/5G NR operations. Additionally, this device supports WLAN/BT/NFC technologies but the output power of these modems is not controlled by the S.LSI TAS algorithm. Demonstrating compliance of DUT enabled with S.LSI TAS feature is completed in three parts: 0. RF Exposure Compliance Test Report Part 0: SAR Characterization The SAR Characterization, denoted as SAR Char, determines the power limit that meets FCC exposure requirement after accounting for device design related uncertainties for each supported radio configuration and RF exposure usage scenario. The determined power limits will be loaded and stored in the EUT, and then used as inputs for S.LSI TAS to operate. For 2G/3G/4G/5G Sub6, SAR Char is derived from SAR test measurements and conducted power measurements to determine P Limit for each technology/band. The P Limit represents the maximum time- averaged power level for the corresponding radio/antenna configuration. 1. RF Exposure Compliance Test Report Part 1: Test in Static Transmission Condition Part 1 demonstrates that DUT meets FCC SAR limits when transmitting at pre-determined maximum time-averaged power level: P Limit for 2G/3G/4G/5G Sub6. The SAR measurement in Part 1 is under static transmission condition. The compliance for WLAN/BT radio is demonstrated at a fixed power level (fixed = maximum RF tune-up level or power-back off level). The exposure from the simultaneous transmission of WWAN and WLAN/BT is evaluated in Part 1 report. 2. RF Exposure Compliance Test Report Part 2: Test in Dynamic Transmission Condition Part 2 demonstrates compliance in Tx varying transmission conditions and validates S.LSI TAS algorithm. The test results reported in Part 2 demonstrates that DUT complies with FCC RF exposure requirement under Tx varying transmission scenarios, thereby validity of S.LSI TAS algorithm. FCC ID: A3LSMA356U COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2311010111-18.A3L DUT Type: Portable Handset Page 4 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.2 Nomenclature Applicable Technologies Term Description WWAN P Limit Power level that corresponds to the exposure design target (SAR_design_target) after accounting for all device design related uncertainties P Max Maximum tune up output power T SAR Defined time averaging window for f < 6 GHz SAR_design_target Target SAR level resulting in maximum time-averaged exposure optimized from total uncertainty SAR Char Table containing Plimit for all technologies regulatory body Regulatory body that the algorithm is designed to comply. Algorithm’s time averaging window is dependent on either FCC or ICNIRP requirements. reserve_power_margin …

Text truncated - open the document above for the full version.

FCC ID: A3LSMA356U PART 0 SAR CHAR REPORT Approved by: Technical Manager Document S/N: 1M2311010111-22.A3L DUT Type: Portable Handset Page 1 of 11 REV 1.1 04/08/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 11/08/2023-01/08/2024 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si Element, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 1M2311010111-22.A3L(R1) FCC ID: A3LSMA356U APPLICANT: SAMSUNG ELECTRONICS CO., LTD Report Type: DUT Type: Part 0 SAR Characterization Portable Handset Model(s): SM-A356U, SM-A356U1, SM-S356V Note: This revised test report supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. - ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com PART 0 SAR CHAR REPORT FCC ID: A3LSMA356U PART 0 SAR CHAR REPORT Approved by: Technical Manager Document S/N: 1M2311010111-22.A3L DUT Type: Portable Handset Page 2 of 11 REV 1.1 04/08/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST 3 1.1 Device Overview 3 1.2 Time-Averaging for SAR 4 1.3 Nomenclature for Part 0 Report 4 1.4 Bibliography 4 2 SAR AND POWER DENSITY MEASUREMENTS 5 2.1 SAR Definition 5 2.2 SAR Measurement Procedure 5 3 SAR CHARACTERIZATION 7 3.1 RSI and SAR Determination 7 3.2 SAR Design Target 7 3.3 SAR Char 8 4 EQUIPMENT LIST 10 5 MEASUREMENT UNCERTAINTIES 11 APPENDIX A: SAR TEST RESULTS FOR P Limit CALCULATIONS 1 FCC ID: A3LSMA356U PART 0 SAR CHAR REPORT Approved by: Technical Manager Document S/N: 1M2311010111-22.A3L DUT Type: Portable Handset Page 3 of 11 REV 1.1 04/08/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 DEVICE UNDER TEST 1.1 Device Overview This device uses time-averaged SAR (TAS) feature to control and manage transmitting power in real time and to ensure at all times the time-averaged RF exposure is in compliance with the FCC requirement for WWAN operations via S.LSI TAS. Additionally, this device supports WLAN/BT/NFC technologies, but the output power of these modems is not controlled by the TAS algorithm. GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.6 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 71Voice/Data665.5 - 695.5 MHz LTE Band 12Voice/Data699.7 - 715.3 MHz LTE Band 13Voice/Data779.5 - 784.5 MHz LTE Band 14Voice/Data790.5 - 795.5 MHz LTE Band 26Voice/Data814.7 - 848.3 MHz LTE Band 5Voice/Data824.7 - 848.3 MHz LTE Band 66Voice/Data1710.7 - 1779.3 MHz LTE Band 4Voice/Data1710.7 - 1754.3 MHz LTE Band 25Voice/Data1850.7 - 1914.3 MHz LTE Band 2Voice/Data1850.7 - 1909.3 MHz LTE Band 30Voice/Data2307.5 - 2312.5 MHz LTE Band 7Voice/Data2502.5 - 2567.5 MHz LTE Band 41Voice/Data2498.5 - 2687.5 MHz LTE Band 38Voice/Data2572.5 - 2617.5 MHz LTE Band 48Voice/Data3552.5 - 3697.5 MHz NR Band n71Voice/Data665.5 - 695.5 MHz NR Band n5Voice/Data826.5 - 846.5 MHz NR Band n70Voice/Data1697.5 - 1707.5 MHz NR Band n66Voice/Data1712.5 - 1777.5 MHz NR Band n25Voice/Data1852.5 - 1912.5 MHz NR Band n2Voice/Data1852.5 - 1907.5 MHz NR Band n30Voice/Data2307.5 - 2312.5 MHz NR Band n41Voice/Data2501.01 - 2685 MHz NR Band n48Voice/Data3555 - 3694.98 MHz NR Band n78Voice/Data 3455.01 - 3544.98 MHz; 3705 - 3795 MHz NR Band n77Voice/Data 3455.01 - 3544.98 MHz; 3705 - 3975 MHz 2.4 GHz WIFIVoice/Data2412 - 2472 MHz 5 GHz WIFIVoice/Data U-NII-1: 5180 - 5240 MHz U-NII-2A: 5260 - 5320 MHz U-NII-2C: 5500 - 5720 MHz U-NII-3: 5745 - 5825 MHz 2.4 GHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz Band & ModeOperating ModesTx Frequency FCC ID: A3LSMA356U PART 0 SAR CHAR REPORT Approved by: Technical Manager Document S/N: 1M2311010111-22.A3L DUT Type: Portable Handset Page 4 of 11 REV 1.1 04/08/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.2 Time-Averaging for SAR This device is enabled with S.LSI TAS algorithm to control and manage transmitting power in real time and to ensure th…

Text truncated - open the document above for the full version.

FCC ID: A3LSMA356U PART 0 SAR CHAR REPORT Approved by: Technical Manager Document S/N: 1M2311010111-22.A3L DUT Type: Portable Handset APPENDIX A: Page 1 of 8 REV 1.1 04/08/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. APPENDIX A: SAR TEST RESULTS FOR P LIMIT CALCULATIONS For some bands/modes, a lower P Limit was selected as a more conservative evaluation. This appendix contains only P Limit specific to part 0 only testing. P Limit data for shared data with part 1 report can be referenced in the RF Exposure Part 1 Test Report Table A-1 P Limit Calculations – GPRS Phablet SAR Table A-2 P Limit Calculations – UMTS Phablet SAR ExposureBand / Mode Service / Modulation Ant. Serial Number Duty Cycle Power Drift [dB] Frequency [MHz] Channel # Conducted Power …

Text truncated - open the document above for the full version.
