A3LSMB690VCellular/PCS CDMA/GSM/EDGE Phone with Bluetooth

DRAFT Internal Use Only MOBILE PHONE Product Safety & Warranty Information Please read this manual before operating your device and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT Internal Use Only VZW_B690V_EN_HS_PS_011516_R1 Note: READ THIS INFORMATION BEFORE USING YOUR MOBILE DEVICE. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty including its dispute resolution procedure. WARNING! This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please call 1-800-SAMSUNG (726-7864). Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. DRAFT Internal Use Only Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: DRAFT Internal Use Only http://opensource.samsung.com Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN DRAFT Internal Use Only ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE DEVICE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DRAFT Internal Use Only DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Samsung Electronics America (SEA), Inc © 2015 Samsung Electronics America, Inc. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Address: 85 Challenger Road Ridgefield Park, New Jersey 07660 Phone: 1-800-SAMSUNG (726-7864) Internet Address: www.samsung.com DRAFT Internal Use Only 1 Table of Contents Section 1: Health and Safety Information ............................ 3 Exposure to Radio Frequency (RF) Signals . . . . . . . . . . . . . . . . . 3 Specific Absorption Rate (SAR) Certification Information . . . 14 FCC Part 15 Information to User . . . . . . . . . . . . . . . . 18 Commercial Mobile Alerting System (CMAS) . . . . . . . . . . 19 Samsung Mobile Products and Recycling . . . . . . . . . . . . . . 20 Smart Practices While Driving . . . . . . . . . . . . . . . . 22 Battery Use and Safety . . . . . . 25 UL Certified Travel Charger . . . 30 Display / Touch-Screen . . . . . 31 GPS & AGPS . . . . . . . . . . . . . . 32 Emergency Calls . . . . . . . . . . 34 Care and Maintenance . . . . . . 36 Responsible Listening . . . . . . 38 Operating Environment . . . . . . 42 FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . . 47 Restricting Children's Access to Your Mobile Device . . . . . 51…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 30, 2015 FCC ID: A3LSMB690V To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Dec 29, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: SUBJECT : Label Statement FCC ID : A3LSMB690V The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: January 12, 2016 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID:A3LSMB690V Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the KDB 285076 D01. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. This device features a HAC mode software setting which activates audio gains and shaping during HAC operation to improve audio performance for users with hearing loss. Held-to-ear modes do not include Bluetooth profiles. Should you have any questions or comments concerning the above, please contact the undersigned. FCC ID: A3LSMB690V Model(s):SM-B690V Air Interfaces: CDMA 850/1900, GSM 850/1900 Radio Services: CDMA/EVDO, GSM/GPRS/EGPRS Key Features: GPS SMS,MMS Bluetooth MP3 Player Xili Mei Engineer Samsung Electronics Co., Ltd.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 30, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMB690V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

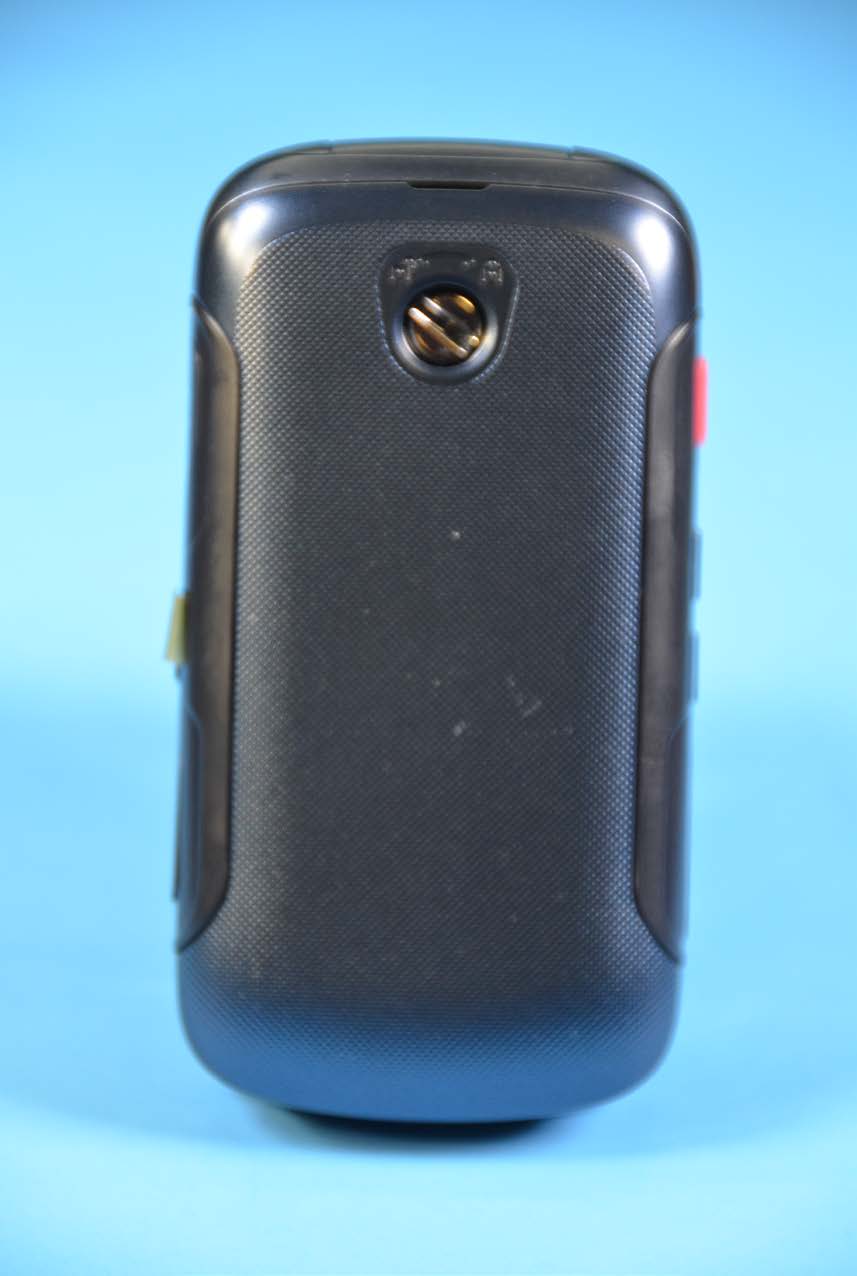

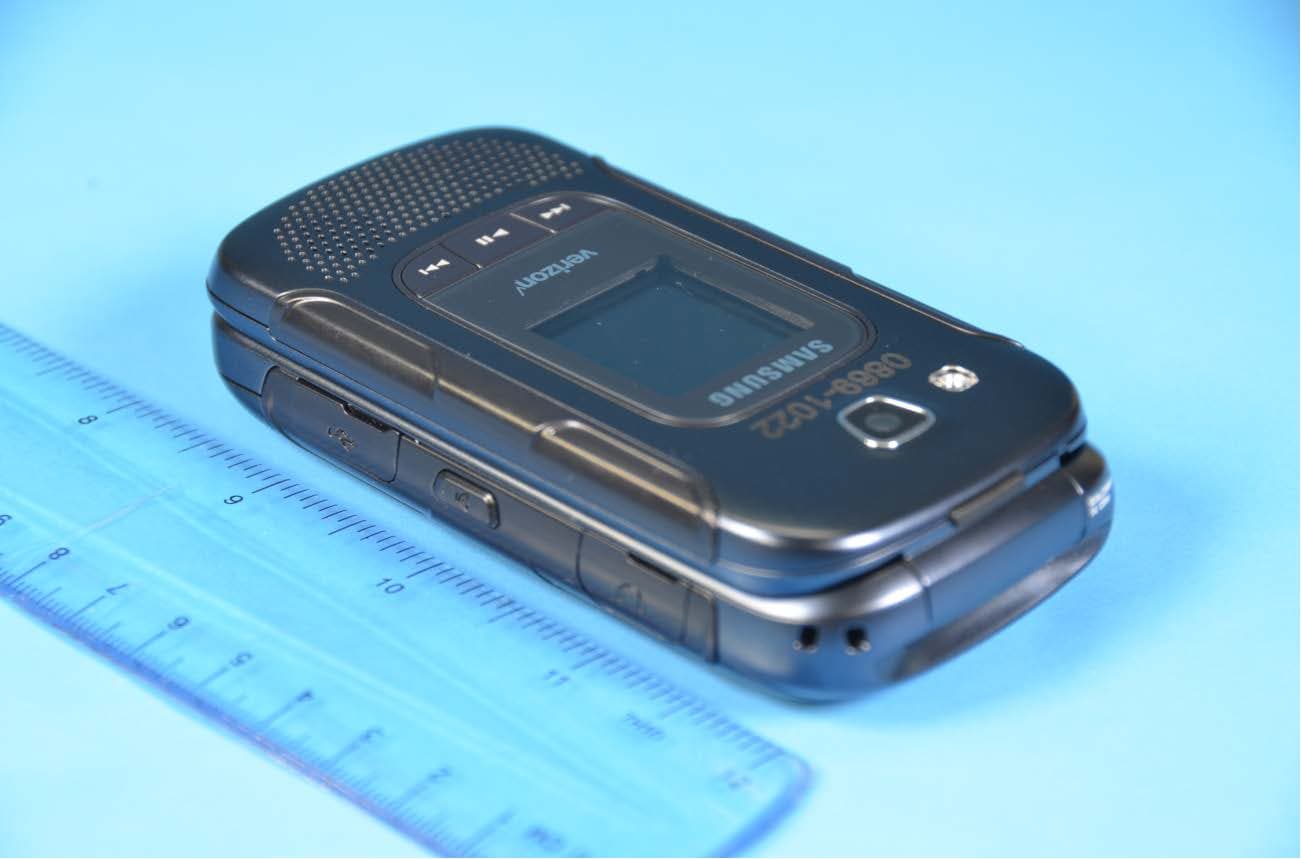

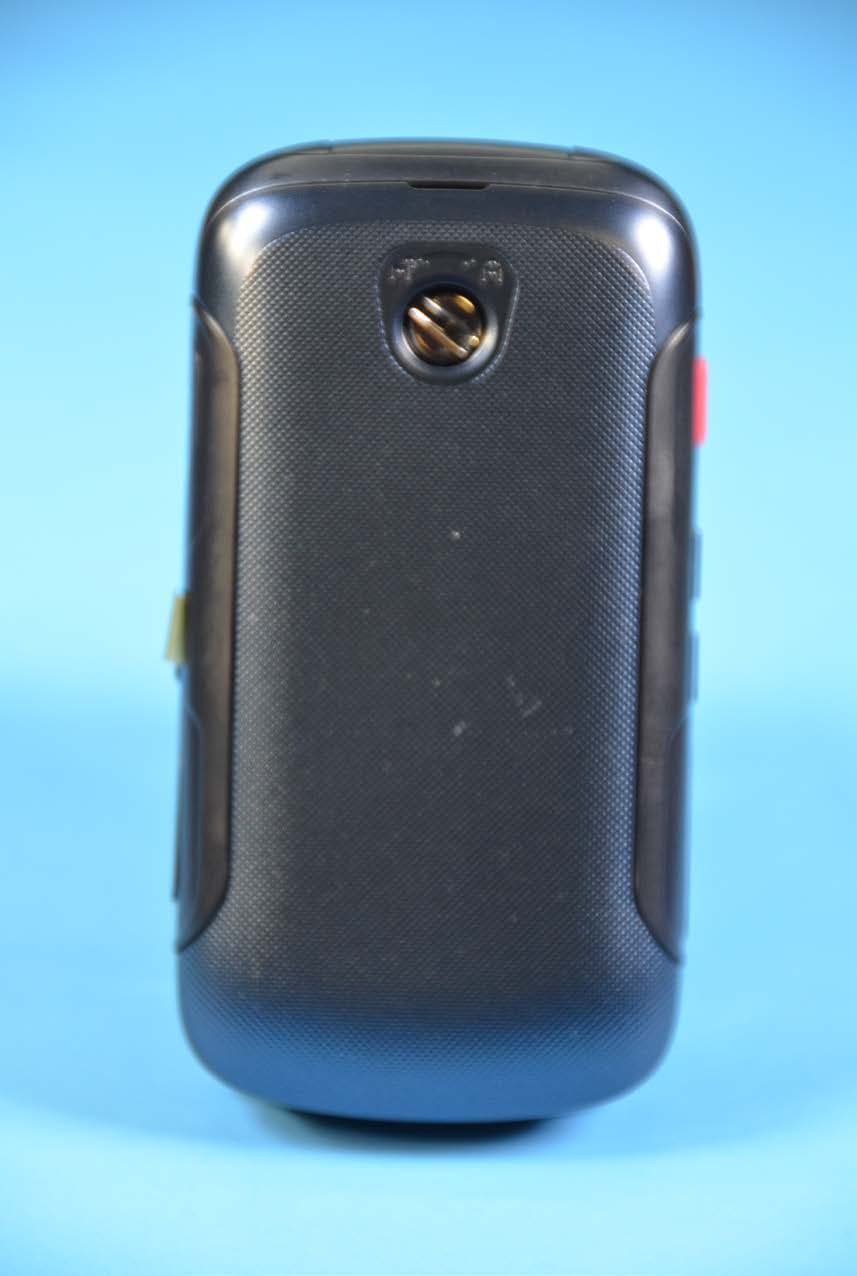

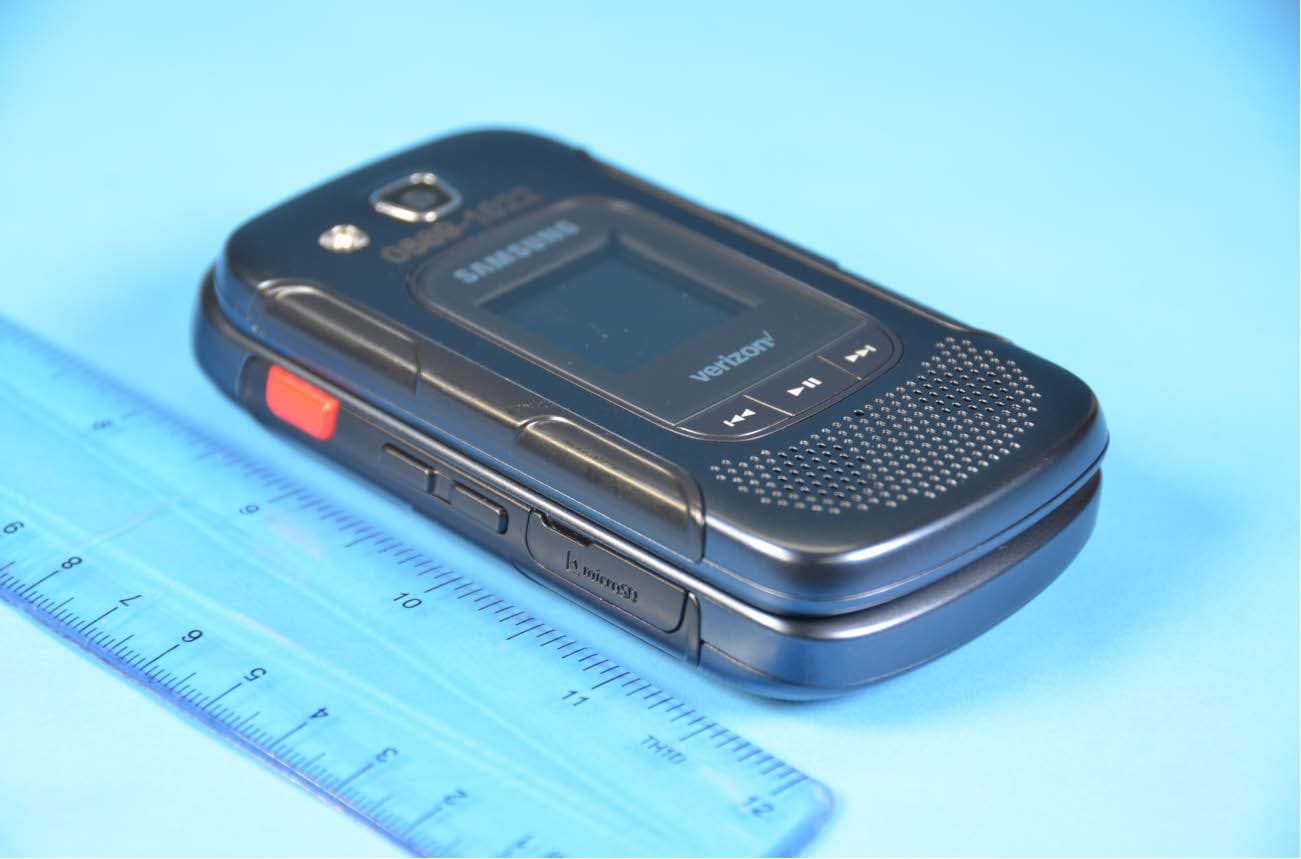

Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V External Photos EUT Type: Portable Handset Page 1 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V External Photos EUT Type: Portable Handset Page 2 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V External Photos EUT Type: Portable Handset Page 3 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V External Photos EUT Type: Portable Handset Page 4 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V External Photos EUT Type: Portable Handset Page 5 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015

Label and Location Model: FCC ID: SM-B690V A3LSMB690V Label: Location: Top Back of device Bo ttom Phon e: Label is placed inside of the battery compartment. Label

Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMB690V Model: SM-B690V Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015

FCC ID: A3LSMB690V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 29 0Y1512072075-R1.A3L 12/03/15 - 12/28/15 Portable Handset © 2016 PCTEST Engineering Laboratory, Inc. REV 17.0 M 12/1/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 12/03/15 - 12/28/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 0Y1512072075-R1.A3L FCC ID: A3LSMB690V APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-B690V This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1512072075-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) PCECell. CDMA824.70 - 848.31 MHz0.231.06 PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.160.53 PCEPCS CDMA1851.25 - 1908.75 MHz0.480.51 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.170.20 DSSBluetooth2402 - 2480 MHz N/A1.12 Equipment Class SAR N/A Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMB690V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 29 0Y1512072075-R1.A3L 12/03/15 - 12/28/15 Portable Handset © 2016 PCTEST Engineering Laboratory, Inc. REV 17.0 M 12/1/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................................3 2 INTRODUCTION ...........................................................................................................................................6 3 DOSIMETRIC ASSESSMENT ......................................................................................................................7 4 DEFINITION OF REFERENCE POINTS.......................................................................................................8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................................9 6 RF EXPOSURE LIMITS ............................................................................................................................. 12 7 FCC MEASUREMENT PROCEDURES ..................................................................................................... 13 8 RF CONDUCTED POWERS ...................................................................................................................... 15 9 SYSTEM VERIFICATION ........................................................................................................................... 17 10 SAR DATA SUMMARY .............................................................................................................................. 19 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 22 12 SAR MEASUREMENT VARIABILITY ........................................................................................................ 24 13 EQUIPMENT LIST ...................................................................................................................................... 25 14 MEASUREMENT UNCERTAINTIES.......................................................................................................... 26 15 CONCLUSION ............................................................................................................................................ 27 16 REFERENCES ...............................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMB690V FCC Pt. 22 & 24 GSM / GPRS / EDGE / CDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 67 0Y1512072076.A3L 12/3-1/5/2016 Portable Handset © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 12/3-1/5/2016 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1512072076.A3L FCC ID: A3LSMB690V APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SM-B690V EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 D01 v02r02 Test Device Serial No.: identical prototype [S/N: 35563807001022,35563807001234] GPRS850824.2 - 848.8242KGXW0.43926.43 EDGE850824.2 - 848.8235KG7W0.07218.60 GPRS19001850.2 - 1909.8245KGXW0.50127.00 EDGE19001850.2 - 1909.8243KG7W0.17622.45 CDMA850824.70 - 848.311M27F9W0.11320.52 CDMA19001851.25 - 1908.751M27F9W0.07218.59 Tx Frequency (MHz) Mode Emission Designator ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMB690V FCC Pt. 22 & 24 GSM / GPRS / EDGE / CDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 67 0Y1512072076.A3L 12/3-1/5/2016 Portable Handset © 2016 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 Scope ................................................................................................................................................... 4 1.2 Testing Facility ..................................................................................................................................... 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 Equipment Description ......................................................................................................................... 5 2.2 Device Capabilities .............................................................................................................................. 5 2.3 Test Configuration ................................................................................................................................ 5 2.4 EMI Suppression Device(s)/Modifications ............................................................................................ 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 Evaluation Procedure ........................................................................................................................... 6 3.2 Cellular - Base Frequency Blocks ........................................................................................................ 6 3.3 Cellular - Mobile Frequency Blocks ...................................................................................................... 6 3.4 PCS - Base Frequency Blocks ............................................................................................................. 6 3.5 PCS - Mobile Frequency Blocks .......................................................................................................... 7 3.6 Radiated Measurements ...................................................................................................................... 7 4.0 MEASUREMENT UNCERTAINTY ................................................................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 6.0 SAMPLE CALCULATIONS ............................................................................................................ 10 7.0 TEST RESULTS ............................................................................................................................. 11 7.1 Summary ............................................................................................................................................ 11 7.2 Occupied Bandwidth .......................................................................................................................... 12 7.3 Spurious and Harmonic Emissions at Antenna Terminal ................................................................... 16 7.4 Band Edge Emissions at Antenna Terminal ....................................................................................... 35 7.5 Peak-Average Ratio ........................................................................................................................... 43 7.6 Radiated Power (ERP/EIRP) ..............................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMB690V HAC (T-COIL) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 50 0Y1512072079.A3L 12/03/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 2.1.M 12/9/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 12/03/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 16677, Korea Test Report Serial No.: 0Y1512072079.A3L FCC ID: A3LSMB690V APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Scope of Test: Audio Band Magnetic Testing (T-Coil) Application Type: Certification FCC Rule Part(s): CFR §20.19(b) HAC Standard: ANSI C63.19-2011 CTIA Test Plan for Hearing Aid Compatibility Rev 3.0, November 2013 EUT Type: Portable Handset Model(s): SM-B690V Test Device Serial No.: Pre-Production Sample [S/N: 01181] C63.19-2011 HAC Category: T4 (SIGNAL TO NOISE CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2011 and has been tested in accordance with the specified measurement procedures. Test results reported herein relate only to the item(s) tested. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY FCC ID: A3LSMB690V HAC (T-COIL) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 50 0Y1512072079.A3L 12/03/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 2.1.M 12/9/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI C63.19-2011 PERFORMANCE CATEGORIES .................................................................... 6 5. METHOD OF MEASUREMENT ...................................................................................................... 8 6. FCC 3G MEASUREMENTS .......................................................................................................... 18 7. TEST SUMMARY .......................................................................................................................... 19 8. MEASUREMENT UNCERTAINTY ................................................................................................ 25 9. EQUIPMENT LIST ......................................................................................................................... 26 10. TEST DATA ................................................................................................................................... 27 11. CALIBRATION CERTIFICATES .................................................................................................... 38 12. CONCLUSION ............................................................................................................................... 45 13. REFERENCES .............................................................................................................................. 46 14. TEST SETUP PHOTOGRAPHS ...…

Text truncated - open the document above for the full version.
