A3LSMF926BPortable Handset

Quick Reference Guide (Terms an d Conditions) SM-F926B SM-F926B/DS Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. NOTE: The use of mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate author and always follow crew instructions regarding when and how you may use your device. UWB Operation in airplane mode: UWB function is disabled when a phone get into the airplane mode. Important l egal information Arbitration Agreement - This Product is subject to a binding ar bitration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreem ent (EULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •S panish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) appr oval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status information. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ speci fic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because they may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell pho…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 19, 2021 FCC ID: A3LSMF926B To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, LLC on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Sectio n 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea June 17 th , 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMF926B To whom it may concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CRF 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 19, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMF926B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day s after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information pri or to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

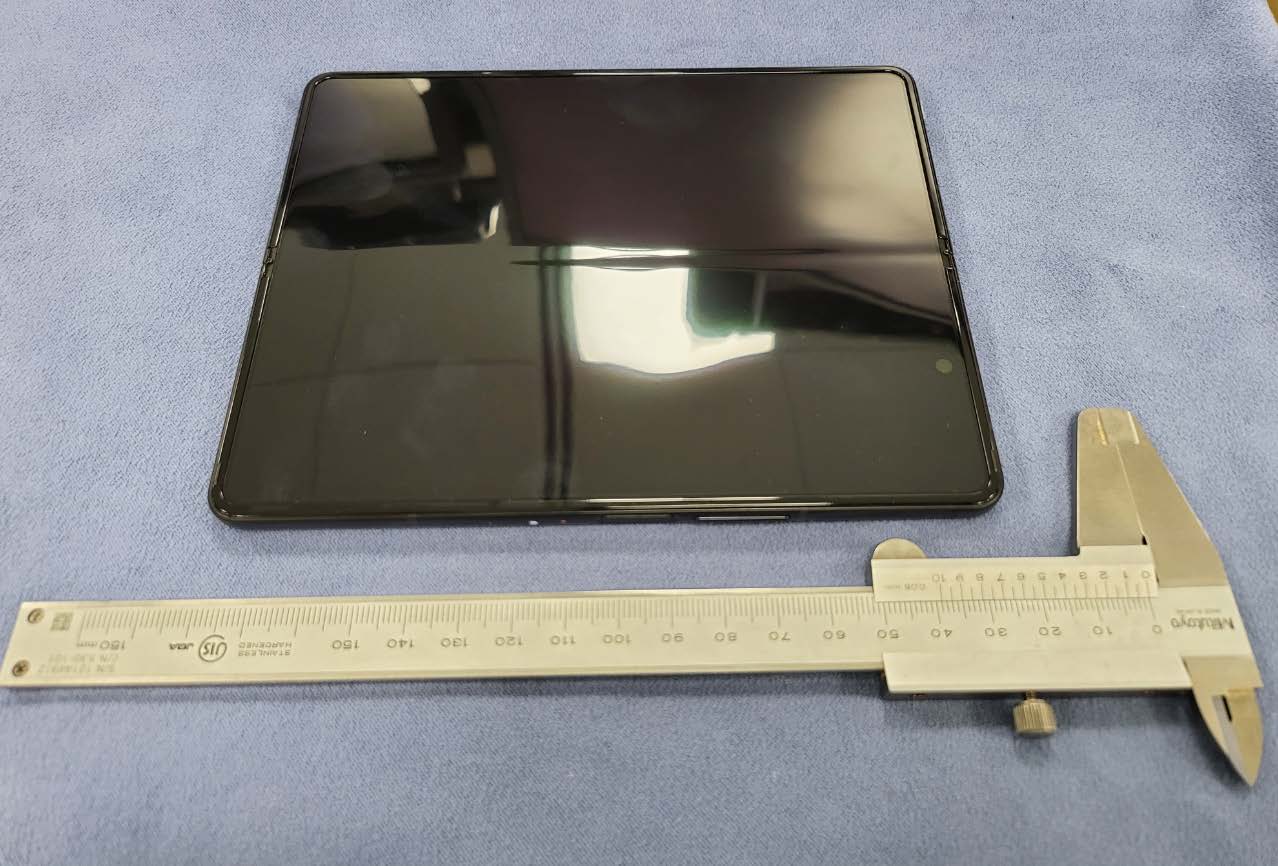

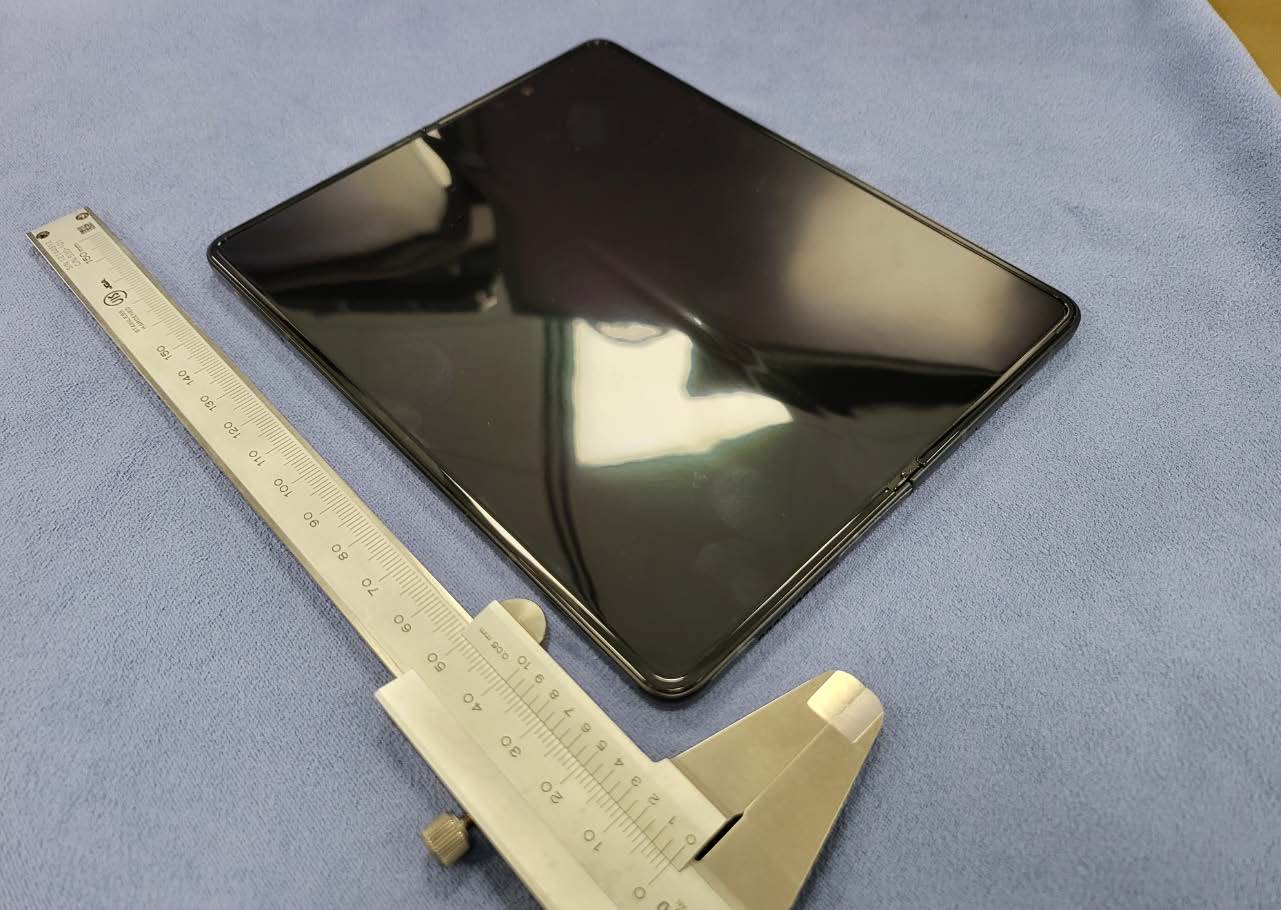

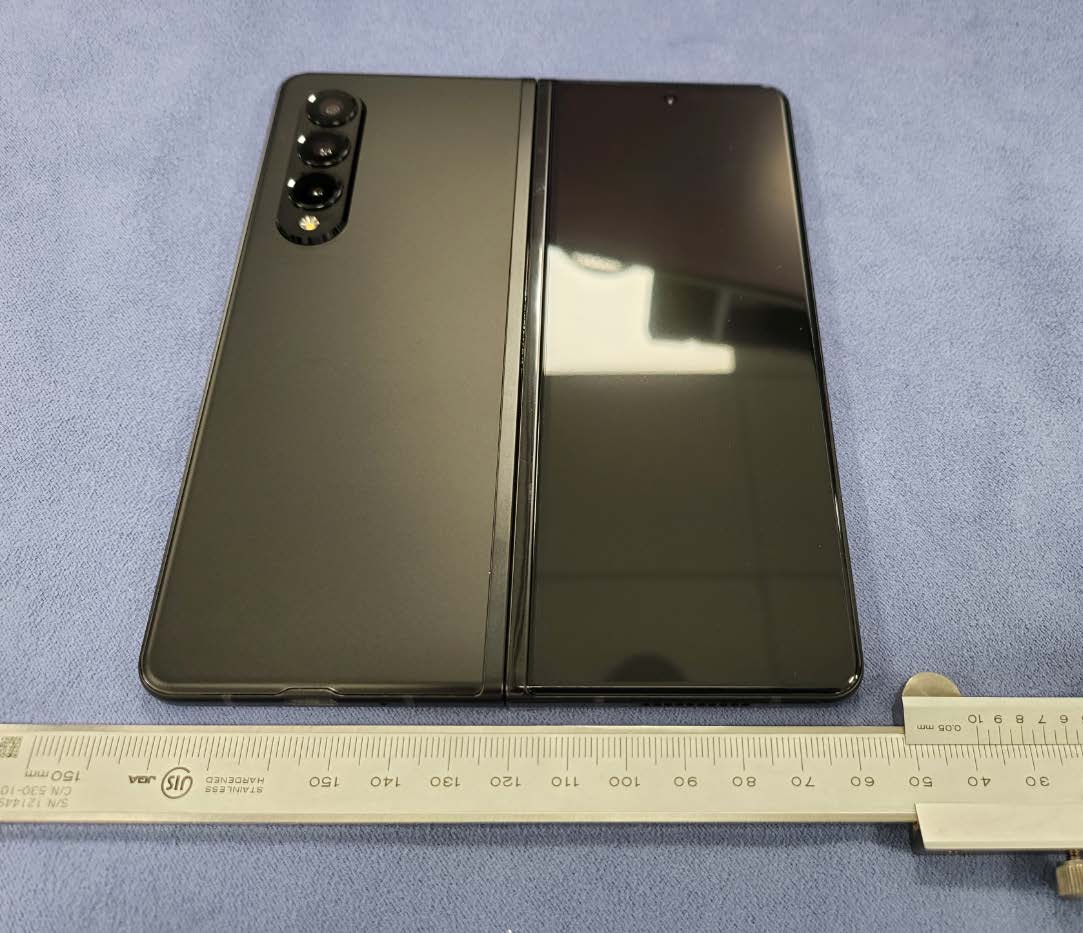

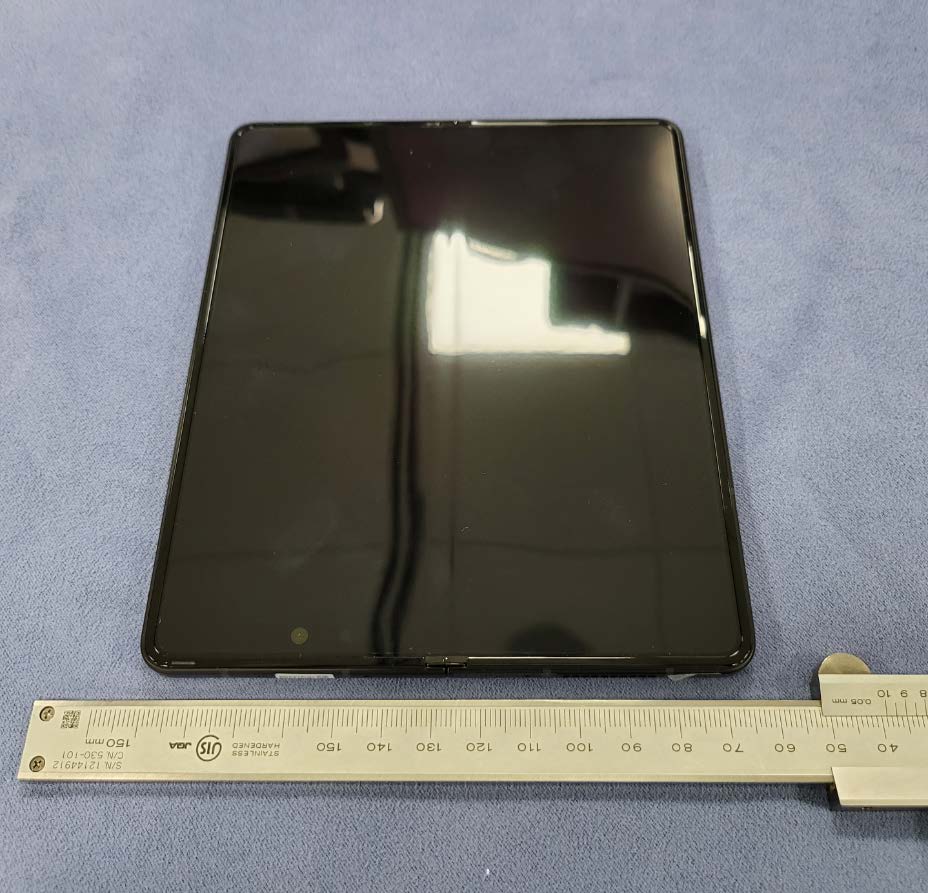

FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs FCC ID : A3LSMF926B External Photographs

Description of E-label on the A3LSMF926B Date : June 17 th , 2021 FCC ID: A3LSMF926B This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status Information FCC certification FCC ID: A3LSMF926B <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMF926B [Model Number: SM-F926B, SM-F926B/DS] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s website: www.samsung.com/sar

FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs

FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs FCC ID : A3LSMF926B Internal Photographs

FCC IDA3LSMF926B SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX C: Page 1 of 3 04/19/21-06/20/21 Portable Handset © 2021 PCTEST APPENDIX C: SAR TISSUE SPECIFICATIONS Measurement Procedure for Tissue verification: 1) The network analyzer and probe system was configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, ,  is the angular frequency, and . Figure C-1 Note: Liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data sheets are provided below.         b a b a rr ddd r rj ab j Y      0 2/1 0 ' 0 2 0 )(exp cos ln 2     cos2 222 r 1j FCC IDA3LSMF926B SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX C: Page 2 of 3 04/19/21-06/20/21 Portable Handset © 2021 PCTEST Figure C-2 600 – 5800 MHz Body Tissue Equivalent Matter FCC IDA3LSMF926B SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX C: Page 3 of 3 04/19/21-06/20/21 Portable Handset © 2021 PCTEST Figure C-3 600 – 5800 MHz Head Tissue Equivalent Matter

FCC ID: A3LSMF926B SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX D: Page 1 of 2 04/19/21 - 06/20/21 Portable Handset © 2021 PCTEST REV 21.4 M 09/11/2019 APPENDIX D: S A R S Y S T E M V A L I D A T I O N Per FCC KDB Publication 865664 D02v01r02, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB Publication 865664 D01v01r04 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. Table D-1 SAR System Validation Summary – 1g SENSITIVITY PROBE LINEARITY PROBE ISOTROPY MOD. TYPE DUTY FACTOR PAR G 750 05/20/2021 7357 750 Head 0.923 43.830 PASS PASS PASS N/A N/A N/A J 835 06/01/2021 7526 835 Head 0.932 41.465 PASS PASS PASS GMSK PASS N/A G 1750 05/16/2021 7357 1750 Head 1.393 40.373 PASS PASS PASS N/A N/A N/A E 1900 02/23/2021 7571 1900 Head 1.407 39.000 PASS PASS PASS GMSK PASS N/A L 2450 04/06/2021 7539 2450 Head 1.846 39.842 PASS PASS PASS OFDM/TDD PASS PASS K2 2450 04/21/2021 7527 2450 Head 1.868 38.706 PASS PASS PASS OFDM/TDD PASS PASS L 2600 04/07/2021 7539 2600 Head 2.011 39.334 PASS PASS PASS TDD PASS N/A K1 5250 04/12/2021 7637 5250 Head 4.603 35.705 PASS PASS PASS OFDM N/A PASS K1 5600 04/08/2021 7637 5600 Head 4.940 34.824 PASS PASS PASS OFDM N/A PASS K1 5750 04/08/2021 7637 5750 Head 5.306 35.419 PASS PASS PASS OFDM N/A PASS G 750 02/22/2021 7406 750 Body 0.972 54.171 PASS PASS PASS N/A N/A N/A G 750 05/27/2021 7357 750 Body 0.997 53.630 PASS PASS PASS N/A N/A N/A P 835 09/08/2020 7308 835 Body 0.977 54.534 PASS PASS PASS GMSK PASS N/A E 1750 02/15/2021 7571 1750 Body 1.537 52.070 PASS PASS PASS N/A N/A N/A H 1750 03/31/2021 7410 1750 Body 1.471 53.269 PASS PASS PASS N/A N/A N/A G 1750 05/15/2021 7357 1750 Body 1.487 52.298 PASS PASS PASS N/A N/A N/A E 1900 02/23/2021 7571 1900 Body 1.538 53.192 PASS PASS PASS GMSK PASS N/A D 1900 03/02/2021 3589 1900 Body 1.587 53.150 PASS PASS PASS GMSK PASS N/A E 2450 02/02/2021 7571 2450 Body 2.066 53.136 PASS PASS PASS OFDM/TDD PASS PASS L 2450 03/30/2021 7539 2450 Body 2.017 50.784 PASS PASS PASS OFDM/TDD PASS PASS K2 2450 04/20/2021 7527 2450 Body 2.040 51.917 PASS PASS PASS OFDM/TDD PASS PASS E 2600 01/27/2021 7571 2600 Body 2.167 52.620 PASS PASS PASS TDD PASS N/A L 2600 03/31/2021 7539 2600 Body 2.152 50.557 PASS PASS PASS TDD PASS N/A K1 5250 04/12/2021 7637 5250 Body 5.433 47.600 PASS PASS PASS OFDM N/A PASS K1 5600 04/12/2021 7637 5600 Body 5.941 46.898 PASS PASS PASS OFDM N/A PASS K1 5750 04/13/2021 7637 5750 Body 6.169 46.641 PASS PASS PASS OFDM N/A PASS Perm. (εr) CW VALIDATION MOD. VALIDATION SAR System Freq. (MHz) Date Probe SN Probe Cal Point Cond. (σ) FCC ID: A3LSMF926B SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX D: Page 2 of 2 04/19/21 - 06/20/21 Portable Handset © 2021 PCTEST REV 21.4 M 09/11/2019 Table D-2 SAR System Validation Summary – 10g NOTE: Probes have been calibrated for both CW and modulated signals. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01r04 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as GMSK, or with a high peak to average ratio (>5 dB), such as OFDM according to FCC KDB Publication 865664 D01v01r0. SENSITIVITY PROBE LINEARITY PROBE ISOTROPY MOD. TYPE DUTY FACTOR PAR G 750 02/22/2021 7406 750 Body 0.972 54.171 PASS PASS PASS N/A N/A N/A P 835 09/08/2020 7308 835 Body 0.977 54.534 PASS PASS PASS GMSK PASS N/A P 1750 09/08/2020 7308 1750 Body 1.478 52.860 PASS PASS PASS N/A N/A N/A H 1750 03/31/2021 7410 1750 Body 1.471 53.269 PASS PASS PASS N/A N/A N/A G 1750 05/15/2021 7357 1750 Body 1.487 52.298 PASS PASS PASS N/A N/A N/A E 1900 02/23/2021 7571 1900 Body 1.538 53.192 PASS PASS PASS GMSK PASS N/A K 2450 03/26/2021 7538 2450 Body 1.962 51.166 PASS PASS PASS OFDM/TDD PASS PASS L 2450 03/30/2021 7539 2450 Body 2.017 50.784 PASS PASS PASS OFDM/TDD PASS PASS K2 2450 04/20/2021 7527 2450 Body 2.040 51.917 PASS PASS PASS OFDM/TDD PASS PASS K 2600 03/26/2021 7538 2600 Body 2.150 50.900 PASS PASS PASS TDD PASS N/A L 2600 03/31/2021 7539 2600 Body 2.152 50.557 PASS PASS PASS TDD PASS N/A K1 5250 04/12/2021 7637 5250 Body 5.433 47.600 PASS PASS PASS OFDM N/A PASS K1 5600 04/12/2021 7637 5600 Body 5.941 46.898 PASS PASS PASS OFDM N/A PASS K1 5750 04/13/2021 7637 5750 Body 6.169 46.641 PASS PASS PASS OFDM N/A PASS Perm. (εr) CW VALIDATION MOD. VALIDATION SAR System Freq. (MHz) Date Probe SN Probe Cal Point Cond. (σ)

FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX G: Page 1 of 6 04/19/2021-06/20/2021 Portable Handset © 2021 PCTEST Engineering Laboratory, Inc. REV 20.05 M 11/15/2017 APPENDIX G P O W E R R E D U C T I O N V E R I F I C A T I O N Per the May 2017 TCBC Workshop Notes, demonstration of proper functioning of the power reduction mechanisms is required to support the corresponding SAR configurations. The verification process was divided into two parts: (1) evaluation of output power levels for individual or multiple triggering mechanisms and (2) evaluation of the triggering distances for proximity-based sensors. G.1 Power Verification Procedure The power verification was performed according to the following procedure: 1. A base station simulator was used to establish a conducted RF connection and the output power was monitored. The power measurements were confirmed to be within expected tolerances for all states before and after a power reduction mechanism was triggered. For licensed modes, the device state index as displayed on the device UI was recorded before and after the mechanism was triggered. 2. Step 1 was repeated for all relevant modes and frequency bands for the mechanism being investigated. 3. Steps 1 and 2 were repeated for all individual power reduction mechanisms and combinations thereof. For the combination cases, one mechanism was switched to a 'triggered' state at a time; powers were confirmed to be within tolerances after each additional mechanism was activated. G.2 Distance Verification Procedure The distance verification procedure was performed according to the following procedure: 1. A base station simulator was used to establish an RF connection and to monitor the power levels. The device being tested was placed below the relevant section of the phantom with the relevant side or edge of the device facing toward the phantom. For licensed modes, the device state index on the device UI was monitored to determine the triggering state. 2. The device was moved toward and away from the phantom to determine the distance at which the mechanism triggers and the output power is reduced, per KDB Publication 616217 D04v01r02 and FCC Guidance. Each applicable test position was evaluated. The distances were confirmed to be the same or larger (more conservative) than the minimum distances provided by the manufacturer. 3. Steps 1 and 2 were repeated for low, mid, and high bands, as appropriate (see note below Table G-3 and G-4 for more details). 4. Steps 1 through 3 were repeated for all distance-based power reduction mechanisms. FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX G: Page 2 of 6 04/19/2021-06/20/2021 Portable Handset © 2021 PCTEST Engineering Laboratory, Inc. REV 20.05 M 11/15/2017 G.3 Main Antenna Verification Summary Table G-1 Power Measurement Verification for Main Antenna Folder Closed 1st 2nd Un-triggered (Max) Mechanism #1 (Reduced) Mechanism #2 (Reduced) Hotspot On GPRS 1900 3 Tx Slot 26.52 23.32 Grip GPRS 1900 3 Tx Slot 26.52 22.99 Hotspot On Grip GPRS 1900 3 Tx Slot 26.49 23.34 23.33 Grip Hotspot On GPRS 1900 3 Tx Slot 26.51 23.39 23.35 Hotspot On UMTS 1750 23.59 18.29 Grip UMTS 1750 23.61 18.33 Hotspot On Grip UMTS 1750 23.66 18.34 18.34 Grip Hotspot On UMTS 1750 23.60 18.39 18.37 Hotspot On UMTS 1900 23.14 18.32 Grip UMTS 1900 23.22 18.34 Hotspot On Grip UMTS 1900 23.22 18.38 18.42 Grip Hotspot On UMTS 1900 23.21 18.44 18.40 Hotspot On LTE Band 66 24.69 18.38 Grip LTE Band 66 24.66 18.41 Hotspot On Grip LTE Band 66 24.62 18.40 18.33 Grip Hotspot On LTE Band 66 24.59 18.40 18.47 Hotspot On LTE Band 4 24.55 18.40 Grip LTE Band 4 24.52 18.45 Hotspot On Grip LTE Band 4 24.57 18.49 18.41 Grip Hotspot On LTE Band 4 24.57 18.50 18.44 Hotspot On LTE Band 25 24.30 18.55 Grip LTE Band 25 24.35 18.59 Hotspot On Grip LTE Band 25 24.33 18.57 18.44 Grip Hotspot On LTE Band 25 24.37 18.57 18.52 Hotspot On LTE Band 2 24.36 18.66 Grip LTE Band 2 24.35 18.66 Hotspot On Grip LTE Band 2 24.37 18.66 18.39 Grip Hotspot On LTE Band 2 24.33 18.62 18.59 Hotspot On LTE Band 41 PC3 22.55 18.44 Grip LTE Band 41 PC3 22.57 18.44 Hotspot On Grip LTE Band 41 PC3 22.58 18.39 18.44 Grip Hotspot On LTE Band 41 PC3 22.56 18.40 18.44 Hotspot On LTE Band 41 PC2 25.66 18.36 Grip LTE Band 41 PC2 25.62 18.37 Hotspot On Grip LTE Band 41 PC2 25.58 18.40 18.44 Grip Hotspot On LTE Band 41 PC2 25.69 18.39 18.42 Hotspot On NR FDD Band n66 22.58 17.83 Grip NR FDD Band n66 22.58 17.79 Hotspot On Grip NR FDD Band n66 22.58 17.83 17.79 Grip Hotspot On NR FDD Band n66 22.58 17.79 17.79 Mode/Band Mechanism(s) Conducted Power (dBm) FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX G: Page 3 of 6 04/19/2021-06/20/2021 Portable Handset © 2021 PCTEST Engineering Laboratory, Inc. REV 20.05 M 11/15/2017 Table G-2 Power Measurement Verification for Main Antenna Folder Open 1st2nd Un-triggered (Max) Mechanism #1 (Reduced) Mechanism #2 (Reduced) Hotspot OnGPRS 1900 3 Tx Slot26.5723.33 GripGPRS 1900 3 Tx Slot26.5523.37 Hotspot OnGripGPRS 1900 3 Tx Slot26.5423.3323.37 GripHotspot OnGPRS 1900 3 Tx Slot26.5523.2423.32 Hotspot OnUMTS 175023.5918.44 GripUMTS 175023.6118.34 Hotspot OnGripUMTS 175023.6218.4218.32 GripHotspot OnUMTS 175023.6218.4418.32 Hotspot OnUMTS 190023.1118.33 GripUMTS 190023.1418.33 Hotspot OnGripUMTS 190023.1218.3218.44 GripHotspot OnUMTS 190023.1118.3218.32 Hotspot OnLTE Band 6624.6218.49 GripLTE Band 6624.6218.48 Hotspot OnGripLTE Band 6624.6218.4718.48 GripHotspot OnLTE Band 6624.6318.4818.49 Hotspot OnLTE Band 424.7018.40 GripLTE Band 424.6618.41 Hotspot OnGripLTE Band 424.6618.4218.42 GripHotspot OnLTE Band 424.6518.4018.45 Hotspot OnLTE Band 2524.5618.67 GripLTE Band 2524.5518.62 Hotspot OnGripLTE Band 2524.5718.6618.66 GripHotspot OnLTE Band 2524.5618.6218.64 Hotspot OnLTE Band 224.4418.57 GripLTE Band 224.4418.55 Hotspot OnGripLTE Band 224.4318.5…

Text truncated - open the document above for the full version.

FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX H: Page 1 of 41 04/19/2021– 06/20/2021 Portable Handset © 2021 PCTEST APPENDIX H: L T E A N D N R L O W E R B A N D W I D T H R F C O N D U C T E D H.1 LTE Lower Bandwidth RF Conducted Powers H.1.1 LTE Band 12 Table 1-1 LTE Band 12 Maximum Conducted Powers – 5 MHz Bandwidth Low Channel Mid Channel High Channel 23035 (701.5 MHz) 23095 (707.5 MHz) 23155 (713.5 MHz) 1 0 24.65 24.60 24.57 0 1 12 24.61 24.63 24.49 0 1 24 24.58 24.60 24.38 0 12 0 23.83 23.80 23.72 1 12 6 23.83 23.84 23.72 1 12 13 23.75 23.78 23.62 1 25 0 23.79 23.78 23.68 1 1 0 24.07 23.96 24.06 1 1 12 24.00 24.04 23.94 1 1 24 23.97 24.03 23.80 1 12 0 22.91 22.89 22.74 2 12 6 22.89 22.88 22.77 2 12 13 22.86 22.81 22.68 2 25 0 22.81 22.83 22.70 2 1 0 22.95 22.92 22.92 2 1 12 22.92 22.90 22.80 2 1 24 22.85 22.84 22.80 2 12 0 21.89 21.78 21.73 3 12 6 21.86 21.85 21.71 3 12 13 21.81 21.77 21.59 3 25 0 21.80 21.81 21.65 3 1 0 19.87 19.88 19.83 5 1 12 19.87 19.88 19.75 5 1 24 19.85 19.77 19.66 5 12 0 19.87 19.77 19.71 5 12 6 19.87 19.78 19.68 5 12 13 19.74 19.76 19.57 5 25 0 19.82 19.78 19.68 5 MPR Allowed per 3GPP [dB] 0-2 0-3 64QAM LTE Band 12 5 MHz Bandwidth Modulation 256QAM 0-1 16QAM Conducted Power [dBm] 0-5 QPSK MPR [dB] 0 0-1 0-2 RB Size RB Offset FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX H: Page 2 of 41 04/19/2021– 06/20/2021 Portable Handset © 2021 PCTEST Table 1-2 LTE Band 12 Maximum Conducted Powers – 3 MHz Bandwidth Table 1-3 LTE Band 12 Maximum Conducted Powers – 1.4 MHz Bandwidth Low Channel Mid Channel High Channel 23025 (700.5 MHz) 23095 (707.5 MHz) 23165 (714.5 MHz) 1 0 24.75 24.67 24.52 0 1 7 24.63 24.60 24.44 0 1 14 24.62 24.63 24.45 0 8 0 23.84 23.80 23.66 1 8 4 23.82 23.82 23.63 1 8 7 23.78 23.77 23.58 1 15 0 23.80 23.77 23.62 1 1 0 24.17 24.05 23.90 1 1 7 24.03 24.00 23.85 1 1 14 24.04 24.02 23.88 1 8 0 22.93 22.87 22.73 2 8 4 22.91 22.89 22.73 2 8 7 22.93 22.82 22.70 2 15 0 22.80 22.83 22.65 2 1 0 23.00 22.95 22.80 2 1 7 22.87 22.87 22.79 2 1 14 22.87 22.86 22.79 2 8 0 21.84 21.81 21.66 3 8 4 21.85 21.81 21.67 3 8 7 21.82 21.79 21.63 3 15 0 21.86 21.84 21.68 3 1 0 19.95 19.88 19.77 5 1 7 19.85 19.83 19.71 5 1 14 19.80 19.80 19.65 5 8 0 19.88 19.80 19.68 5 8 4 19.88 19.87 19.70 5 8 7 19.83 19.85 19.64 5 15 0 19.87 19.77 19.70 5 0-1 LTE Band 12 3 MHz Bandwidth Modulation 64QAM 0-2 0-3 RB Size RB Offset QPSK 16QAM 256QAM 0-5 MPR Allowed per 3GPP [dB] MPR [dB] 0 Conducted Power [dBm] 0-2 0-1 Low ChannelMid ChannelHigh Channel 23017 (699.7 MHz) 23095 (707.5 MHz) 23173 (715.3 MHz) 1024.6124.5224.410 1224.6824.6524.470 1524.6224.5924.450 3024.6124.5524.410 3224.6124.6024.480 3324.5724.5724.400 6023.7423.6823.540-11 1023.9823.9223.801 1224.0023.9923.821 1523.9523.9323.741 3023.8823.8423.711 3223.9323.9123.781 3323.8023.8123.651 6022.8022.8022.640-22 1022.9322.8222.802 1222.9822.9222.792 1522.8522.8822.762 3022.8222.8222.632 3222.8222.8422.702 3322.8022.7922.632 6021.7421.7121.570-33 1019.9019.8119.665 1219.9019.8819.715 1519.8119.8019.635 3019.8419.7419.675 3219.8919.8719.685 3319.8319.7919.675 6019.7719.7019.595 QPSK 0 256QAM0-5 LTE Band 12 1.4 MHz Bandwidth ModulationRB SizeRB Offset MPR Allowed per 3GPP [dB] MPR [dB] Conducted Power [dBm] 64QAM 0-2 16QAM 0-1 FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX H: Page 3 of 41 04/19/2021– 06/20/2021 Portable Handset © 2021 PCTEST H.1.2 LTE Band 13 Table 1-4 LTE Band 13 Maximum Conducted Powers – 5 MHz Bandwidth Note: LTE Band 13 at 5 MHz bandwidth does not support three non-overlapping channels. Per KDB Publication 941225 D05v02, when a device supports overlapping channel assignment in a channel bandwidth configuration, the middle channel of the group of overlapping channels should be selected for testing. Mid Channel 23230 (782.0 MHz) Conducted Power [dBm] 1024.700 11224.610 12424.620 12023.771 12623.801 121323.801 25023.751 1024.121 11223.961 12424.001 12022.832 12622.882 121322.872 25022.782 1023.032 11222.942 12422.972 12021.753 12621.803 121321.803 25021.743 1019.855 11219.755 12419.835 12019.725 12619.805 121319.675 25019.675 0-2 64QAM 0-2 0-3 16QAM 0-1 0 QPSK LTE Band 13 5 MHz Bandwidth ModulationRB SizeRB Offset MPR Allowed per 3GPP [dB] MPR [dB] 256QAM0-5 0-1 FCC ID: A3LSMF926B SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX H: Page 4 of 41 04/19/2021– 06/20/2021 Portable Handset © 2021 PCTEST H.1.3 LTE Band 26 Table 1-5 LTE Band 26 (Cell) Maximum Conducted Powers – 10 MHz Bandwidth Low Channel Mid Channel High Channel 26740 (819.0 MHz) 26865 (831.5 MHz) 26990 (844.0 MHz) 1 0 24.45 24.45 24.48 0 1 25 24.36 24.41 24.34 0 1 49 24.40 24.41 24.26 0 25 0 23.34 23.37 23.40 1 25 12 23.55 23.42 23.46 1 25 25 23.42 23.44 23.39 1 50 0 23.46 23.37 23.36 1 1 0 24.08 24.06 24.00 1 1 25 23.90 24.05 23.95 1 1 49 23.95 23.86 23.72 1 25 0 22.37 22.40 22.40 2 25 12 22.58 22.44 22.42 2 25 25 22.46 22.42 22.41 2 50 0 22.46 22.35 22.36 2 1 0 22.80 22.64 22.70 2 1 25 22.51 22.70 22.64 2 1 49 22.61 22.53 22.56 2 25 0 21.36 21.40 21.42 3 25 12 21.52 21.49 21.52 3 25 25 21.44 21.43 21.40 3 50 0 21.42 21.41 21.39 3 1 0 19.30 19.27 19.31 5 1 25 19.65 19.61 19.58 5 1 49 19.41 19.32 19.21 5 25 0 19.38 19.36 19.42 5 25 12 19.55 19.47 19.48 5 25 25 19.55 19.44 19.42 5 50 0 19.50 19.40 19.44 5 LTE Band 26 (Cell) 10 MHz Bandwidth Modulation RB Size RB Offset MPR Al…

Text truncated - open the document above for the full version.
