DRAFT, 2014-0 2-25 User manual SM-G750A This device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors. using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “assembling and preparing your mobile phone,” and “using basic functions.” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack ... Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 1…

Text truncated - open the document above for the full version.

June 26,2014 SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG750A To Whom It May Concern: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: Jun. 10, 2014 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMG750A To Whom it May Concern We attest the following regarding FCC ID: A3LSMG750A 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Sign Here Engineer SUNKYU LEE Samsung Electronics CO. LTD TEL: +82-10-8728- 1409 E-mail: [email protected]

Date: June 27, 2014 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSMG750A Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to require ment in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. FCC ID: A3LSMG750A Model(s): SM-G750A Air Interfaces: GSM850/1900, W B2/5, LTE B2/4/5/17 Radio Services: GSM Key Features: GPS SMS Bluetooth MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Sunkyu Lee Senior manager Samsung Electronics

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 16, 2014 FCC ID: A3LSMG750A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 16, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SMG750A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3Schematics 4Parts List & Tune-Up Procedure SHORT-TERM 5External Photos 6 Internal Photos 7Test-Setup Photos 8Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

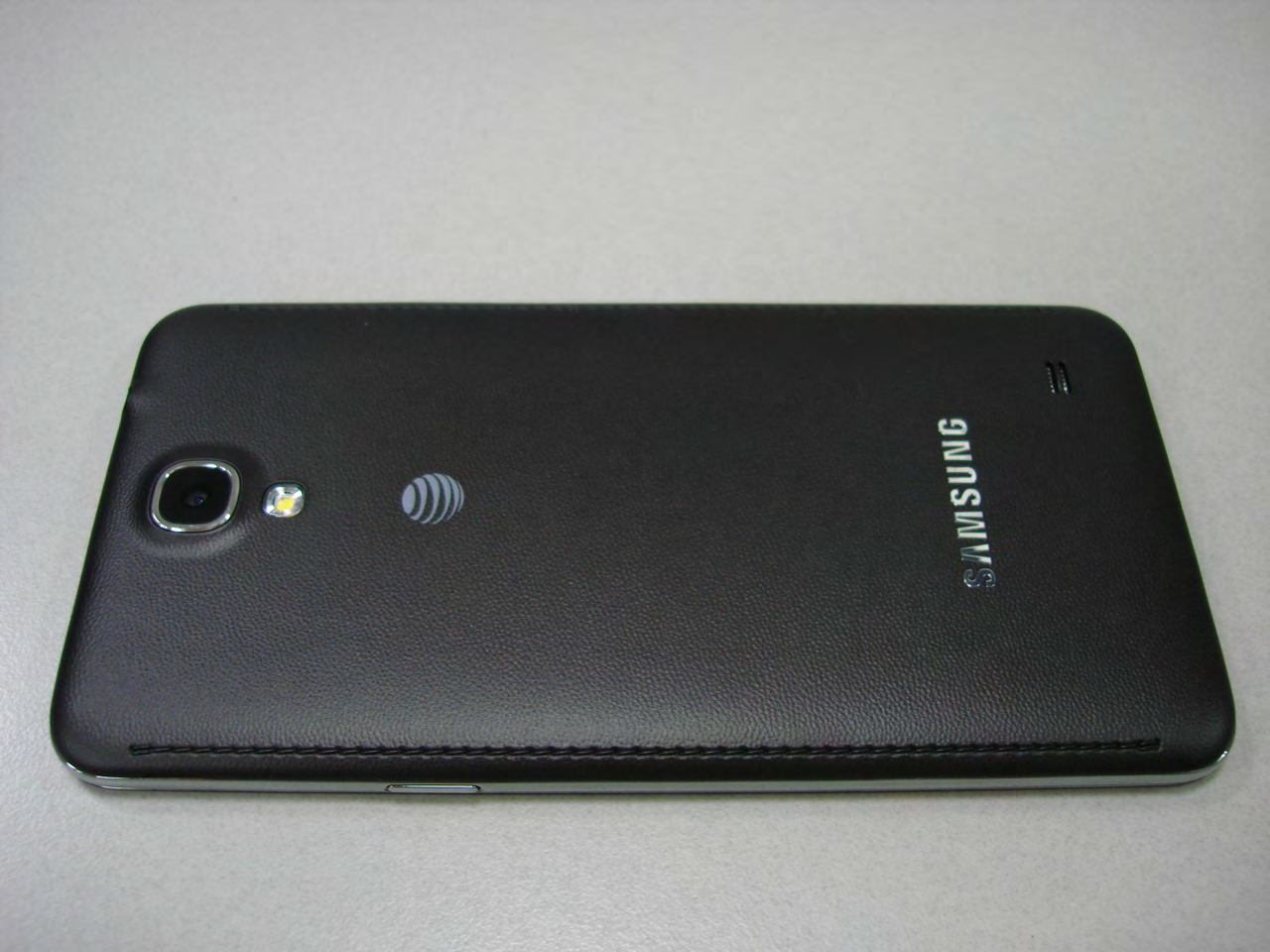

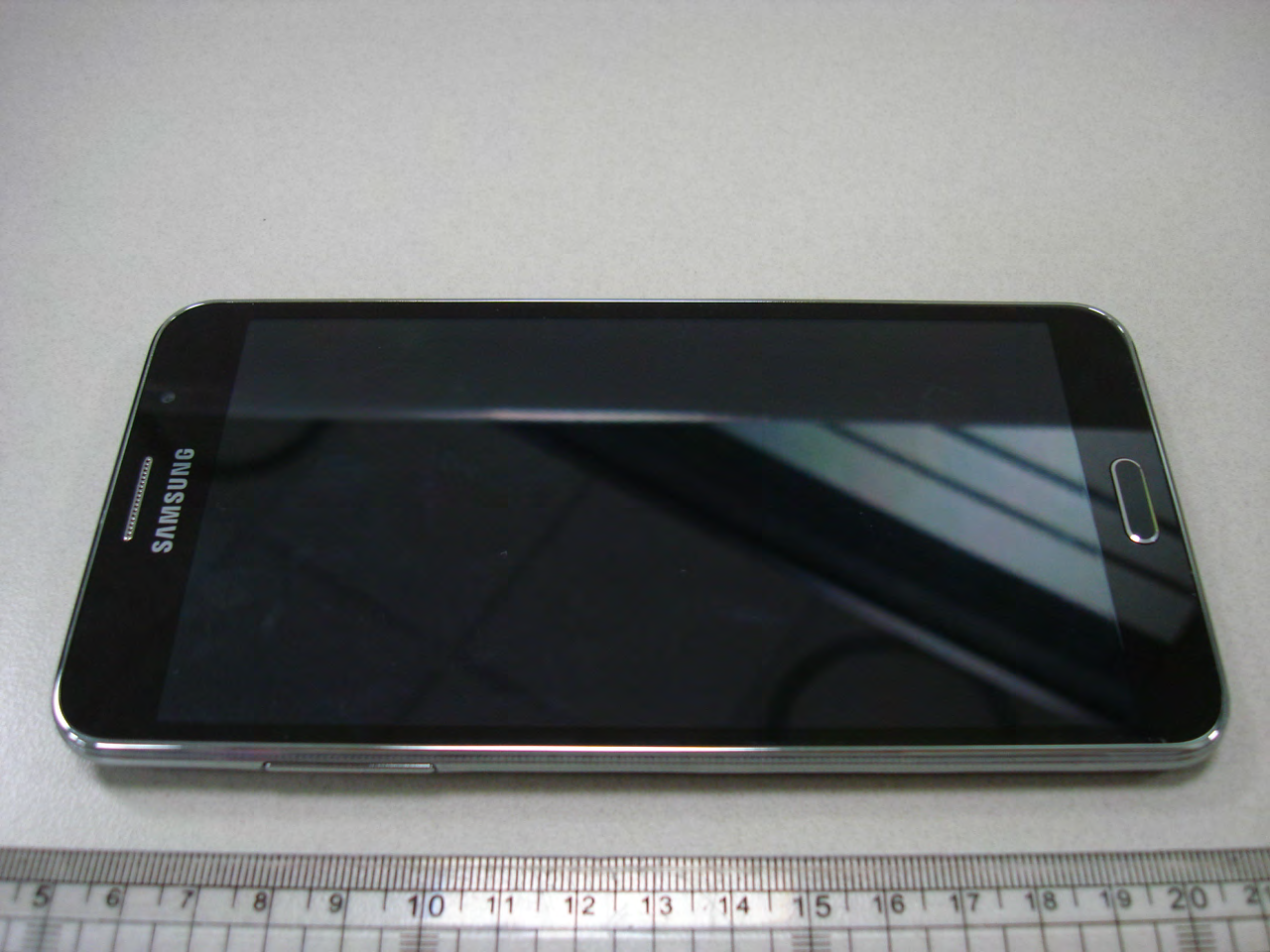

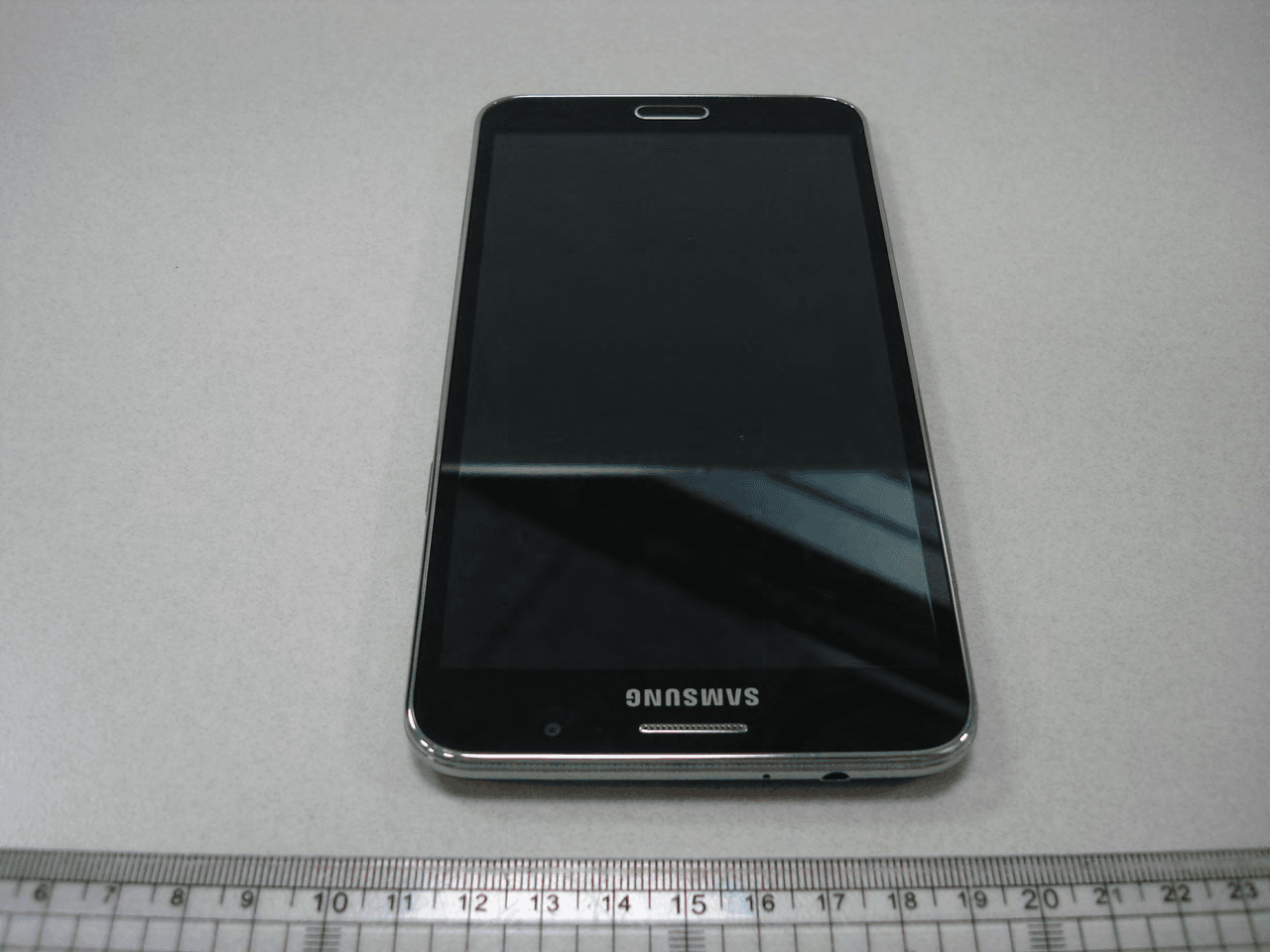

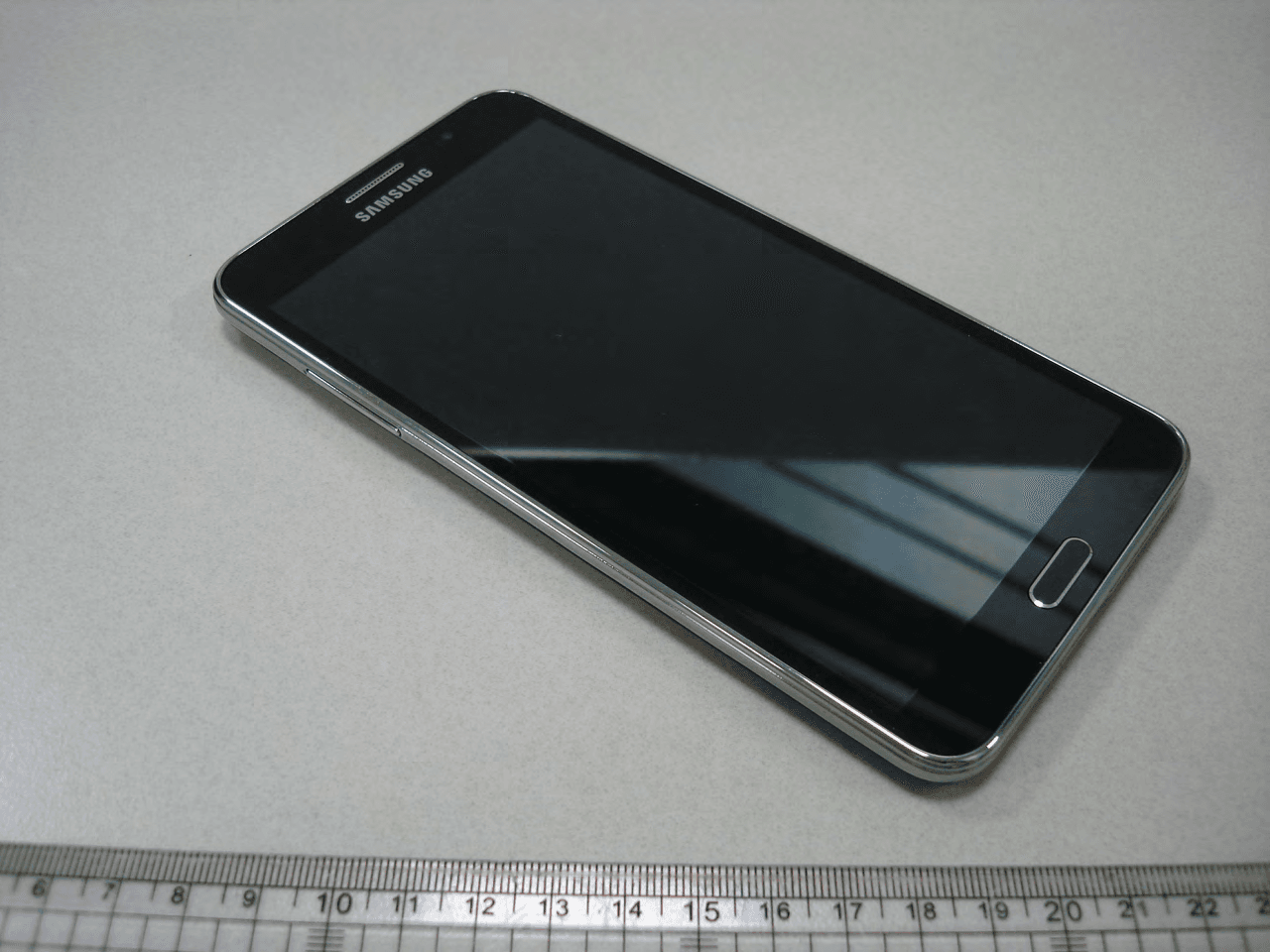

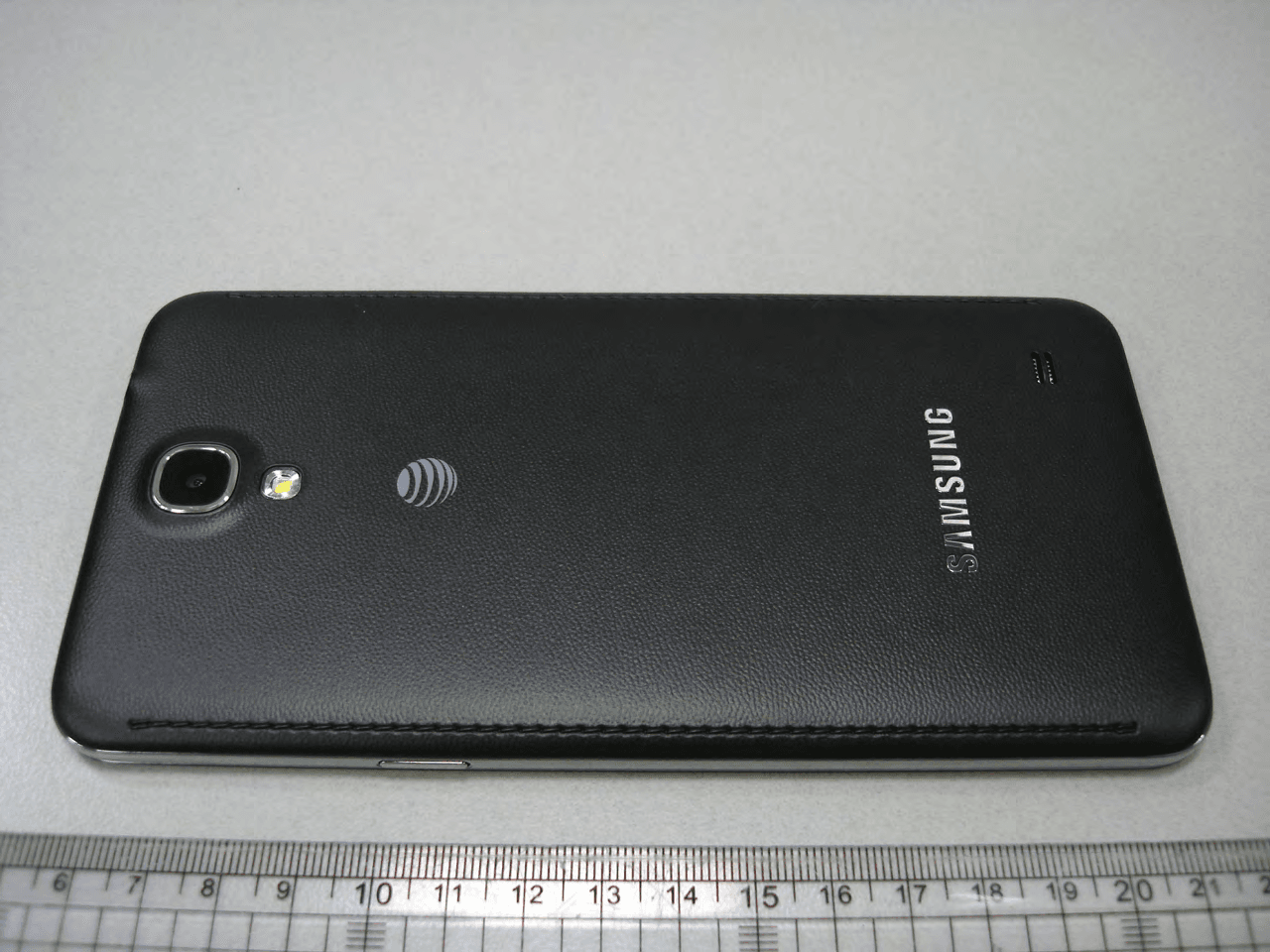

Label and Location Model: SM-G750A FCC ID: A3LSMG750A Label: Location: Top Back of device Bottom Phone: Label is placed inside of the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.” Label

FCC ID:A3LSMG750A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 65 0Y1406131226.A3L 06/16/14 - 06/27/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/16/14 - 06/27/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1406131226.A3L FCC ID: A3LSMG750A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G750A 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.270.590.99< 0.1 PCEUMTS 850826.40 - 846.60 MHz0.250.650.65< 0.1 PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz0.110.481.03< 0.1 PCEUMTS 19001852.4 - 1907.6 MHz0.180.761.09< 0.1 PCELTE Band 17706.5 - 713.5 MHz0.160.400.40< 0.1 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.240.720.72< 0.1 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.210.700.85< 0.1 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz0.251.001.00< 0.1 DTS2.4 GHz WLAN2412 - 2462 MHz0.100.140.14< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz< 0.10.140.140.25 NII5.2 GHz WLAN5180 - 5240 MHz< 0.10.26< 0.10.46 NII5.3 GHz WLAN5260 - 5320 MHz< 0.10.24< 0.10.46 NII5.5 GHz WLAN5500 - 5700 MHz< 0.10.16< 0.10.30 DSS/DTSBluetooth2402 - 2480 MHz 0.371.331.140.46 N/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMG750A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 65 0Y1406131226.A3L 06/16/14 - 06/27/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................... 11 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 13 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 14 7 RF EXPOSURE LIMITS ................................................................................................................ 18 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 19 9 RF CONDUCTED POWERS ......................................................................................................... 24 10 SYSTEM VERIFICATION .............................................................................................................. 40 11 SAR DATA SUMMARY ................................................................................................................. 43 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 53 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 59 14 EQUIPMENT LIST ......................................................................................................................... 60 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 61 16 CONCLUSION ............................................................................................................................... 63 17 REFERENCES .............................................................................................................................. 64 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LSMG750A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 65 0Y1406131226.A3L 06/16/14 - 06/27/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz B…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG750A FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 59 0Y1406131227.A3L 6/17 - 7/2/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.7 06/26/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/17 - 7/2/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1406131227.A3L FCC ID: A3LSMG750A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-G750A EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: 23JUNE-2] GSM850824.2 - 848.8240KGXW0.48926.89 EDGE850824.2 - 848.8249KG7W0.15822.00 GSM19001850.2 - 1909.8244KGXW1.33831.26 EDGE19001850.2 - 1909.8246KG7W0.49926.98 WCDMA850826.4 - 846.64M17F9W0.05417.36 WCDMA1900 1852.4 - 1907.64M18F9W0.24323.85 ERP/EIRP Max. Power (W) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMG750A FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 59 0Y1406131227.A3L 6/17 - 7/2/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.7 06/26/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 15 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 30 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 36 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 39 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 42 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 50 7.0 CONCLUSION .............................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG750A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 109 0Y1406131228.A3L 6/17 - 7/2/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.7 06/26/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/17 - 7/2/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1406131228.A3L FCC ID : A3LSMG750A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 EUT Type: Portable Handset Model(s): SM-G750A Test Device Serial No.: identical prototype [S/N: 23JUNE-2] LTE Band 17706.5 - 713.54M50G7DQPSK0.03815.75 LTE Band 17706.5 - 713.54M51W7D16QAM0.03415.33 LTE Band 17709 - 7118M98G7DQPSK0.03715.72 LTE Band 17709 - 7118M97W7D16QAM0.03415.32 LTE Band 41710.7 - 1754.31M15G7DQPSK0.15922.01 LTE Band 41710.7 - 1754.31M13W7D16QAM0.13121.18 LTE Band 41711.5 - 1753.52M72G7DQPSK0.16022.05 LTE Band 41711.5 - 1753.52M71W7D16QAM0.13321.25 LTE Band 41712.5 - 1752.54M50G7DQPSK0.16522.17 LTE Band 41712.5 - 1752.54M51W7D16QAM0.13621.34 LTE Band 41715 - 17508M97G7DQPSK0.16922.29 LTE Band 41715 - 17508M96W7D16QAM0.14021.46 LTE Band 41717.5 - 1747.513M5G7DQPSK0.16522.19 LTE Band 41717.5 - 1747.513M5W7D16QAM0.13721.37 LTE Band 41720 - 174518M0G7DQPSK0.18022.55 LTE Band 41720 - 174517M9W7D16QAM0.15321.86 Modulation ERP/EIRP Ma x . Po w e r (W) Ma x . Po w e r (dBm) Mode Tx Frequency (MHz) Emission Designator LTE Band 5824.7 - 848.31M15G7DQPSK0.03815.79 LTE Band 5824.7 - 848.31M14W7D16QAM0.03915.90 LTE Band 5825.5 - 847.52M72G7DQPSK0.04216.20 LTE Band 5825.5 - 847.52M72W7D16QAM0.04316.29 LTE Band 5826.5 - 846.54M50G7DQPSK0.03615.57 LTE Band 5826.5 - 846.54M51W7D16QAM0.03715.65 LTE Band 5829 - 8449M00G7DQPSK0.03915.89 LTE Band 5829 - 8449M01W7D16QAM0.03815.79 LTE Band 21850.7 - 1909.31M13G7DQPSK0.32225.08 LTE Band 21850.7 - 1909.31M13W7D16QAM0.26724.27 LTE Band 21851.5 - 1908.52M72G7DQPSK0.33825.29 LTE Band 21851.5 - 1908.52M71W7D16QAM0.27824.44 LTE Band 21852.5 - 1907.54M50G7DQPSK0.35325.48 LTE Band 21852.5 - 1907.54M51W7D16QAM0.29224.65 LTE Band 21855 - 19059M00G7DQPSK0.32925.17 LTE Band 21855 - 19058M98W7D16QAM0.27424.38 LTE Band 21857.5 - 1902.513M5G7DQPSK0.30424.82 LTE Band 21857.5 - 1902.513M5W7D16QAM0.24823.95 LTE Band 21860 - 190017M9G7DQPSK0.32225.07 LTE Band 21860 - 190018M0W7D16QAM0.27524.39 Modulation ERP/EIRP Ma x . Po w e r (W) Ma x . Po w e r (dBm) Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 LTE FCC ID: A3LSMG750A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 109 0Y1406131228.A3L 6/17 - 7/2/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.7 06/26/2014 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 AWS - …

Text truncated - open the document above for the full version.

FCC ID: A3LSMG750A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 44 of 109 0Y1406131228.A3L 6/17 - 7/2/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.7 06/2…
