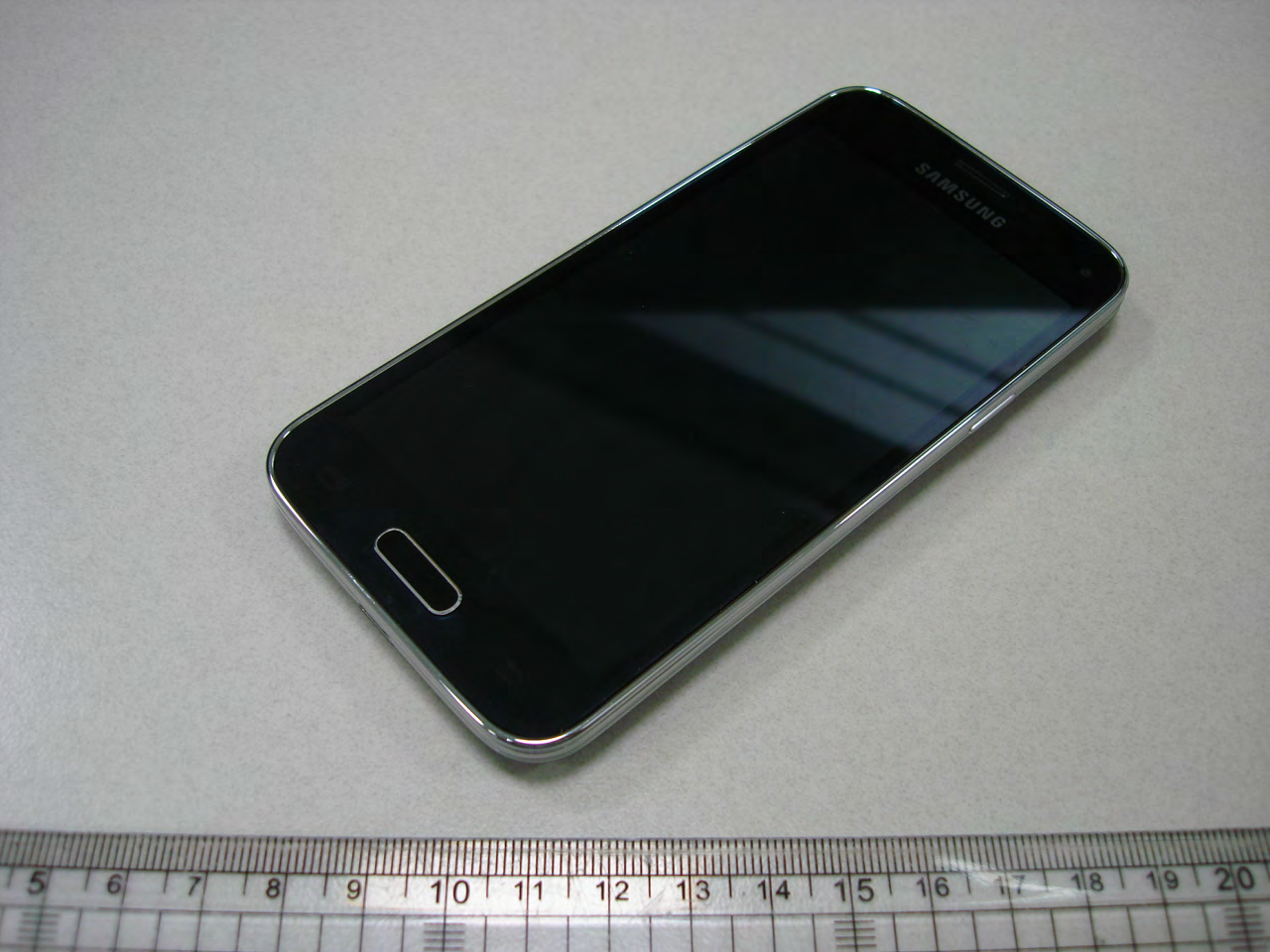

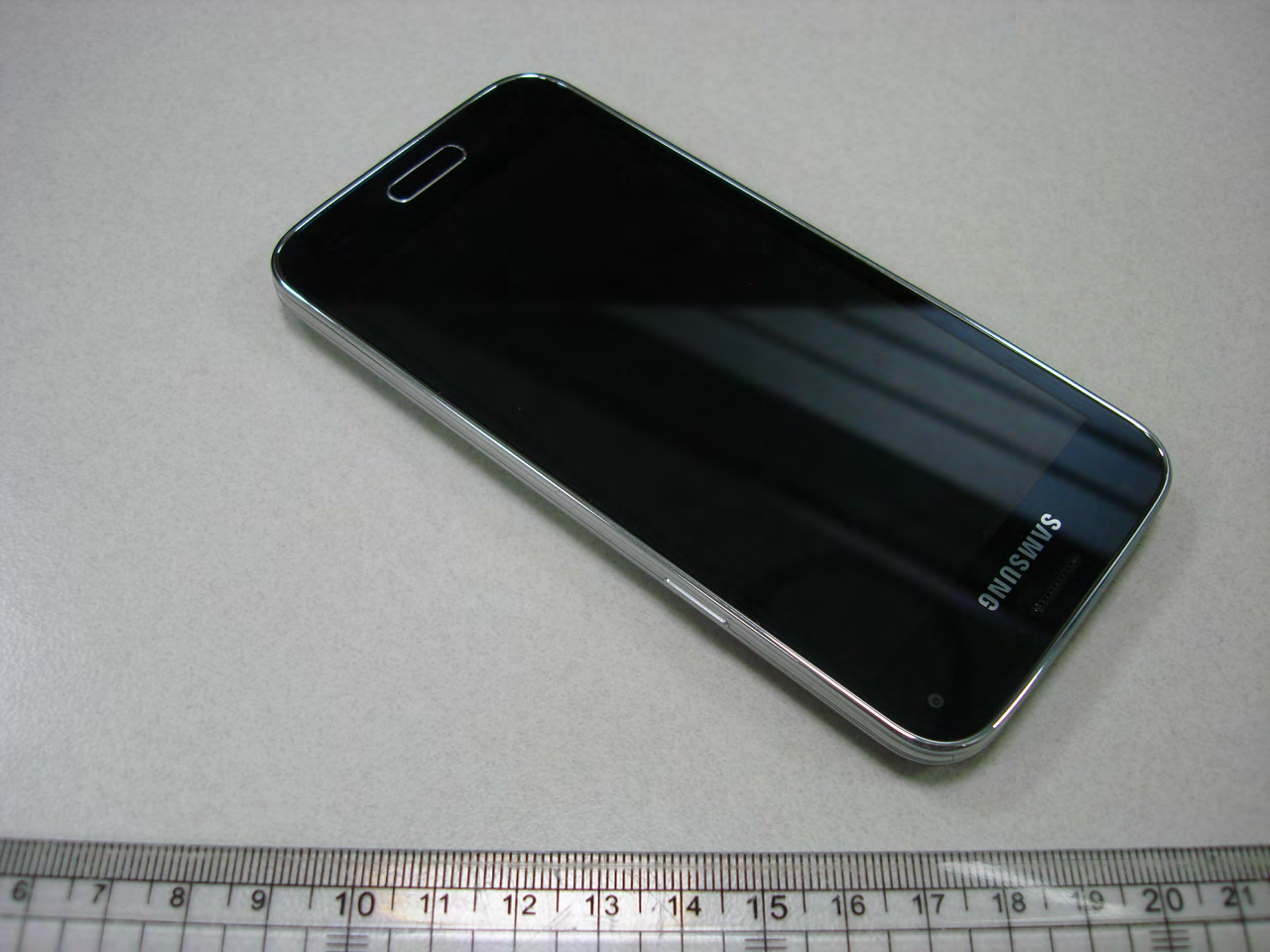

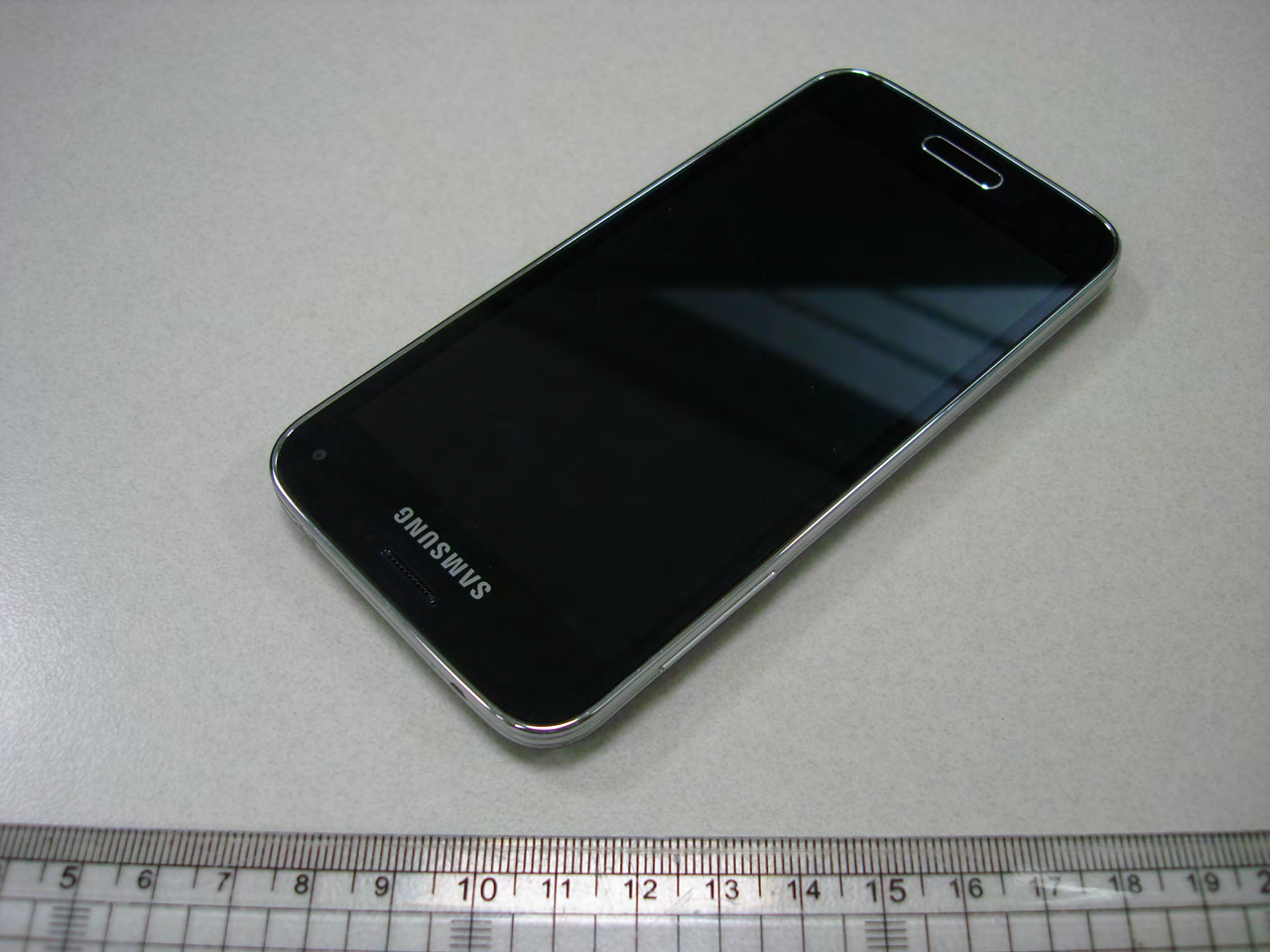

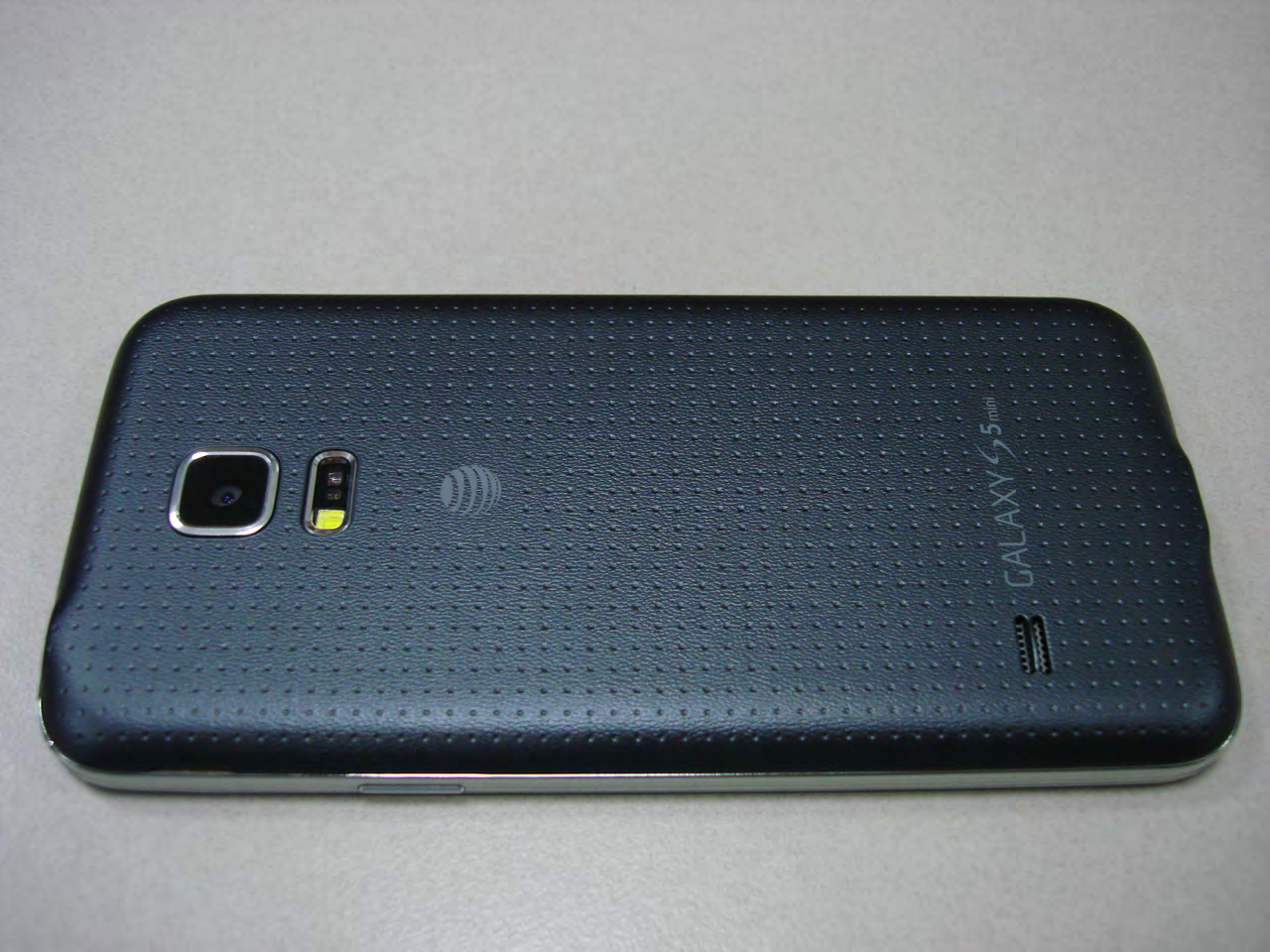

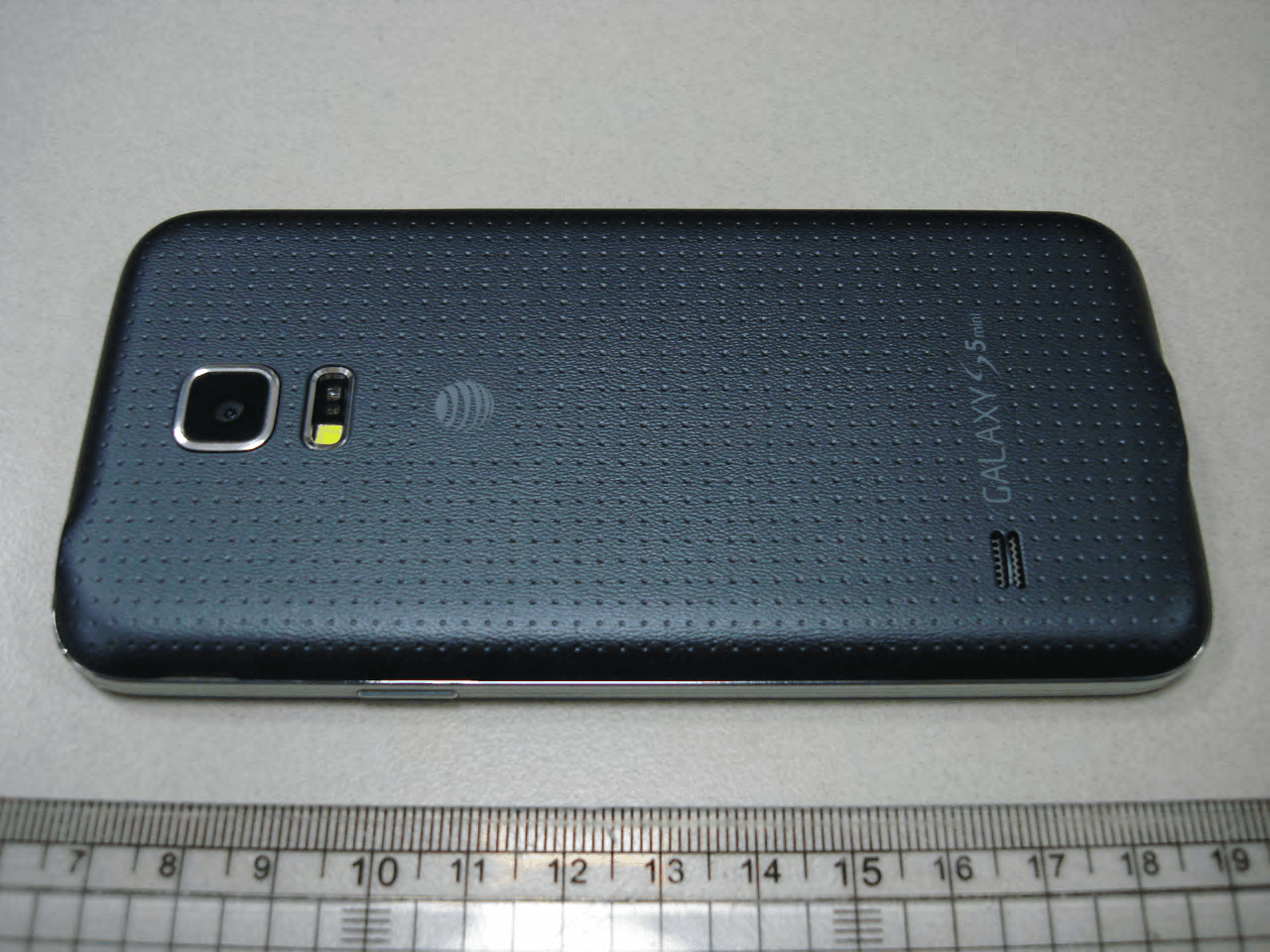

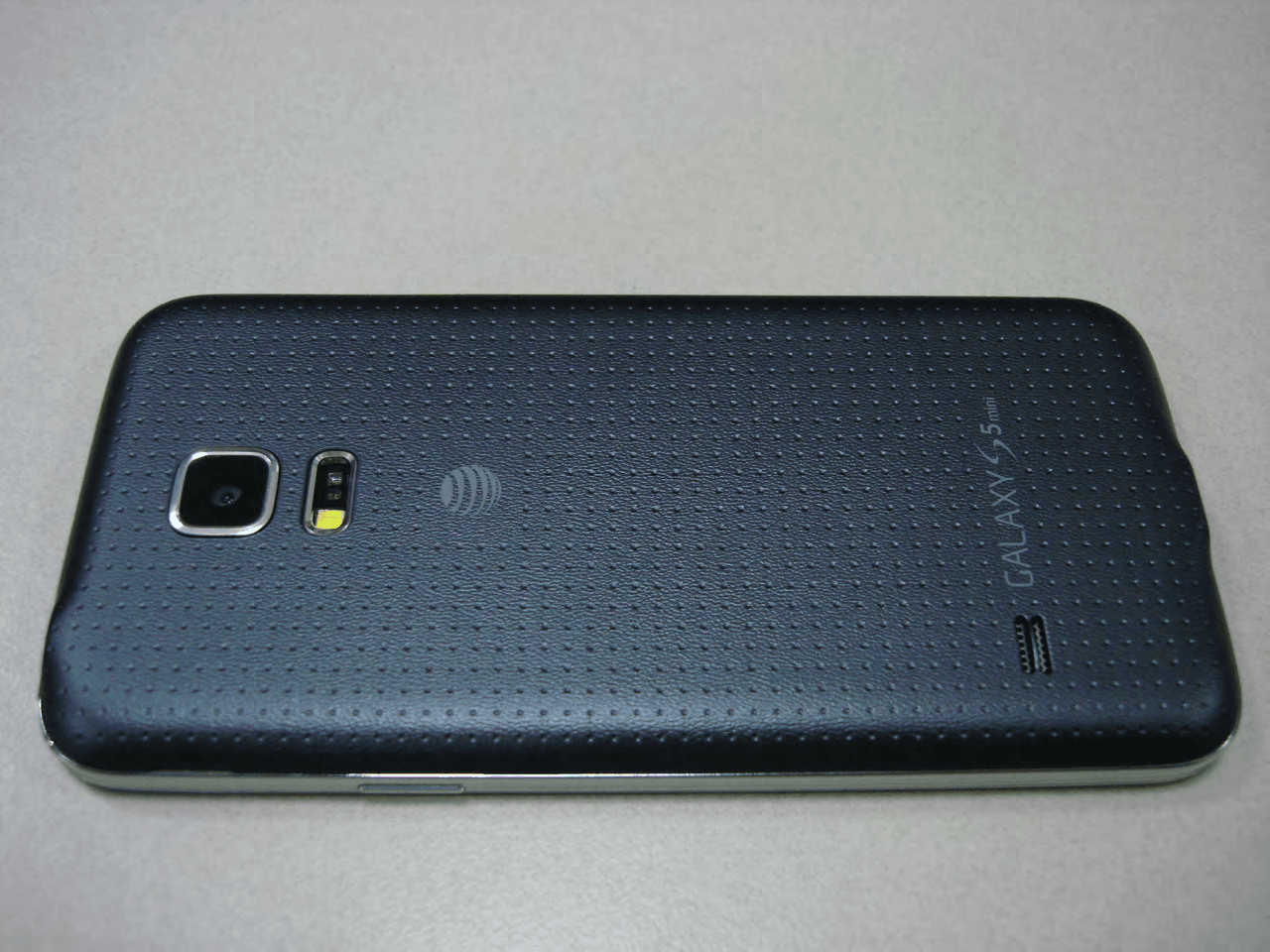

A3LSMG800AMulti-band GSM/EDGE/WCDMA/LTE Phone with WLAN, Bluetooth and RFID

DRAFT Health and Safety and Warranty Guide Please read this manual before operating your phone and keep it for future reference. G900A_88mm H x 143mm W.book Page 1 Thursday, March 6, 2014 11:40 AM DRAFT Important information about your phone/device/tablet can be accessed in writing on the mobile device or on Samsung.com. Read this information before using your mobile device. The complete Health & Safety document can also be found on www.samsung.com. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty. Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Samsung legal or at samsung.com. Location of Legal Information on Device: Health and Safety Information • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety Warranty • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty EULA • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement G900A_88mm H x 143mm W.book Page 2 Thursday, March 6, 2014 11:40 AM DRAFT Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. G900A_88mm H x 143mm W.book Page 3 Thursday, March 6, 2014 11:40 AM DRAFT Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT UNAUTHORIZED SOFTWARE HAS BEEN DETECTED. YOU G900A_88mm H x 143mm W.book Page 4 Thursday, March 6, 2014 11:40 AM DRAFT SHOULD THEN POWER DOWN THE DEVICE AND CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Diagnostic Software This device is equipped with diagnostic software reporting usage and performance information used solely to deliver improved network quality and overall device experience to AT&T customers. Please refer to your AT&T Wireless Customer Agreement and/or the AT&T Privacy Policy ( www.att.com/privacy) for more information. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMS…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 15, 2014 FCC ID: A3LSMG800A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 15, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG800A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea June 18, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG800A To whom it may concern: We hereby provide the label statement letter for the above-mentioned device by a labels statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: SM-G800A FCC ID: A3LSMG800A Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. The battery cover must first be removed to be visible at the time of purchase. And then, you can initiate FCC ID label readily. < SM-G800A Battery compartment & Label Location > The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device

FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 60 0Y1406021134.A3L 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/02/14 - 06/12/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1406021134.A3L FCC ID: A3LSMG800A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G800A 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.700.760.99 PCEUMTS 850826.40 - 846.60 MHz0.600.620.62 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.960.610.63 PCEUMTS 19001852.4 - 1907.6 MHz1.081.081.08 PCELTE Band 17706.5 - 713.5 MHz0.610.680.68 PCELTE Band 5 (Cell)826.5 - 846.5 MHz0.760.870.87 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz0.750.870.92 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz1.081.011.01 DTS2.4 GHz WLAN2412 - 2462 MHz< 0.1< 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz< 0.1< 0.1< 0.1 NII5.2 GHz WLAN5180 - 5240 MHz< 0.10.17< 0.1 NII5.3 GHz WLAN5260 - 5320 MHz< 0.10.32< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz< 0.10.14< 0.1 DSS/DTSBluetooth2402 - 2480 MHz 1.101.391.17 N/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 60 0Y1406021134.A3L 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 23 10 SYSTEM VERIFICATION .............................................................................................................. 37 11 SAR DATA SUMMARY ................................................................................................................. 39 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 49 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 54 14 EQUIPMENT LIST ......................................................................................................................... 55 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 56 16 CONCLUSION ............................................................................................................................... 58 17 REFERENCES .............................................................................................................................. 59 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 60 0Y1406021134.A3L 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data826.5 - 846.5 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz LTE Band 2 (PCS)Data1852.5 - 1907.5 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Ma…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMG800A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 80 0Y1406021138.A3L 6/9 – 6/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.2 05/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/9 – 6/19/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1406021138.A3L FCC ID: A3LSMG800A APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-G800A EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r04, KDB 644545 v01r02 1205180 - 524013.61411.34 802.11a2A205260 - 532013.74011.38 2C205500 - 570013.42811.28 1205180 - 524010.69110.29 802.11n2A205260 - 532010.49510.21 2C205500 - 570010.59310.25 1405190 - 523010.16210.07 802.11n2A405270 - 531010.02310.01 2C405510 - 56709.6389.84 Channel Bandwidth (MHz) Conducted Power Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) ModeUNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r04 and KDB 644545 v01r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11 a/n FCC ID: A3LSMG800A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 80 0Y1406021138.A3L 6/9 – 6/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.2 05/28/2014 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11 A/N ............................................................................. 28 6.4 PEAK POWER SPECTRAL DENSITY – 802.11 A/N ................................................................................... 31 6.5 PEAK EXCURSION RATIO – 802.11 A/N .................................................................................................... 46 6.6 FREQUENCY STABILITY ............................................................................................................................ 49 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 52 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 60 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) ........................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG800A FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 14 0Y1406021139.A3L 6/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.2 05/28/2014 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/26/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1406021139.A3L FCC ID: A3LSMG800A COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-G800A EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 13.740 mW (11.38 dBm) Conducted (802.11a UNII Band 2A) 13.428 mW (11.28 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMG800A FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 14 0Y1406021139.A3L 6/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.2 05/28/2014 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................10 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 10 5.0 TEST RESULTS ....................................................................................................................................11 6.0 CONCLUSION .......................................................................................................................................14 FCC ID: A3LSMG800A FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 14 0Y1406021139.A3L 6/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.2 05/28/2014 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-G800A FCC ID: A3LSMG800A Test Device Serial No.: WIFI Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 6/26/2014 TEST REPORT S/N: 0Y1406021139.A3L Test Facility / Accreditations Measurements were performed at PCTEST Engineering Lab…

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LSMG800A Model: SM-G800A Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.4 06/12/2014 T E S T S E T U P P H O T O G R A PH S Samsung Electronics, Co. Ltd. FCC ID: A3LSMG800A Model: SM-G800A Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.4 06/12/2014 Samsung Electronics, Co. Ltd. FCC ID: A3LSMG800A Model: SM-G800A Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.4 06/12/2014

FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LSMG800A SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 06/02/14 - 06/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LSMG800A SAR…
