A3LSMG9009DCellular/PCS GSM/EDGE/UMTS Phone with WLAN, Bluetooth, RFID and ANT+

User manual SM-G9009D Draft 6.1 2014-02-25 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 14th, 2014 FCC ID: A3LSMG9009D To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 23, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG9009D To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 25, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG9009D Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This st atement could not be included in the label. So we inform you of it through this letter. Should yo u hav e any questions or comments concerning the above, please contact the undersigne d. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

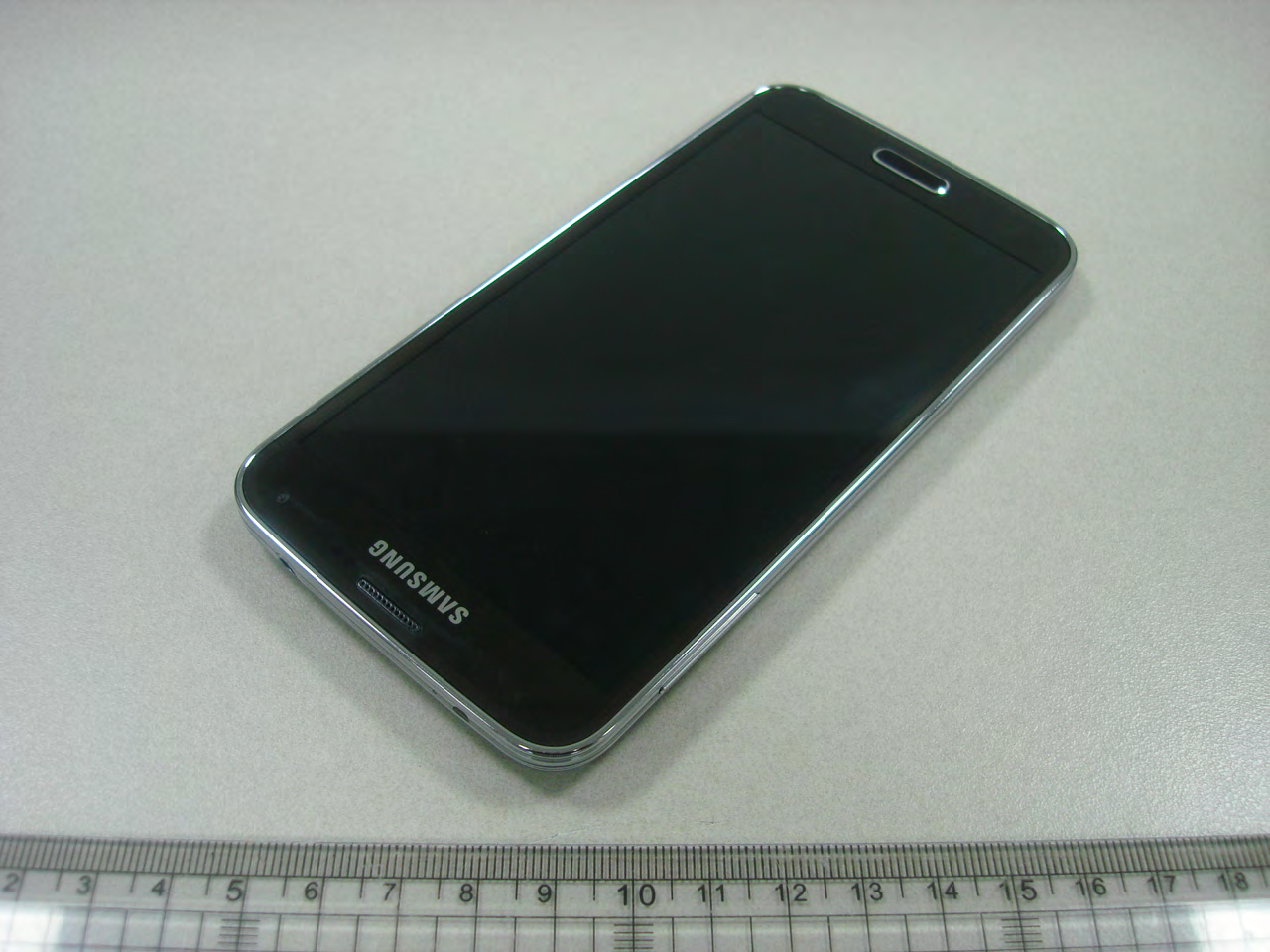

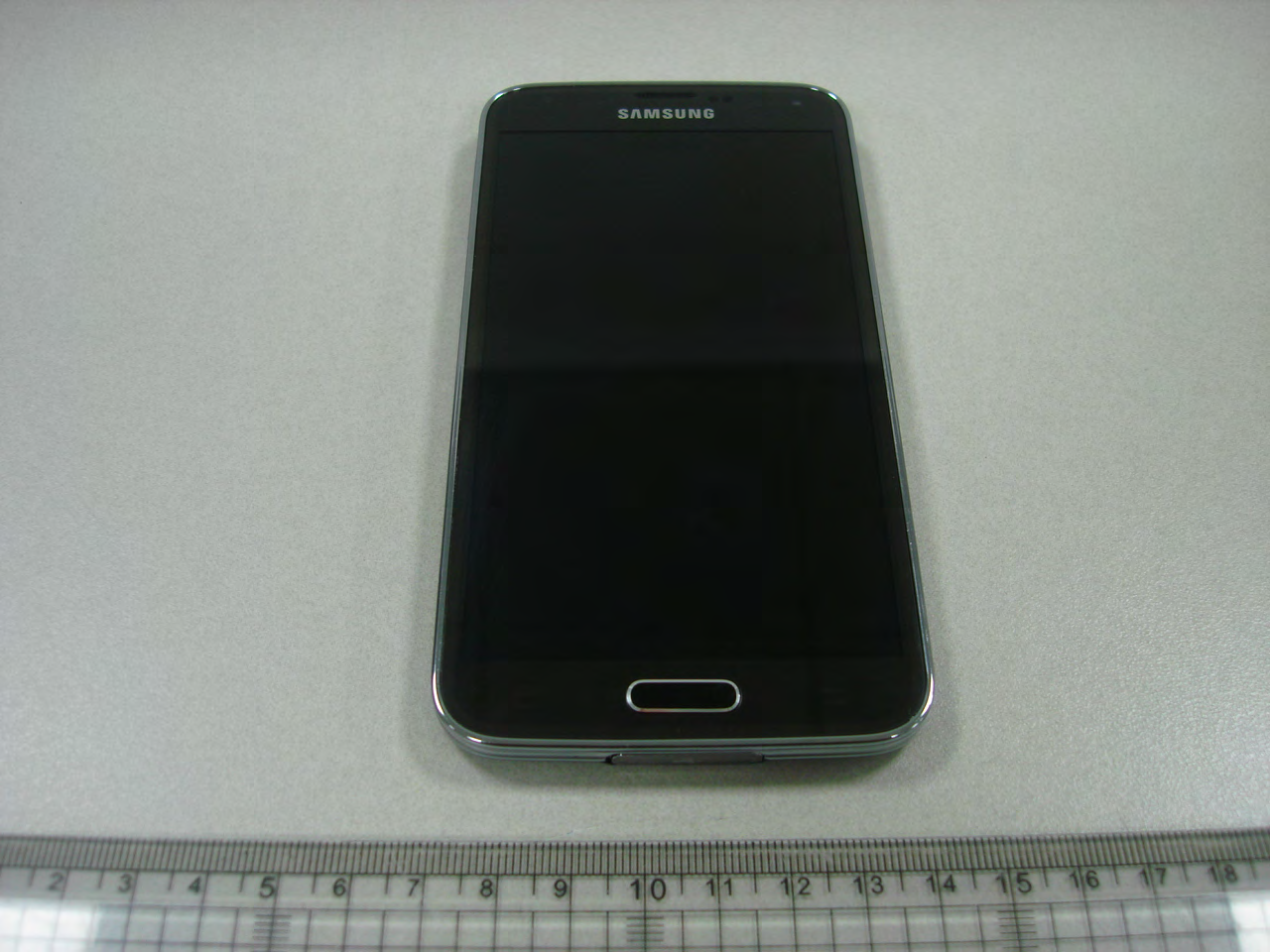

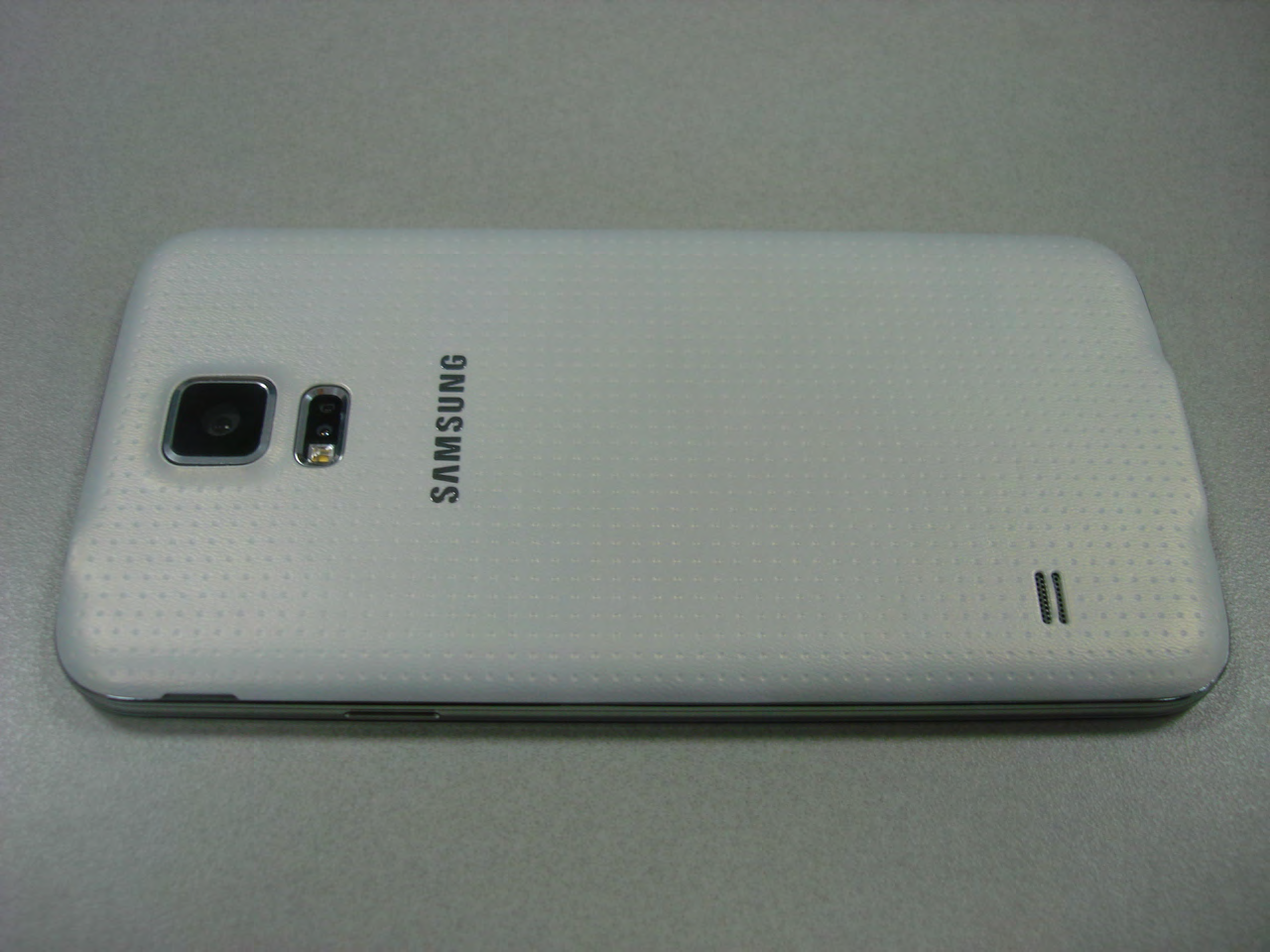

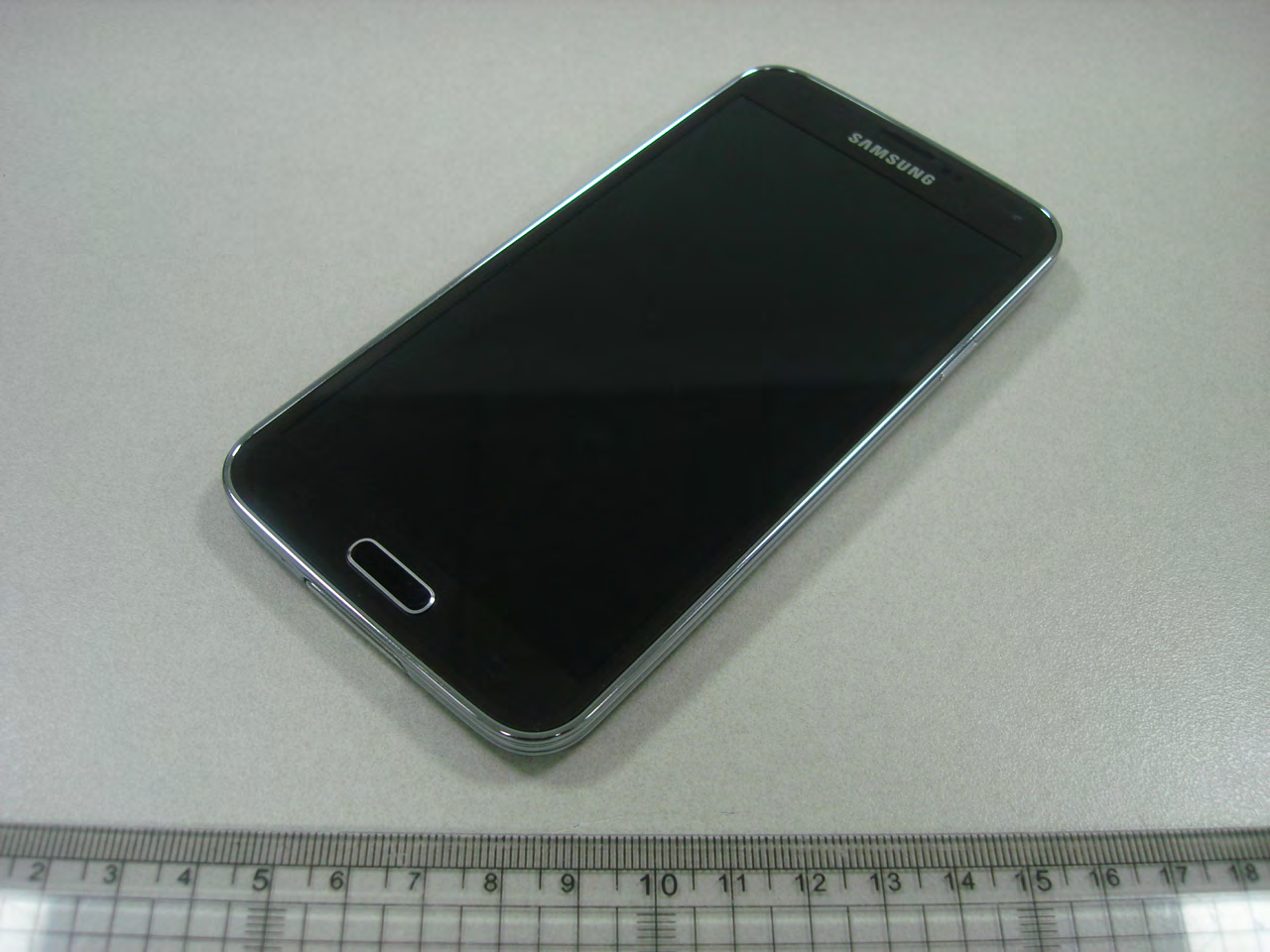

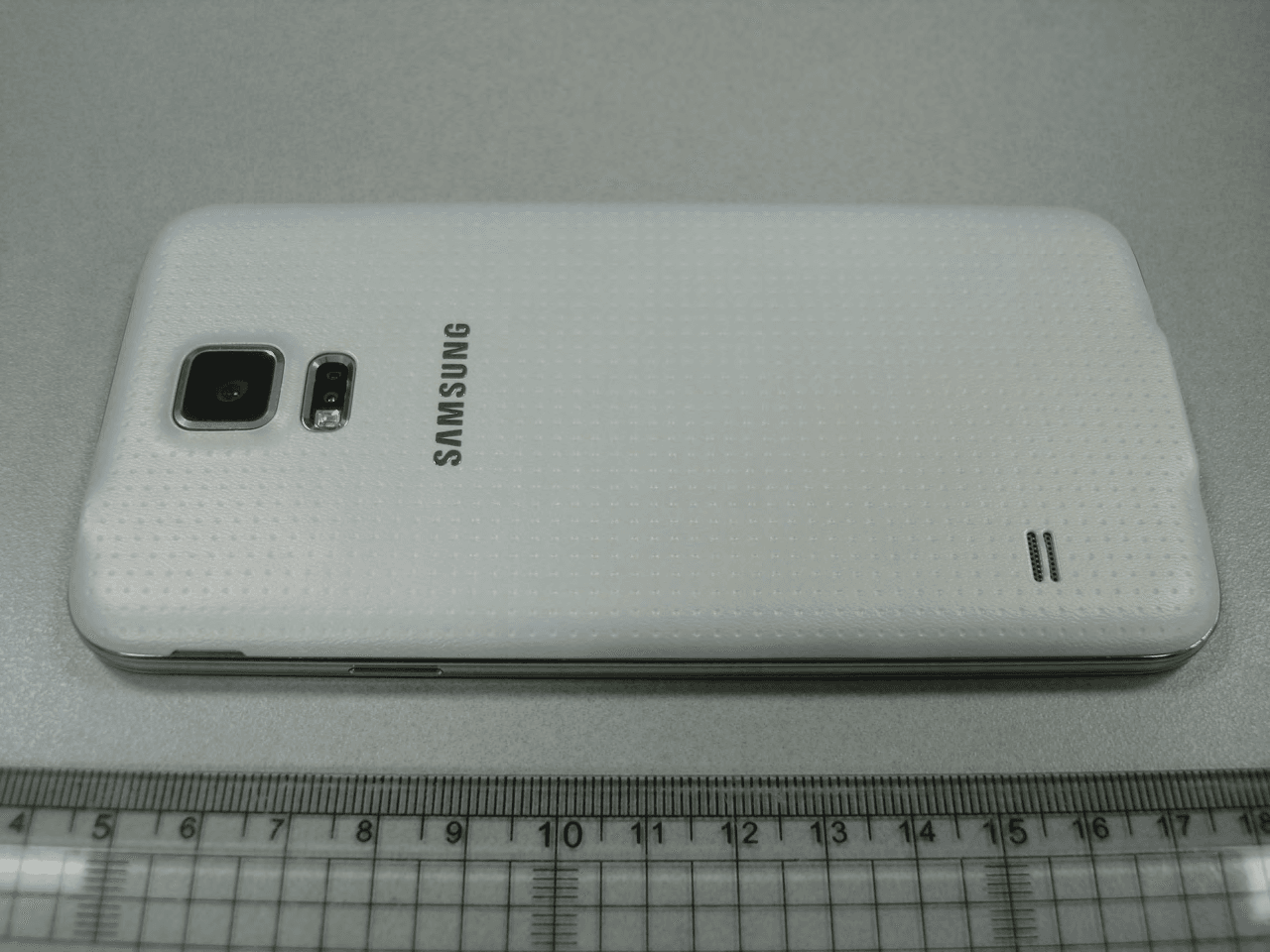

Label and Location Model: SM-G9009D FCC ID: A3LSMG9009D Label: Location: Top Back of device Bottom Phone: Label is placed inside of the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.” Label

FCC ID: A3LSMG9009D SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 54 0Y1402040298.A3L 02/03/14 - 02/21/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/03/14 - 02/21/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1402040298.A3L FCC ID: A3LSMG9009D APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G9009D This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W /kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.310.390.51 PCEUMTS 850826.40 - 846.60 MHz0.230.450.45 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.320.200.28 PCEUMTS 19001852.4 - 1907.6 MHz< 0.10.310.36 DTS2.4 GHz WLAN2412 - 2462 MHz0.300.180.18 DTS5.8 GHz WLAN5745 - 5825 MHz0.300.35-1.00 NII5.2 GHz WLAN5180 - 5240 MHz0.500.31-1.00 NII5.3 GHz WLAN5260 - 5320 MHz0.440.39-1.00 NII5.5 GHz WLAN5500 - 5700 MHz0.821.06-1.00 DSS/DTSBluetooth2402 - 2480 MHzN/A Band & Mode Tx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class SAR 1.50 PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG9009D SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 54 0Y1402040298.A3L 02/03/14 - 02/21/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................8 3 DOSIMETRIC ASSESSMENT .........................................................................................................9 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 10 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 11 6 RF EXPOSURE LIMITS ................................................................................................................ 14 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 15 8 RF CONDUCTED POWERS ......................................................................................................... 18 9 SYSTEM VERIFICATION .............................................................................................................. 29 10 SAR DATA SUMMARY ................................................................................................................. 31 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 40 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 48 13 EQUIPMENT LIST ......................................................................................................................... 48 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 15 CONCLUSION ............................................................................................................................... 52 16 REFERENCES .............................................................................................................................. 53 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG9009D SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 54 0Y1402040298.A3L 02/03/14 - 02/21/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz Ant+Data2402 - 2480 MHz Band & ModeTx Frequency Operating Modes Voice (dBm) 1 TX Slot1 TX Slots 2 TX Slots 1 TX Slots 2 TX Slots Maximum33.033.031.528.5 27.0 Nominal32.532.531.028.0 26.5 Maximum31.031.029.027.0 26.0 Nominal30.530.528.526.5 25.5 Burst Average 8- PSK (dBm) Antenna 1 Mode / Band GSM/GPRS/EDGE 1900 GSM/GPRS/ED…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 2/6-2/26/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402040301.A3L FCC ID: A3LSMG9009D APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-G9009D EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r02, KDB 662911 v02r01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 1205180 - 524016.48212.1717.33812.39-- 2A205260 - 532017.74212.4917.70112.48-- 2C205500 - 570016.78812.2515.84912.00-- 1205180 - 524013.24311.2214.06011.4811.99510.79 2A205260 - 532014.09311.4912.24610.8813.67711.36 2C205500 - 570013.67711.3613.27411.2312.85311.09 1405190 - 523011.19410.4910.61710.268.9549.52 2A405270 - 53108.6309.3610.81410.3410.16210.07 2C405510 - 56709.9089.9610.59310.2510.04610.02 180 52107.5518.787.5348.777.7628.90 2A80 52907.9439.007.4138.707.9439.00 2C80 55308.6909.397.6748.858.3759.23 802.11ac Conducted Power ANT 1ANT 2 ModeUNII Band Channel Bandwidth (MHz) Tx Frequency (MHz) Conducted Power 802.11a Conducted Power MIMOTx ANT 802.11n 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03, KDB 644545 v01r02 and KDB 662911 v02r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) 802.11a/n/ac FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 12 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 51 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 57 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 89 6.6 FREQUENCY STABILITY ...............…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 88 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 MIMO Peak Power Spectral Density – 802.11a/n/ac §15.407 (a)(1)(2),(5) / RSS-210 [A9.2] 518036 n (20MHz) MCS0 -2.7671.7883.0924.0-0.91 520040 n (20MHz) MCS0 -2.7942.1863.3844.0-0.62 524048 n (20MHz) MCS0 -2.5802.4843.6624.0-0.34 519038 n (40MHz) MCS0 -0.547-0.3012.5884.0-1.41 519038 n (40MHz) MCS0 -0.199-1.869-2.5694.0-6.57 523042 ac (80MHz) MCS0 -4.654-6.756-2.5694.0-6.57 526052 n (20MHz) MCS0 3.9312.6766.35911.0-4.64 528056 n (20MHz) MCS0 3.7532.3676.12511.0-4.87 532064 n (20MHz) MCS0 2.6931.8945.32211.0-5.68 527054 n (40MHz) MCS0 0.630-1.7852.59911.0-8.40 531062 n (40MHz) MCS0 -0.159-2.3822.59911.0-8.40 529058 ac (80MHz) MCS0 -3.770-6.859-2.03511.0-13.04 5500100 n (20MHz) MCS0 1.9671.5484.77311.0-6.23 5580116 n (20MHz) MCS0 3.8841.0095.69011.0-5.31 5700140 n (20MHz) MCS0 1.7241.3714.56111.0-6.44 5510102 n (40MHz) MCS0 -1.411-2.9240.90811.0-10.09 5550110 n (40MHz) MCS0 -1.923-2.5610.78011.0-10.22 5670134 n (40MHz) MCS0 -2.463-2.7250.78011.0-10.22 5530106 ac (80MHz) MCS0 -5.871-7.199-2.34611.0-13.35 Band 2C Frequency [MHz] Channel No. 802.11 Mode Data Rate [Mbps] Summed MIMO Pwr Density (dBm) Max Permissible Power Density [dBm/MHz] Mar gin [dB] Band I Band 2A ANT1 Power Density [dBm] ANT2 Power Density (dBm) Table 6-33. Conducted Power Spectral Density Measurements – MIMO Note: As shown in the section above, the power spectral density at Antenna 1 and Antenna 2 were first measured separately. The measured values were then summed in linear power units then converted back to dBm. Sample MIMO Calculation: At 5180 MHz the average conducted spectral density was measured to be -2.767 dBm for Antenna 1 and 1.788 dBm for Antenna 2. Antenna 1 + Antenna 2 = MIMO (-2.767 dBm + 1.788 dBM) = (0.5288 mW + 1.509 mW) = 2.039 mW = 3.092 dBm FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 89 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 6.5 Peak Excursion Ratio – 802.11a/n/ac §15.407(a)(6) Test Overview and Limit The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum duty cycle (>98%), at its maximum power control level, as defined in KDB 789033 v01r03, and at the appropriate frequencies. Method SA-1, as defined in KDB 789033 v01r03, was used to capture the average trace used to make the peak excursion measurement. The largest permissible difference between the modulation envelope (measured using a peak hold function) and the maximum power spectral density is 13 dBm/MHz. Test Procedure Used KDB 789033 v01r03 – Section G Test Settings 1. Analyzer was set to the center frequency of the UNII channel under investigation 2. Span was set to encompass the entire emission bandwidth of the signal 3. RBW = 1MHz 4. VBW = 3MHz 5. Detector = peak 6. Trace mode = max hold 7. Trace was allowed to stabilize 8. The peak search function of the spectrum analyzer was used to find the peak of the spectrum. This level was compared to the peak power density level found from the previous section to determine the peak excursion. Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-4. Test Instrument & Measurement Setup Test Notes The peak excursion was investigated for all signal types, modulation types, channel bandwidths, and variations in signal parameters and the worst case data is shown below. Only the worst case modulation mode on a single channel among all bands is reported since that is sufficient to demonstrate compliance to the peak excursion requirement per KDB 789033 v01r03. FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 90 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 ANTENNA 1 Peak Excursion Ratio – 802.11a/n/ac §15.407(a)(6) 528056 a 67.4113.0-5.59 5500100 n (20MHz)6.5/7.2 (MCS0) 8.4213.0-4.58 5670134 n (40MHz)13.5/15 (MCS0) 8.1113.0-4.89 521042 ac (80MHz)29.3/32.5 (MCS0) 7.3013.0-5.70 Margin [dB] 802.11 Mode Max Permissible Peak Excursion Ratio [dBm/MHz] Frequency [MHz] Channel No. Data Rate [Mbps] Measured Peak Excursion Ratio [dBm] Table 6-34. Conducted Peak Excursion Ratio Measurements – Antenna 1 Plot 6-127. Peak Excursion Ratio Plot (802.11a) FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 91 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Plot 6-128. Peak Excursion Ratio Plot (20MHz BW 802.11n) Plot 6-129. Peak Excursion Ratio Plot (40MHz BW 802.11n) FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 92 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Plot 6-130. Peak Excursion Ratio Plot (80MHz BW 802.11ac) FCC ID: A3LSMG9009D FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 93 of 181 0Y1402040301.A3L 2/6-2/26/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 ANTENNA 2 Peak Excursion Ratio – 802.11a/n/ac §15.407(a)(6) 5700140 a 67.1613.0-5.84 520040 n (20MHz)6.5/7.2 (MCS0) 6.9713.0-6.03 523046 n (40MHz)13.5/15 (MCS0) 7.3413.0-5.67 521042 ac (80MHz)29.3/32.5 (MCS0) 7.3113.0-5.69 Margin [dB] 802.11 Mode Max Permissib…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG9009D FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 20 0Y1402040302.A3L 2/11-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 2/11-2/20/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402040302.A3L FCC ID: A3LSMG9009D COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-G9009D EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 17.742 mW (12.49 dBm) Conducted (802.11a UNII Band 2A) 16.788 mW (12.25 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSMG9009D FCC Pt. 15.407 DFS TEST REPORT (CERT…
