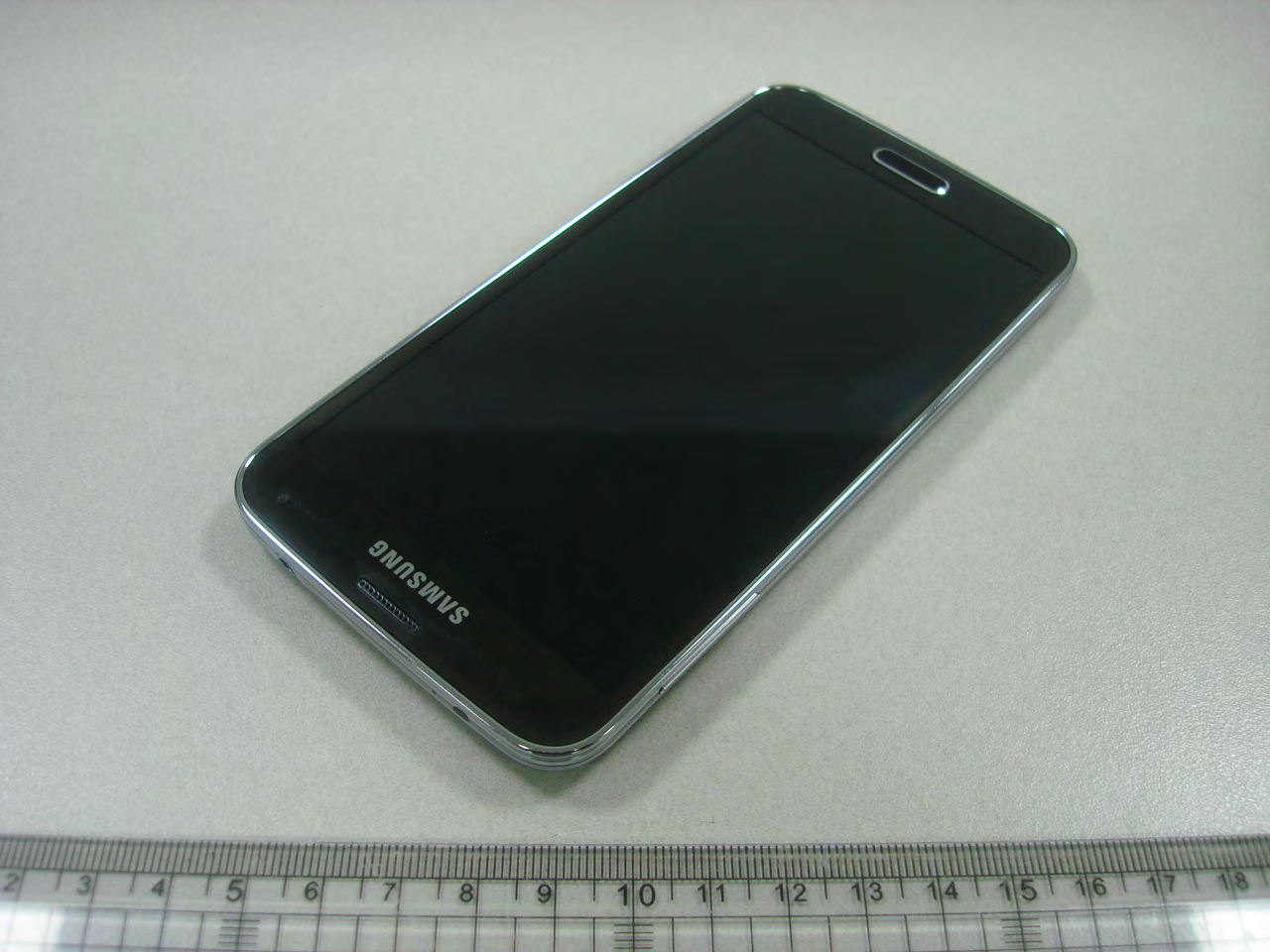

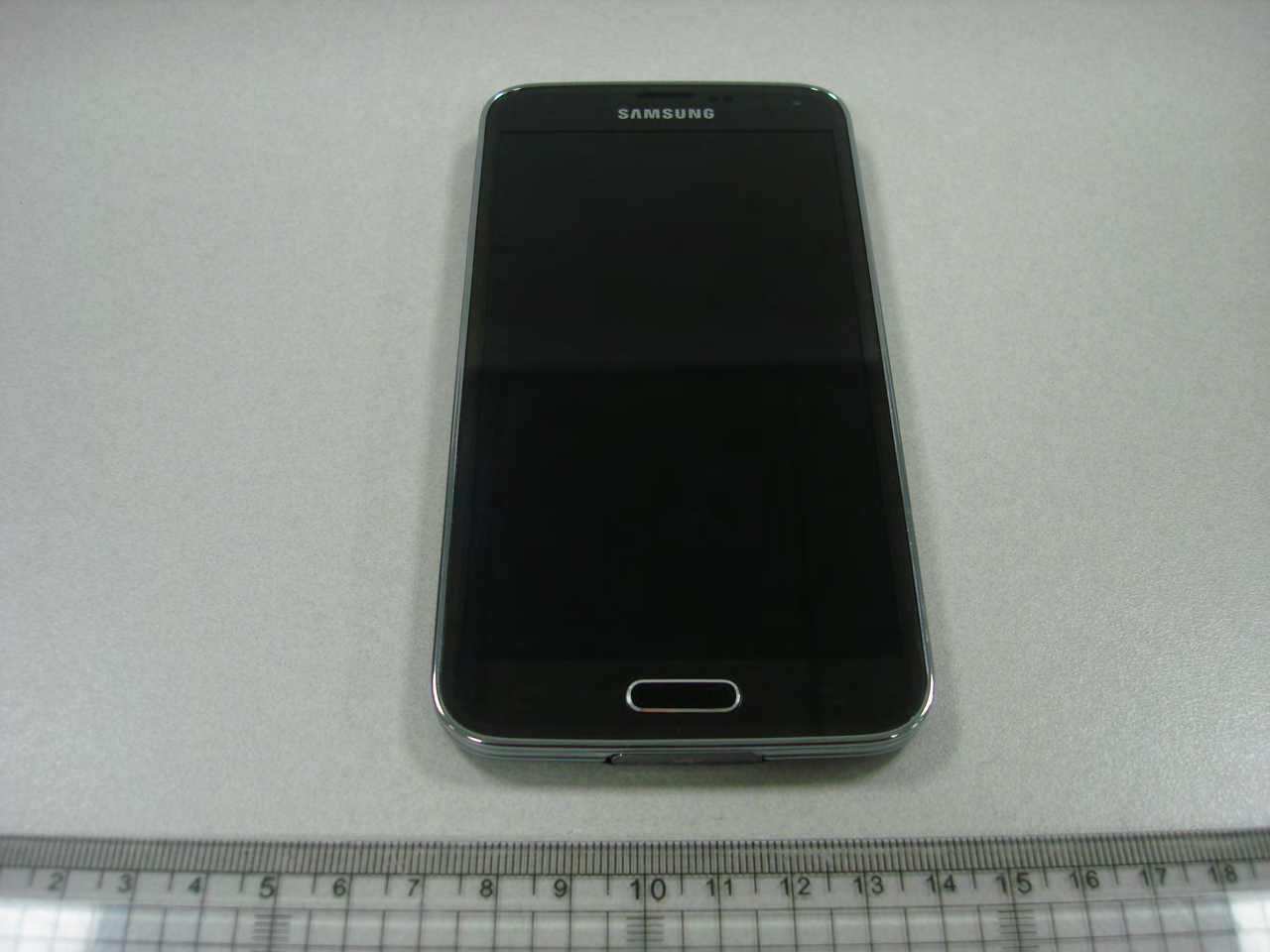

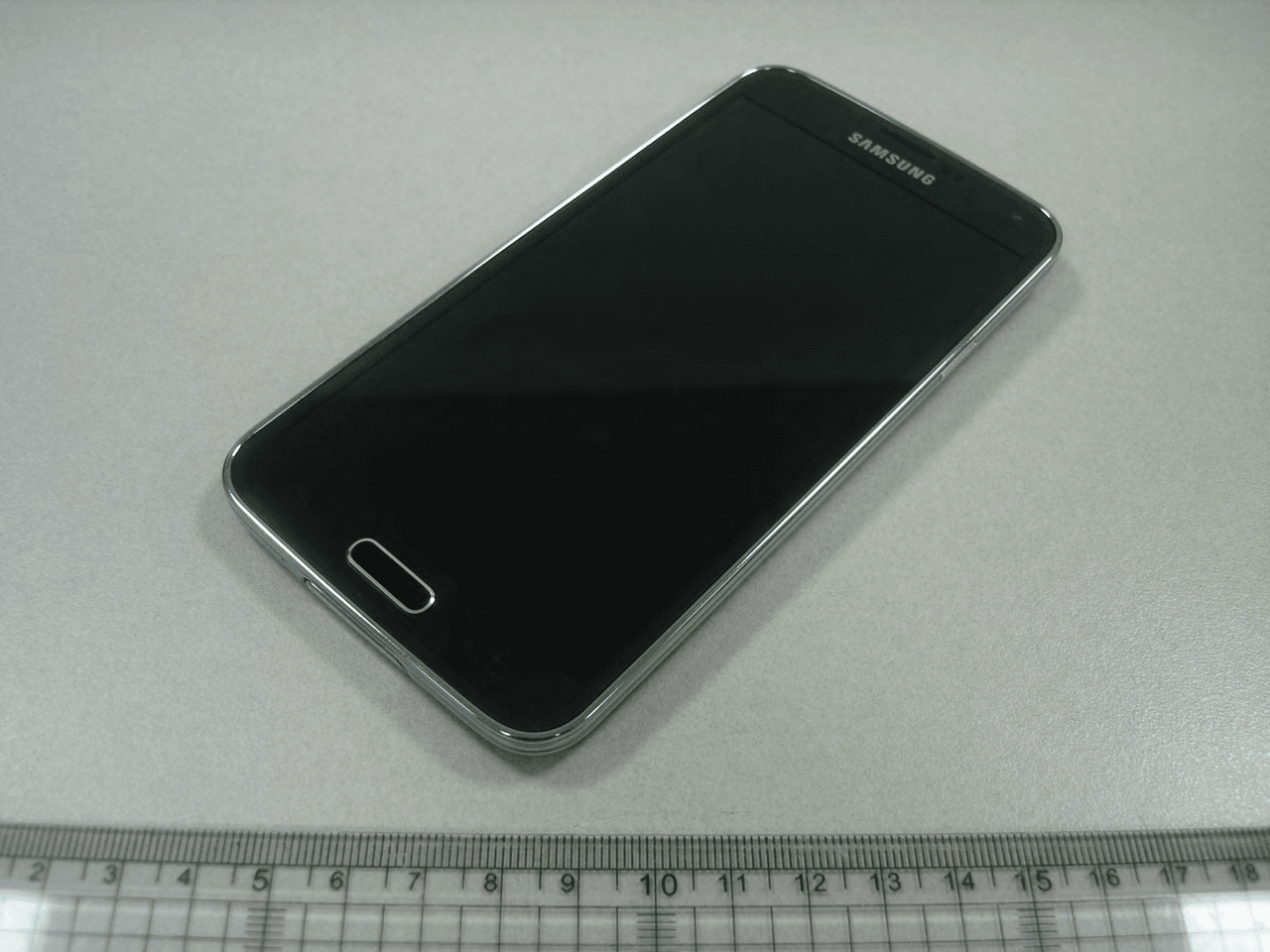

A3LSMG900XPhone with WLAN, Bluetooth, RFID, and ANT+

User manual SM-G900X  This device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with MobileSatellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15- 5.25 GHz frequencies.G  k™ˆ›G]UXG YWX[TWYTYYG v•“ G–™Gh——™–ˆ“G using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information ଝ Refer to—pages with related information; for example: p. 12 ଝ (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 25, 2014 FCC ID: A3LSMG900X To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 25, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG900X To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT -TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Feb. 18, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L SMG900X Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

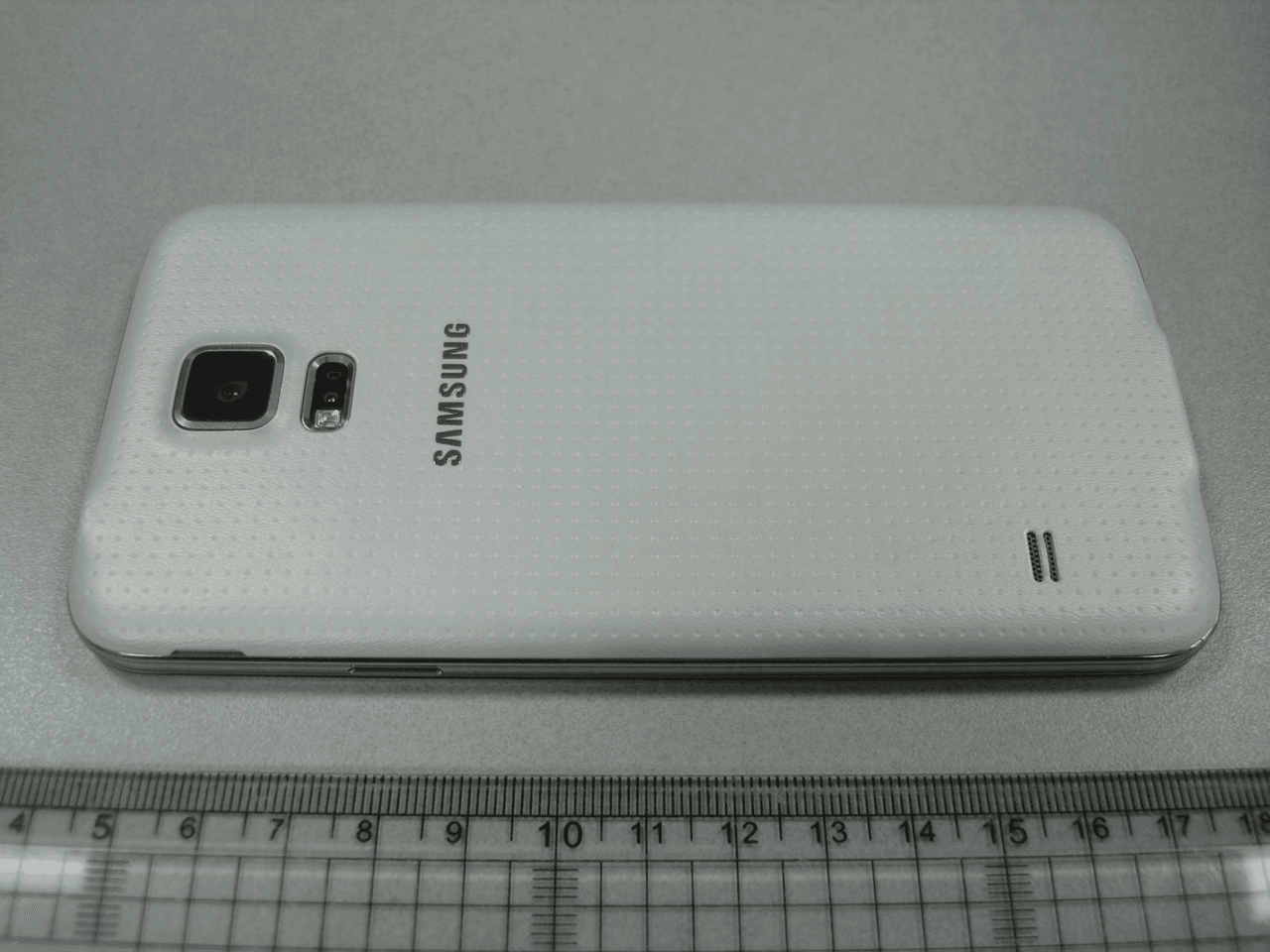

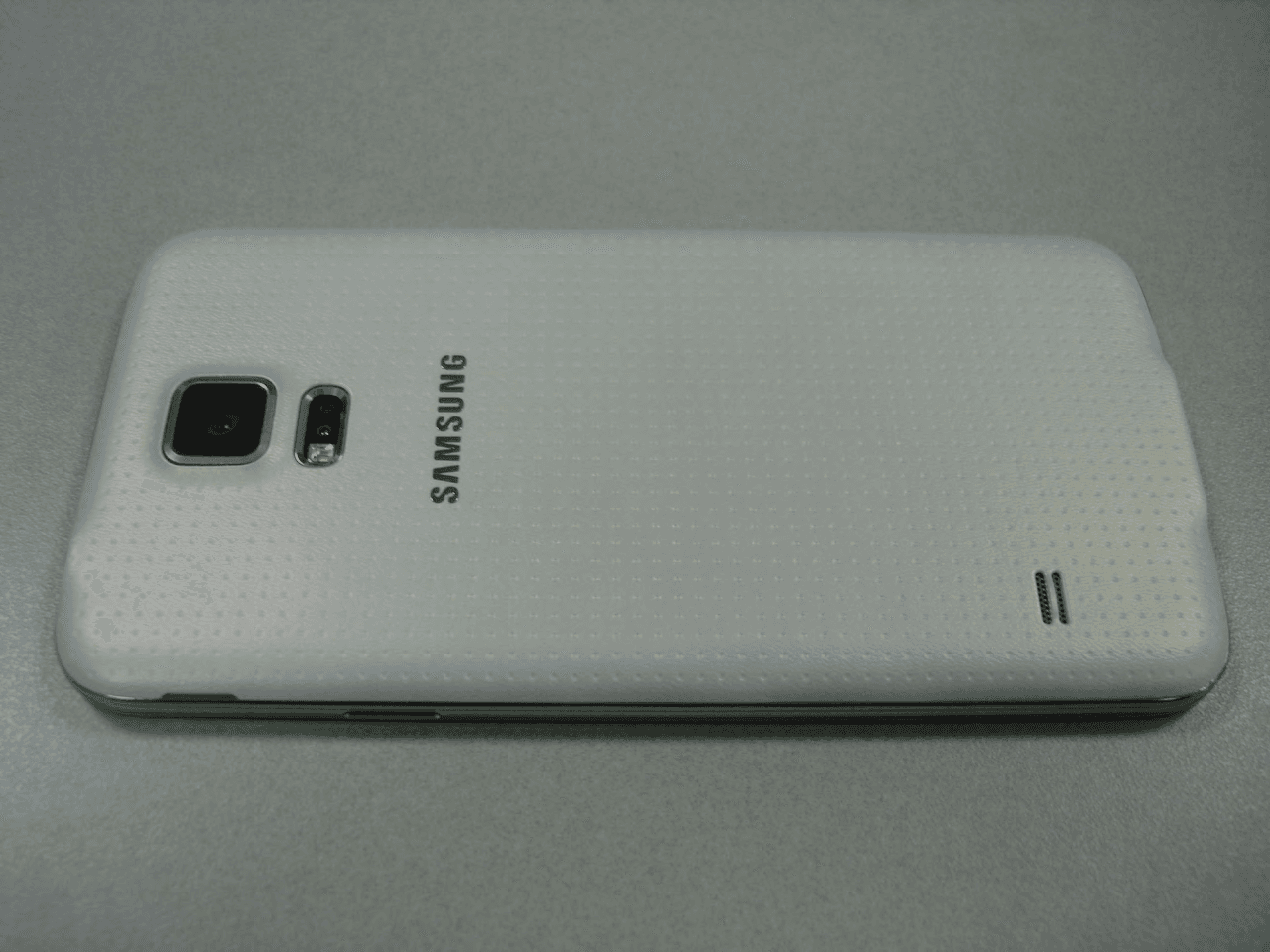

Label and Location Model: SM-G900X FCC ID: A3LSMG900X Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

FCC ID: A3LSMG900X SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 35 0Y1402190446.A3L 02/03/14 - 02/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/03/14 - 02/12/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1402190446.A3L FCC ID: A3LSMG900X APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G900X This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) DTS2.4 GHz WLAN2412 - 2462 MHz0.650.38 DTS5.8 GHz WLAN5745 - 5825 MHz0.460.49 NII5.2 GHz WLAN5180 - 5240 MHz0.640.12 NII5.3 GHz WLAN5260 - 5320 MHz0.550.21 NII5.5 GHz WLAN5500 - 5700 MHz0.440.63 DSS/DTSBluetooth2402 - 2480 MHz N/A SAR Band & ModeTx Frequency Equipment Class PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG900X SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 35 0Y1402190446.A3L 02/03/14 - 02/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 DOSIMETRIC ASSESSMENT .........................................................................................................7 4 DEFINITION OF REFERENCE POINTS .........................................................................................8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 14 9 SYSTEM VERIFICATION .............................................................................................................. 22 10 SAR DATA SUMMARY ................................................................................................................. 24 11 SAR MEASUREMENT VARIABILITY ........................................................................................... 29 12 EQUIPMENT LIST ......................................................................................................................... 30 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 31 14 CONCLUSION ............................................................................................................................... 33 15 REFERENCES .............................................................................................................................. 34 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG900X SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 35 0Y1402190446.A3L 02/03/14 - 02/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. 2.4 GHz WLAN Data2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLAN Data5180 - 5240 MHz 5.3 GHz WLAN Data5260 - 5320 MHz 5.5 GHz WLAN Data5500 - 5700 MHz Bluetooth Data2402 - 2480 MHz NFCData13.56 MHz ANT+ Data2402 - 2480 MHz Band & Mode Tx FrequencyOperating Modes Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal IEEE 802.11b (2.4 GHz) 17.5 IEEE 802.11g (2.4 GHz) Mode / Band IEEE 802.11n (2.4 GHz) 14.0 Modulated Average (dBm) IEEE 802.11n (5 GHz - 20 MHz BW) 11.5 Bluetooth 11.0 IEEE 802.11a (5 GHz) 11.5 17.0 14.0 13.5 11.0 11.0 10.5 14.5 Bluetooth LE 6.5 6.0 IEEE 802.11n (5 GHz - 40 MHz BW) 9.5 9.0 IEEE 802.11ac (5 GHz - 80 MHz BW) 9.5 9.0 FCC ID: A3LSMG900X SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 35 0Y1402190446.A3L 02/03/14 - 02/12/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1.3 DUT Antenna Locations Note: Exact antenna dimensions and separation distances are shown in the Technical Descr…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/27 - 2/19/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402190448.A3L FCC ID: A3LSMG900X APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-G900X EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r02, KDB 662911 v02r01 Max. Power (mW) Max. Power (dBm) 1205180 - 524013.93211.44 2A205260 - 532014.09311.49 2C205500 - 570014.09311.49 1205180 - 524013.64611.35 2A205260 - 532013.36611.26 2C205500 - 570014.09311.49 1405190 - 52308.7109.40 2A405270 - 53108.7709.43 2C405510 - 56708.8929.49 18052107.6918.86 2A8052908.3959.24 2C8055308.6509.37 802.11ac 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNI I Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03, KDB 644545 v01r02 and KDB 662911 v02r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n/ac FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT..................................................................................................................... 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 12 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 49 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 56 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 91 6.6 FREQUENCY STABILITY ............................................................................................................................ 98 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS ............................................................................ 101 6.8 ANTENNA-1 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ..............................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 87 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Summed MIMO Power Density Measurements 518036n (20MHz) 6.5/7.2 (MCS0) -4.17-3.69-0.914.0-4.91Pass 520040n (20MHz) 6.5/7.2 (MCS0) -4.29-3.17-0.694.0-4.69Pass 524048n (20MHz) 6.5/7.2 (MCS0) -3.91-3.00-0.424.0-4.42Pass 519038n (40MHz) 13.5/15 (MCS0) -2.58-1.760.864.0-3.14Pass 523046n (40MHz) 13.5/15 (MCS0) -2.78-1.990.644.0-3.36Pass 521042 ac (80MHz) 29.3/32.5 (MCS0) -6.02-6.28-3.144.0-7.14Pass 526052n (20MHz) 6.5/7.2 (MCS0) 1.211.914.5911.0-6.41Pass 528056n (20MHz) 6.5/7.2 (MCS0) 1.101.654.3911.0-6.61Pass 532064n (20MHz) 6.5/7.2 (MCS0) 1.811.824.8211.0-6.18Pass 527054n (40MHz) 13.5/15 (MCS0) -2.07-2.570.6911.0-10.31Pass 531062n (40MHz) 13.5/15 (MCS0) -2.41-2.570.5211.0-10.48Pass 529058 ac (80MHz) 29.3/32.5 (MCS0) -5.73-5.89-2.8011.0-13.80Pass 5500100n (20MHz) 6.5/7.2 (MCS0) 0.781.744.3011.0-6.70Pass 5580116n (20MHz) 6.5/7.2 (MCS0) 1.361.924.6611.0-6.34Pass 5700140n (20MHz) 6.5/7.2 (MCS0) 1.121.544.3511.0-6.65Pass 5510102n (40MHz) 13.5/15 (MCS0) -2.46-2.400.5811.0-10.42Pass 5550110n (40MHz) 13.5/15 (MCS0) -1.97-2.320.8711.0-10.13Pass 5670134n (40MHz) 13.5/15 (MCS0) -2.11-2.380.7711.0-10.23Pass 5530106 ac (80MHz) 29.3/32.5 (MCS0) -6.98-6.04-3.4811.0-14.48Pass Band 1 Band 2A Band 2C Margin [dB] Pass / Fail Frequency [MHz] Channel No. 802.11 Mode Data Rate [Mbps] Antenna-2 Power Density [dBm] Summed MIMO Power Density [dBm] Max Permissible Power Density [dBm/MHz] Antenna-1 Power Density [dBm] Table 6-26. MIMO Conducted Power Spectral Density Measurements Note: The following plots were taken while both antennas were transmitting simultaneously in 802.11n mode. The plots correspond to the UNII Band I 802.11n (20MHz) measurements in the table above. FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 88 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-125. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) – ANT-1 Plot 6-126. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40) – ANT-1 FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 89 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-127. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48) – ANT-1 Plot 6-128. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) – ANT-2 FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 90 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-129. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40) – ANT-2 Plot 6-130. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48) – ANT-2 FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 91 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 6.5 Peak Excursion Ratio – 802.11a/n/ac §15.407(a.6) Test Overview and Limit The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum duty cycle (>98%), at its maximum power control level, as defined in KDB 789033 v01r03, and at the appropriate frequencies. Method SA-1, as defined in KDB 789033 v01r03, was used to capture the average trace used to make the peak excursion measurement. The largest permissible difference between the modulation envelope (measured using a peak hold function) and the maximum power spectral density is 13 dBm/MHz. Test Procedure Used KDB 789033 v01r03 – Section G Test Settings 1. Analyzer was set to the center frequency of the UNII channel under investigation 2. Span was set to encompass the entire emission bandwidth of the signal 3. RBW = 1MHz 4. VBW = 3MHz 5. Detector = peak 6. Trace mode = max hold 7. Trace was allowed to stabilize 8. The peak search function of the spectrum analyzer was used to find the peak of the spectrum. This level was compared to the peak power density level found from the previous section to determine the peak excursion. Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-4. Test Instrument & Measurement Setup Test Notes The peak excursion was investigated for all signal types, modulation types, channel bandwidths, and variations in signal parameters and the worst case data is shown below. Only the worst case modulation mode on a single channel among all bands is reported since that is sufficient to demonstrate compliance to the peak excursion requirement per KDB 789033 v01r03. FCC ID: A3LSMG900X FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 92 of 180 0Y1402190448.A3L 1/27 - 2/19/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Antenna-1 Peak Excursion Ratio – 802.11a/n/ac 520040 a 67.9013.0-5.10 524048 n (20MHz)6.5/7.2 (MCS0) 8.2713.0-4.73 519038 n (40MHz)13.5/15 (MCS0) 8.7713.0-4.23 521042 ac (80MHz)29.3/32.5 (MCS0) 7.9413.0-5.06 Mar gin [dB] 802.11 Mode Max Permissible Peak Excursion Ratio [dBm/MHz] Frequency [MHz] Channel No. Data Rate [Mbps] Measured Peak Excursion Ratio [dBm] Table 6-27. Conducted Peak Excursion Ratio Measurements Plot 6-131.…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG900X FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 20 0Y1402190449.A3L 1/31 - 2/11/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/31 - 2/11/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402190449.A3L FCC ID: A3LSMG900X COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-G900X EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 14.093 mW (11.49 dBm) Conducted (802.11a UNII Band 2A) 14.093 mW (11.49 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSMG900X FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 20 0Y1402190449.A3L 1/31 - 2/…

Text truncated - open the document above for the full version.
