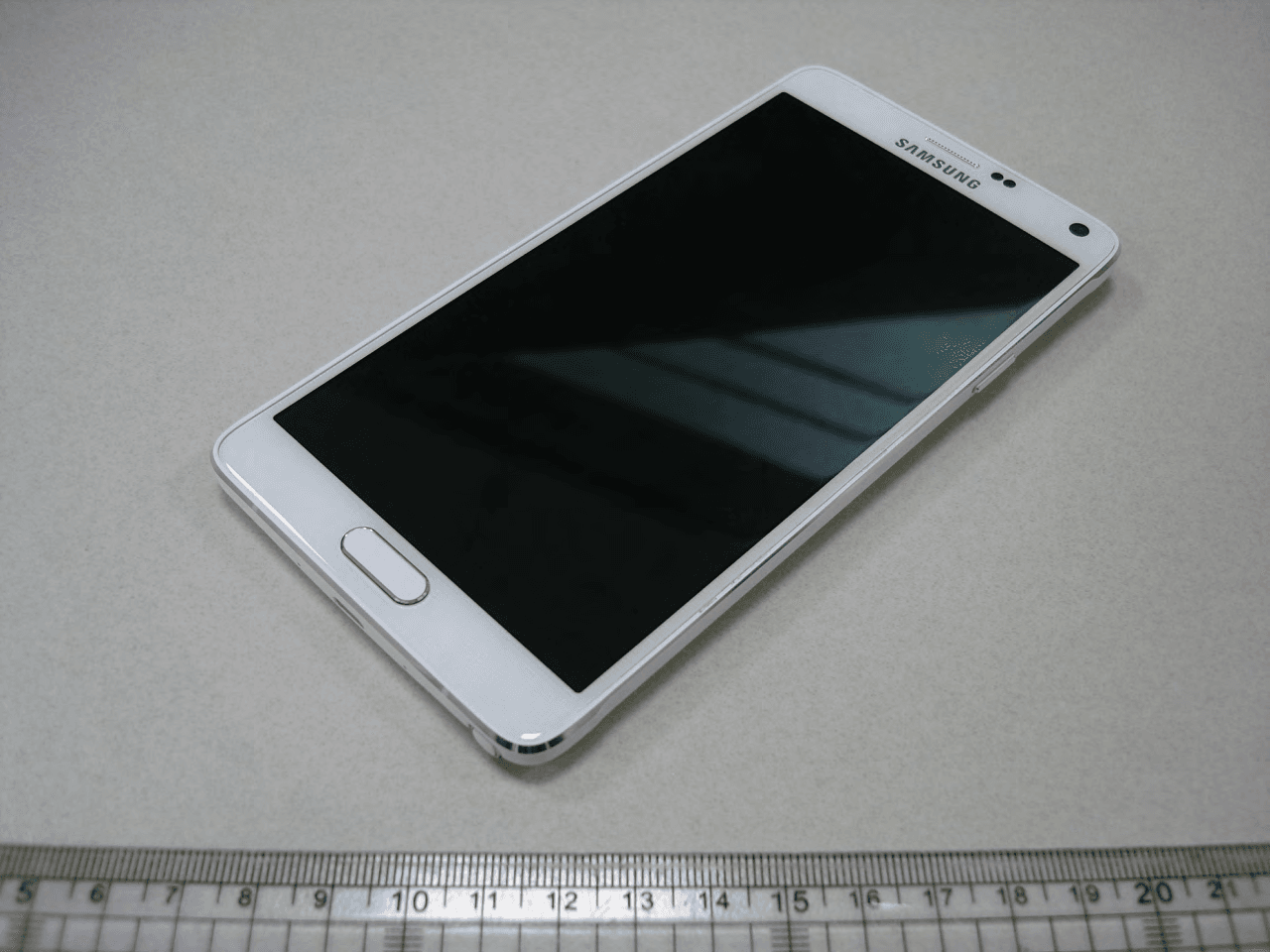

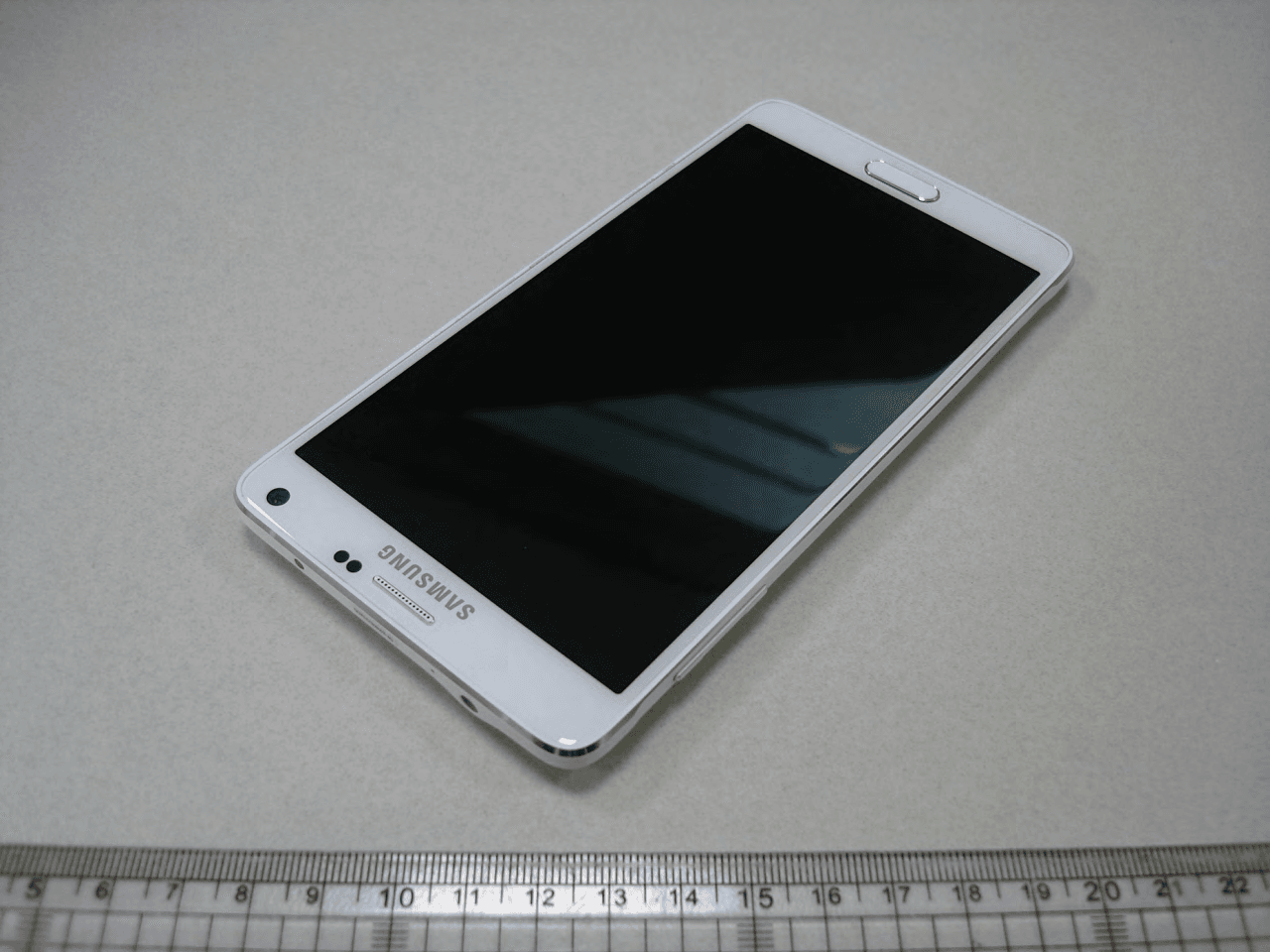

A3LSMN9109WCellular/PCS GSM/EDGE/UMTS Phone with WLAN, Bluetooth, RFID and ANT+

Draft User manual SM -N9109W Impo rtant sa fety preca utions Failure to com ply w ith the fol lowing precaution s may be da ngerous or ille gal. Cop yright infor mation ● Blue tooth? is a registered trademark of the Blue tooth SIG, Inc. wor ldwid e. ● JavaTM is a tra demark or registered tr ademark of Sun Microsystems, Inc. ● Pi csel and Pi csel Viewe rTM are tr ademarks of Pi csel Technologies, Inc. Dri ve safely at all times Do not use a hand -held phone while drivin g. Park your vehicle first. Swit ch off the pho ne when ref uelling Do not use the phone at a re fu ell ing poi nt (service station) or near fuels or chemicals. Swit ch off in an ai rcr af t Wire less pho nes can cause interference. Using t hem in an aircraft is both illeg al and da nge rous. Swit ch off the pho ne near all medic al eq ui pme nt Hospitals or health care fa cilit ies may be usin g equipment that could be sensitive to external radio frequency energy. Fol low any regulation s or ru les in force. Inte rference All wire less phone s may be sub ject to in te rfer ence, which could affect their performance. Be awa re of special regul ations Meet any special r egulati ons in force in any area and always switch off your ph one whenever it is forb idden to use it, or when it may cause interference or da nge r. Water resistance Yo ur p hone is n ot water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid u nnecessary co ntact with the an tenna when the ph one is switched on. Emergency calls Key in the emer gency num ber for your present locatio n, the n press [ ]. Keep your phone away from smal l children Keep the phone and all its pa rts, inclu ding a cce ssor ies, out of the reach of sma ll chi ldren. Accessories and batteries Use only Samsung- approved batteries and a cce ssor ies, such as headsets and PC data cab les. Use of any unaut horised acce ssor ies could dam age you or yo ur phone and ma y be danger ous. • The phone c oul d ex plod e if the battery is repl aced with an incorrect ty pe. • Dispose of used bat teries according to the manufactureri’ s instruct ion s. Exce ssive exposure to sound at hig h v ol ume s can cau se hea rin g damage. Alwa ys tu rn the volu me dow n before plugging the earpho nes into an audiosou rce an d use onl y the min imum volume settin g nece ssary to hear you r conversation or music. Qu alifie d service Only qualified service personnel may repair your ph one. For more detailed safety information, see ¡°Health and safety information¡± on page 20. Unpack Make sure you have each item • Ph one • Ad apter • Stereo headset • B attery • Battery travel holder • User’s manual Suitable Adapter or Ch arger, cert ified according to the releva nt safety standard, will be provided for each country in use. You can obta in the fol lowing acce ssories for your p hone fr om y our lo cal Sa ms ung dea ler. • Mu lti adapter • Trav el charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Blue tooth mono/ ster eop headset kit Get started First st eps to operate you r phone Inst all and cha rge the phone 1. Install the b attery: To remove the battery, slide the battery catch toward the top of the phone and hold it. 2. Plug the ada pter into the phone. 3. Plug the ada pter into a stan dard AC wa ll outlet. 4. When the phone is com pletely charged (the battery icon stops bl inkin g), unplug the ad apter from the power outlet. 5. Remove the ad apter from the phone. Low batt ery indicator When the battery is low: • a warning tone sou nds , • the battery low me ssage displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone au tomatically turns off. Recharge your battery. Keys and display Buttons Fu ncti on Power • Press and hold to tu rn the device on or off. • Press and hold fo r mo re than 7 seconds to reset the dev ice if it has fatal errors or hang- ups, or freezes. • Press to lock or unlo ck the dev ice. The device goes i nto lock mode w hen the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to la unch Google application. Home • Press to return to the Home screen. • Press twice to launch S Vo ice a pplication. • Press and hold to open the list of recent applications. Back • Tap to retu rn to the previous screen. Volume • Press to adjust the device vo lume. Ov erv iew of me nu functions To access Menu m ode, pres s [SETTING] in ldle mode. T service ChatON Maps Call log Samsung Link Local Phone Gro up Play Navi gation Contacts S H ealth Down loads Messaging S Vo ice Op tica l Re ader Samsung Hub S Memo Messenger Samsung Apps S T ranslator Play Boo ks WatchON Email Play Movies & TV Came ra Shopp ing & wallet T nao Gallery T cloud App Guide Story Alb um hoppin T M embe rship DMB Me lOn Remote Care T sto re Chro me T world T LT E Pack Gma il 11st Mu sic Goog le SmartWallet Video Vo ice Sea rch NATE Internet YouTube Calc ulator Clock Ta lk Vo ice Rec order S Planner Goog le+ Dicti onary Sett ings Play Sto re My Files B tv m obile Pickat Basket Cyworld SmartT ouch Cy mera NateOn UC Dr opbox Samsung service V3 Mobile 2.0 Help Goog le Sett ings Sol ve probl ems Hel p and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section befo re contacti ng a service professional. When you switch on your p hone, the fol lowing messages may appear: “Inse rt USIM car d” • Be sure that the USI M card is correctly insta lle d. “Phone locked Enter password” • The automatic locking f uncti on has been e nabled. You must enter the phone¡ ̄s password before you can use the p hone. “Ent er PIN1” • You are usi ng yo ur phone for the first time. You must enter the PIN 1 supplied with the USI M card. • The PIN1 C heck featu re is enabled. Every time the phone is switc hed on, the PIN 1 has to be en tered. To disable th is f eatur e, use the PIN c heck me…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 27, 2014 FCC ID: A3LSMN9109W To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 26 th , 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMN9109W To whom it may concern: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 26, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMN9109W To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SM-N9109W FCC ID: A3LSMN9109W Label: Location: Top Back of device Label Bottom Phone: Label is placed inside of the battery compartment. While the battery co ver is installed when the unit is shipped from the factory, the battery is never installed prior to sa le, so the use r must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the use r. The label is permanently attach ed by acr ylic glue and not easily removed from the device.”

FCC ID:A3LSMN9109W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 58 0Y1408081662.A3L 08/11/14 - 08/20/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 08/11/14 - 08/20/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1408081662.A3L FCC ID: A3LSMN9109W APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-N9109W 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz< 0.10.400.40< 0.1 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.190.300.51 PCEUMTS 850826.40 - 846.60 MHz< 0.10.280.28< 0.1 PCEUMTS 19001852.4 - 1907.6 MHz0.220.350.65< 0.1 DTS2.4 GHz WLAN2412 - 2462 MHz0.170.140.14< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz< 0.10.12-1.000.21 NII5.2 GHz WLAN5180 - 5240 MHz0.110.15-1.000.33 NII5.3 GHz WLAN5260 - 5320 MHz< 0.10.13-1.000.27 NII5.5 GHz WLAN5500 - 5700 MHz< 0.10.10-1.000.16 DSS/DTSBluetooth2402 - 2480 MHzN/A 0.380.610.650.33 N/A Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMN9109W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 58 0Y1408081662.A3L 08/11/14 - 08/20/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ........................................................................................................................... 10 3 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 6 RF EXPOSURE LIMITS ................................................................................................................ 16 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 8 RF CONDUCTED POWERS ......................................................................................................... 21 9 SYSTEM VERIFICATION .............................................................................................................. 33 10 SAR DATA SUMMARY ................................................................................................................. 36 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 44 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 52 13 EQUIPMENT LIST ......................................................................................................................... 53 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 54 15 CONCLUSION ............................................................................................................................... 56 16 REFERENCES .............................................................................................................................. 57 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LSMN9109W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 58 0Y1408081662.A3L 08/11/14 - 08/20/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to deter…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN9109W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 14 0Y1408081666.A3L 8/12 - 8/27/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/12 - 8/27/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408081666.A3L FCC ID: A3LSMN9109W COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-N9109W EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 17.701 mW (12.48 dBm) Conducted (802.11a UNII Band 2A) 17.298 mW (12.38 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) Test Procedure(s): FCC 06-96 Appendix B This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMN9109W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 14 0Y1408081666.A3L 8/12 - 8/27/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................ 10 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 10 5.0 TEST RESULTS .................................................................................................................................... 11 6.0 CONCLUSION ....................................................................................................................................... 14 FCC ID: A3LSMN9109W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 14 0Y1408081666.A3L 8/12 - 8/27/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-N9109W FCC ID: A3LSMN9109W Test Device Serial No.: 707DFE Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 8/12 - 8/27/2014 TEST REPORT S/N: 0Y1408081666.A3L Test F…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN9109W FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 181 0Y1408081665.A3L 8/12 - 9/5/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/12 - 9/5/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408081665.A3L FCC ID: A3LSMN9109W APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-N9109W EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r04, KDB 644545 v01r02, KDB 662911 D01 v02r01 1205180 - 524017.45812.4216.67212.22 2A205260 - 532017.70112.4815.93712.02 2C205500 - 558016.90412.2817.29812.38 2C205660 - 570016.90412.2817.29812.38 1205180 - 524014.09311.4912.79111.0725.15014.01 2A205260 - 532013.74011.3811.91010.7624.64313.92 2C205500 - 558013.45911.2914.06011.4826.48714.23 2C205660 - 570013.45911.2914.06011.4826.48714.23 1205180 - 52409.5069.788.3979.2417.85212.52 2A205260 - 532010.06910.038.3719.2318.31312.63 2C205500 - 558010.86410.368.3989.2419.19912.83 2C205660 - 570010.86410.368.3989.2419.19912.83 1405190 - 523011.04110.4310.21210.0920.33313.08 2A405270 - 531010.59310.259.6079.8318.65312.71 2C405510 - 555011.19410.4910.78910.3321.02713.23 2C40567011.19410.4910.78910.3321.02713.23 1405190 - 52308.2609.177.6038.8115.86412.00 2A405270 - 53107.7808.918.0359.0515.81611.99 2C405510 - 55508.5119.307.7098.8716.00812.04 2C4056708.5119.307.7098.8716.00812.04 18052106.7928.325.8597.6812.02810.80 2A8052906.8238.346.4008.0612.89111.10 2C8055306.6378.227.0558.4912.99511.14 802.11a 802.11n 802.11ac 802.11n 802.11ac 802.11ac ModeUNII Band N/ A Channel Bandwidth (MHz) ANT1 Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) ANT2 Max. Power (mW) Max. Power (dBm) MIMO Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r04 and KDB 644545 v01r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n/ac FCC ID: A3LSMN9109W FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 181 0Y1408081665.A3L 8/12 - 9/5/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC ....................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN9109W FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 97 of 181 0Y1408081665.A3L 8/12 - 9/5/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.17 08/08/2014 6.7 Radiated Spurious Emission Measurements §15.407(b.1)(b.6) §15.205 §15.209 Test Overview and Limit All out of band radiated spurious emissions are measured with a spectrum analyzer connected to a receive antenna while the EUT is operating at its maximum power control level, as defined in KDB 789033 v01r04, and at the appropriate frequencies. All channels, modes (e.g. 802.11a, 802.11n (20MHz BW) and 802.11n (40MHz BW)), and modulations/data rates were investigated among all UNII bands. Only the radiated emissions of the configuration that produced the worst case emissions are reported in this section. All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table 6-26 per Section 15.209. Frequency Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 MHz 2400/F (kHz) 300 0.490 – 1.705 MHz 24000/F (kHz) 30 1.705 – 30.00 MHz 30 30 30.00 – 88.00 MHz 100 3 88.00 – 216.0 MHz 150 3 216.0 – 960.0 MHz 200 3 Above 960.0 MHz 500 3 Table 6-26. Radiated Limits Test Procedures Used KDB 789033 v01r04 – Section H Test Settings Average Measurements above 1GHz (Method AD) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = power average (RMS) 5. Number of measurement points = 1001 (Number of points must be > 2 x span/RBW) 6. Averaging type = power (RMS) 7. Sweep time = auto couple 8. Trace was averaged over 100…

Text truncated - open the document above for the full version.
