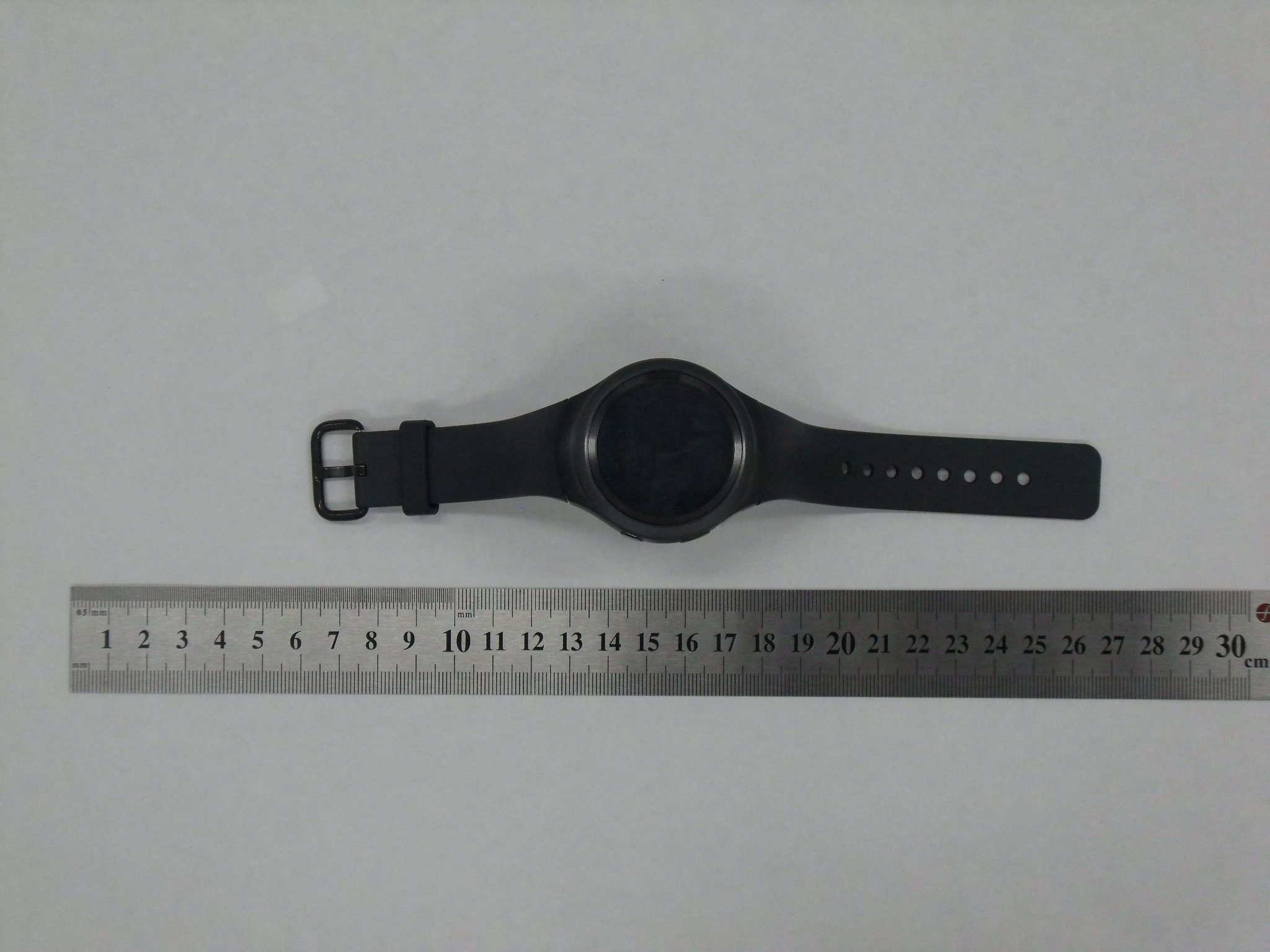

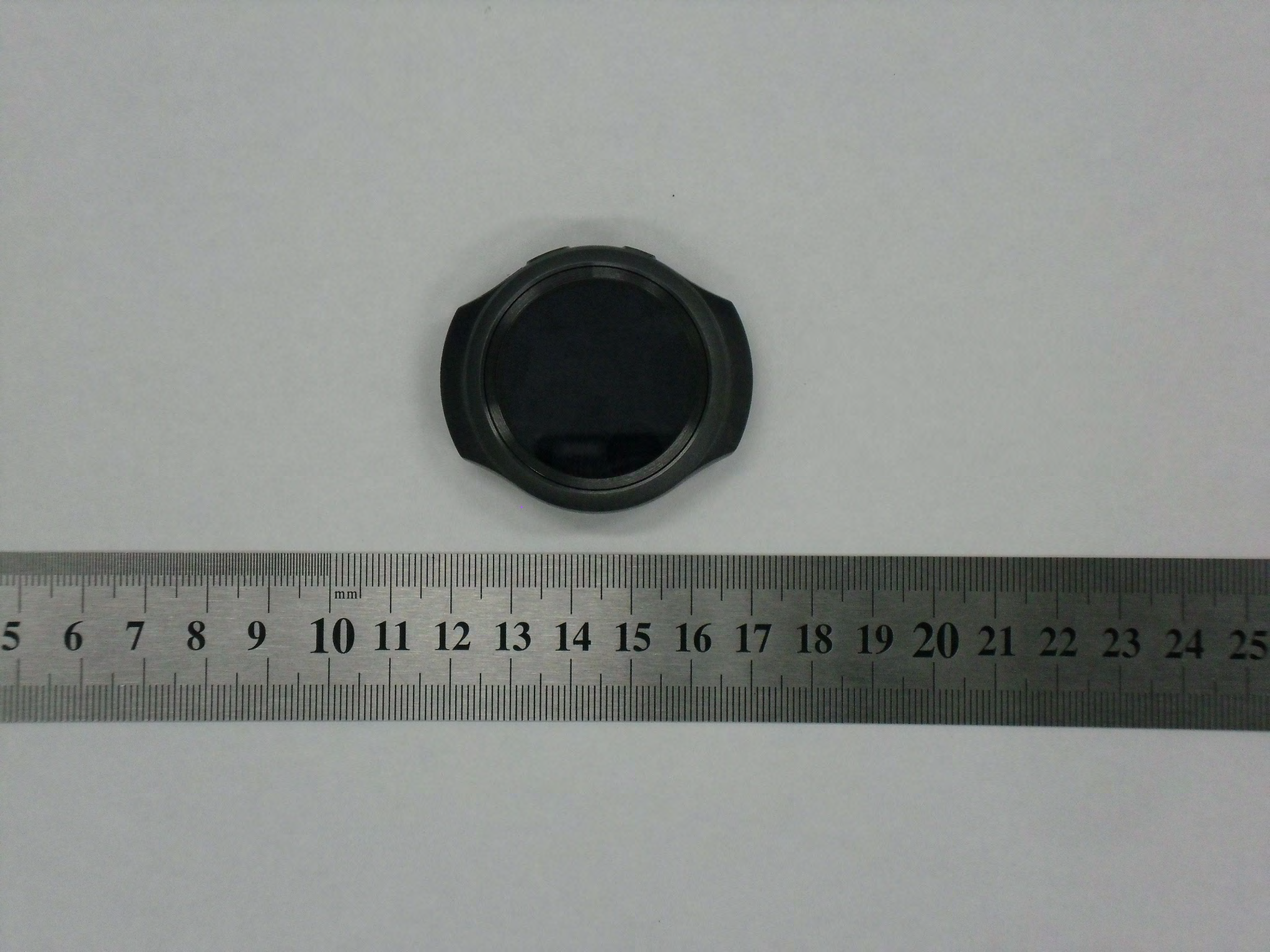

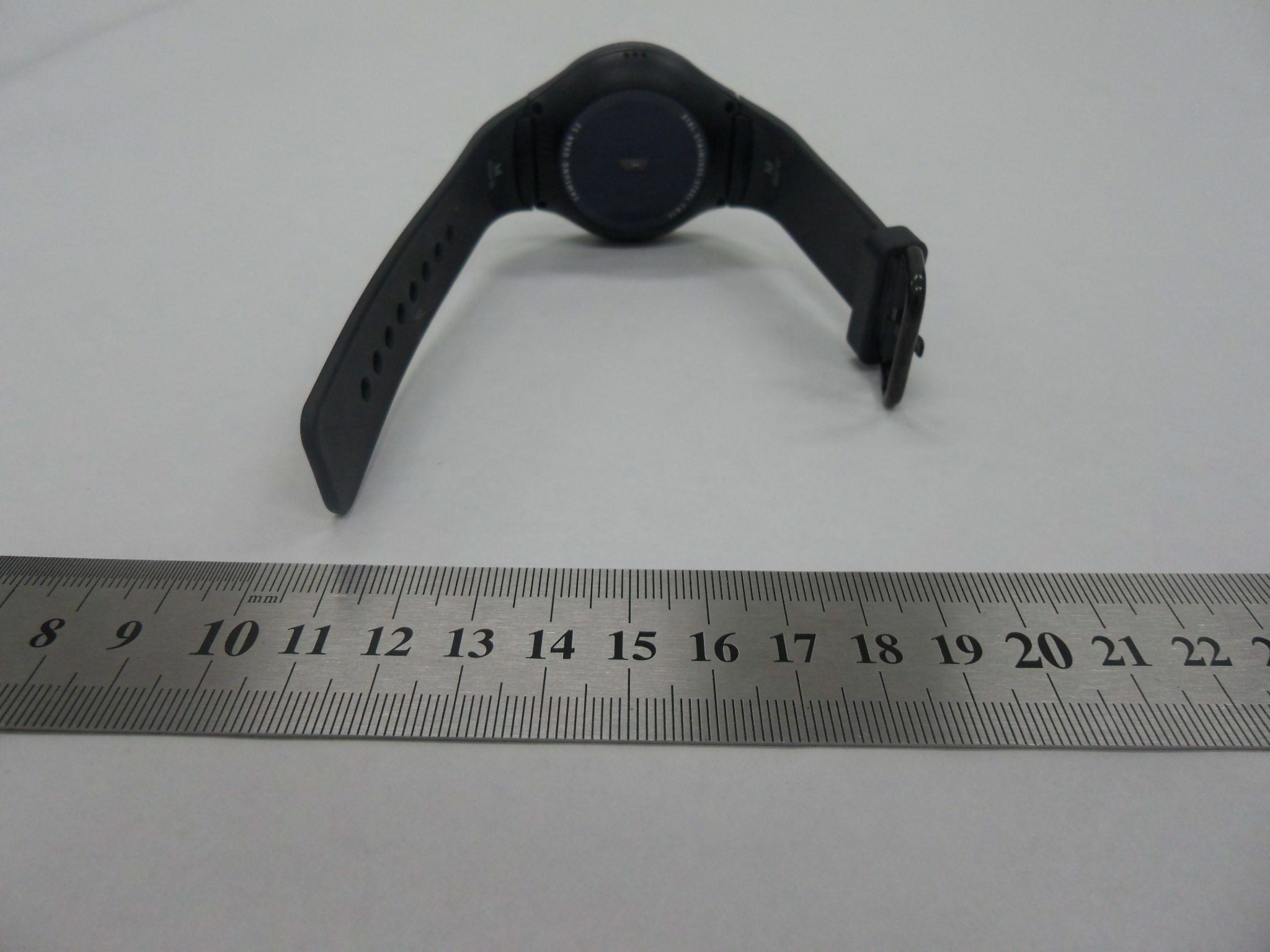

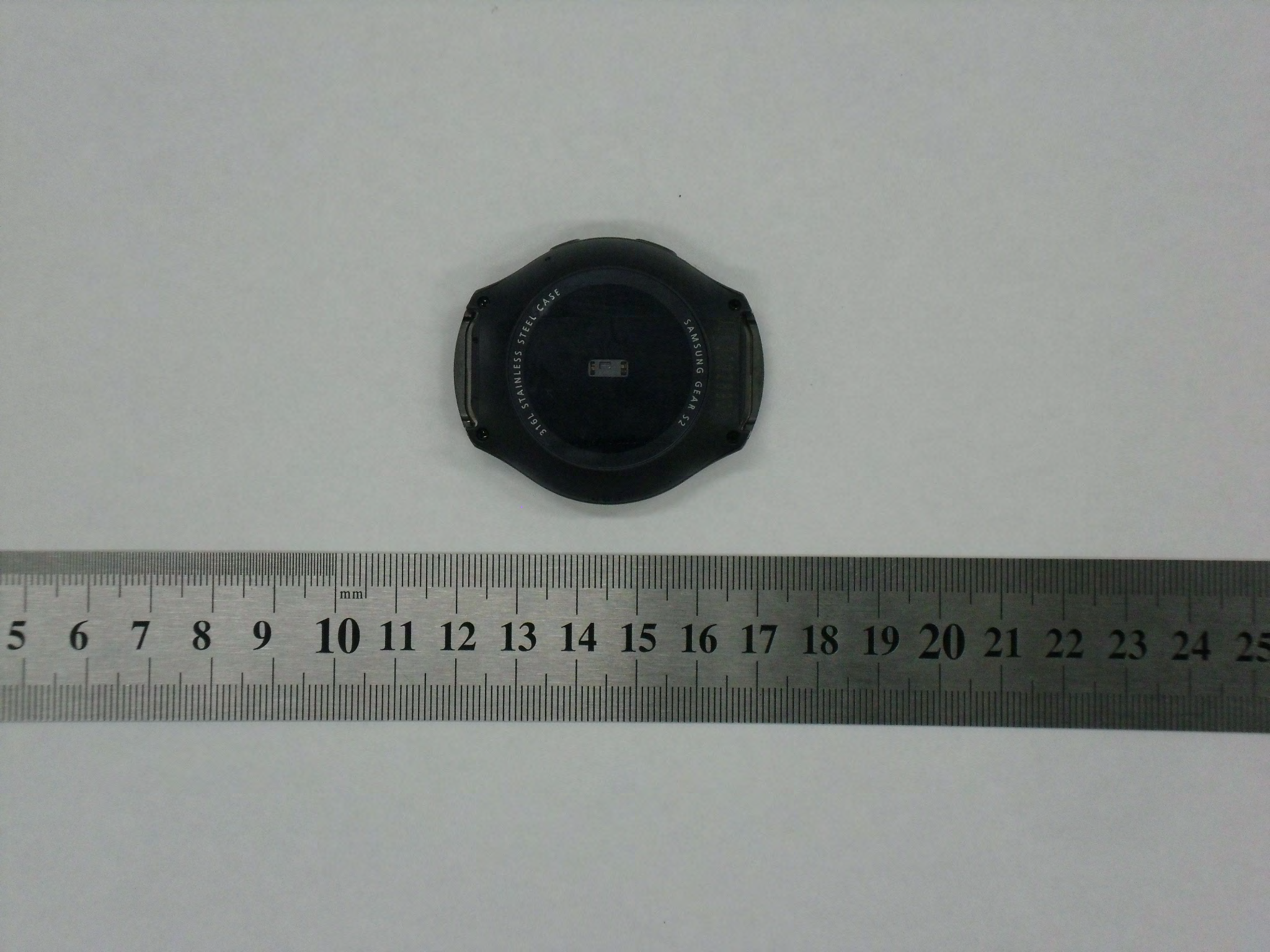

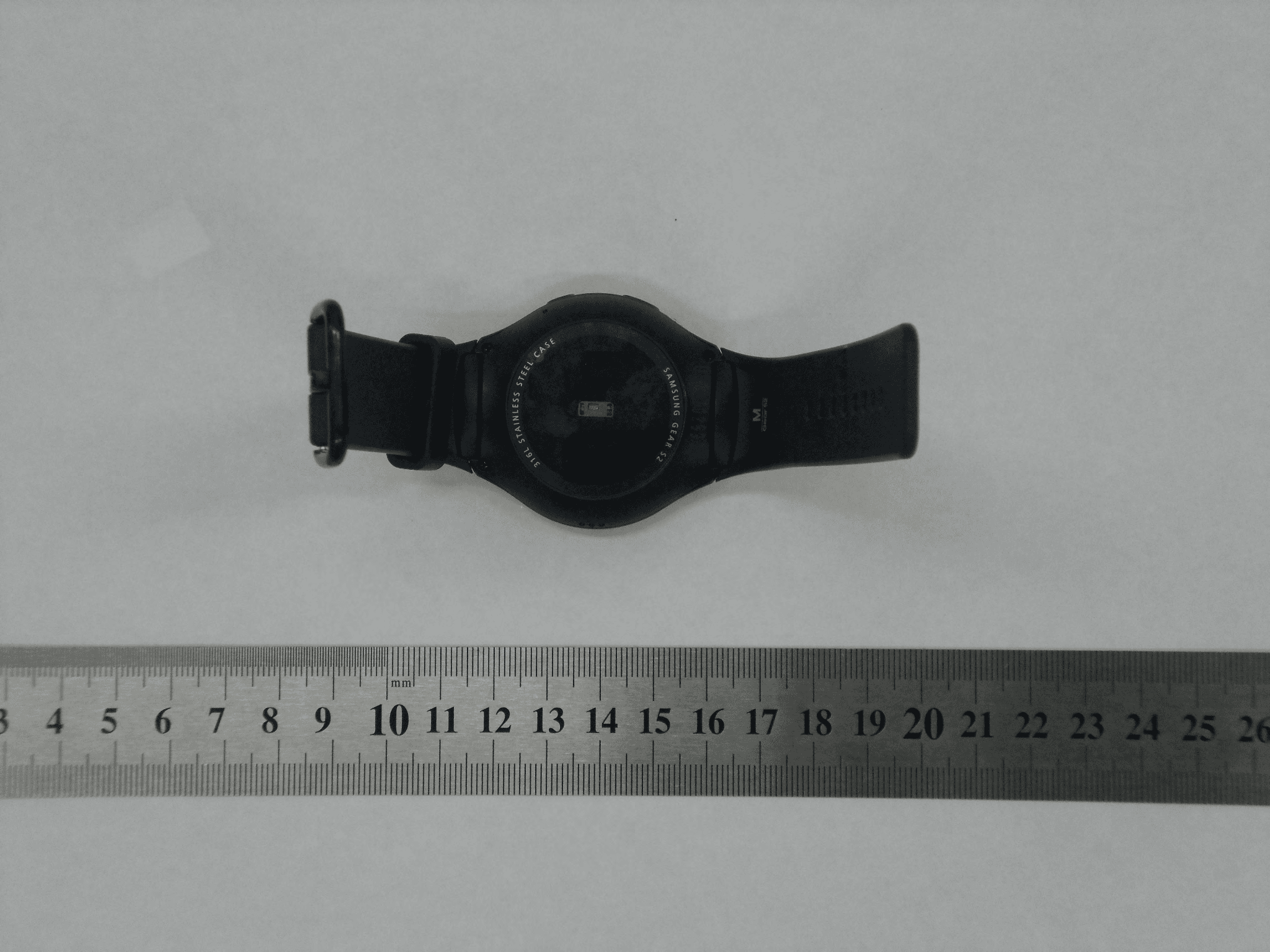

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA Watch + Bluetooth/BLE and DTS b/g/n FCC ID: A3LSMR730G Model Name: SM-R730A and SM-R730T Report Number: 15K21697-S1 Issue Date: 9/8/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 16677, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K21697-S1 Issue Date: 9/8/2015 Page 2 of 31 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Revision History Rev. Date Revisions Revised By -- 9/8/2015 Initial Issue Justin Park Report No.: 15K21697-S1 Issue Date: 9/8/2015 Page 3 of 31 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 7. RF Exposure Conditions (Test Configurations) ...................................................................... 13 8. Dielectric Property Measurements & System Check .............................................................. 14 8.1. Dielectric Property Measurements ........................................................................................... 14 8.2. System Check.......................................................................................................................... 16 9. Conducted Output Power Measurements ................................................................................ 18 9.1. GSM ........................................................................................................................................ 18 9.2. W-CDMA ................................................................................................................................. 20 9.3. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 24 9.4. Bluetooth ................................................................................................................................. 24 10. Measured and Reported (Scaled) SAR Results ....................................................................... 25 10.1. GSM850 ............................................................................................................................... 26 10.2. GSM1900 ............................................................................................................................. 26 10.3. W-CDMA Band II .................................................................................................................. 26 10.4. W-CDMA Band V ................................................................................................................. 26 10.5. Wi-Fi (DTS Band) ................................................................................................................. 27 10.6. Bluetooth .............................................................................................................................. 27 11. SAR Measurement Variability ................................................................................................... 28 12. Simultaneous Transmission SAR Analysis ............................................................................. 29 12.1. Sum of the SAR for WWAN & Wi-Fi & BT in Next-to-mouse ................................................. 30 12.2. Sum of the SAR for WWAN & Wi-Fi & BT in Extremity ......................................................... 30 Report No.: 15K21697-S1 Issue Date: 9/8/2015 Page 4 of 31 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Appendixes .......................................................................................................................................... 31 A_15K21697-S1 SAR Photos & Ant. Locations .................................................................................. 31 B_15K21697-S1 SAR Highest Test Plots ........................................................................................... 31 C_15K21697-S1 SAR System Check Plots ....................................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-05 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.896 S/m; ε r = 40.966; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(9.45, 9.45, 9.45); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 Next-to-Mouth/GPRS 2 slots_Ch 190/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0846 W/kg Next-to-Mouth/GPRS 2 slots_Ch 190/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.40 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.231 W/kg SAR(1 g) = 0.082 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.121 W/kg 0 dB = 0.121 W/kg = -9.17 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-05 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.999 S/m; ε r = 53.346; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(9.28, 9.28, 9.28); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1166 Extremity/GPRS 2 slots_ch 190/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.648 W/kg Extremity/GPRS 2 slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.96 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.559 W/kg; SAR(10 g) = 0.302 W/kg Maximum value of SAR (measured) = 0.736 W/kg 0 dB = 0.736 W/kg = -1.33 dBW/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-03 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.413 S/m; ε r = 39.913; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.78, 7.78, 7.78); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:1847 Next-to-Mouth/GPRS 2 slots_Ch 661/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.426 W/kg Next-to-Mouth/GPRS 2 slots_Ch 661/Zoom Scan 2 (6x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.70 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.587 W/kg SAR(1 g) = 0.399 W/kg; SAR(10 g) = 0.221 W/kg Maximum value of SAR (measured) = 0.521 W/kg 0 dB = 0.521 W/kg = -2.83 dBW/kg Plot No. 4 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-04 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.5 S/m; ε r = 51.422; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.44, 7.44, 7.44); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1166 Extremity/GPRS 2 slots_ch 661/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.14 W/kg Extremity/GPRS 2 slots_ch 661/Zoom Scan (6x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.18 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.87 W/kg SAR(1 g) = 0.964 W/kg; SAR(10 g) = 0.556 W/kg Maximum value of SAR (measured) = 1.27 W/kg 0 dB = 1.27 W/kg = 1.04 dBW/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-02 WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.413 S/m; ε r = 39.913; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.78, 7.78, 7.78); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:1847 Next-to-Mouth/Rel.99 ch 9400/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.580 W/kg Next-to-Mouth/Rel.99 ch 9400/Zoom Scan (8x11x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.63 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.793 W/kg SAR(1 g) = 0.493 W/kg; SAR(10 g) = 0.266 W/kg Maximum value of SAR (measured) = 0.613 W/kg 0 dB = 0.613 W/kg = -2.13 dBW/kg Plot No. 6 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-04 WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.5 S/m; ε r = 51.422; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-02 20150902_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.014 S/m; ε r = 50.357; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.12, 7.12, 7.12); Calibrated: 2015-07-23; - Sensor-Surface: 4mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (20deg probe tilt); Type: QDOVA002AA; Serial: TP:2005 Body/Pin=100 mW 2 2 2/Area Scan (9x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.69 W/kg Body/Pin=100 mW 2 2 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.94 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.36 W/kg; SAR(10 g) = 2.47 W/kg Maximum value of SAR (measured) = 7.65 W/kg 0 dB = 7.65 W/kg = 8.84 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-02 20150902_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2 2 2/Area Scan (9x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.69 W/kg Body/Pin=100 mW 2 2 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.94 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.36 W/kg; SAR(10 g) = 2.47 W/kg Maximum value of SAR (measured) = 7.65 W/kg Body/Pin=100 mW 2 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.05 W/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-04 20150904_SystemPerformanceCheck-D1900V2 SN 5d199 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.529 S/m; ε r = 51.37; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.44, 7.44, 7.44); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1166 Body/Pin=100 mW 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.39 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.39 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 6.85 W/kg SAR(1 g) = 3.83 W/kg; SAR(10 g) = 2.01 W/kg Maximum value of SAR (measured) = 5.47 W/kg 0 dB = 5.47 W/kg = 7.38 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-04 20150904_SystemPerformanceCheck-D1900V2 SN 5d199 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.39 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.39 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 6.85 W/kg SAR(1 g) = 3.83 W/kg; SAR(10 g) = 2.01 W/kg Maximum value of SAR (measured) = 5.47 W/kg Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.08 W/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-04 20150904_SystemPerformanceCheck-D835V2 SN 4d159 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.894 S/m; ε r = 40.985; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(9.45, 9.45, 9.45); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 Head/Pin=100 mW 2 2 2/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.25 W/kg Head/Pin=100 mW 2 2 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 38.02 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.992 W/kg; SAR(10 g) = 0.655 W/kg 0 dB = 1.25 W/kg = 0.97 dBW/kg Plot No. 6 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-04 20150904_SystemPerformanceCheck-D835V2 SN 4d159 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW 2 2 2/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.25 W/kg Head/Pin=100 mW 2 2 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 38.02 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.992 W/kg; SAR(10 g) = 0.655 W/kg Head/Pin=100 mW 2 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.24 W/kg Plot No. 7 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-01 20150901_SystemPerformanceCheck_D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.856 S/m; ε r = 38.008; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7313; ConvF(7.07, 7.07, 7.07); Calibrated: 2015-07-23; - Se…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Fre…
